*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112829 |

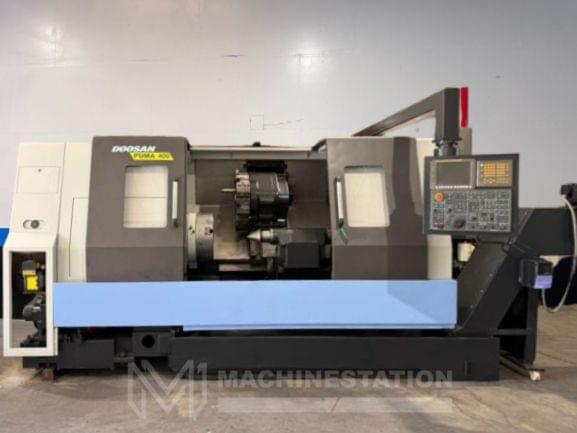

| Make: | Doosan |
| Model: | Puma 400C |
| Year: | 2012 |
| Condition: | Used – Good |
| Equipped With: |
|---|
| Doosan-Fanuc i-series CNC Control |
| Heavy Duty Box Way Construction |
| 18.5″ SMW Autoblock 3-Jaw Pneumatic Power Chuck |
| 7.5″ Big Bore A1-15 Spindle |
| 12 Station Automatic Turret |
| Tailstock |
| PCMCIA Card Interface |
| Coolant System |
| Chip Conveyor |
| Specifications: |
|---|
| Max Turning Diameter: 21.65″ |
| Max Turning Length: 40.31″ |
| Swing Over Bed: 30.71″ |
| Swing Over Saddle: 23.22″ |
| Max Bar Capacity: 7.1″ |
| Travel: |
|---|
| X Axis Travel: 14.25″ |
| Z Axis Travel: 43.50″ |
| Rapid Traverse X Axis: 630 IPM |
| Rapid Traverse Z Axis: 787 IPM |
| Spindle: |
|---|
| Spindle Nose: A1-15 |
| Spindle Bore: 7.5″ |
| Spindle Speed: 1500 RPM |
| Spindle Motor: 50 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| OD Tool Size: 1.25″ x 1.25″ |
| Boring Bar Diameter: 2.36″ |
| Tool Holders Type: BMT |
| Tailstock: |
|---|
| Tailstock Taper: MT-6 |
| Tailstock Quill Dia.: 4.72″ |
| Tailstock Quill Travel: 4.72″ |
| General: |
|---|
| Power: 200v – 220v / 3-Phase / 53.1 kva / 50/60 Hz |
| Overall Dimensions: 166″ x 86″ x 91″ High Approx. |
| Weight: 19,950 lbs Approx. |
