*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

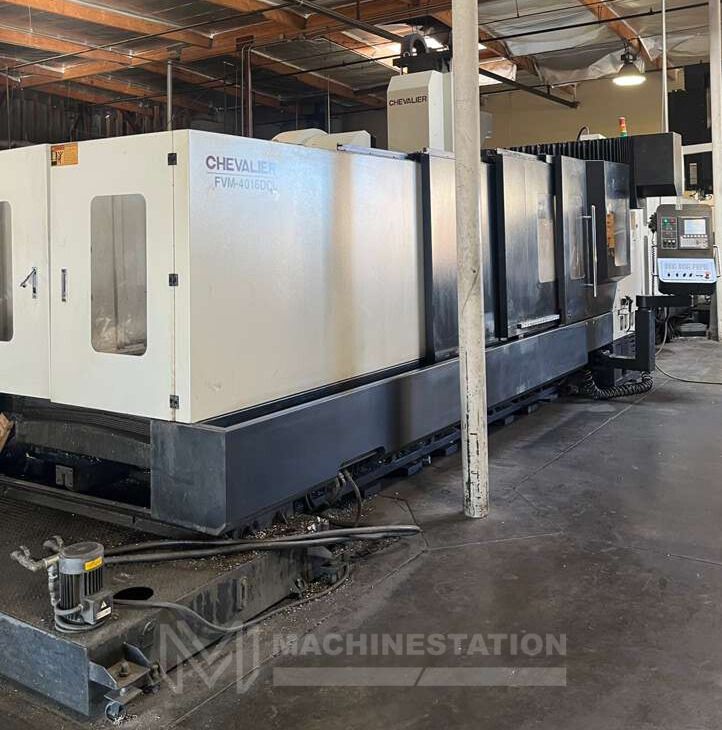

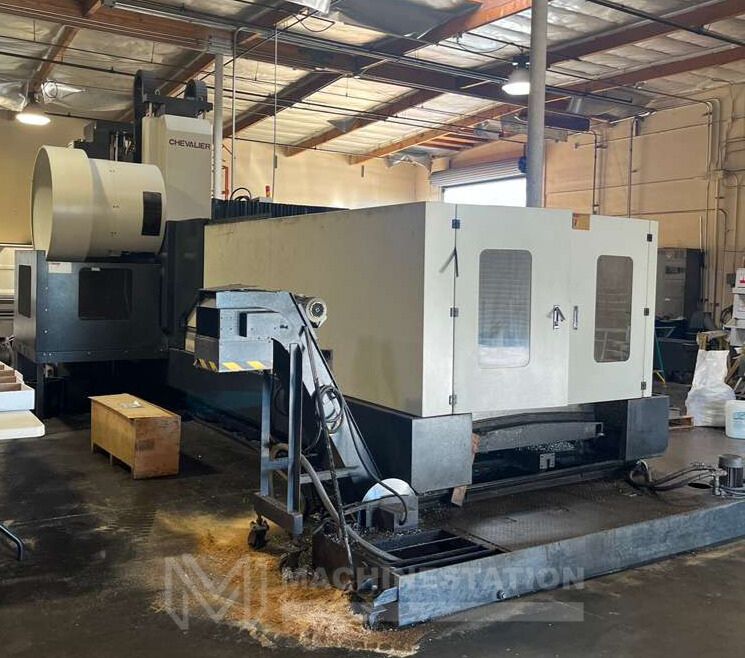

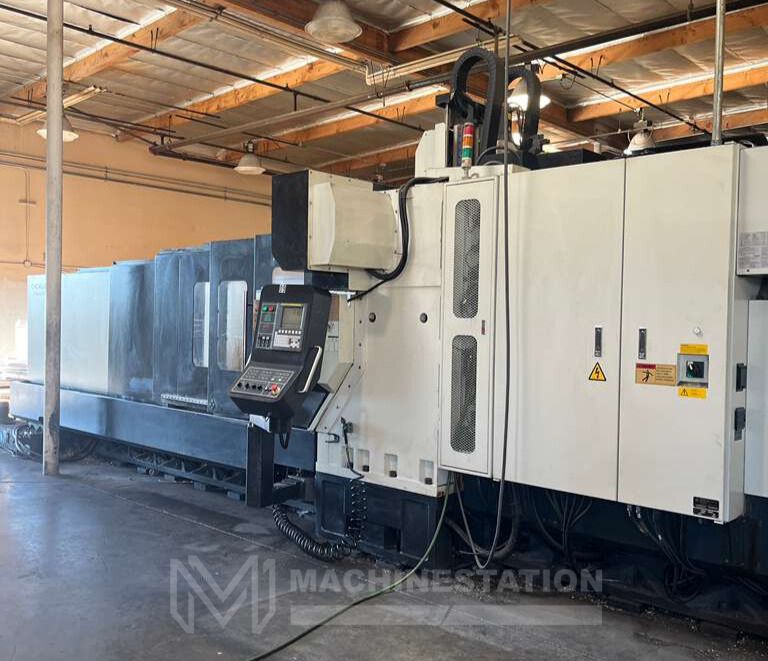

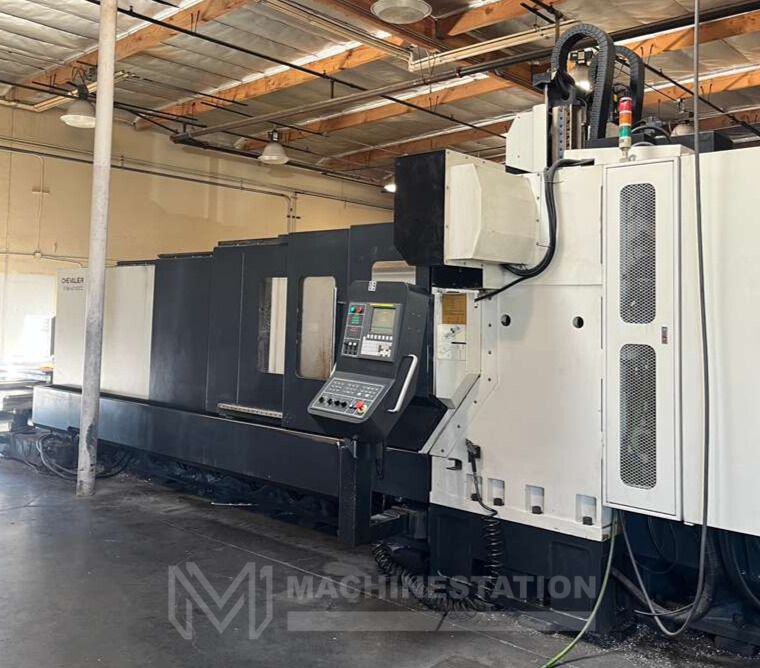

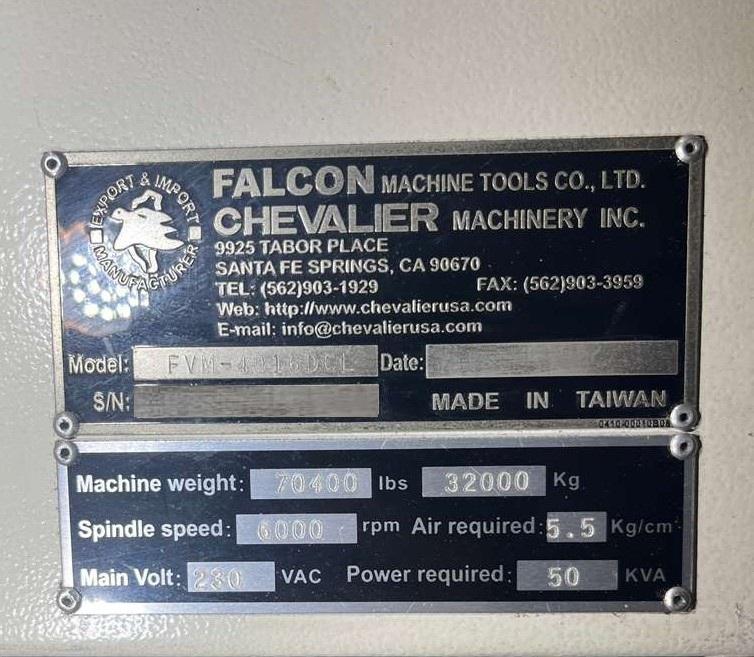

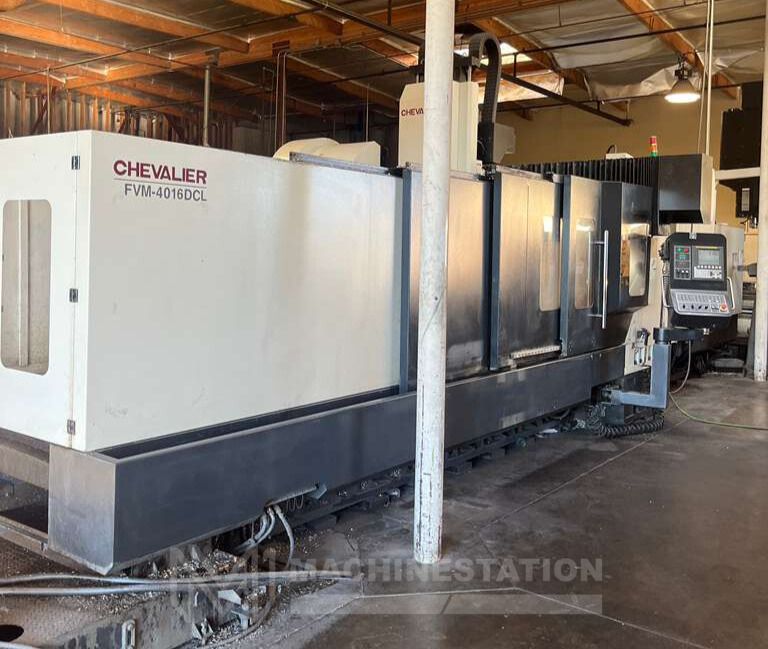

| Make: | Chevalier |
| Model: | FVM-4016DCL |
| Year: | 2013 |
| Condition: | Used – Good |
| Equipped With: |
|---|

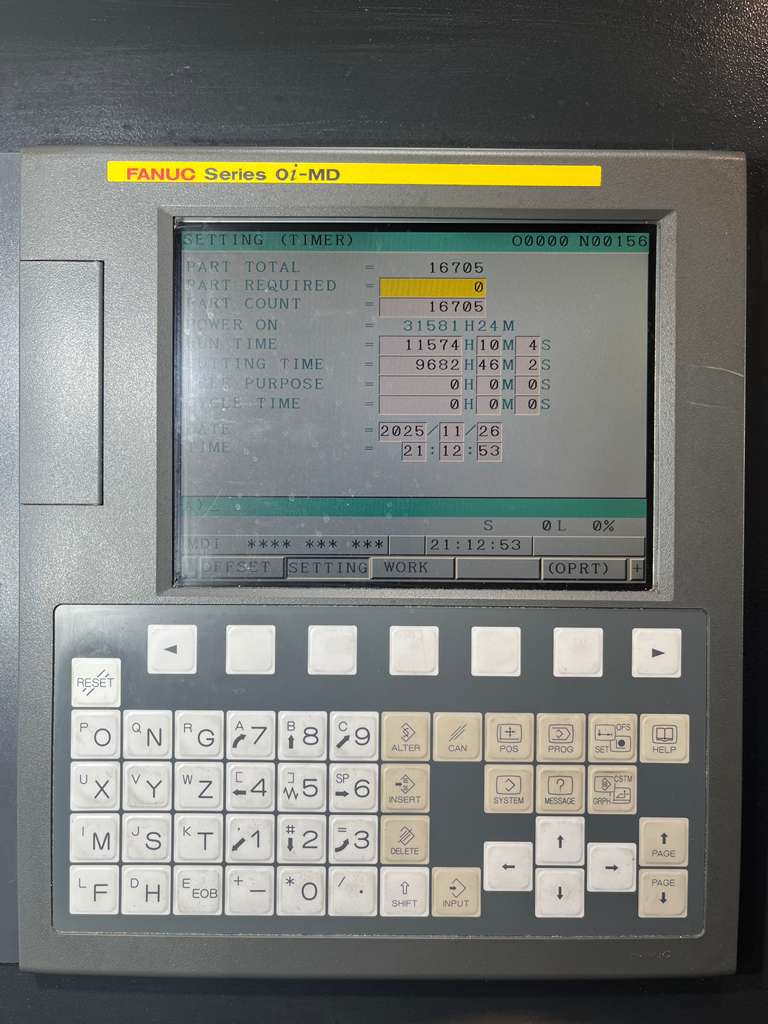

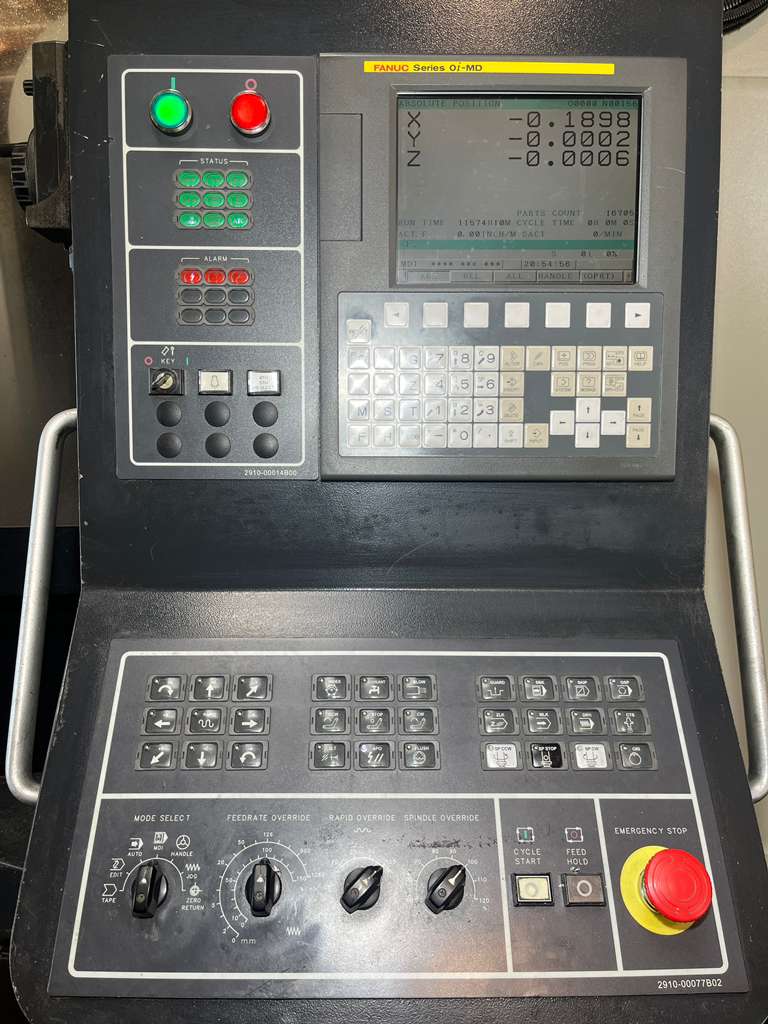

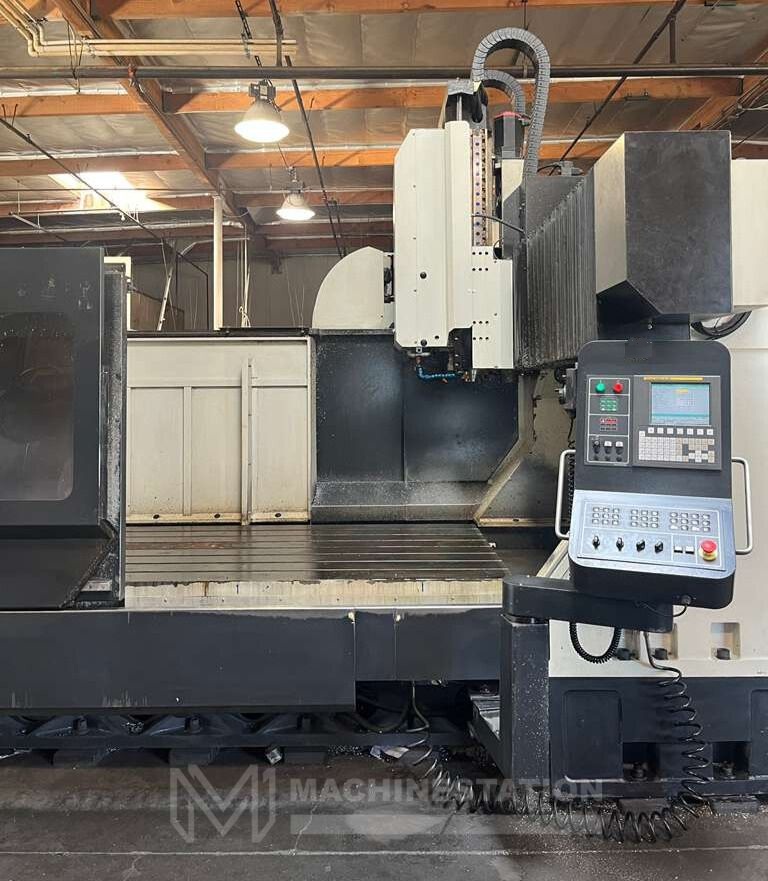

| Fanuc Oi-MD CNC Control |
| 161.4″ X 57″ Table |
| CAT-50 Taper Gear Head 6000 RPM Spindle |

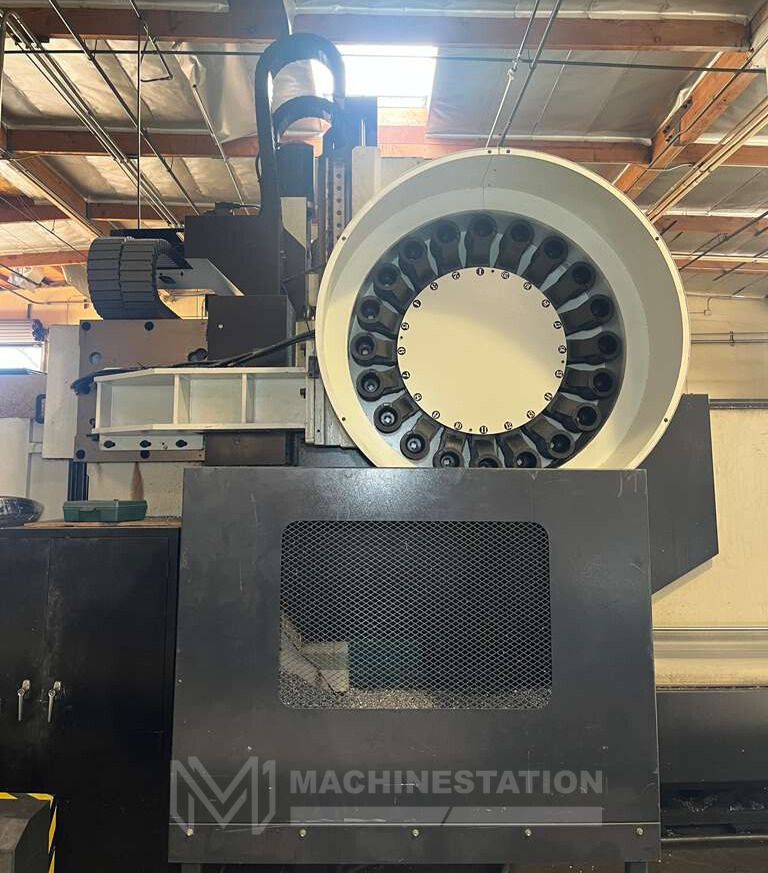

| 20 Station Side Mount Tool Changer |
| Powerful 30 HP High Torque Spindle Motor |

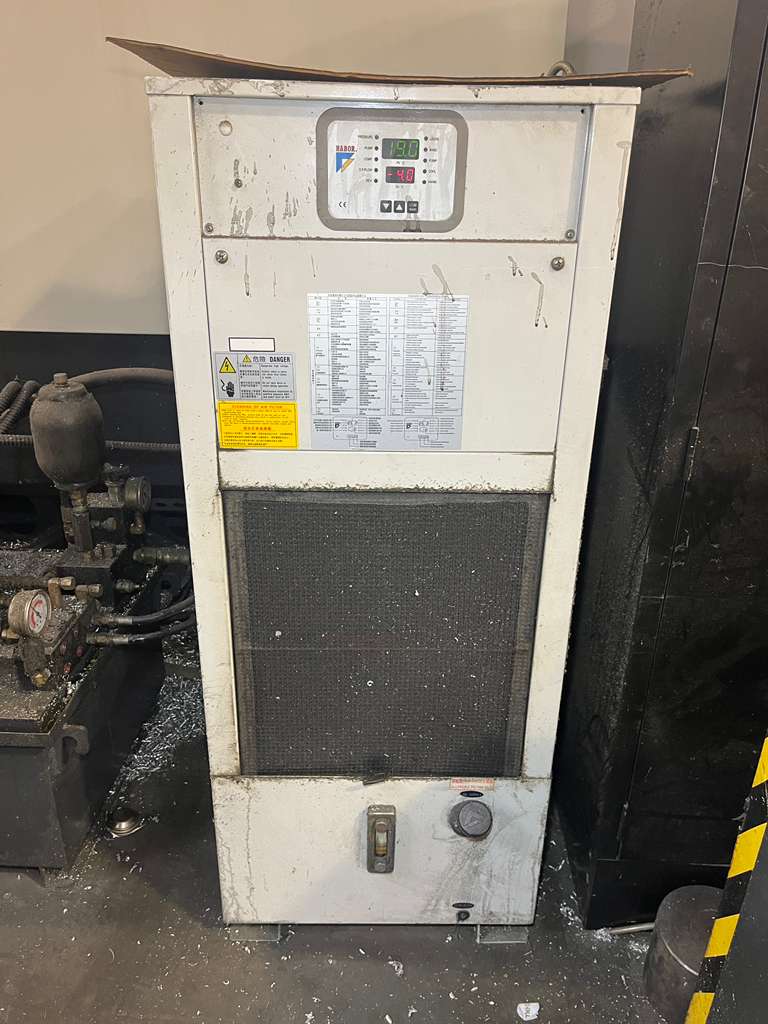

| Spindle Chiller Unit |
| PCMCIA Card Slot |
| Rigid Tapping |
| Coolant System |

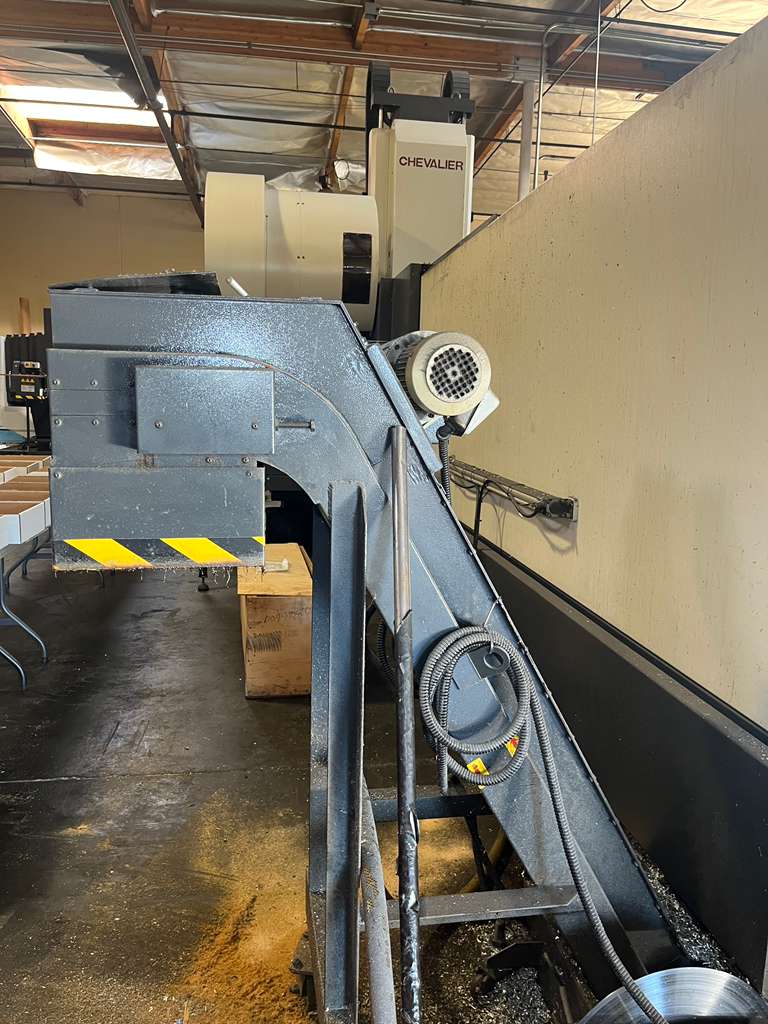

| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 161.4″ |
| Y-Axis: 59.0″ |
| Z-Axis: 26.7″ |
| Distance Between Columns: 66.0″ |
| Spindle Nose to Table (Min.- Max.): 7.87″- 34.60″ |
| Rapid Feedrate X Y & Z: 590 IPM |
| Cutting Feedrate: .04″ – 276″ IPM |

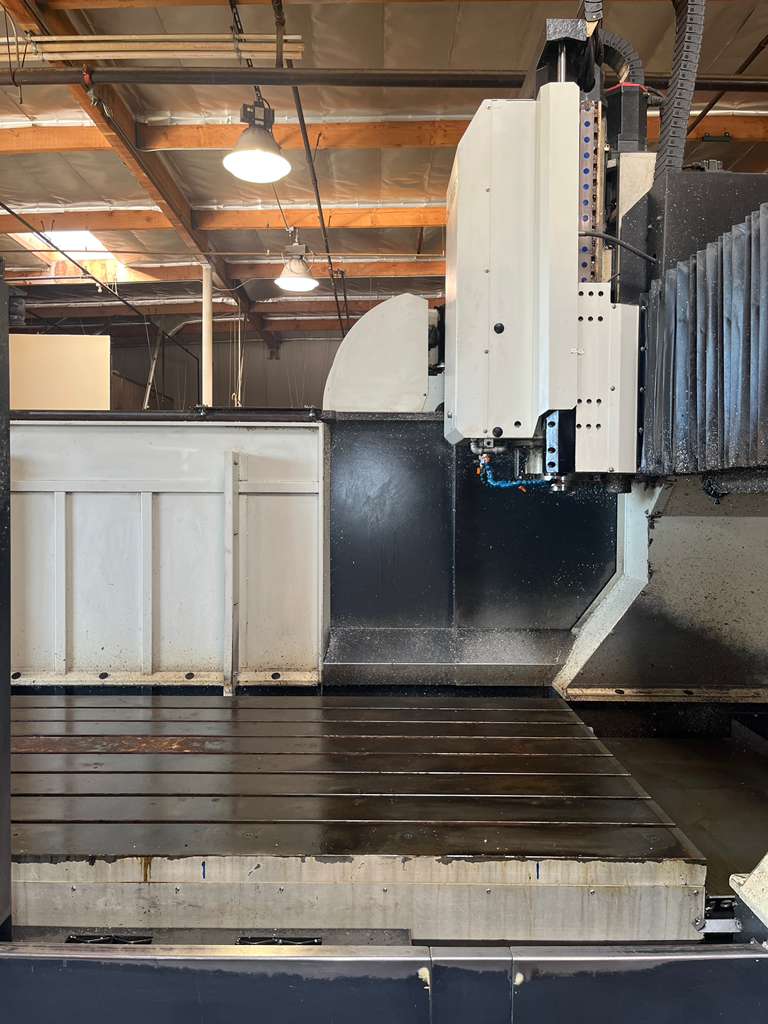

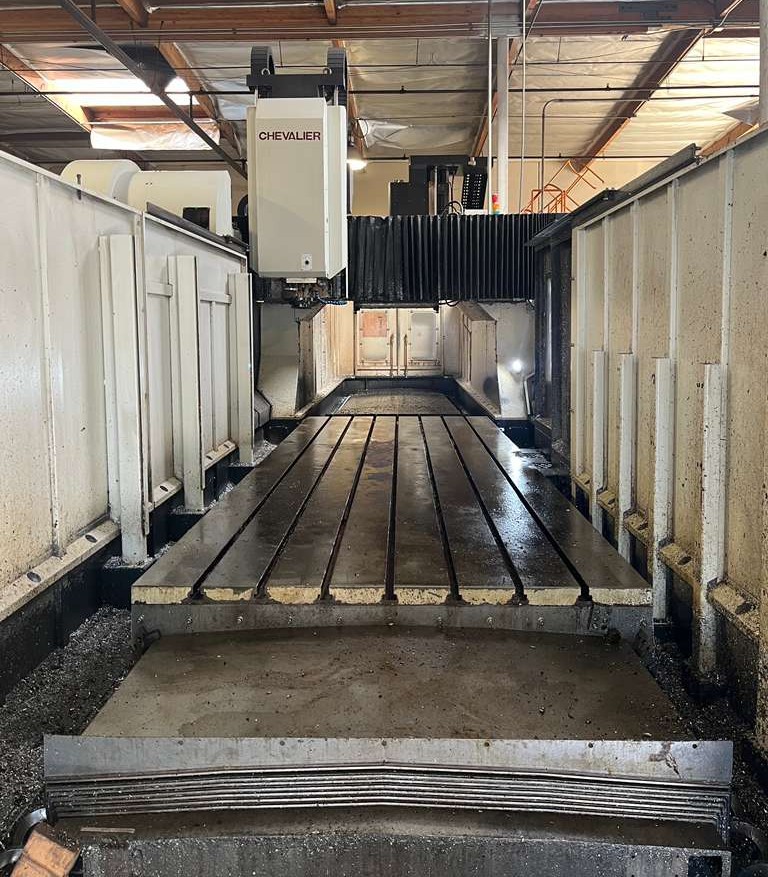

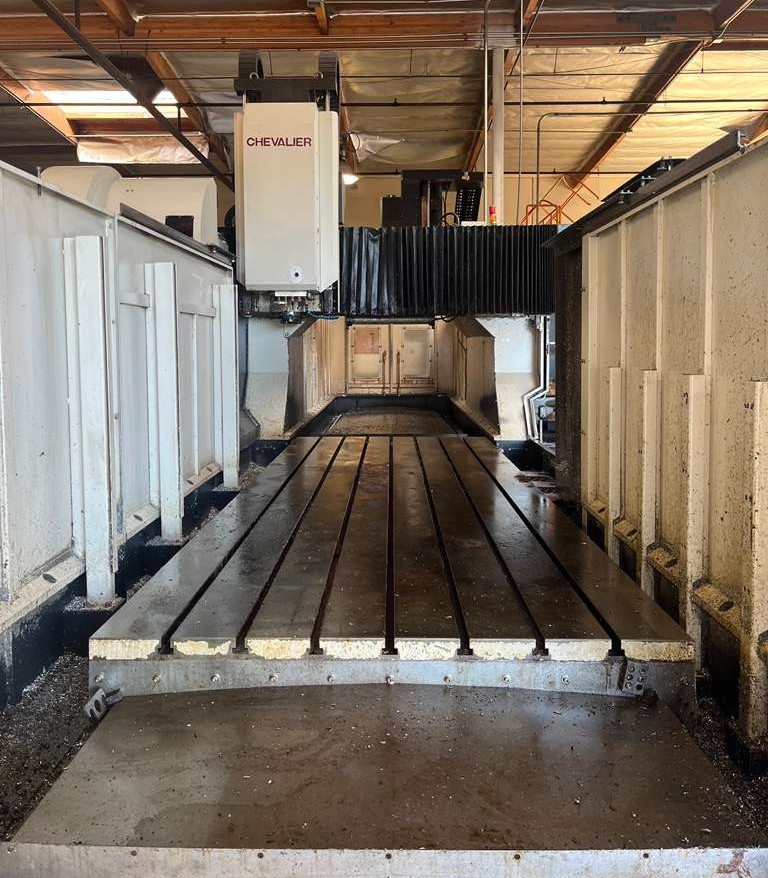

| Table: |
|---|
| Length: 161.4″ |
| Width: 57.0″ |
| T-Slot: 0.87″ Wide x 7.08 x 0.27″ |
| Max Weight on Table: 17600 lbs |

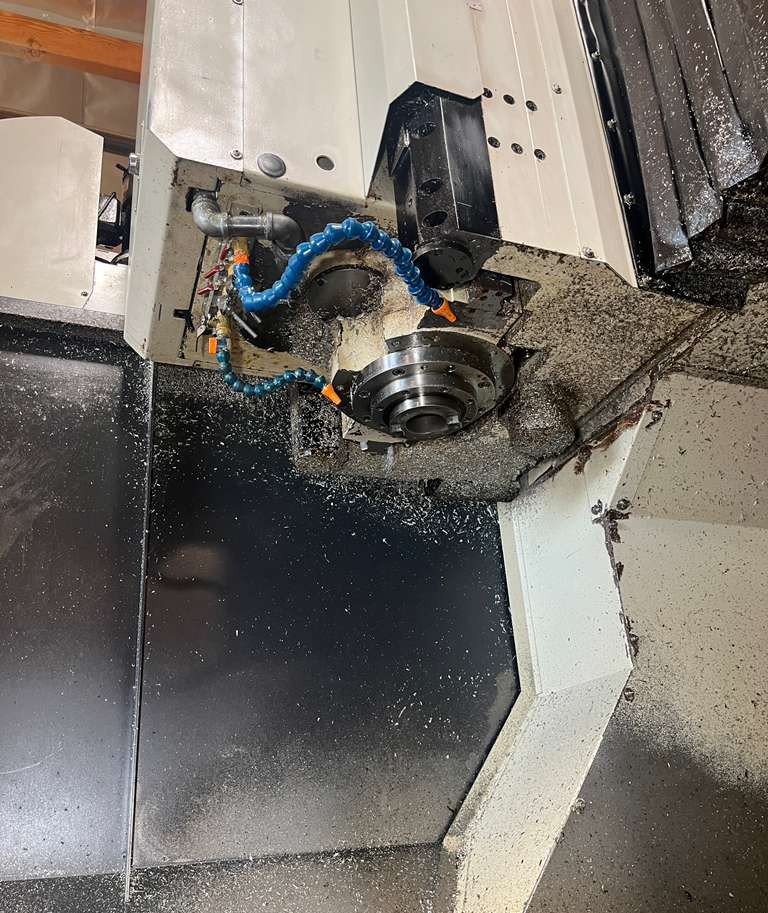

| Spindle: |
|---|
| Taper Size: CAT-50 |
| Spindle Speed (Gear Head): 6,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Tool Magazine Capacity: 20 Tools |
| Max Tool Diameter (Adjacent Tools): Ø4.92″ |
| Max Tool Diameter (No Adjacent Tools): Ø7.87″ |
| Max Tool Length: 15.7″ |
| Max Tool Weight: 33 lbs |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 230v / 66FLA / 3-Phase 50 Kva |
| Overall Shipping Dimensions: 470″ x 178.5″ x 160″ High |
| Weight: 70400 lbs. |
