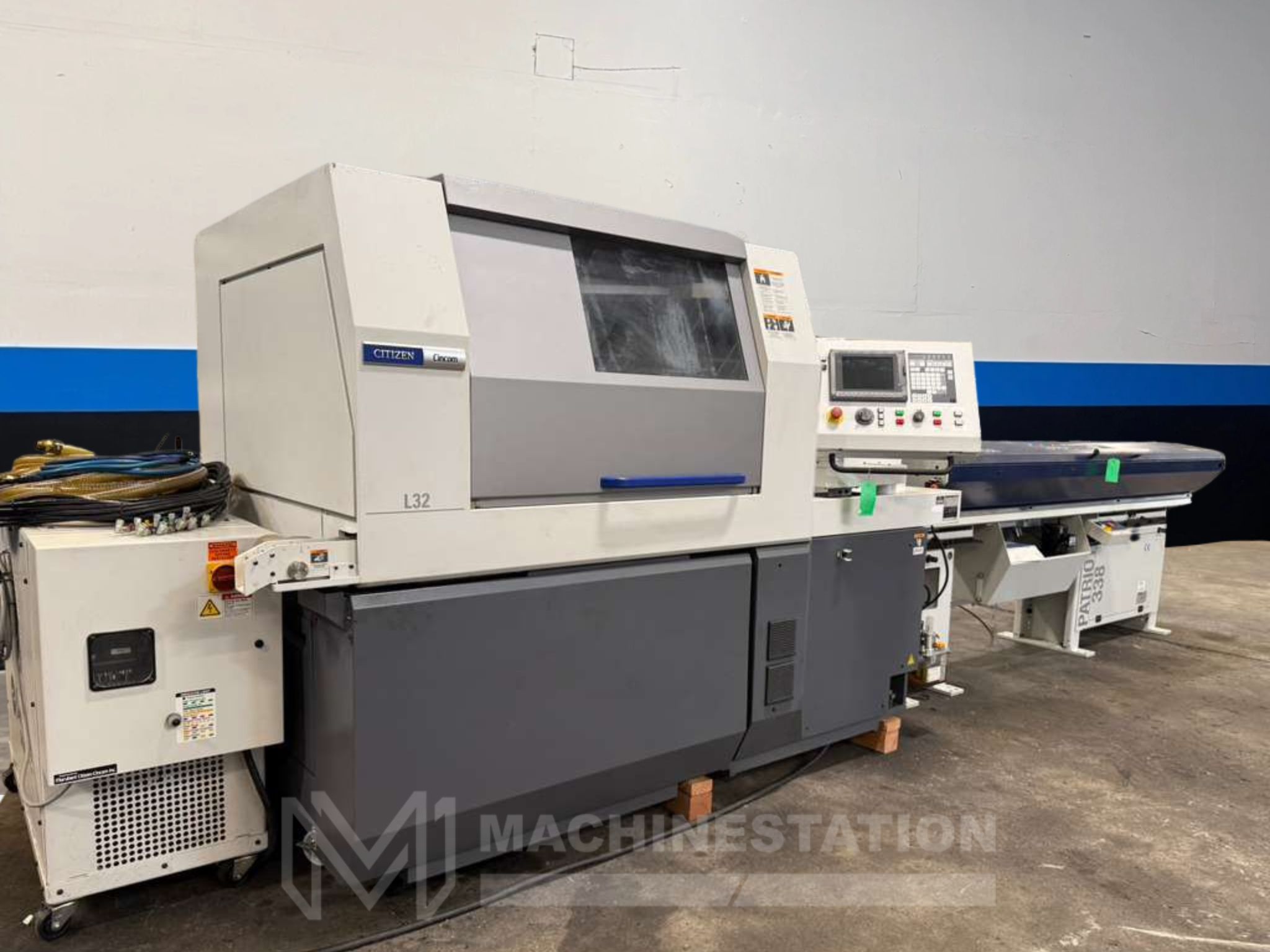

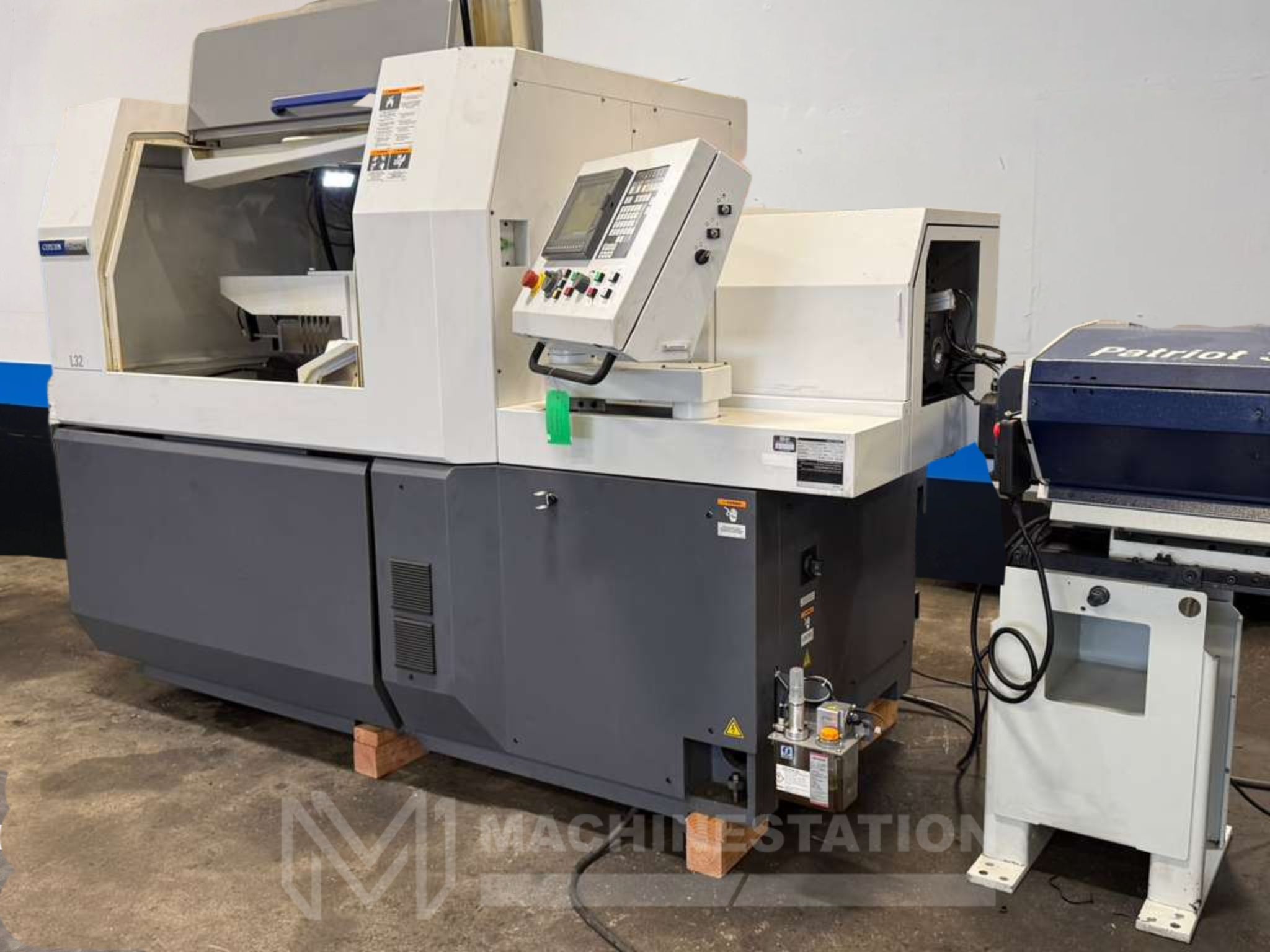

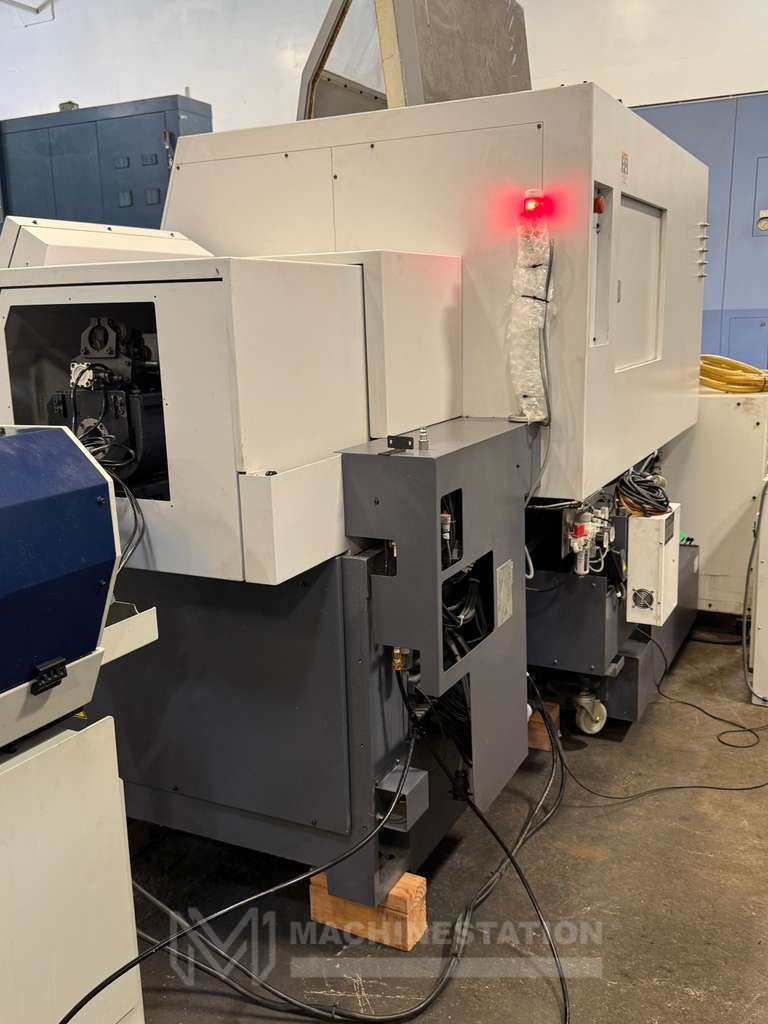

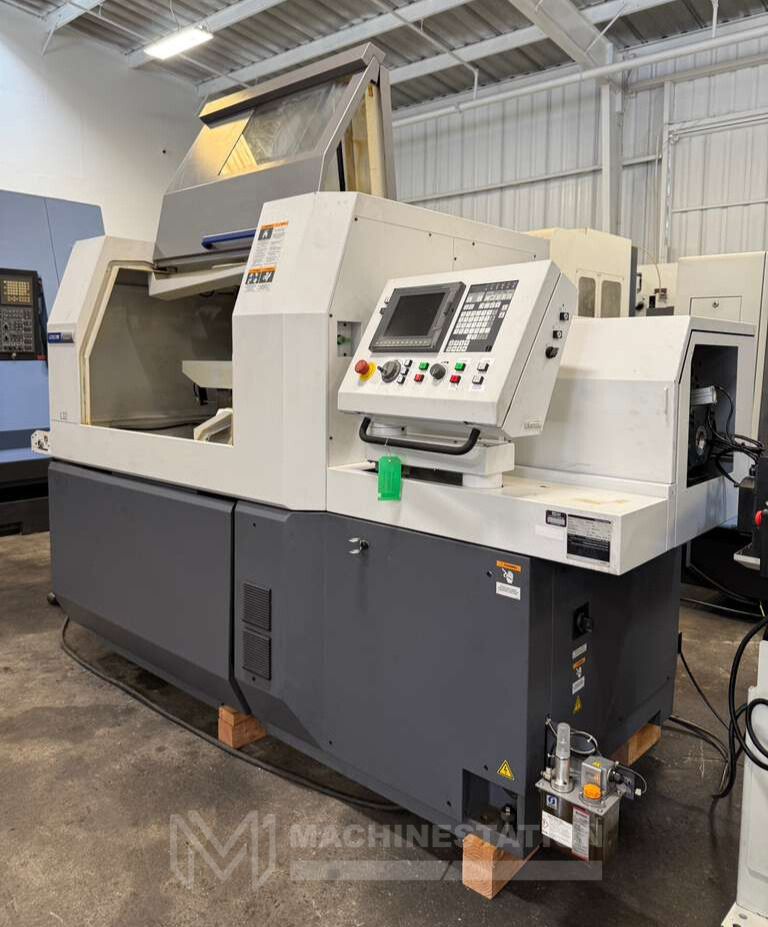

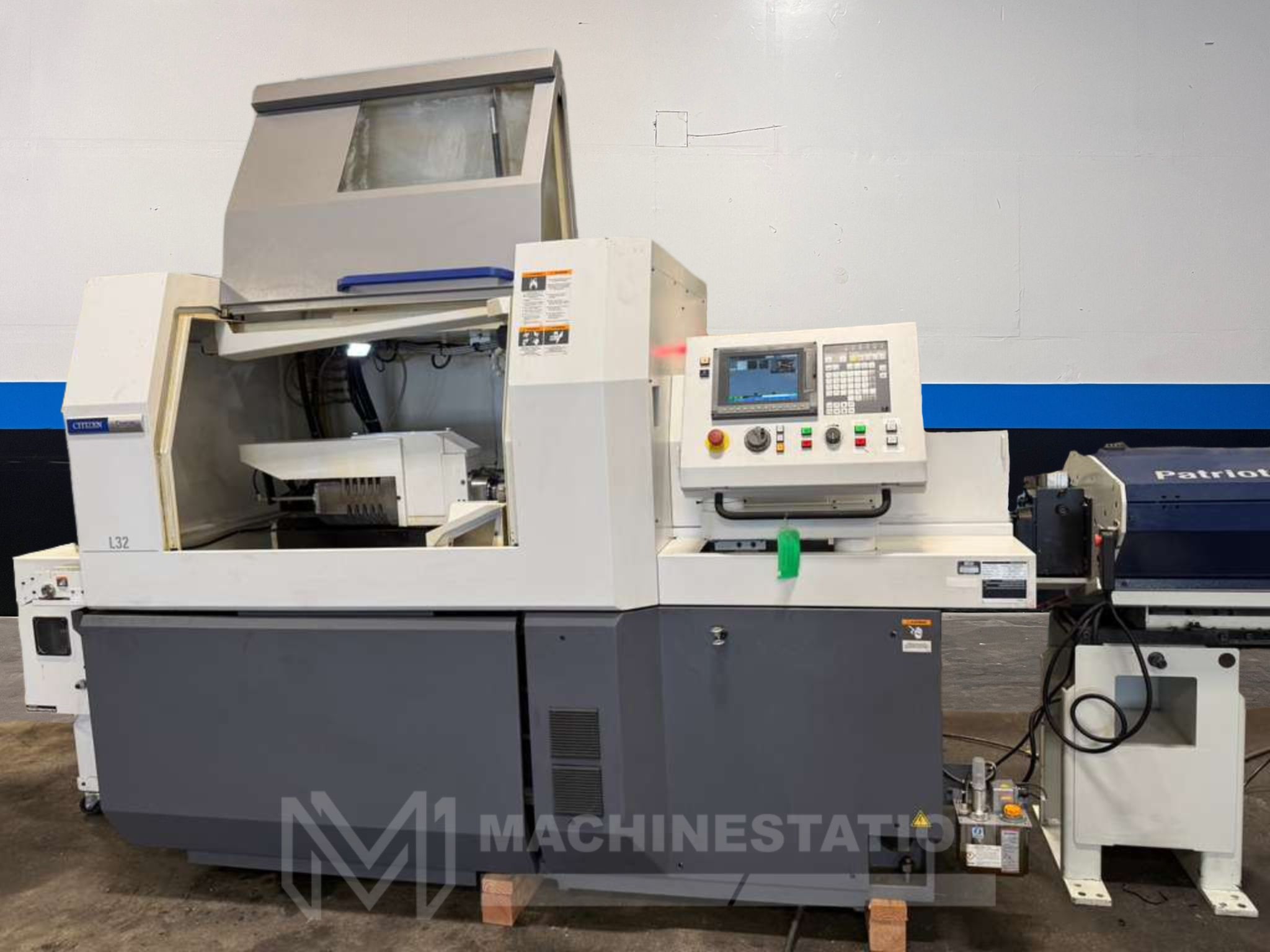

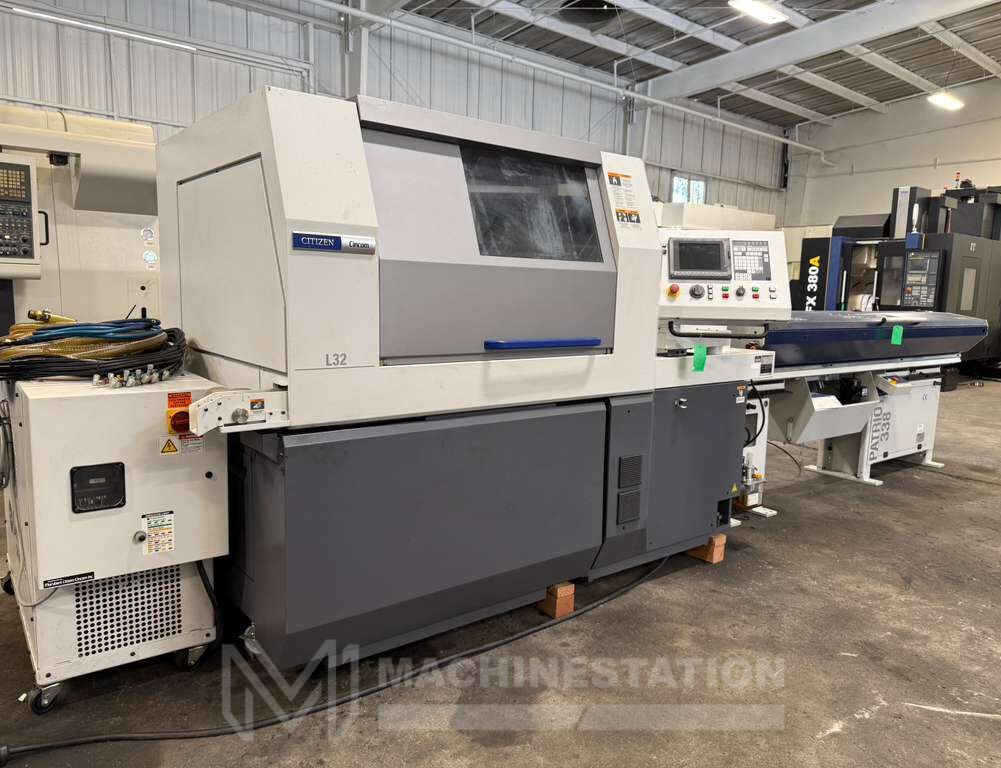

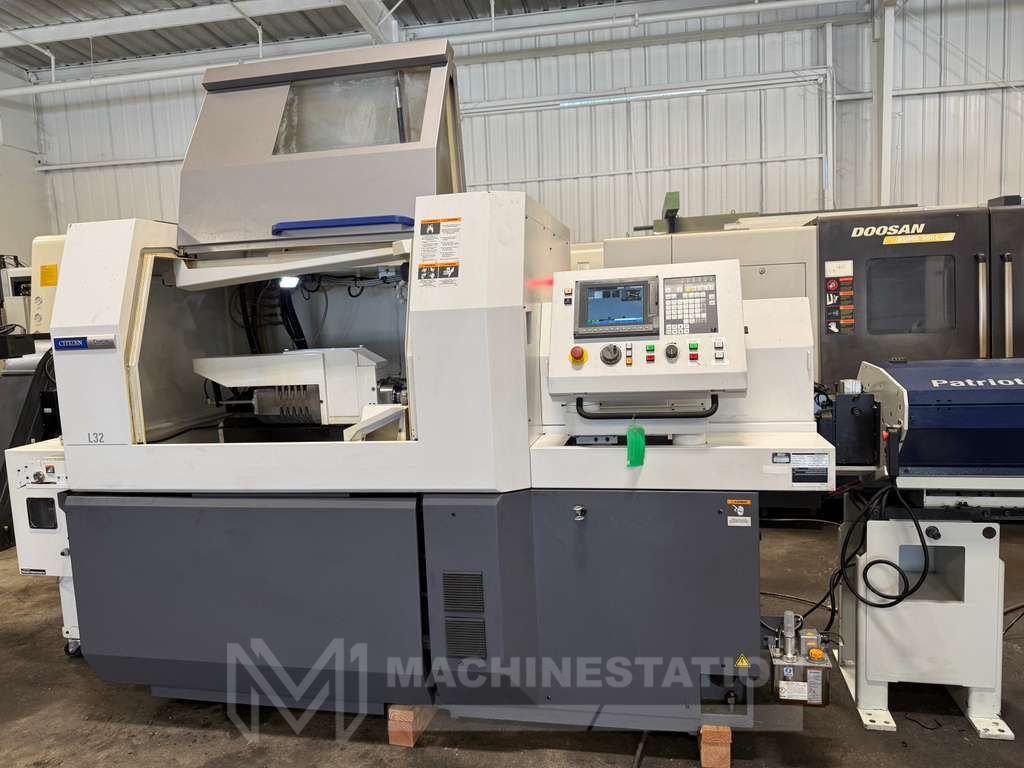

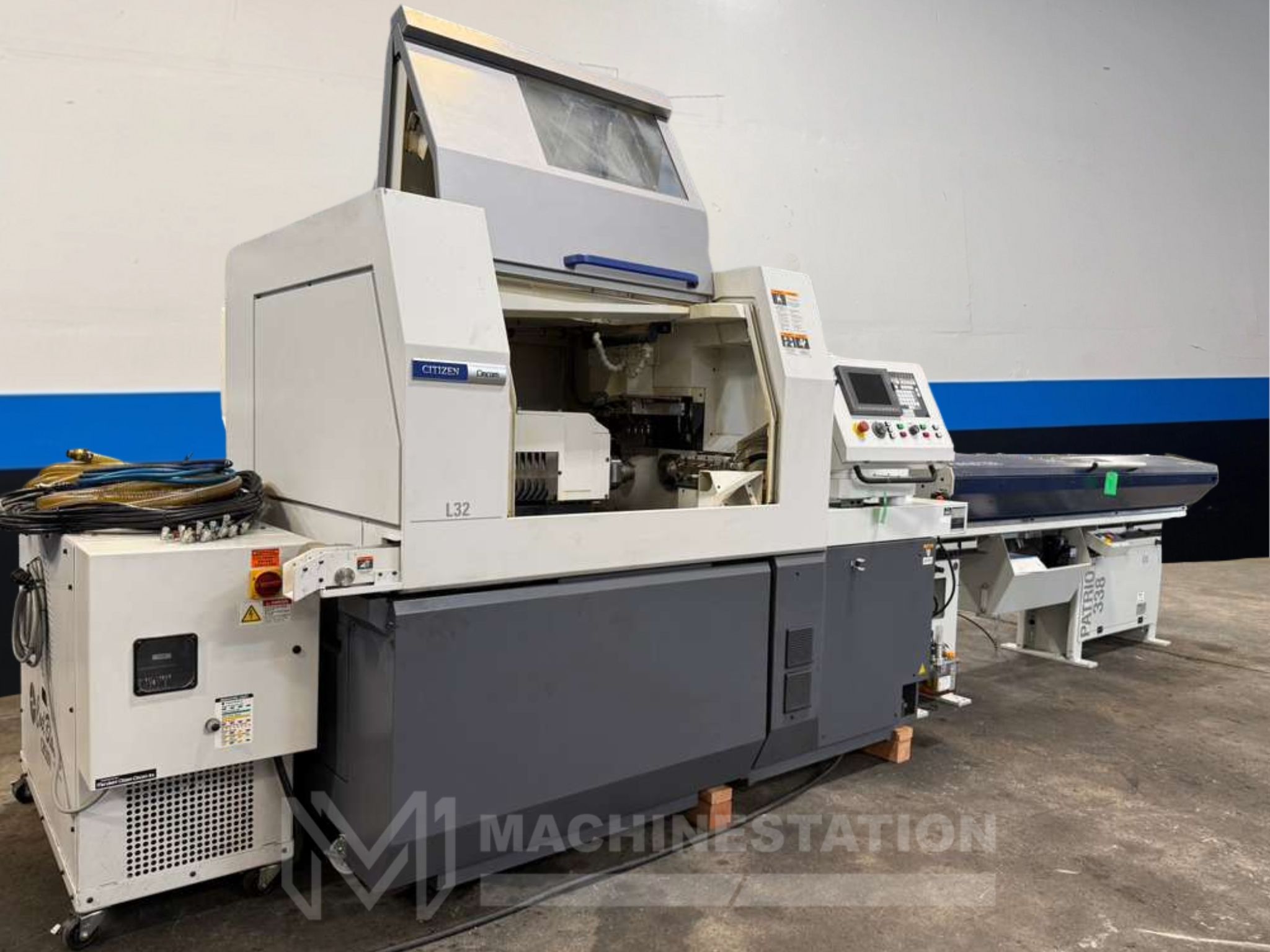

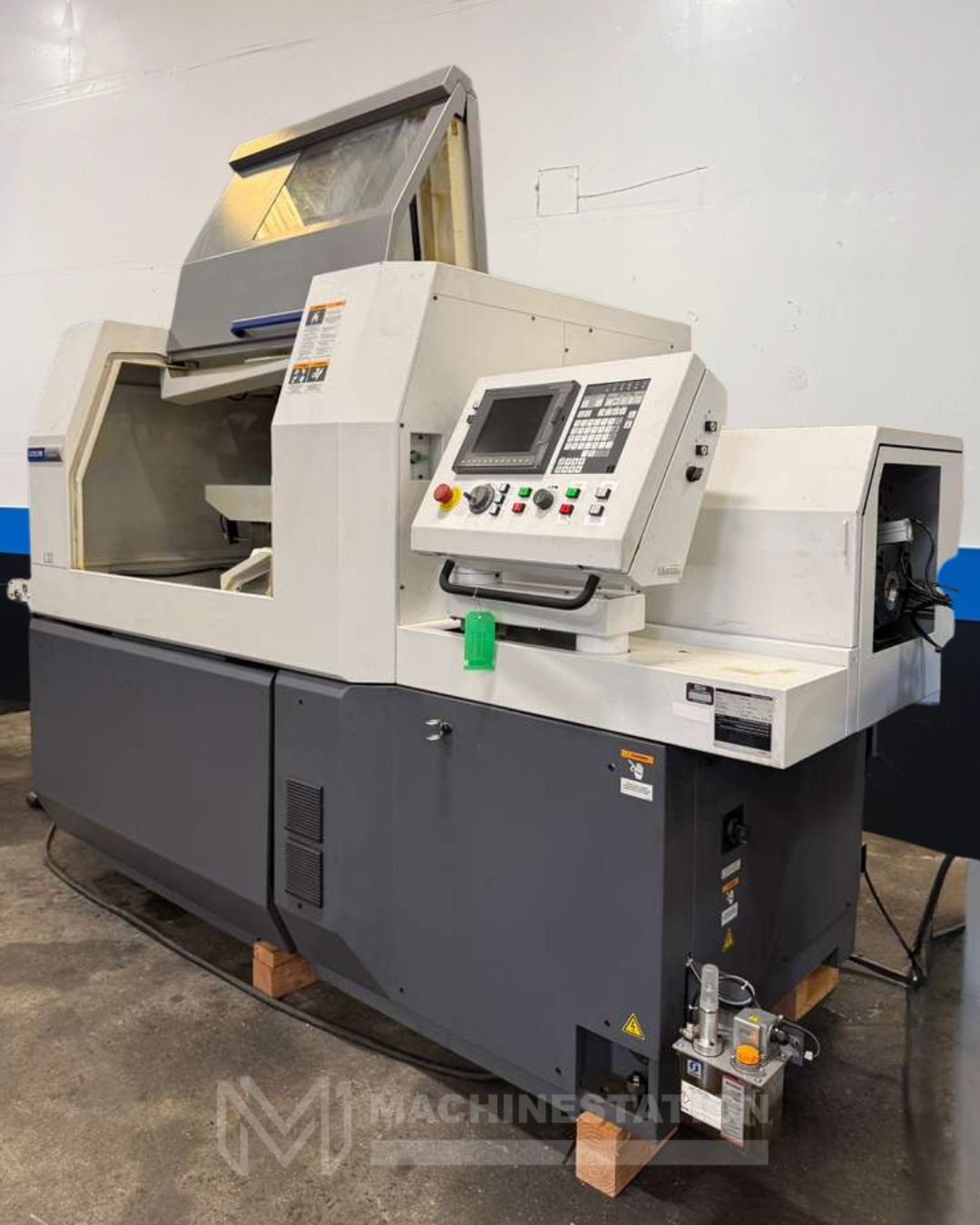

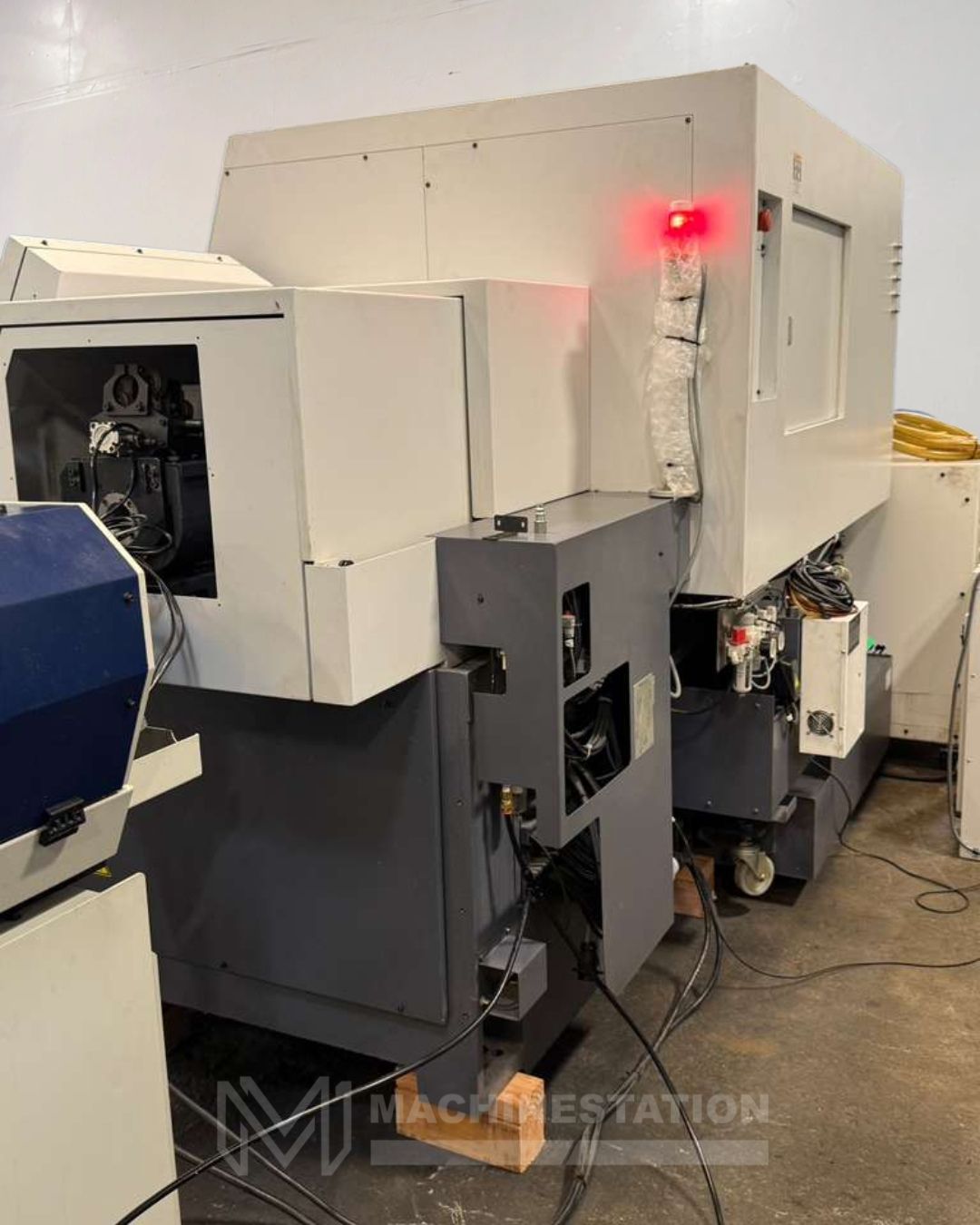

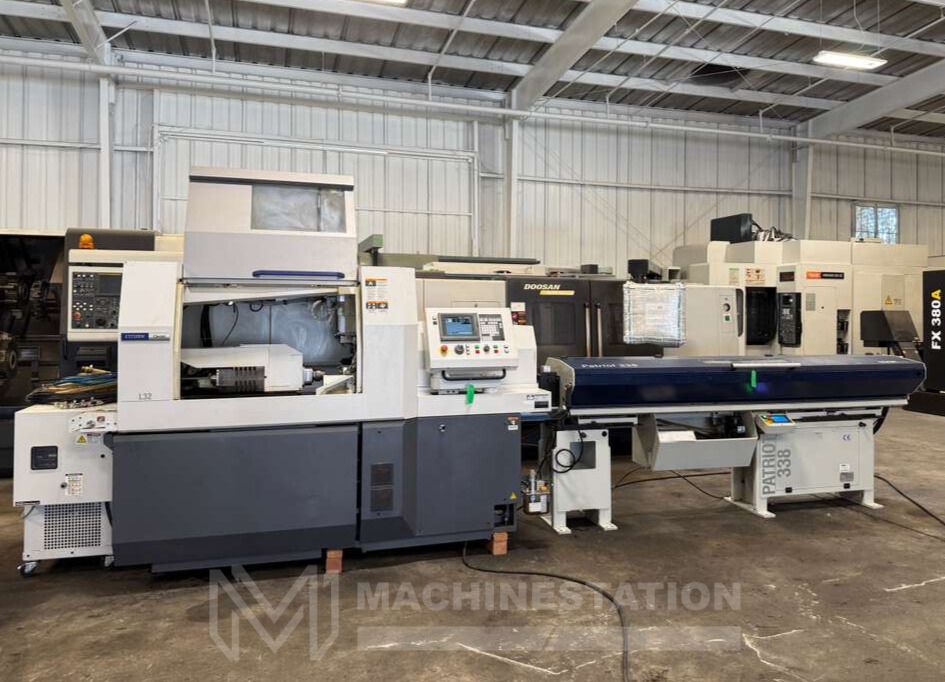

Name: Citizen L32-1M8 CNC Swiss Type Automatic Lathe - 2019 Bar Feeder
SKU: 112833
Availability: InStock

Citizen L32-1M8 CNC Swiss Type Automatic Lathe – 2019 Bar Feeder

Reserve your machine by paying: $999 (Refundable)

(We’ll hold it for 7 business days while you inspect or finalize your purchase)

$999

1 in stock

Replacement cost over $335,000 with similar optios
*Free Loading & Shipping within USA Only*

Location:	Lake Elsinore, CA
SKU:	112833
Make/Model:	Citizen L32-1M8
Year:	2019
Condition:	Used – Excellent
Video:	No Video

SKU: 112833

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Citizen
Model:	L32-1M8
Year:	2019
Condition:	Used – Excellent

Equipped With:

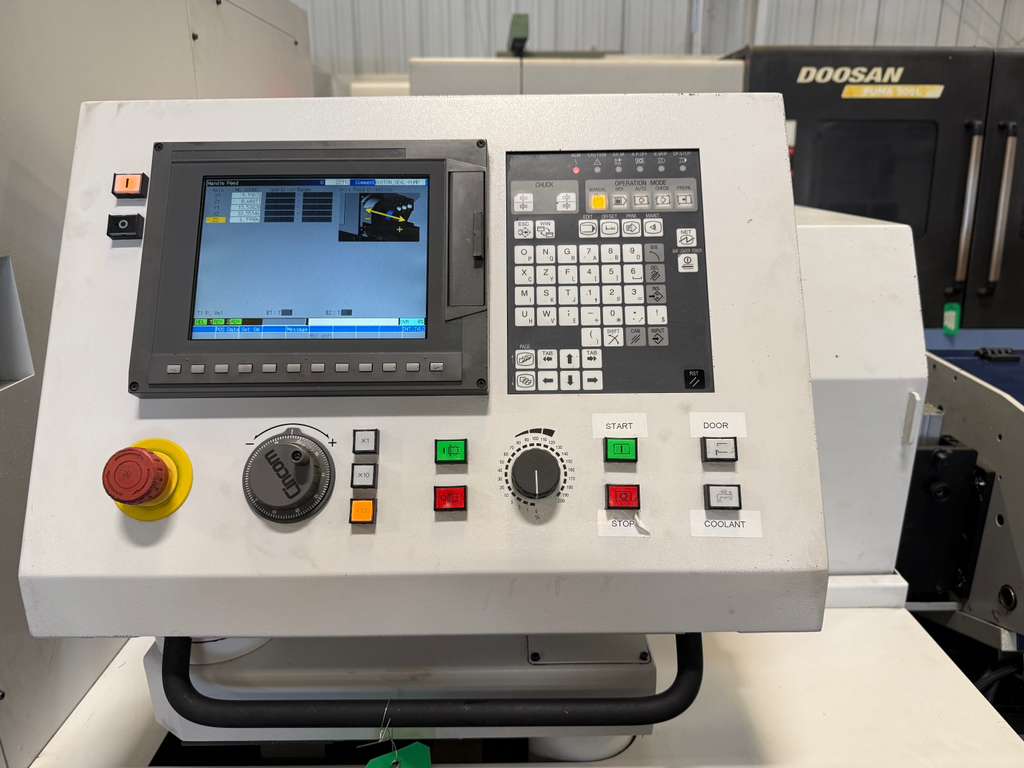

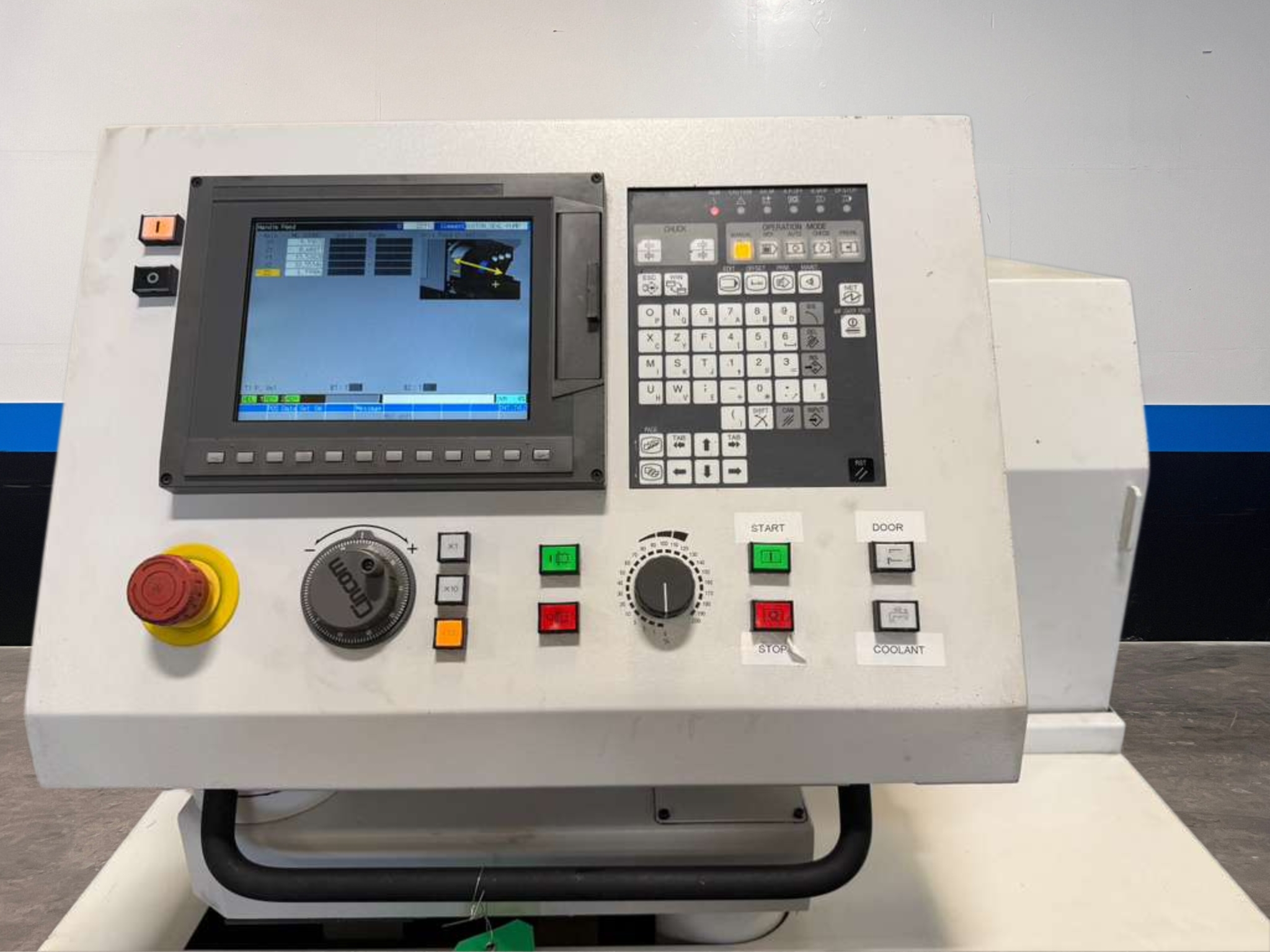

Citizen CNC Control
Number of Axis Z1, X1, Y1, Z2, X2, C1, C2

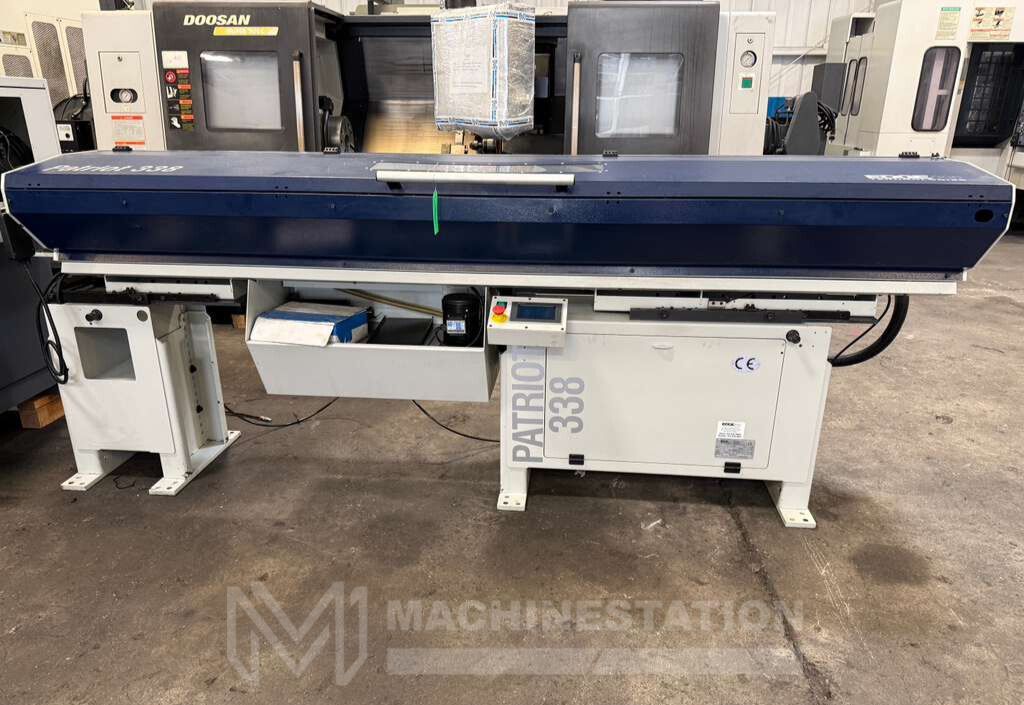

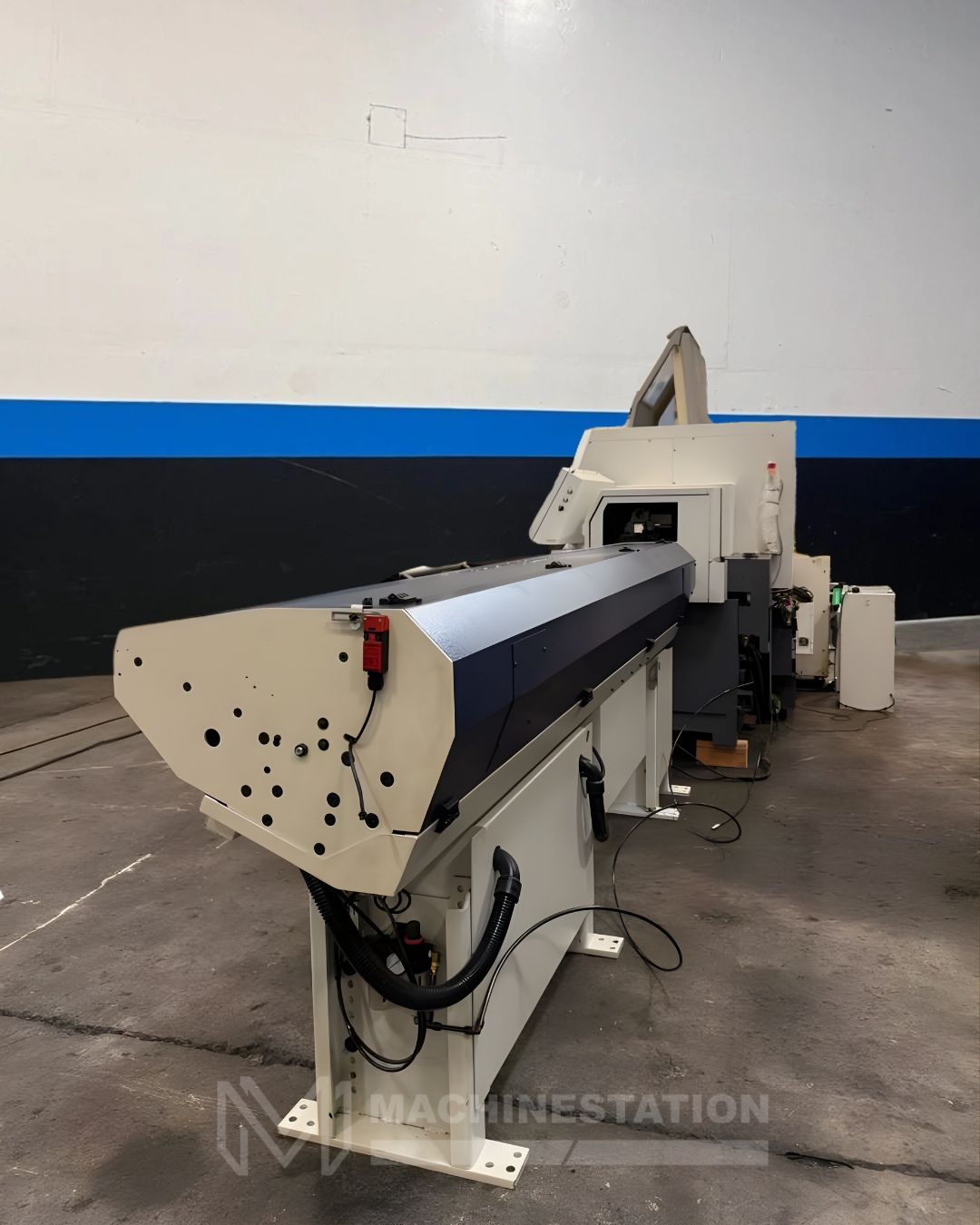

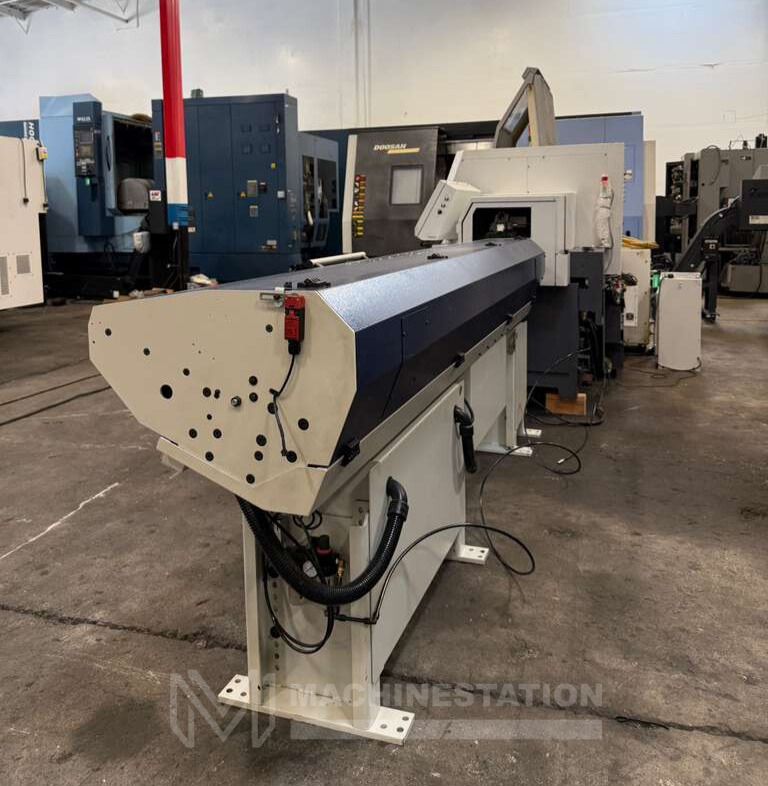

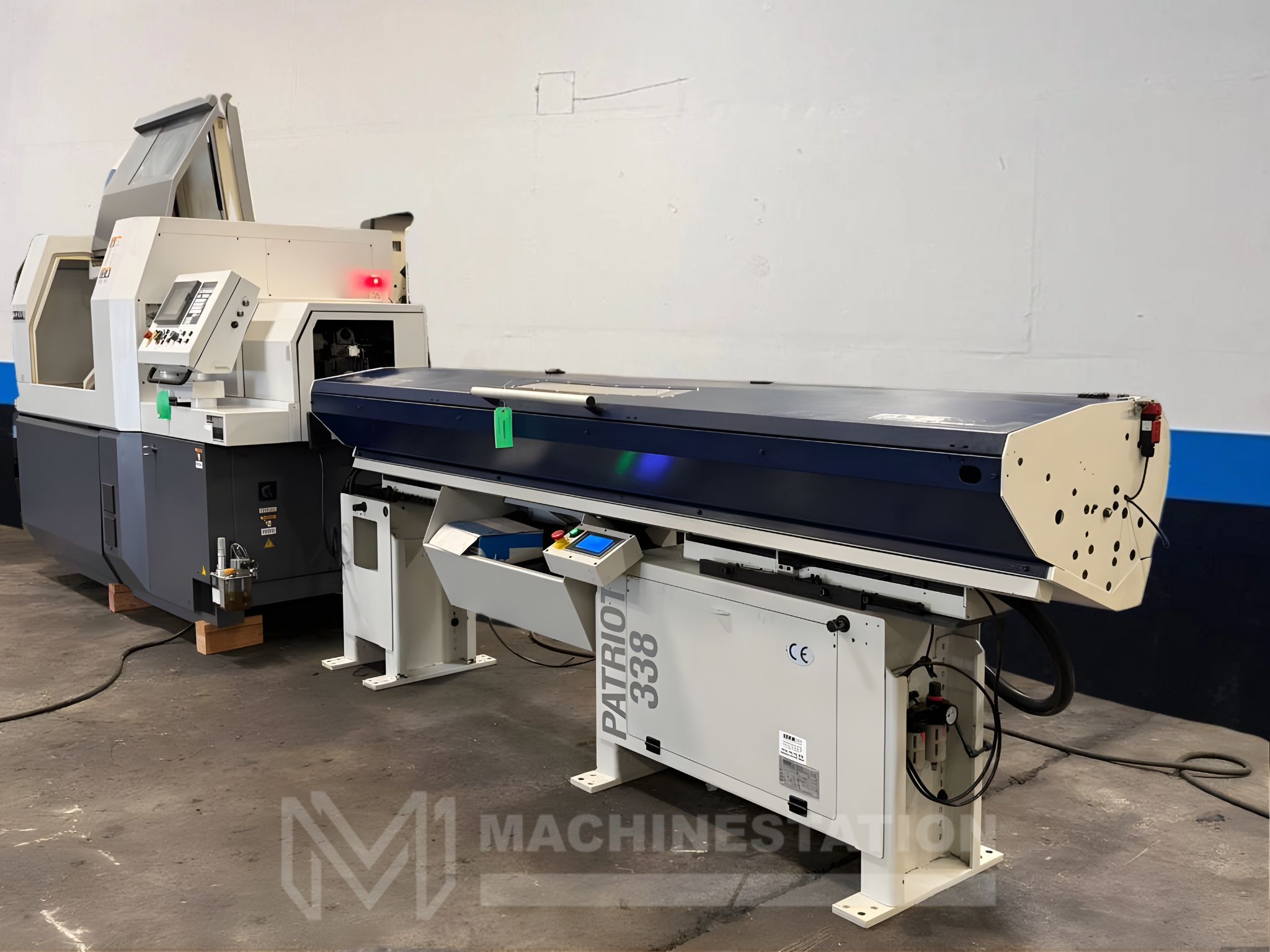

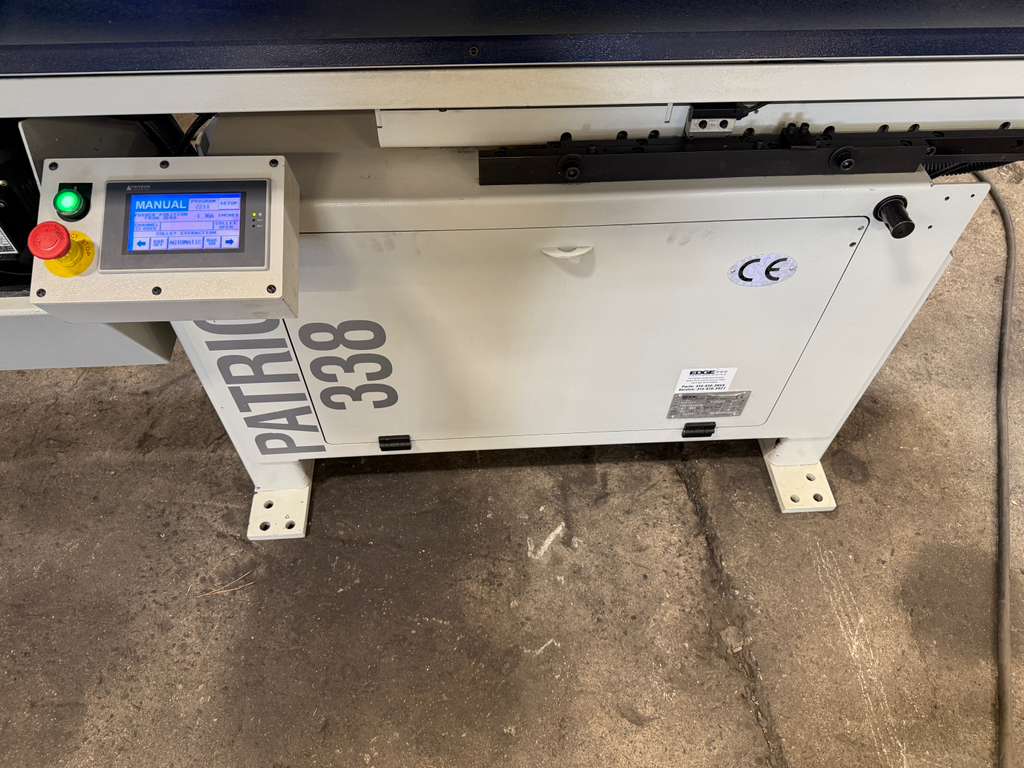

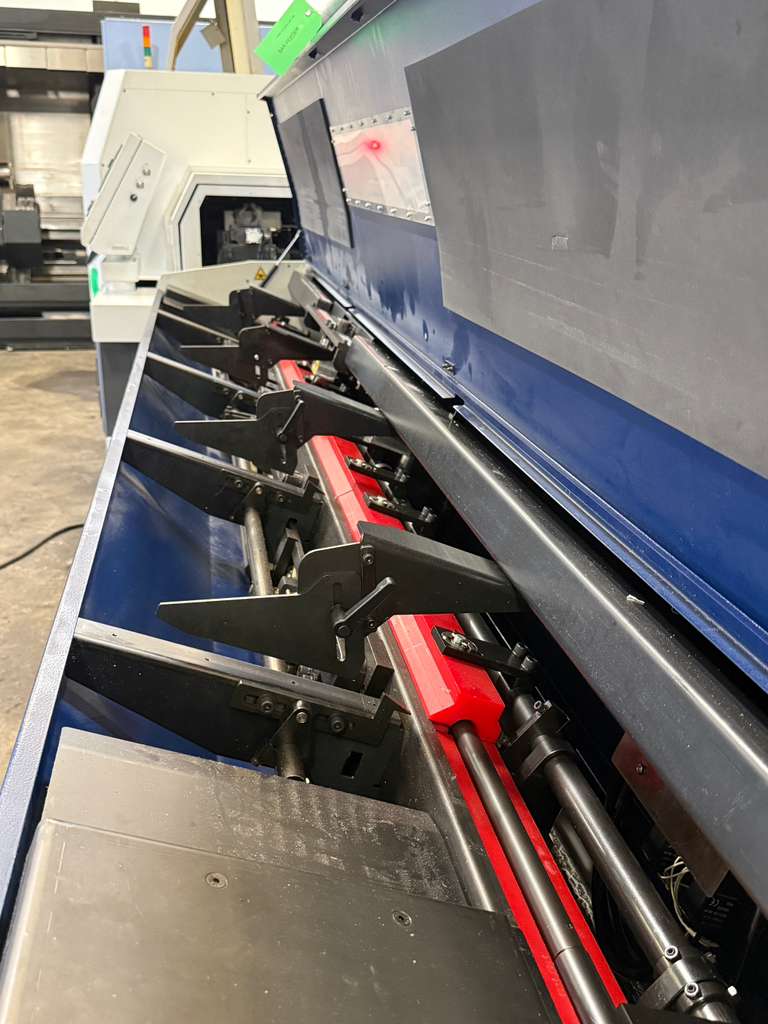

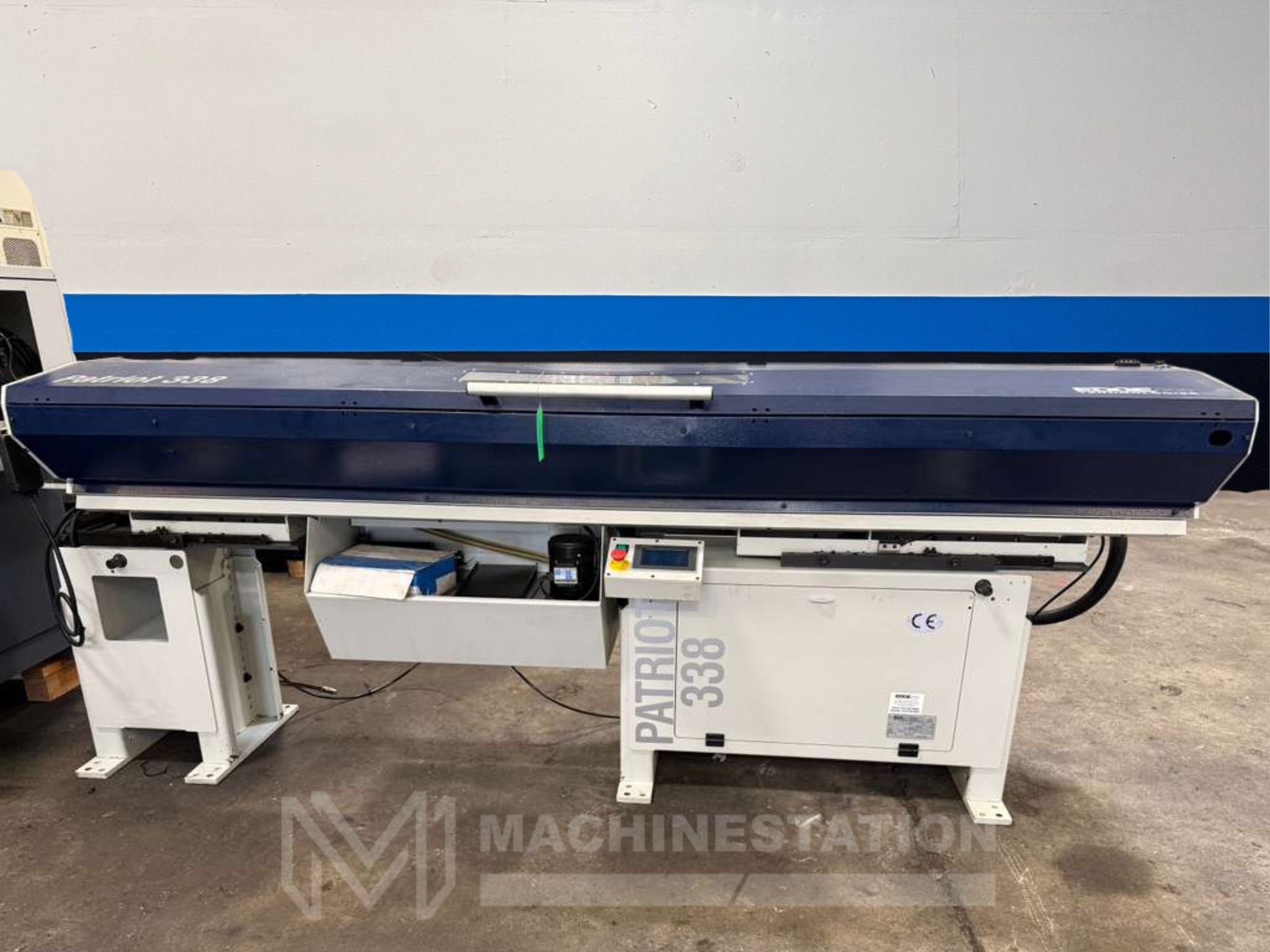

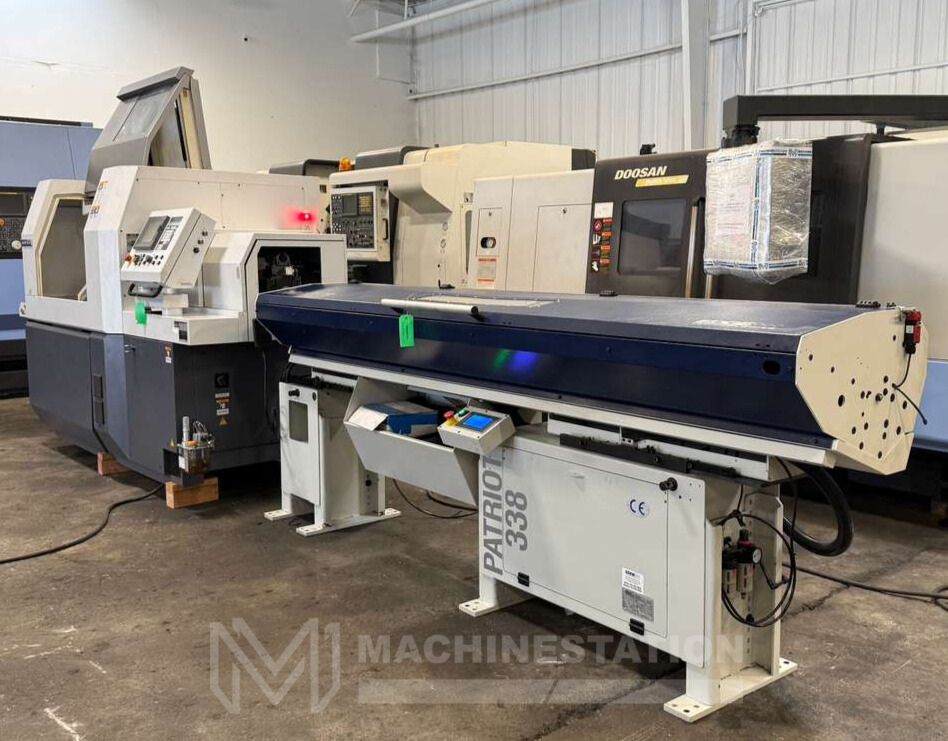

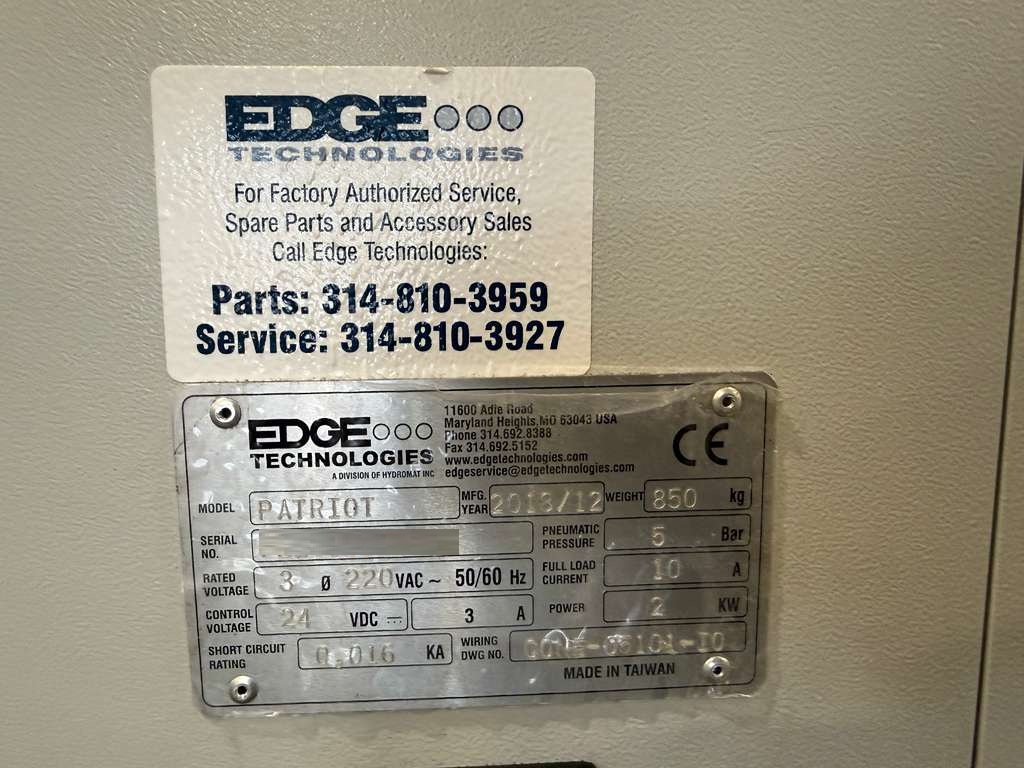

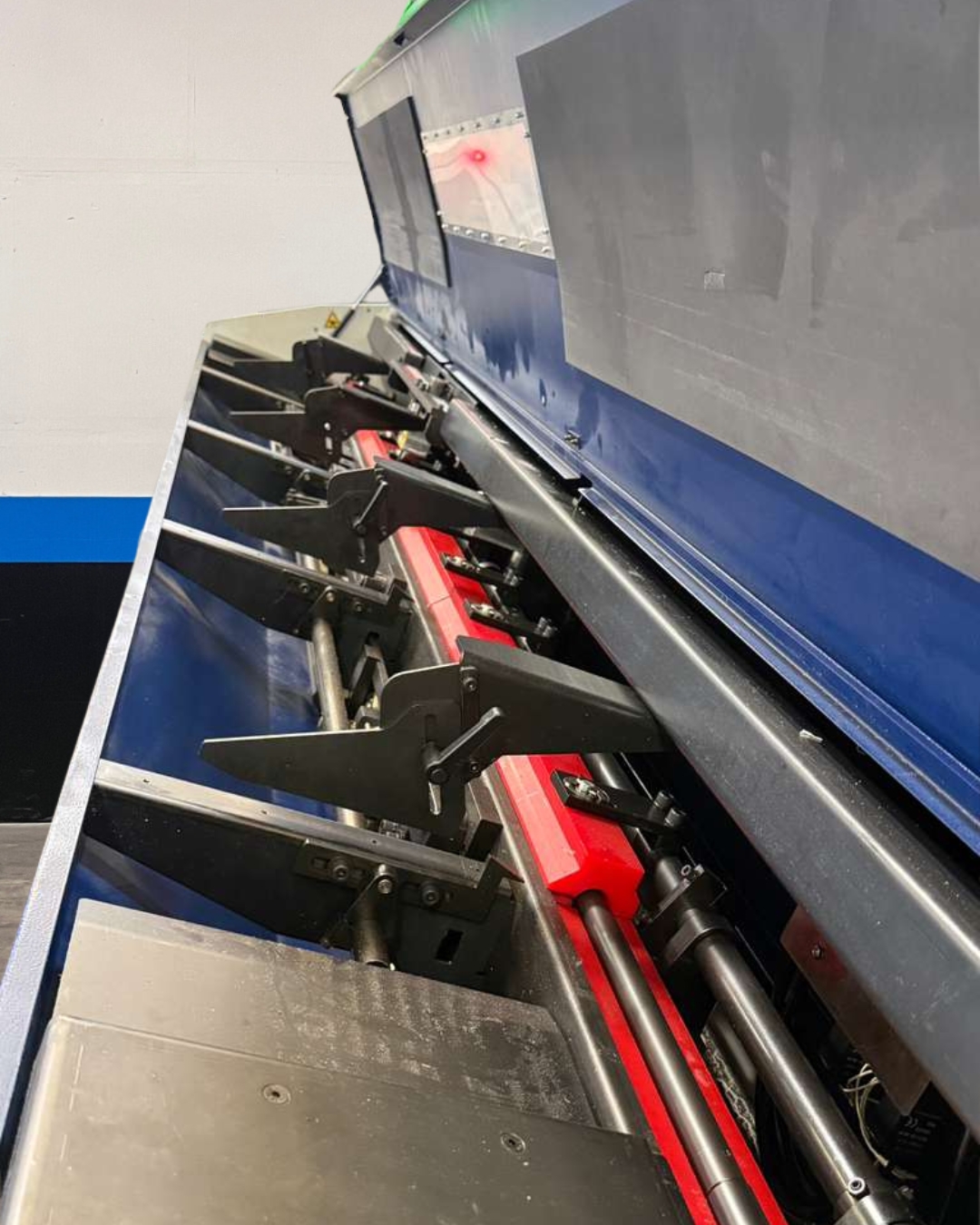

Comes with Patriot 8-feet Bar Feeder

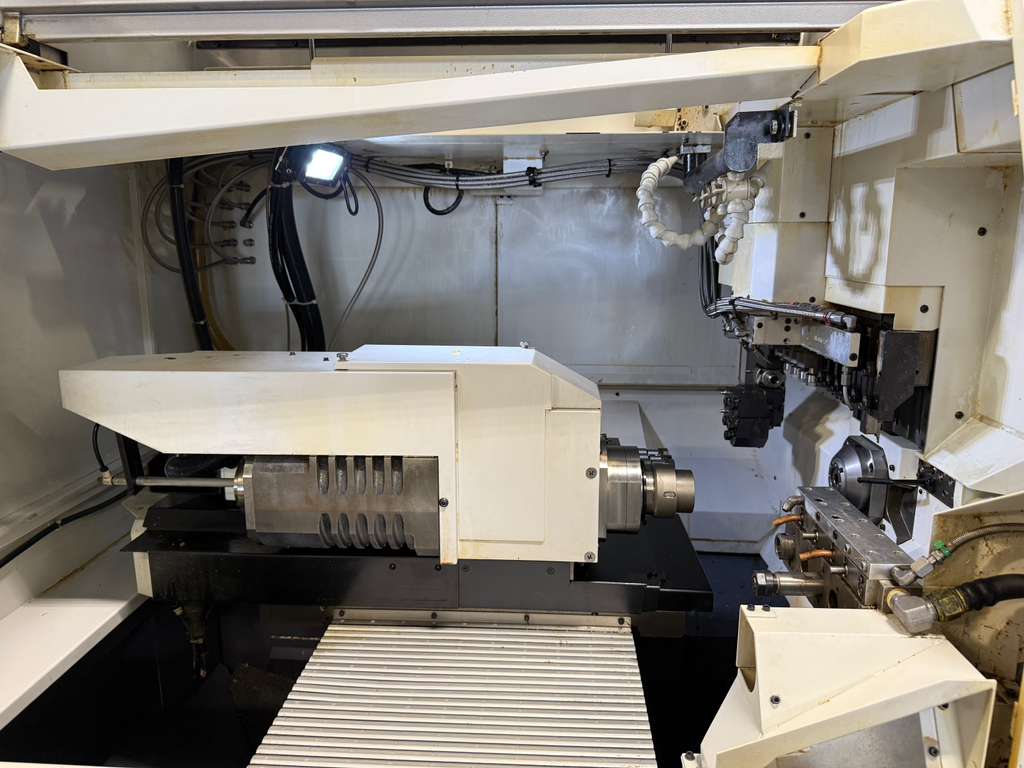

Back Spindle

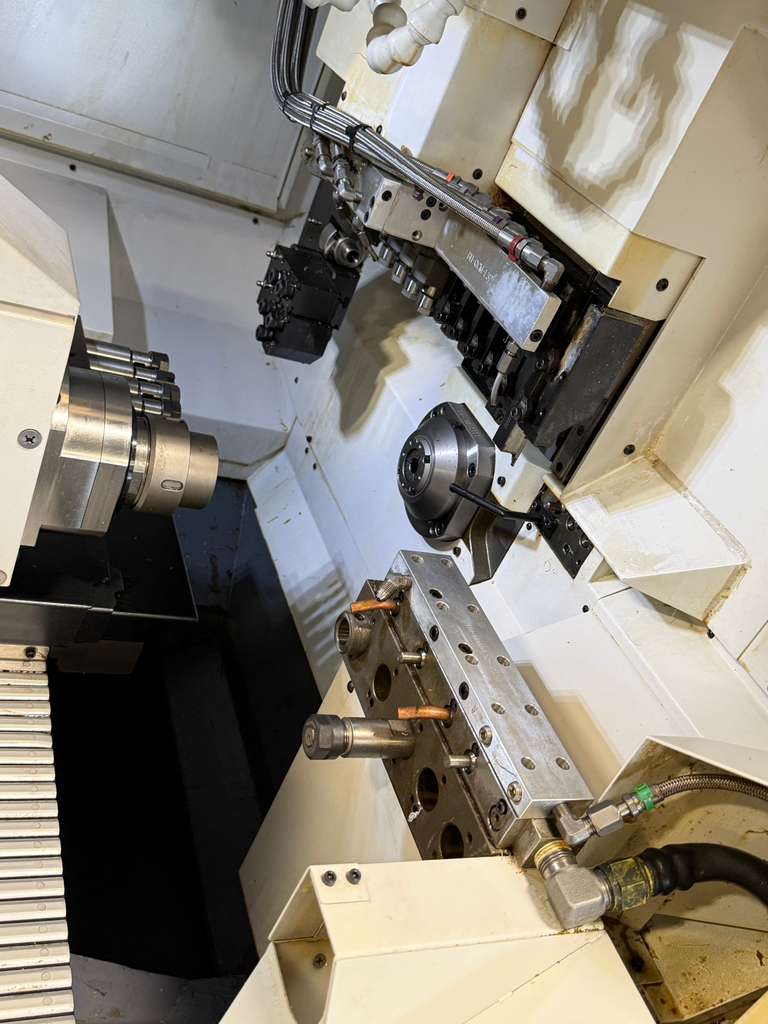

Live Tools Capable
Long Parts Capable
C & Y Axis Capabilities
Milling Interpolation
MPG Control
Main & Back Spindle Synchronization
High Speed Rapid Travers: 1260 IPM
High Speed Program Processing
Absolute Position Detection
Automatic Lubrication System

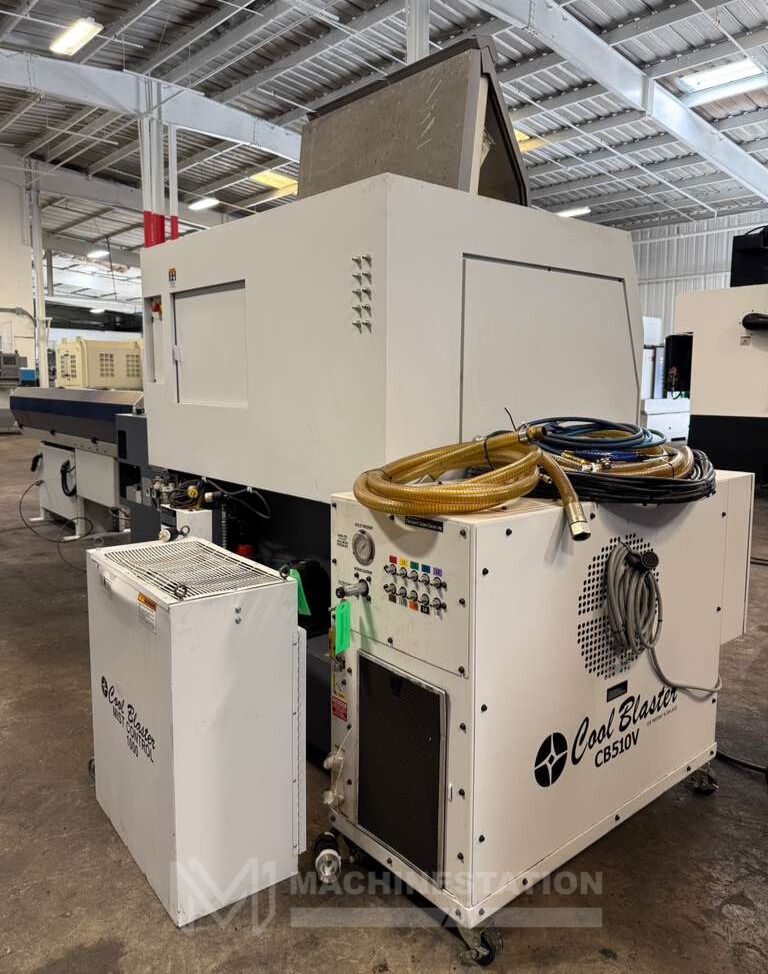

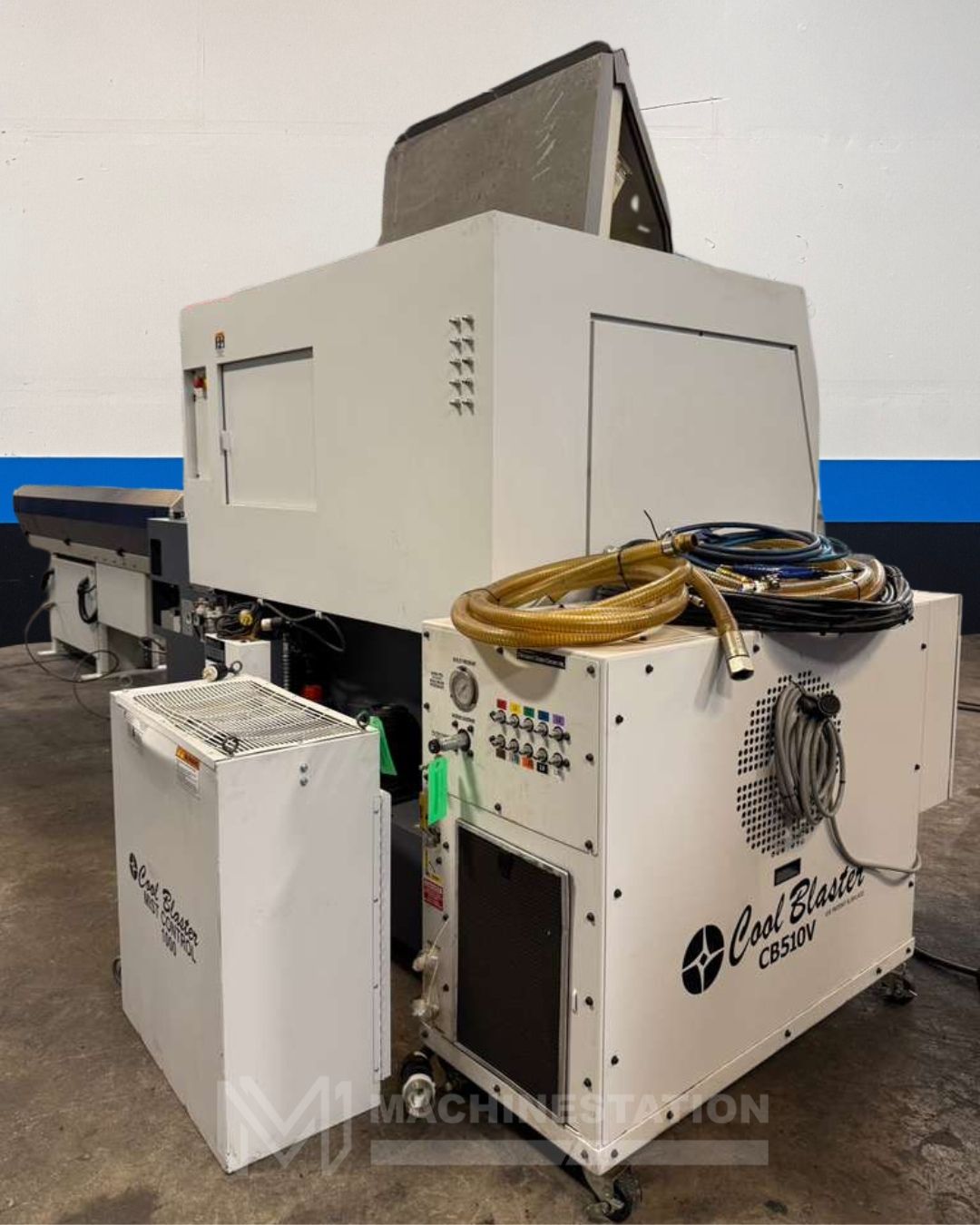

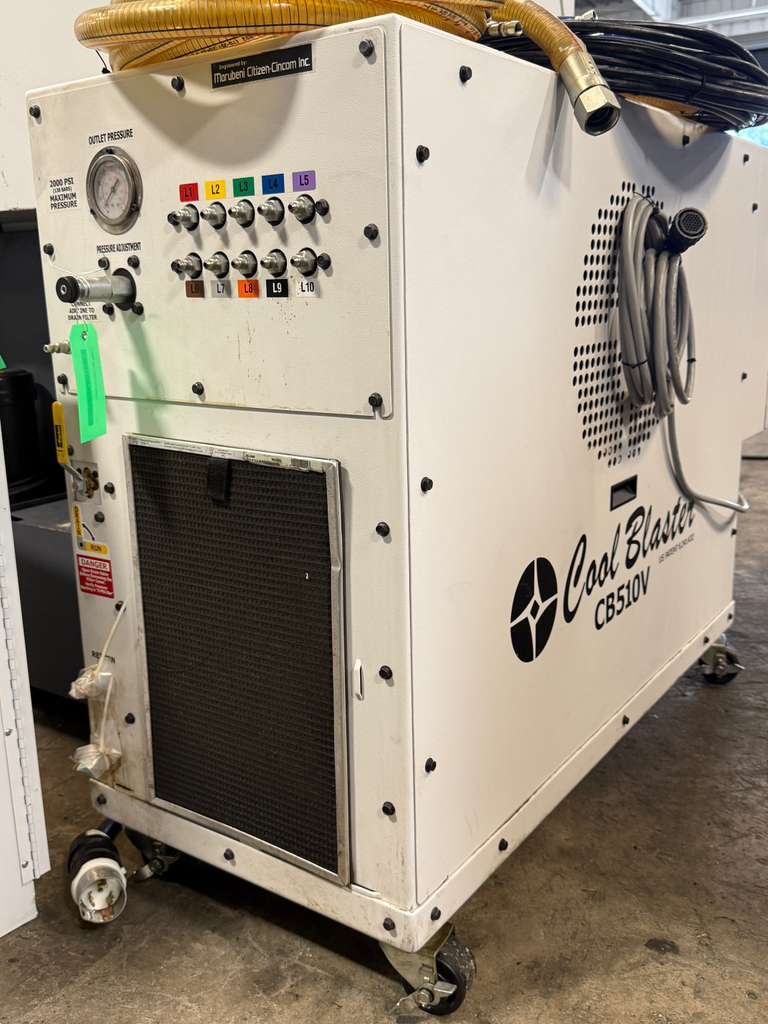

Cool Blaster Mist Control 1000

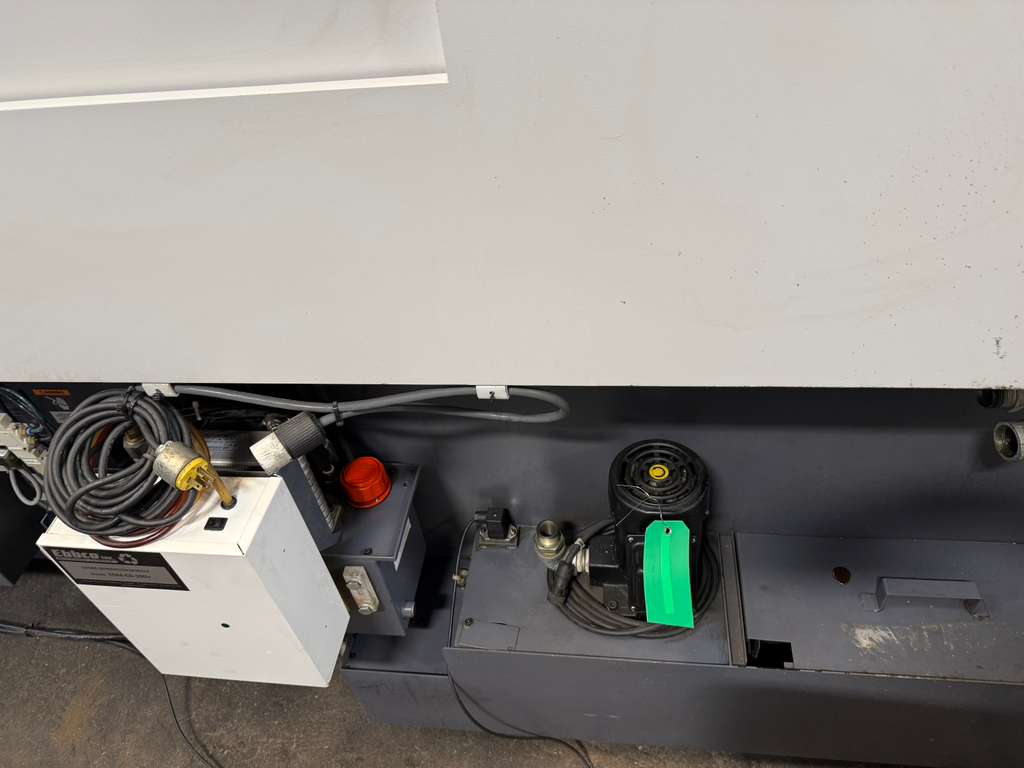

High Pressure Coolant System

Capacity:

Max Machining Diameter: 1.26″ (32 mm)
Max Machining Length with Guide Bushing: 12.6″ (320mm)
Max Machining Length without Guide Bushing: 2.5″ (63.5 mm)
Max Bar Capacity: 1.26″ (32 mm)
Spindle Through Hole Diameter: 1.53″ (39 mm)
Max Tool Positions: 19 – 30
Max. Front Drilling Diameter: 0.472″ (12 mm)
Max. Front Tapping Diameter: M12
Max. Back Spindle Chucking Diameter: 1.26″ (32 mm)
Max. Back Spindle Drilling Diameter: 0.472″ (10 mm)
Max. Back Spindle Tapping Diameter: M10
Max. Tool Spindle Drilling Diameter: 0.314 ( 8 mm)
Max. Tool Spindle Tapping Diameter: M6

Spindle:
Main Spindle Indexing: 360° (Full C-Axis) Main Spindle Speed: 8,000 RPM Main Spindle Motor: 7.5 kw Back Spindle Indexing: 360° (Full C-Axis) Back Spindle Speed: 8,000 RPM Back Spindle Motor: 3.7 kw

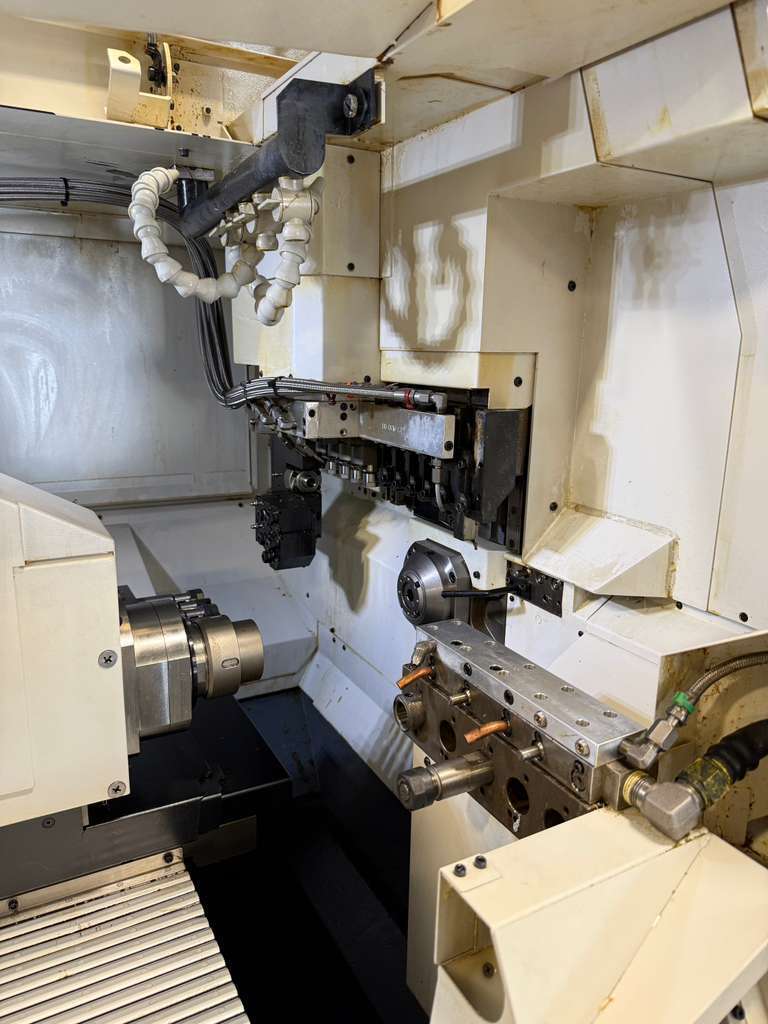

Standard Tools:
Gang Turning Tool: 6 Front Drilling tool : 4 – 9 Back Drilling Tools: 5 – 11

Power Driven Tools Attachment:
Gang rotary tool : 4 – 6 Driven Tool Speed: 6,000 RPM Driven Tool Motor: 1.0 kw

General:

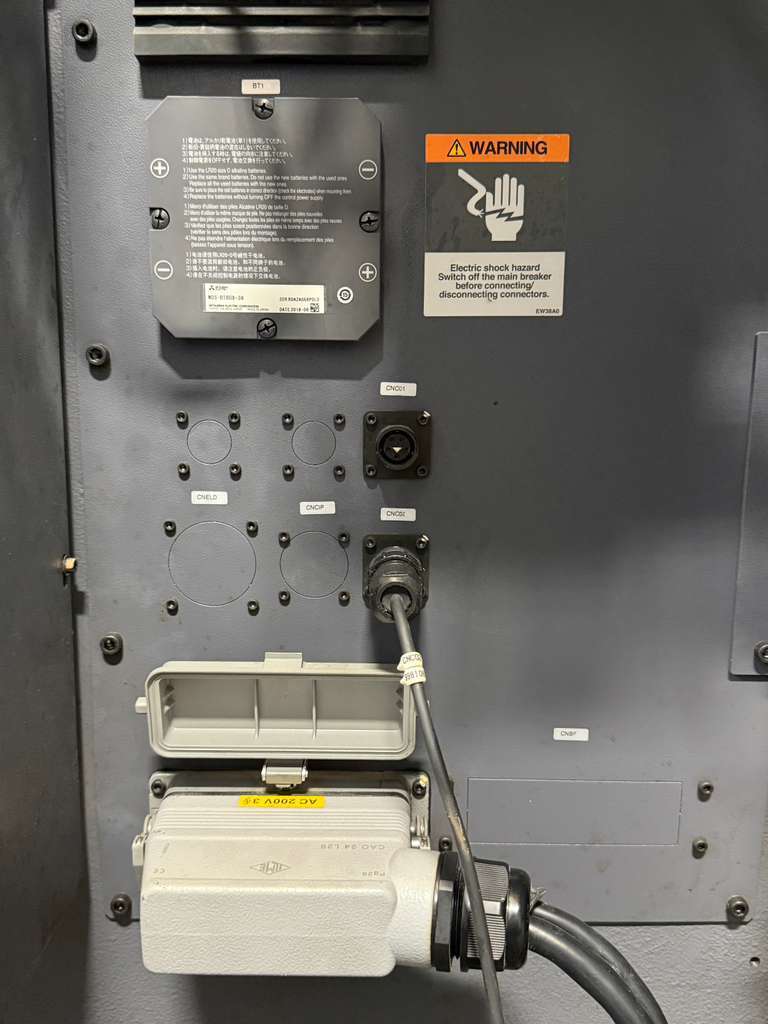

Power Source: AC 220v / 3-Phase / 50/60 Hz Power Requirement: 13.2 kva Overall Dimensions: 97″ X 55″ X 69″ High without Bar Feeder Weight: 6,283 lbs. Approx.
