*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

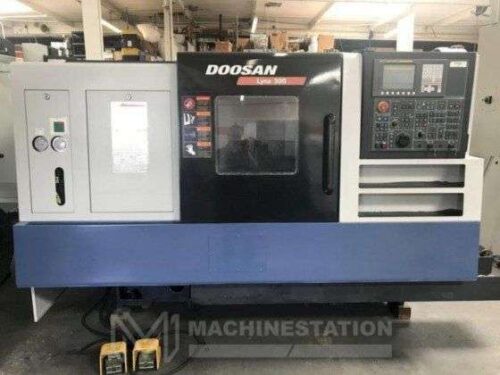

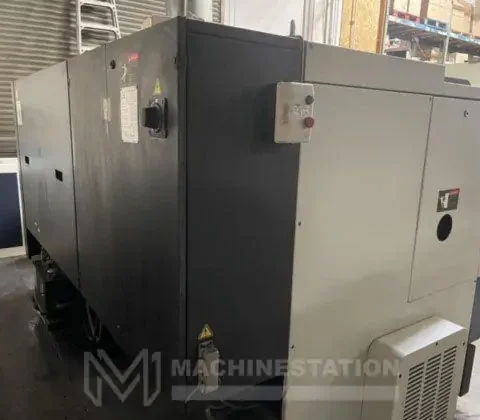

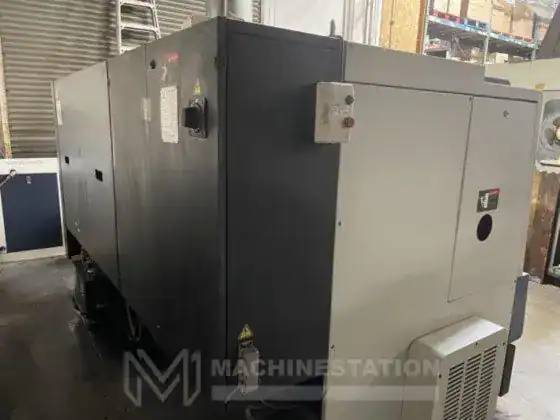

| Make: | Doosan |
| Model: | Lynx 300 |
| Year: | 2012 |
| Condition: | Used – Good |
| Equipped With: |
|---|

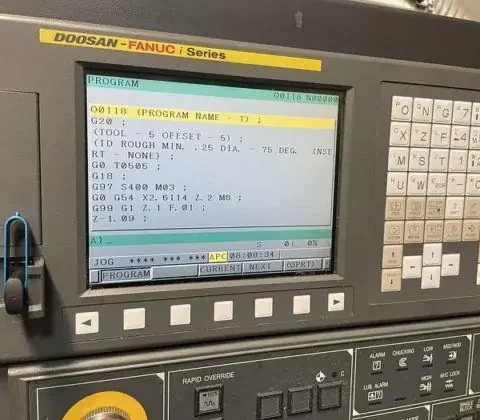

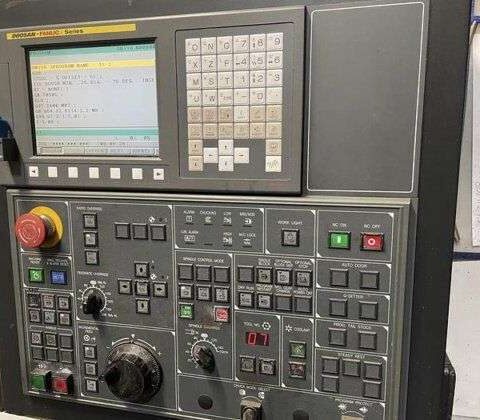

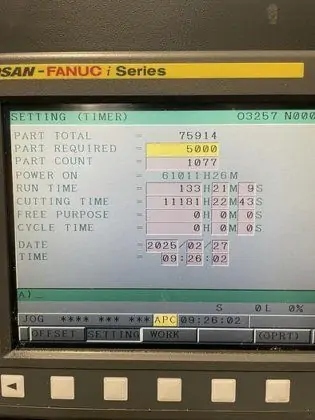

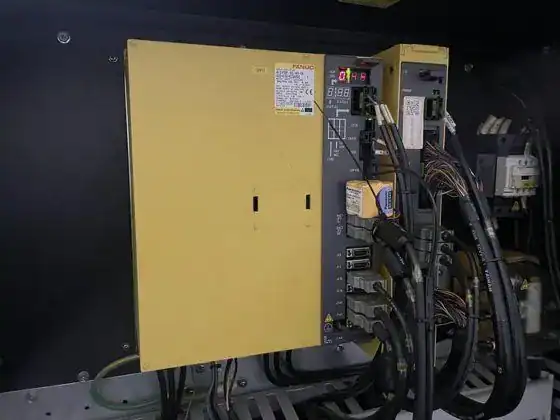

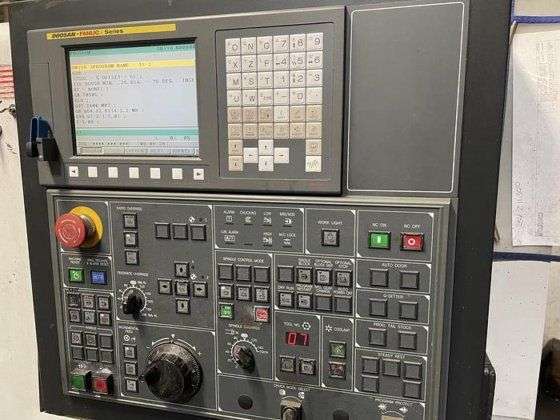

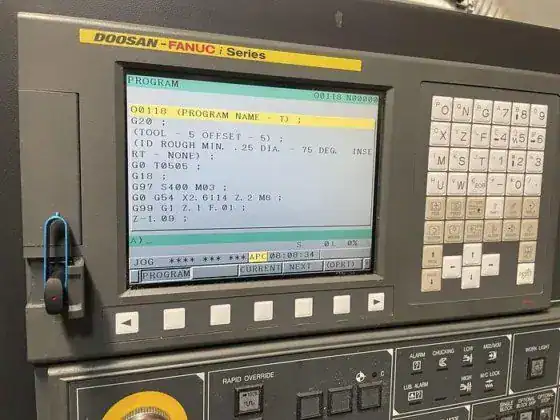

| Doosan-Fanuc i Series CNC Control |
| 3.4″ Bore, Long Bed Lathe |
| 10″ 3-Jaw Hydraulic Chuck |
| 12 Station Turret |
| Programmable Hydraulic Tailstock |
| Tool Presetter |
| USB Drive |
| PCMCIA Card Slot |
| Coolant System |

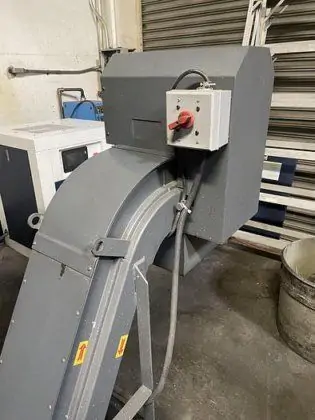

| Chip Conveyor |
| Foot Switches |
| Capacity: |
|---|
| Max Turning Diameter : 17.7″ |
| Max Swing Over Bed : 25.6″ |
| Max Swing Over Saddle : 18.1″ |
| Max Turning Length: 30.1″ |
| Max Bar Capacity : 3.0″ |
| Travels: |
|---|
| X Axis Travel : 10.0″ |
| Z1 Axis Travel : 31.1″ |
| Rapid Traverse X Axis: 944 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.4″ |
| Spindle Speed: 3500 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| OD Tool Size: 1.0″ |
| Boring Bar Size: 1.6″ |
| Tailstock: |
|---|
| Tailstock Body Travel: 30.5″ |
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 3.1″ |
| Tailstock Quill Travel: 4.7″ |
| General: |
|---|

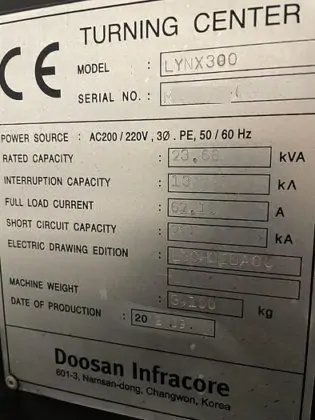

| Power Source: AC 200-220v / 3-Phase / 50/60 Hz |
| Power Requirement: 23.68 kva |
| Machine Dimensions: 119.5″ x 70.3″ x 67.5″ High |
| Machine Weight: 7,055 lbs Approx. |
