All specifications are approximations and are subject to verification.
“On Our Floor, Fully powered / tested & in Great working condition. One owner, Original paint machine, Equipped with 2 Chucks, Full C Axis, Milling, Sub Spindle, Second Turret and Y Axis. Comes with Chip conveyor, Manuals.”
| Make | Doosan |
| Model No. | PumaMX-2100ST |
| Year | 2008 |
| Condition | Used-Good |
| Comes with 8″ Chucks, Tool Holders, Chip Conveyor & Manuals |
| Doosan MX-2100ST Equipped With: |
|---|

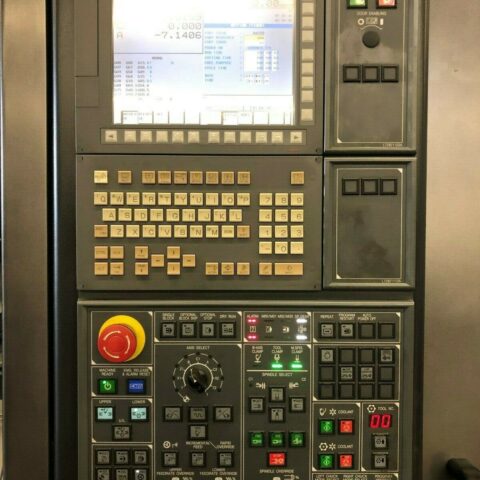

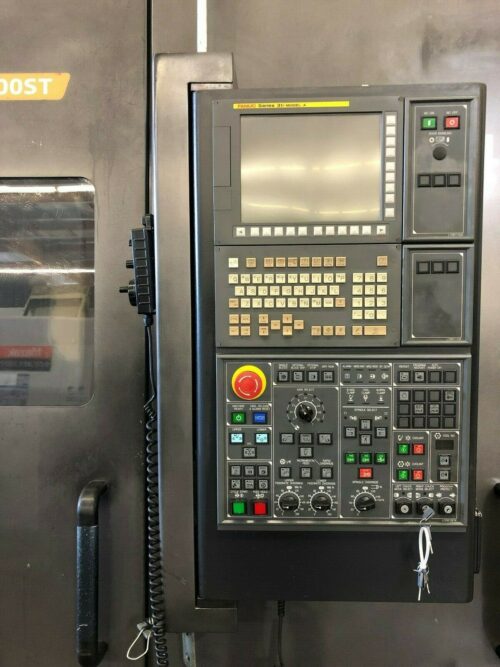

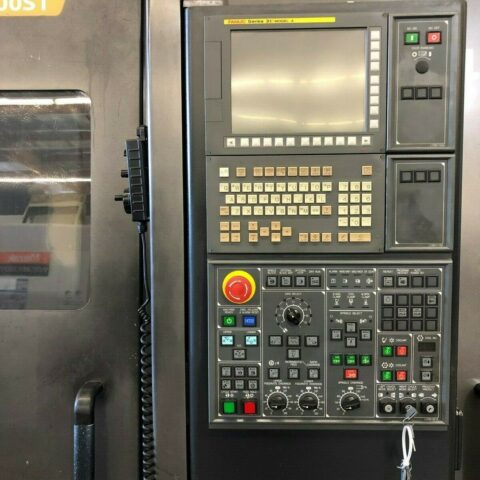

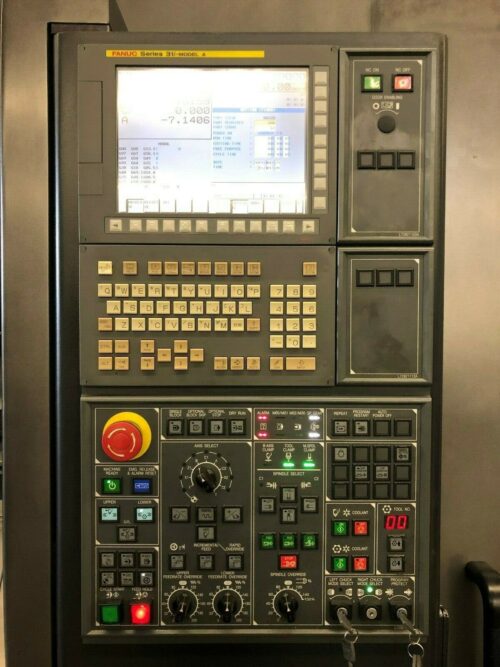

| Fanuc 31iA CNC Control |
| 12000 RPM Pendulum Milling Head |
| Powerful (22kw) 30 HP high-torque integral spindle motors |
| High speed 5,000 RPM spindles |
| Servo driven 40 station ATC with 1.8 sec tool to tool time |
| Servo Controlled Full C-Axis on Both Spindles |
| 12 Station lower turret with Live tool capability |
| Y Axis Capability |
| PCMCIA Card Slot |
| Tool monitoring system – wear and breakage detection |
| Automated Parts Unloading system |
| 8″ Big Bore Chuck on Main Spindle |
| 8″ Chuck on Sub Spindle |
| Rigid Tapping on Both Spindles |
| Foot Operated Control for Chuck |
| High Pressure Coolant System |

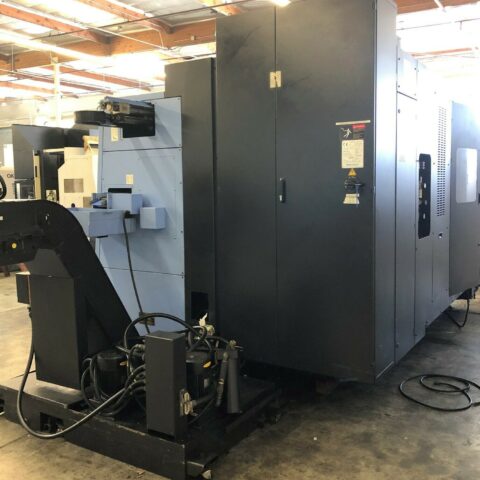

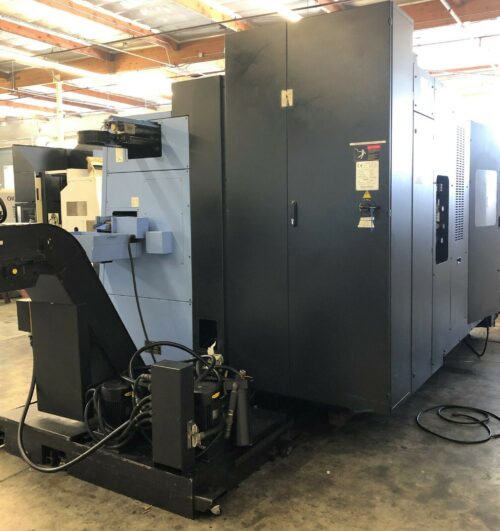

| Chip Conveyor |
| Inbuilt Transformer |
| Chiller Unit |
| Comes with Tools, Chip Conveyor, Books & Manuals. |
| Doosan MX-2100ST Specifications: |
|---|
| Capacity |
| Max Turning Diameter Upper Turret : 21.25″ |
| Max Turning Diameter Lower Turret : 11.89″ |
| Max Swing Upper Turret : 29.5″ |
| Max Swing with Y Axis : 19.70″ |
| Max Swing over Cross Slide : 23.6″ |
| Max Turning Length: 40.15″ |
| Max Bar Capacity Main Spindle : 2.625″ |
| Max Bar Capacity Sub Spindle : 2.55″ |
| Max Weight on Main & Sub Spindle : 1322 lbs |
| Max Distance Between Main & Sub Spindle: 52.50″ |
| Travels: |
|---|
| X1 Axis Travel Upper : 22.24″ |
| X2 Axis Travel Lower : 7.36″ |
| Z1 Axis Travel Upper : 41.3″ |
| Z2 Axis Travel Lower : 41.3″ |
| Y Axis Travel: 6.7″ |
| W Axis Travel: 41.34″ ( Sub Spindle ) |
| C Axis: 360° (0.001°) Both Spindle |
| B Axis Travel: 240° |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 1417 IPM |
| Rapid Traverse Z Axis: 1417 IPM |
| Rapid Traverse Y Axis: 1351 IPM |
| Rapid Traverse B Axis: 1181 IPM |
| Spindle: |
|---|
| Main Spindle Bore: 2.99″ |
| Sub Spindle Bore: 2.99″ |
| Main Spindle Nose: A2-6 |
| Sub Spindle Nose: A2-6 |
| Main Spindle Speed: 35-5000 RPM |
| Sub Spindle Speed: 35-5000 RPM |
| Main Spindle Power: 22 kw |
| Sub Spindle Power: 22 kw |

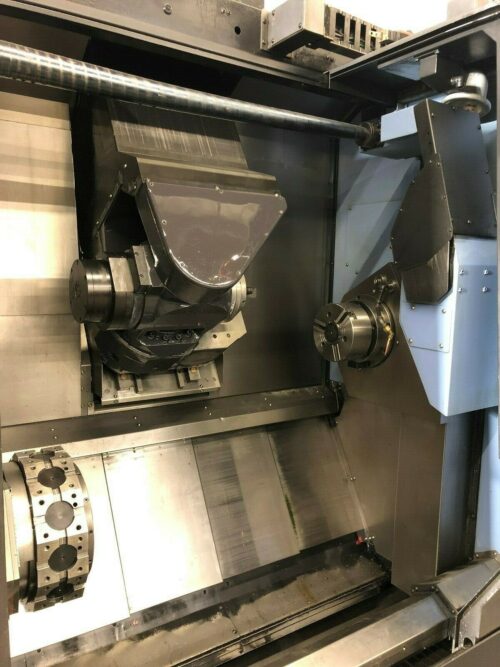

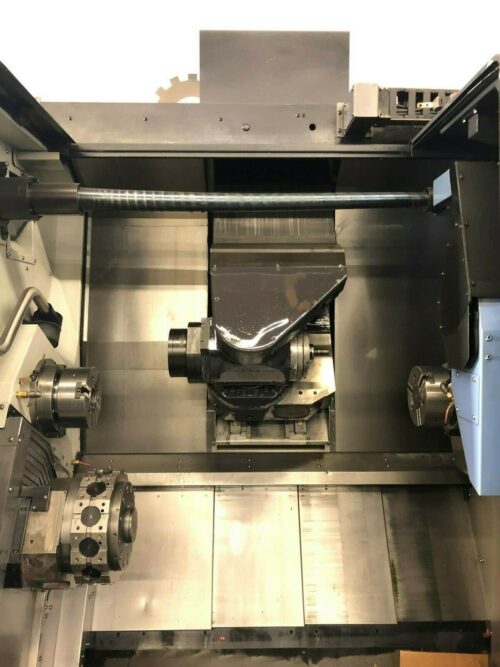

| Milling Head: |
|---|
| Single Station Pendulum Head with 40 ATC |
| Tool Type: CAPTO-C6, 40 Taper |
| Spindle Speed: 15-12000 RPM |
| Spindle Motor: 18.5 kw |
| Spindle 5° Index Time: 0.5 Sec |
| Lower Turret: |
|---|
| Capacity: 12 Live Stations |
| Tool Holder Type: BMT-55P |
| Turret Index Time: 0.2Second |
| OD Tool Size: 1.00″ |
| ID Tool Size : 1.50″ |
| Live Tool Speed: 5000 RPM |
| General: |
|---|
| Power: 87 kva, 220v / 3-Phase |
| Air Required: 71 PSI |
| Overall Dimensions: 192″ x 99″ x 110″ High |
| Overall Dimensions: 210″ x 99″ x 110″ High with Chip Conveyor |
| Weight: 26,500 lbs |

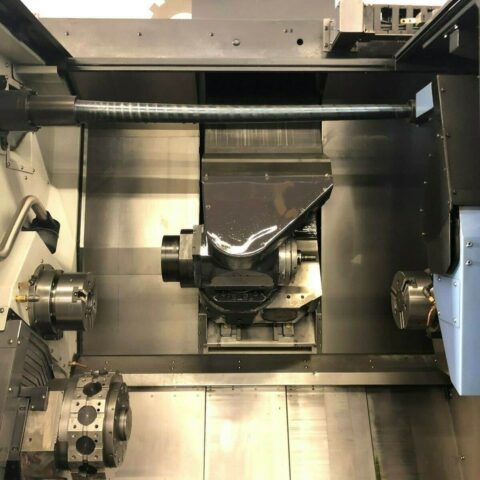

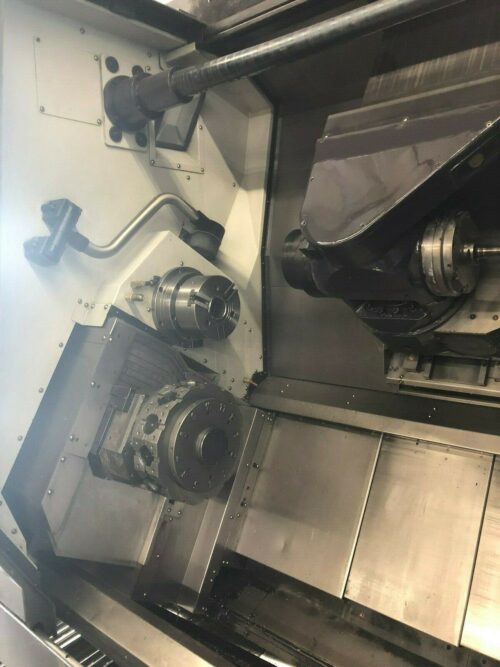

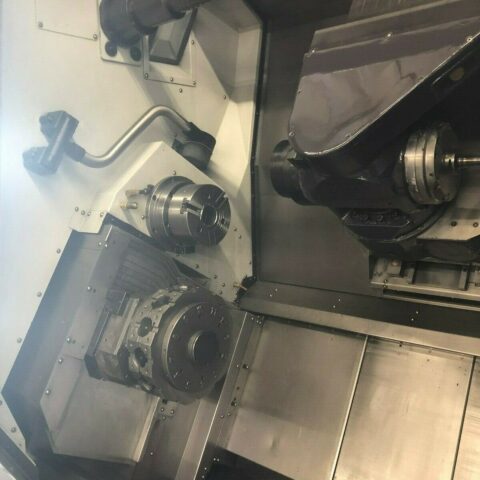

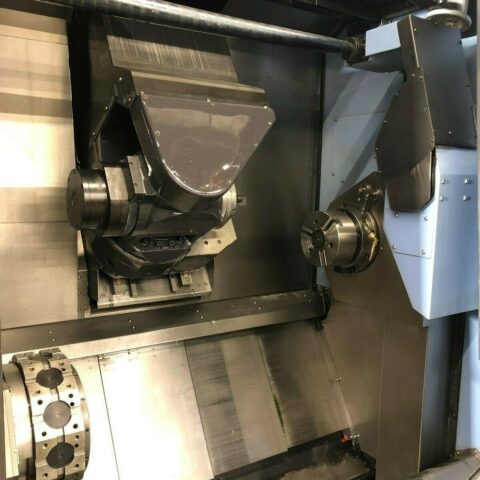

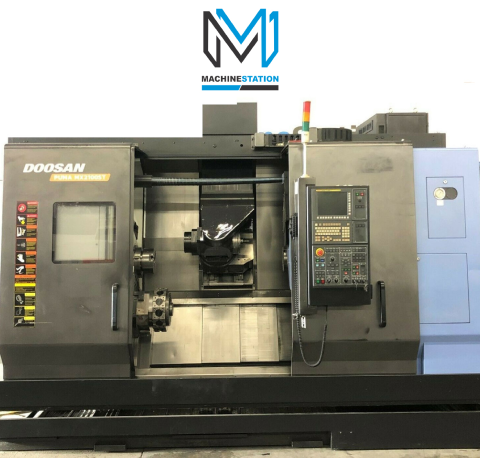

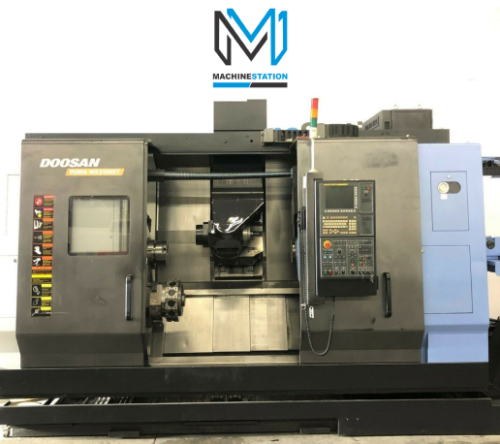

Doosan MX-2100ST Comes as shown in pictures..
