All specifications are approximations and are subject to verification.

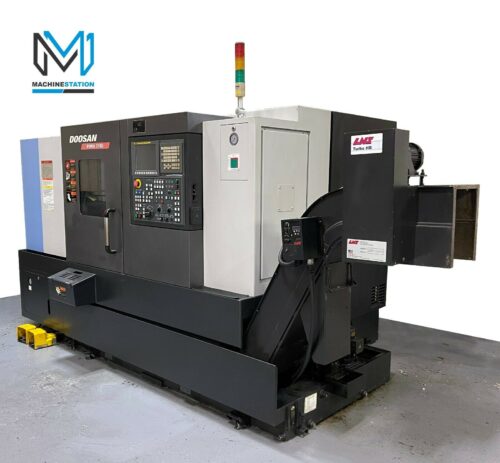

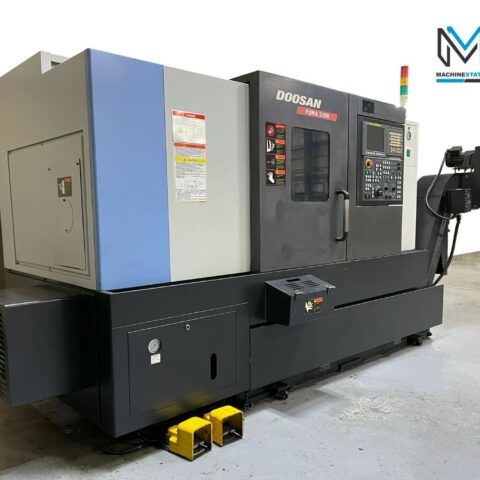

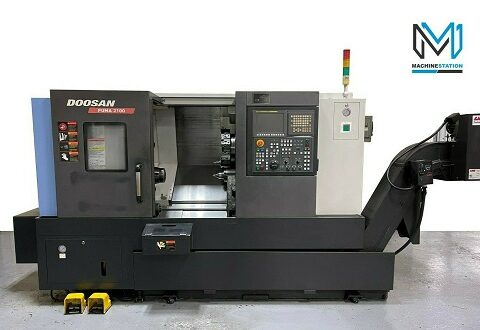

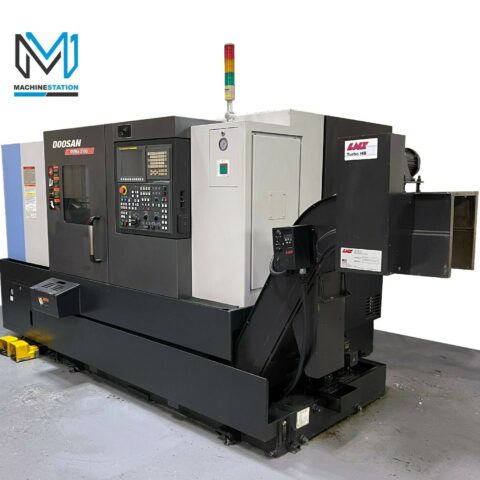

| SKU | 105136 |
| Make | Doosan |

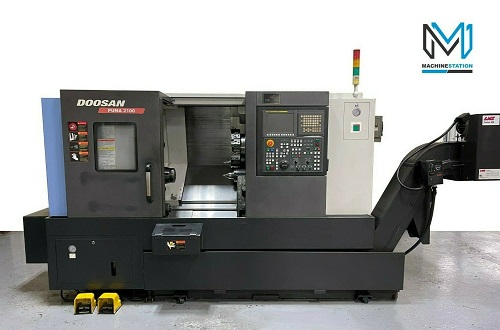

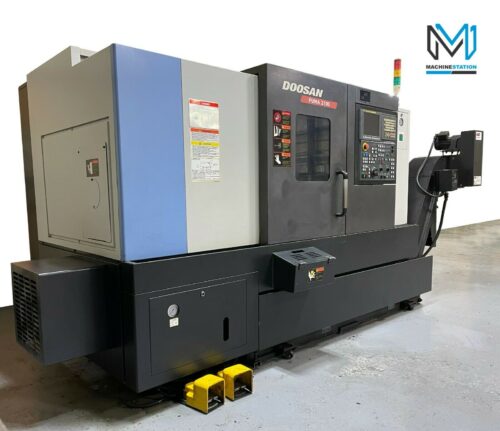

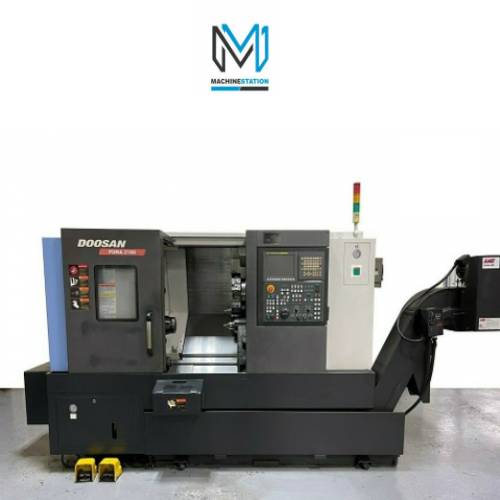

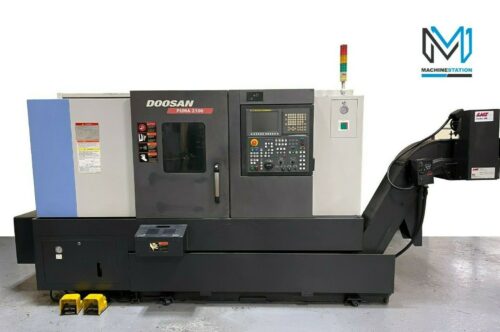

| Model No. | PUMA 2100 |
| Year | 2011/12 |
| Condition | Used-Good |
| Cutting Hours: | Hours |
| Equipped With: |
|---|

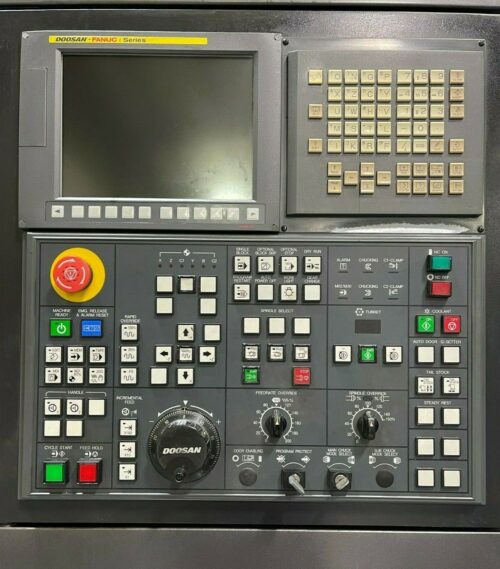

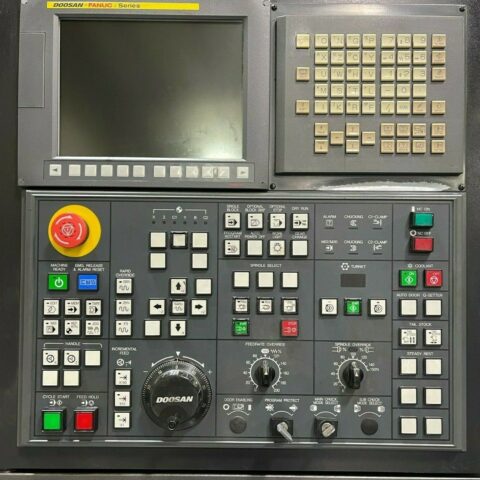

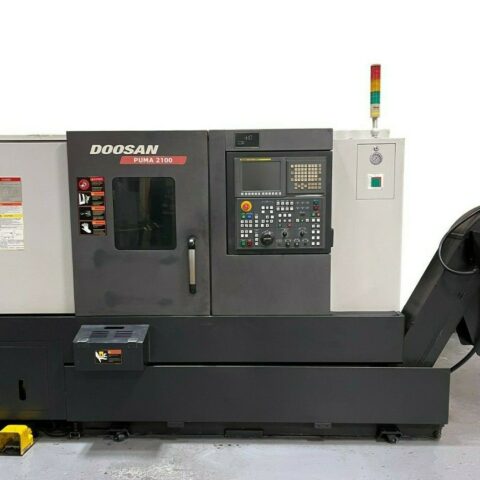

| Fanuc I Series CNC Control |

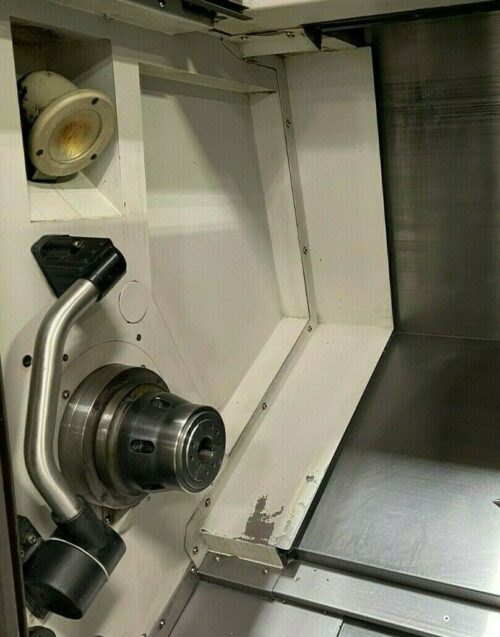

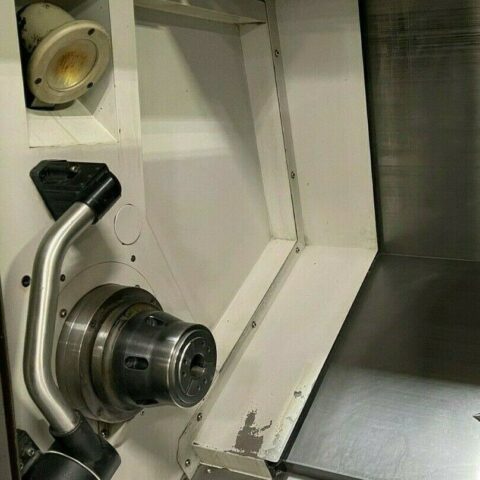

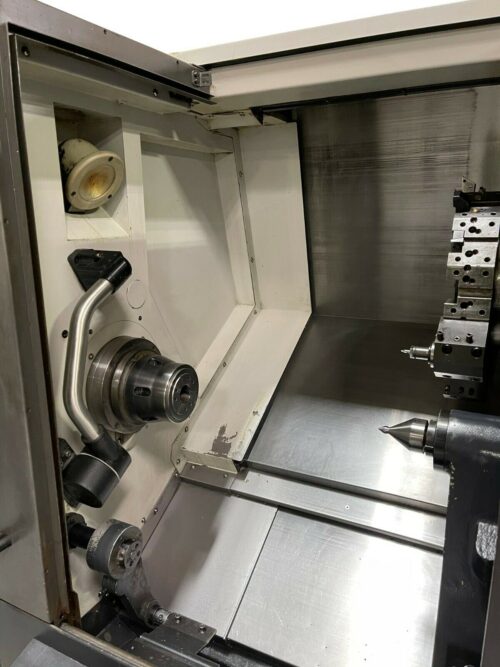

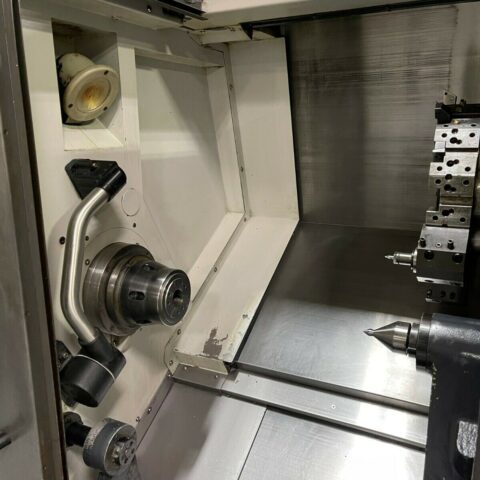

| Hydraulic Collet Chuck (10″ Capable) |
| A2-6, 4500 RPM Spindle |
| Tool Presetter |

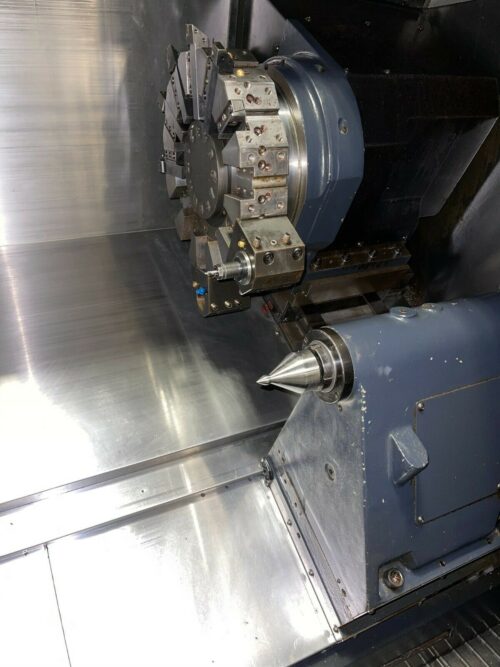

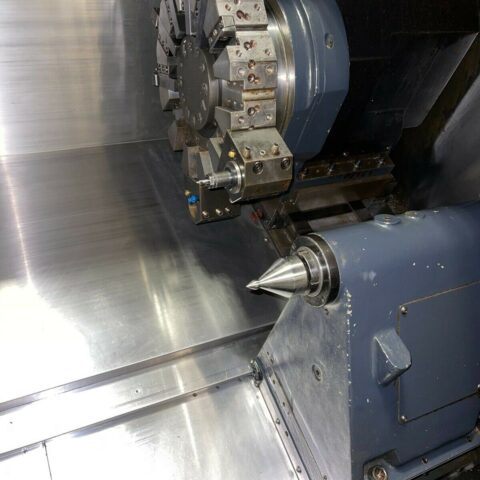

| Hydraulic Tailstock and Quill |
| PCMCIA Card Interface |

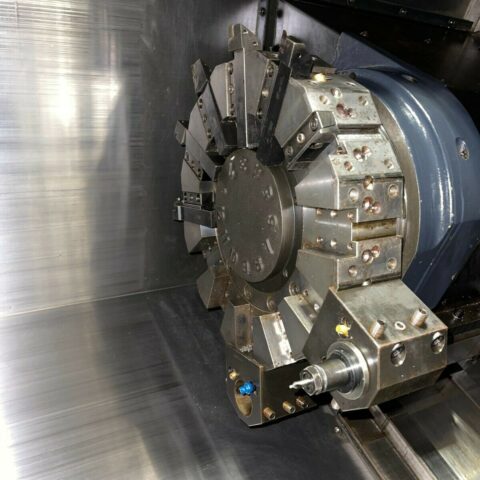

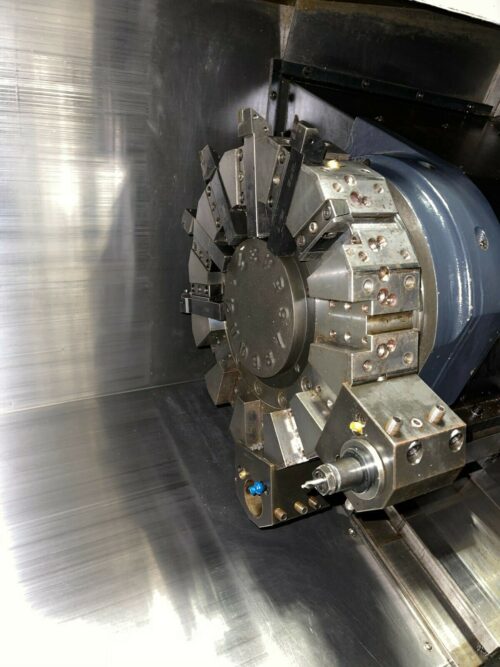

| 12 Station Automatic Turret |
| Foot Switch |
| Parts Catcher |
| Coolant System |

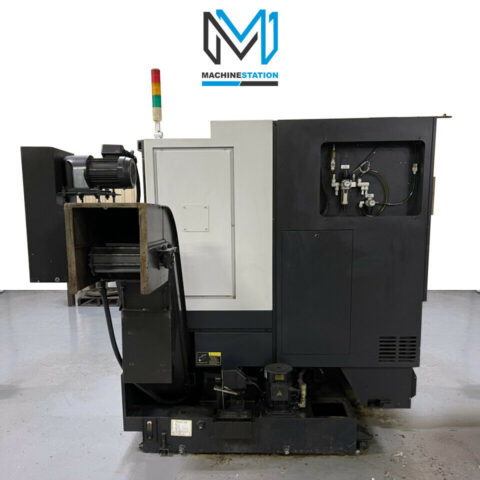

| Chip conveyor |
| Specifications: |
|---|
| Capacity: |
| Max Turning Diameter: 18.9″ |
| Max Turning Length: 21.5″ |
| Max Bar Capacity: 2.68″ |
| Swing Over Bed: 26.8″ |
| Swing Over Carriage: ″ |
| Distance Between Centers: ” |
| Travel: |
|---|
| X Axis Travel: 10.2″ |
| Z Axis Travel: 23.2″ |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.9″ |
| Spindle Speed: 4500 RPM |
| Spindle Motor: 25 hp |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| Tool Size: 2″ |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Body Travel: 20.5″ |
| Tailstock Quill Dia.: 3.7″ |
| Tailstock Quill Travel: 3.7″ |
| General: |
|---|

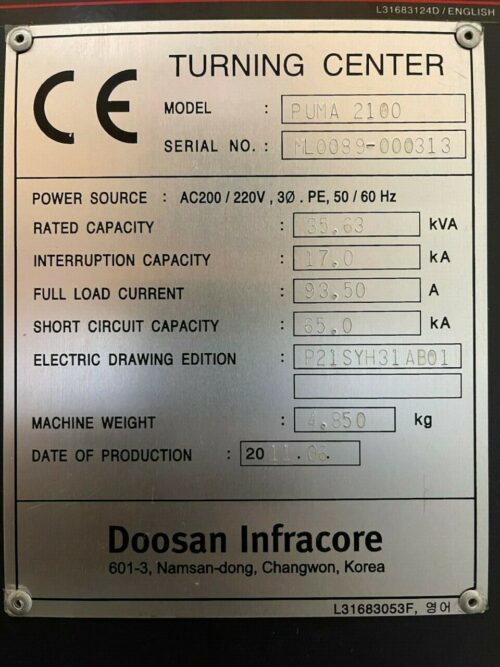

| Power: 55 kva, 220v / 3-Phase |
| Overall Dimensions: 120″ x 87″ x 90″ High |
| Weight: 11,000 lbs |

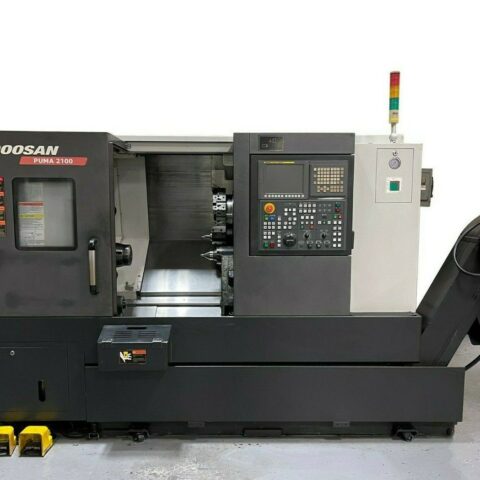

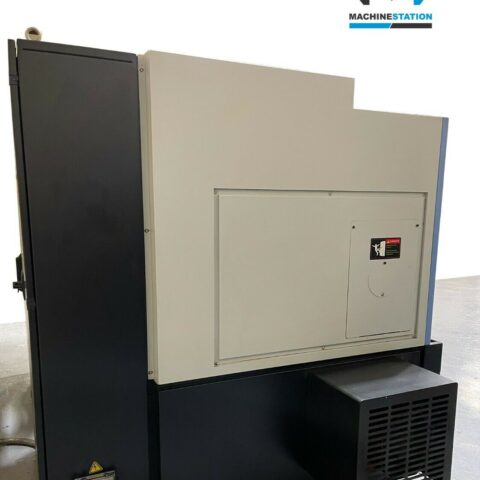

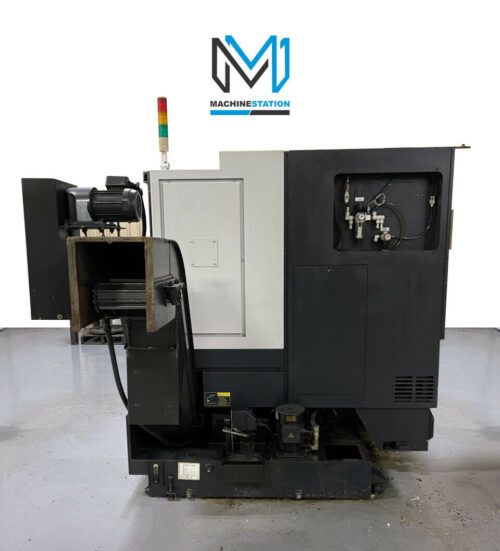

“No Charges for loading at list Price”Comes as shown in pictures….
