*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 115085 |

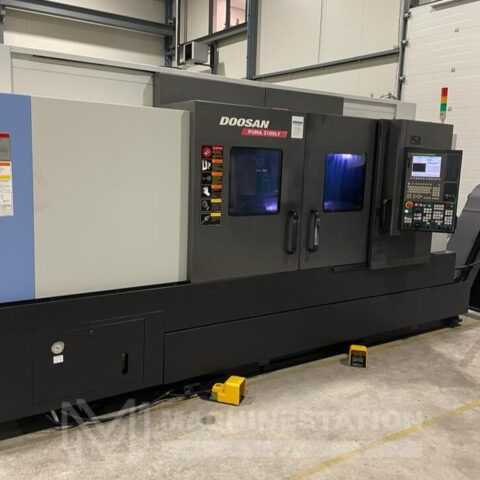

| Make: | Doosan |

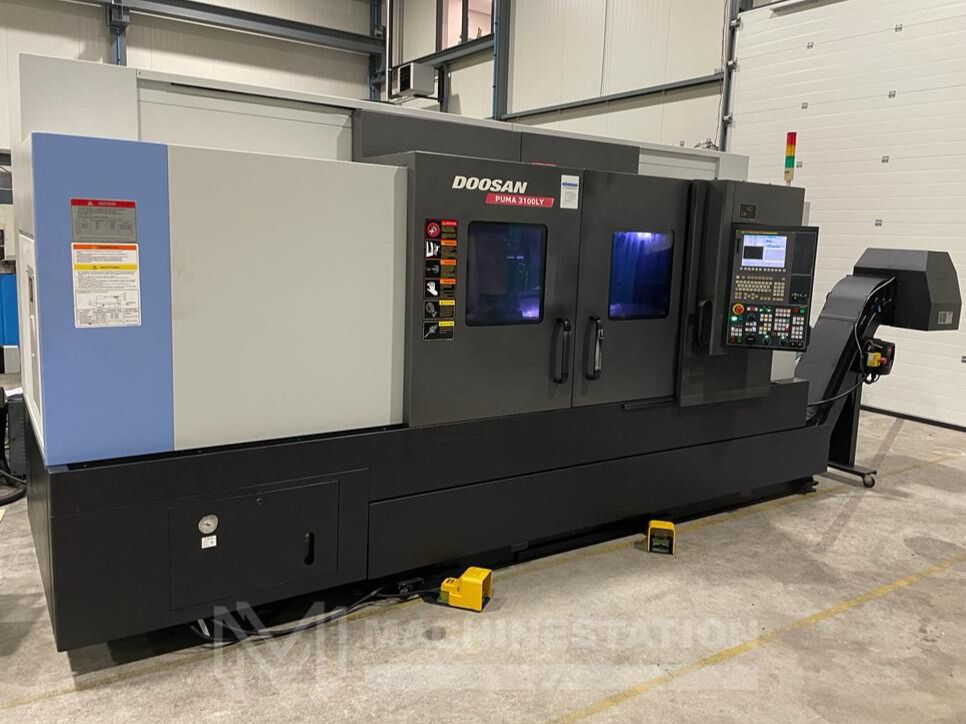

| Model: | Puma 3100LY |
| Year: | 2019 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

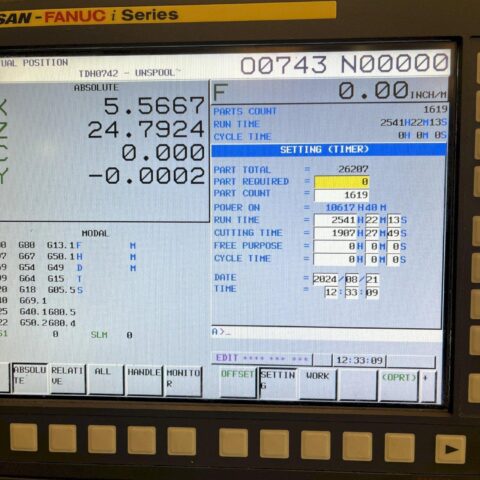

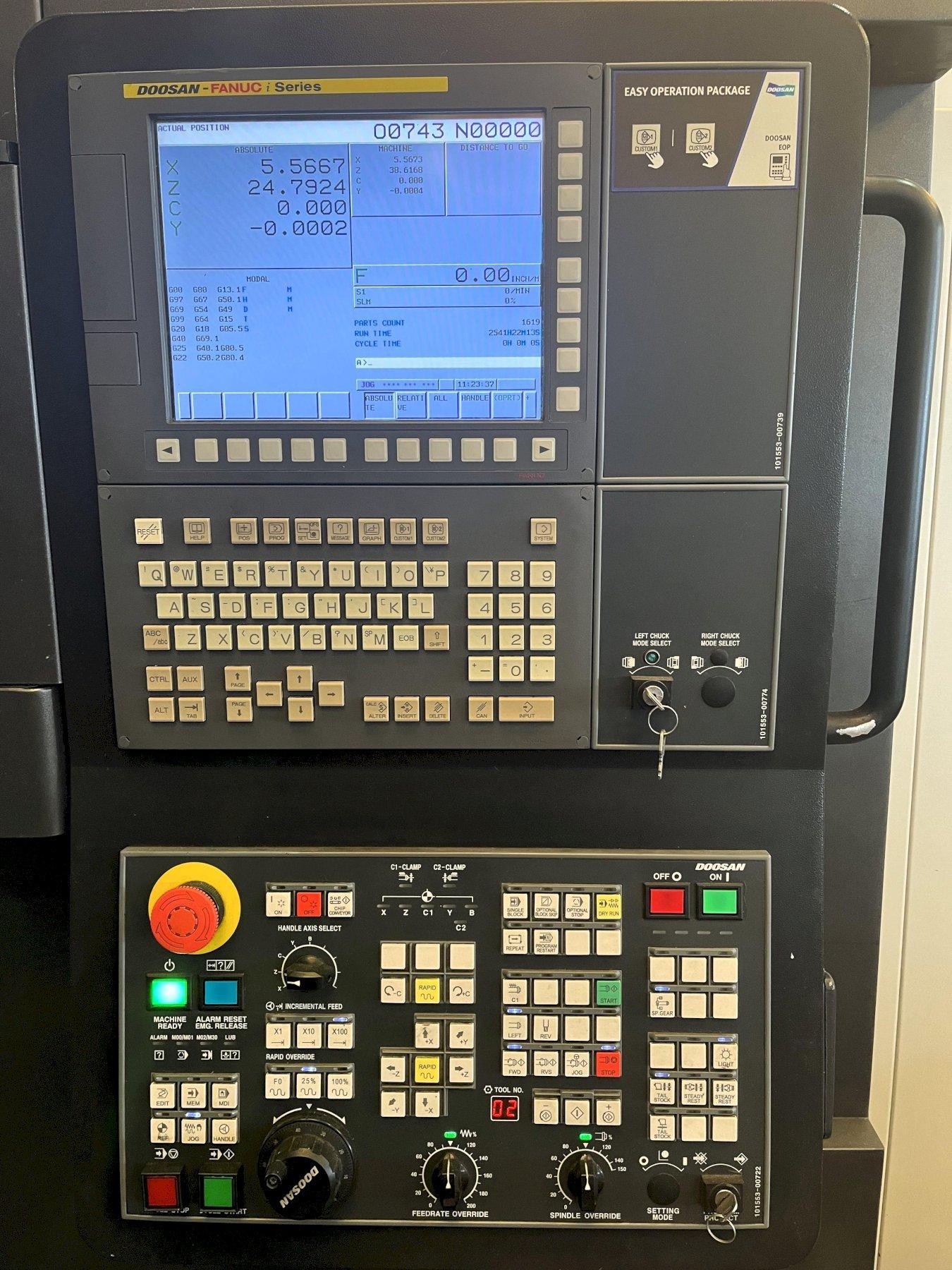

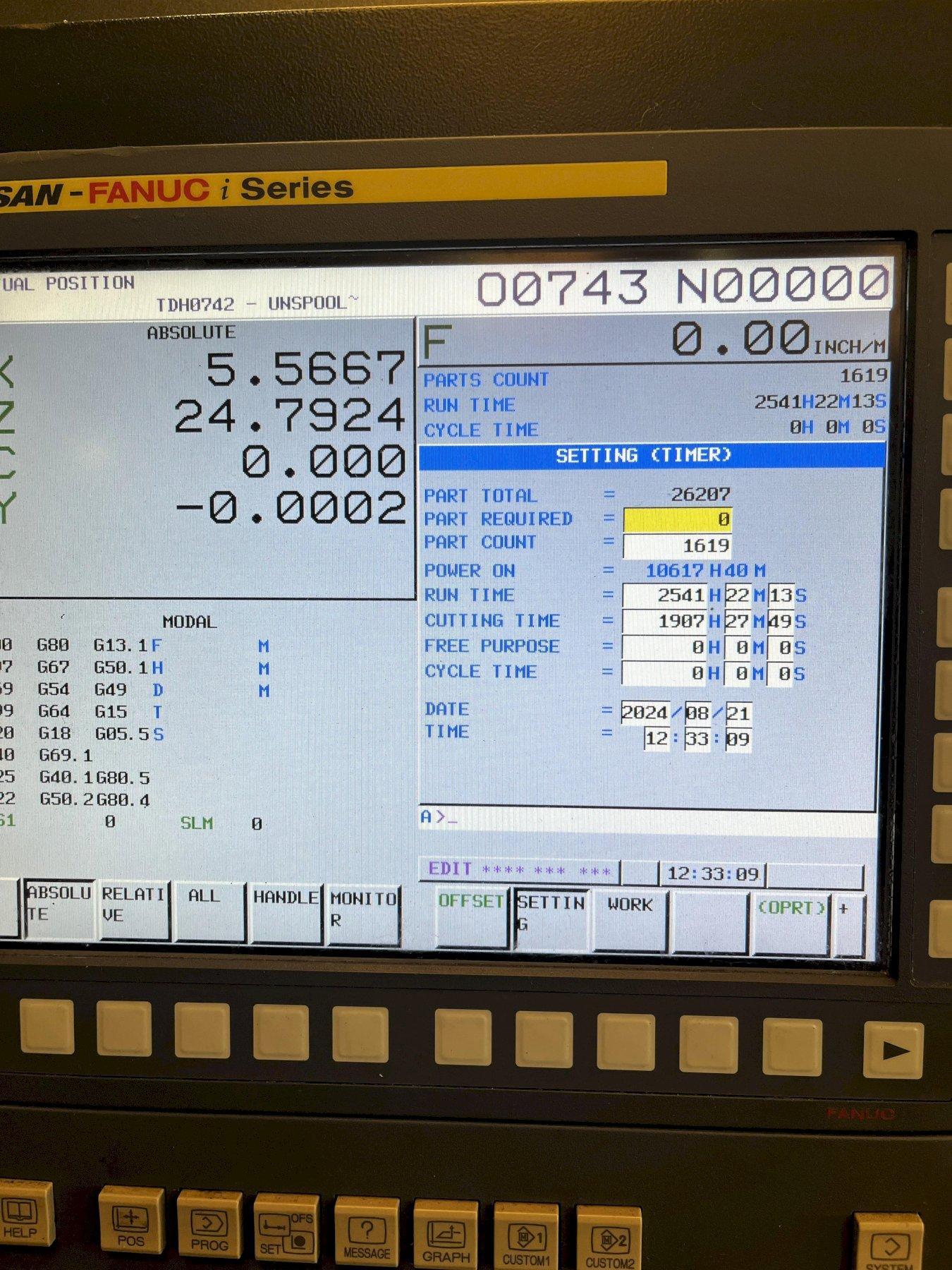

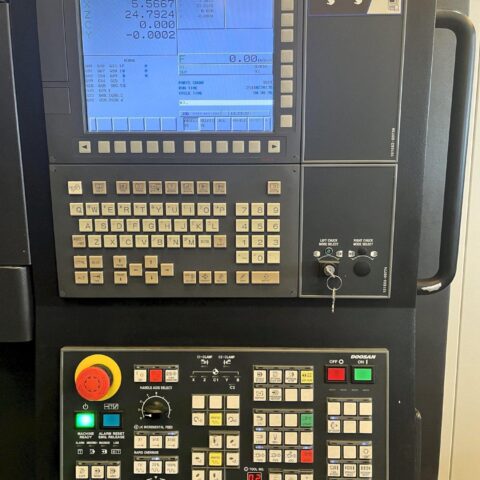

| Doosan-Fanuc i-series CNC Control |
| Heavy Duty Box Way Construction |

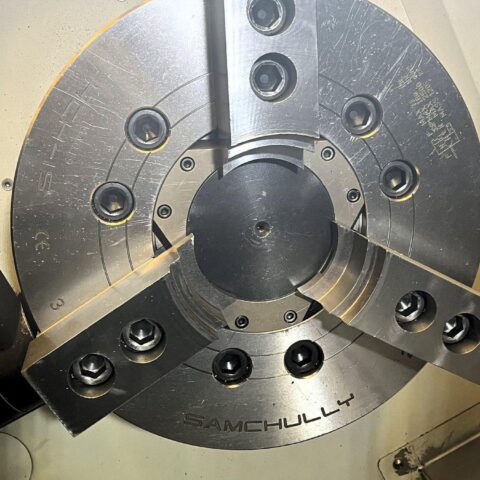

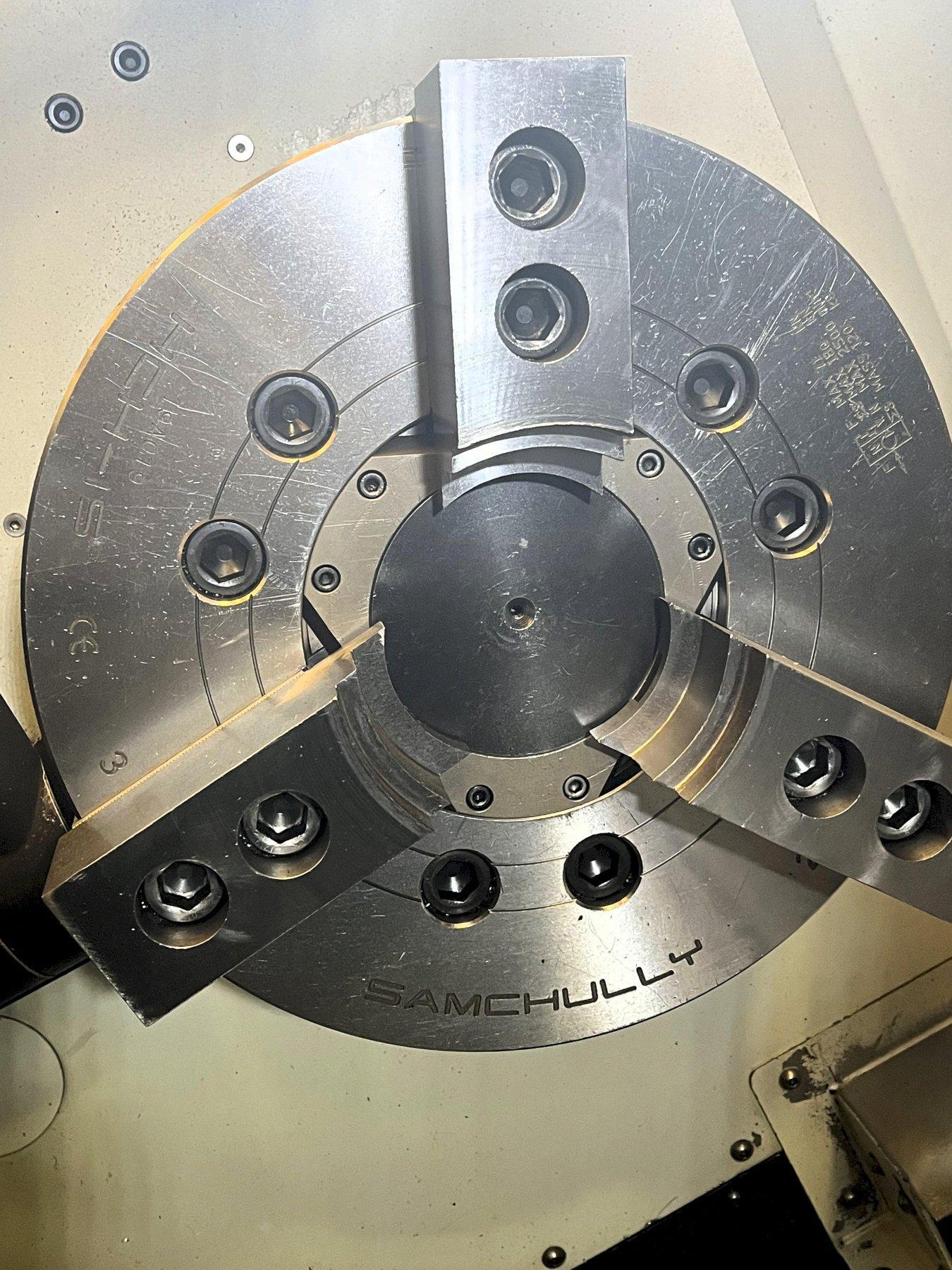

| 12″ 3-Jaw Samchully Hydraulic Chuck |
| 4.5″ Big Bore Spindle |
| Servo Controlled C Axis on Spindle |

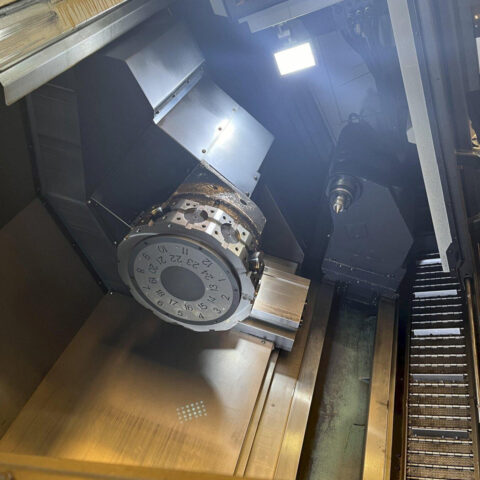

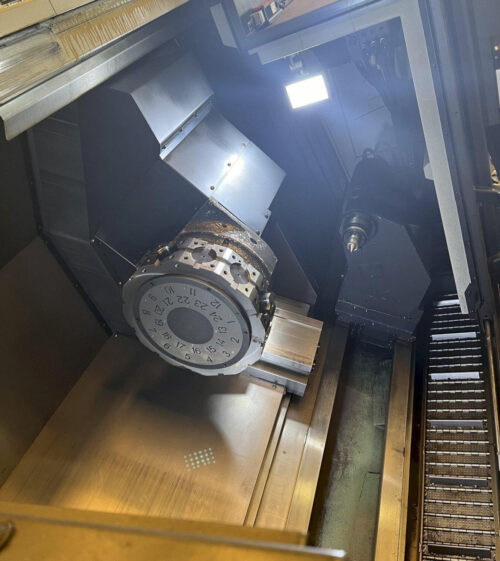

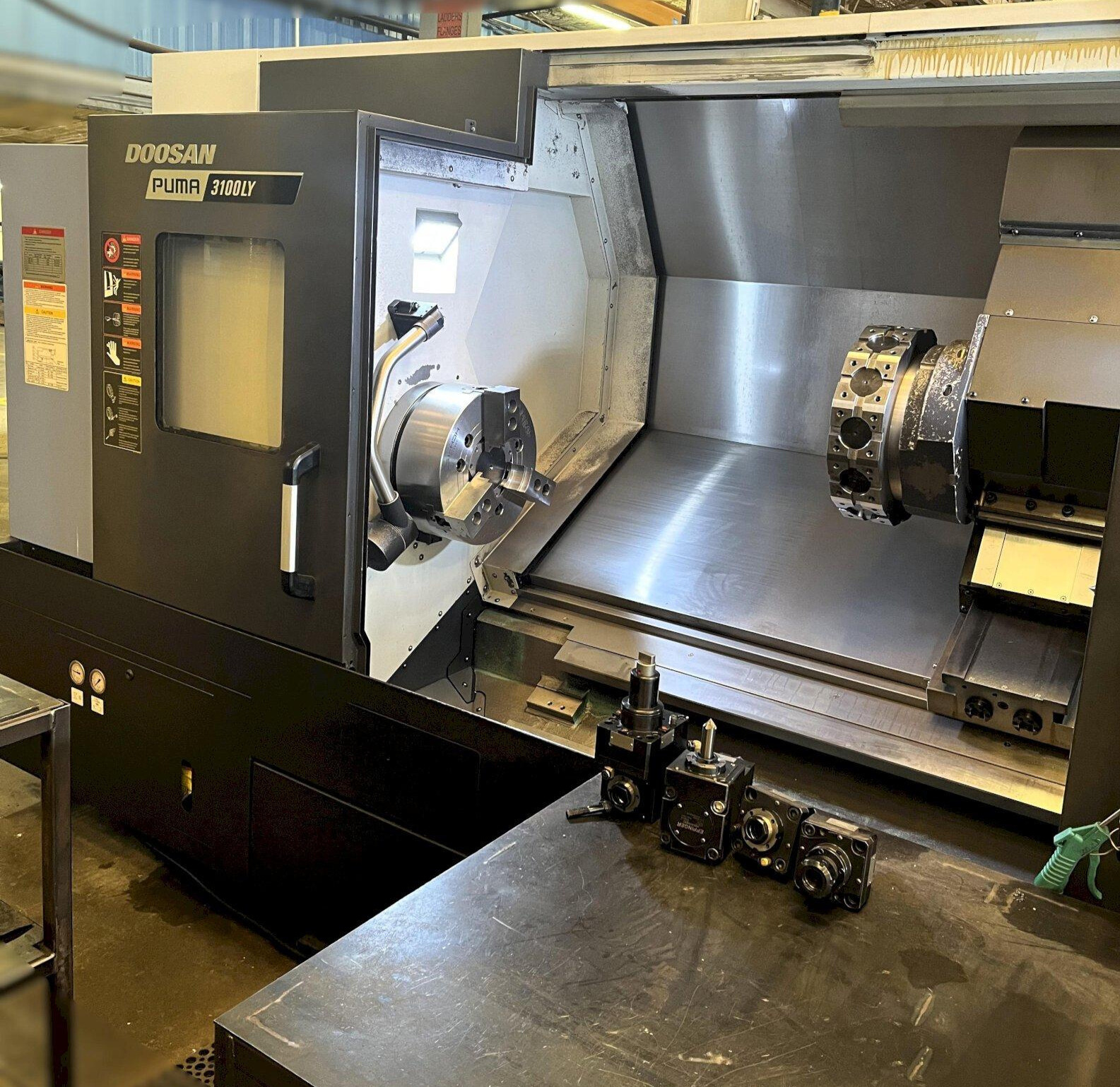

| 12 Station Live Tool Turret |
| Y Axis Capable |
| Tool Presetter |
| Tailstock |
| PCMCIA Card Interface |
| Coolant System |
| Chip Conveyor |
| Foot Switches |

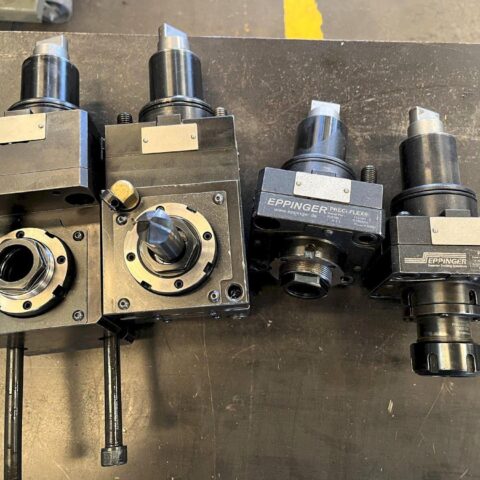

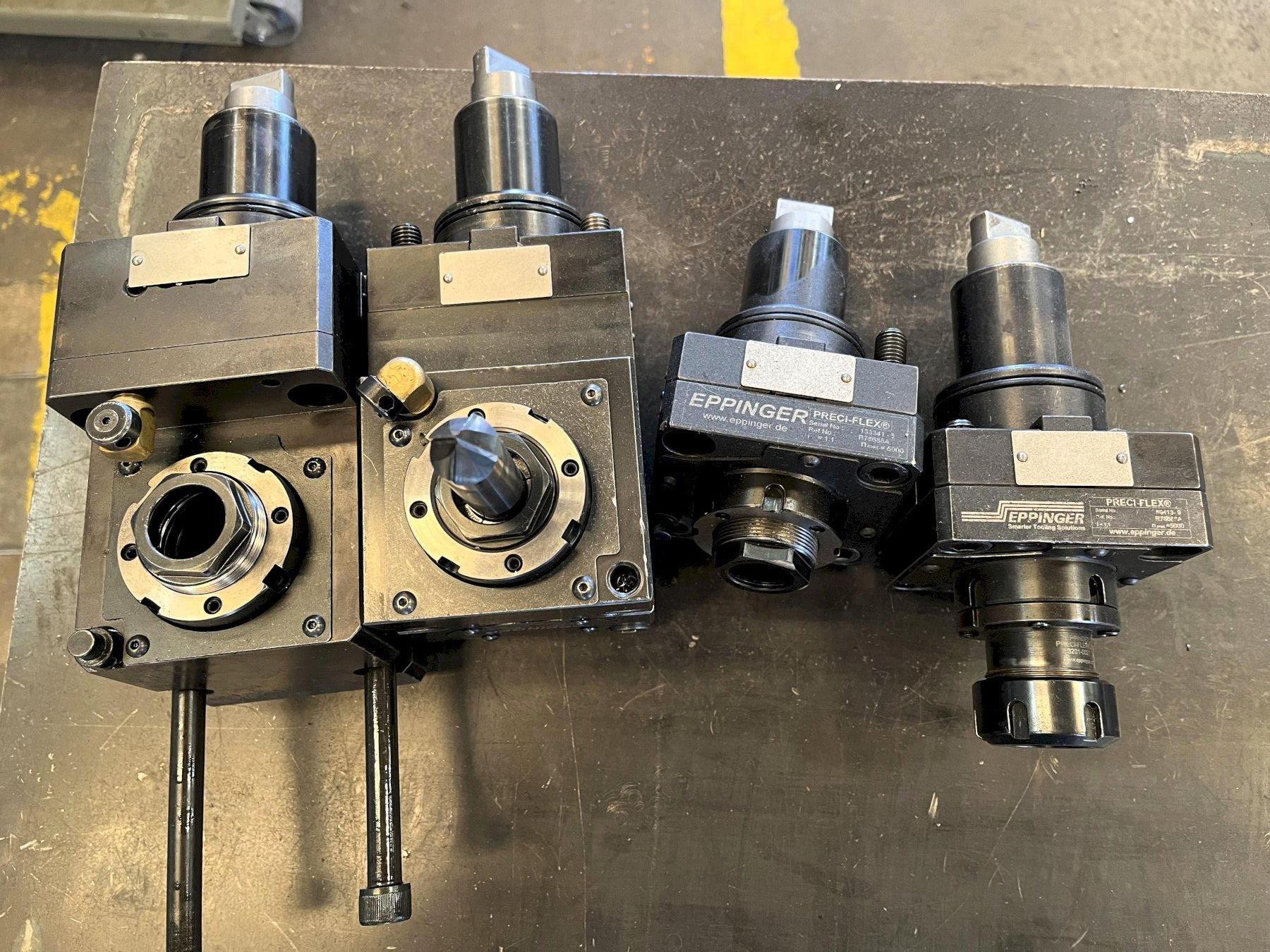

| (2) Axial Live Tool Holders & (2) Radial Tool Holder (As shown in the images) |
| Specifications: |
|---|
| Max Turning Diameter: 16.5″ |
| Max Turning Length: 50.6″ |
| Swing Over Bed: 33.5″ |
| Swing Over Saddle: 28.3″ |
| Max Bar Capacity: 4.0″ |
| Travel: |
|---|
| X Axis Travel: 11.5″ |
| Z Axis Travel: 53.1″ |
| Y Axis Travel: 5.1″ (- 2.6″ + 2.6″) |
| C Axis: 0.001 Degrees |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 4.5″ |
| Spindle Speed: 3000 RPM |
| Spindle Motor: 30 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations (24 positions) |
| Turret Index Time: 0.15 Second |
| OD Tool Size: 1.0″ |
| Boring Bar Diameter: 1.57″ |
| Rotary Tool Speed: 5000 RPM |
| Rotary Tool Motor Power: 7.5 HP |
| Turret Type: BMT-65P |
| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Quill Dia.: 3.9″ |
| Tailstock Quill Travel: 4.72″ |
| General: |
|---|
| Power: 200v – 220v / 3-Phase / 46.81 kva / 50/60 Hz |
| Overall Dimensions: 178″ x 82″ x 91″ High Approx. |
| Weight: 17,636 lbs Approx. |
