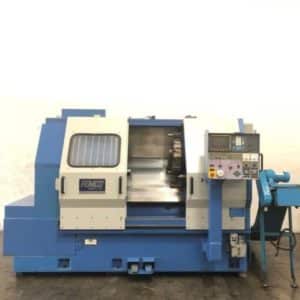

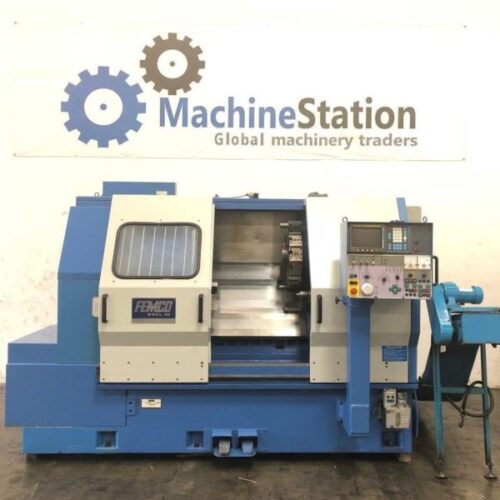

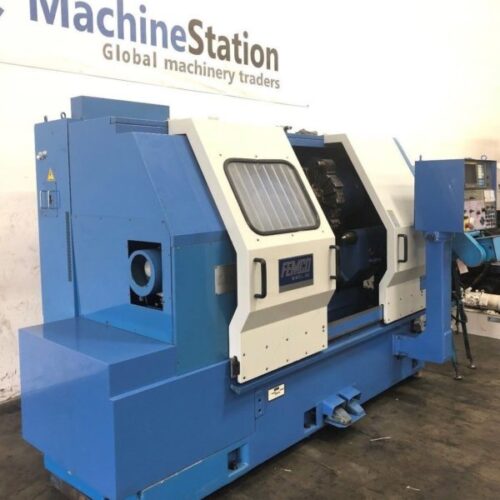

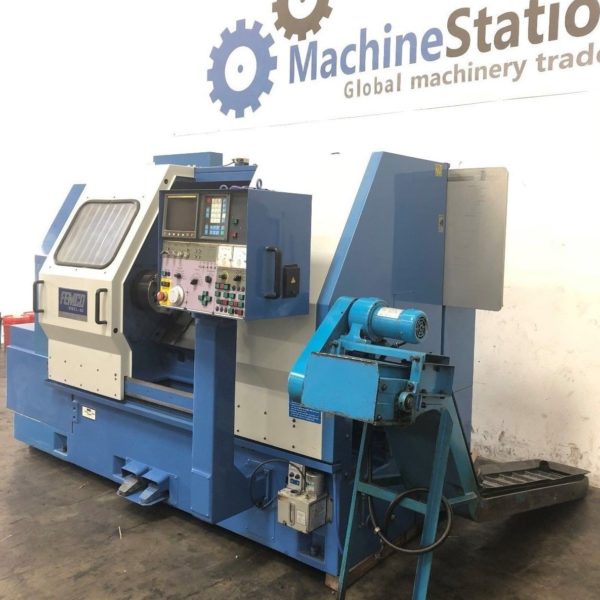

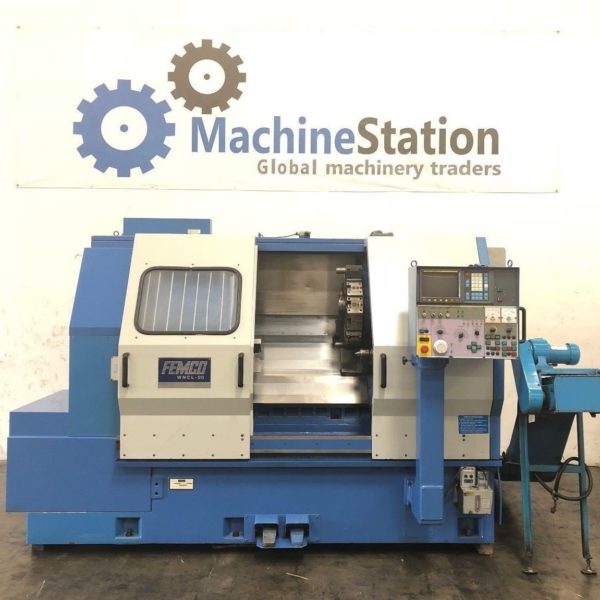

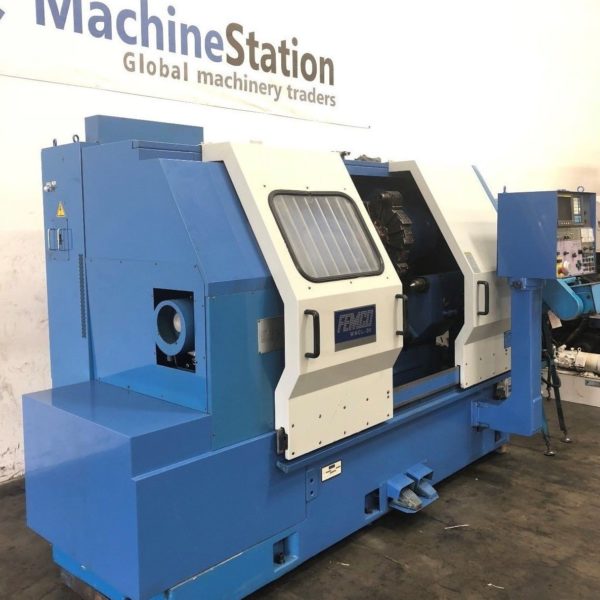

Femco WNCL 20/60 CNC Turning Center

All specifications are approximations and are subject to verification.

• Femco WNCL 20/60 CNC Equipped With:

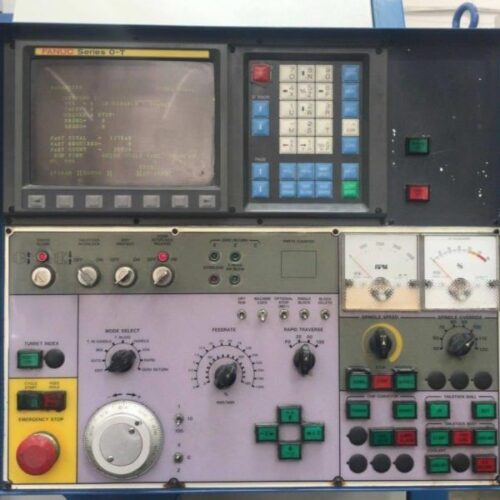

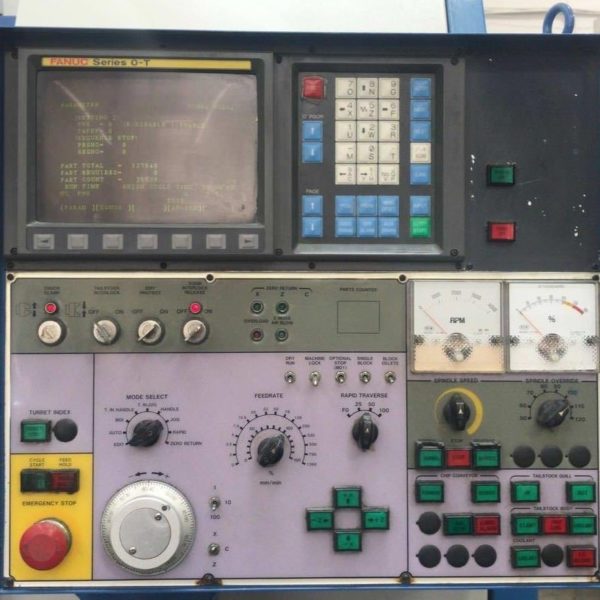

• Fanuc 0T CNC Control

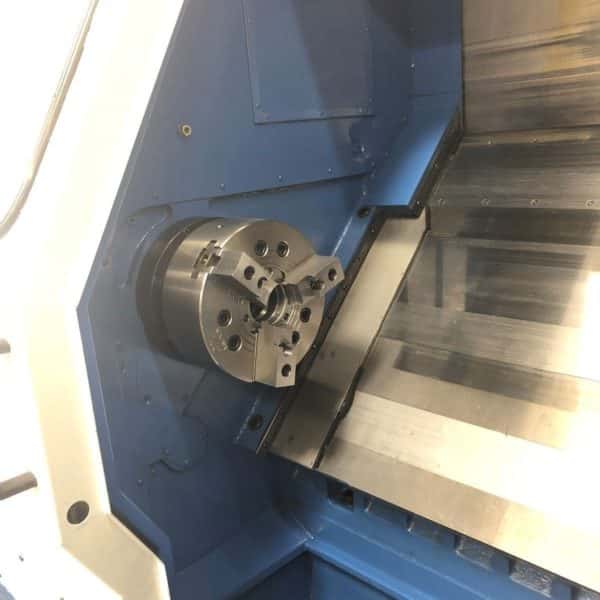

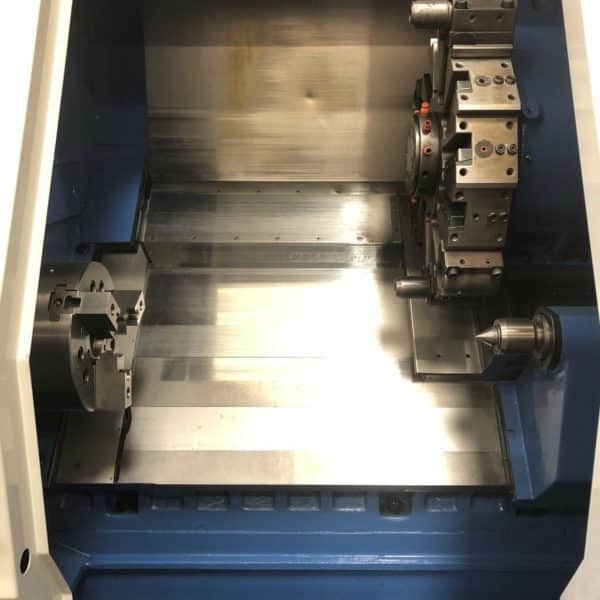

• 10″ 3 Jaw Kitagawa Hydraulic Chuck
• A2-8 Spindle
• Hydraulic Tailstock
• RS-232 ports

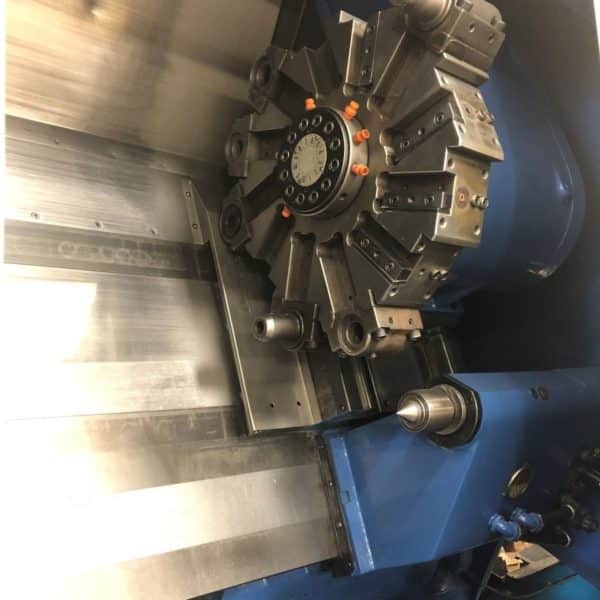

• 12 Station Automatic Turret
• Foot Switch
• Chip Conveyor
• Original Manuals

• General:

• Power: 21 kva, 220v / 3-Phase
• Overall Dimensions: 114″ x 76″ x 77″ High
• Overall Dimensions: 138″ x 76″ x 77″ High with Chip Conveyor
• Weight: 12600 lbs

• Femco WNCL 20/60 CNC Specifications:

• Capacity:
• Max Turning Diameter: 10.2
• Max Turning Length: 24.4″
• Swing Over Bed: 21.3″
• Distance Between Centers: 28.5″
• Max Bar Capacity: 3.0″
• X Axis Travel: 6.0″
• Z Axis Travel: 25.0″
• Rapid Traverse X Axis: 630 IPM
• Rapid Traverse Z Axis: 787 IPM
• Spindle Nose: A2-8
• Spindle Bore: 3.43″
• Spindle Speed: 40 – 4000 RPM
• Spindle Motor: 30 HP
• Turret Capacity: 12 Stations
• Turret Index Time: 1 Second
• Tailstock Taper: MT-5
• Tailstock Quill Dia.: 3.0″
• Tailstock Quill Travel: 3.94″
