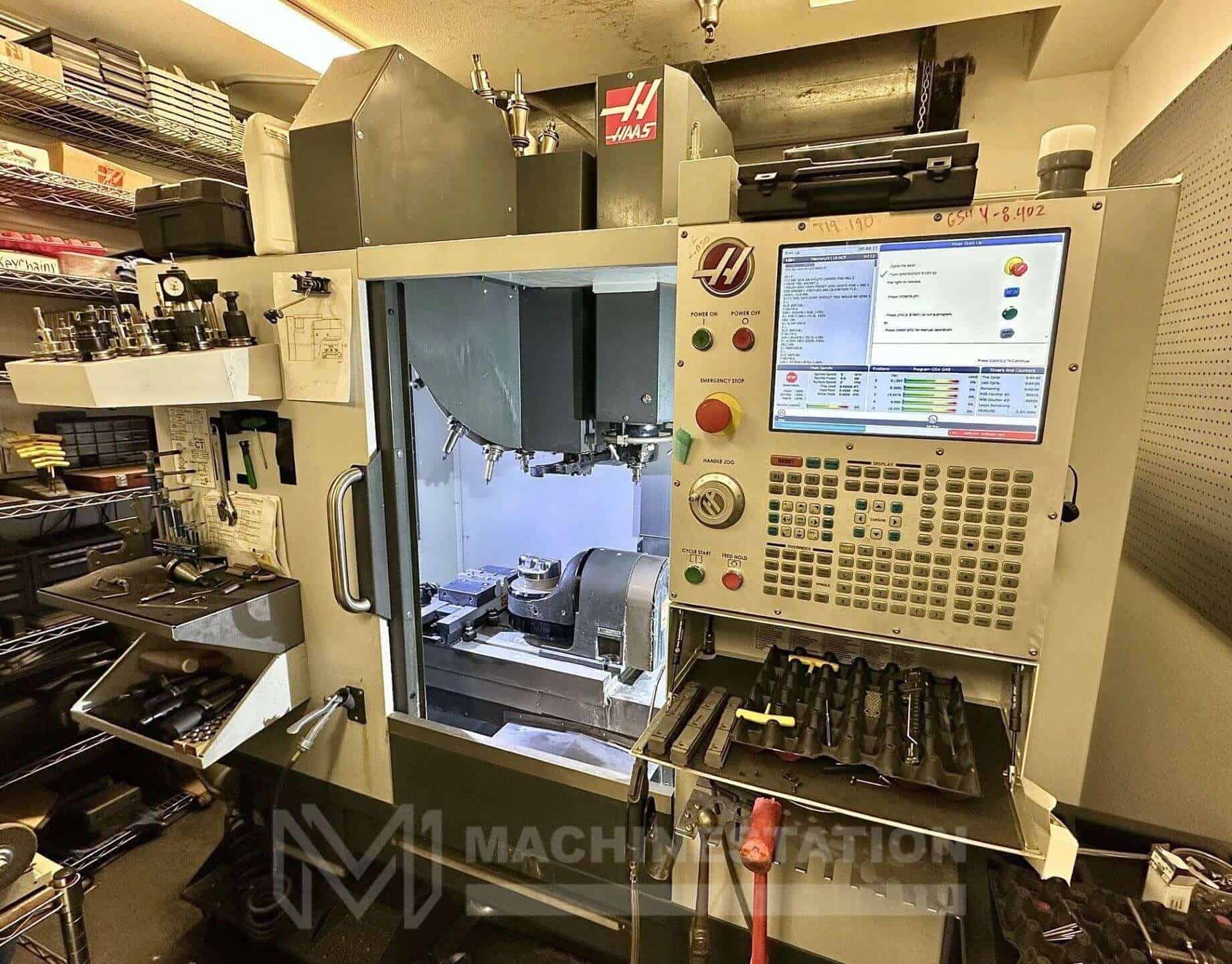

Haas DM-2 5 Axis CNC Vertical Machining Center – 2018

1 in stock
SKU: 115026
Make/Model: HAAS DM-2
Year: 2018

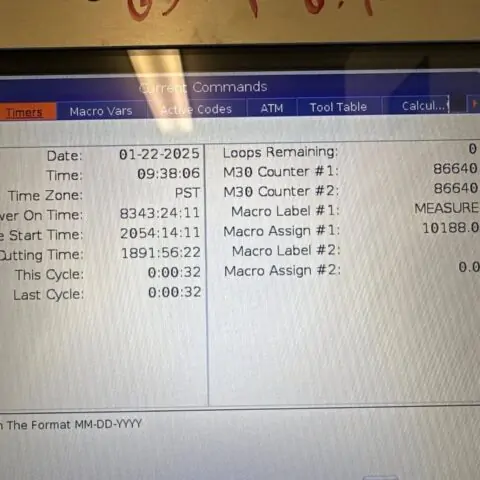

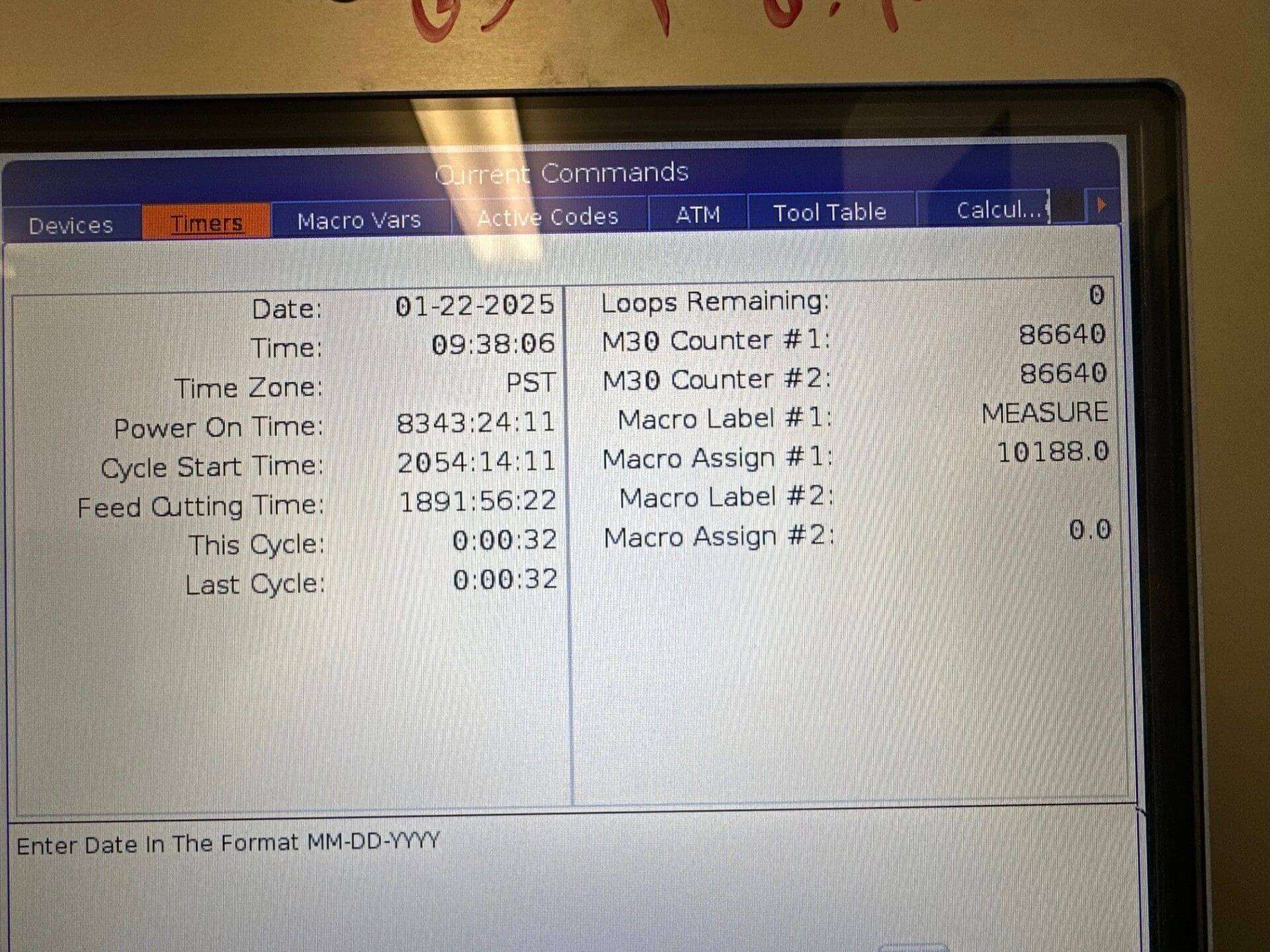

Cutting Time: 1891 Hours
Video: No Video

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: HAAS
Model: DM-2
Year: 2018
Condition: Used – Excellent

Key Features of the Haas DM-2:

  • Haas CNC Control
  • 4th Axis Ready – Wiring and Drive (Upgraded $3,195 value Included)
  • 5th Axis Ready – Wiring and Drive (Upgraded $9,495 value Included)

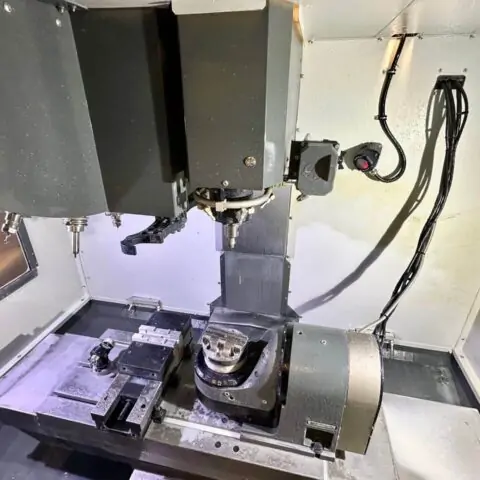

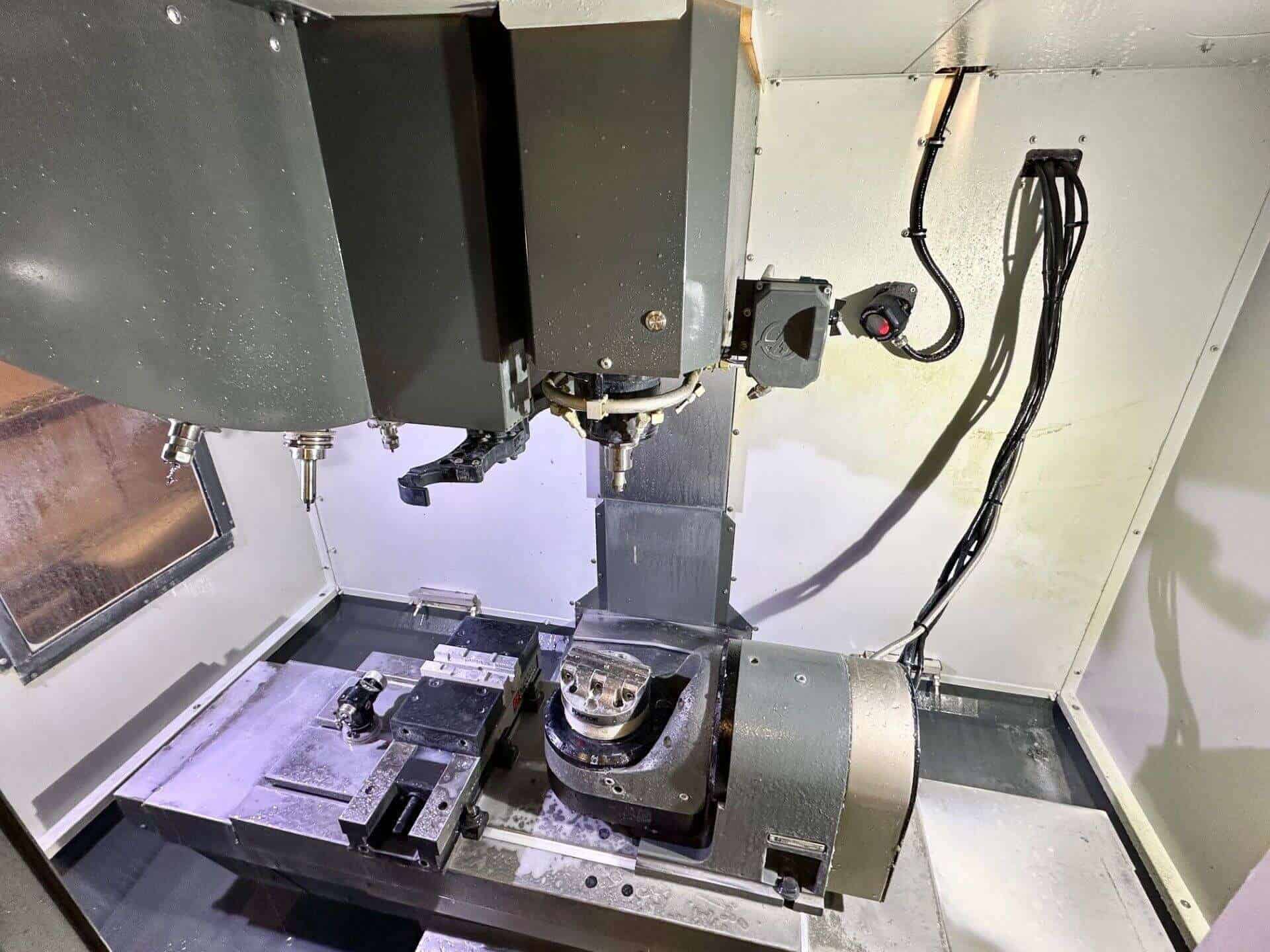

  • TRT 100 2-Axis Tilting Rotary Table (Upgraded $29,295 value Included)
  • Wireless Intuitive Probing System (Upgraded $5,795 value Included)
  • Through Spindle Coolant – 300 psi (Upgraded $6,295 value Included)
  • Through-Tool Air Blast (Upgraded $1,395 value Included)
  • Programmable Coolant Nozzle (Upgraded $2,095 value Included)
  • 10,000 RPM Spindle
  • 18 Station Automatic Tool Changer
  • Automatic Pallet Changer Ready
  • CNC Control Cabinet Cooler
  • Enclosure Exhaust System (Upgraded $1,995 value Included)
  • Visual Part Programming System
  • Spindle Orientation
  • User-Definable Macros
  • Coordinate Rotation and Scaling
  • Rigid Tapping
  • Flood Coolant System
  • Internal High Voltage Transformer
  • Chip Auger (Upgraded $3,695 value Included)

Travel:

  • X-Axis: 28.0″
  • Y-Axis: 16.0″
  • Z-Axis: 15.5″
  • Rapid Traverse Rates: 2400 Inch Per Minute
  • Cutting Feed Rates: 1200 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 6″ – 21.5″

Table:

  • Length: 34.0″
  • Width: 15.0″
  • Number of Std T-Slots: 3
  • T-Slot Width: 5/8″
  • Max Weight on Table: 500 lbs

Spindle:

  • Taper Size: CAT-40
  • Speed Range: 10,000 RPM
  • Spindle Power: 15 HP

Automatic Tool Changer:

  • Capacity: 18 Stations Side Mounted
  • Max Tool Weight: 12 lbs
  • Max Tool Dia: 2.5″
  • Max Tool Length: 7.0″
  • Tool Changing Time: 1.75 Seconds

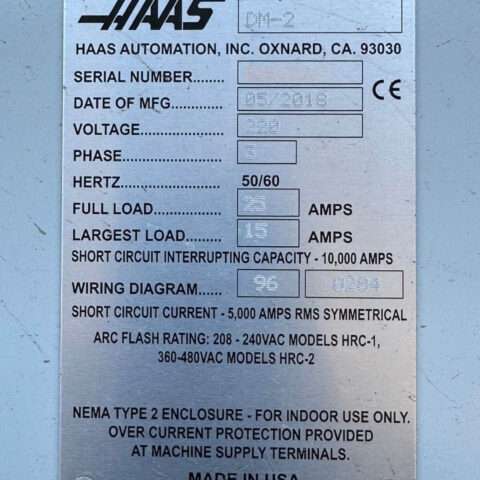

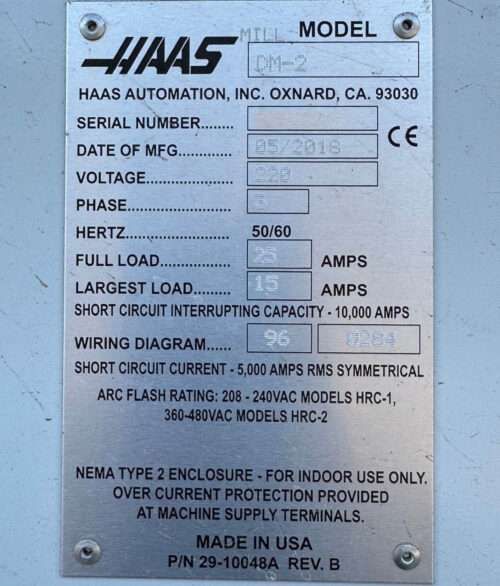

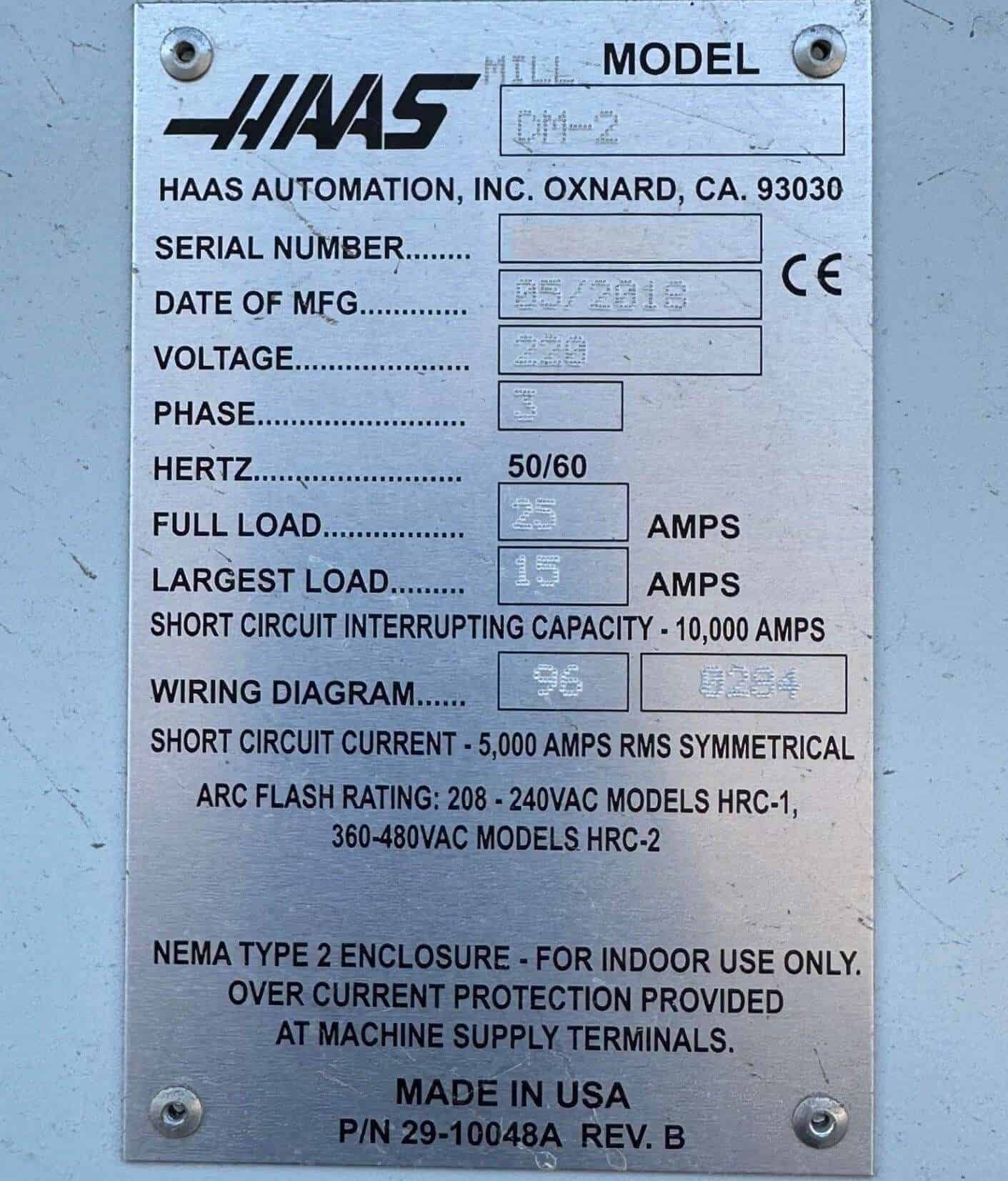

General:

  • Air Required: 100 psi 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 91″ x 100″ x 98″ High
  • Weight: 5,350 lbs
