*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

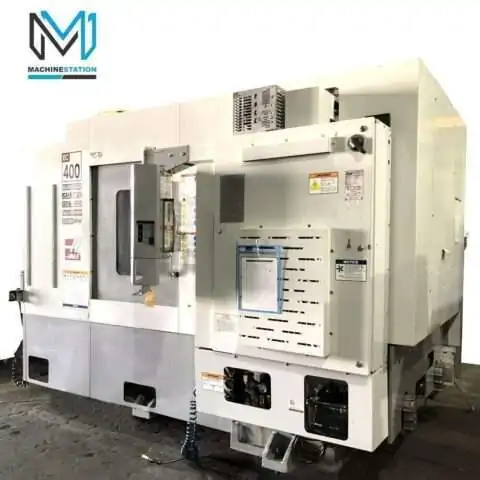

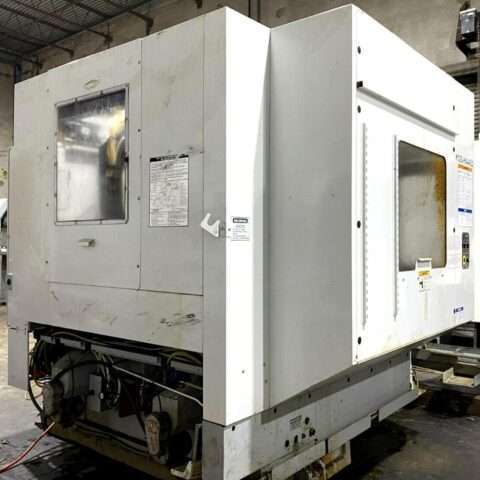

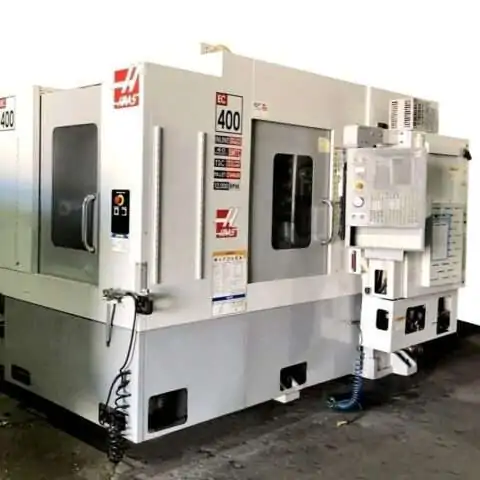

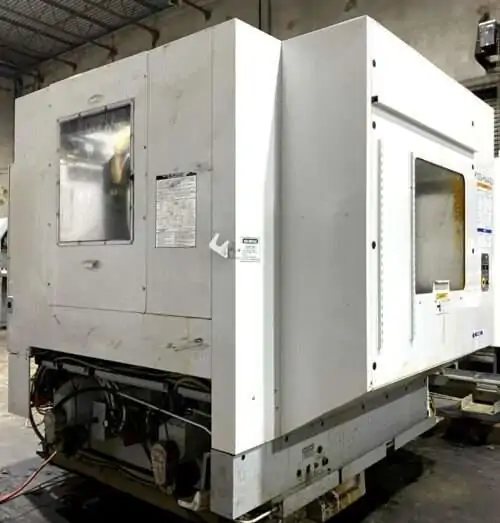

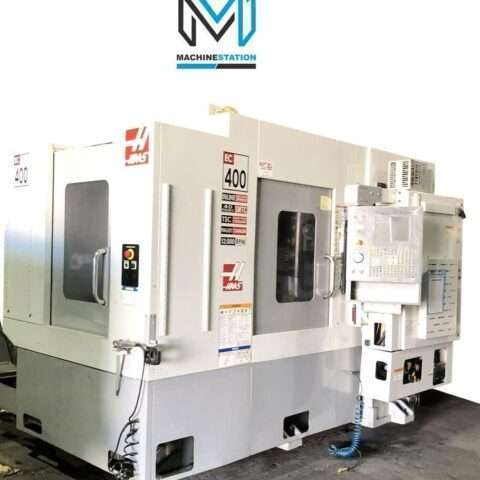

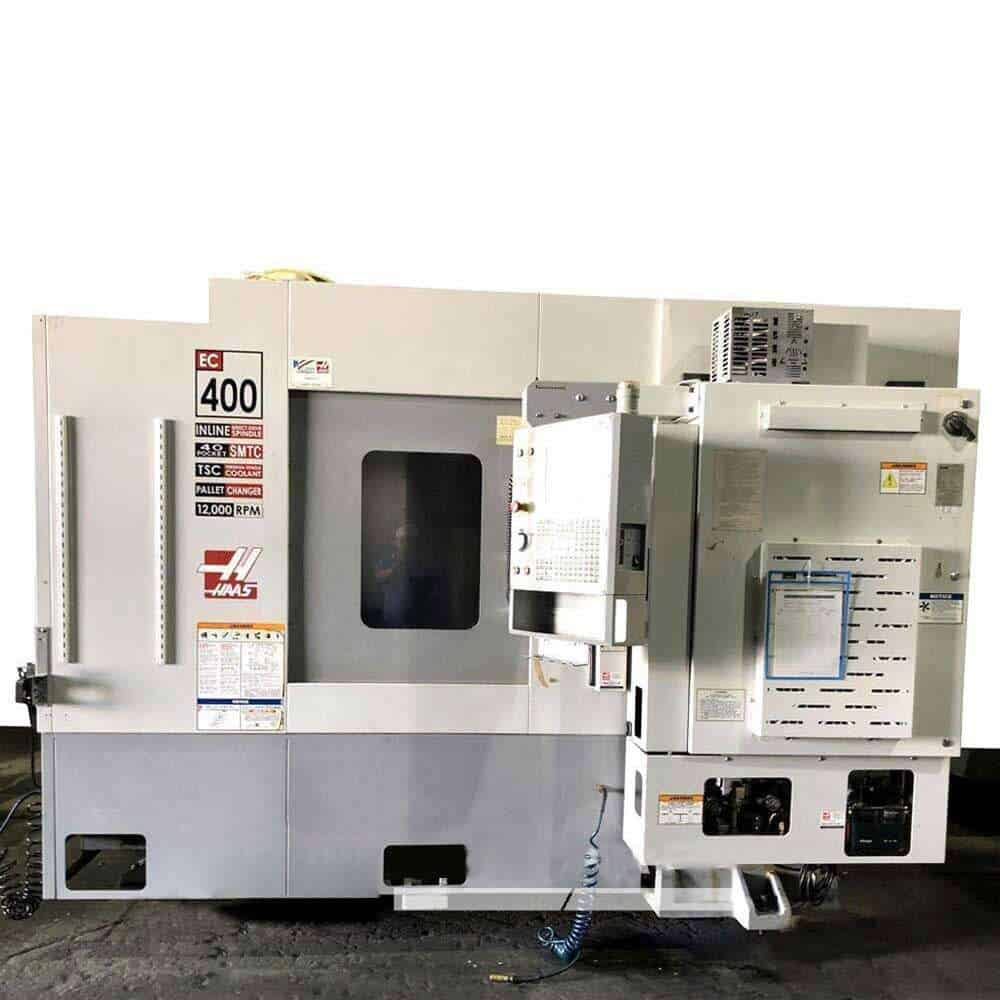

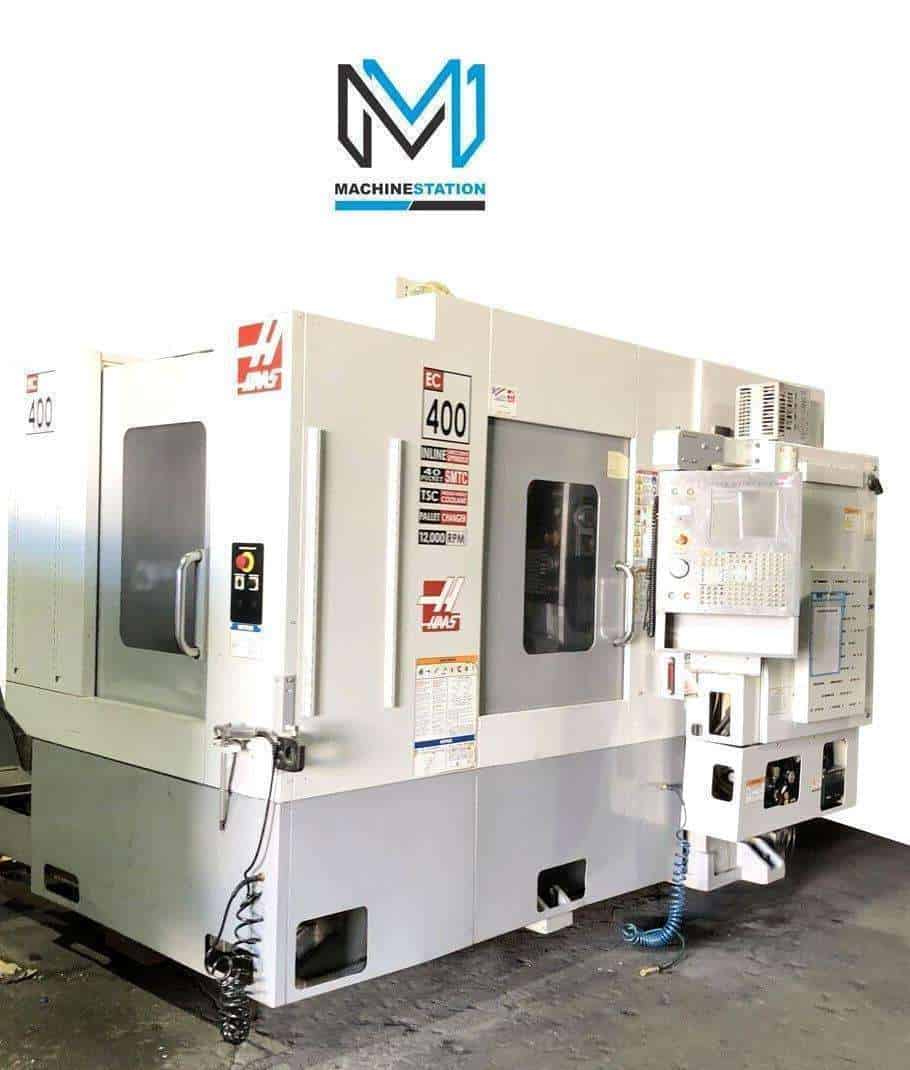

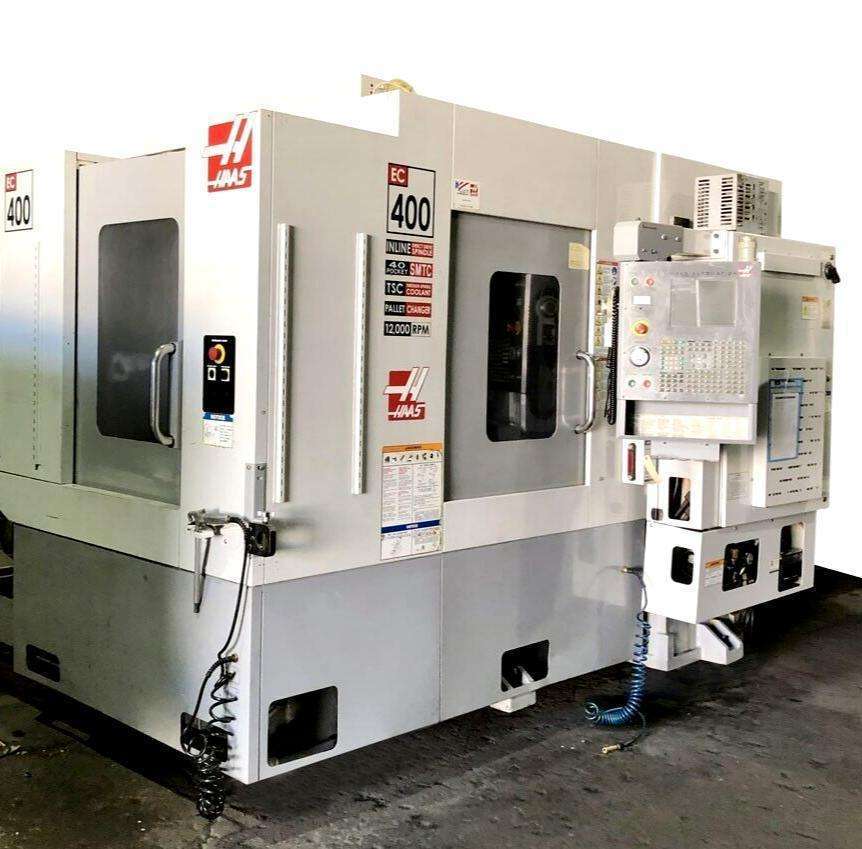

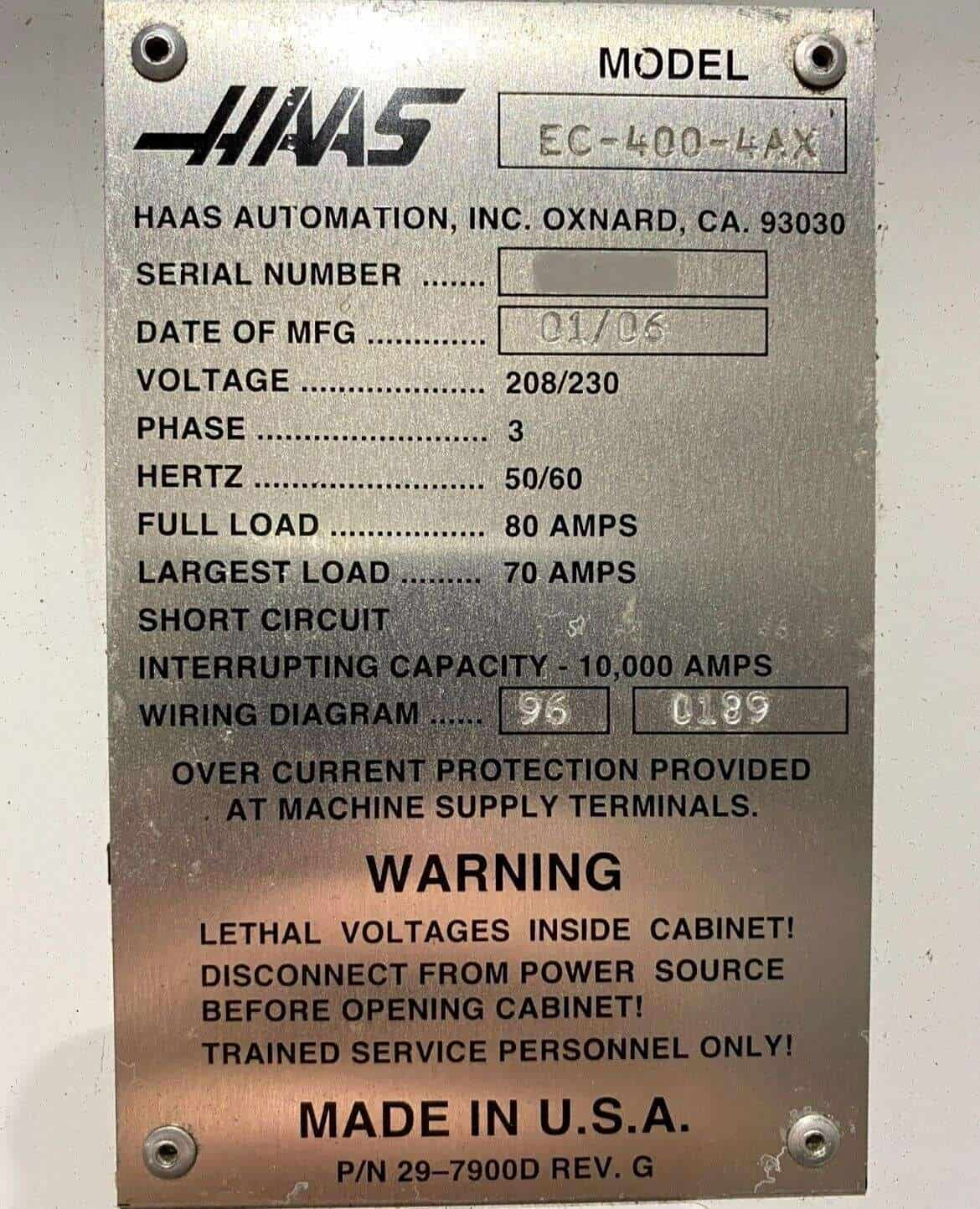

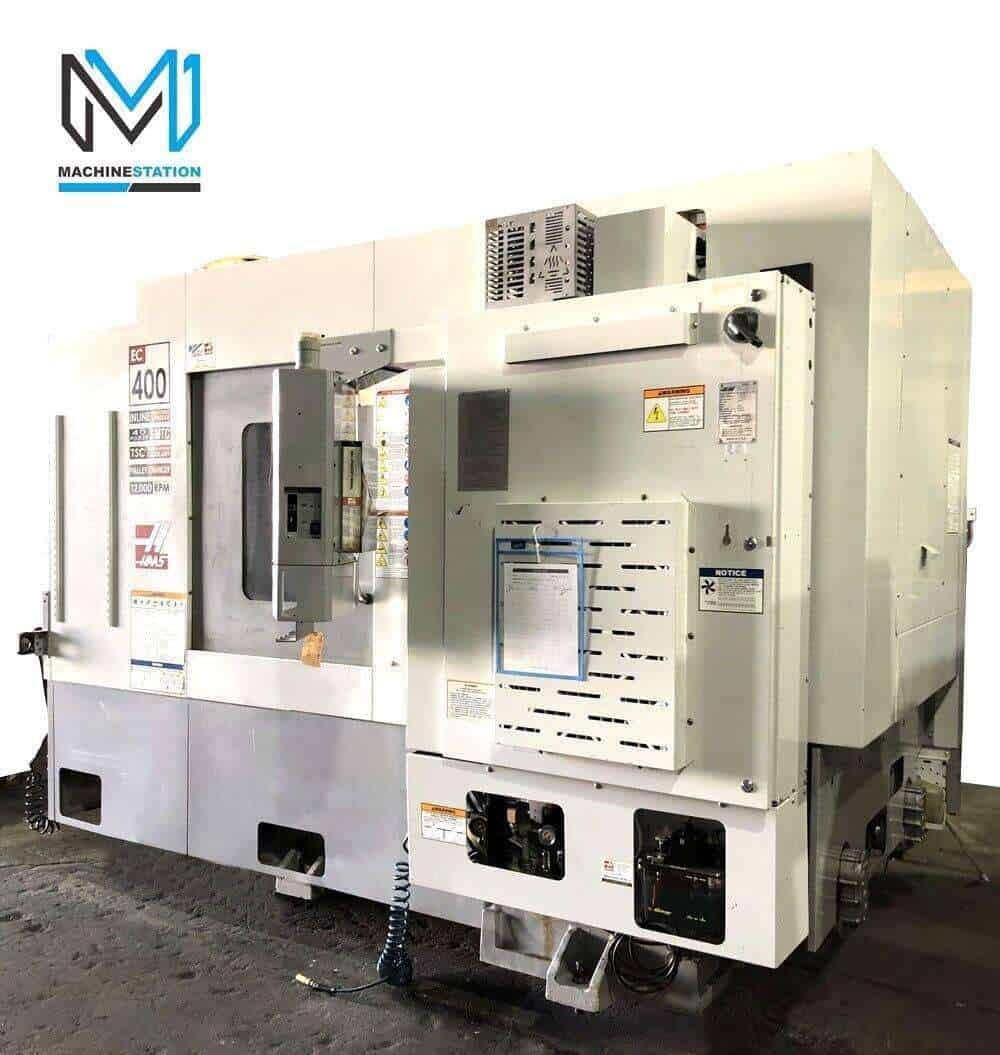

| Make: | HAAS |
| Model: | EC4004AX |
| Year: | 2006 |
| Condition: | Used – Good |
| Equipped With: |
|---|

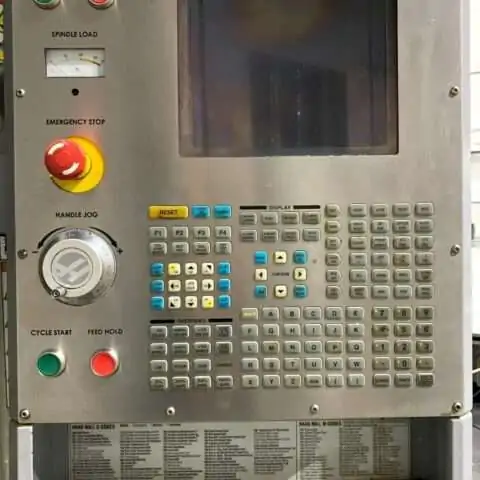

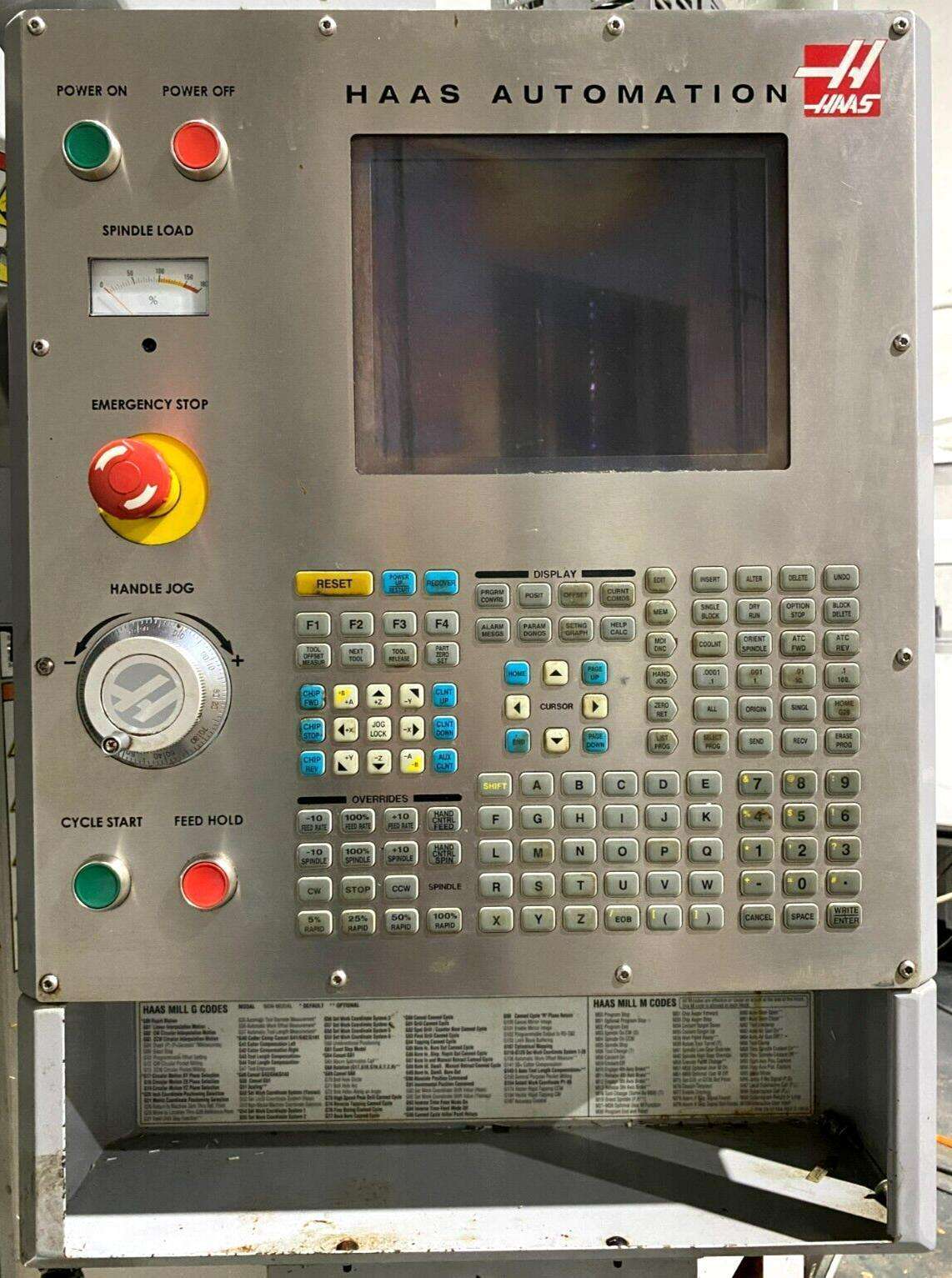

| Haas CNC Control |
| 12000 RPM Inline Direct Drive Spindle |
| Through Spindle Coolant |
| 4th Axis Dual Pallet Changer |
| 40 Tools Side Mount Tool Changer |
| Expanded Program Memory |
| Remote Jog Handle |
| Rigid Tapping |
| High Speed Machining |
| Advanced Tool Management |
| Power Failure Detection Module |
| User Definable Macros Spindle Orientation and Coordinate Rotational Scaling |
| Brush-type servo drive motors on all axis |
| Programmable coolant |

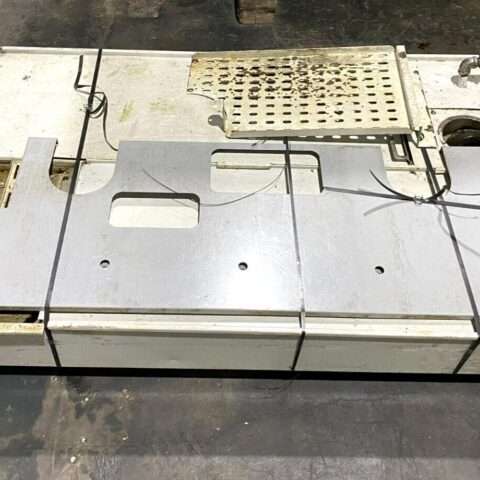

| Telescopic way covers |

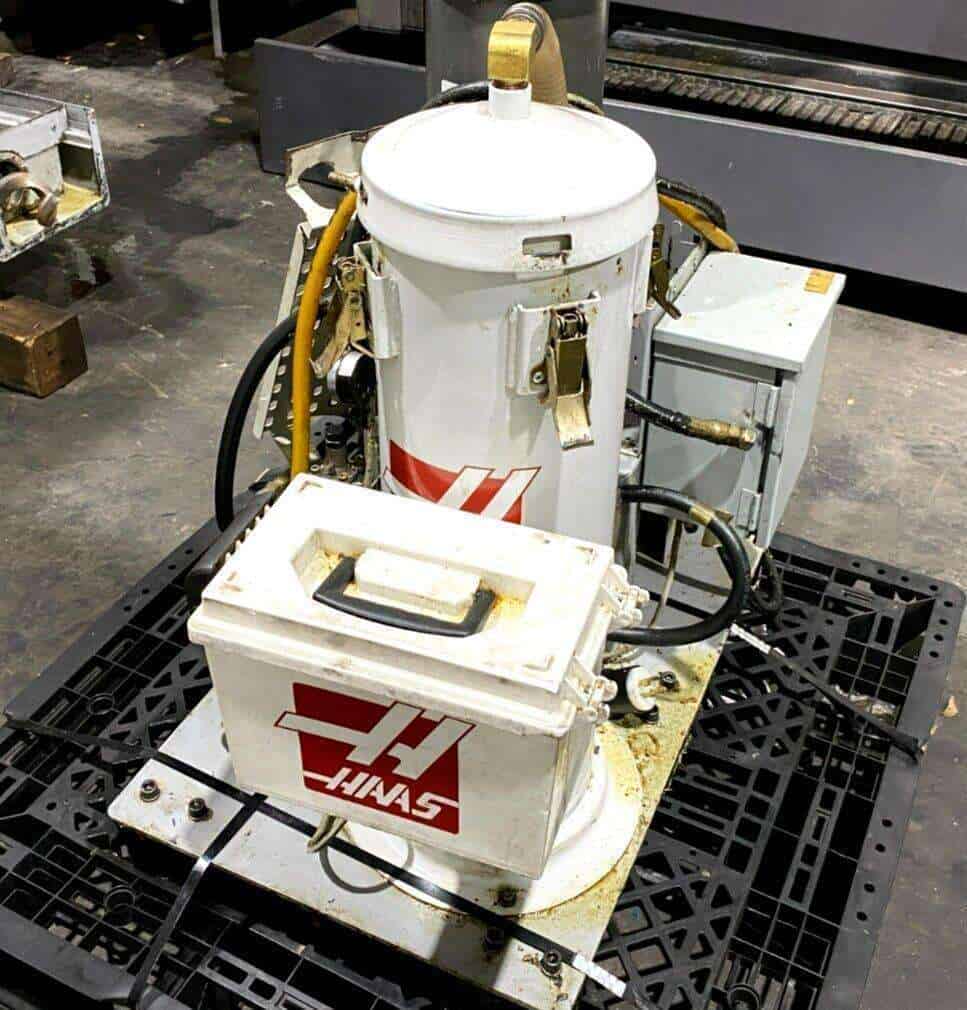

| High Pressure Coolant system |
| Travels: |
|---|
| X Axis: 22″ |
| Y Axis: 25″ |
| Z Axis: 22″ |
| B Axis: 0.001° ( Full 4th ) |
| Pallet: |
|---|
| Dual Pallet Changer |
| Pallet Size: 15.75″ X 15.75″ |
| Pallet Change Time: 15 Seconds |
| Max Weight on Pallet: 880 lbs |
| Spindle: |
|---|
| Taper Size: CAT 40 |
| Spindle Speed: 12000 RPM |
| Spindle Power: 30 HP |
| Max Torque: 90ft-lb @ 2000RPM |
| Feed rates: |
|---|
| Rapid Traverse Rates: 1400 Inch Per Minute |
| Cutting Feed Rates: 833 Inch Per Minute |
| Tool changer: |
|---|
| Capacity: 40 Station Side Mounted |
| Max Tool Diameter: 5″ |
| Max Tool Length: 12″ |
| Max Tool Weight: 12 lbs. |
| Tool Change Time (Tool to Tool): 2.8 Second |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

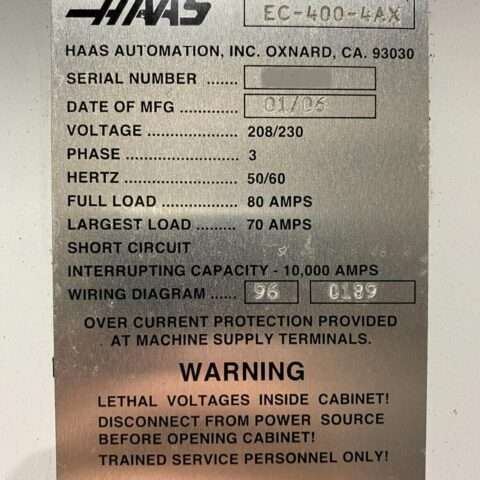

| Power: 220v / 66FLA / 3-Phase |
| Overall Shipping Dimensions: 150″ x 102″ x 95″ High ( Machine ) |

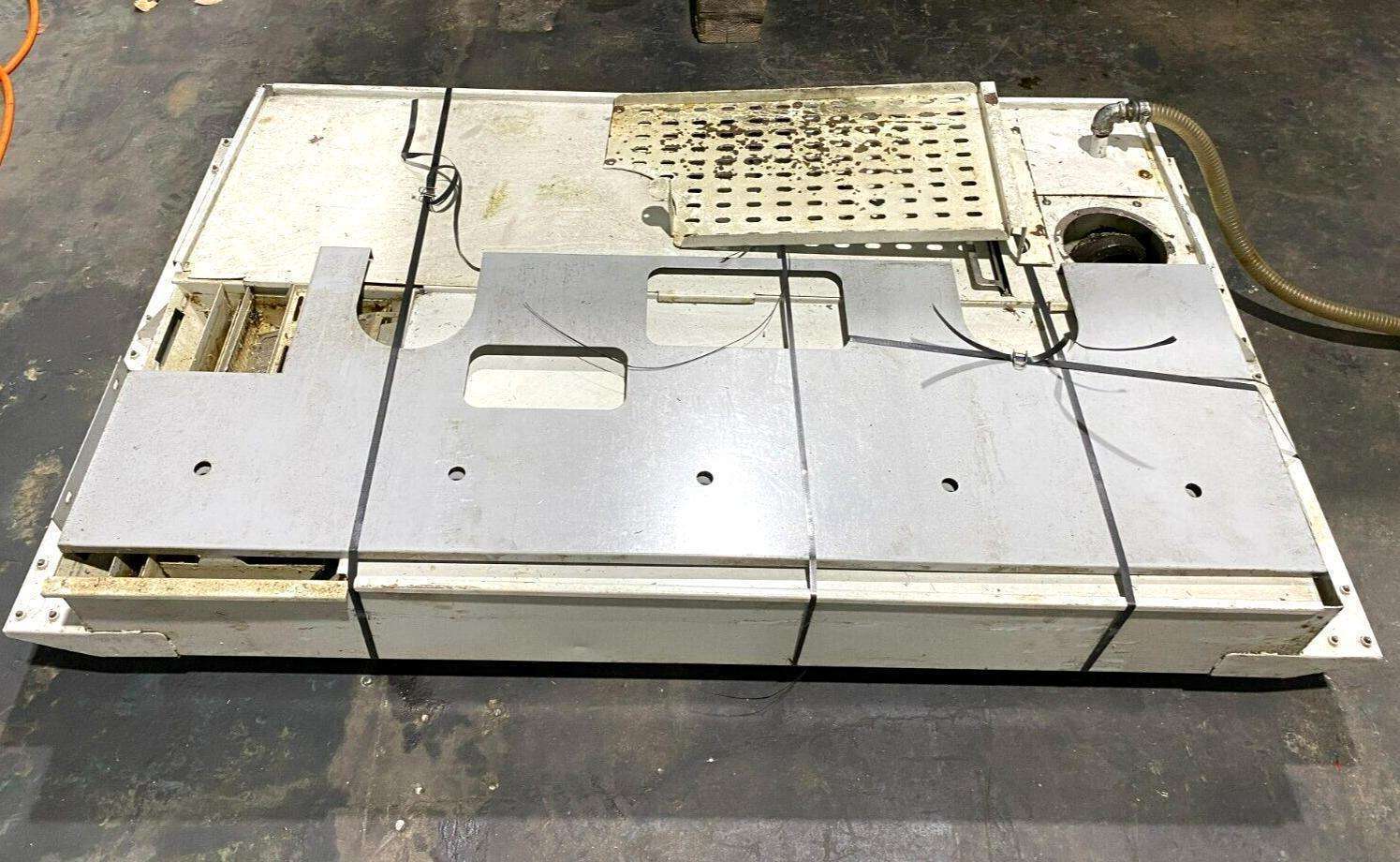

| Chip Conveyor Coolant Tanks Coolant systems Dimensions extra |
| Weight: 20000 lbs |
| “No Charges for loading at list Price” |
