*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | UMC-750 |
| Year: | 2019 |
| Condition: | Used – Good |
| Machine Type: | CNC 5-Axis Universal Vertical Machining Center |
| Country of Origin: | USA |
| Features: |
|---|
- 5-Axis Simultaneous Machining Capability
- Integrated Trunnion Table (B + C Axes)
- Inline Direct-Drive Spindle
- High-Speed Side-Mount Tool Changer
- Rigid Tapping
- Dynamic Work Offsets (DWO)
- Tool Center Point Control (TCPC)
- Thermal Compensation System
- Linear Guideways on All Axes
- Automatic Central Lubrication
- Fully Enclosed Machining Area
|
| Travels: |
|---|
- X-Axis Travel: 30.0″
- Y-Axis Travel: 20.0″
- Z-Axis Travel: 20.0″
- Spindle Nose to Table: 4.0″ – 24.0″
|
| Table / Pallet: |
|---|
- Table Size: Ø19.7″
- Max Workpiece Diameter: Ø30.0″
- Max Workpiece Height: 20.0″
- Max Table Load: 661 lbs
- B-Axis Tilt Range: −35° to +120°
- C-Axis Rotation: 360° Continuous
|

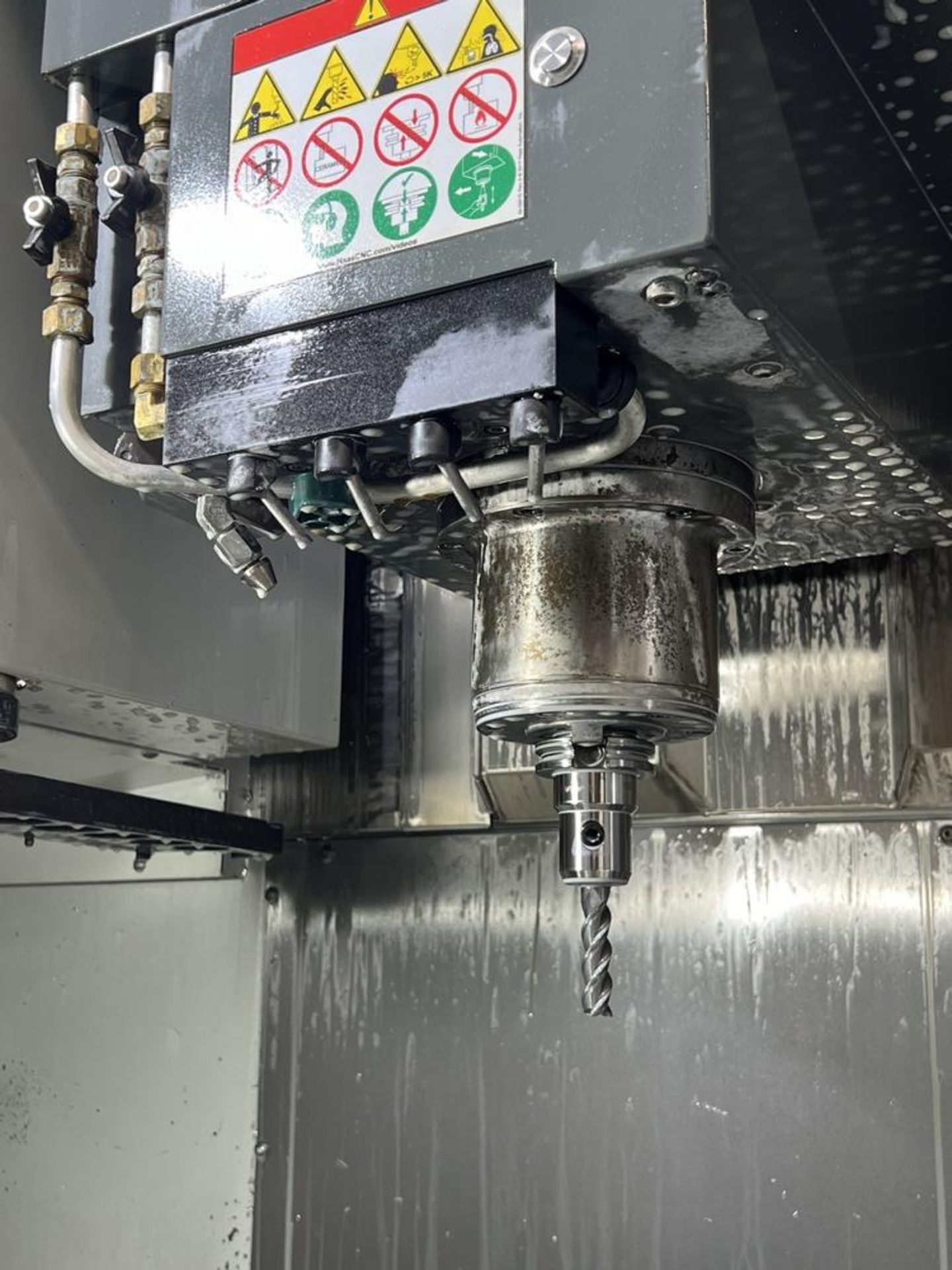

| Spindle: |
|---|
- Spindle Taper: CT40
- Spindle Speed: 12,000 RPM
- Spindle Motor: 30 HP (Peak)
- Max Spindle Torque: 90 ft-lbs
- Inline Direct-Drive Spindle
- Spindle Cooling System
|
| Feedrates: |
|---|
- Rapid Traverse X / Y / Z: 1,400 IPM
- Max Cutting Feedrate: 833 IPM
- High-Acceleration Servo Drives
- Precision Ground Ballscrews
|
| Automatic Tool Changer: |
|---|
- Tool Changer Type: Side-Mount
- Tool Capacity: 30 Tools
- Tool-to-Tool Time: 1.8 sec
- Chip-to-Chip Time: 2.4 sec
- Max Tool Diameter: 3.5″ (Adjacent) / 5.9″ (No Adjacent)
- Max Tool Length: 15.5″
- Max Tool Weight: 12 lbs
|
| Coolant System: |
|---|
- Flood Coolant System
- Through-Spindle Coolant: 300 PSI (Optional)
- Coolant Tank Capacity: 95 Gallons
- Coolant Gun & Air Gun
|
| Chip Management: |
|---|
- Auger-Type Chip Removal System
- Hinged Belt Chip Conveyor (Optional)
- Oil Skimmer & Mist Collector (Optional)
|

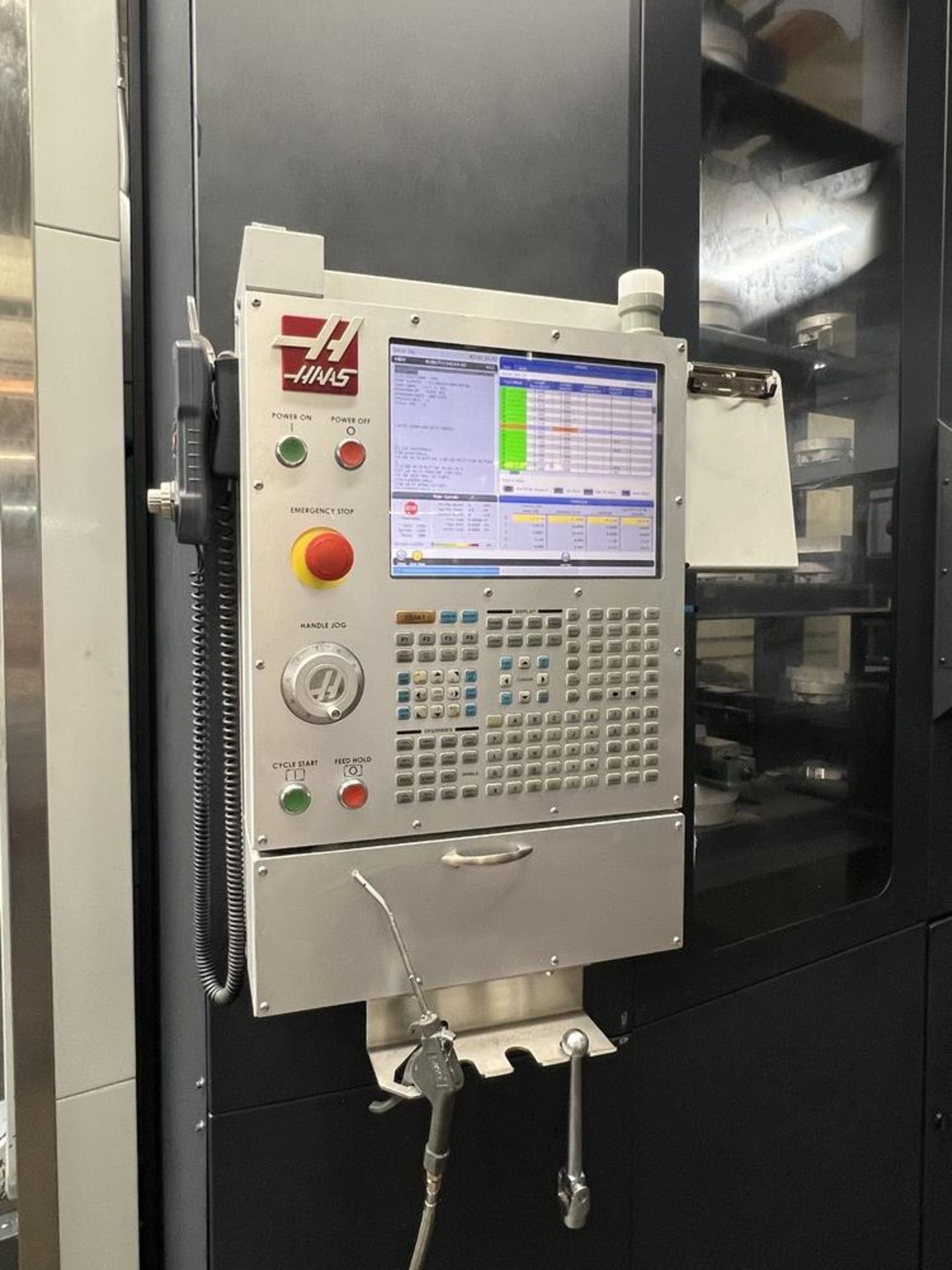

| CNC Control: |
|---|
- Haas Next Generation CNC Control
- 15″ Color LCD Display
- Full QWERTY Keyboard
- Simultaneous 5-Axis Control
- High-Speed Look-Ahead
- USB, Ethernet & RS-232 Connectivity
- Visual Programming System (VPS)
|
| Electrical & General: |
|---|
- Power Supply: 220V / 3-Phase / 50–60 Hz
- Full Load Current: 70 Amps
- Largest Load: 85 Amps
- Compressed Air Requirement: 6.9 bar
- Machine Dimensions: 150″ L × 100″ W × 120″ H
- Machine Weight: Approx. 18,500 lbs
|
