*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

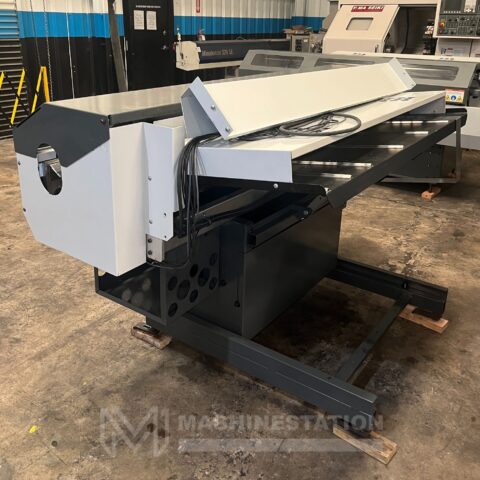

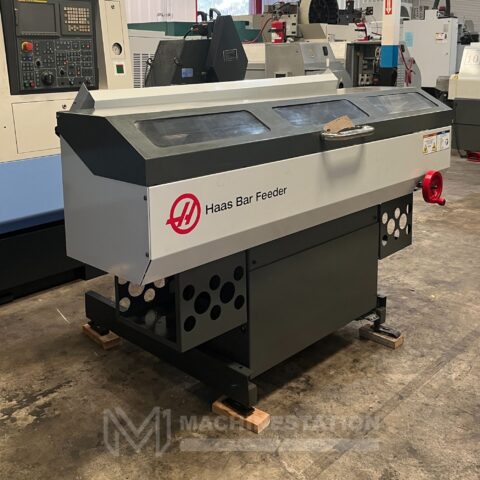

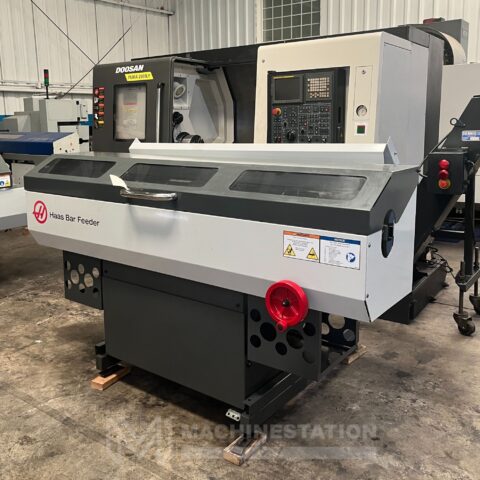

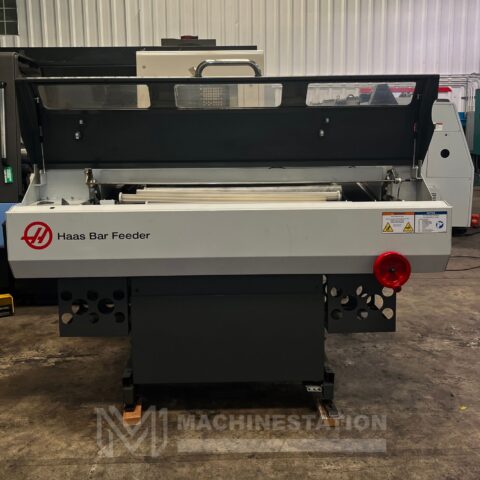

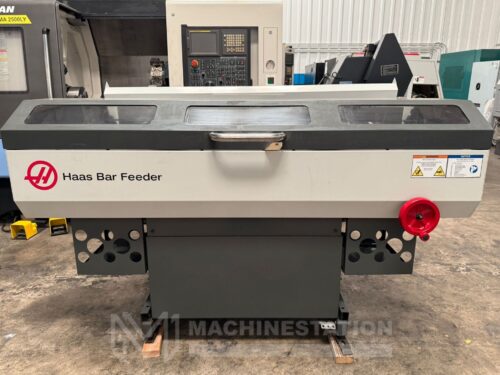

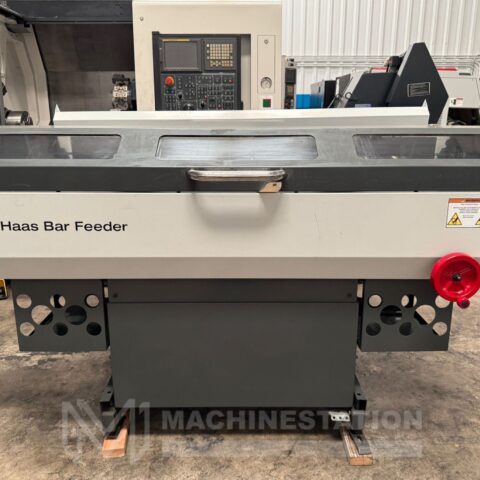

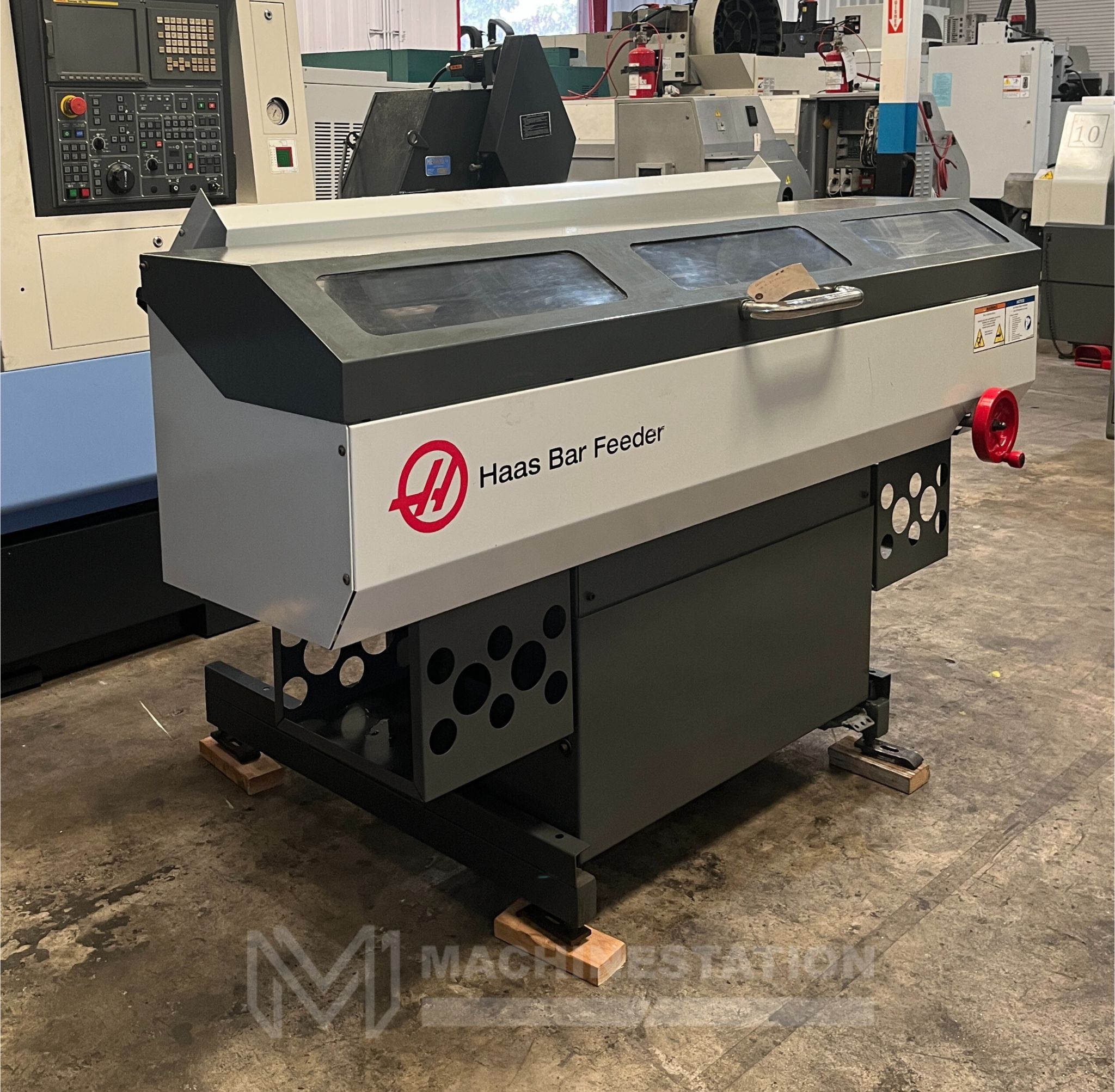

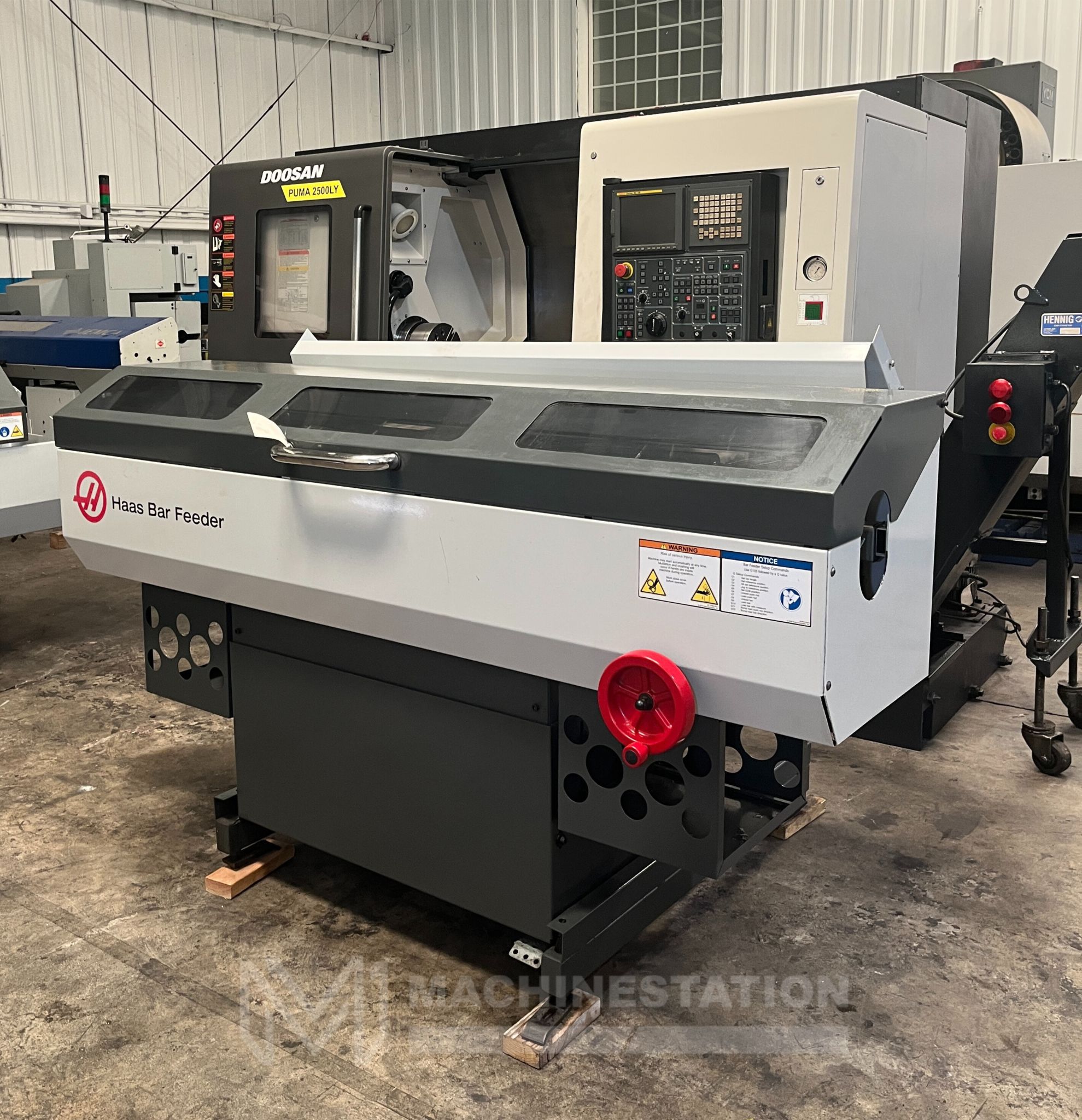

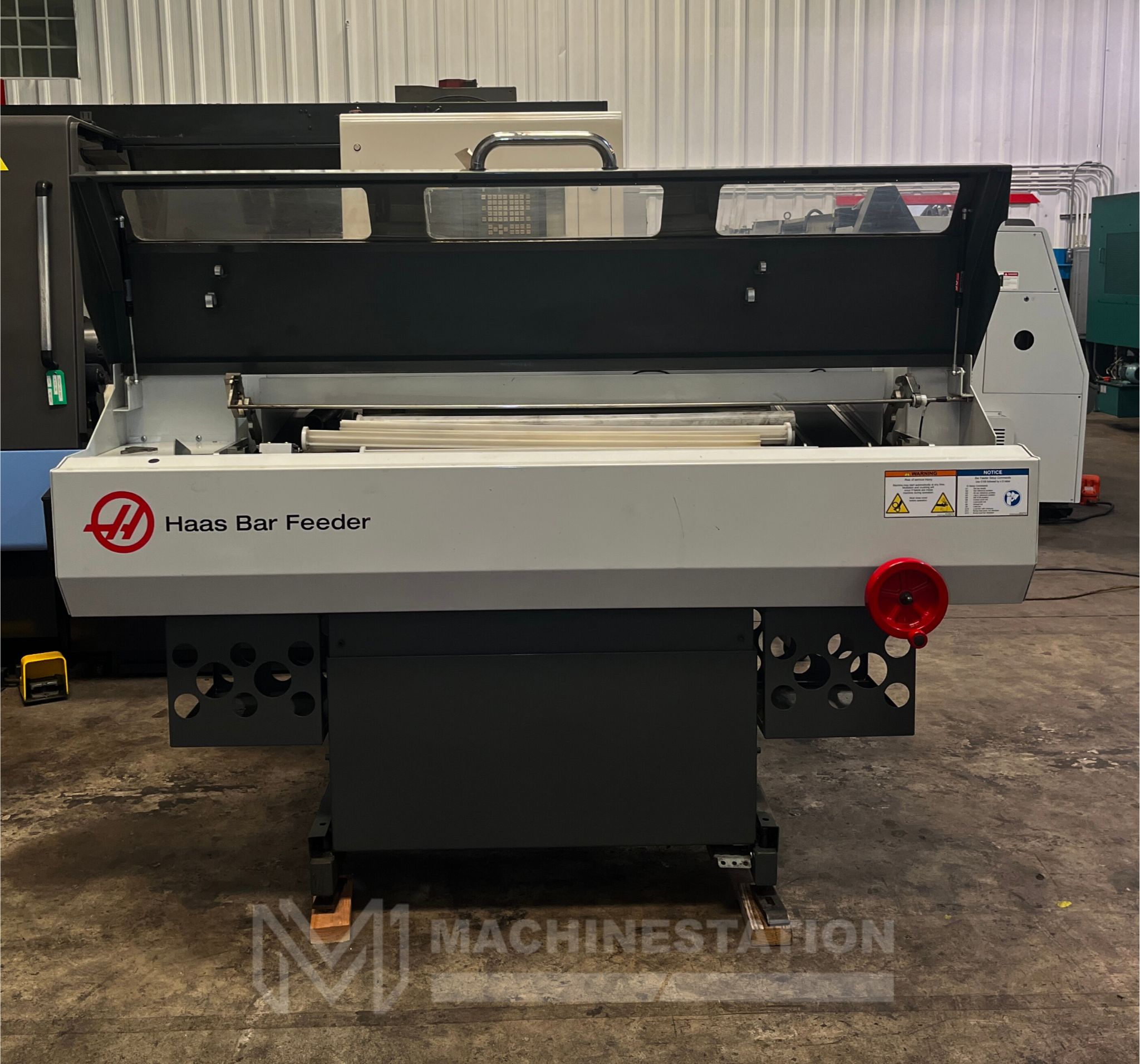

| Make: | Haas |
| Model: | V2 |

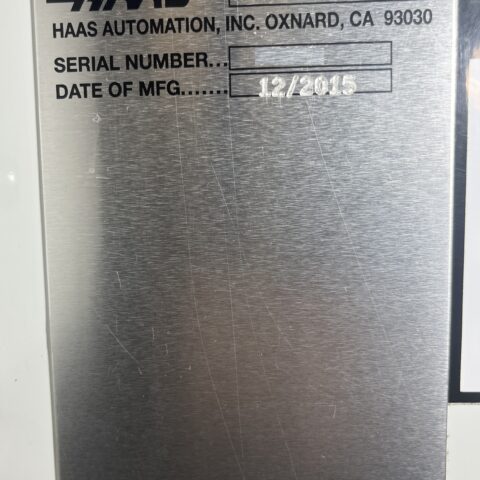

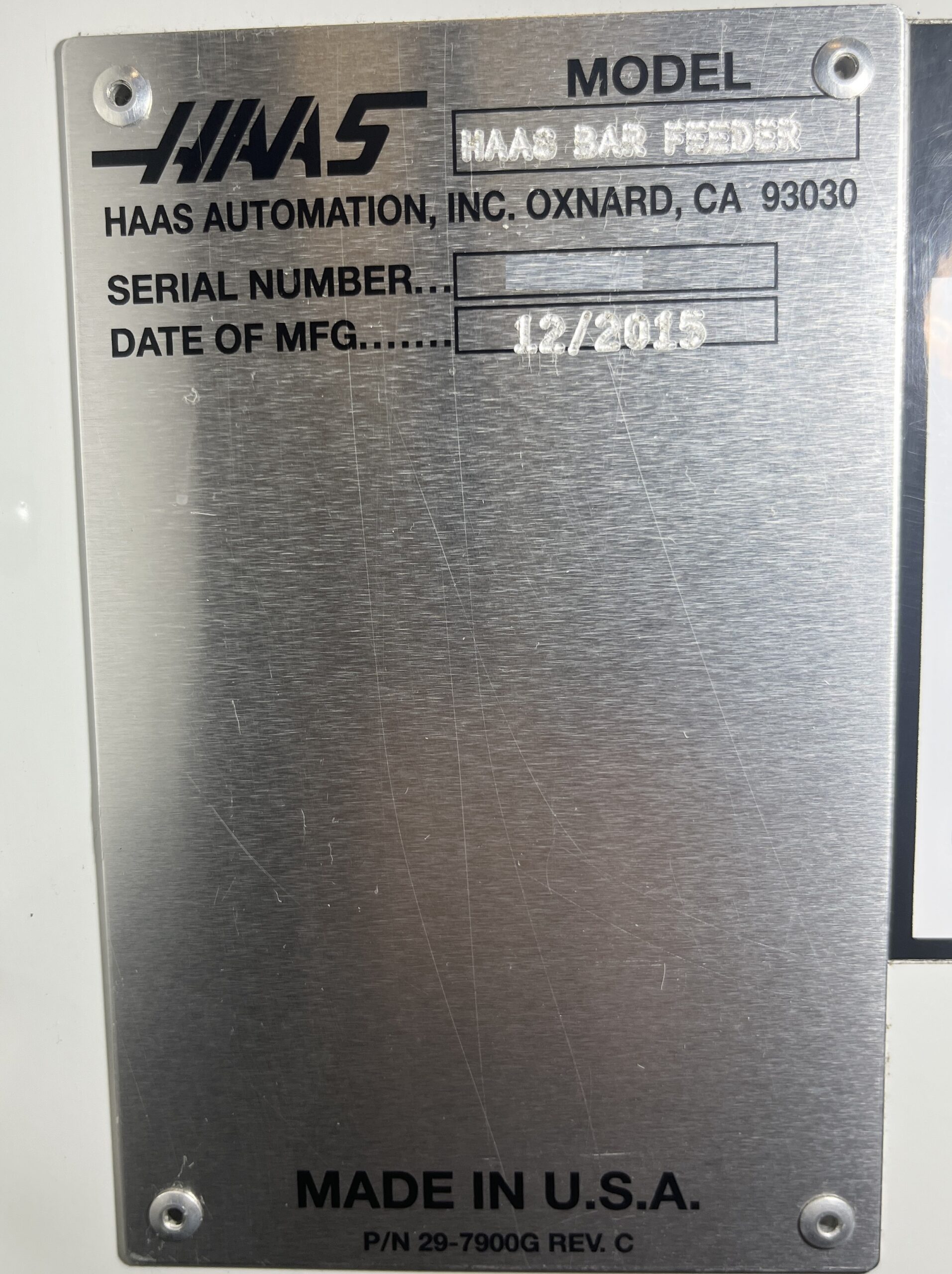

| Year: | 2015 |
| Features: |
|---|
| Exclusively For Use on Haas CNC Lathes |
| Easy Access For Quick Liner Changes |
| High Pushrod Speed For Shorter Part-to-Part Cycle Times |
| Ability to Use the Pushrod as a Stop |
| Easy Bar Diameter Changeover |
| Quick-change Pushrod Design |
| Storage for both Pushrod Diameters 3/8″ (9.5 mm) and 3/4″ (20 mm) |

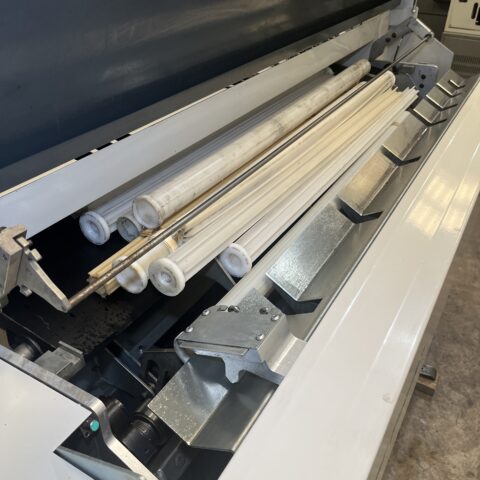

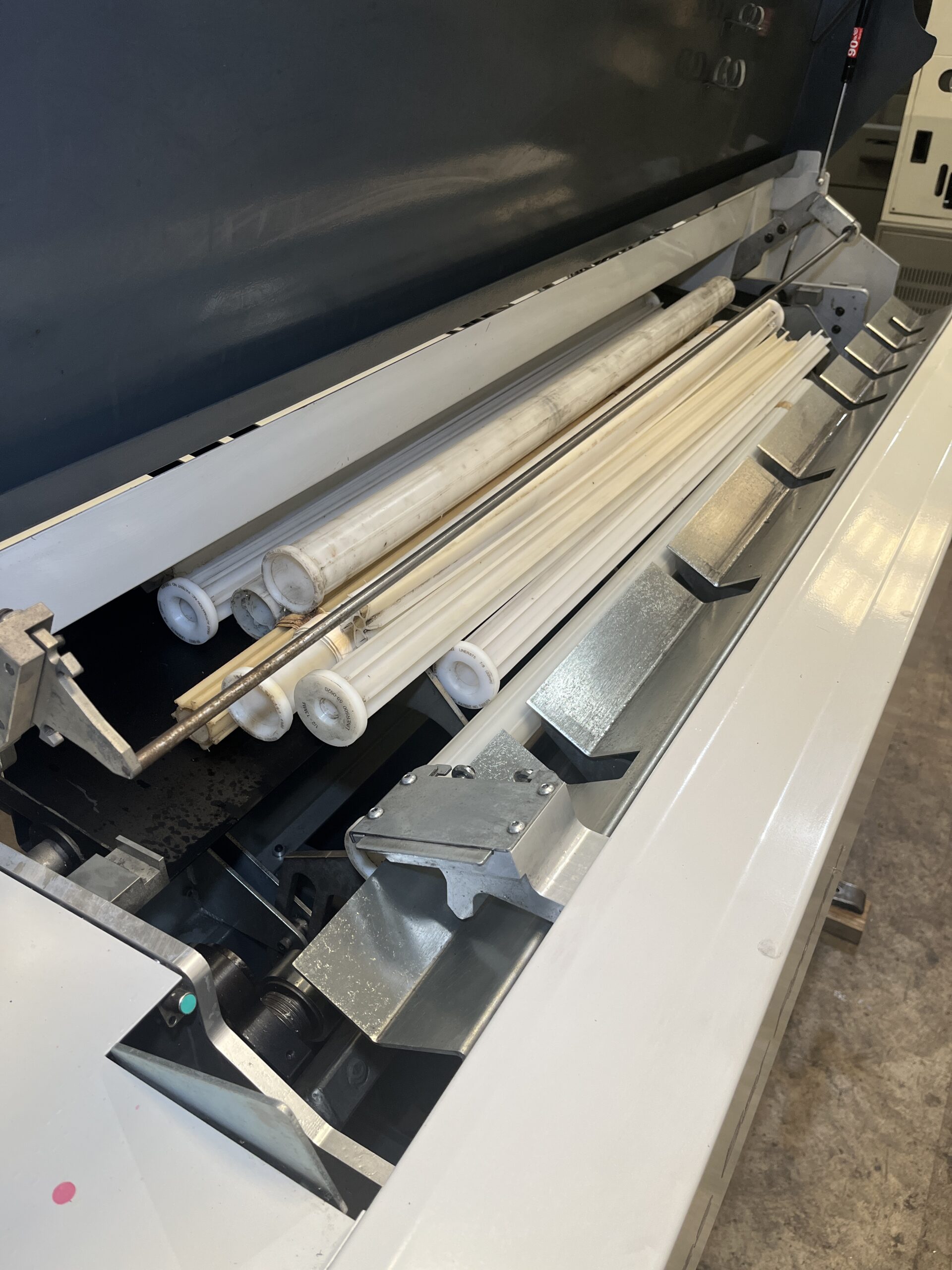

| Easily Accessible Storage For All Extruded Liners |
| Capacity: |
|---|
| Bar Diameter Range (varies w/lathe model): 0.375″ to 3.00″ |
| Bar Length Capacity: 48″ |
| Recommended Max Bar in Spindle: 48″ |
| Minimum Bar Length: 10″ |

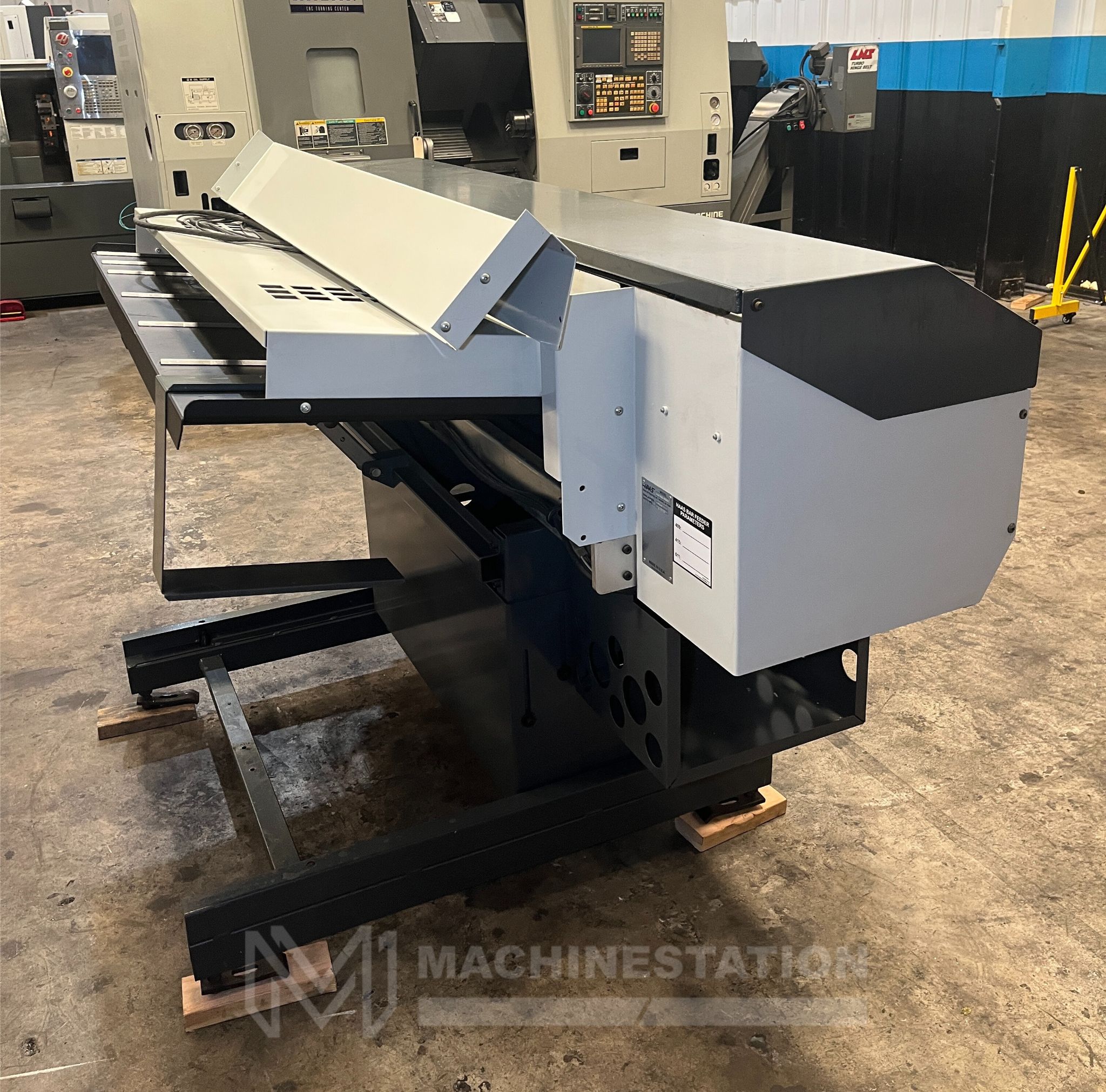

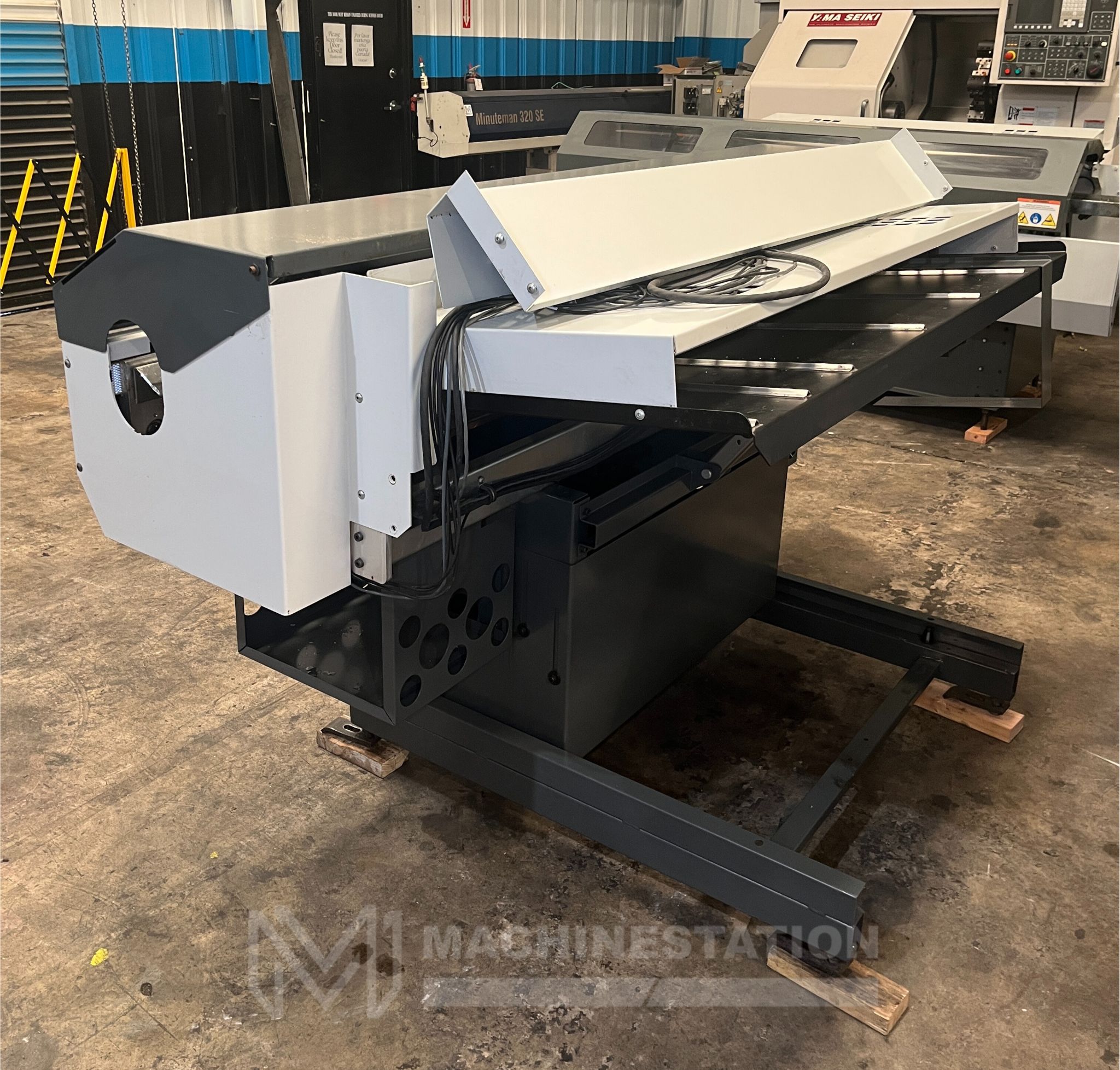

| Charging Tray: |
|---|
| Tray Capacity: 30 EA x 1″ |
| Staging Area Width: 30″ |
| Max Weight of Total Bars: 650 lbs |
| Max Bar Weight Capacity: |
|---|
| Lift Arm Max Weight Limit: 80 lbs |
| Pushrod: |
|---|
| Maximum Thrust Push Limit: 100 lbf |
| General: |
|---|
| Power: 220v/ 3-Phase/ 50-60 Hz |
| Overall Dimensions: 90″ x 66″ x 56″ High Approx. |
| Weight: 900 lbs Approx. |
