*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

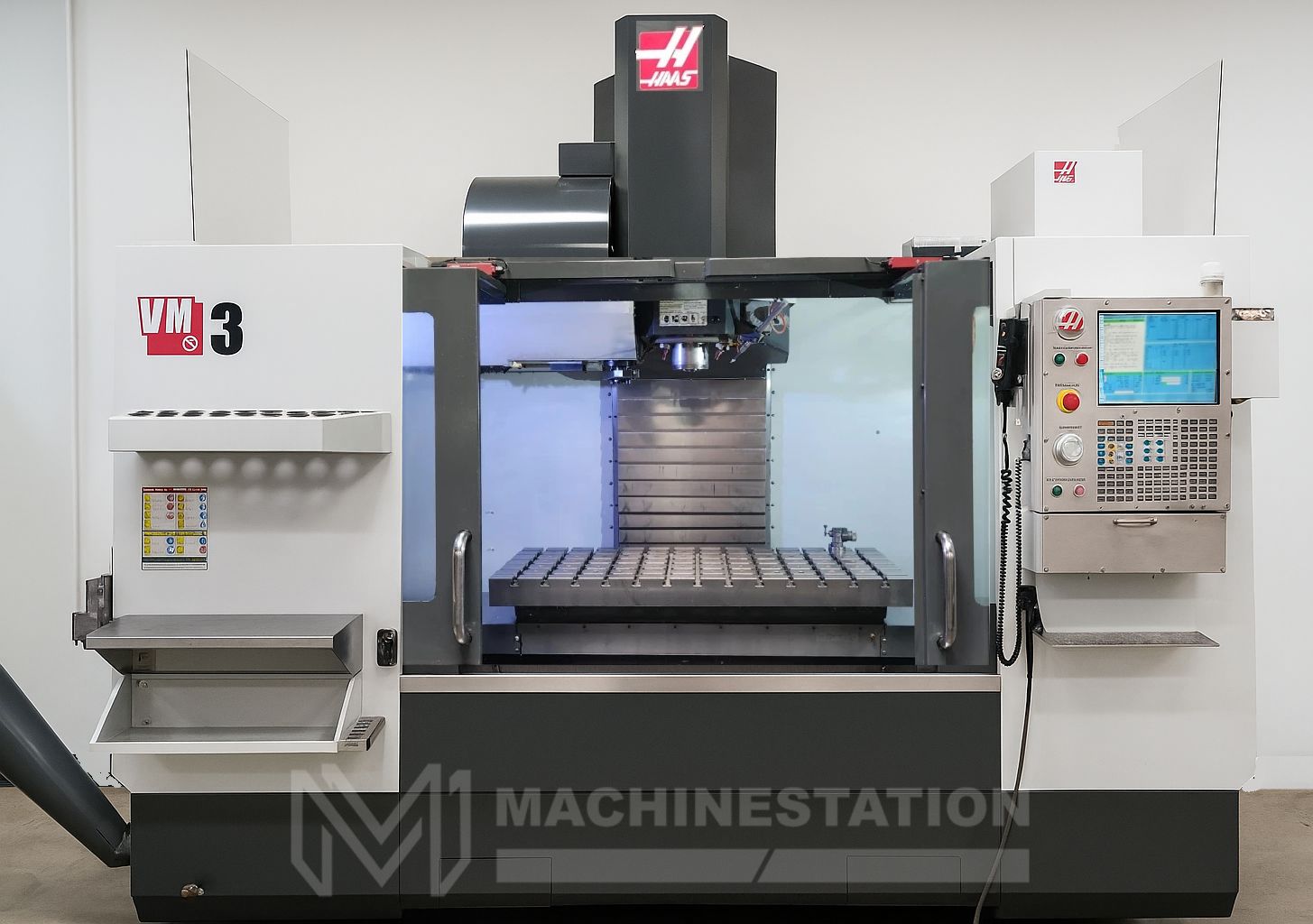

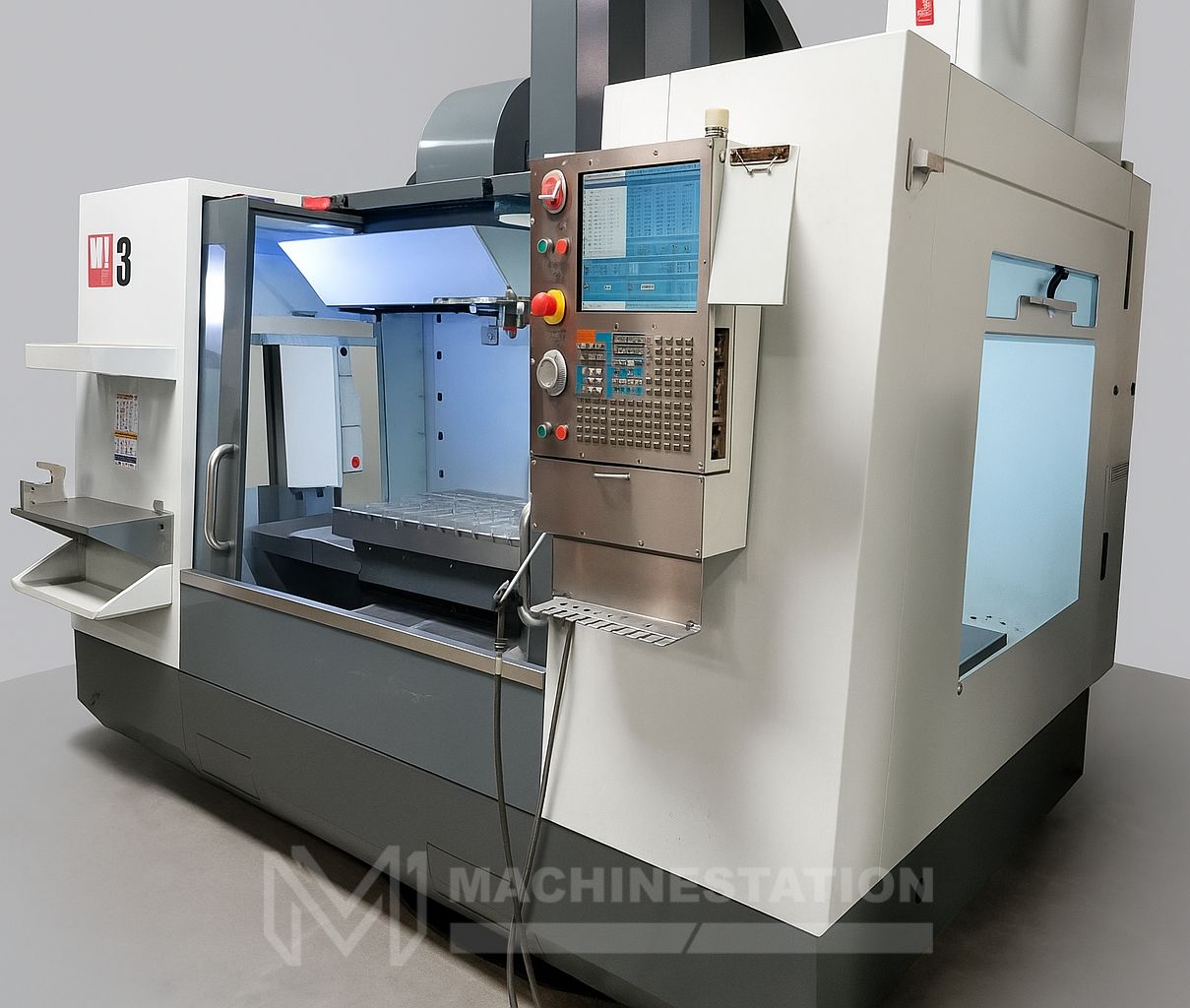

| Make: | Haas |
| Model: | VM-3 |
| Year: | 2015 |
| Condition: | Used – Good |
| Key Features of the Haas VM-3: |
|---|

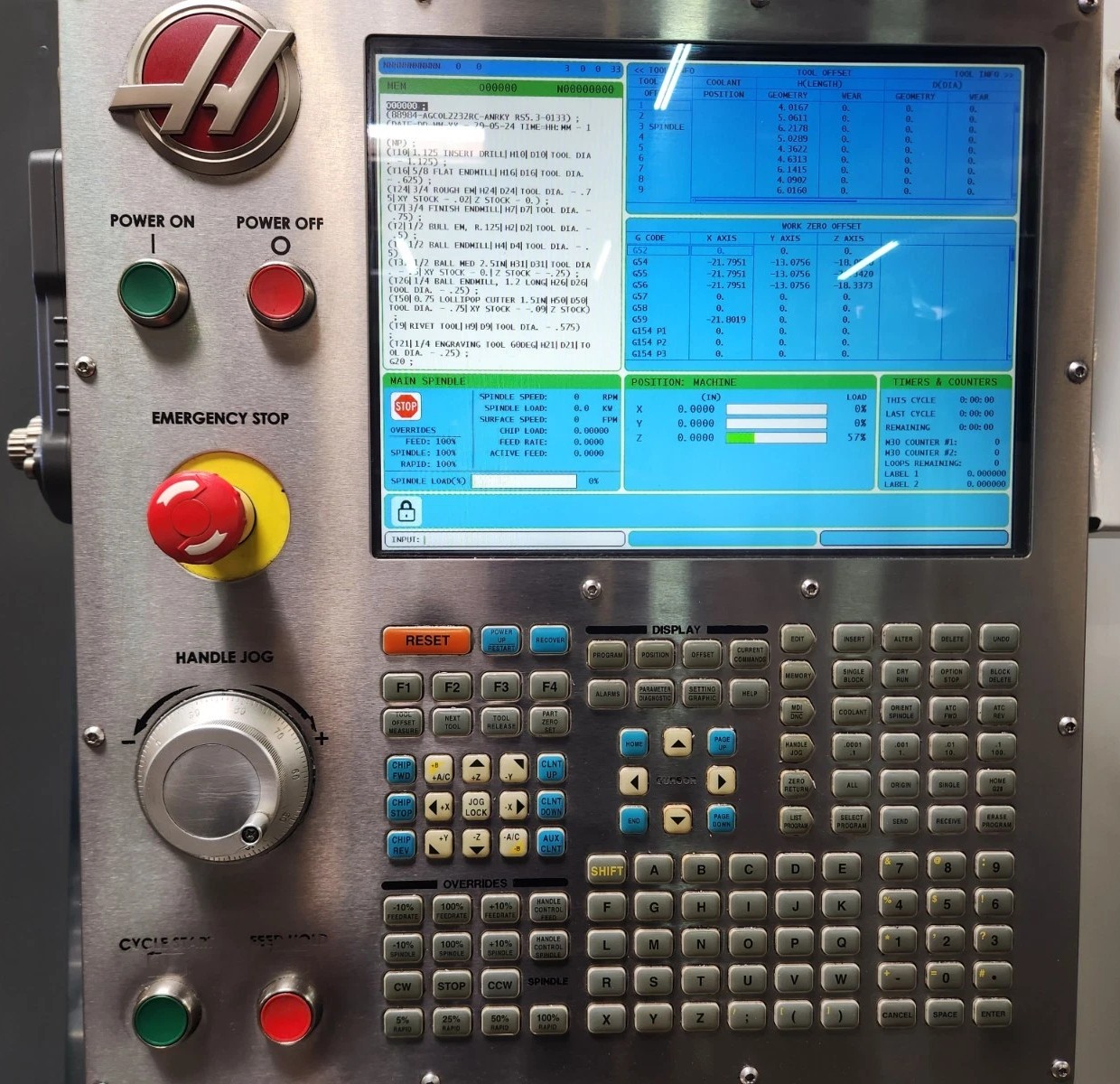

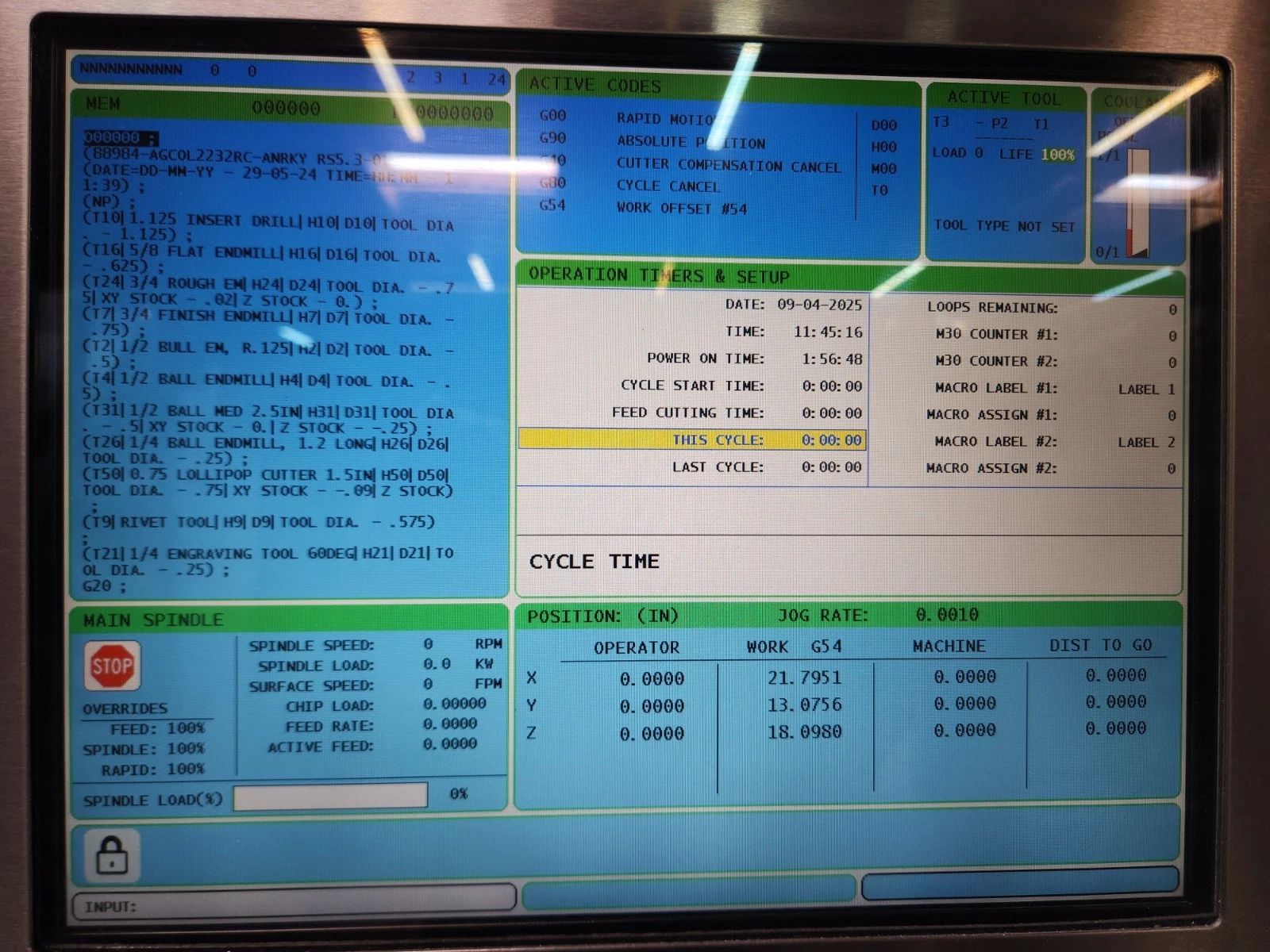

| Haas CNC Control |
| 4th-Axis Drive and Wiring – (Upgraded $3,595 value Included) |
| 12,000 RPM High-Speed Spindle |
| High Speed Machining |
| Wireless Intuitive Probing System (Probe Needed) – (Upgraded $6,395 value Included) |
| Probe Riser Block – (Upgraded $695 value Included) |
| Programmable Coolant Nozzle |
| Visual Part Programming System |
| 30 HP Spindle Drive |
| 24 Station Automatic Tool Changer |
| Rigid Tapping |
| Spindle Orientation |
| Coolant System |
| Chip Auger |
| Travel: |
|---|
| X-Axis: 40″ |
| Y-Axis: 26″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates: 710 Inch Per Minute |
| Cutting Feed Rates: 500 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″ |

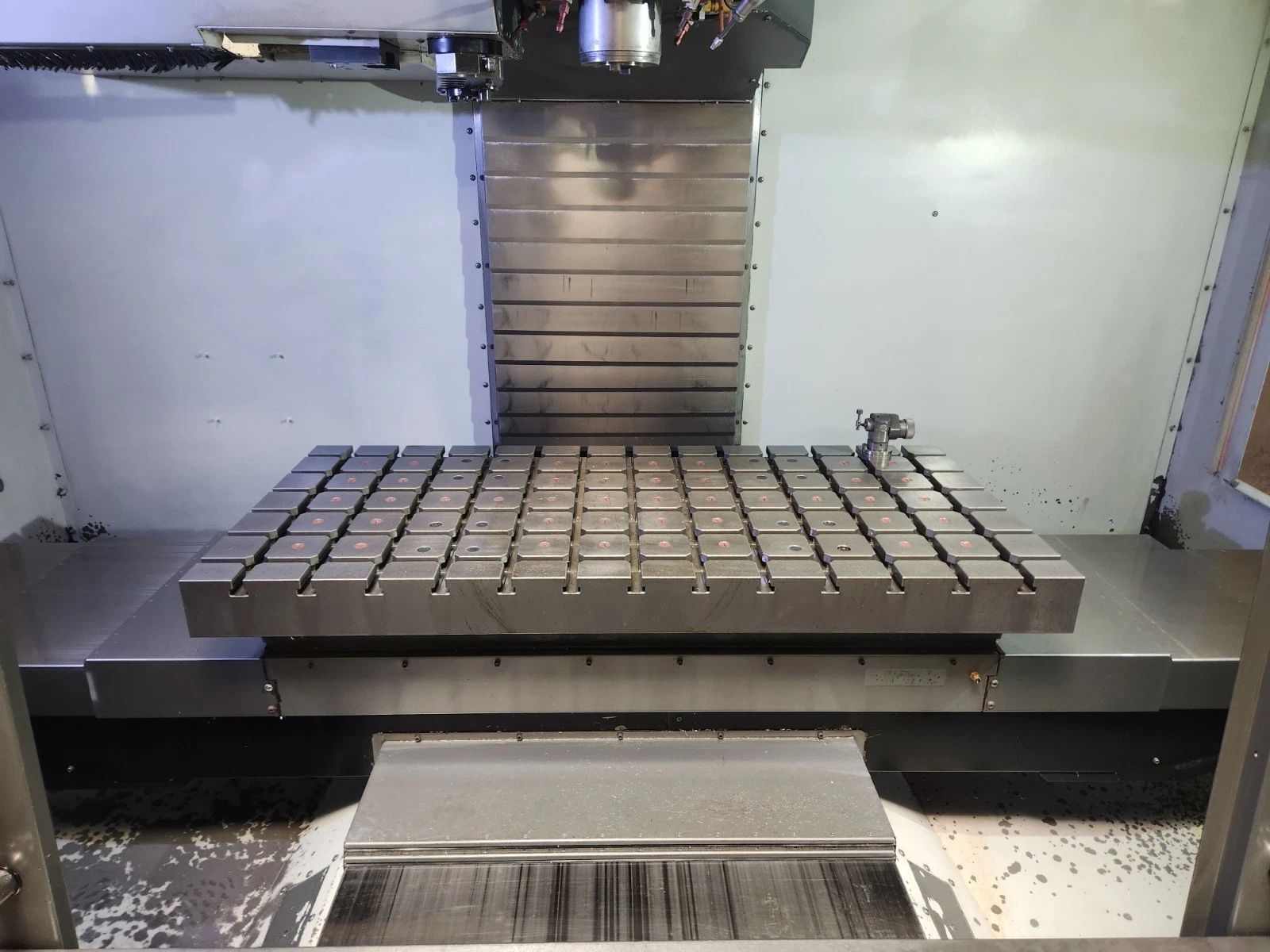

| Table: |
|---|
| Length: 54″ |
| Width: 24″ |
| Max Weight on Table: 4000 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Tools |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 2.5″ – 5.0″ |
| Max Tool Length: 13″ |
| Tool Changing Time: 2.80 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 156″ x 102″ x 105″ High Approx. |
| Weight: 12,720 lbs Approx. |
