All specifications are approximations and are subject to verification.
Comes with 6″ Chuck, Tailstock. ( 8″ Chuck Optional )
“Equipped with 6″ Chuck, Tailstock (8″ Chuck Capable ). Compact machine ideal for small shops and Garage shops. On Our Floor fully powered / tested & is in Great working condition.”
“Equipped with 6″ Chuck, Tailstock (8″ Chuck Capable ). Compact machine ideal for small shops and Garage shops. On Our Floor fully powered / tested & is in Great working condition.”
-

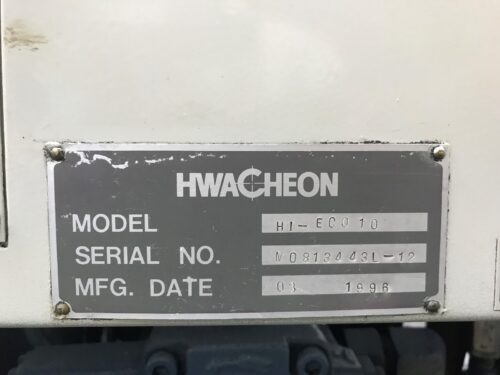

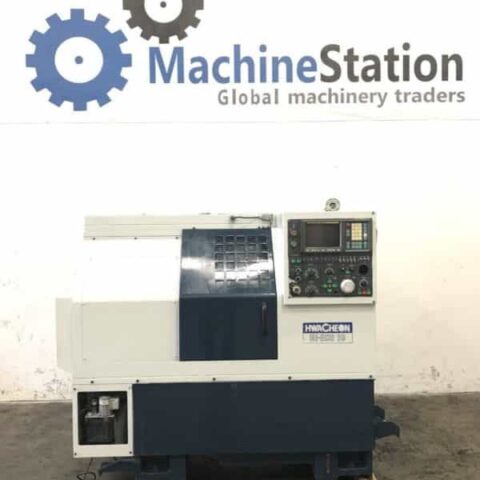

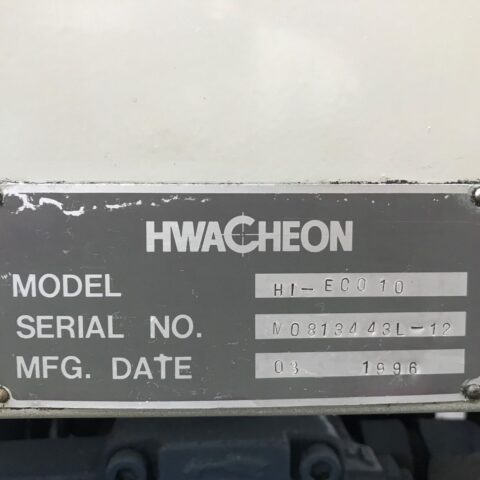

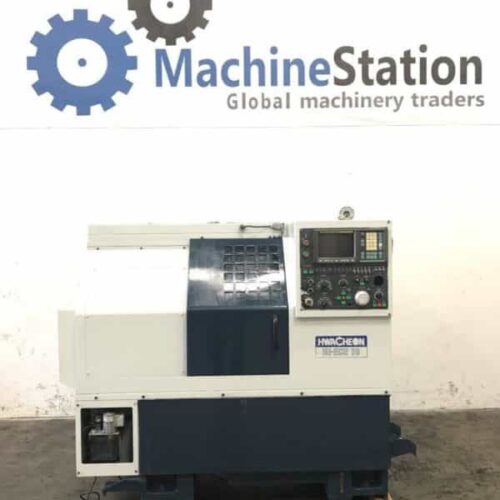

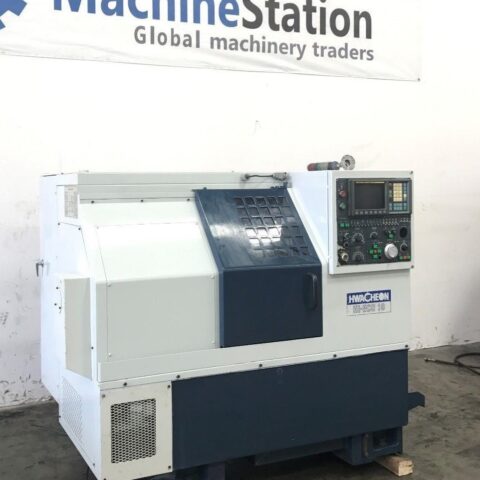

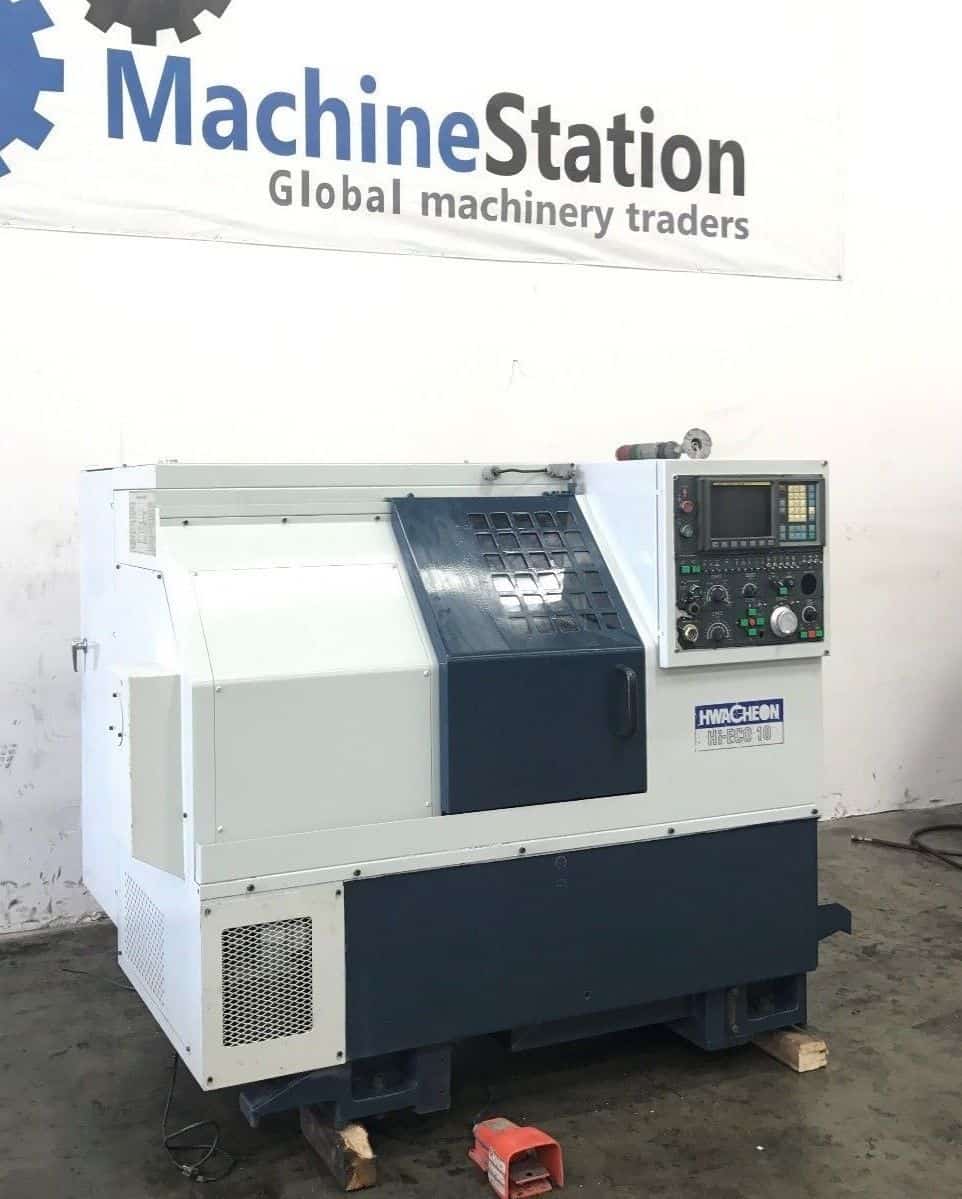

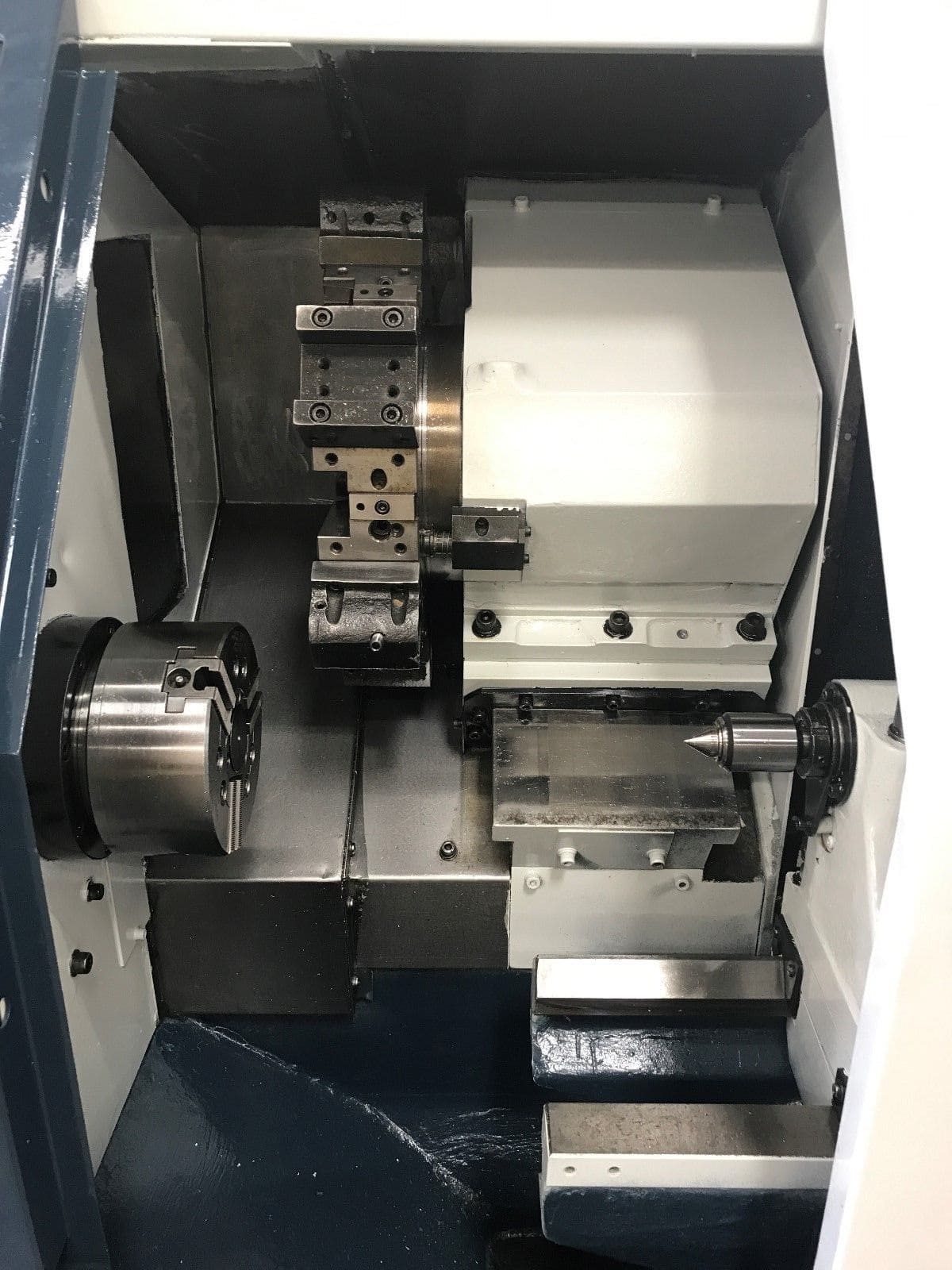

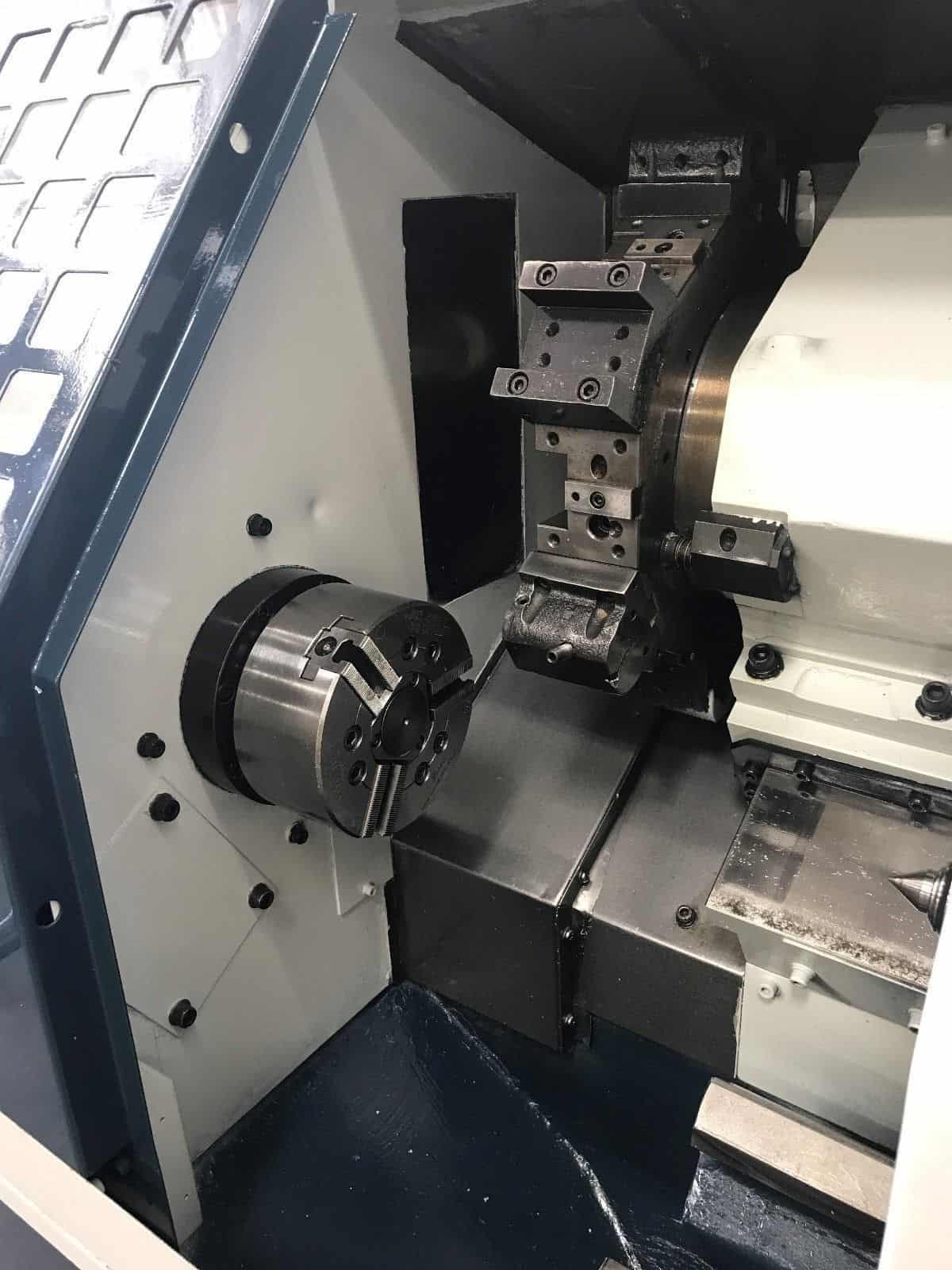

HWACHEON HI-ECO 10 Equipped With:

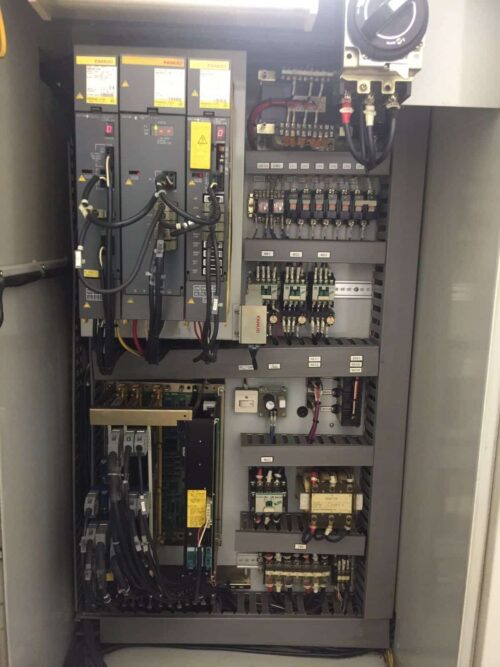

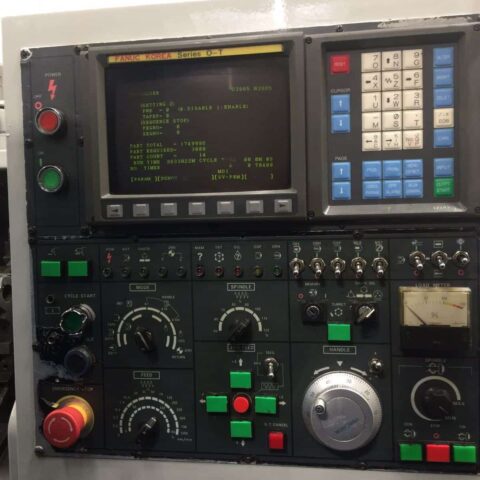

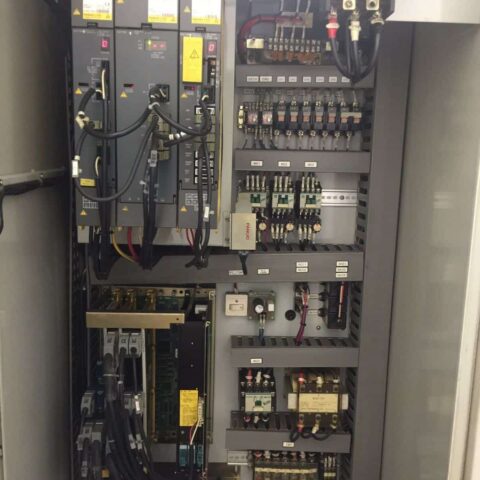

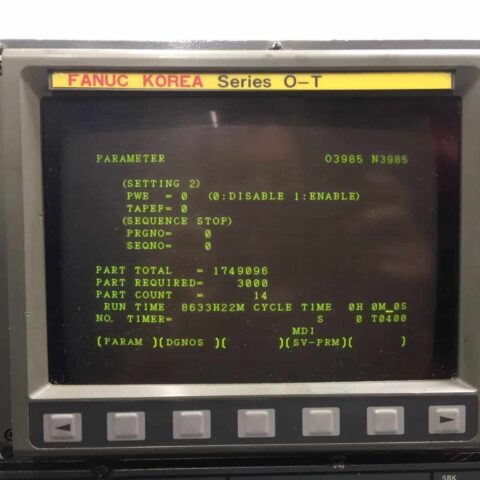

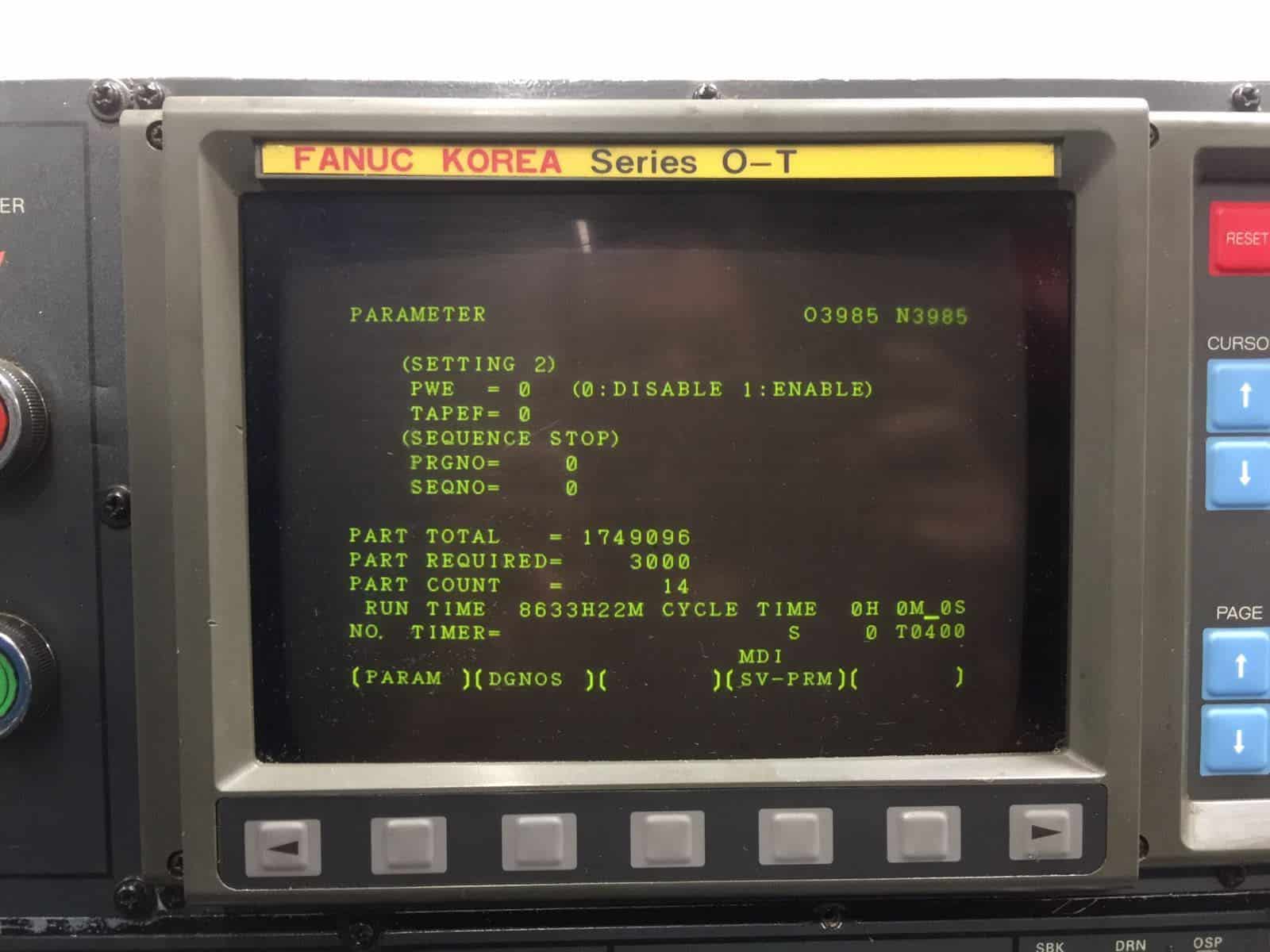

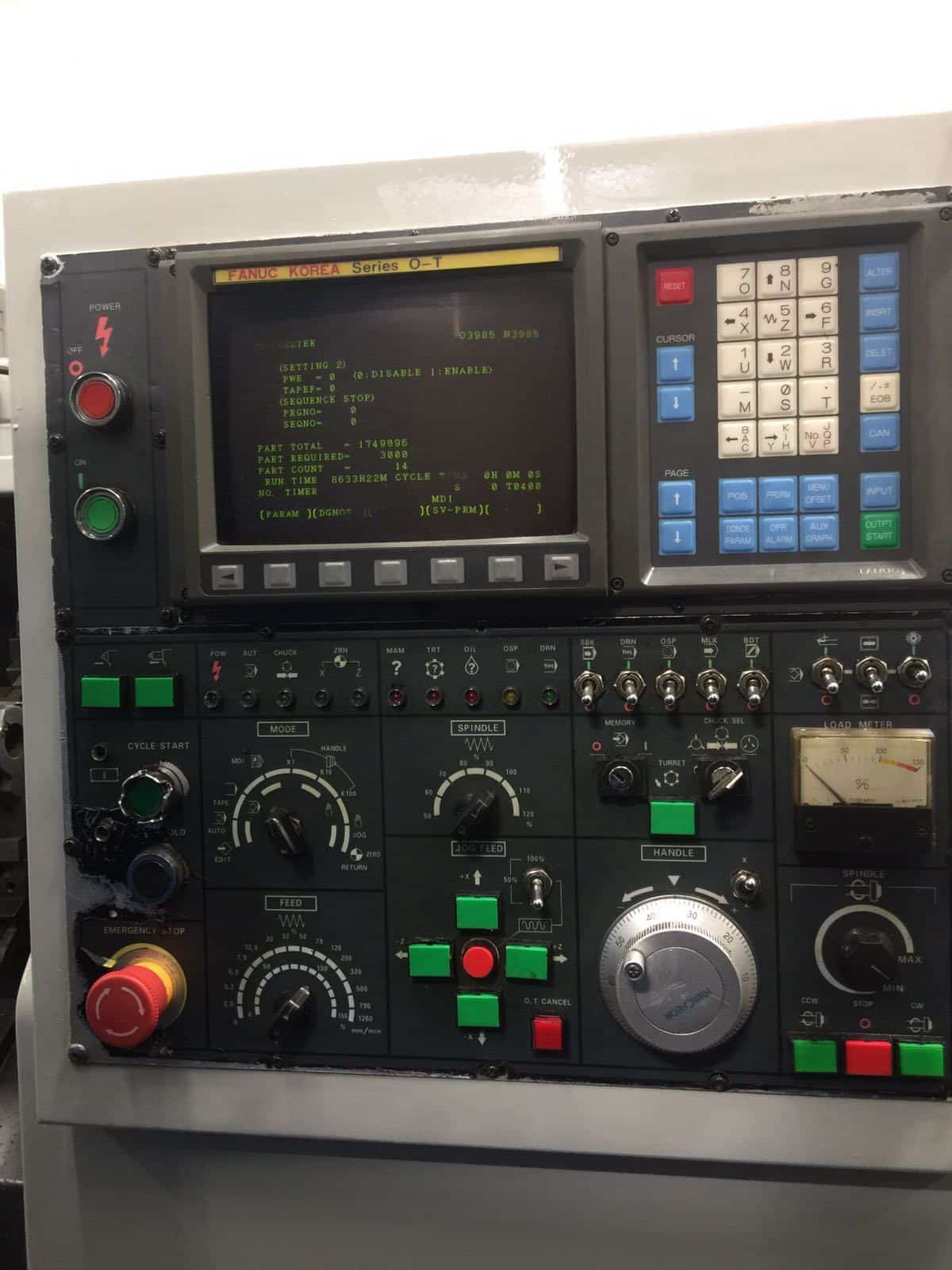

- Fanuc OTC CNC Control

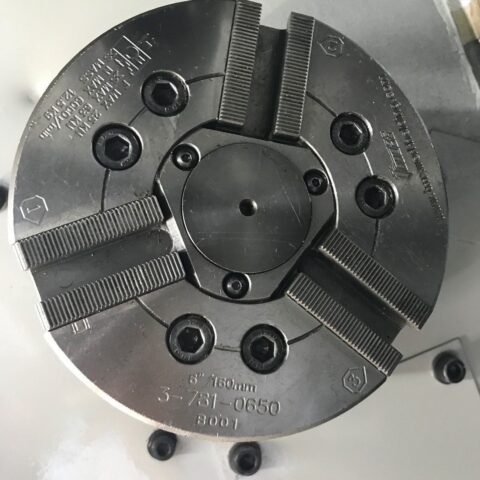

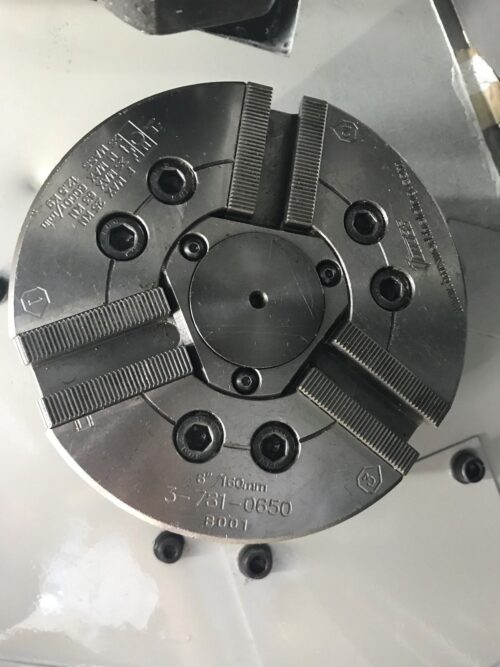

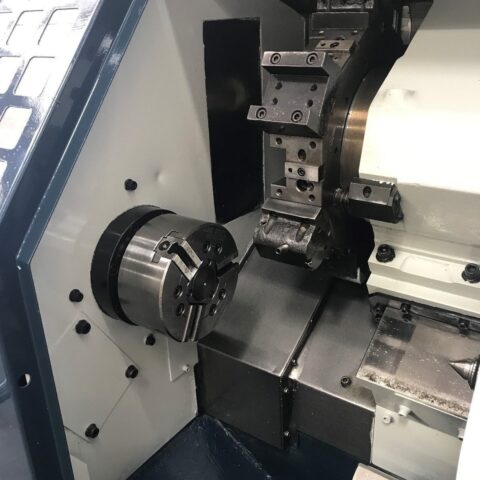

- 6″ 3 Jaw Hydraulic Chuck
- A2-6 Spindle

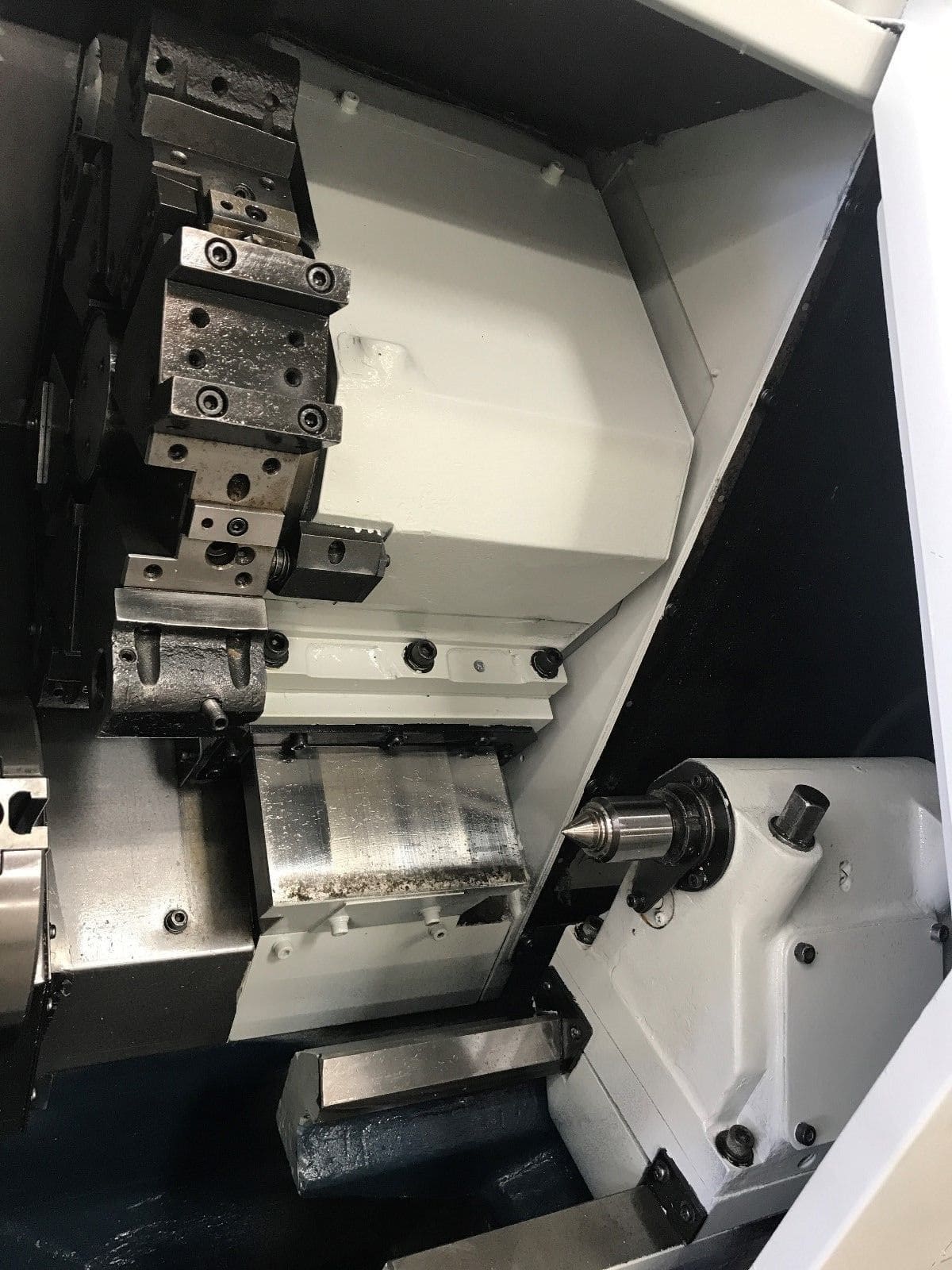

- Hydraulic Tailstock
- Coolant System
- Barfeed Interface
- RS-232 ports

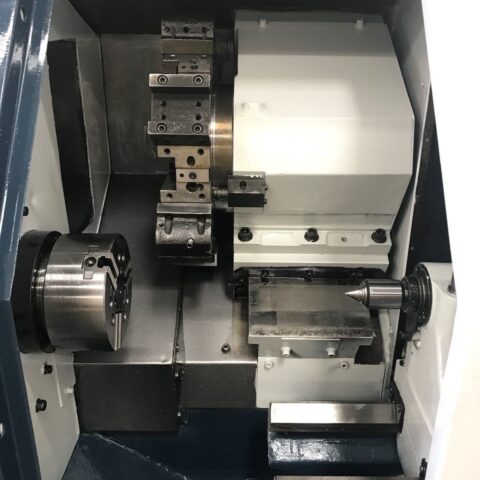

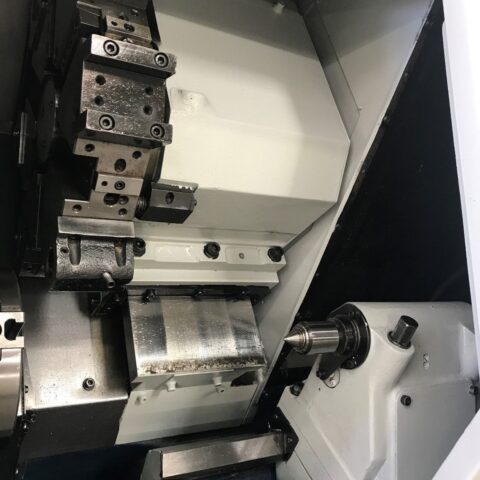

- 10 Station Automatic Turret
- Foot Switch
-
HWACHEON HI-ECO 10 Specifications:
- Capacity:
- Max Turning Diameter: 8.7″
- Max Turning Length: 16″
- Max Bar Capacity: 2.0″
- Swing Over Bed: 15.7″
- X Axis Travel: 5.1″
- Z Axis Travel: 17.5″
- Rapid Traverse X Axis: 630 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.4″
- Spindle Speed: 0 – 4000 RPM
- Spindle Motor: 15 HP
- Turret Capacity: 10 Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-3
- Tailstock Quill Dia.: 3.1″
- Tailstock Quill Travel: 2.3″
-
General:
- Power: 220v / 3-Phase
- Overall Dimensions: 69″ x 56″ x 67″ High
- Weight: 5000 lbs
