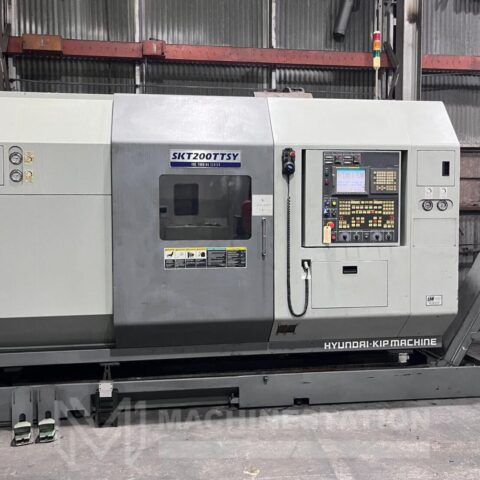

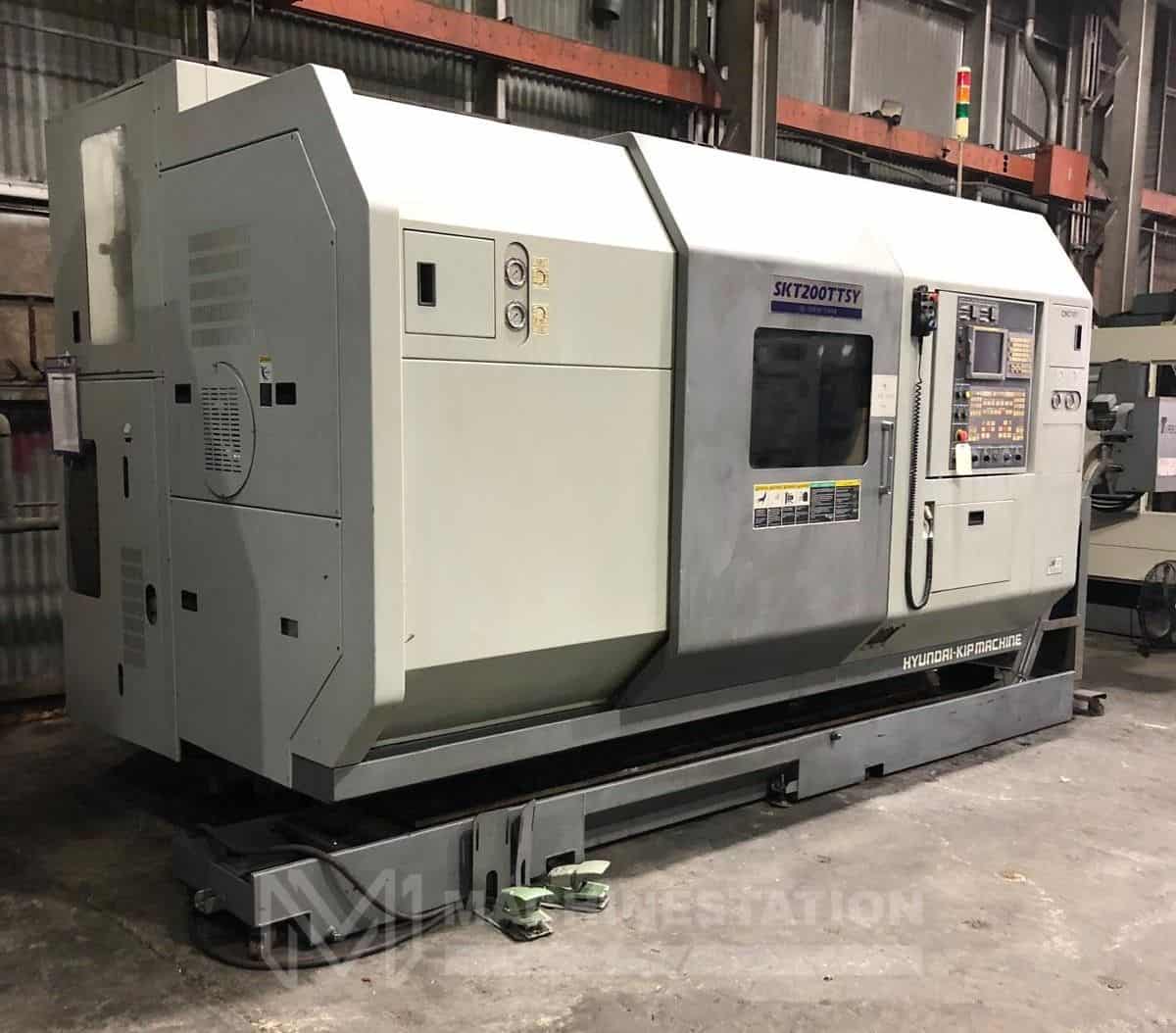

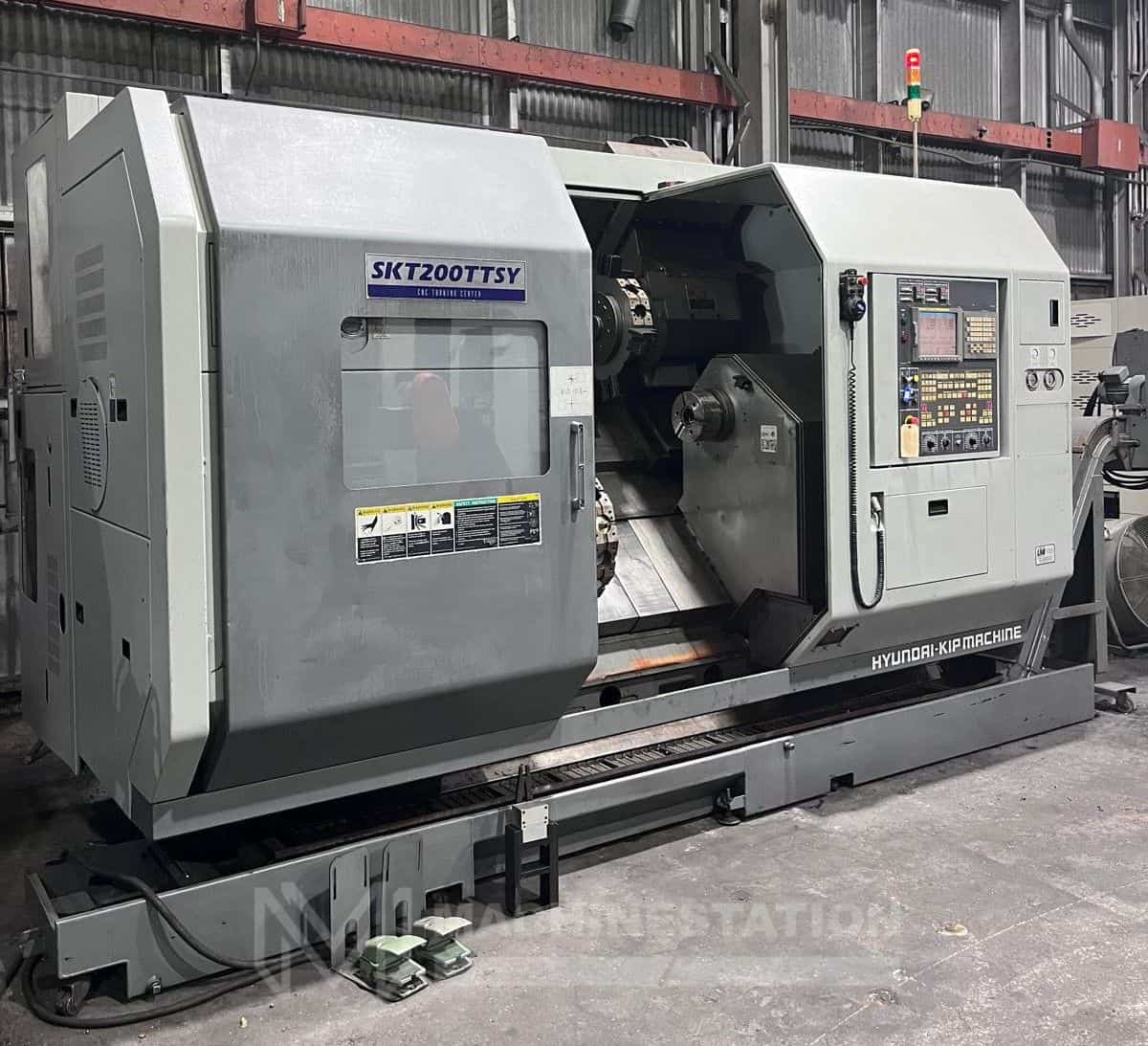

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

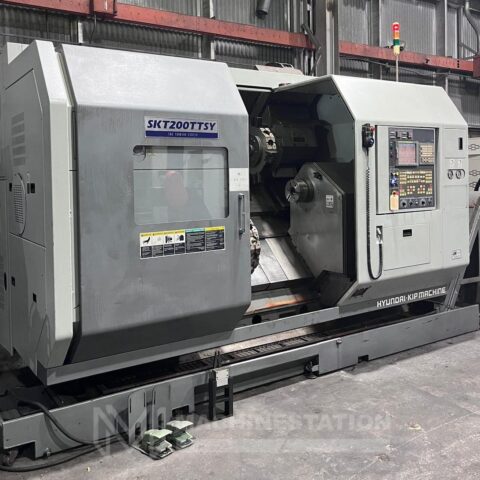

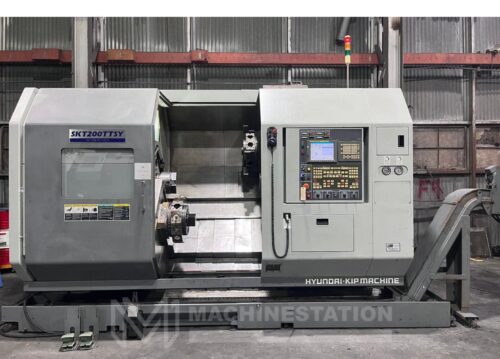

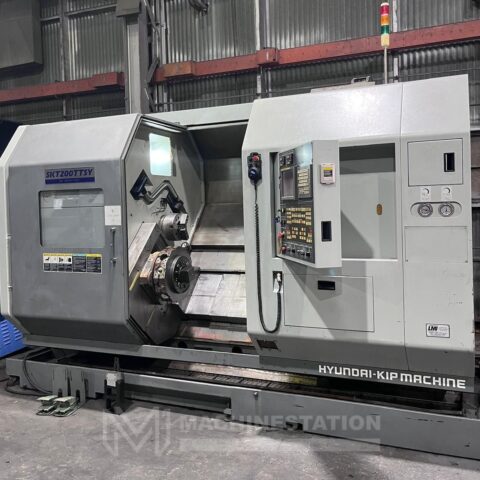

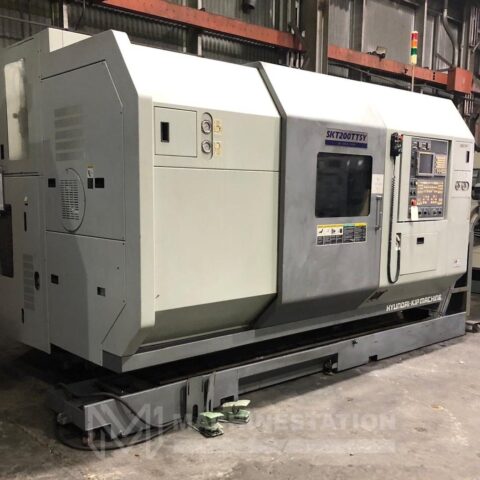

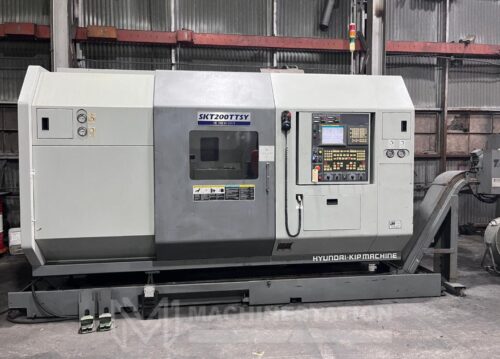

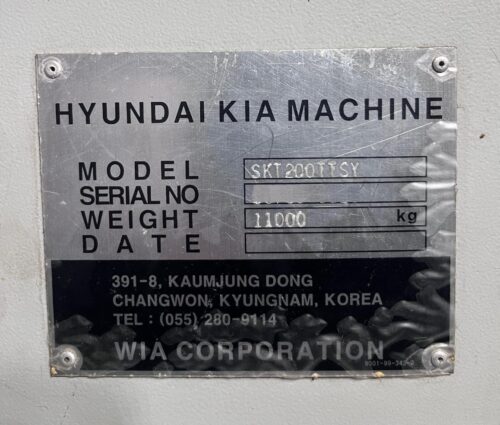

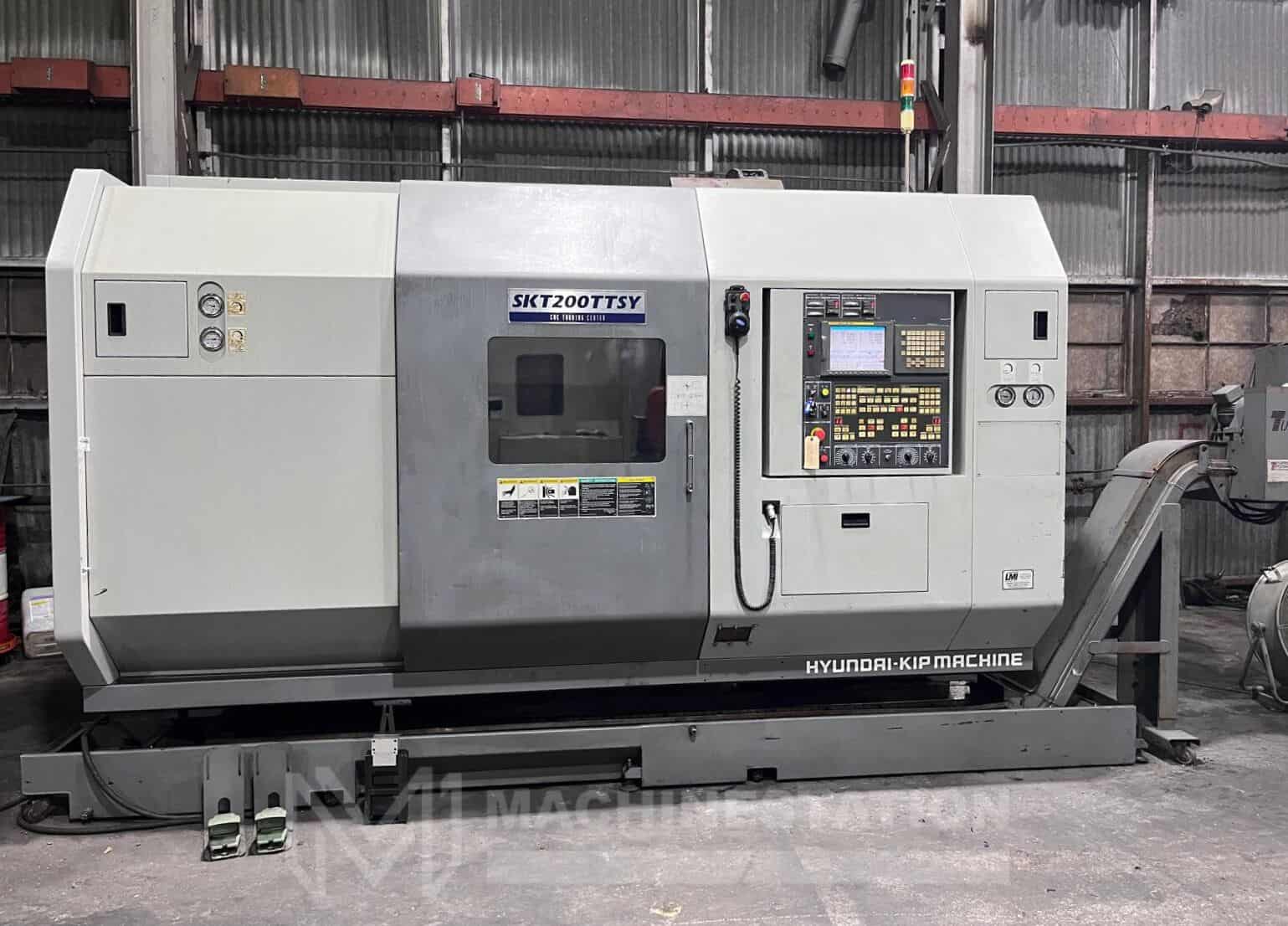

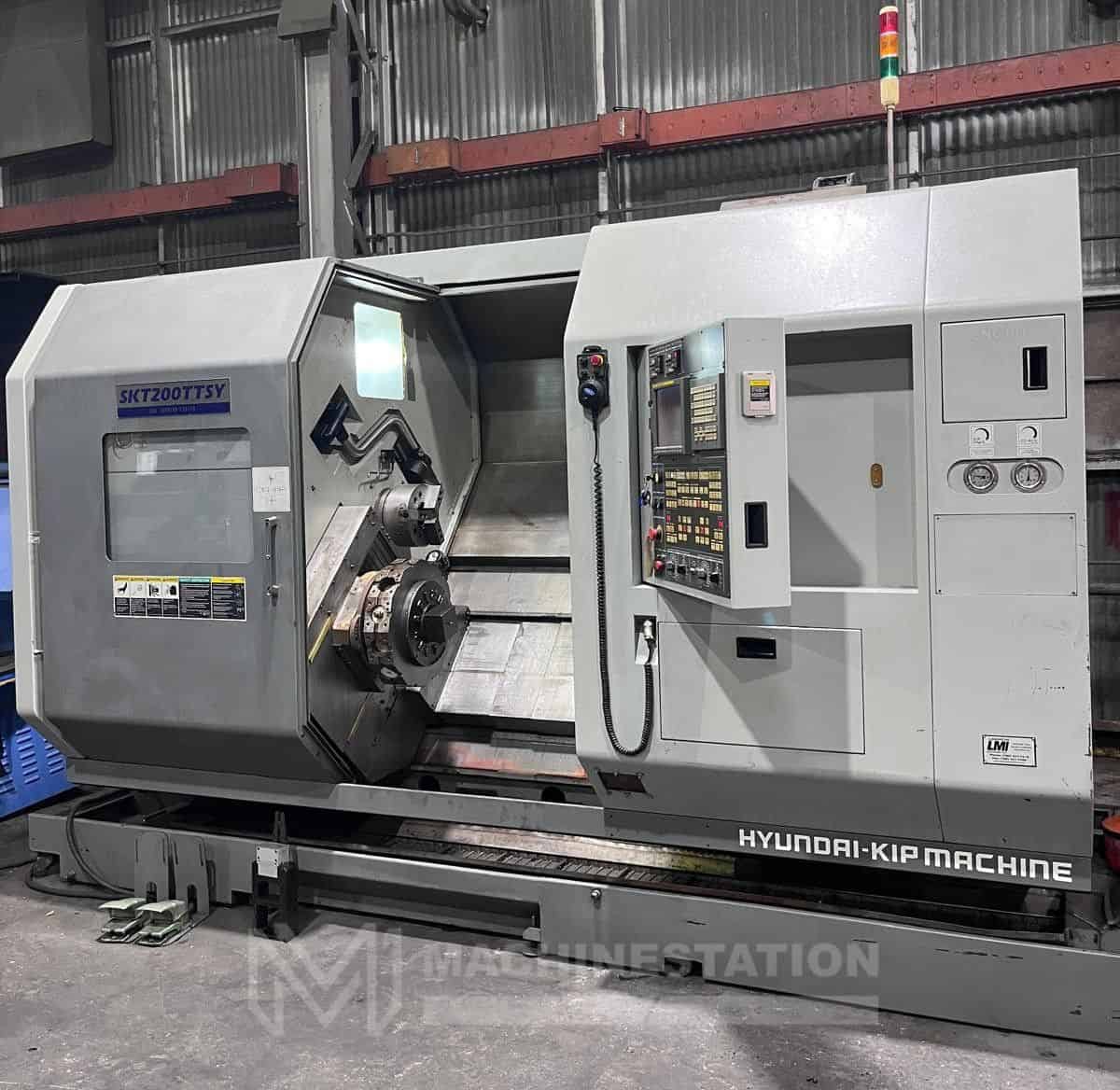

| Make: | HYUNDAI KIA |
| Model: | SKT-200TTSY |
| Year: | 2006 |
| Condition: | Used – Good |
| Equipped With: |
|---|

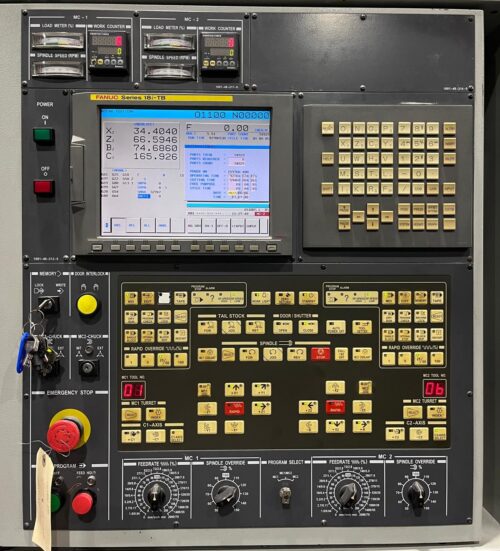

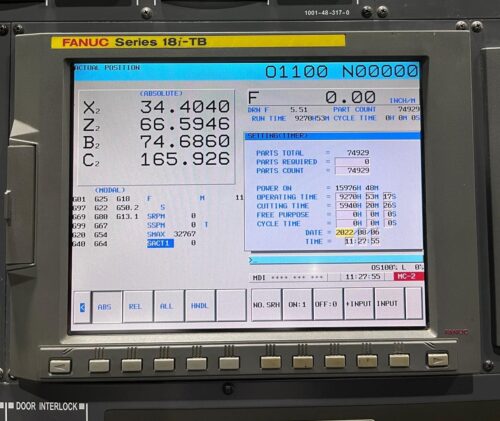

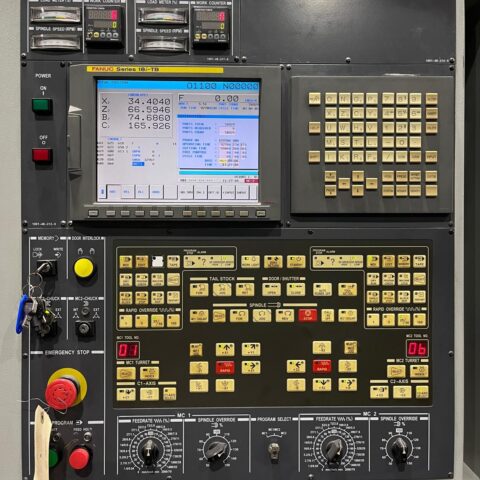

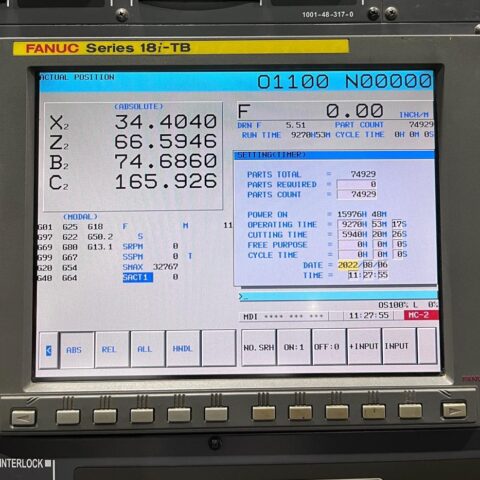

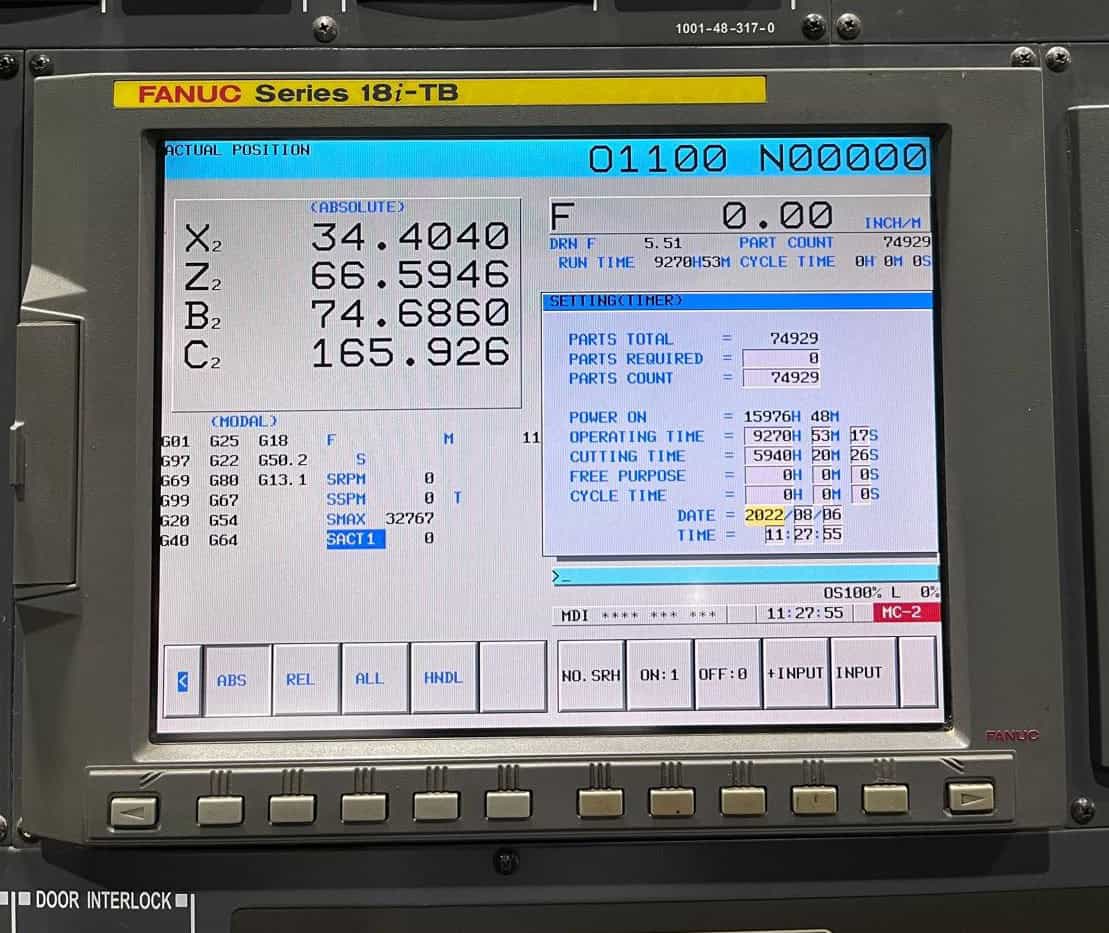

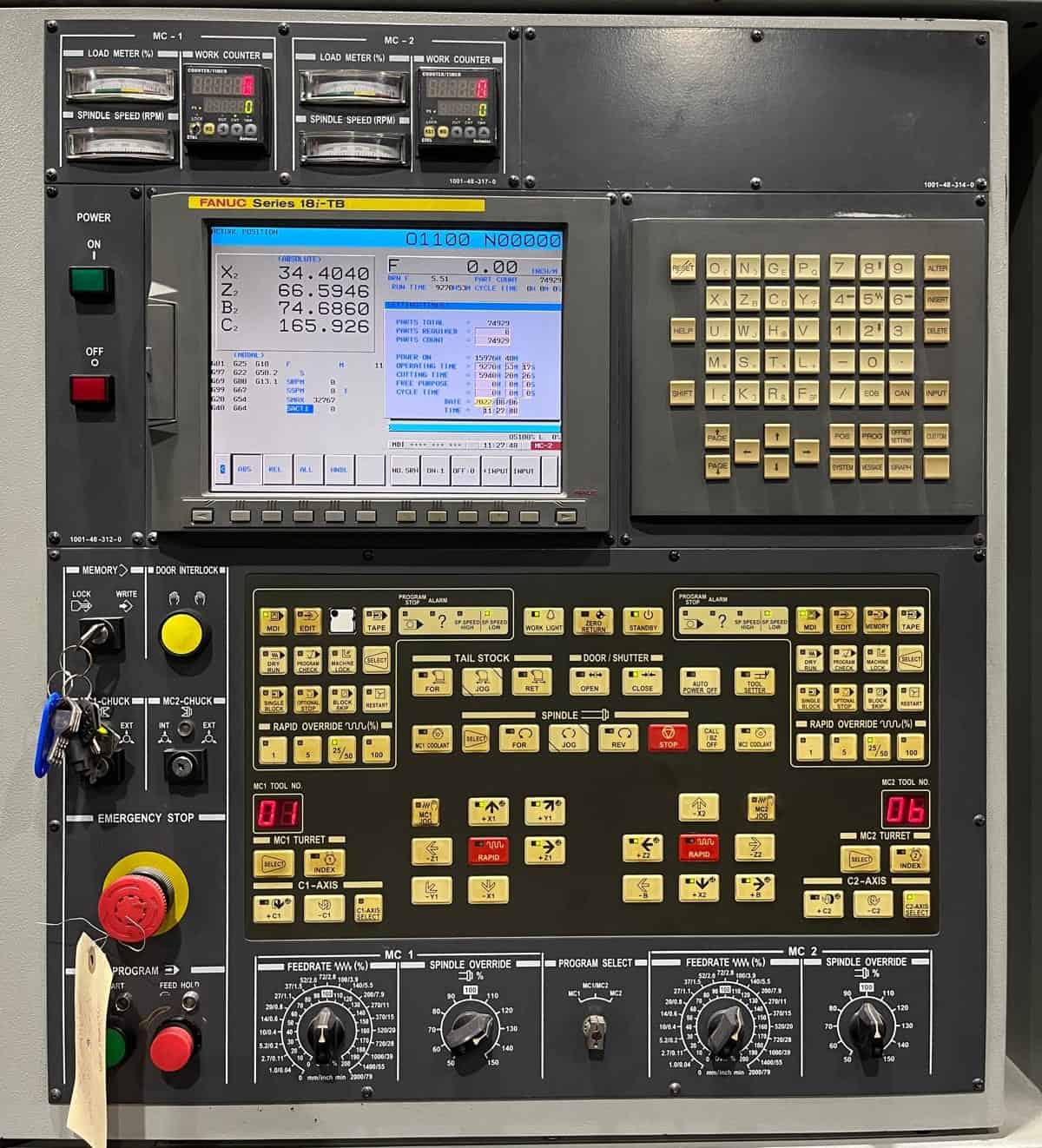

| Fanuc 18i-TB CNC Control |

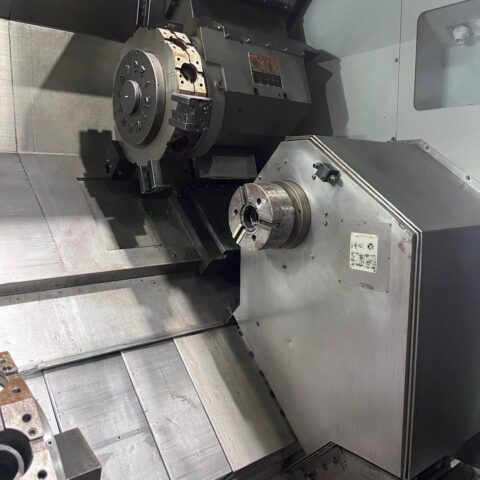

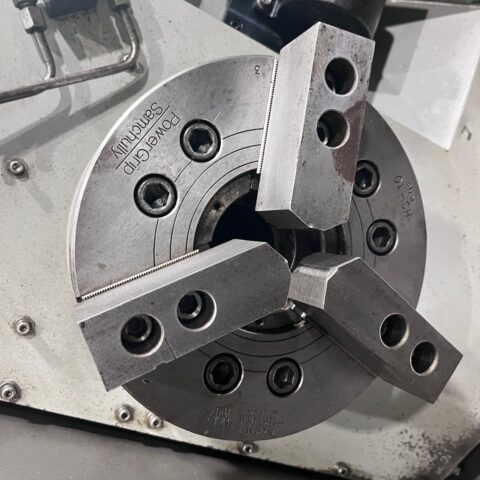

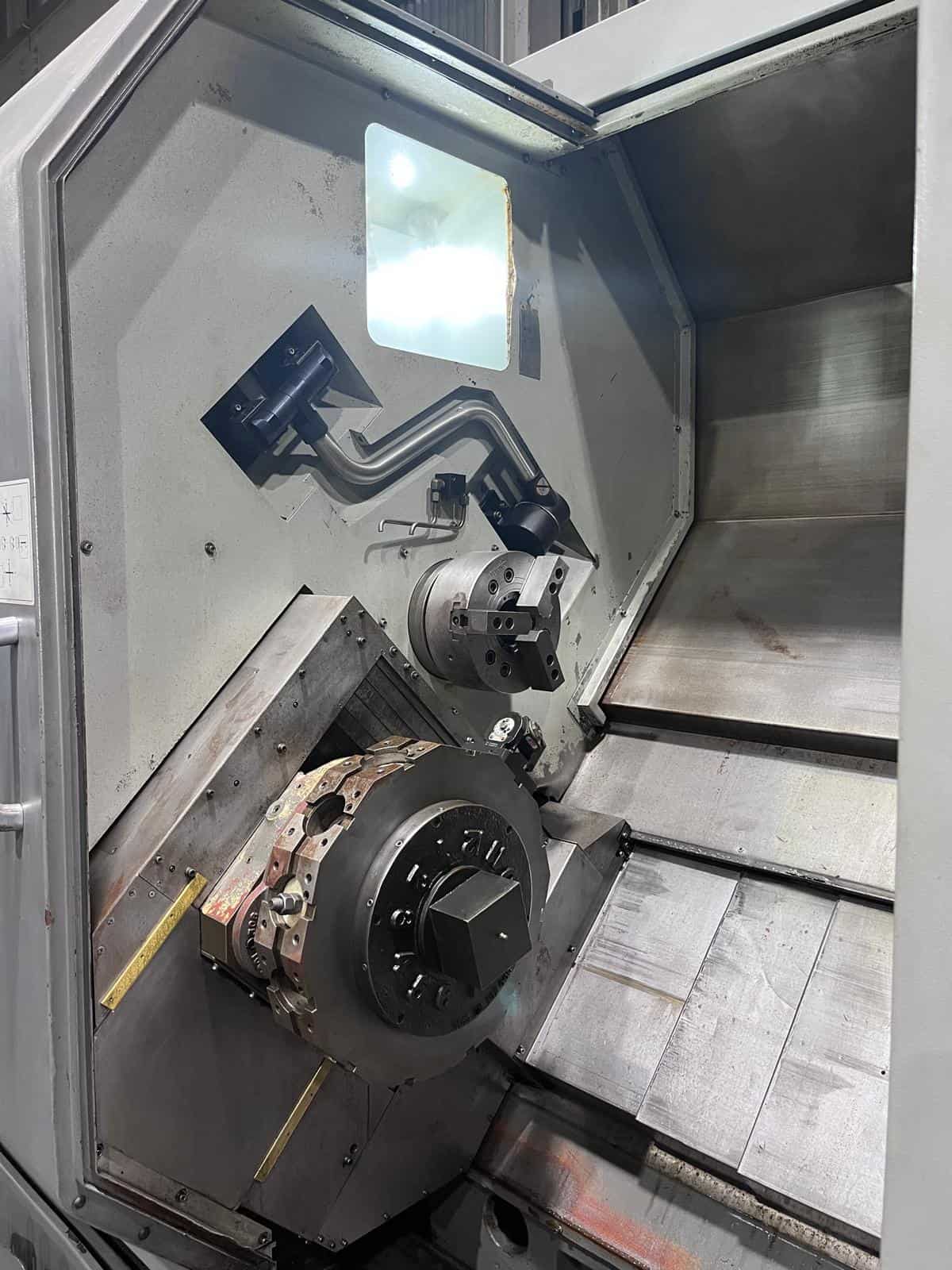

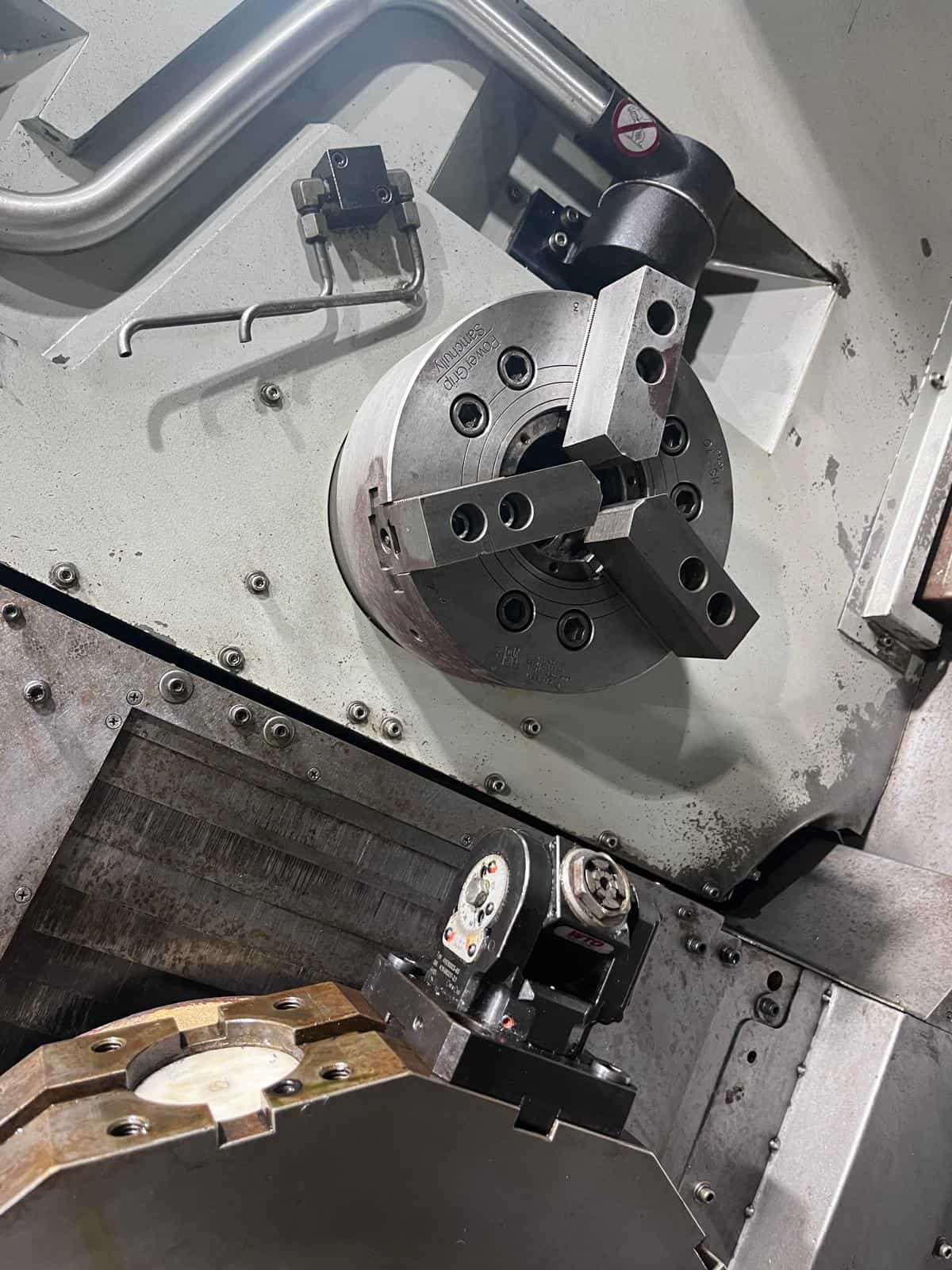

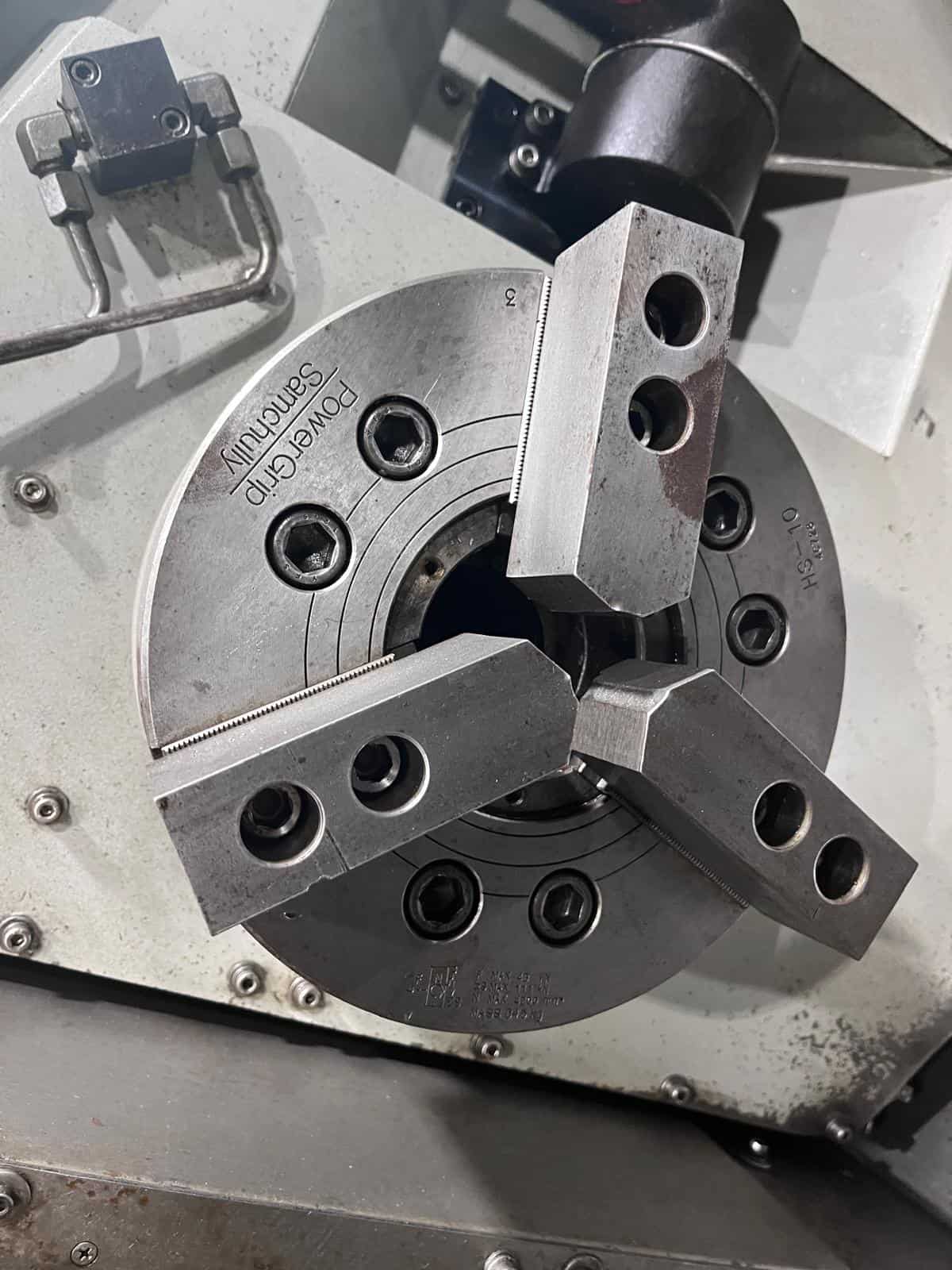

| 10″ 3-Jaw Chuck on Main Spindle |

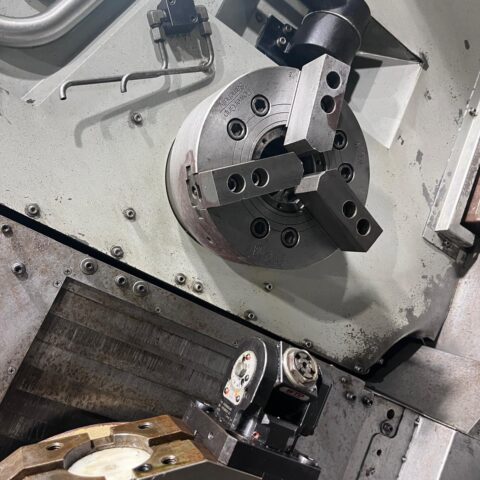

| 8″ 3-Jaw Chuck on Sub Spindle |
| Servo Controlled Full C-Axis on Both Spindles |

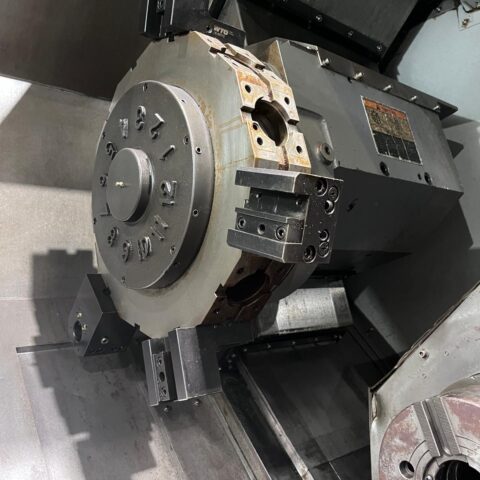

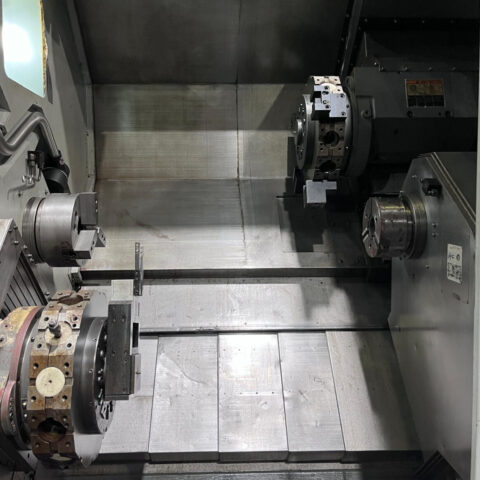

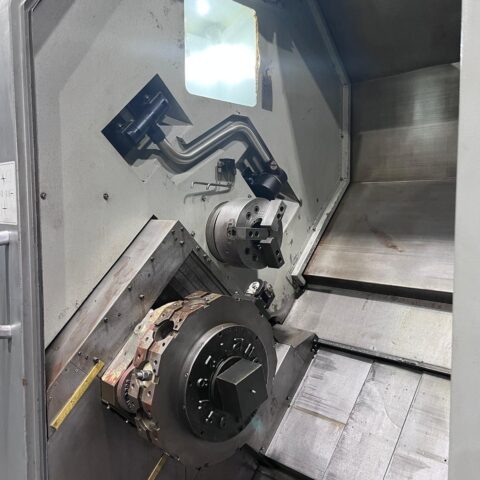

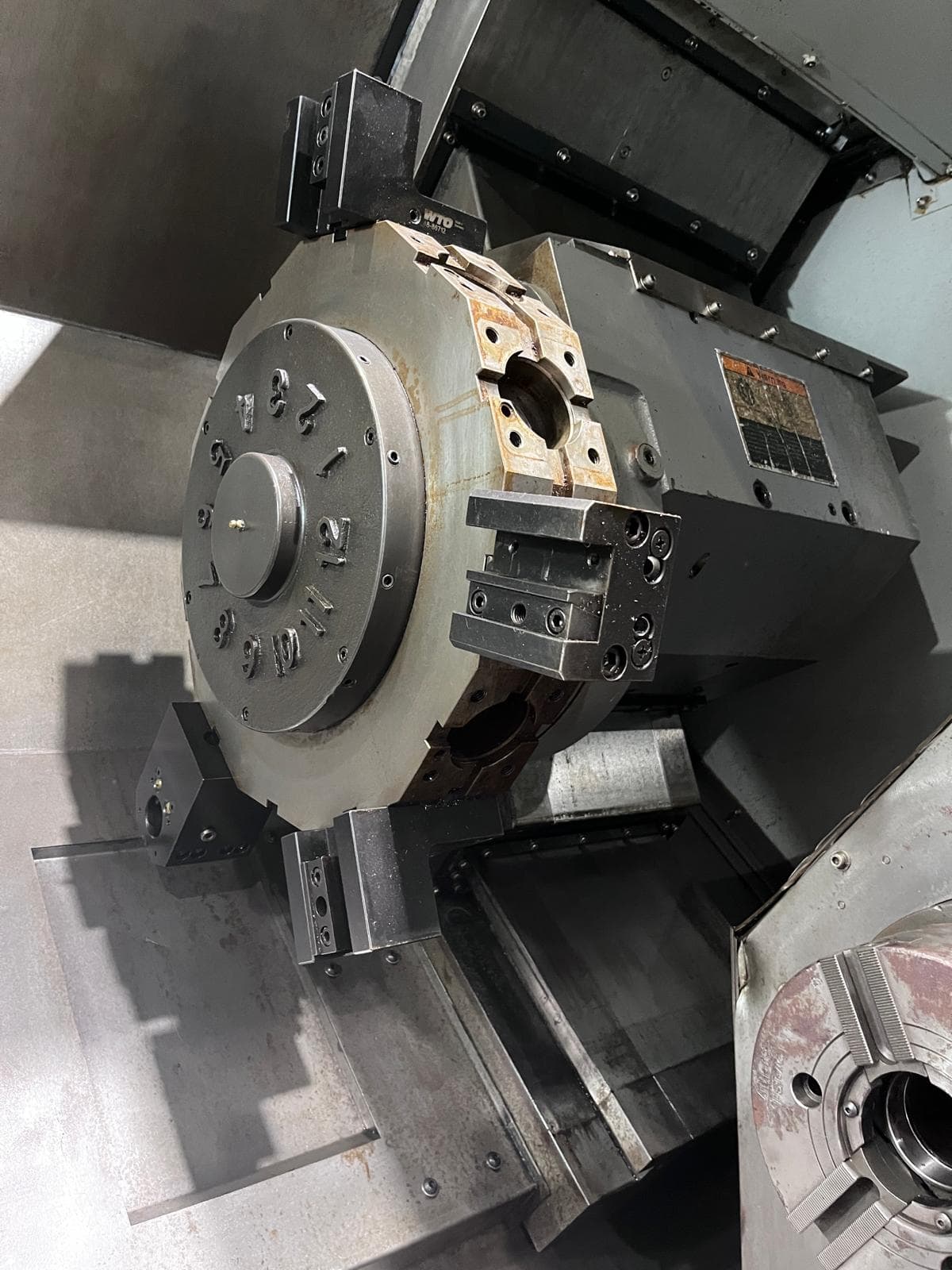

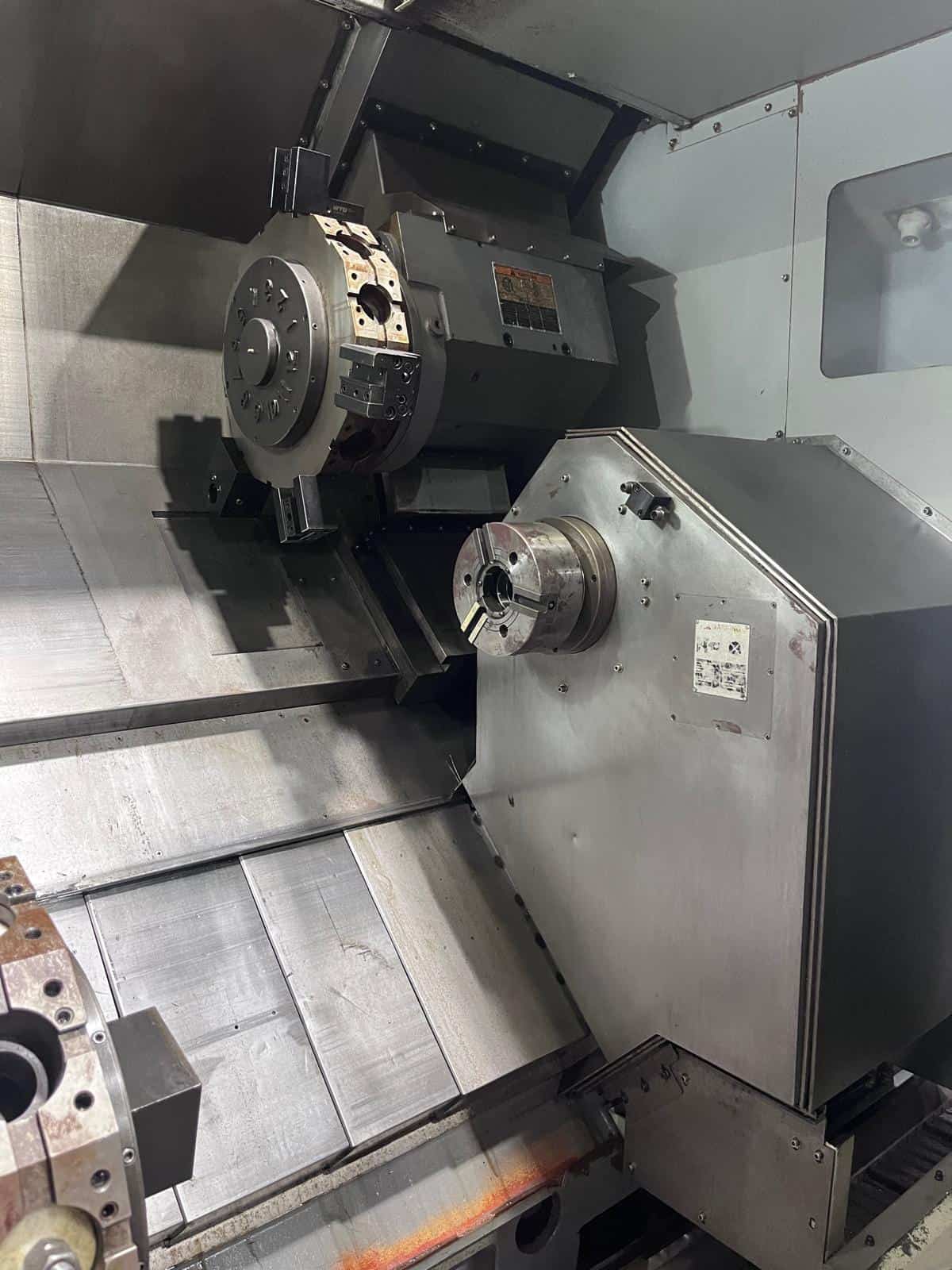

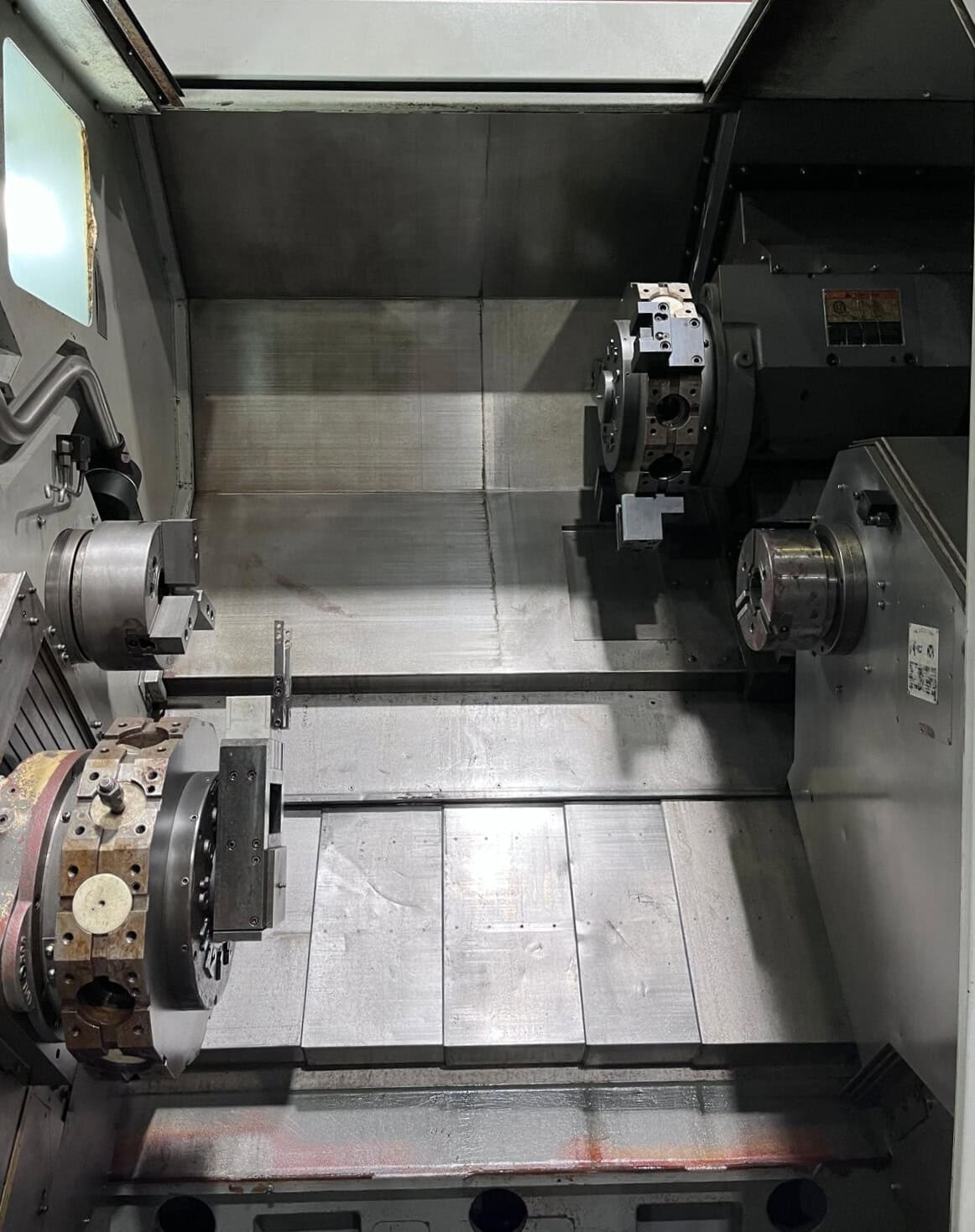

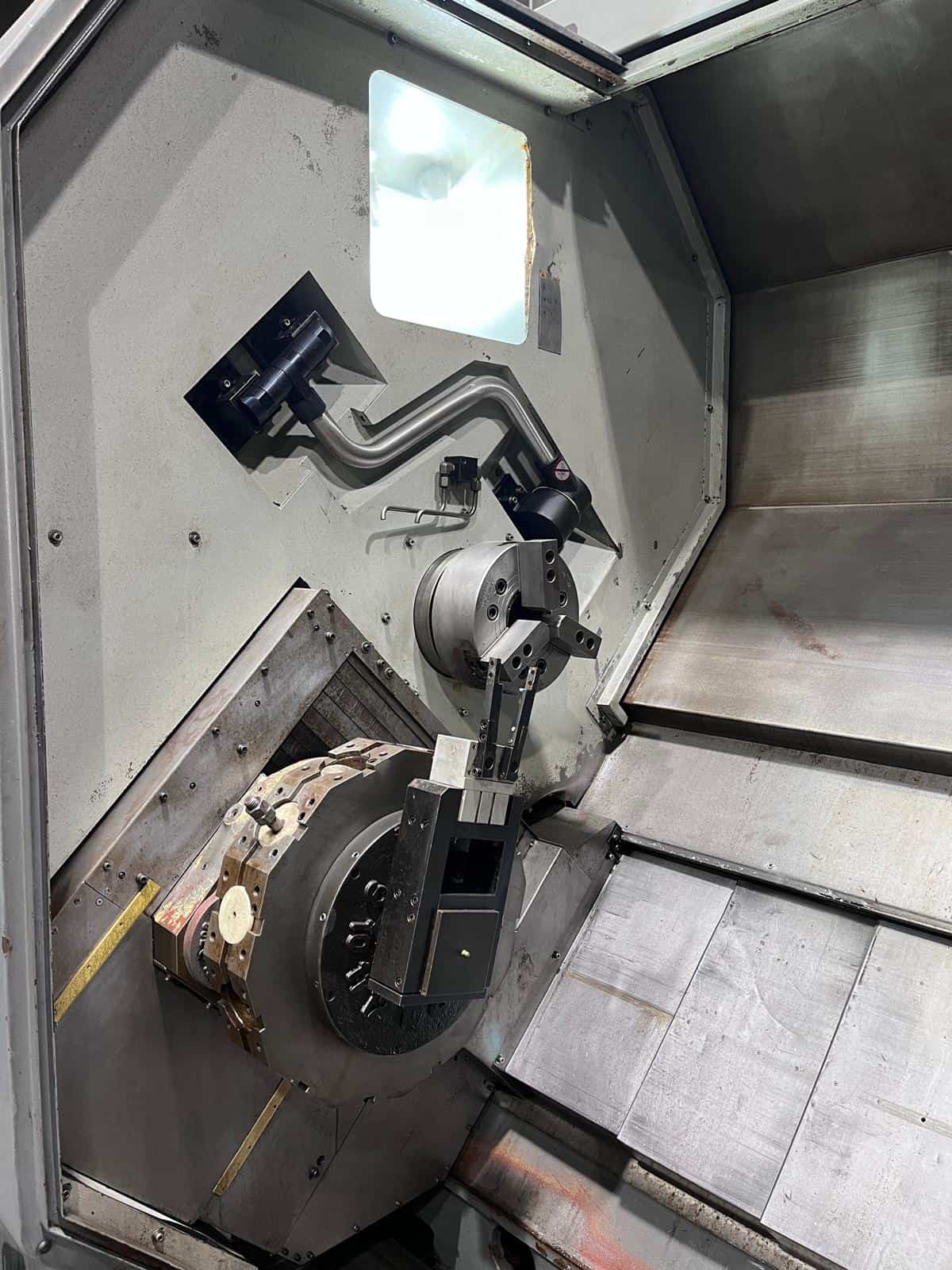

| 12 Station Live Tool Twin Turrets (Upper & Lower Turret) |
| Y Axis Capability Upper Turret Only |
| Rigid Tapping on Both Spindles |
| Tool Pre-setter |

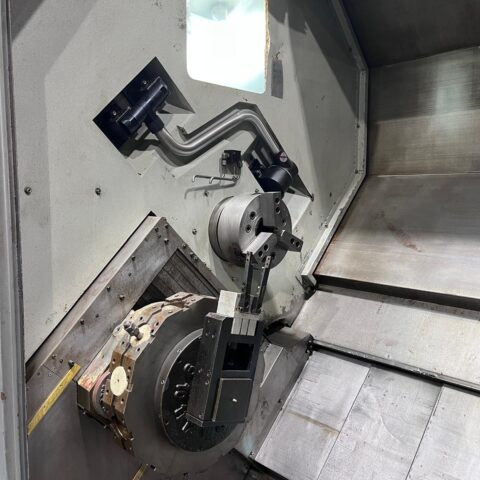

| Part Catcher |
| MPG Handwheel Control |
| High Pressure Coolant System |
| Chip Conveyor |
| Foot Switches |
| Misc. Tool Holders (Mounted on Turrets as shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter Upper Turret : 15.4″ |
| Max Turning Diameter Lower Turret : 11.8″ |
| Max Swing Over Bed: 30.7″ |
| Max Swing Over Saddle : 27.5″ |
| Max Turning Length: 35.4″ |
| Max Bar Capacity Main Spindle : 2.56″ |
| Max Bar Capacity Sub Spindle : 2.56″ |
| Travels: |
|---|
| X1 Axis Travel: 10.6″ |
| X2 Axis Travel Lower : 7.48″ |
| Z1 Axis Travel Upper : 36.22″ |
| Z2 Axis Travel Lower : 36.2″ |
| Y Axis Travel: 4.8″ (+/-2.4″ ) |
| B Axis Travel: 36.2″ ( Sub Spindle ) |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
|---|
| X1, X2 Axis: 945 IPM Rapid Traverse |
| Z1, Z2 Axis: 945 IPM Rapid Traverse |
| Y Axis: 472 IPM Rapid Traverse |
| B Axis: 945 IPM Rapid Traverse |
| Spindles: |
|---|
| Main Spindle Bore: 3.1″ |
| Sub Spindle Bore: 3.1″ |
| Main Spindle Nose: A2-6 |
| Sub Spindle Nose: A2-6 |
| Main Spindle Speed: 50-5000 RPM |
| Sub Spindle Speed: 50-5000 RPM |
| Main Spindle Power: 20 HP |
| Sub Spindle Power: 20 HP |
| Turrets: |
|---|
| Upper Turret Capacity: 12 Stations |
| Lower Turret Capacity: 12 Stations |
| Live Tool Speed: 4000 RPM |
| Live Tool Power: 7.5 HP |
| Turret Indexing Time: 0.2 Sec. |
| Type of Turrets: BMT-65P |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: 68 kva |
| Overall Dimensions: 171.3″ x 85.4″ x 100.4″ High Approx. |

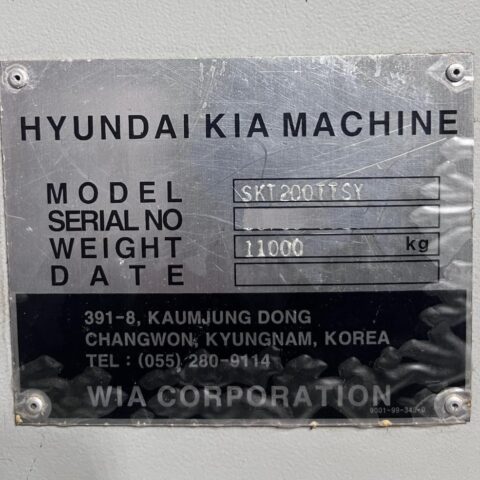

| Weight: 24,250 lbs Approx. |
