*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

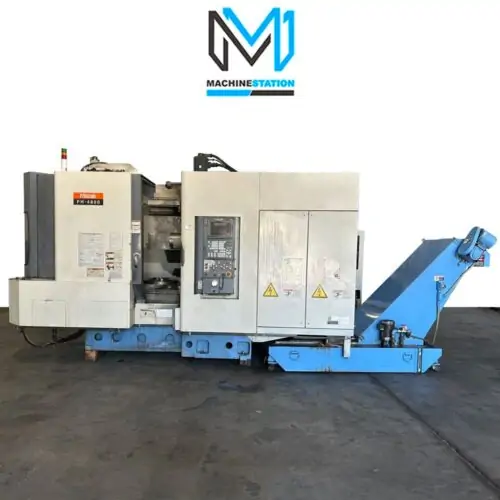

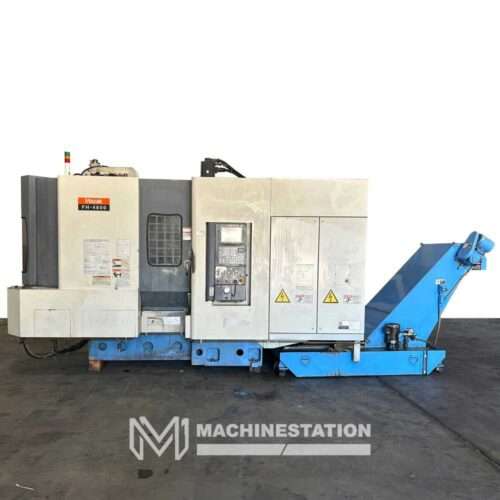

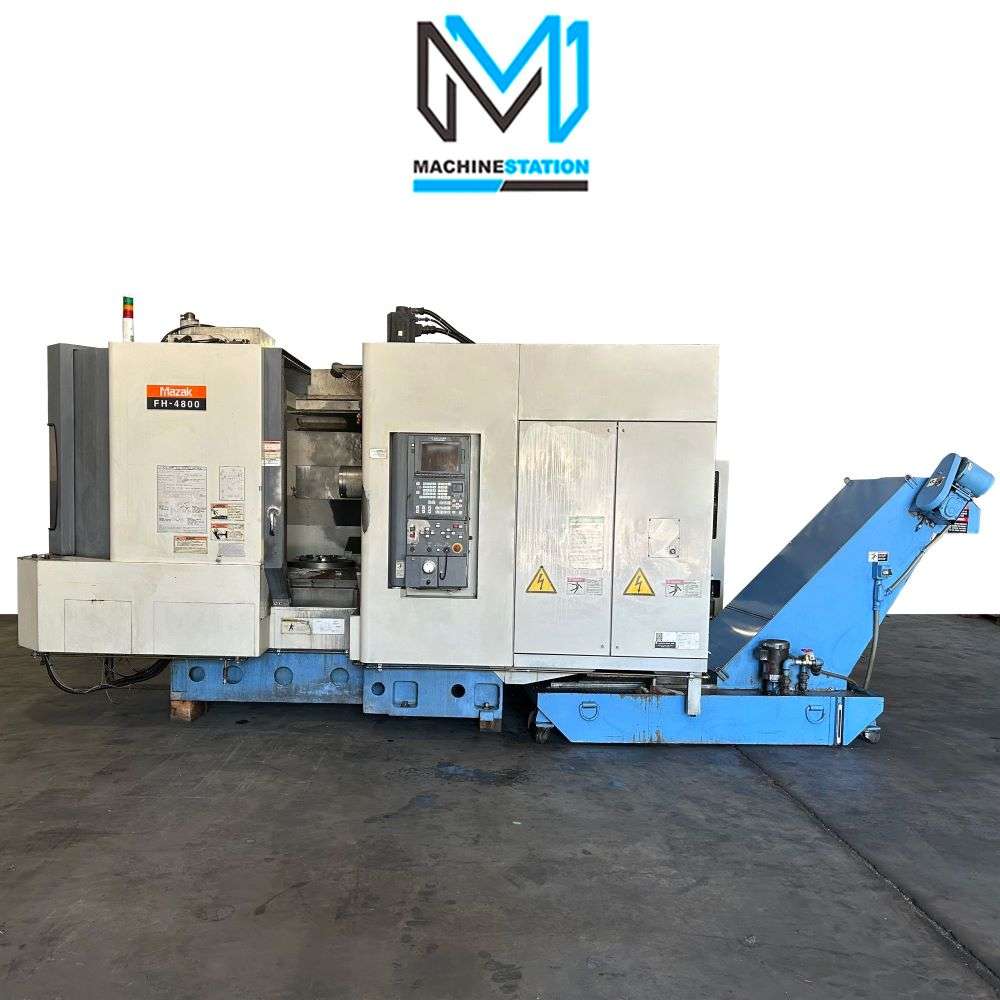

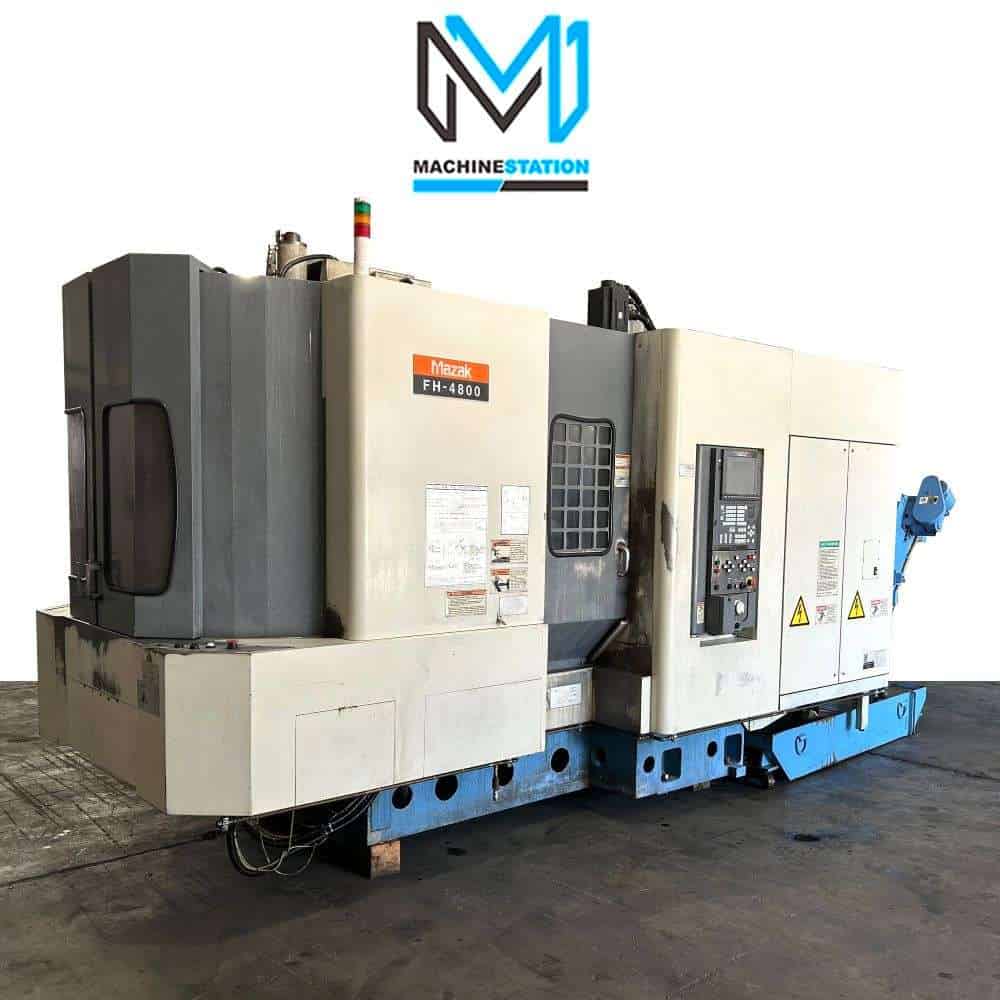

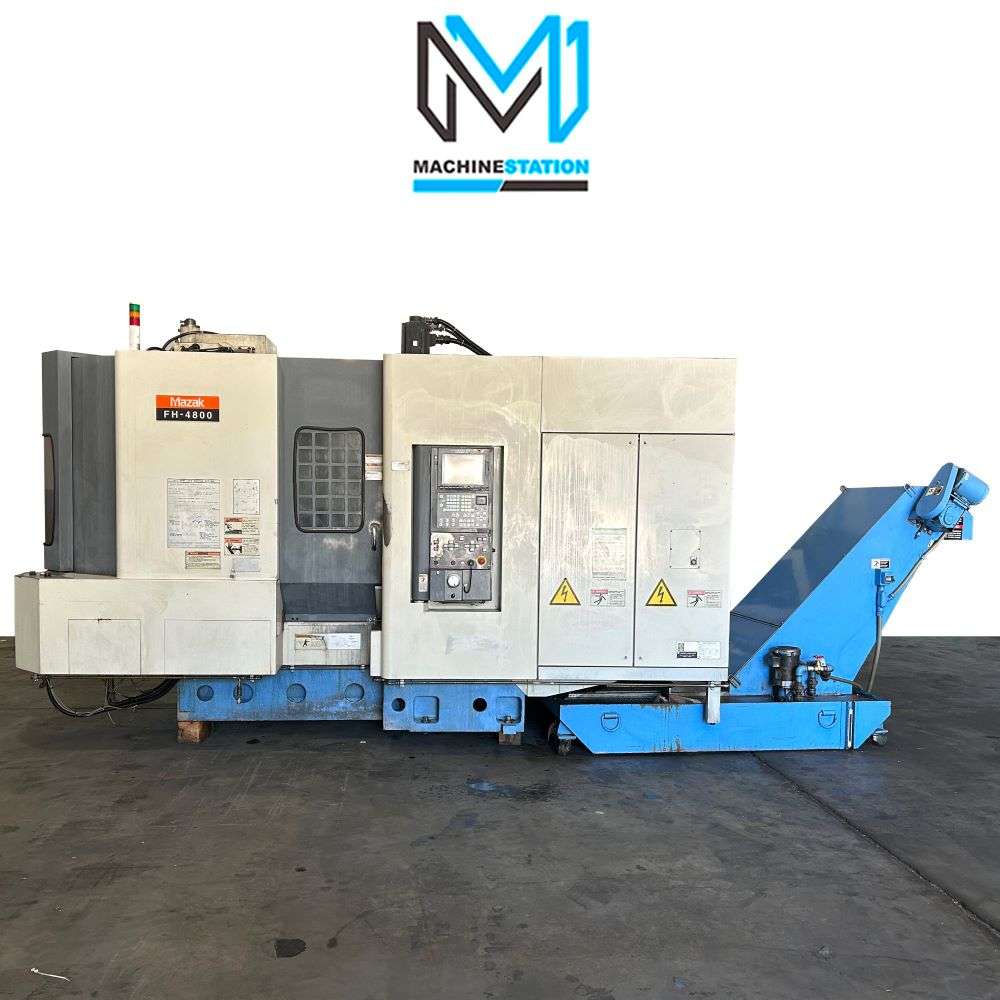

| Make: | Mazak |
| Model No.: | FH4800 |
| Year of Manufacture: | 12/1998 |
| Equipped With: |
|---|

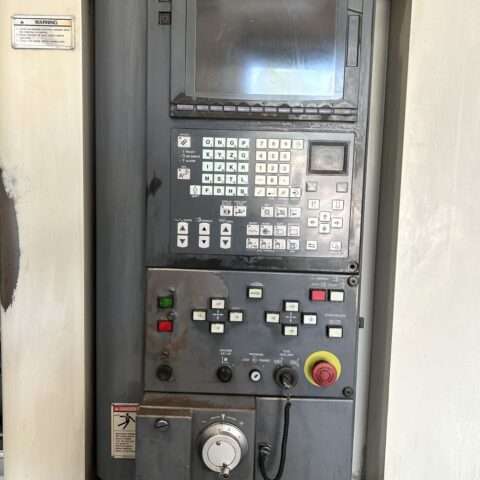

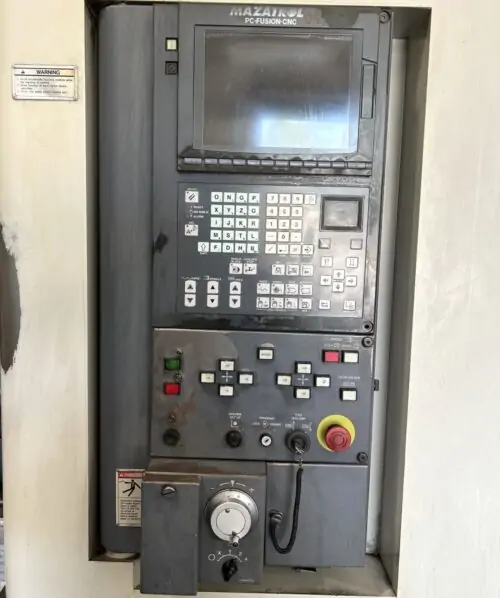

| Mazatrol 640M PC Fusion CNC Control |
| 12,000 RPM High Precision Spindle |
| Through Spindle Coolant |

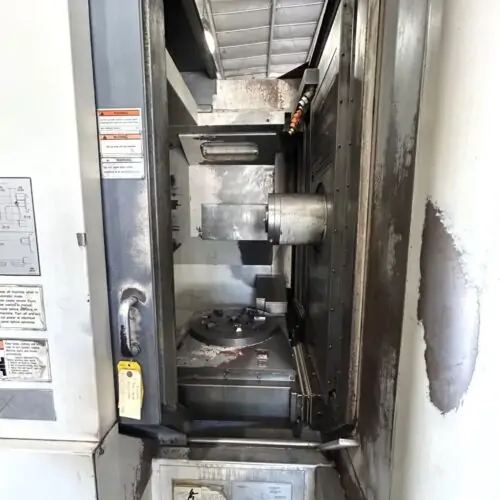

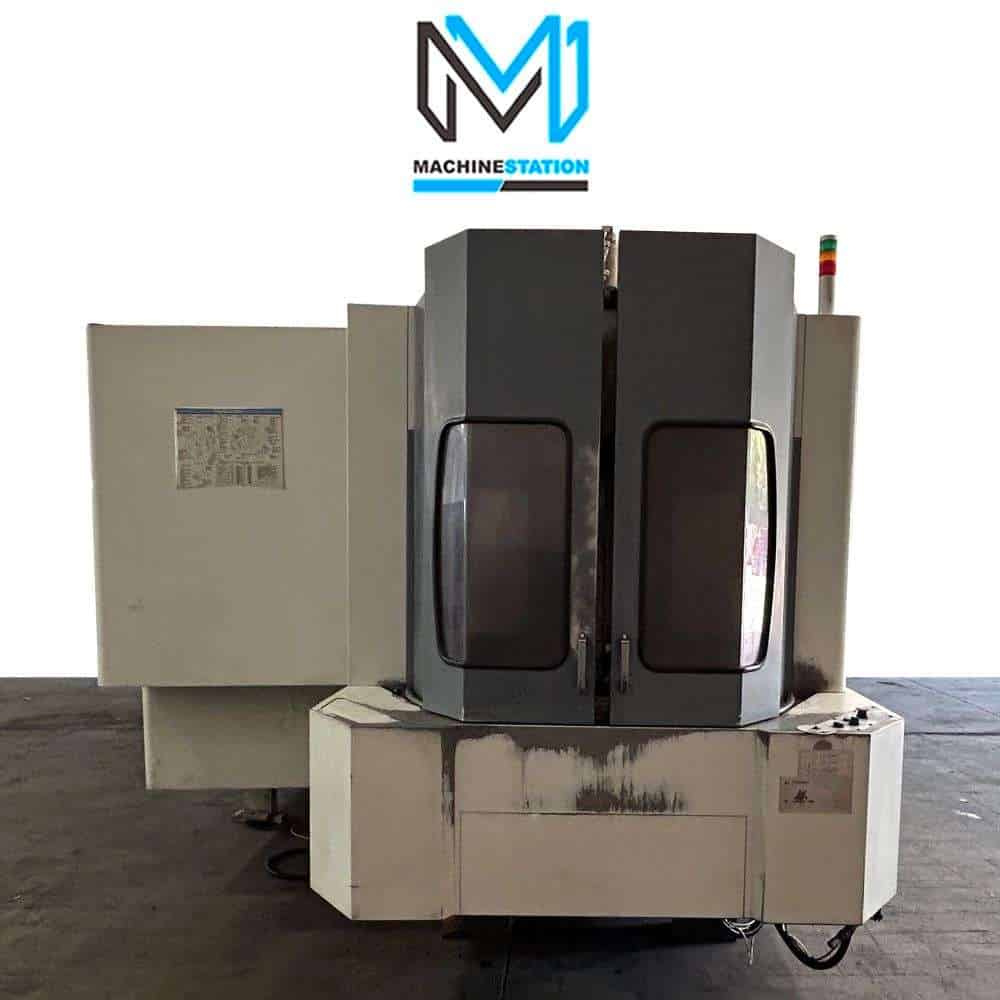

| Twin Pallet Changer |

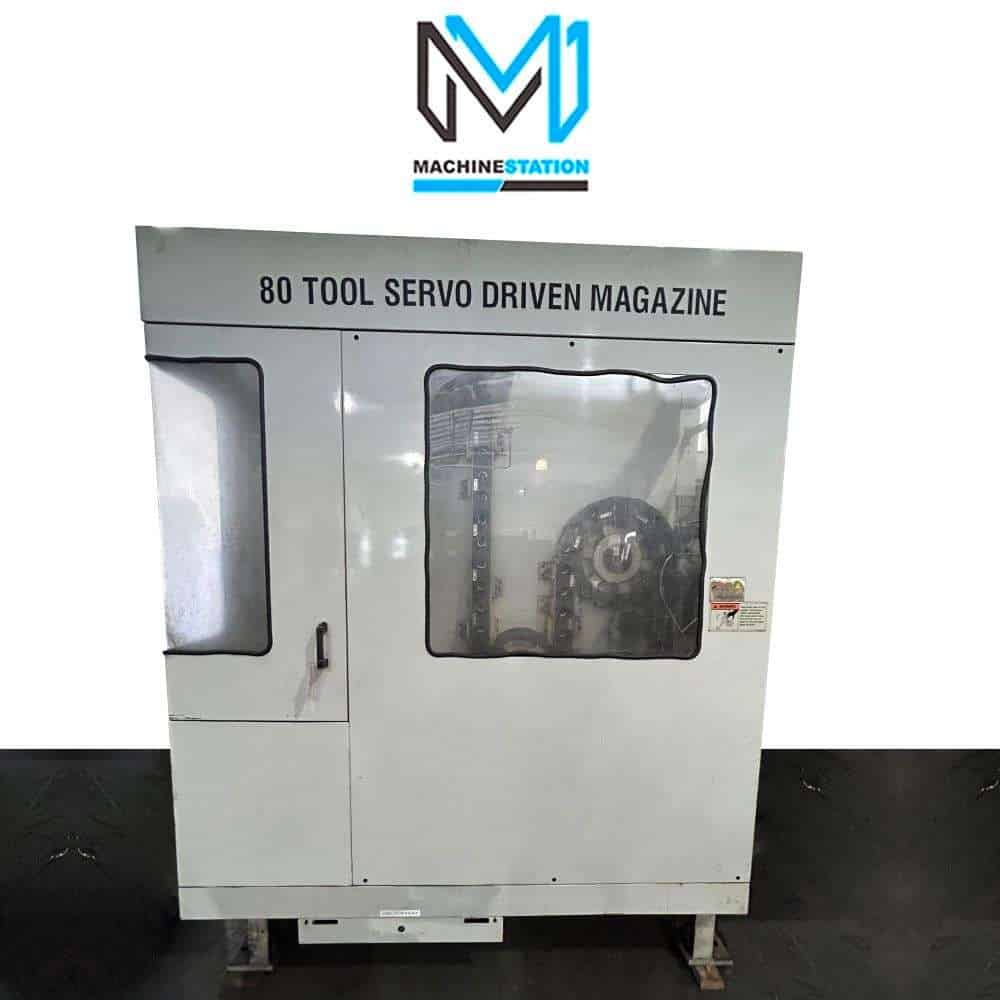

| 80 Station Automatic Tool Changer |
| RS-232 Port |
| Pallet Seat Detection |
| Spindle Orientation |
| Rigid Tapping |
| Fast Rapid Traverse Rate |
| Flood coolant with large coolant tank |

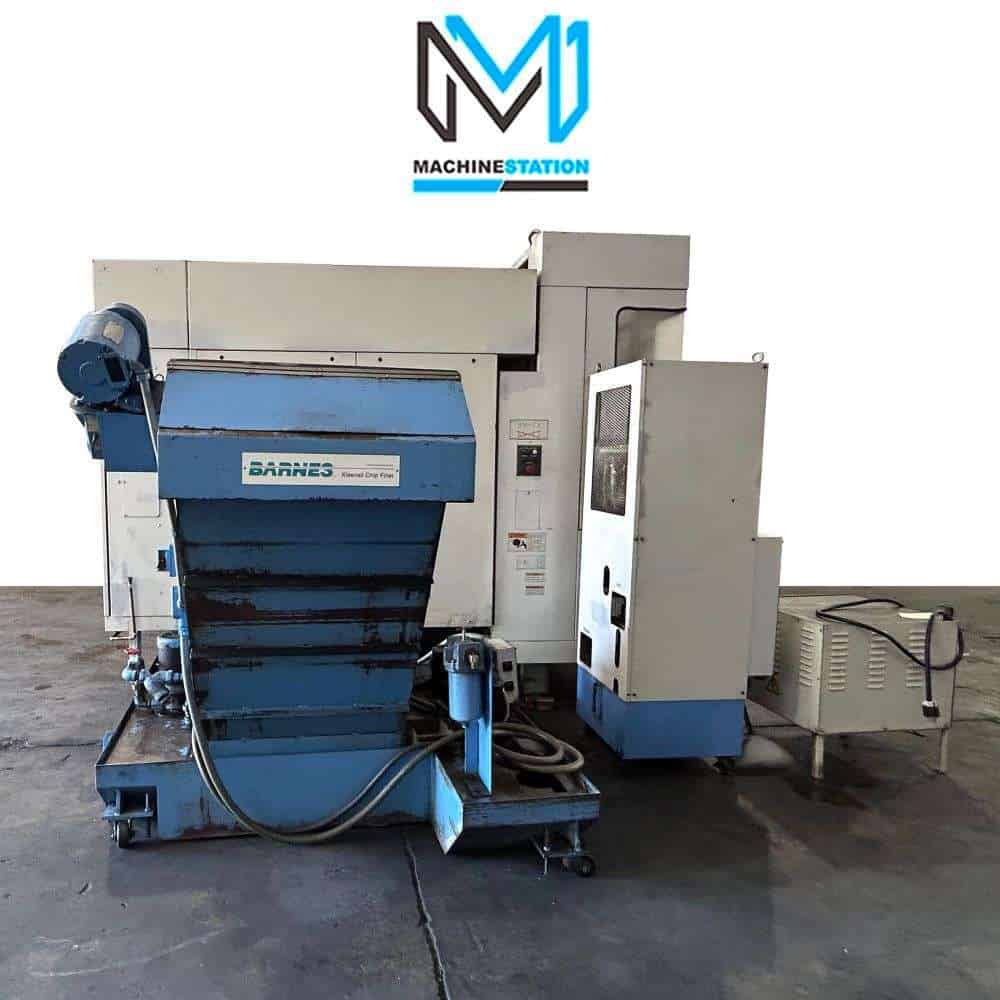

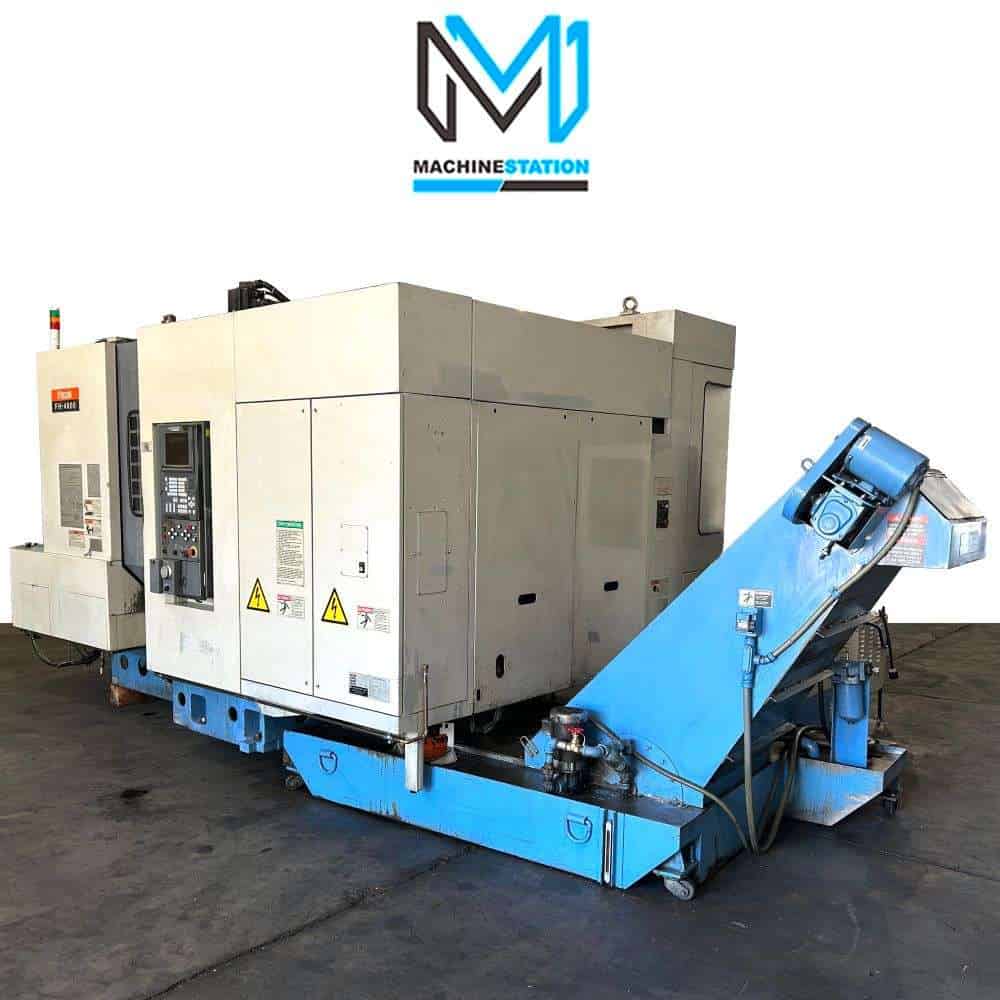

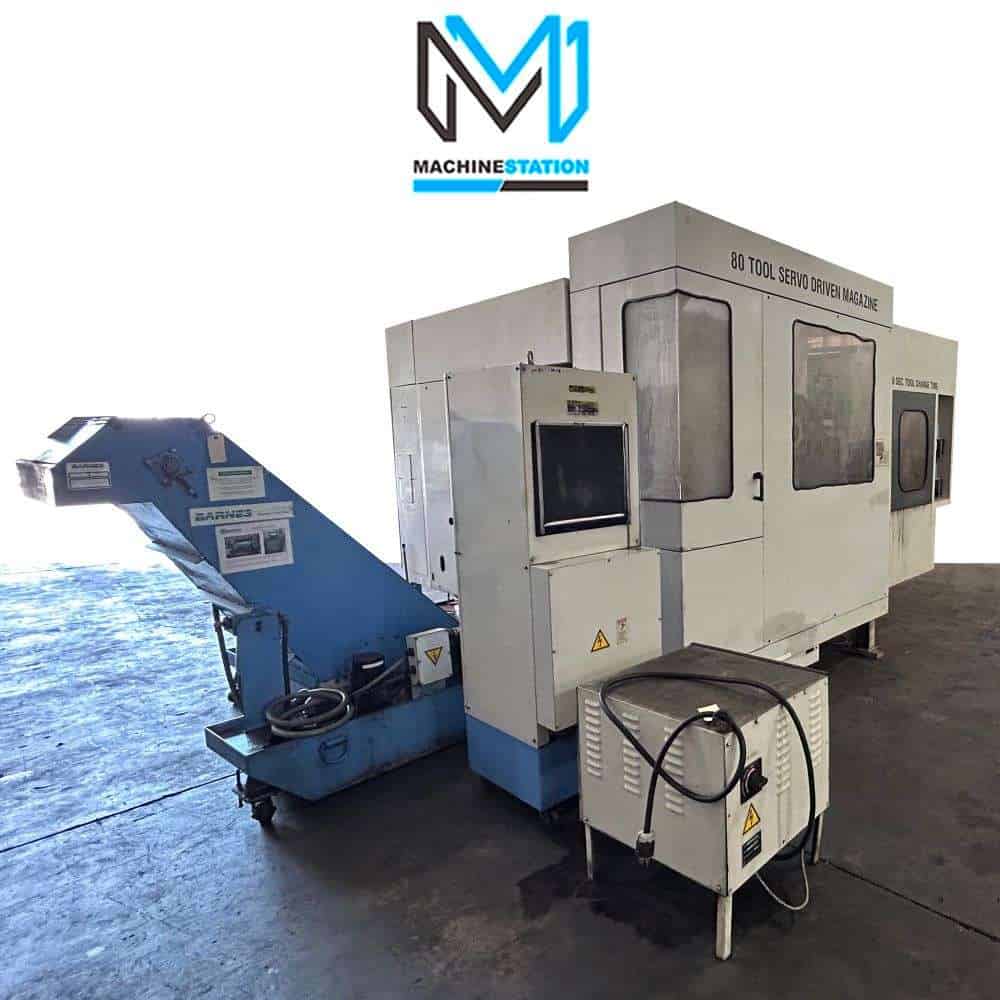

| Chip Conveyor |
| Travels: |
|---|
| X Axis: 22″ |
| Y Axis: 24″ |
| Z Axis: 22″ |
| B Axis: 1° Indexing (4th Axis) |
| Spindle Nose to Table Center: 5.9″ – 27.9″ |
| Spindle Center to Table Top: 2.0″ – 26.0″ |

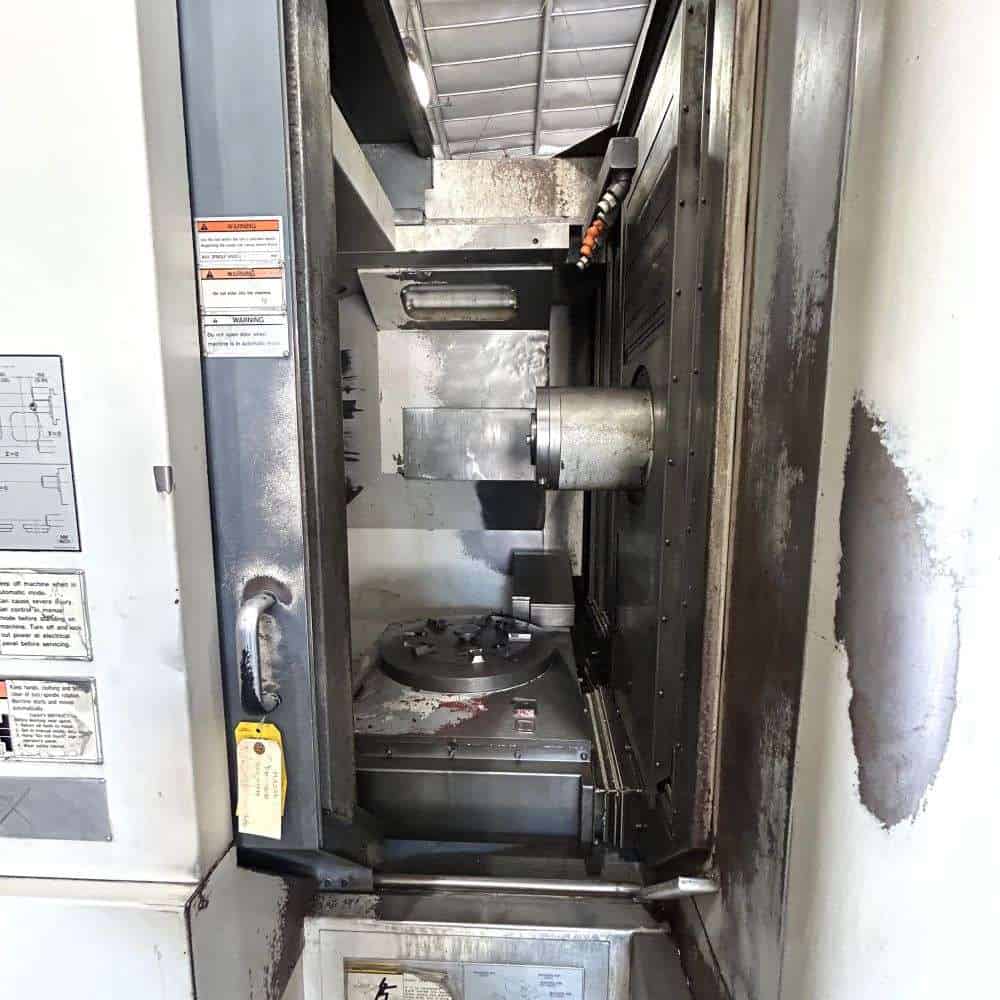

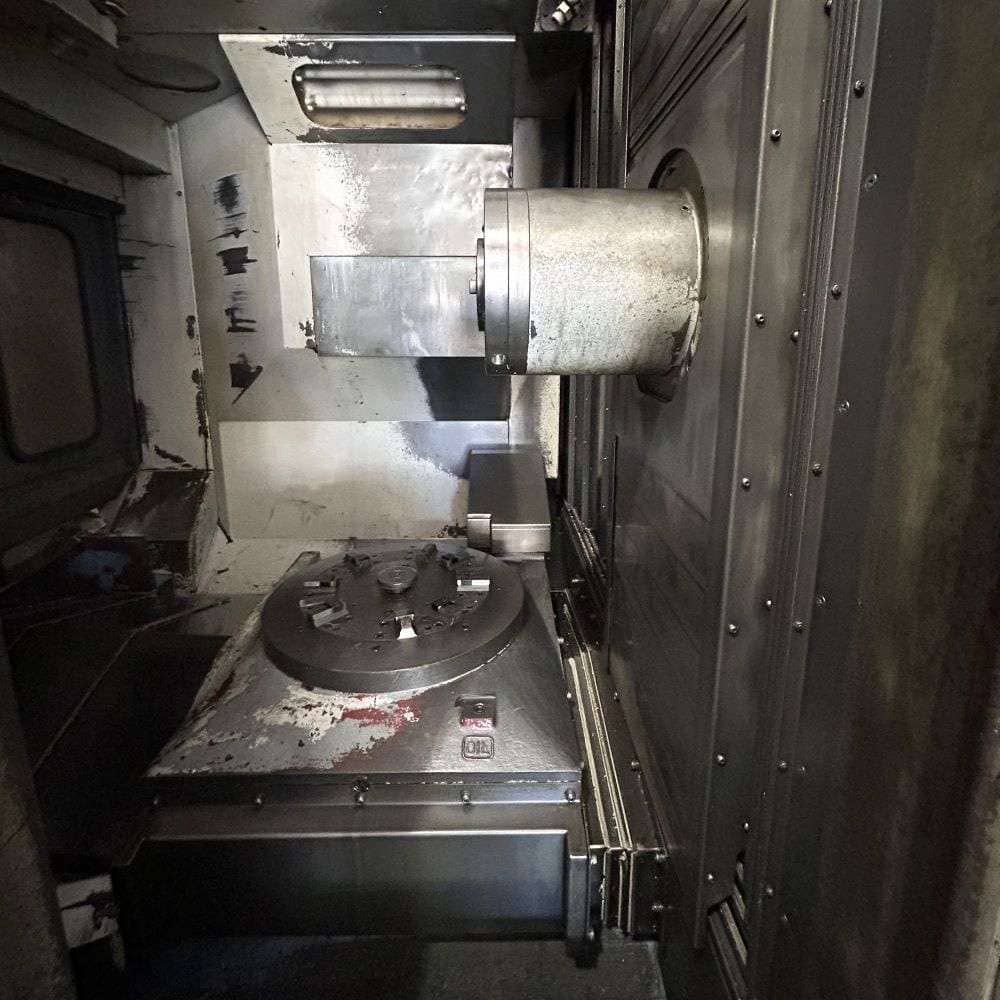

| Table: |
|---|
| Length: 15.75″ |
| Width: 15.75″ |
| Max Weight on Table: 881 lbs |
| Max Workpiece Diameter: 24.01″ |
| Max Workpiece Height: 27.95″ |
| Index Time: seconds |
| Spindle: |
|---|
| Taper Size: 40 |
| Max. Speed: 12,000 RPM |
| Power: 30 HP |
| Feed rates: |
|---|
| Rapid X, Y & Z : 1968 Inch Per Minute |
| Cutting Feedrate: 1181 Inch Per Minute |
| Automatic Tool changer: |
|---|
| Capacity: 80 Tools |
| Taper: 40 |
| Max Tool Diameter: 5.90″ |
| Max Tool Length: 12.60″ |
| Max Tool Weight: 26.45 lbs. |

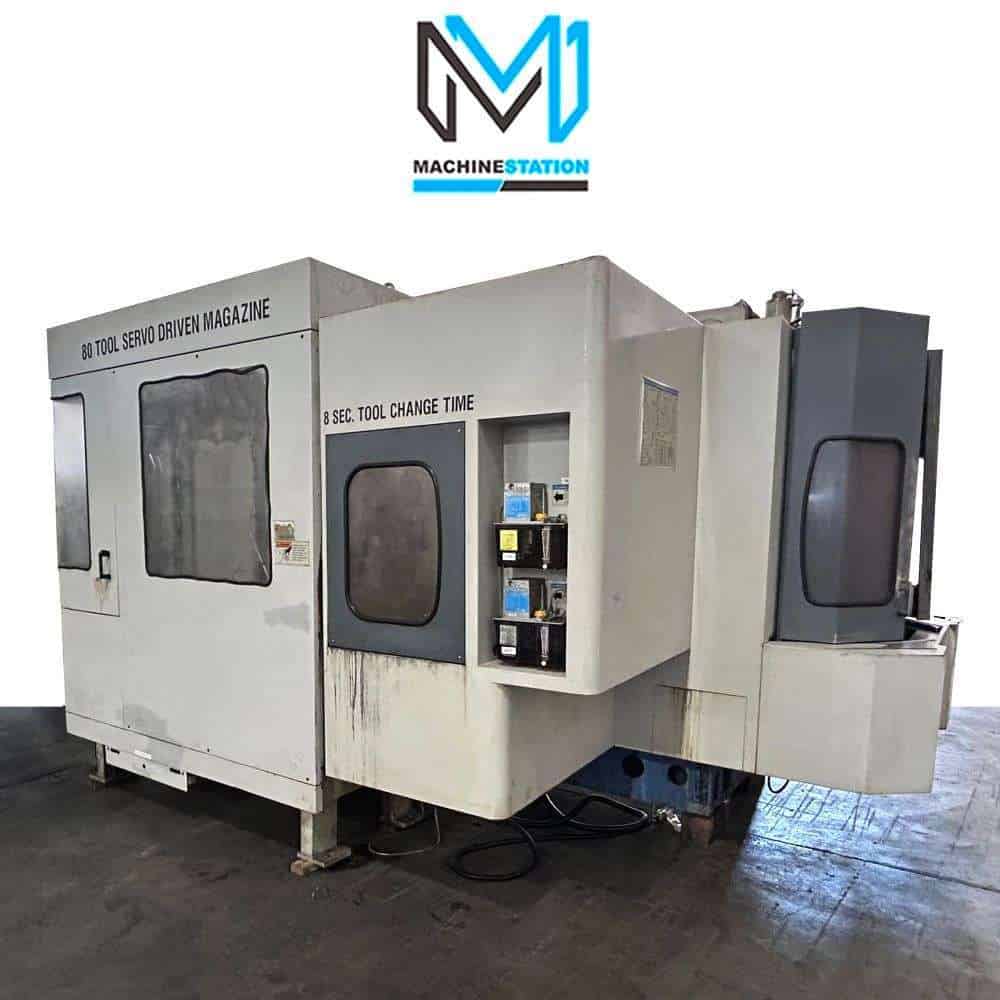

| Tool Change Time: 8 Second |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |

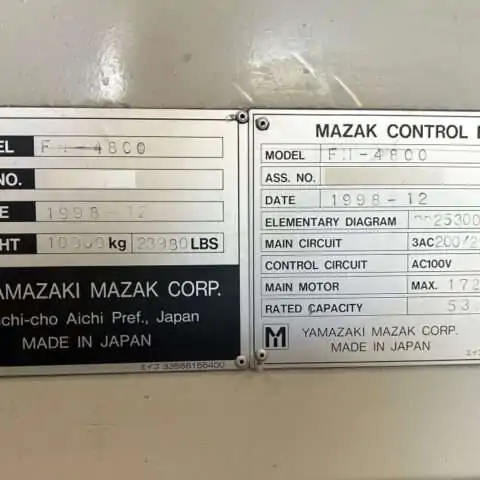

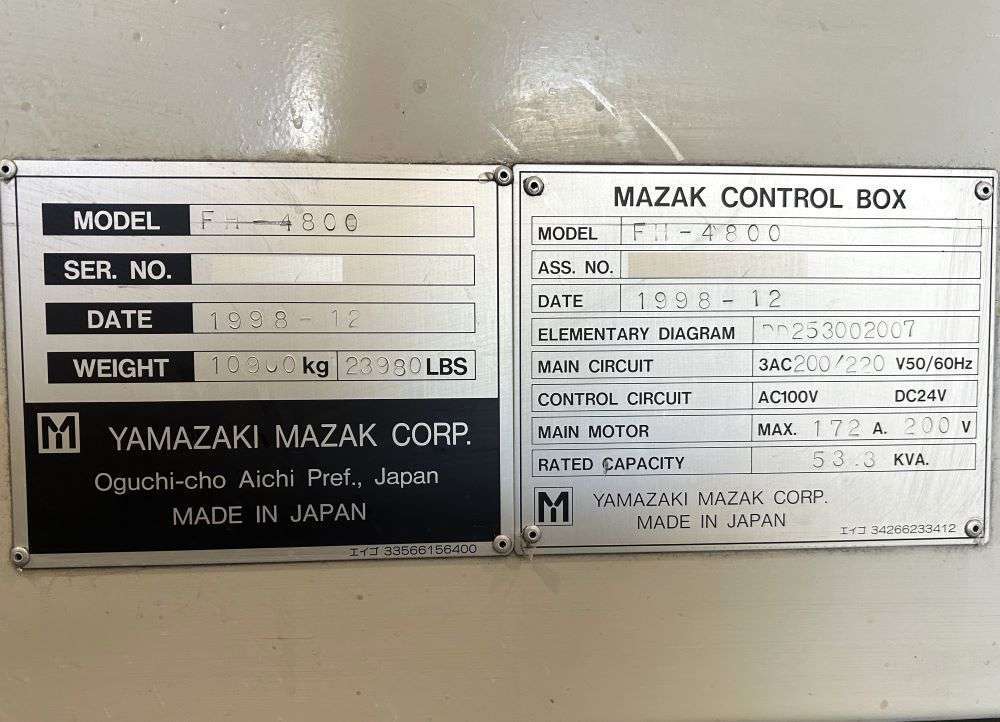

| Power: 53.3 kva / 205-220v / 3-Phase |
| Overall Dimensions: 161″ X 105″ x 103″ High |
| Weight: 23980 lbs |
“No Charges for loading at list Price”
