*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

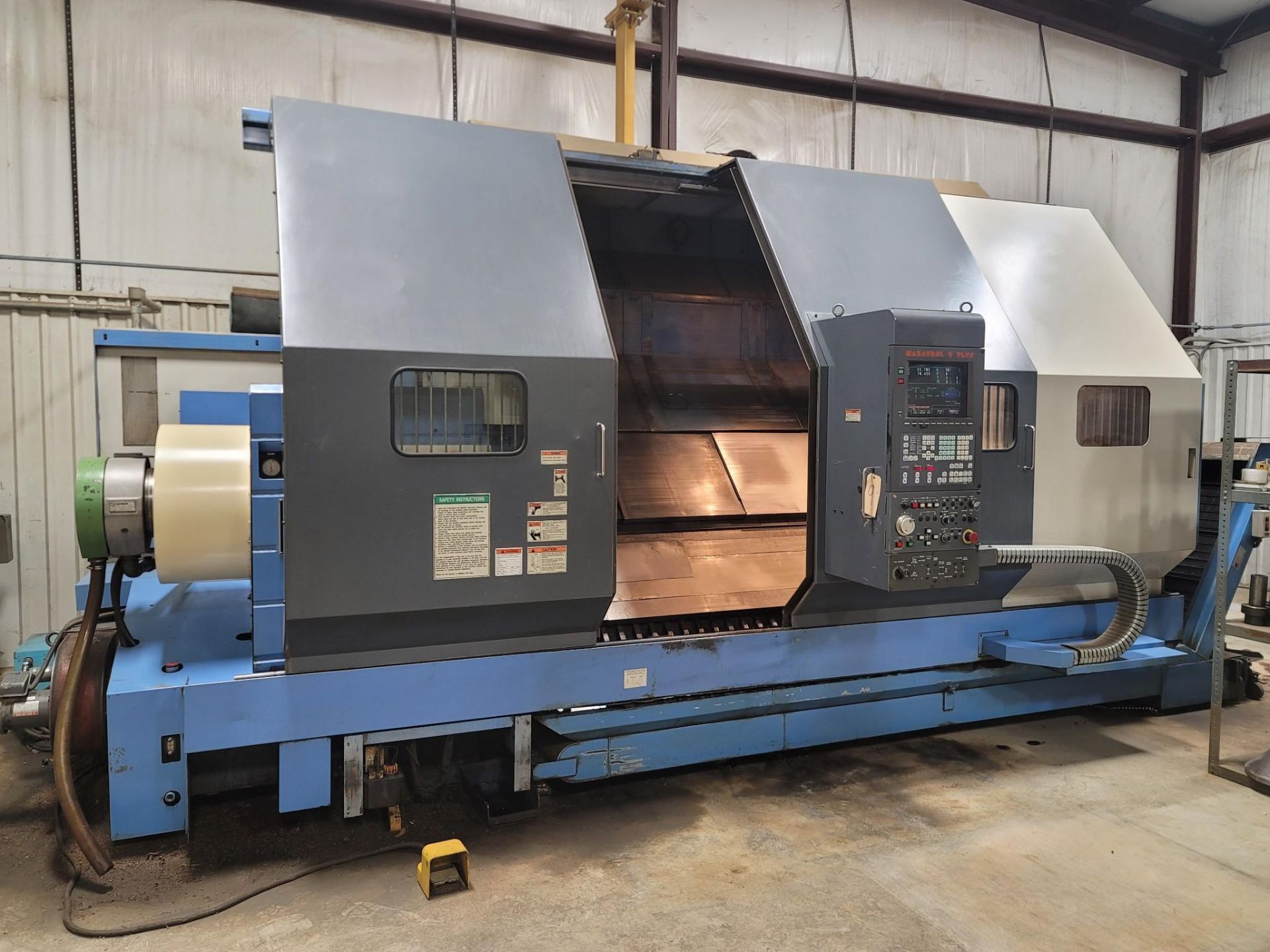

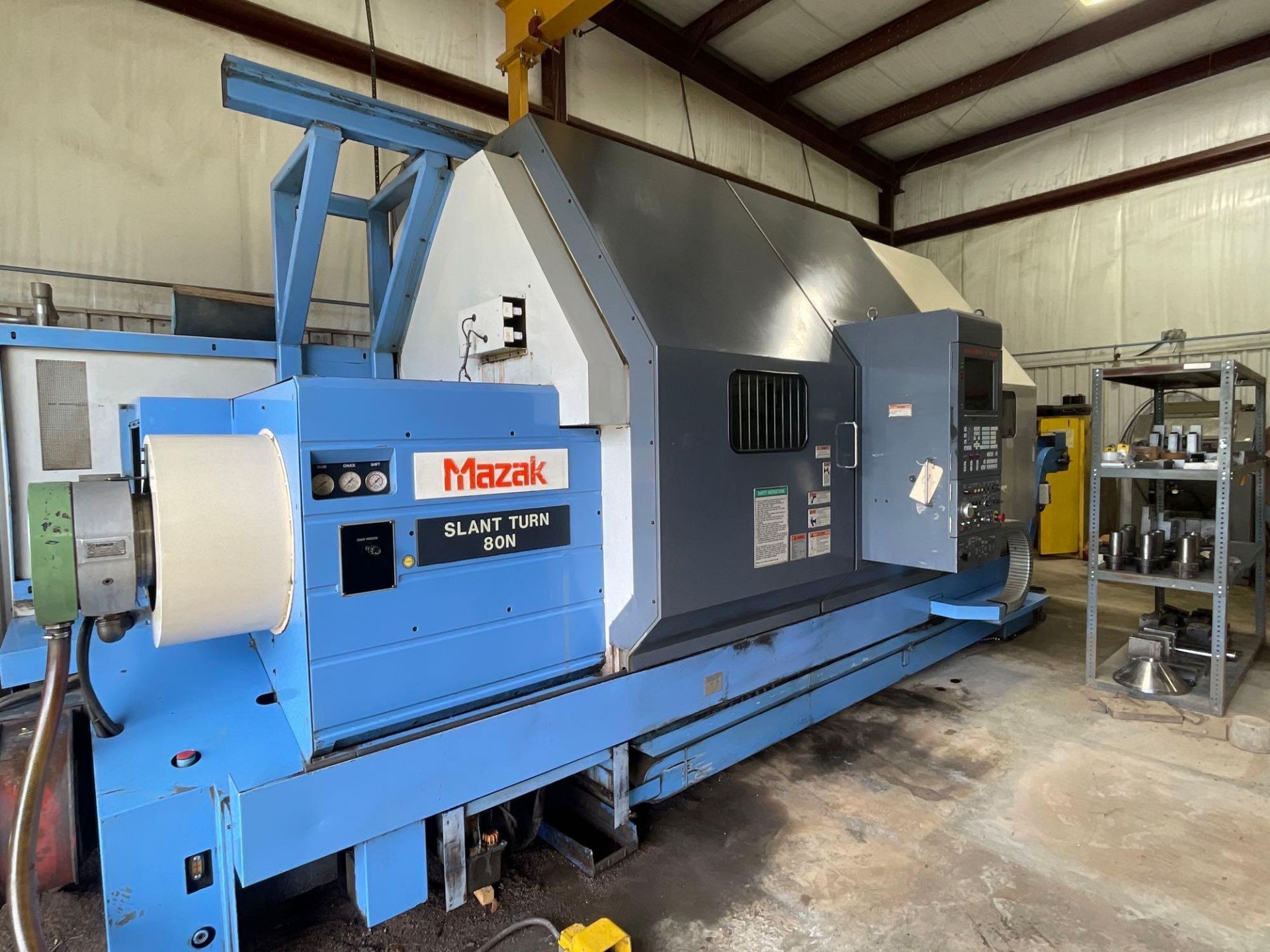

| Make: | Mazak |
| Model: | Slant Turn 80NX-2000U |
| Year: | 1997 |
| Condition: | Used |
| Equipped With: |
|---|
- Mazatrol T Plus CNC Control
- Hydraulic Chuck
- Programmable Hydraulic Tailstock
- 12-Station Turret
- Full Enclosure
- Coolant System
- Automatic Lubrication System
- Foot Pedal Chuck Control
- Work Light
- Safety Interlocks
- Large-Capacity Chip Pan
|
| Capacity: |
|---|
- Swing Over Bed: 32.0″
- Max Turning Diameter: 28.0″
- Max Turning Length: 80.0″
- Distance Between Centers: 80.0″
|
| Travels & Rapid Traverse: |
|---|
- X-Axis Travel: 16.5″
- Z-Axis Travel: 84.0″
- Rapid Traverse X/Z: 945 IPM
|
| Main Spindle: |
|---|
- Chuck Size: 18″ Hydraulic
- Spindle Bore: 4.9″
- Spindle Nose: A2-11
- Spindle Speed: 2,000 RPM
- Spindle Motor: 40 HP
|
| Turret: |
|---|
- Turret Type: 12-Station
- Turning Tool Size: 1.25″
- Boring Bar Capacity: Up to 3.0″
- Index Time: Approx. 0.2 sec
|
| Tailstock: |
|---|
- Programmable Hydraulic Tailstock
- Quill Diameter: 6.3″
- Quill Travel: 6.0″
|
| CNC Control: |
|---|

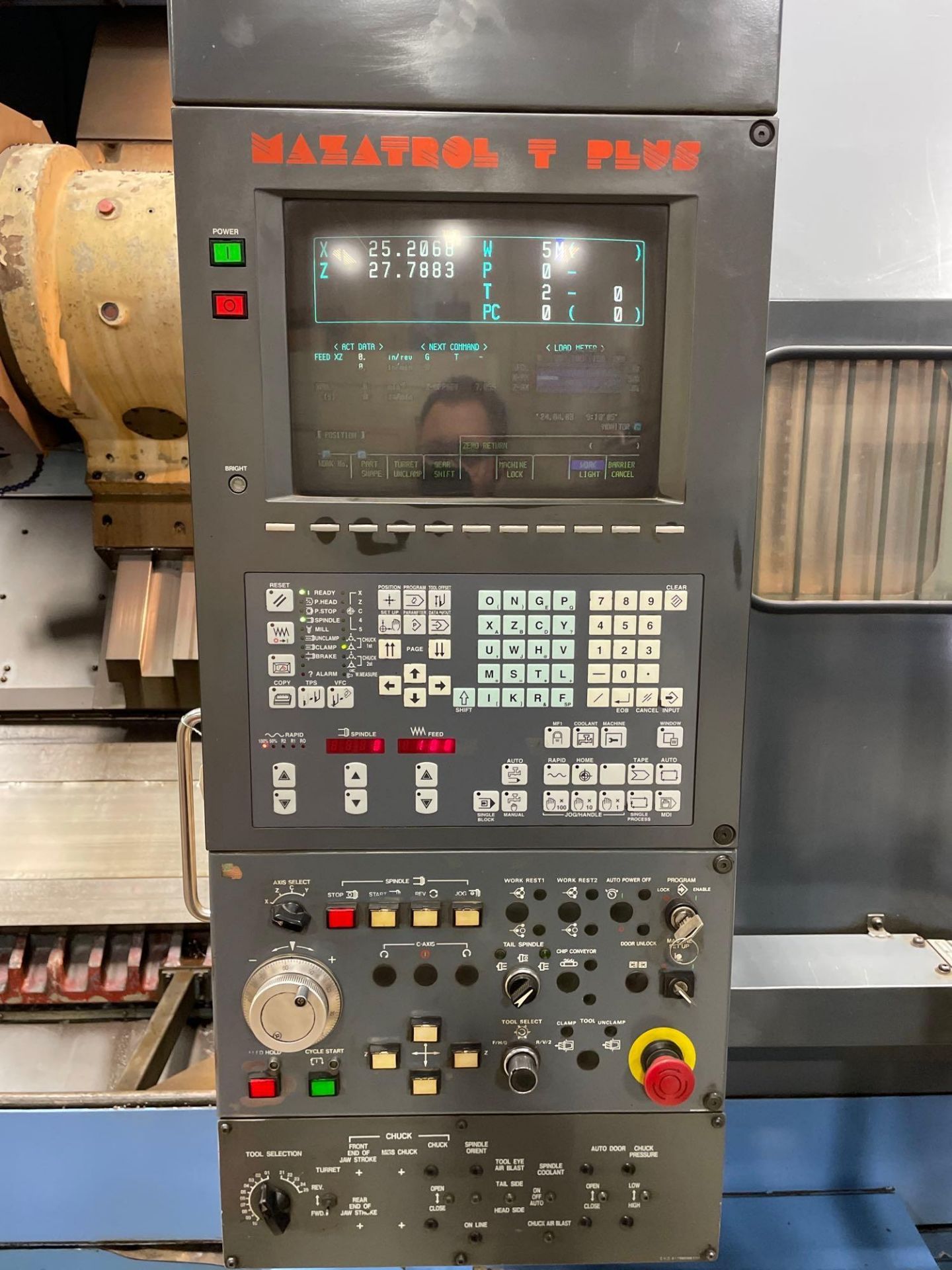

- Mazatrol T Plus Conversational CNC
- EIA / ISO G-Code Capable
- Constant Surface Speed (CSS)
- Tool Nose Radius Compensation
- On-Control Program Storage & Editing
|

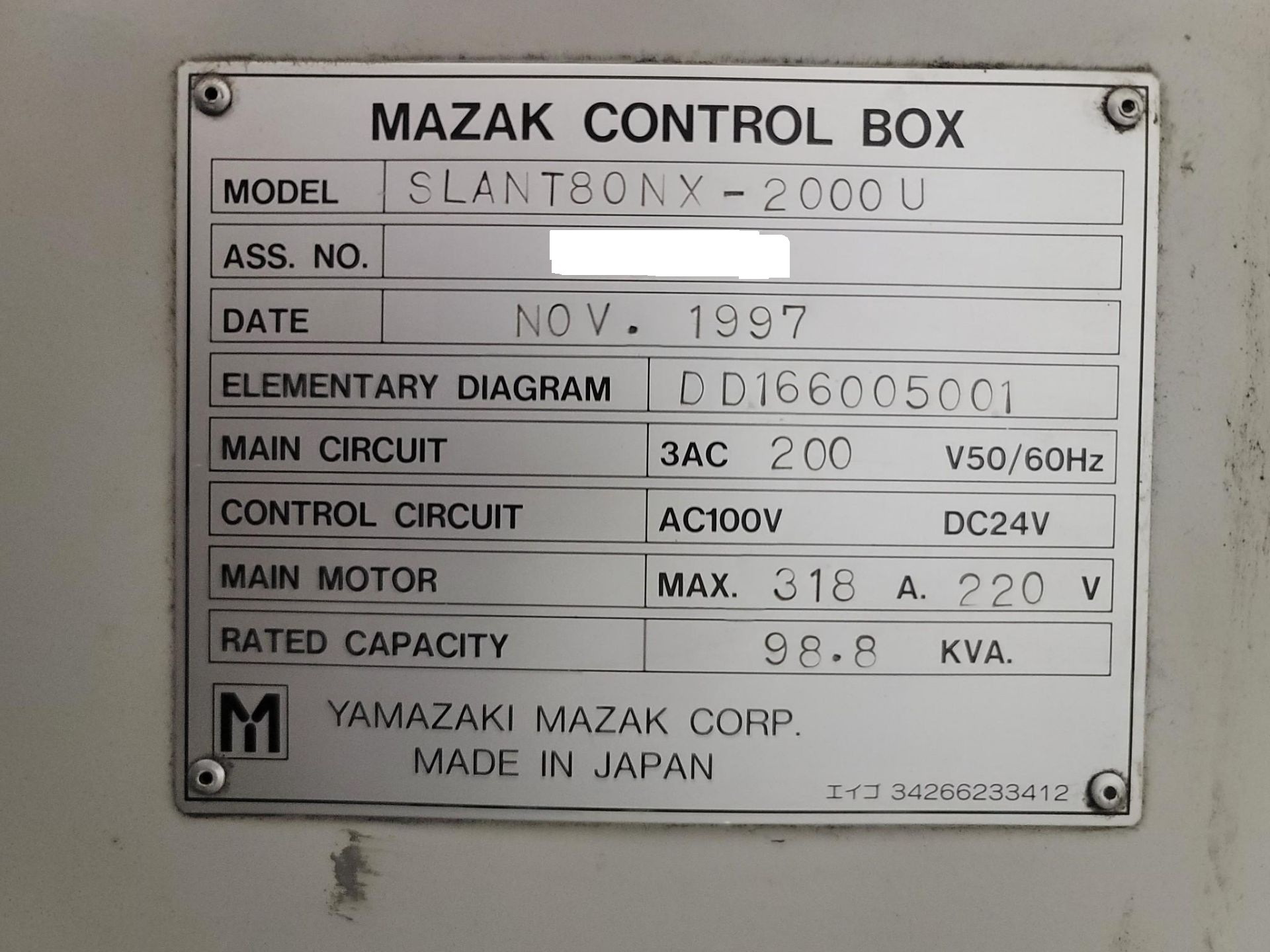

| Electrical: |
|---|
- Main Power: 3-Phase AC, 200V, 50/60 Hz
- Rated Capacity: 98.8 kVA
|
| Applications: |
|---|
- Large Shafts and Rollers
- Oil & Gas Components
- Heavy Steel Turning
- Aerospace Support Parts
- Oversized Job Shop Work
|
