*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | MORI SEIKI |
| Model: | NV4000 DCG |
| Year: | 2004 |
| Condition: | Used |
| Features: |
|---|
- MAPPS IV CNC Control
- DCG (Driven at the Center of Gravity) Technology
- High-Rigidity Meehanite Cast Construction

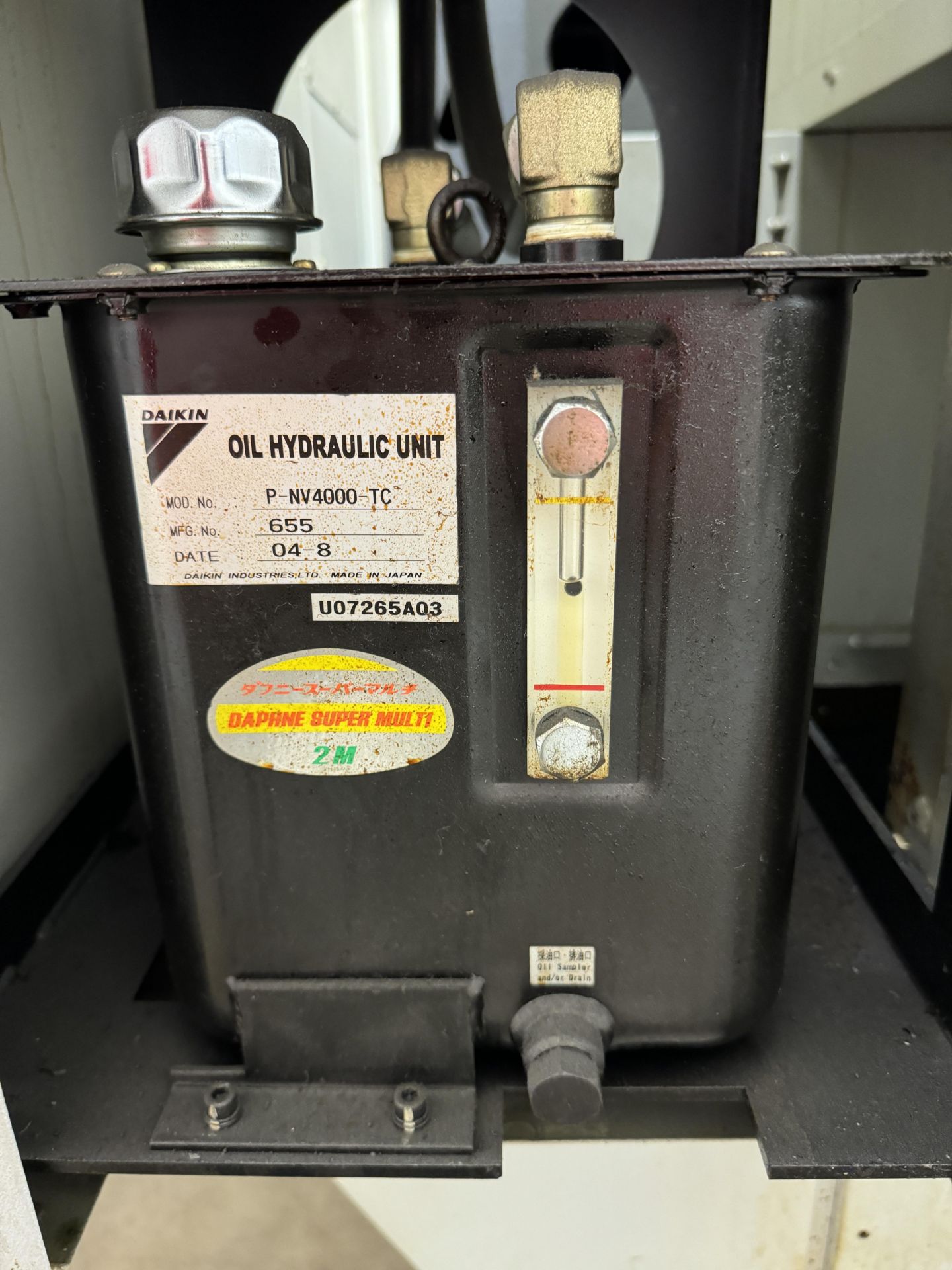

- Oil-Cooled Spindle
- Oil-Air Spindle Lubrication
- Rigid Tapping

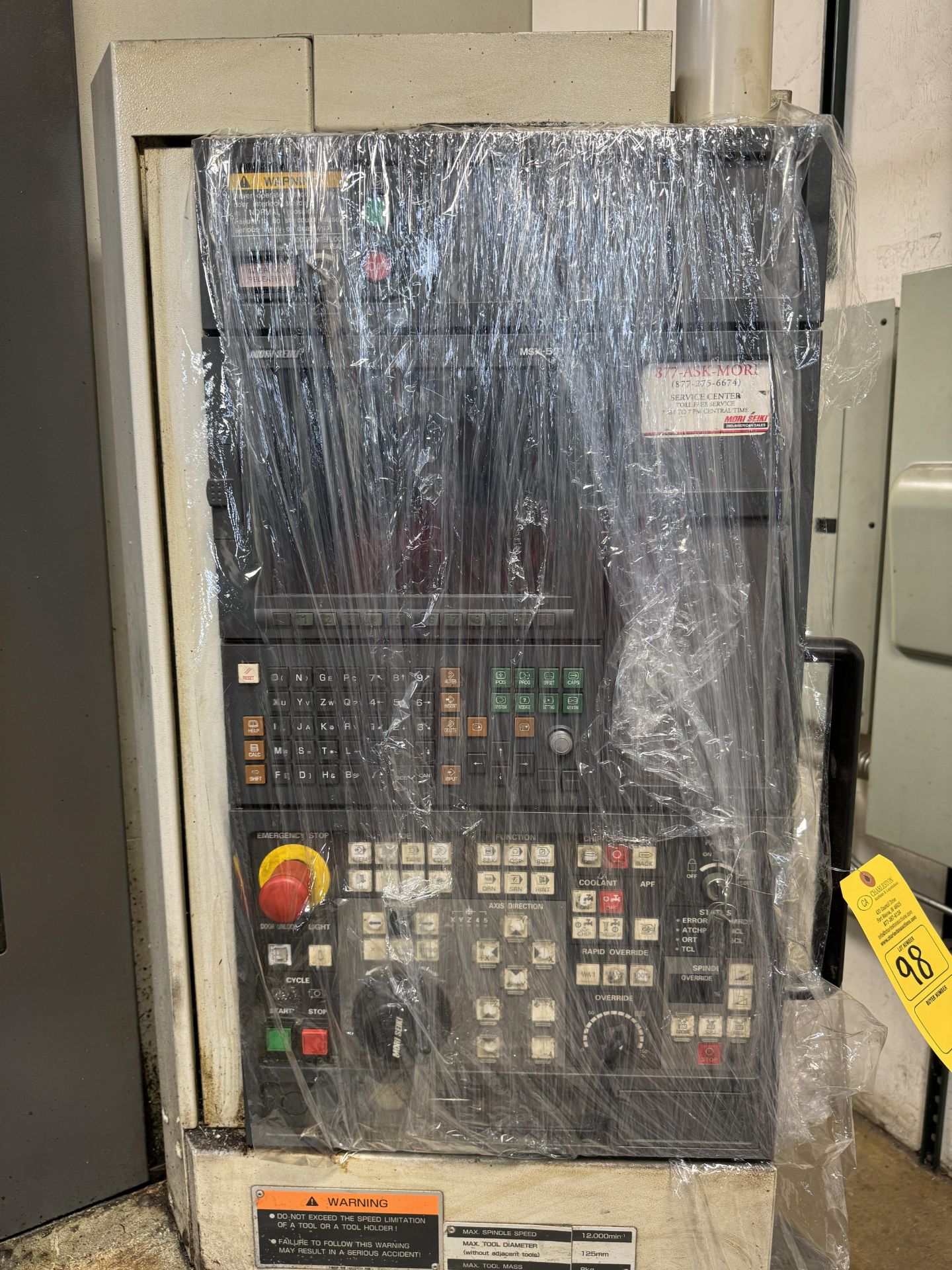

- Swivel-Type Operator Panel
- Wide Door Opening for Easy Setup
- Central Chip Discharge Design
|
| Travels: |
|---|
- X-Axis Travel: 23.6″
- Y-Axis Travel: 15.7″
- Z-Axis Travel: 15.7″
- Spindle Nose to Table: 3.9″ – 19.7″
|
| Table: |
|---|
- Table Size: 27.6″ x 17.7″
- Max Table Load: 770 lbs
- T-Slots: 0.71″ x 3.94″ (4 Slots)
- Table Height from Floor: 35.4″
|
| Spindle: |
|---|
- Spindle Taper: BT40
- Spindle Speed: 12,000 RPM
- Spindle Motor Power: 25 HP (10-min) / 20 HP (30-min) / 15 HP (Continuous)
- Spindle Bearing ID: 2.76″
- Spindle Cooling: Oil Jacket Cooling
|
| Feedrates: |
|---|
- Rapid Traverse (X/Y/Z): 1,653 IPM
- Cutting Feedrate: 0.04″ – 1,653 IPM
|
| Automatic Tool Changer: |
|---|
- Tool Capacity: 20 Tools (Standard)
- Optional Tool Magazine: 40 / 60 Tools
- Tool-to-Tool Time: 1.0 Second
- Cut-to-Cut Time: 3.6 – 5.5 Seconds
- Max Tool Diameter: 3.15″
- Max Tool Length: 9.8″
- Max Tool Weight: 17.6 lbs
|
| Coolant & Chip Management: |
|---|
- Coolant Tank Capacity: 89.8 Gallons
- Through-Spindle Coolant (Optional)
- High-Pressure Coolant System (Optional)
- Chip Conveyor (Optional – Hinge / Scraper)
|

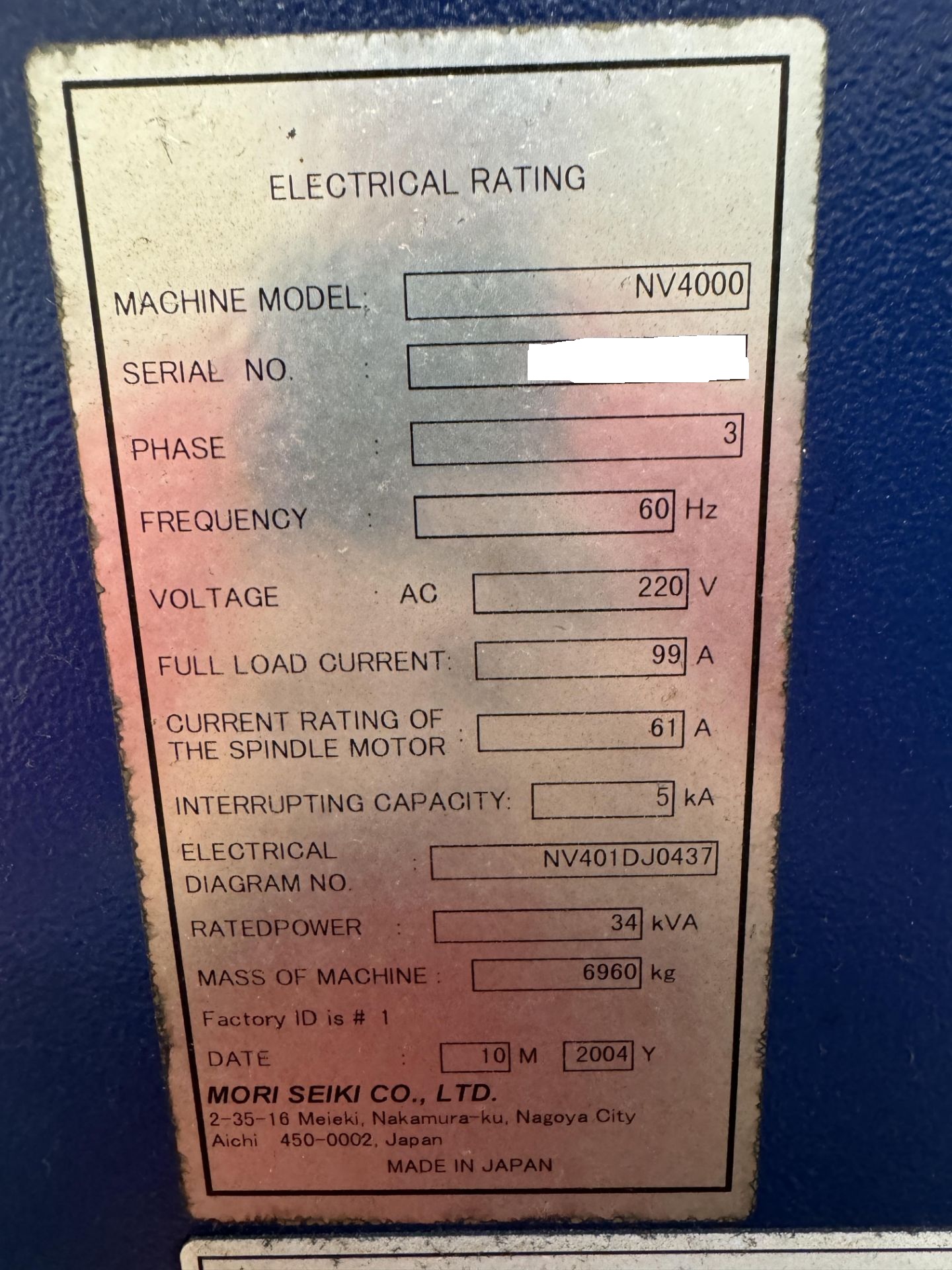

| Electrical: |
|---|
- Power Supply: 220V / 3-Phase / 60 Hz
- Rated Power: 34 kVA
|
| General: |
|---|
- Machine Dimensions (Approx.): 85.3″ x 105.7″ x 109.1″ High
- Machine Weight (Approx.): 15,345 lbs
|
