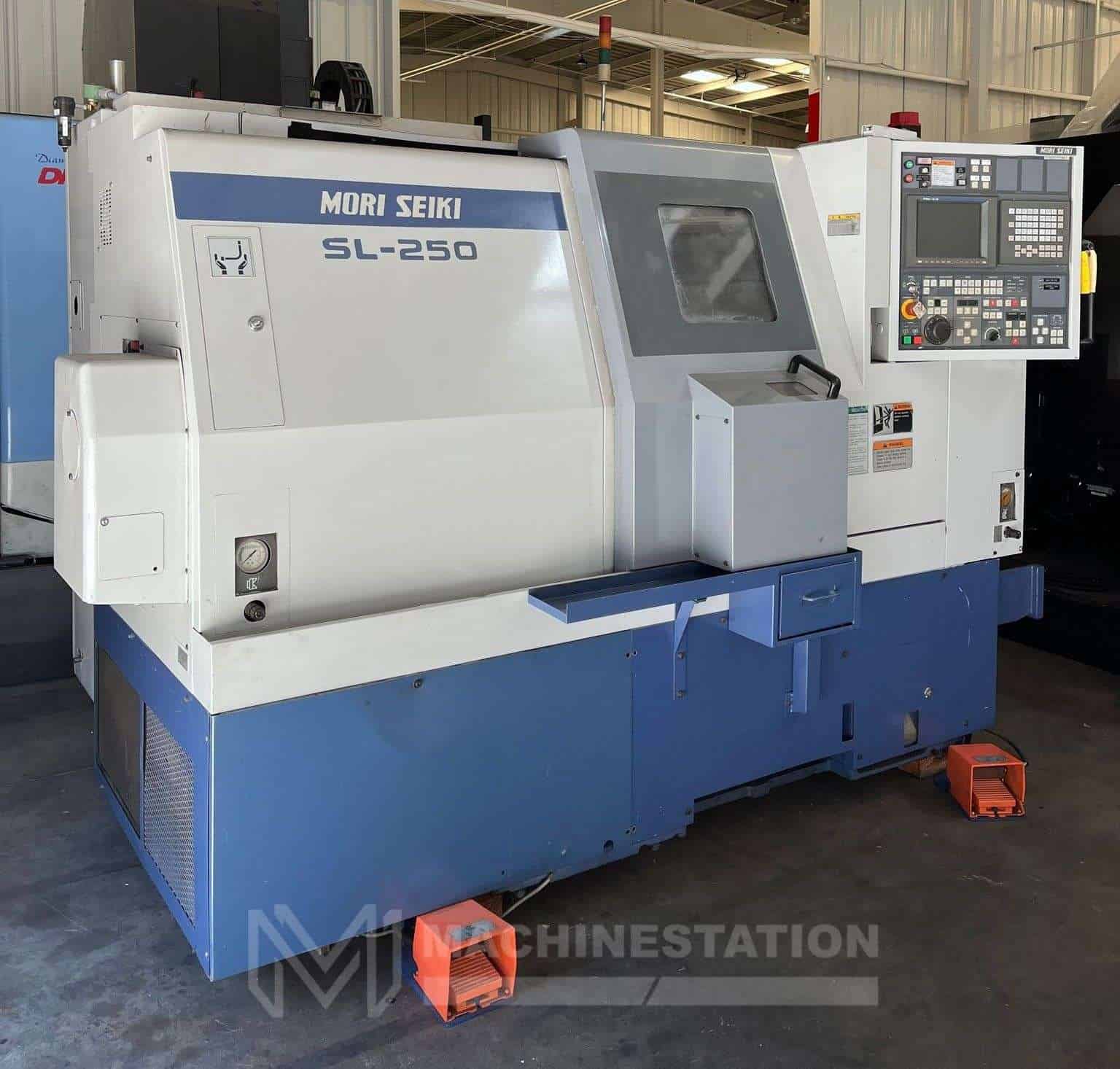

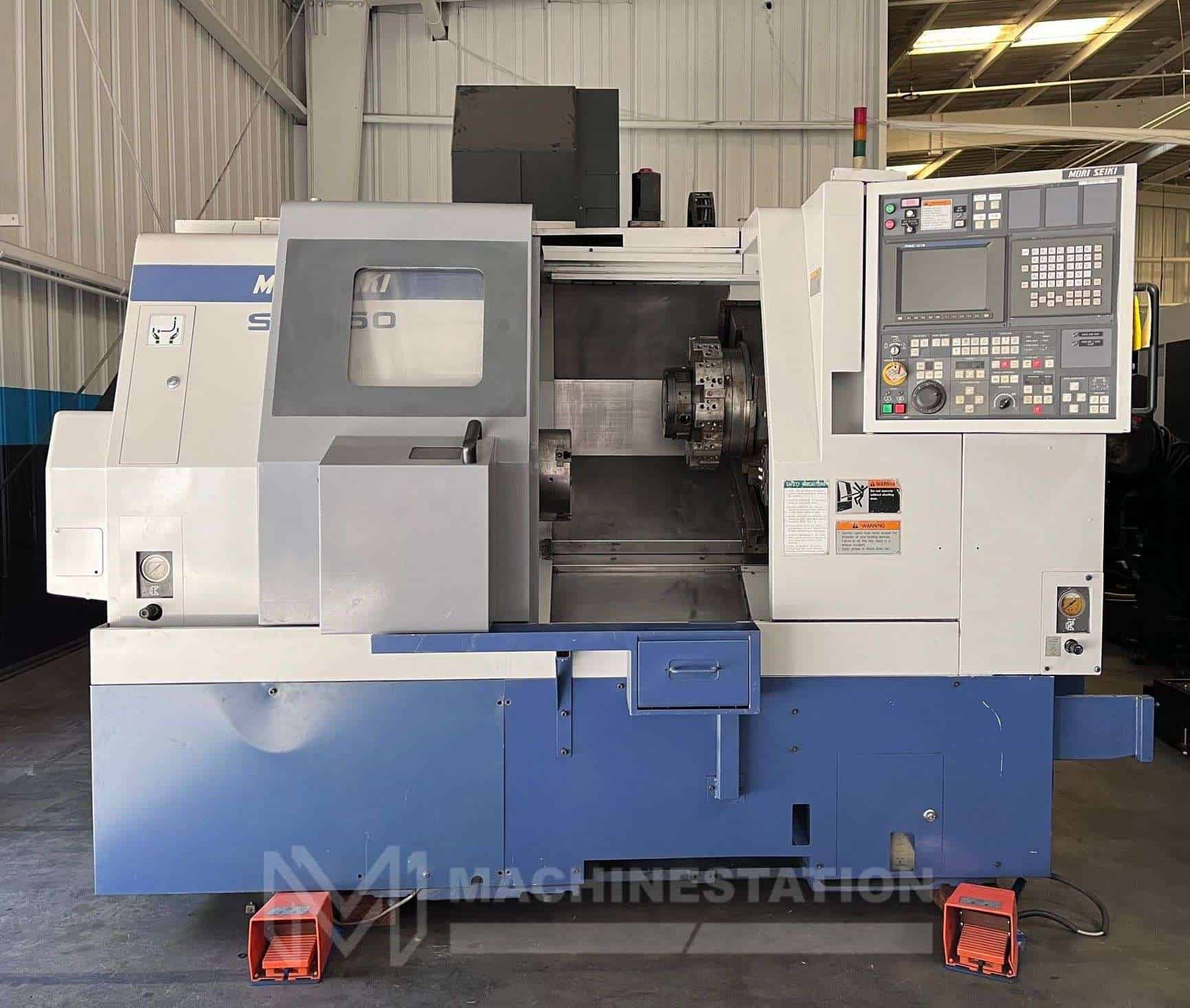

Mori Seiki SL-250BSMC CNC Turn Mill Center – Sub Spindle
$29,700
Monthly Price: $456
1 in stock
Payment shown is based on Financing Terms. Please ask the Sales Manager for more details.
Used Mori Seiki SL-250BSMC CNC Turn Mill for Sale.
| Location: | Lake Elsinore, CA |
| SKU: | 111985 |
| Make/Model: | Mori Seiki SL-250BSMC |
| Year: | 1997 |
| Video: | On Request |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 111985 |
| Make: | Mori Seiki |
| Model: | SL-250BSMC |
| Year: | 1997 |
| Features: |
|---|

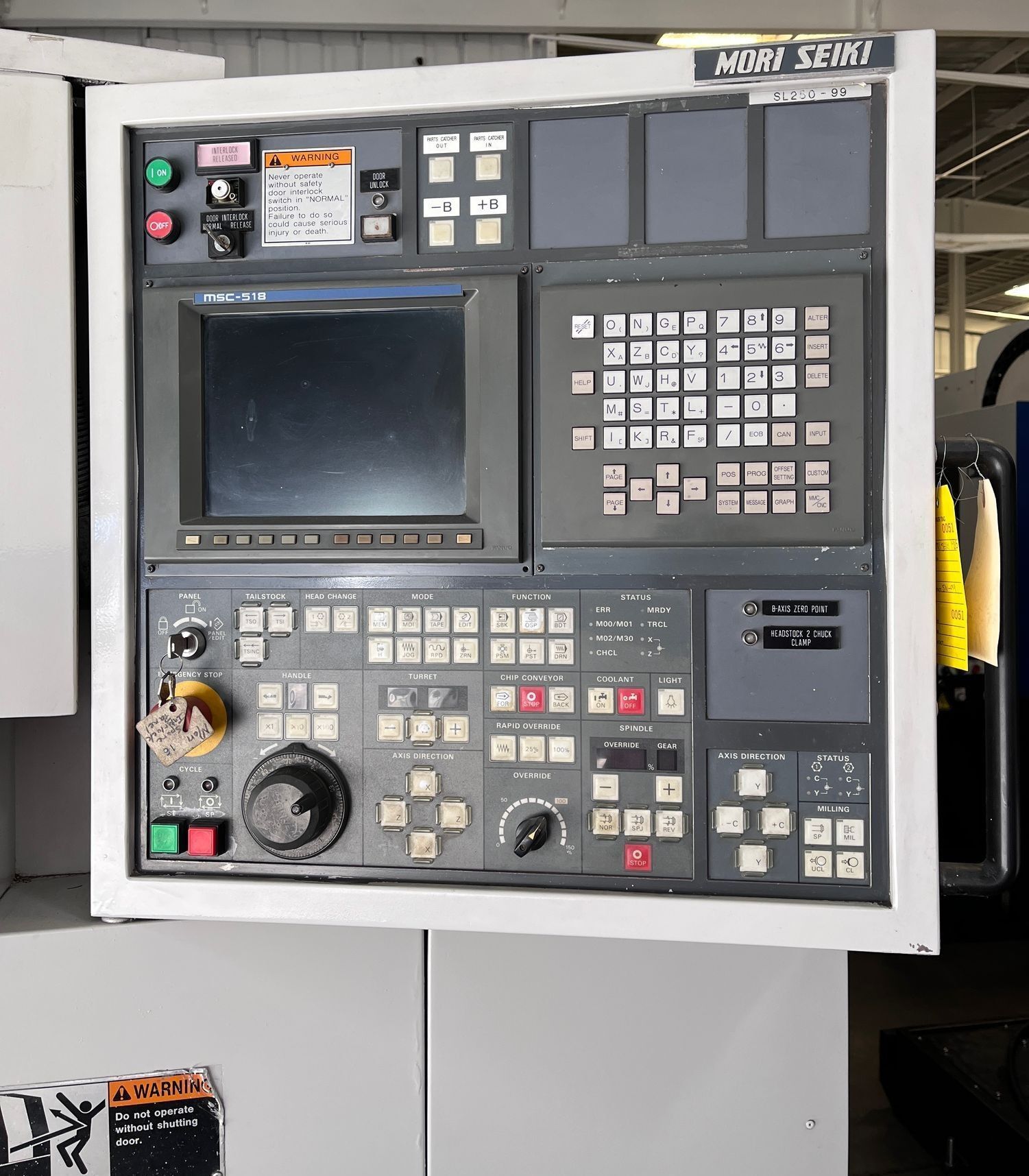

| Fanuc MSC-518 CNC Control |

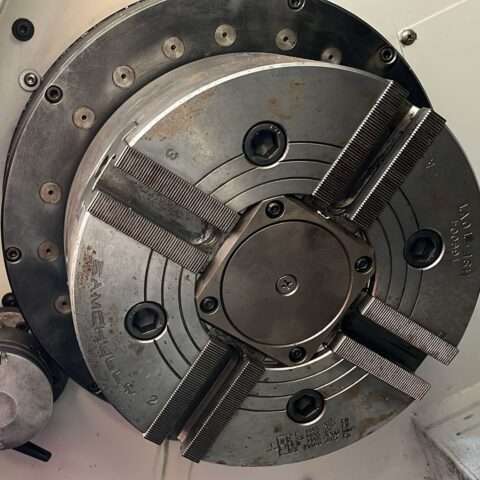

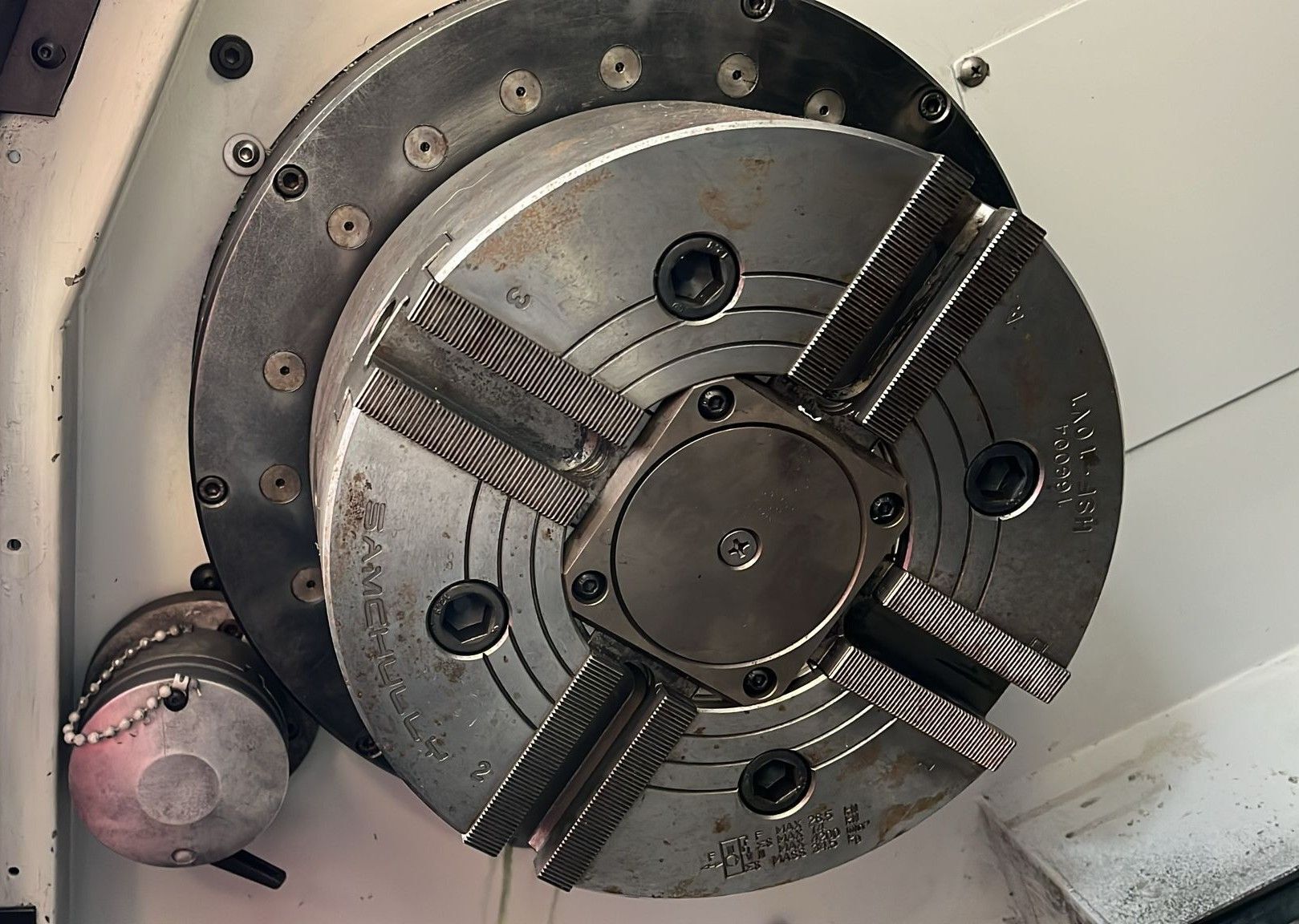

| 10″ 4-Jaw Hydraulic Chuck On Main Spindle |

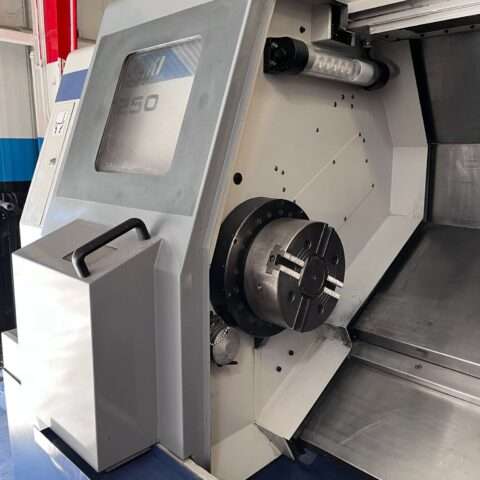

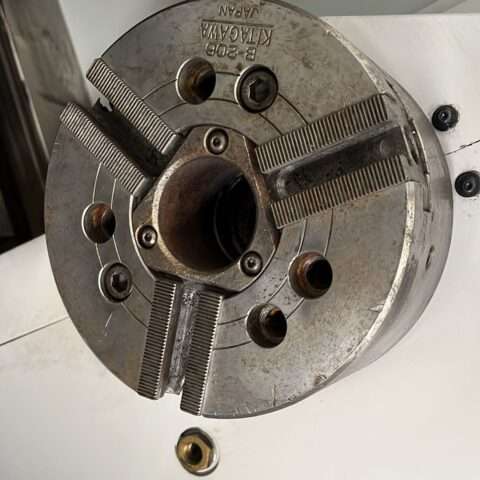

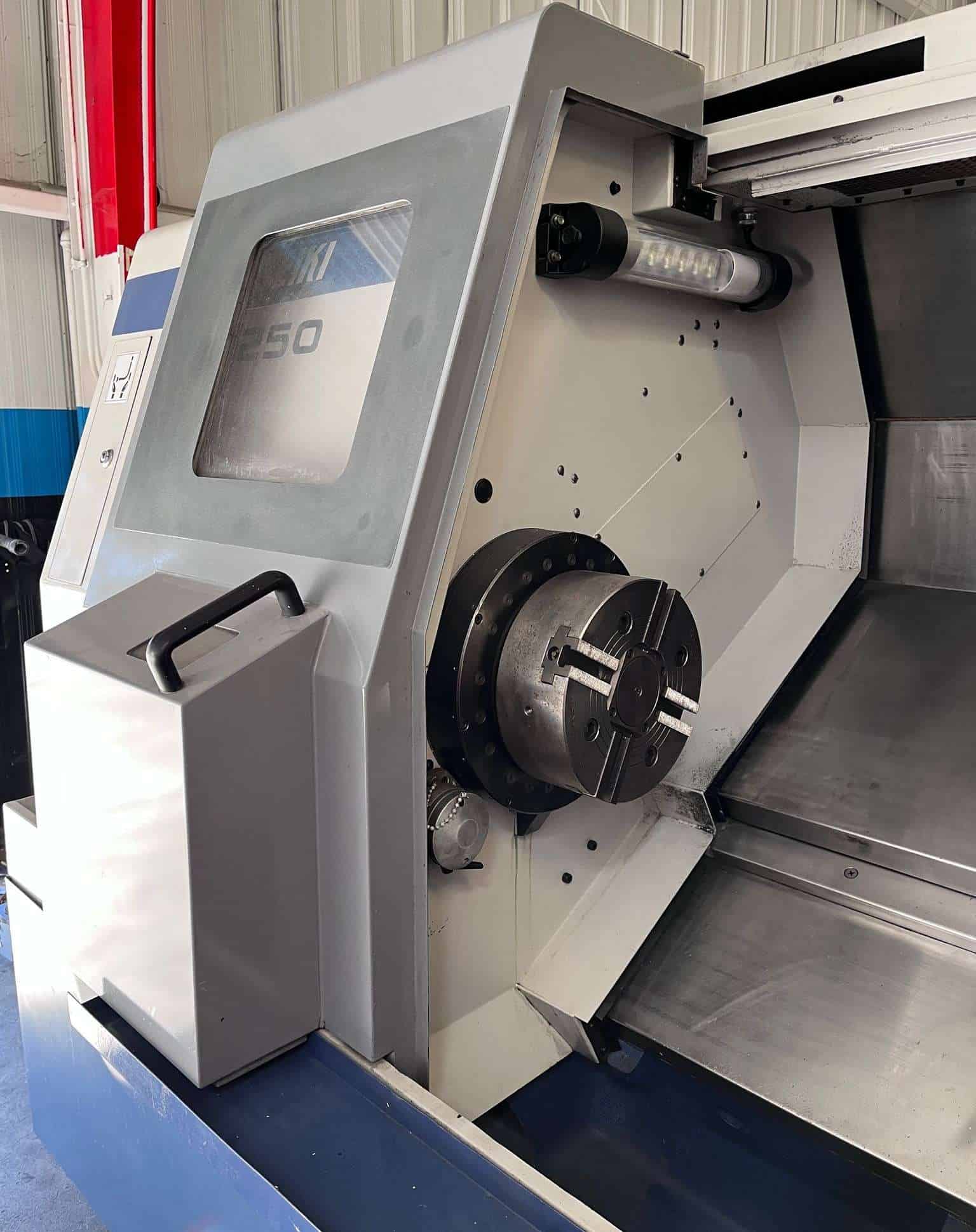

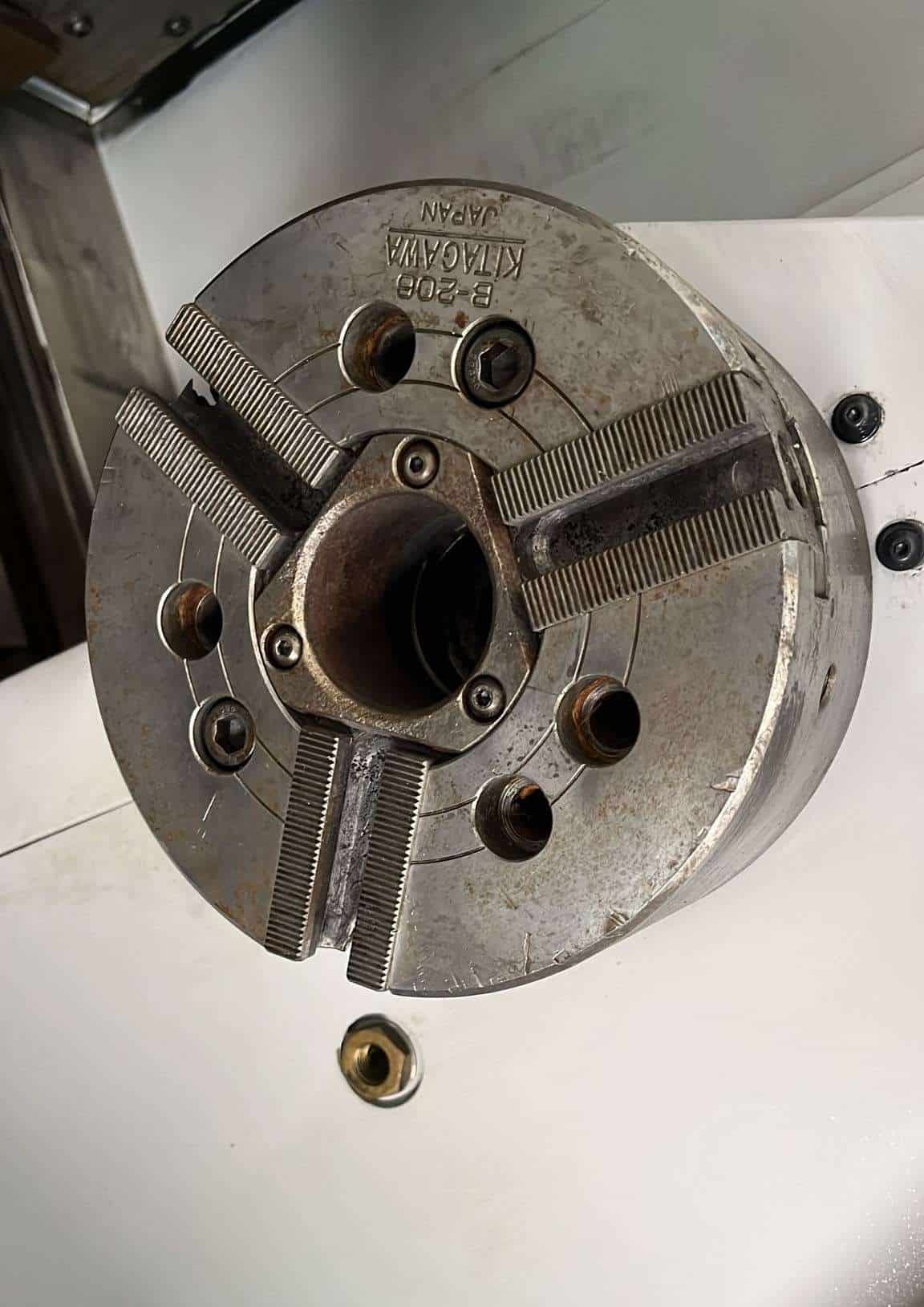

| 8″ 3-Jaw Hydraulic Chuck On Sub Spindle |
| Servo Controlled C Axis on Both Spindles |

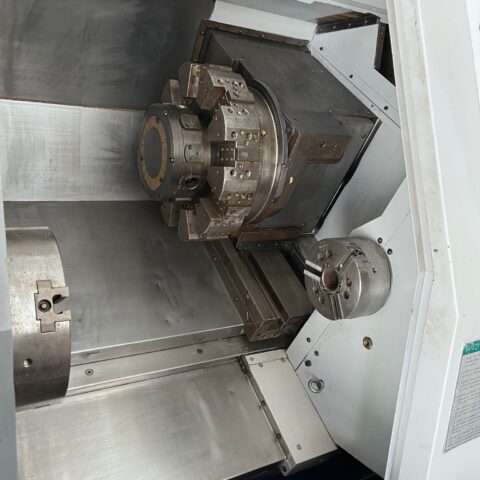

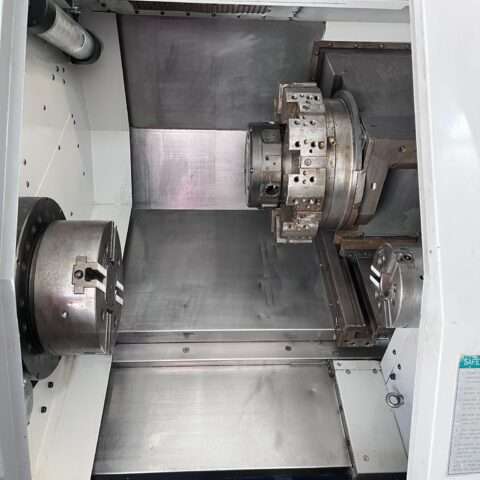

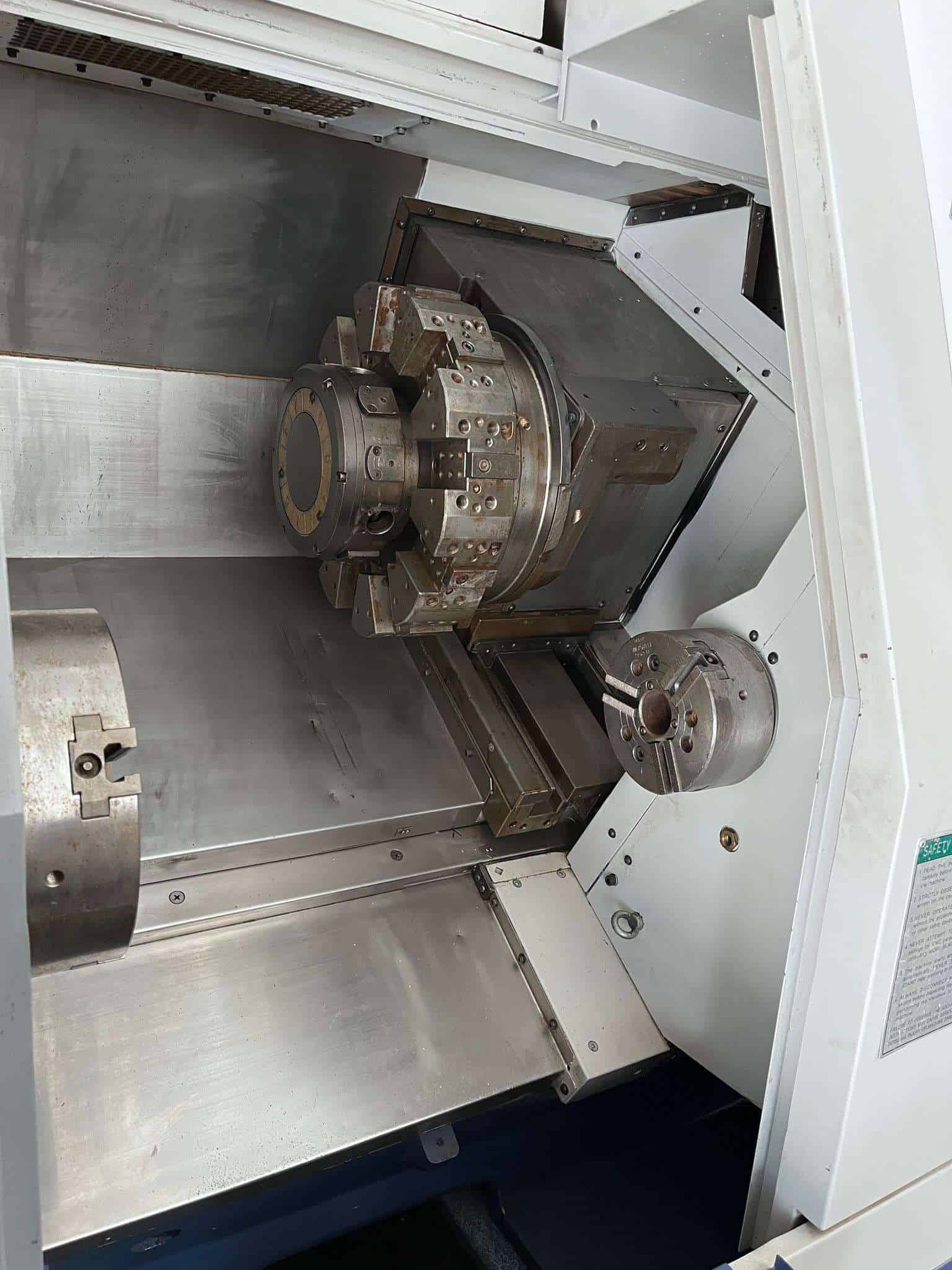

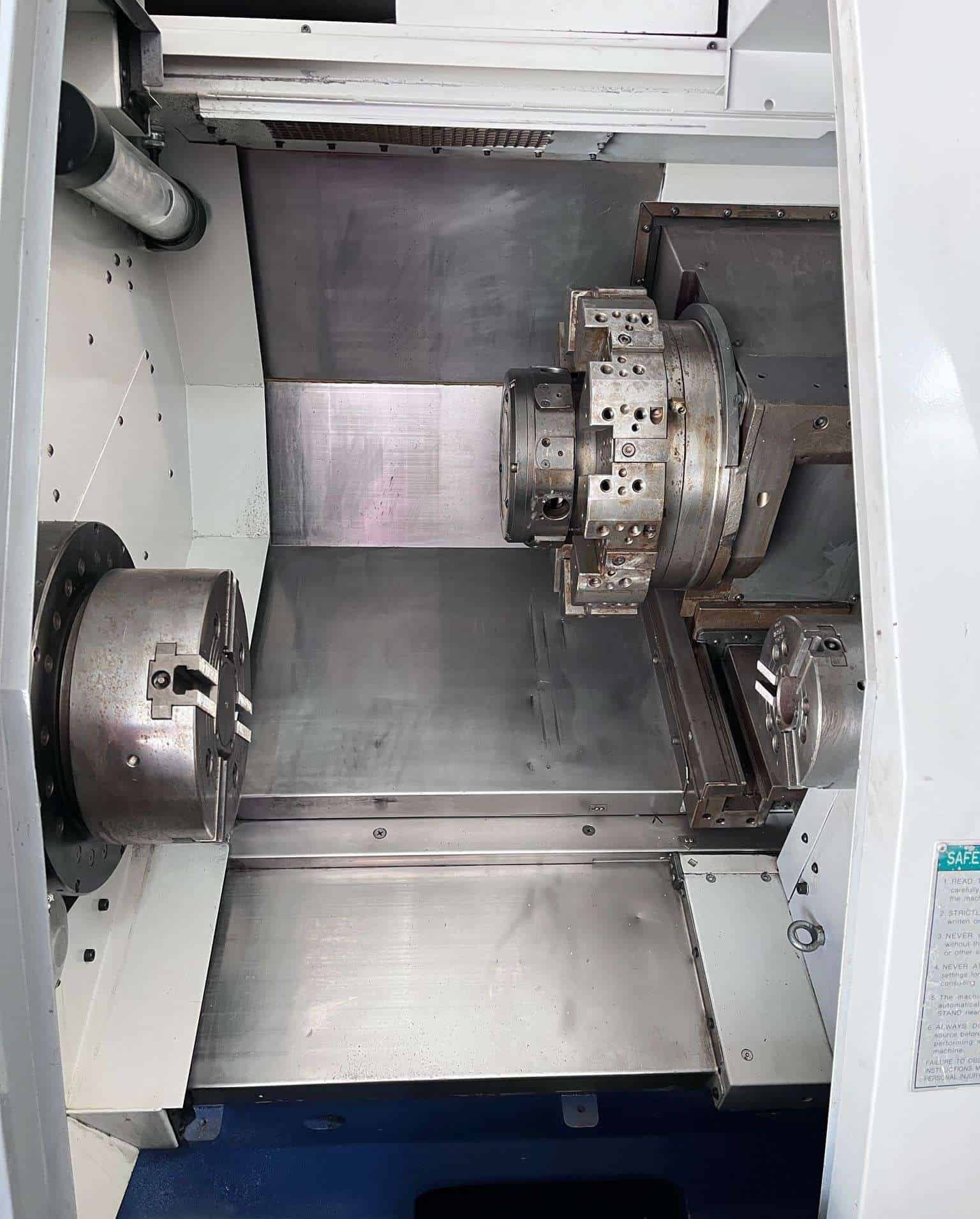

| 10 Station Live Tool Turret |
| 2 Step Gear Spindle for Powerful Torque |
| Coolant System |
| Automatic Lubrication System |
| Foot Switches |
| (1) Live Tool Holder |
| Capacity: |
|---|
| Max Turning Diameter: 15.31″ |
| Max Turning Length: 19.49″ |
| Max Bar Capacity: 2.87″ |
| Swing Over Cross Slide: 20.08″ |
| Swing Over Bed: 26.77″ |
| Distance Between Spindles Noses: 29.61″ |
| Travel: |
|---|
| X Axis Travel: 9.25″ |
| Z Axis Travel: 19.49″ |
| B Axis Travel: 19.88″ |
| C Axis: 0.001° |
| Rapid Traverse X Axis: 708 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.38″ |
| Spindle Speed: 35-3500 RPM |
| Spindle Motor: 20 HP |
| Sub Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Bore: 1.69″ |
| Spindle Speed: 35-3500 RPM |
| Spindle Motor: 10 HP |
| Turret: |
|---|
| Turret Capacity: 10 Live Stations |
| Turret Index Time: 0.5 Second |
| Live Tool Speed: 3000 RPM |
| Live Tool Motor: 8 HP |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Overall Dimensions: 98″ x 74″ x 75″ High Approx. |
| Weight : 10,560 lbs Approx. |
| Make | |
|---|---|
| Model | SL-250B |
| Categories | CNC Lathes & Turning Centers |
