*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

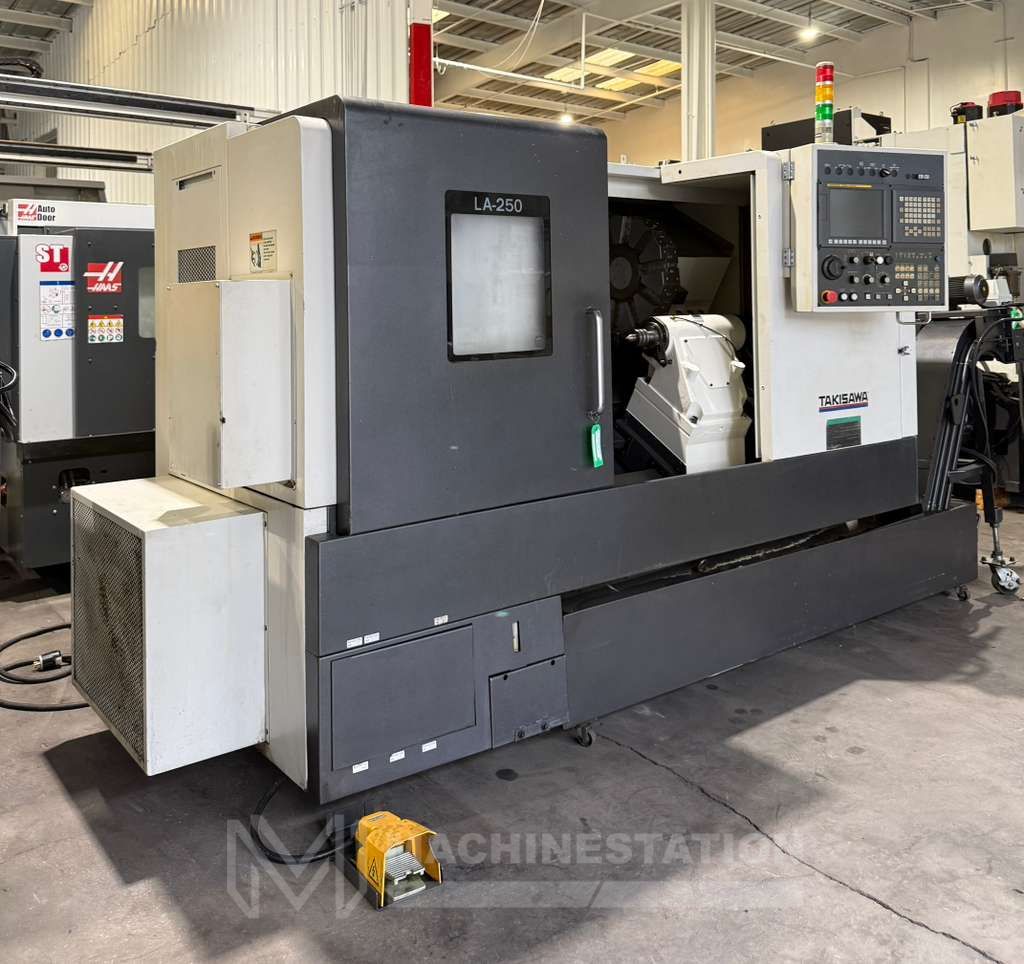

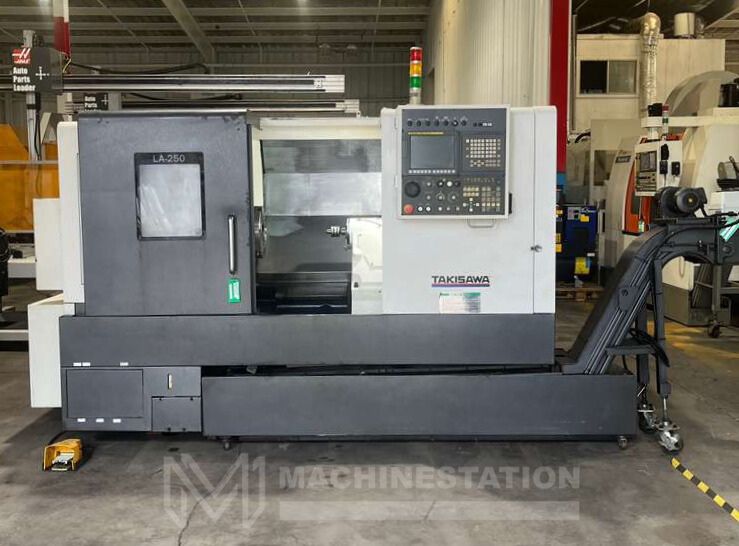

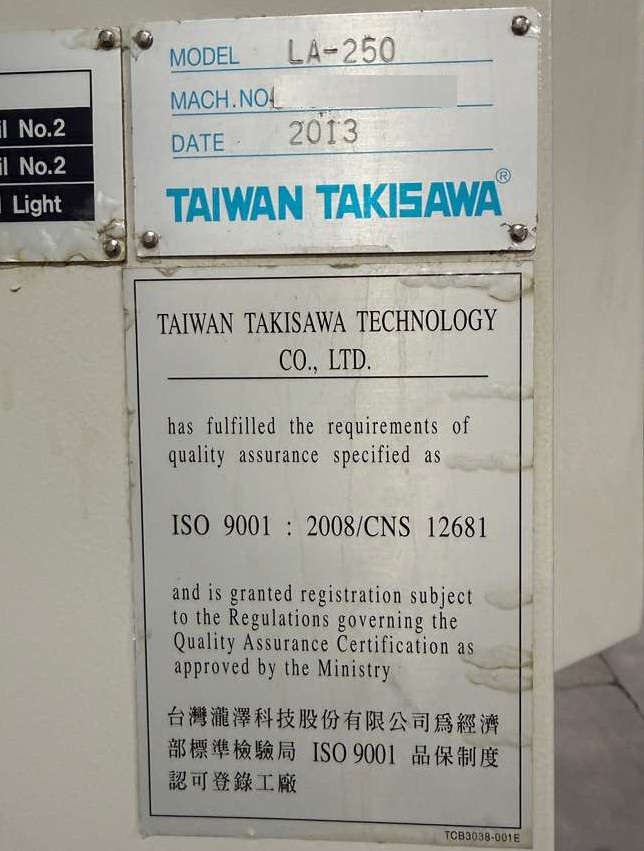

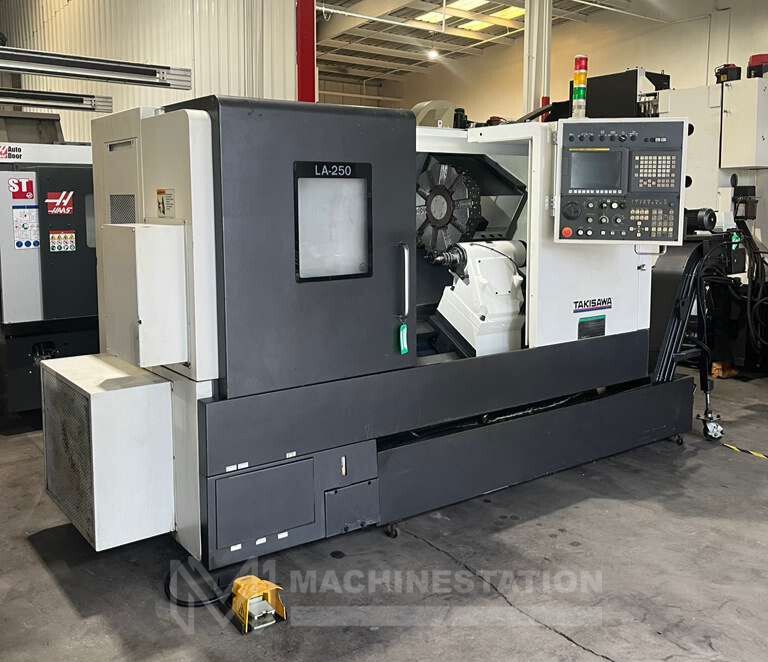

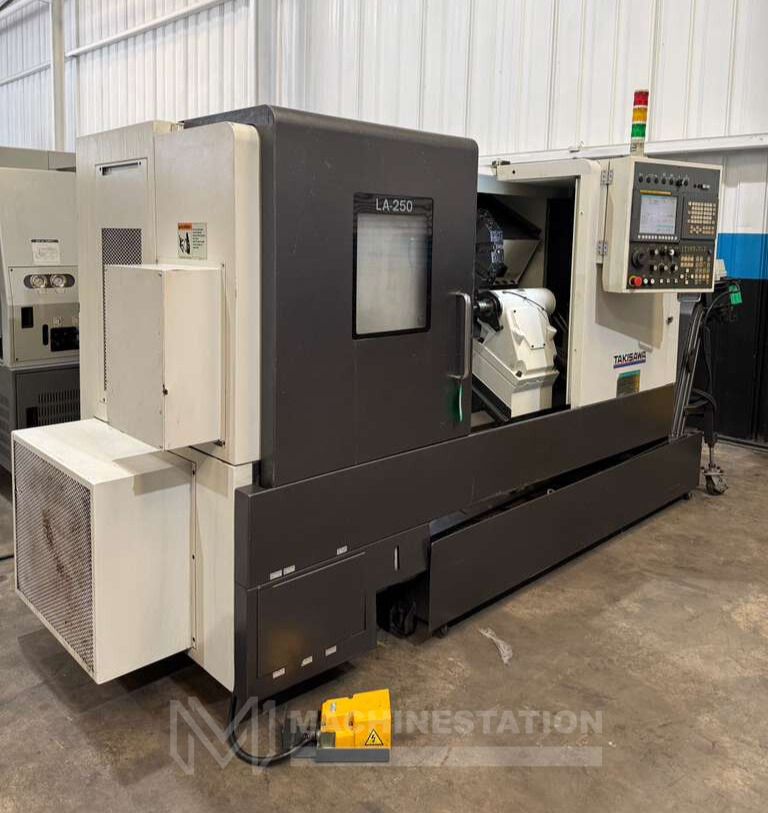

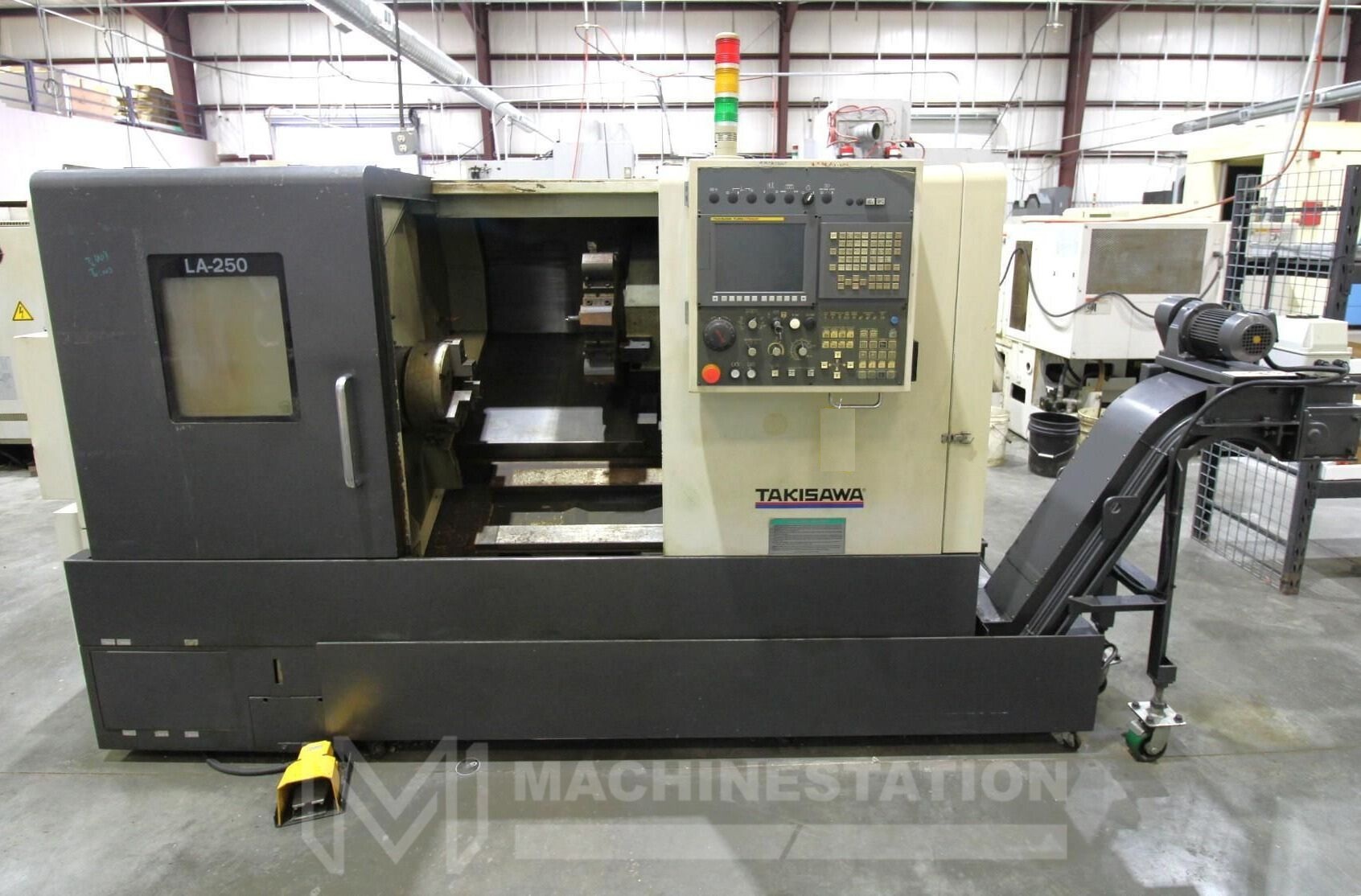

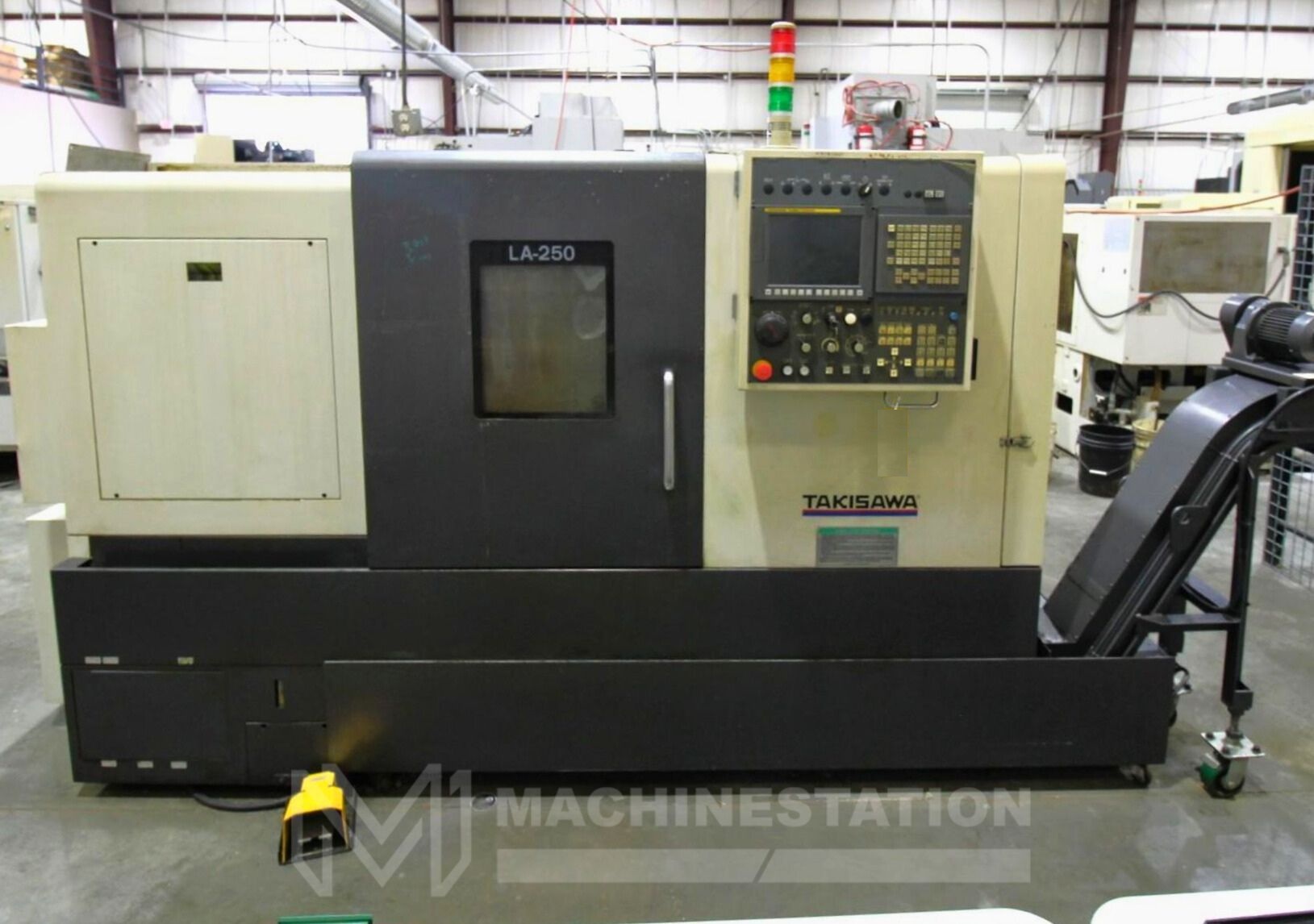

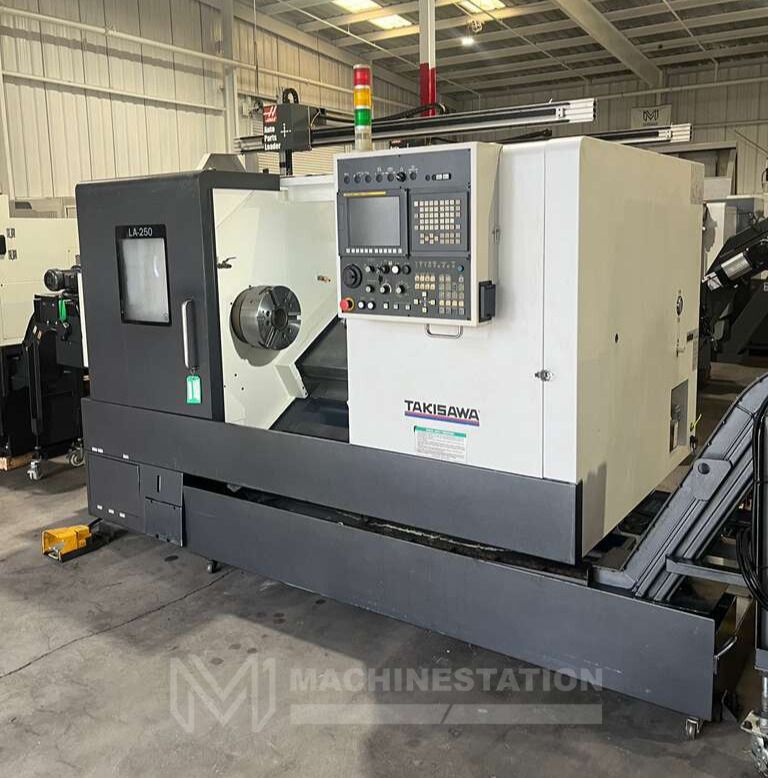

| Make: | Takisawa |
| Model: | LA-250 |

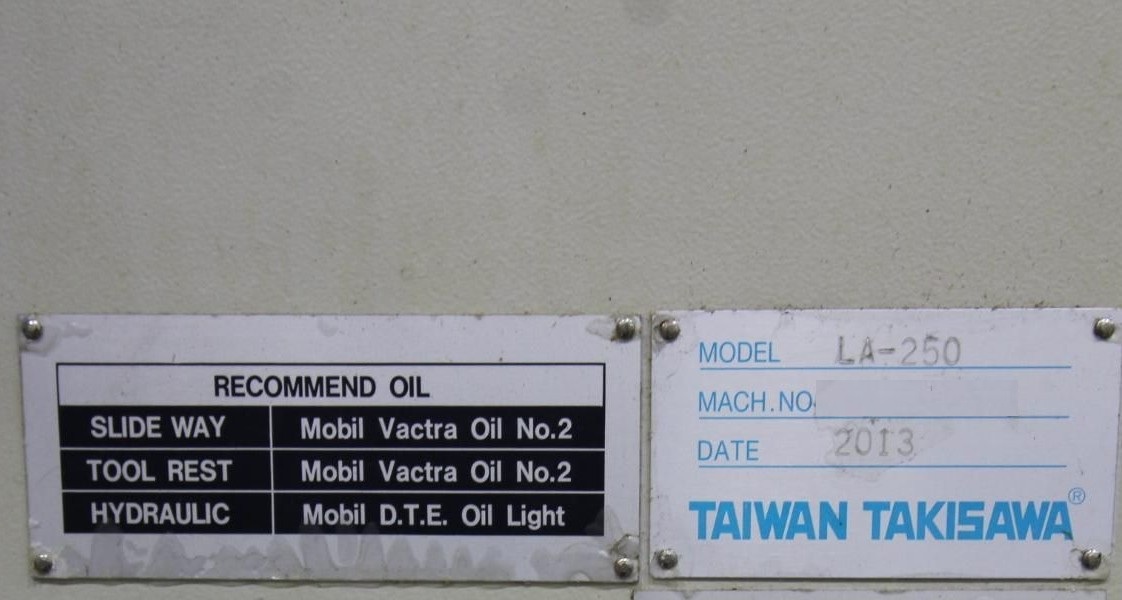

| Year: | 2013 |
| Condition: | Used – Good |
| Equipped With: |
|---|

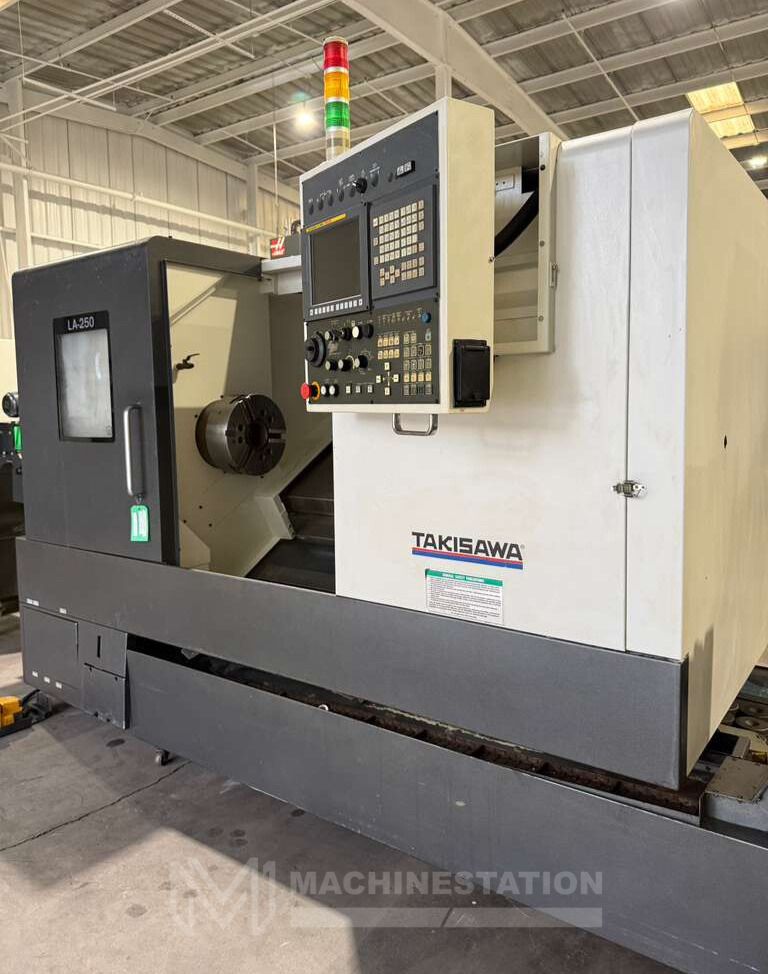

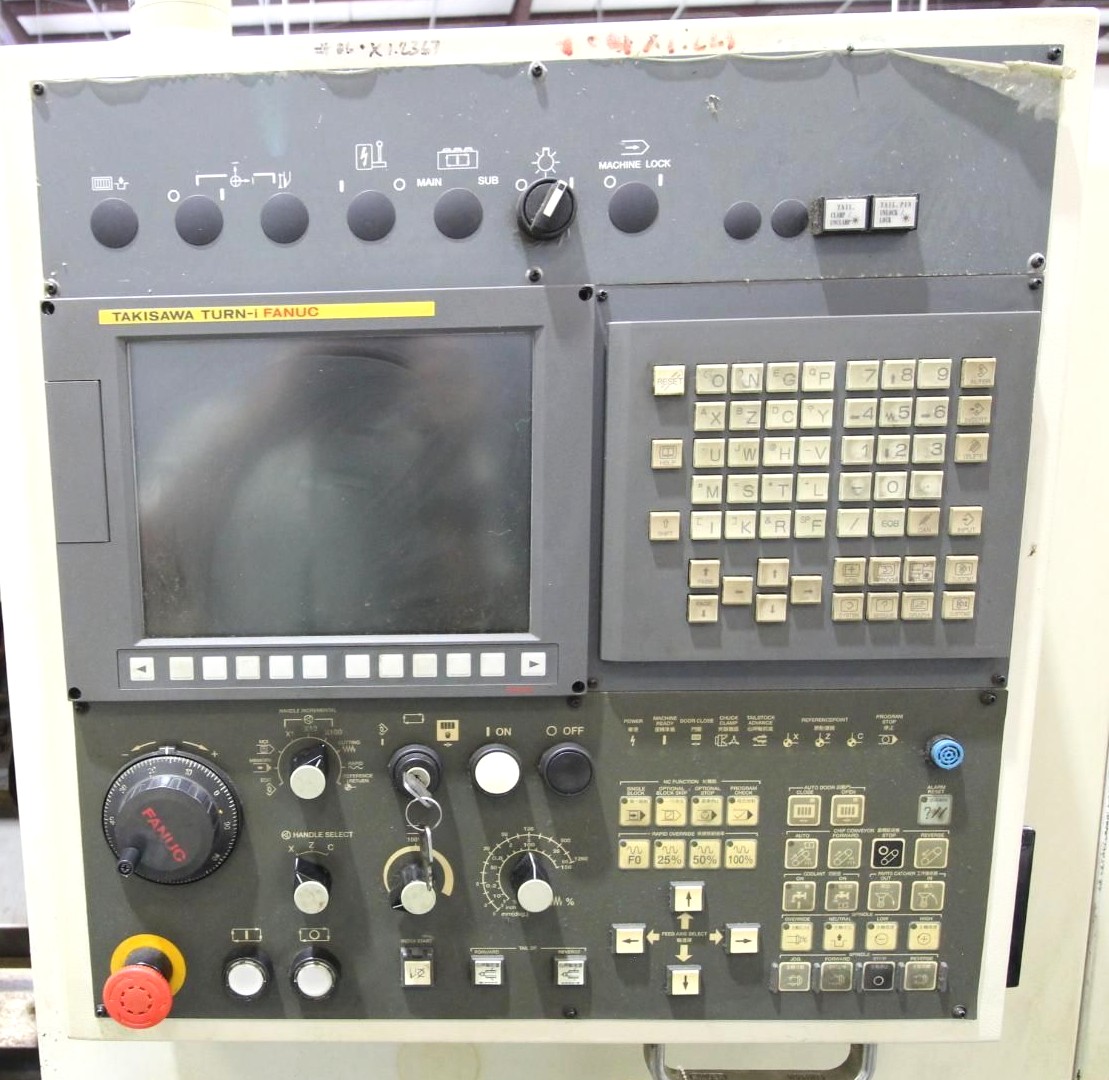

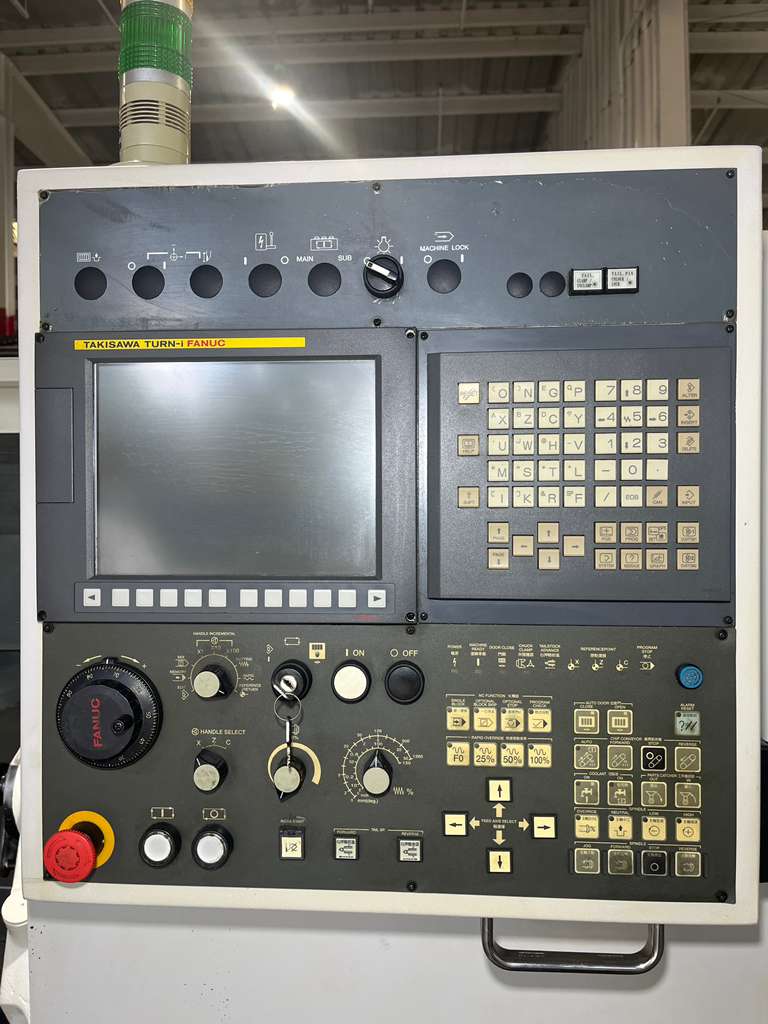

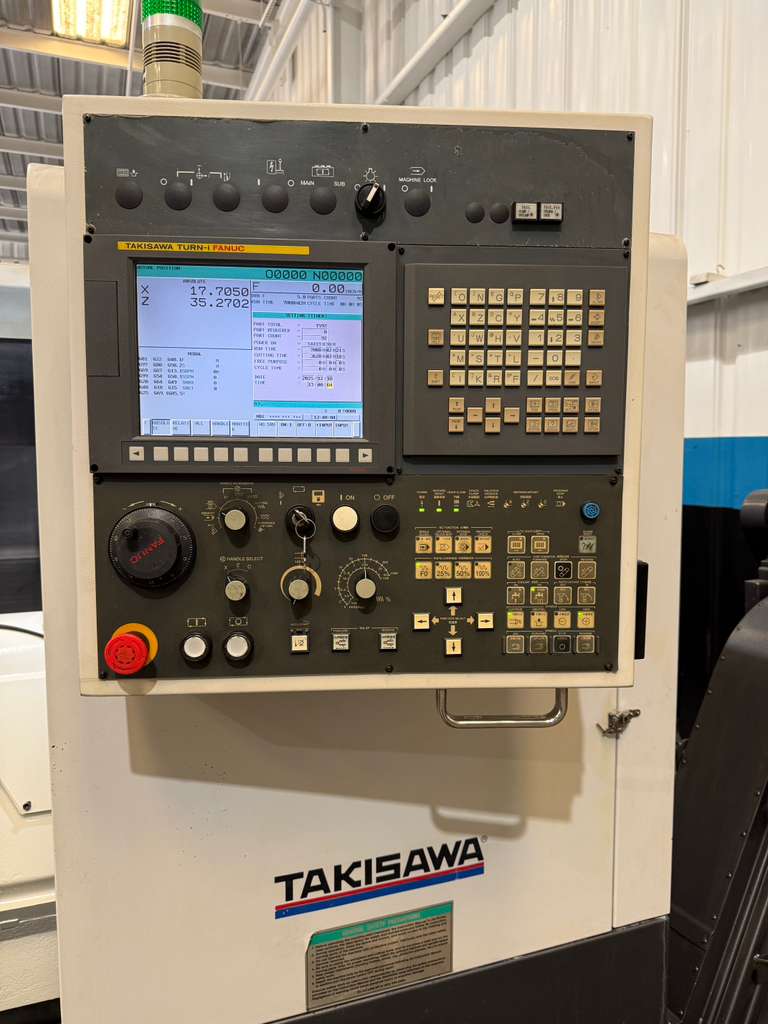

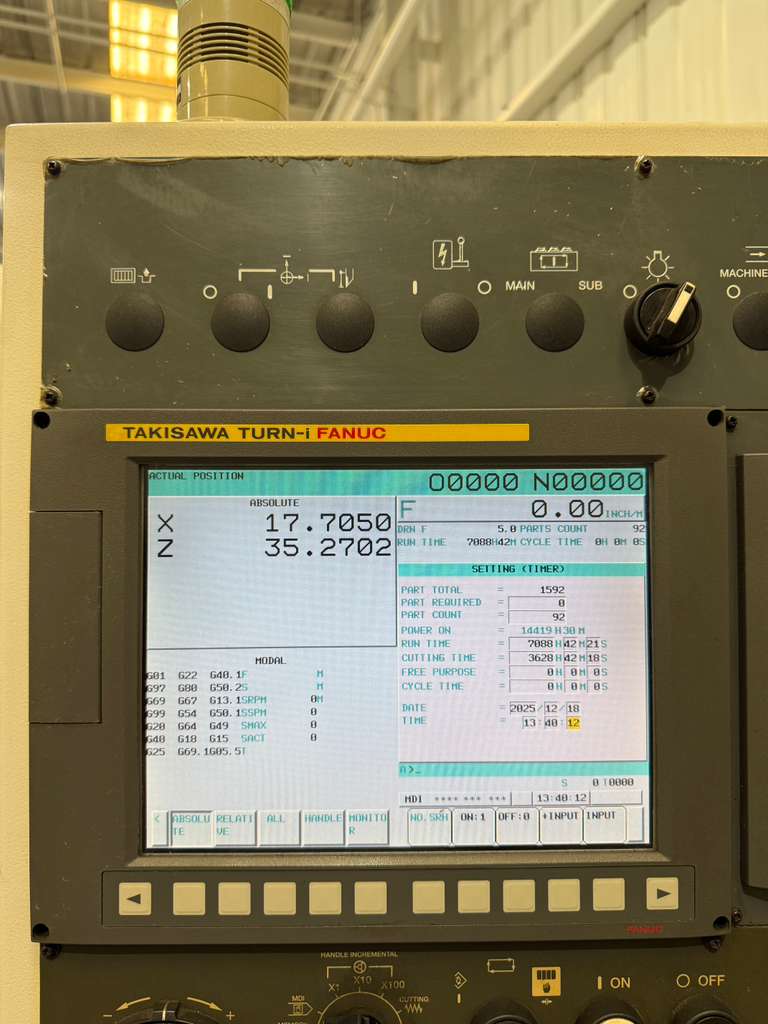

| Takisawa Turn-i Fanuc CNC Control |
| Box Way Construction |

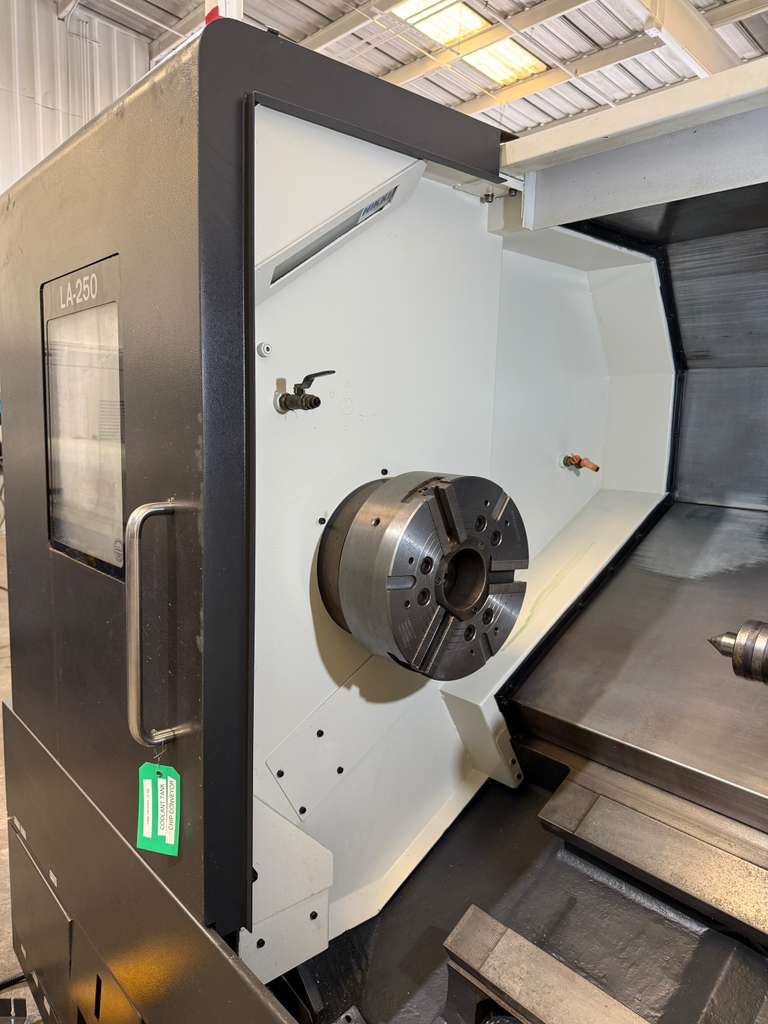

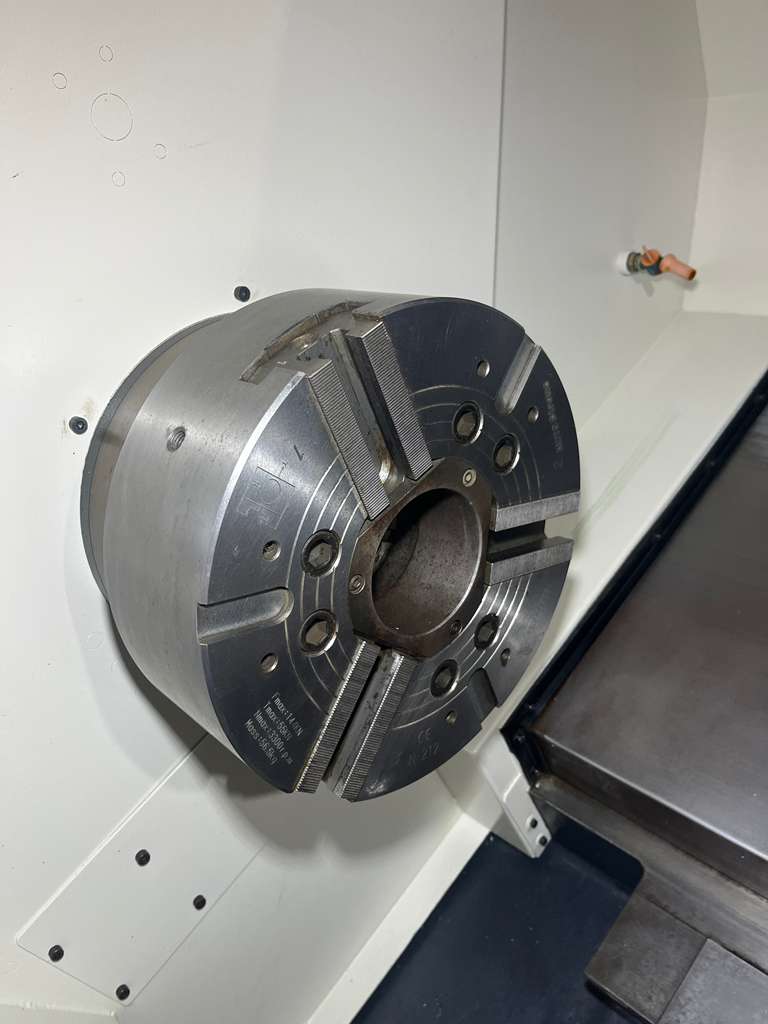

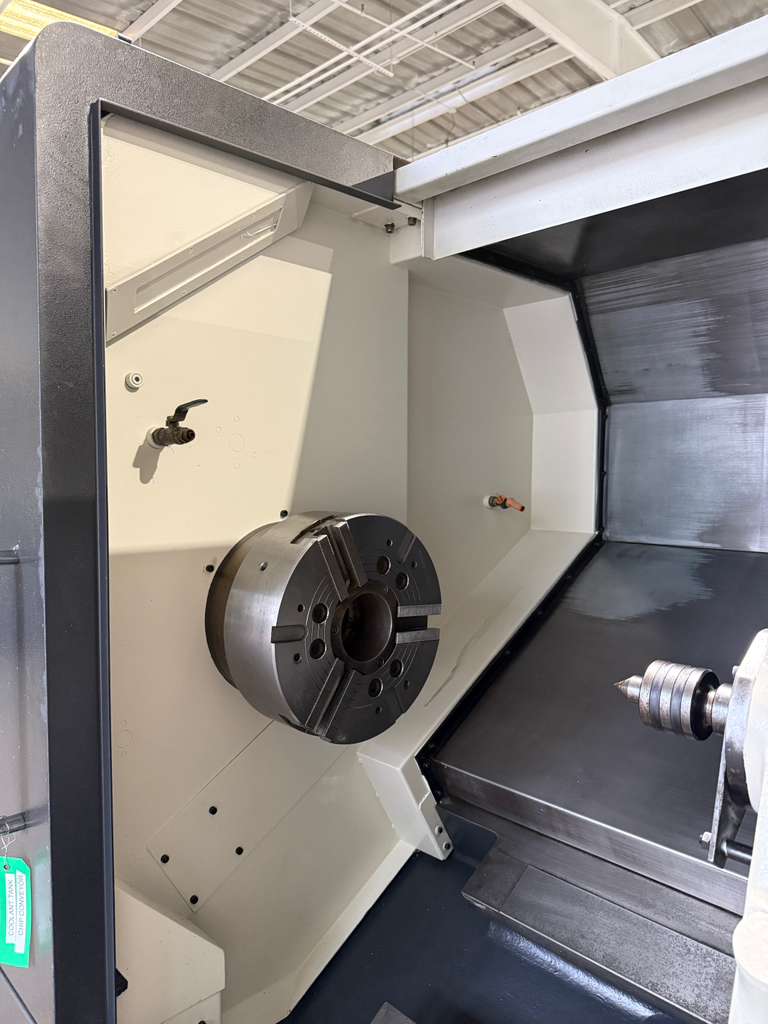

| 12″ 3-Jaw Hydraulic Chuck |
| 3.39″ Bore, A2-8 Spindle |
| 25 HP High Torque Spindle |

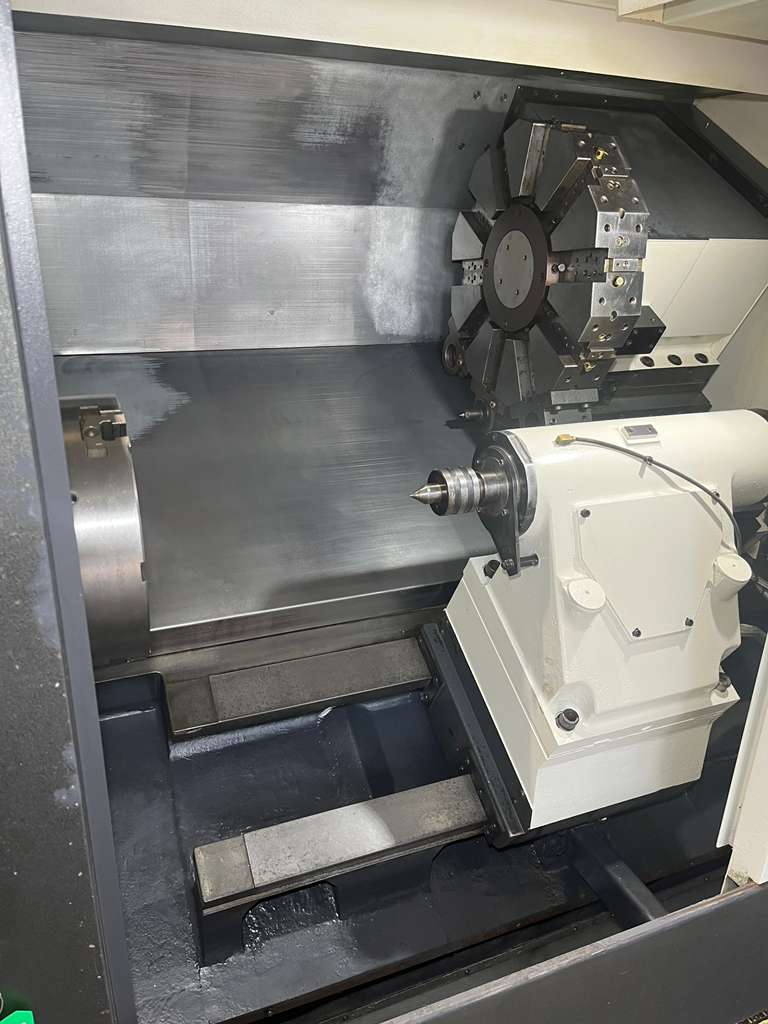

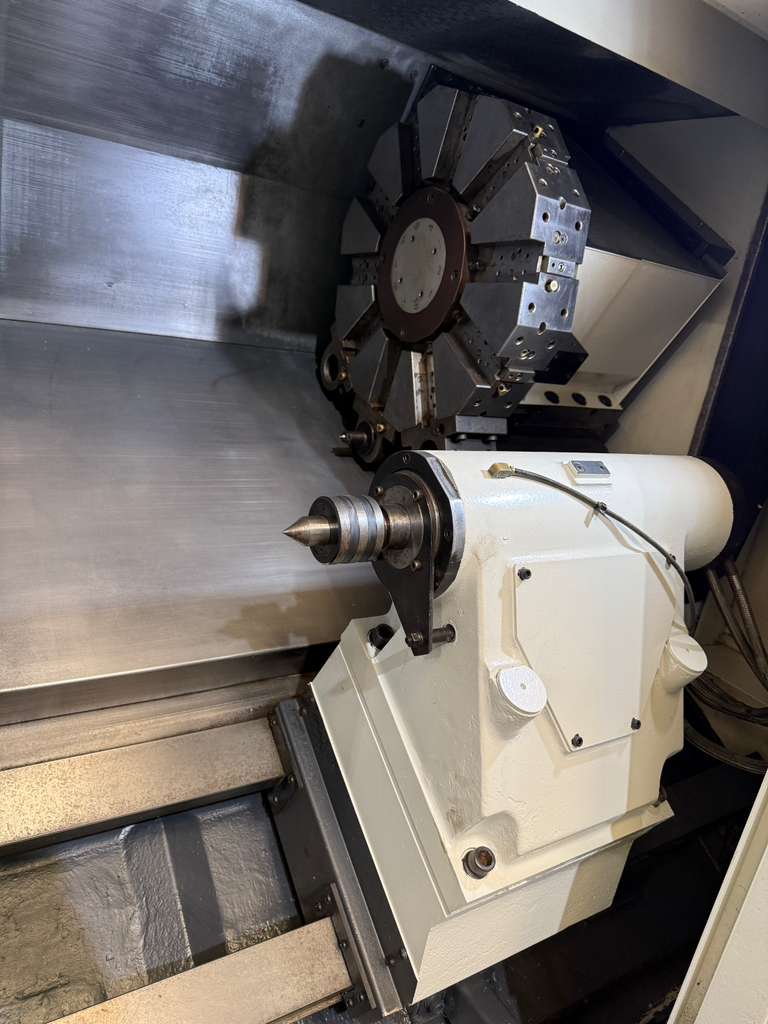

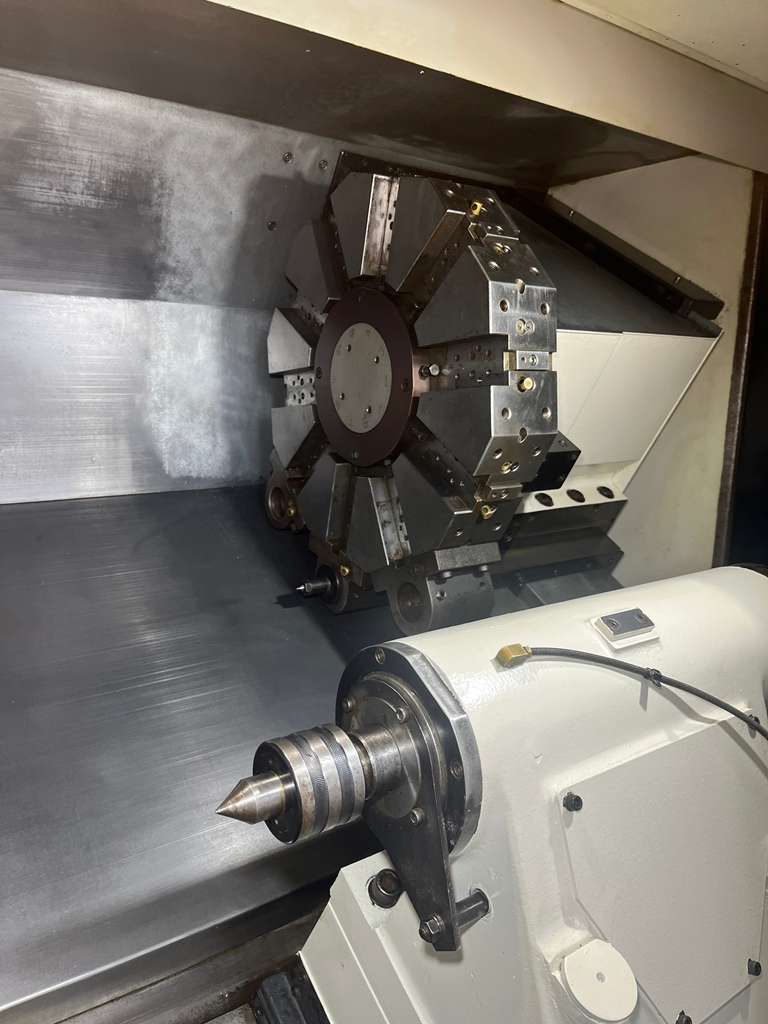

| 10 Station Automatic Turret |
| Tailstock |
| PCMCIA Card Interface |

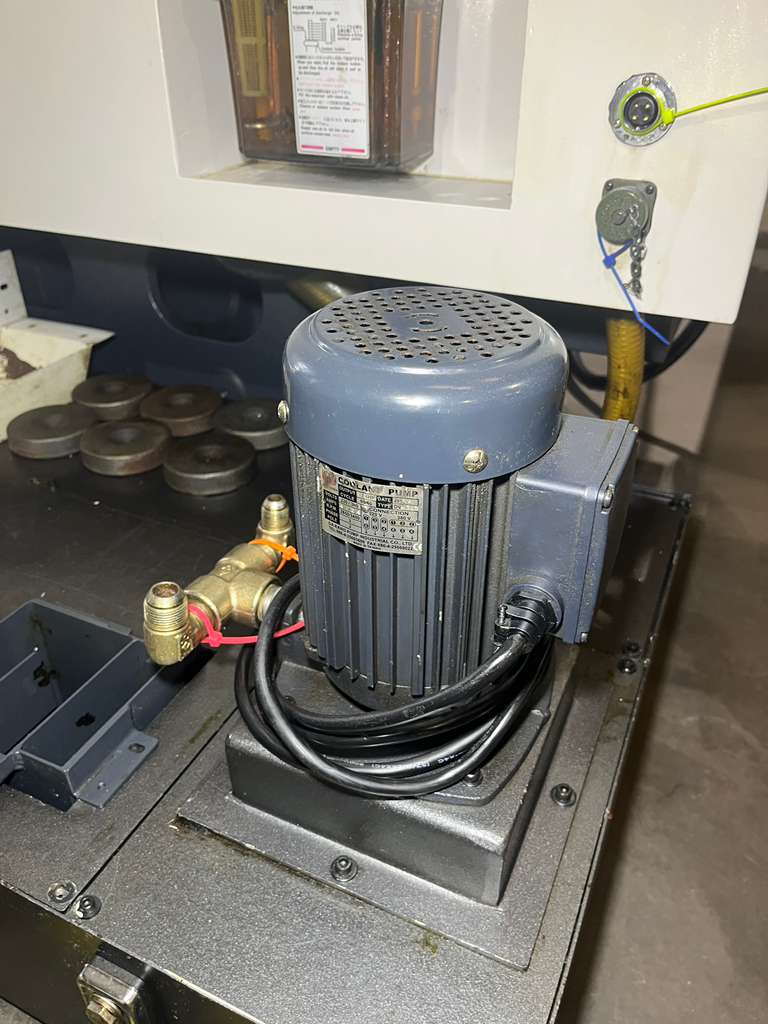

| Coolant System |

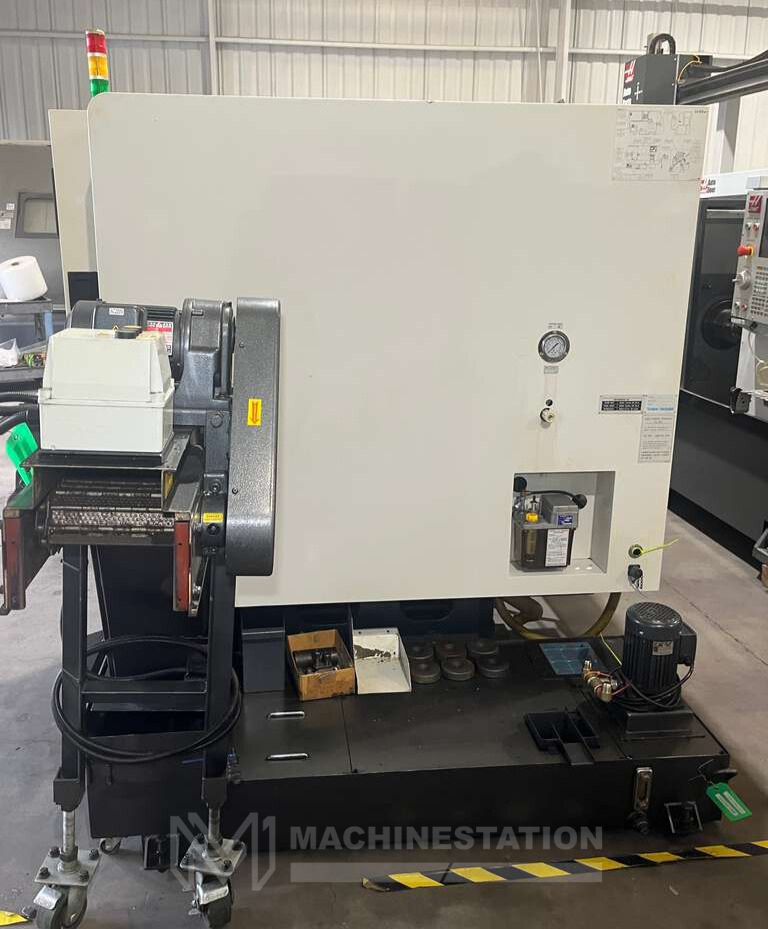

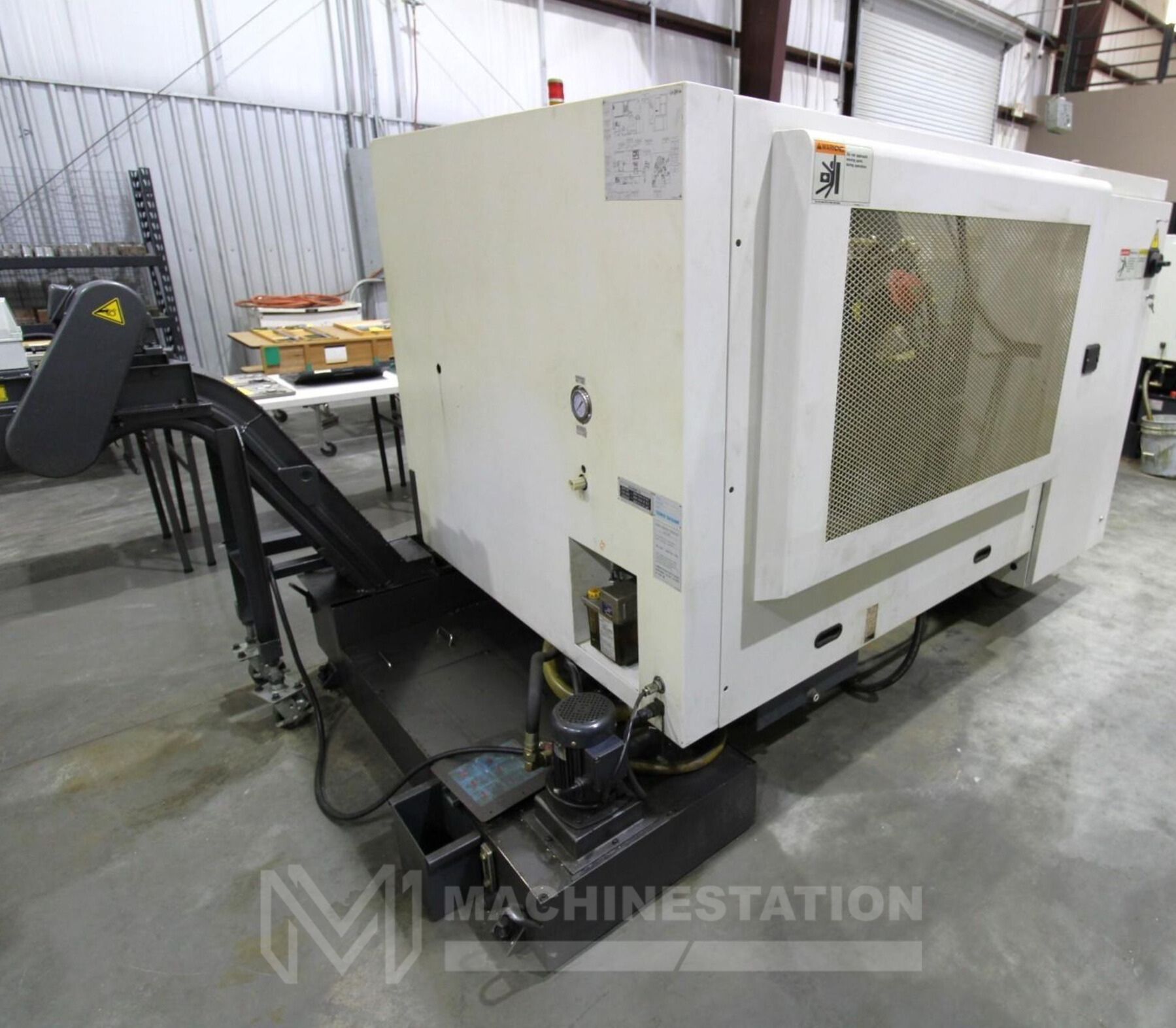

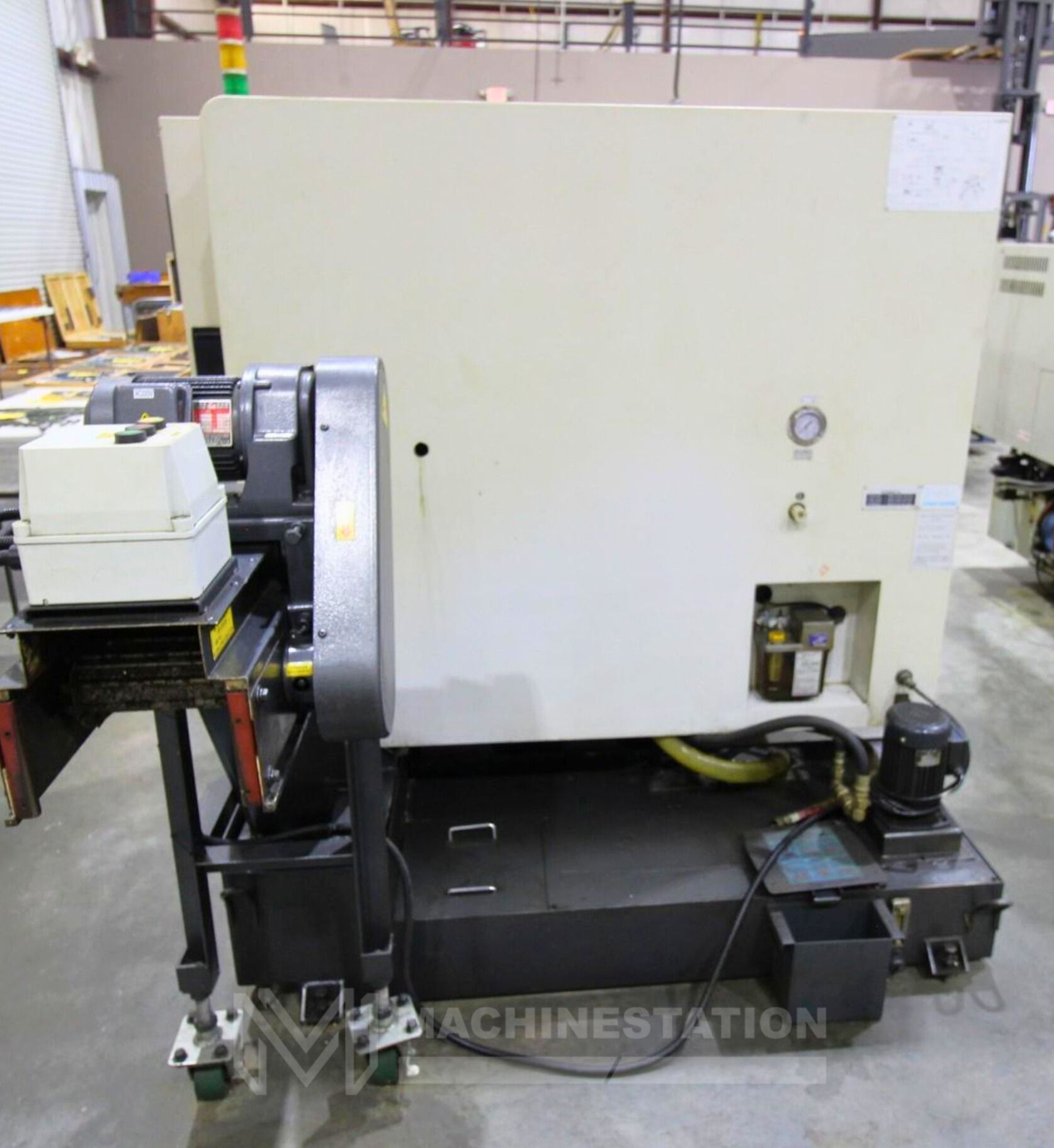

| Chip conveyor |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 17.72″ |
| Max Turning Length: 30.20″ |
| Swing Over Bed: 22.83″ |
| Max Bar Capacity: 2.95″ |
| Travel: |
|---|
| X Axis Travel: 9.65″ |
| Z Axis Travel: 31.50″ |
| Rapid Traverse X Axis: 630 IPM |
| Rapid Traverse Z Axis: 787 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.39″ |
| Spindle Speed: 3500 RPM |
| Spindle Motor: 25 HP |

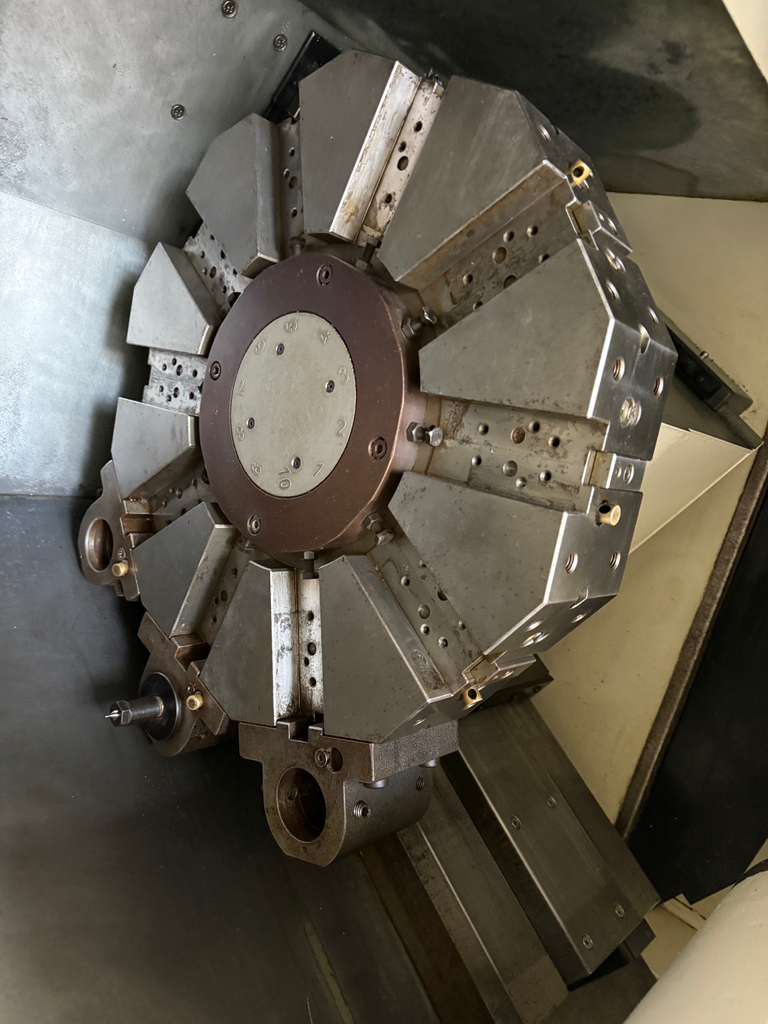

| Turret: |
|---|
| Capacity: 10 Station Turret |
| Turning Tool Shank: 1.0″ |
| Boring Bar Shank Diameter: 2.0″ |
| Tool Holders Type: BMT |

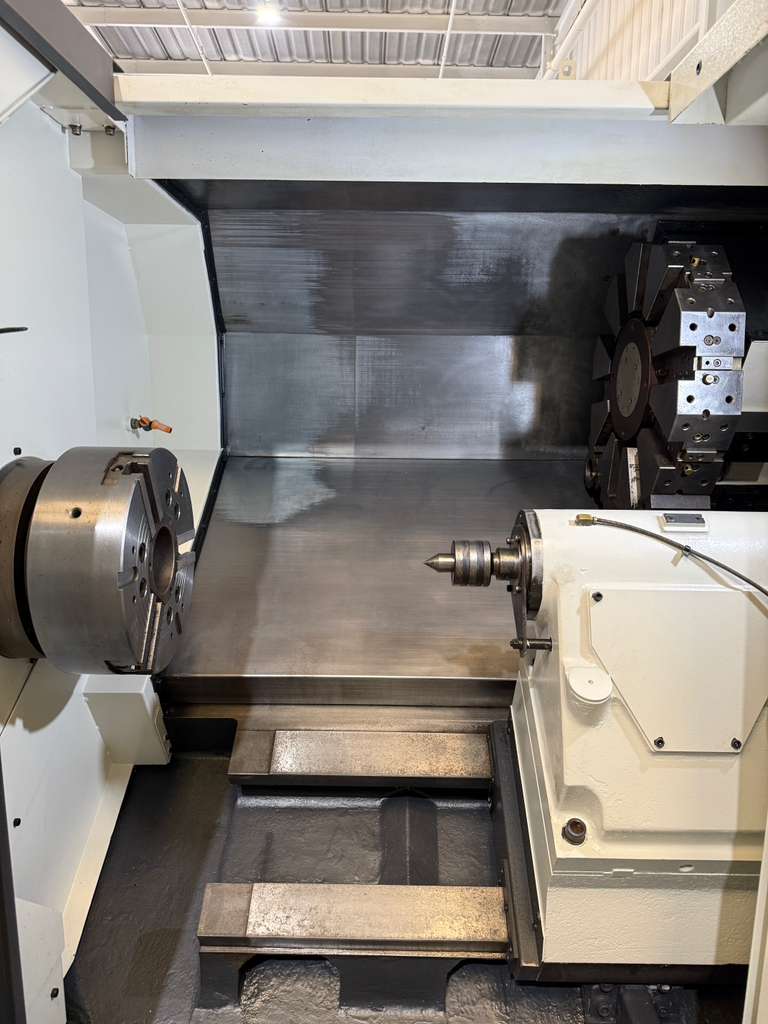

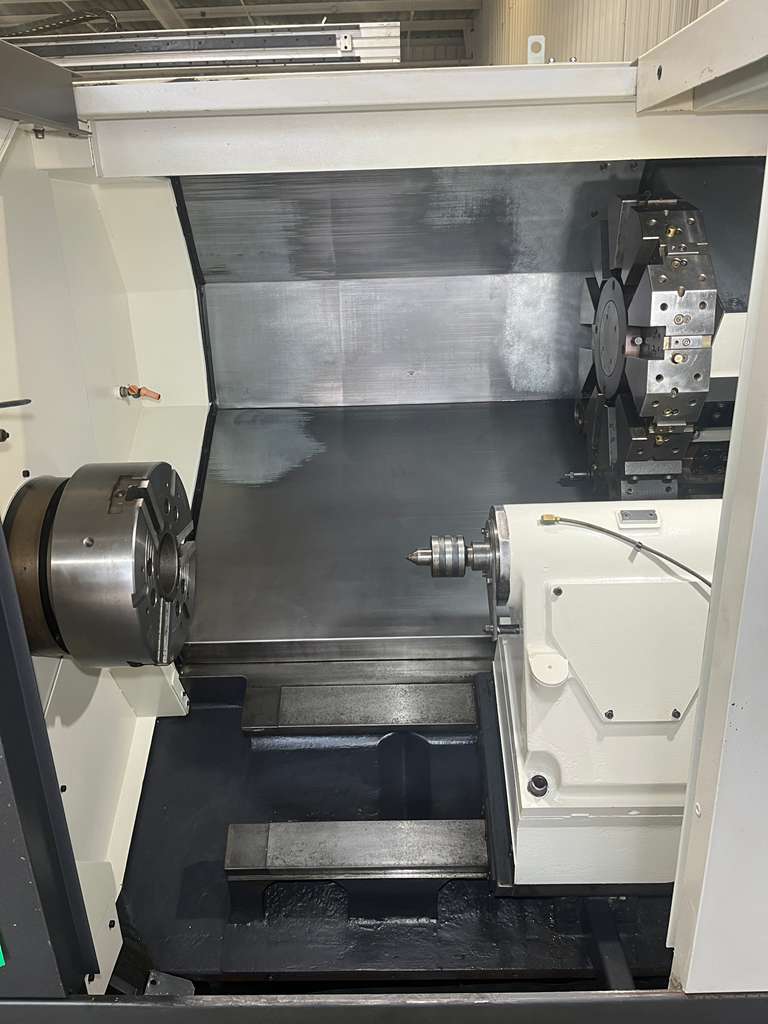

| Tailstock: |
|---|
| Tailstock Body Travel: 28.74″ |
| Tailstock Taper: MT-5 |
| Tailstock Quill Dia.: 5.91″ |
| Tailstock Quill Travel: 5.91″ |
| General: |
|---|
| Power: 220v / kva / 3-Phase |
| Overall Dimensions: 115″ x 71″ x 71″ High Approx. |
| Weight: 16,424 lbs. Approx. |
