*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Toyoda |
| Model: | FH630SX |
| Year: | 2014 |
| Condition: | Used – Good |
| Machine Type: | CNC Horizontal Machining Center |
| Equipped With: |
|---|

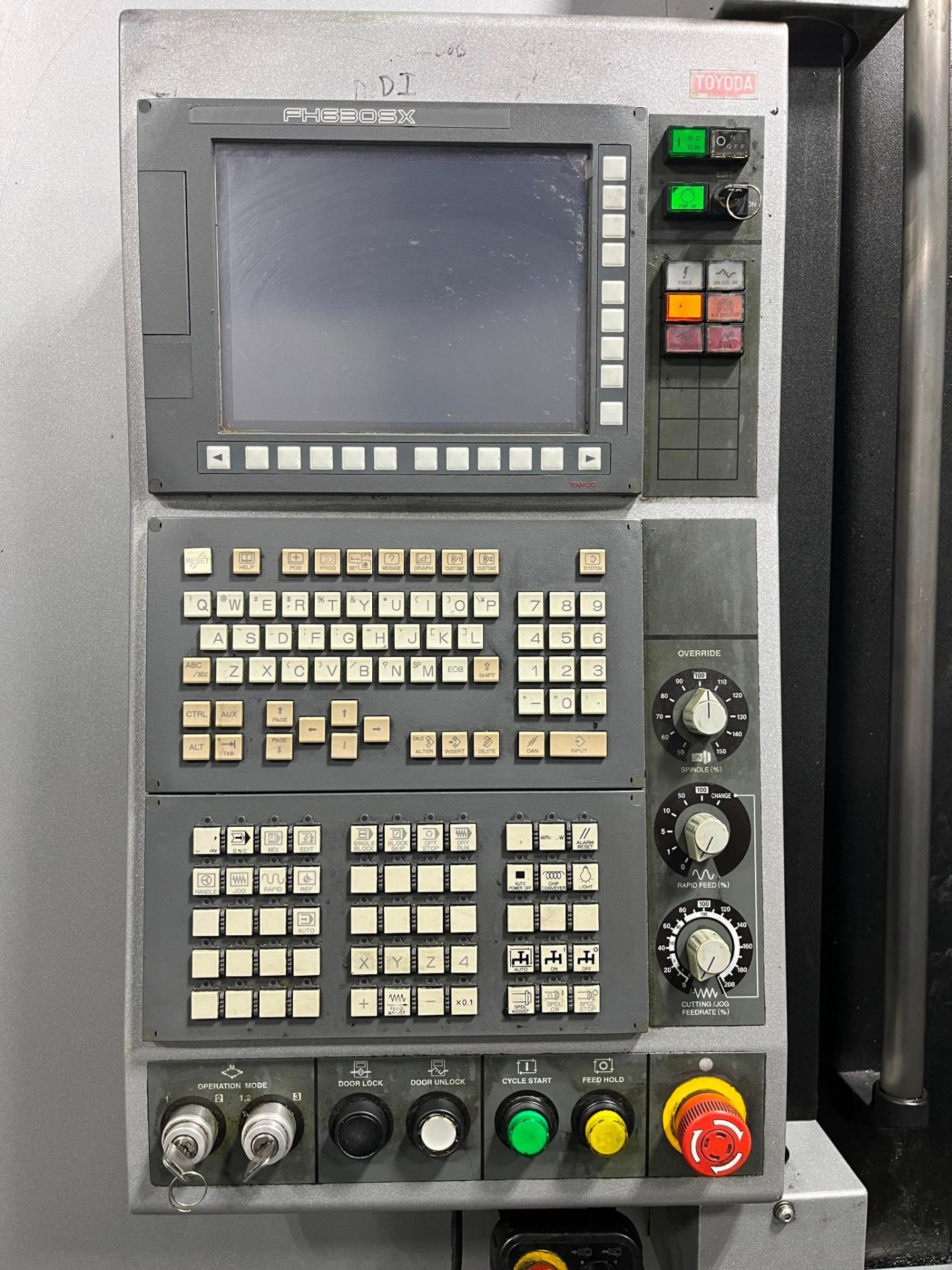

- Fanuc CNC Control
- Automatic Pallet Changer
- 60-Tool Automatic Tool Changer
- Spindle Chiller
- Coolant Tank
- Chip Conveyor
- Transformer
- Full Enclosure
- Skid of Sheet Metal
- Multiple Pallets
|
| Travels: |
|---|
- X-Axis Travel (Column): 39.37″
- Y-Axis Travel (Spindle Vertical): 31.50″
- Z-Axis Travel (Worktable Cross): 33.46″
|
| Pallet & Work Capacity: |
|---|
- Pallet Size: 24.8″ × 24.8″
- Max Pallet Load: 2,640 lbs
- Automatic Pallet Changer System
|
| Spindle: |
|---|
- Spindle Taper: ISO R297 #50
- Spindle Speed Range: 50 – 6,000 RPM
- Spindle Motor: 40 HP (30 kW) – 30 Min / 30 HP (22 kW) Continuous
- Max Spindle Torque: 443 ft-lbs
- Geared Spindle Drive
|
| Feedrates: |
|---|
- Rapid Traverse X-Axis: 2,362 IPM
- Rapid Traverse Y-Axis: 2,362 IPM
- Rapid Traverse Z-Axis: 2,362 IPM
|
| Automatic Tool Changer: |
|---|
- Standard Tool Capacity: 60 Tools
- Optional Chain Magazine Capacities: 121 / 200 Tools
- Optional Matrix Magazine Capacities: 180 / 308 / 451 / 504 Tools
|

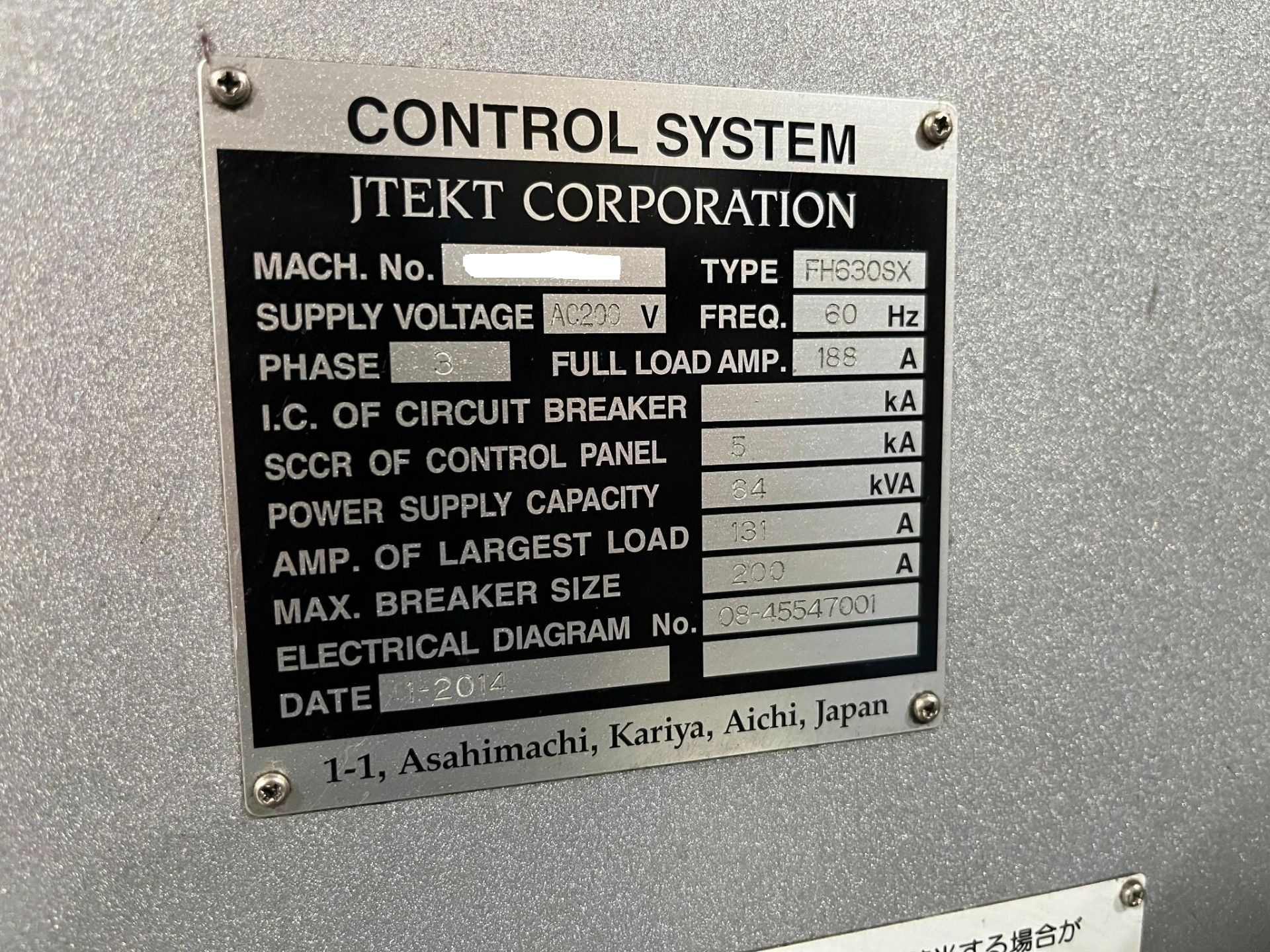

| Electrical: |
|---|
- Supply Voltage: AC 200V
- Phase: 3-Phase
- Frequency: 60 Hz
- Full Load Current: 188 A
- Power Supply Capacity: 64 kVA
- Amps of Largest Load: 131 A
- Max Breaker Size: 200 A
- SCCR of Control Panel: 5 kA
|
| General: |
|---|
- Air Requirement: 56 – 70 PSI
- Machine Dimensions (Approx.): 275″ L × 138″ W × 117″ H
- Machine Weight: 22.7 Tons (Approx.)
|
