*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

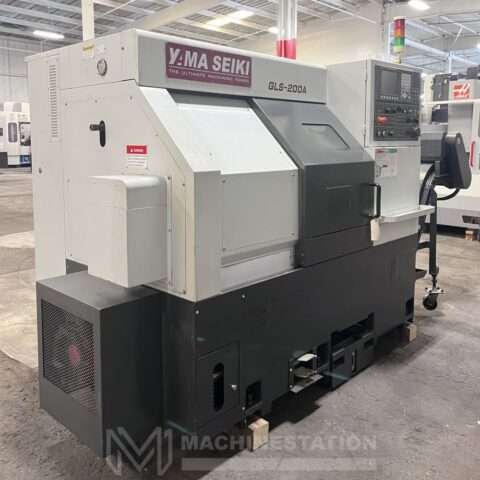

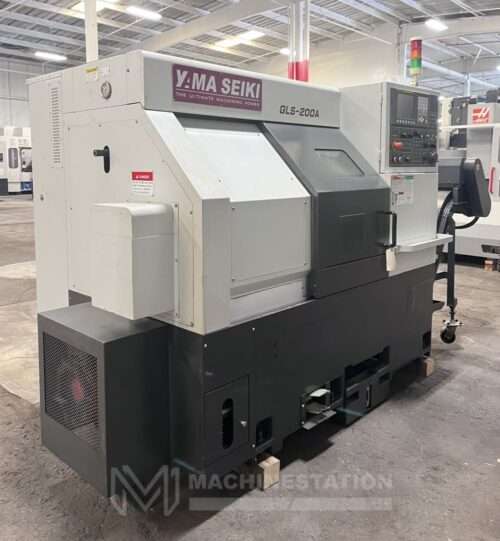

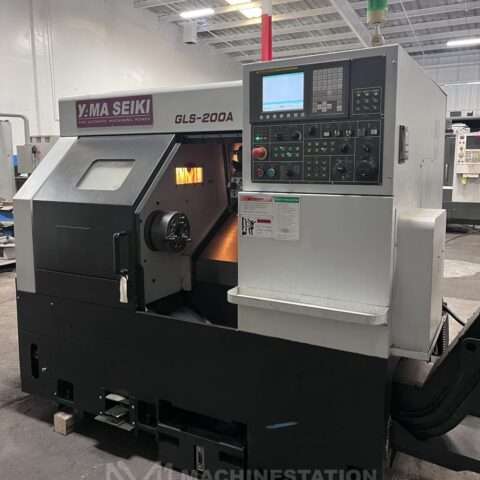

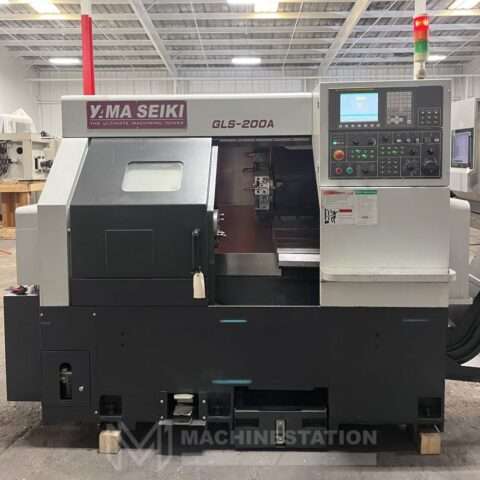

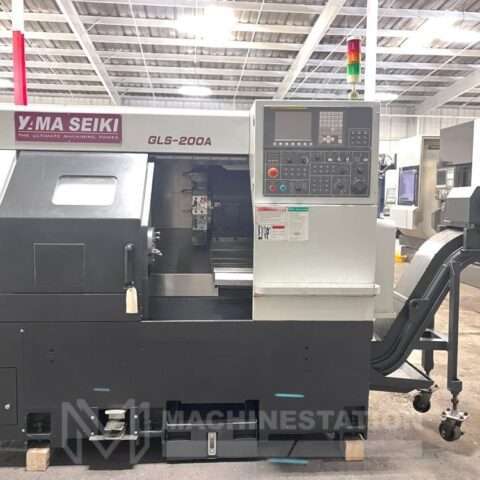

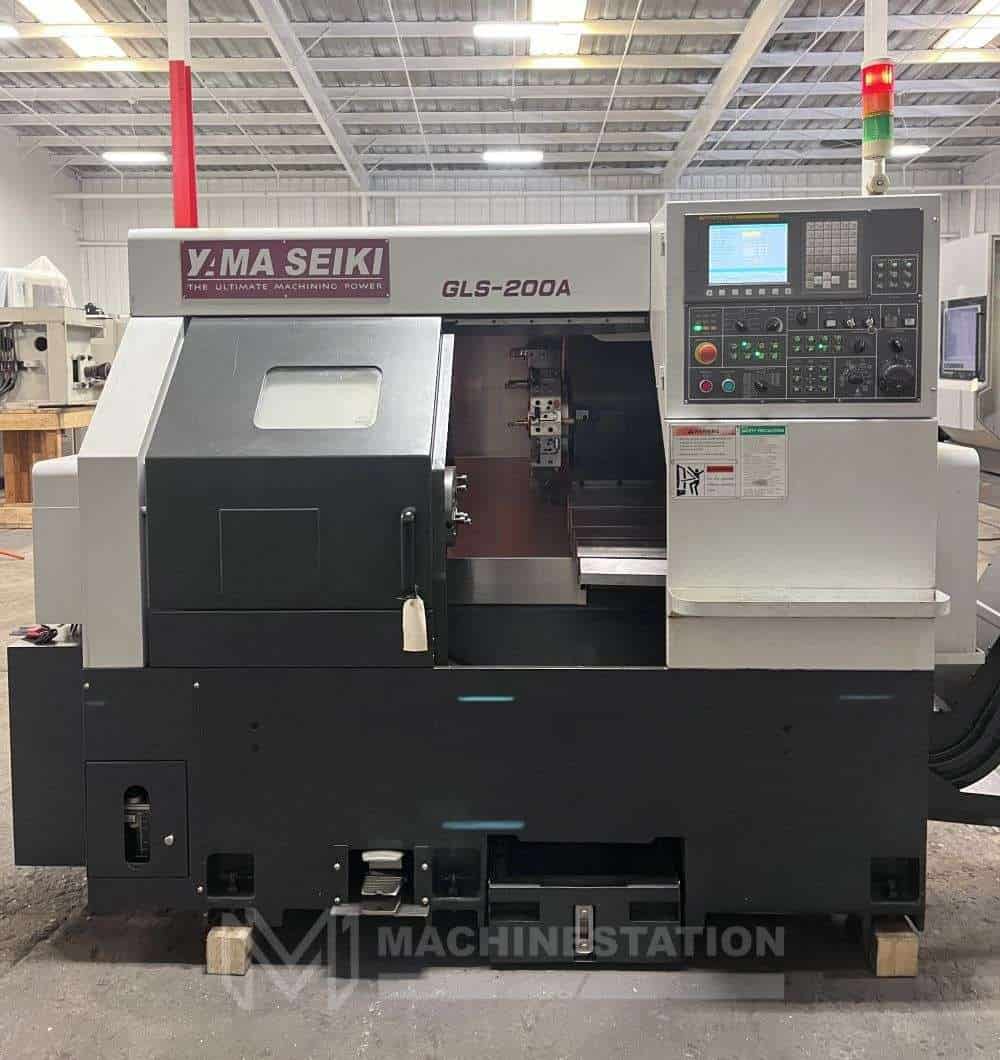

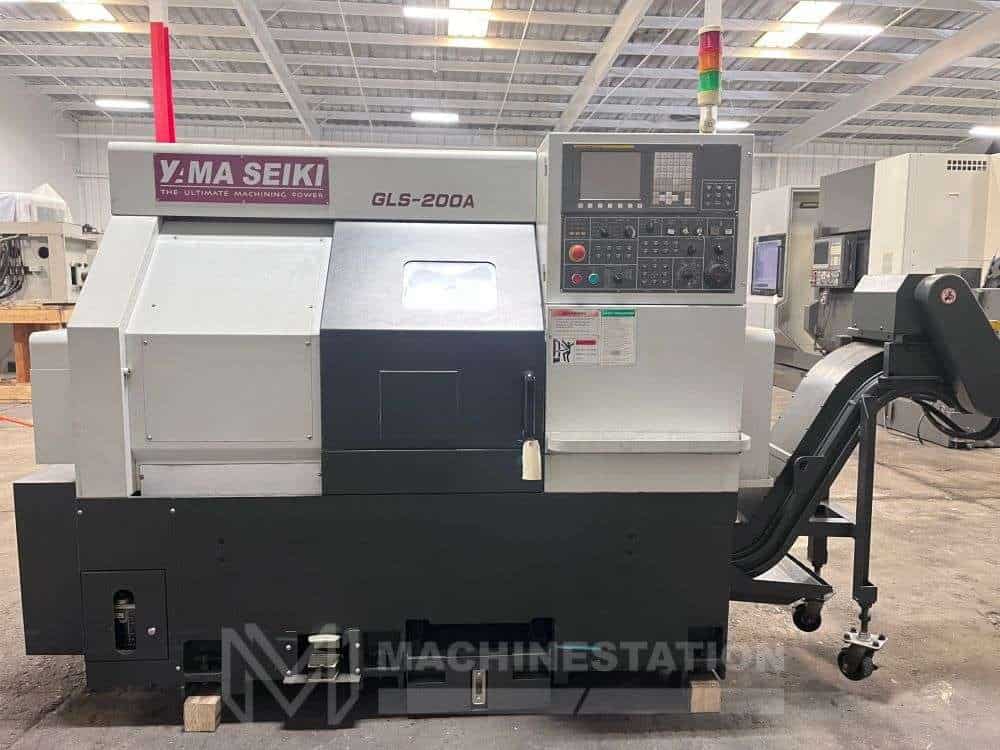

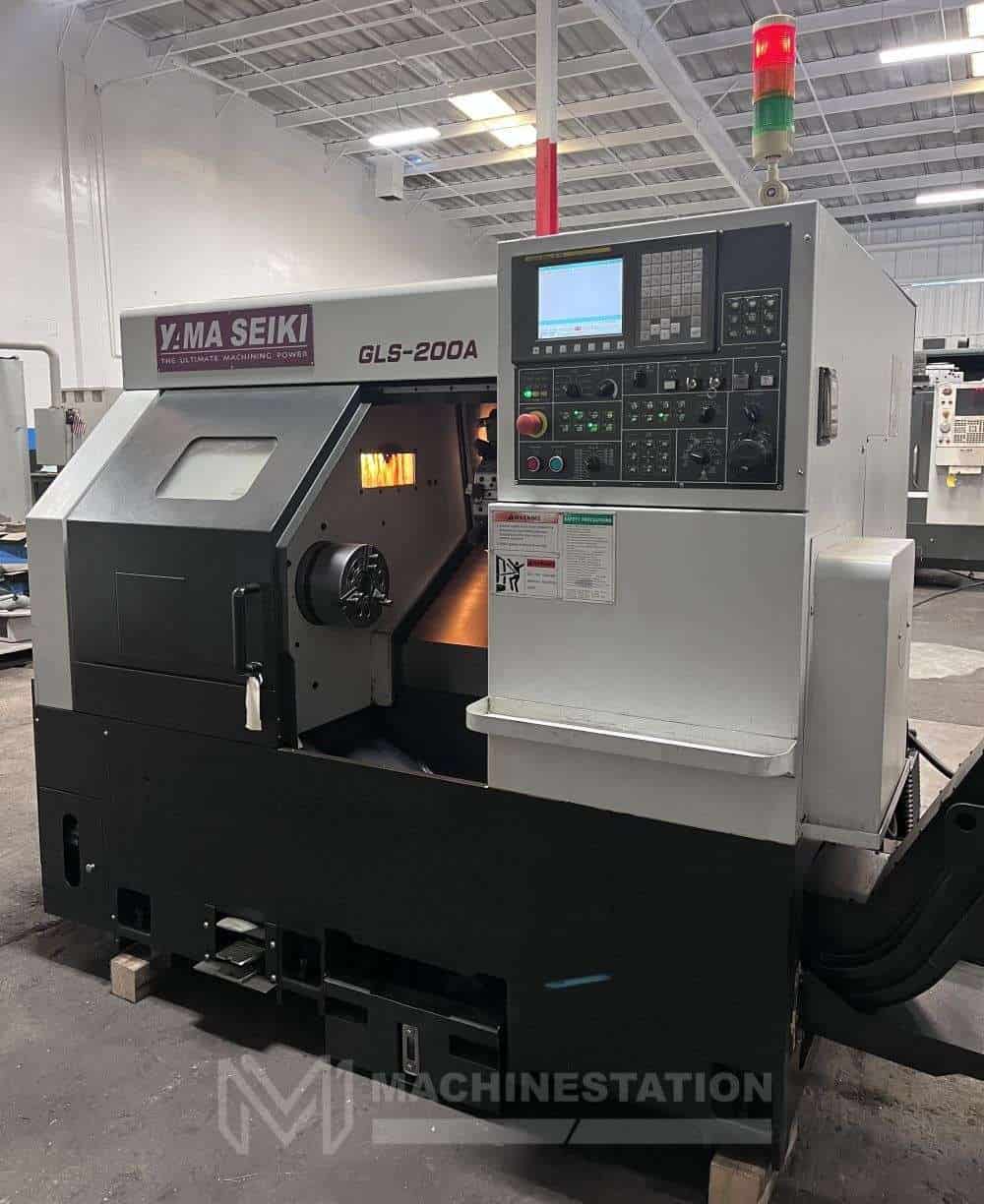

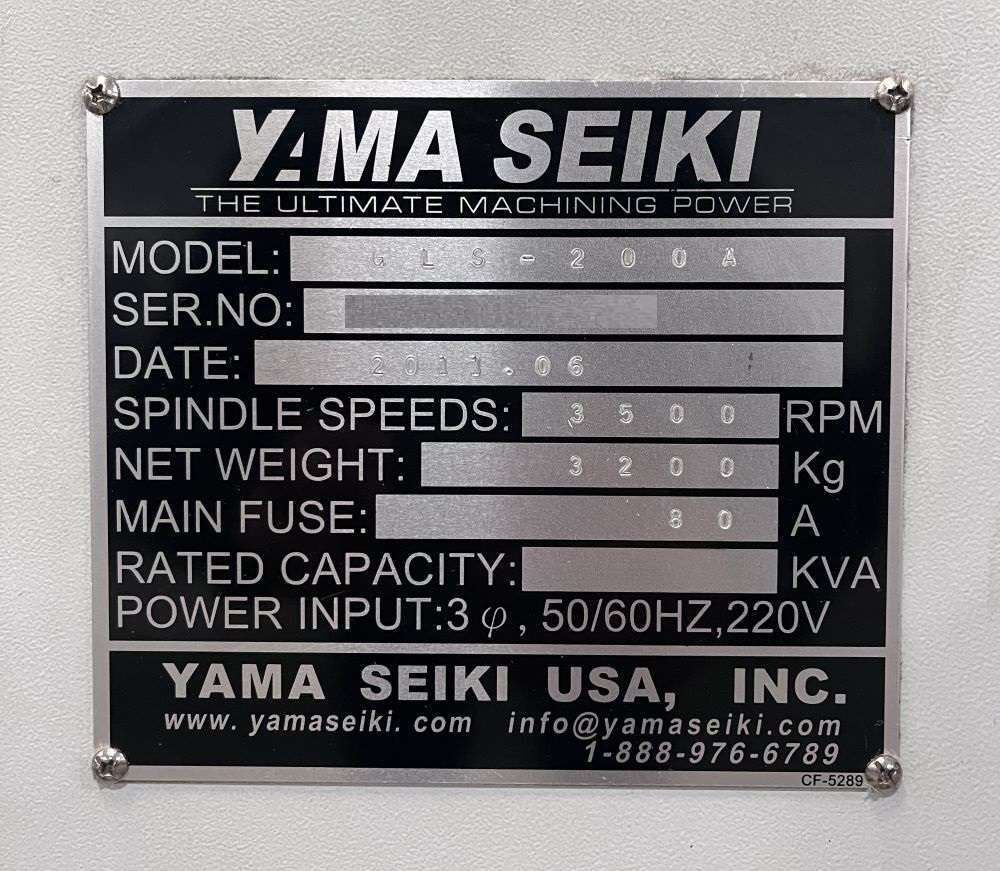

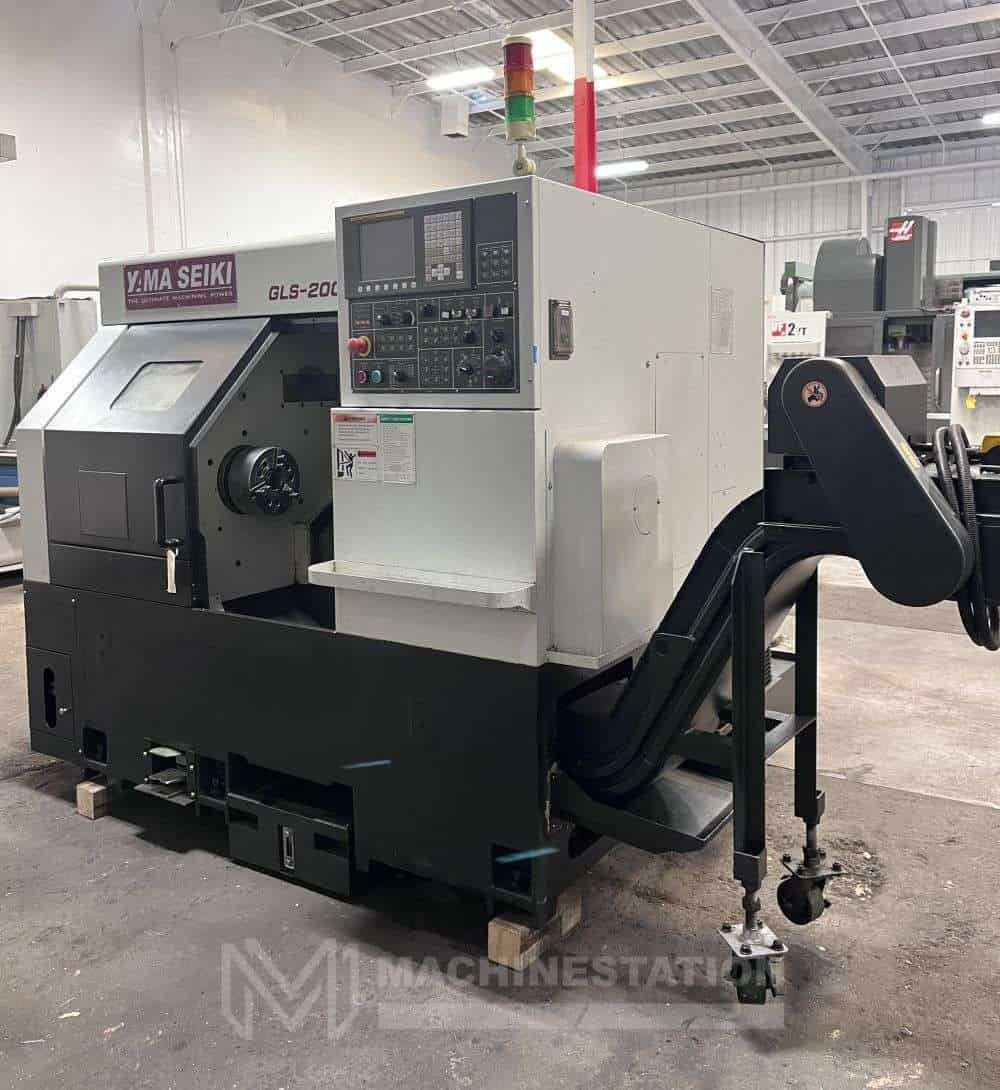

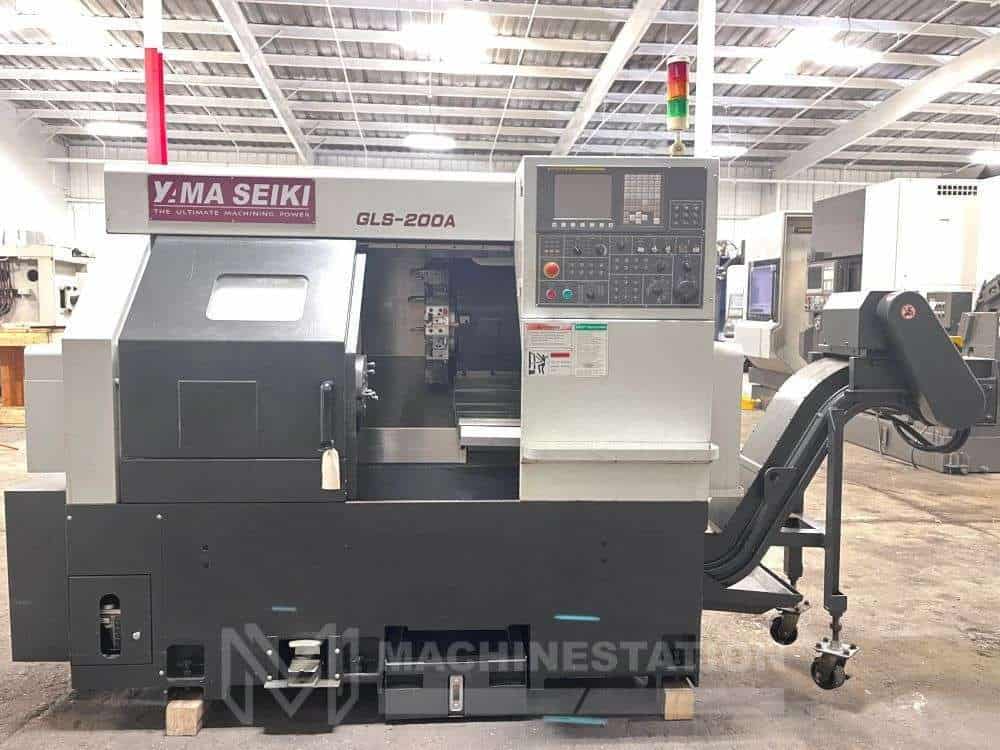

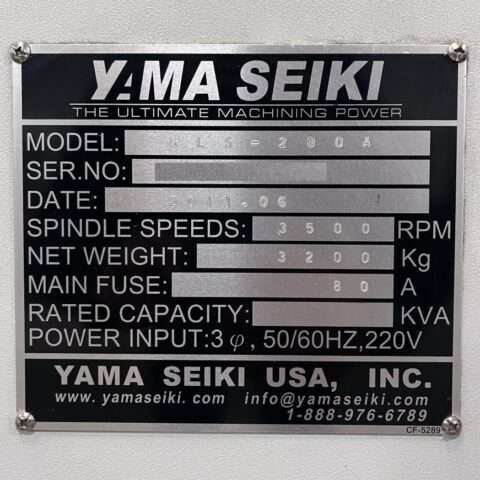

| Make: | Yama Seiki |

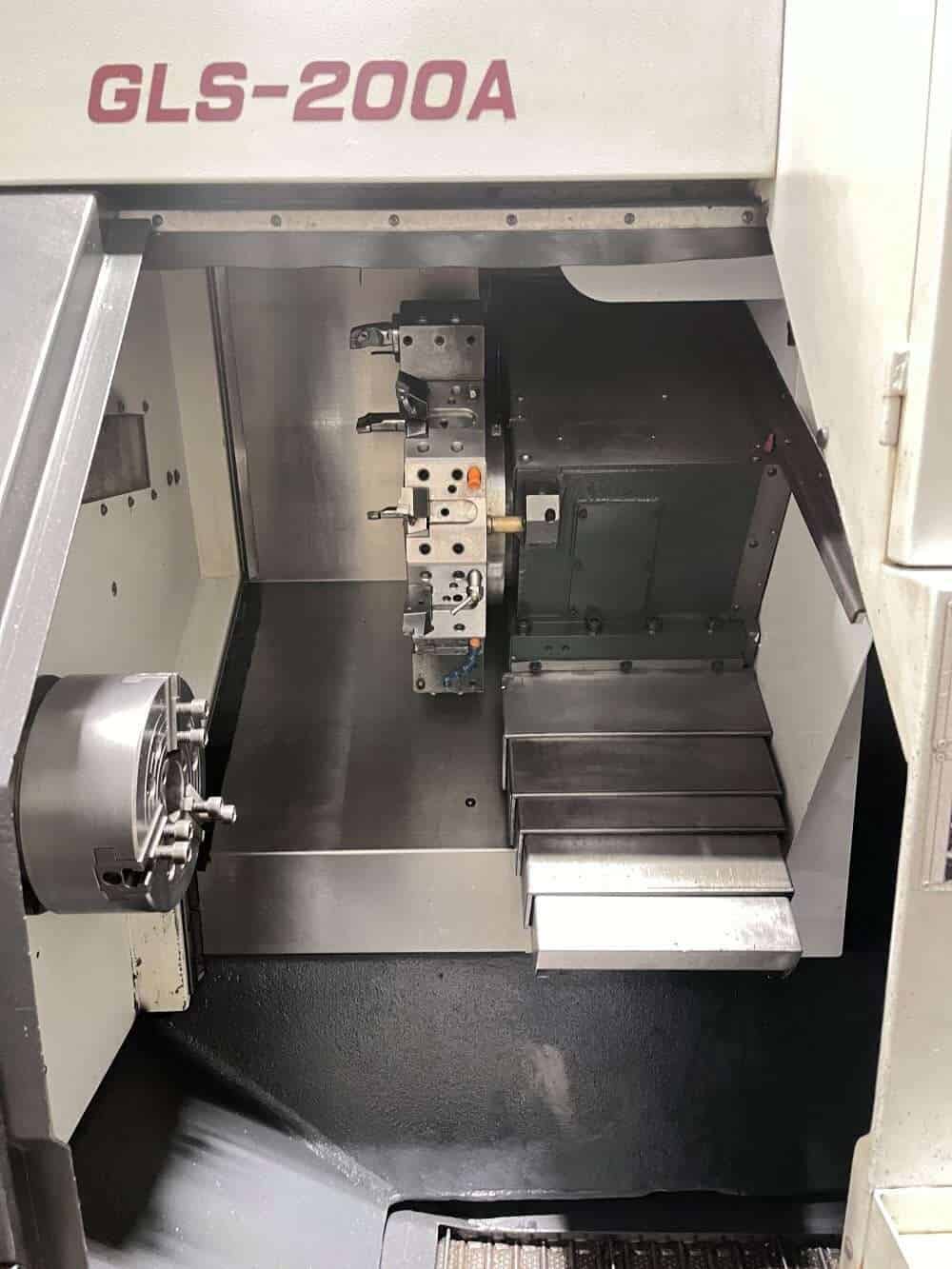

| Model: | GLS-200A |
| Year: | 2011 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

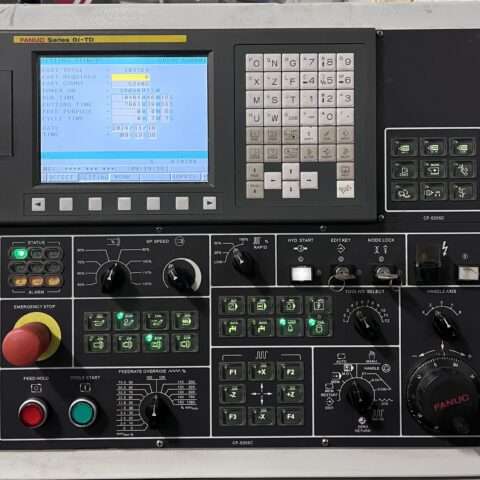

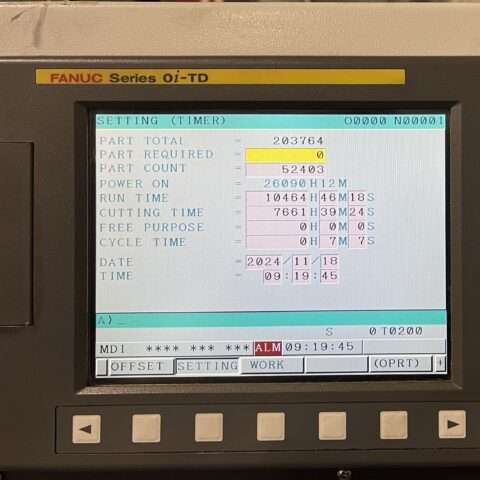

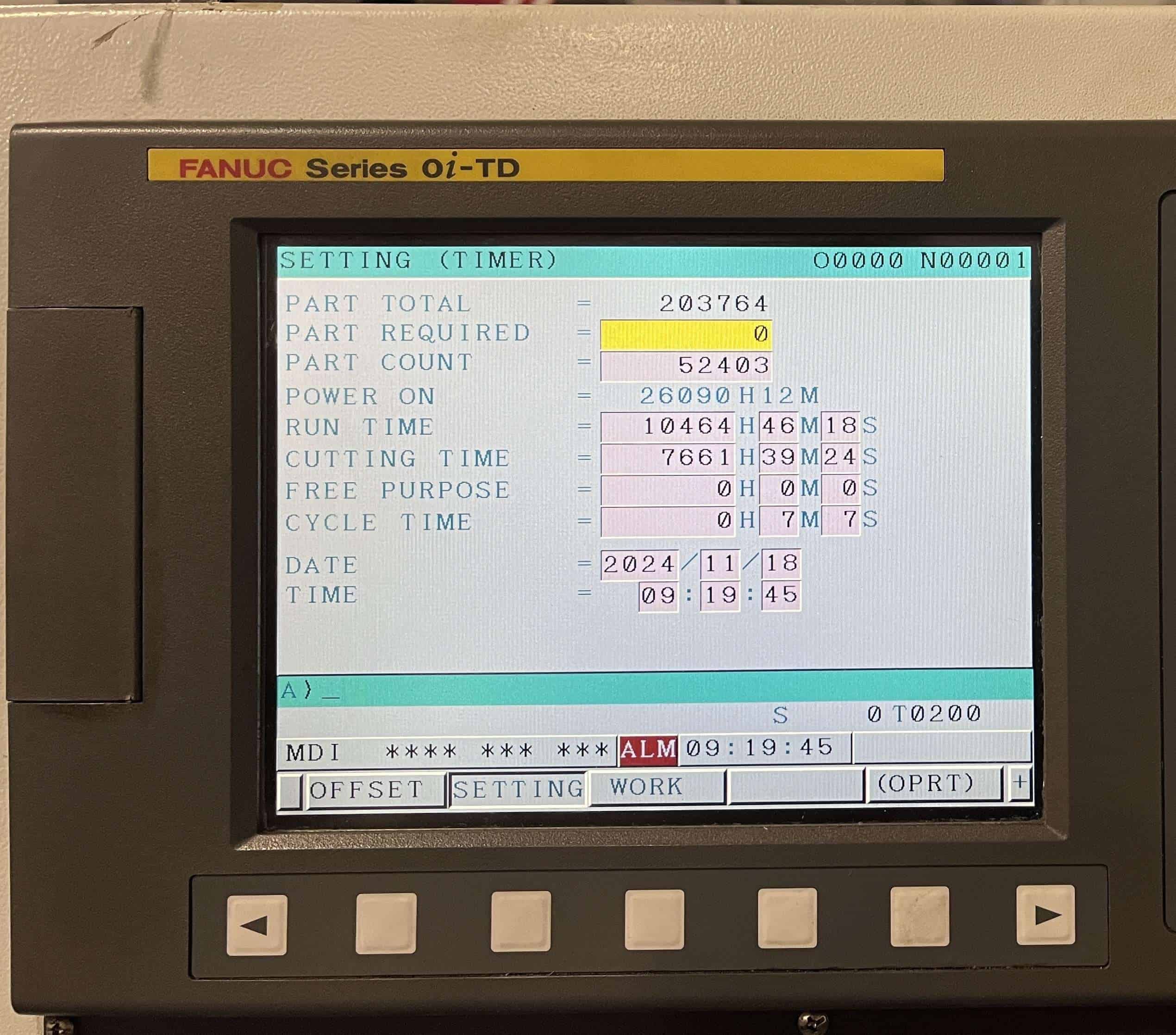

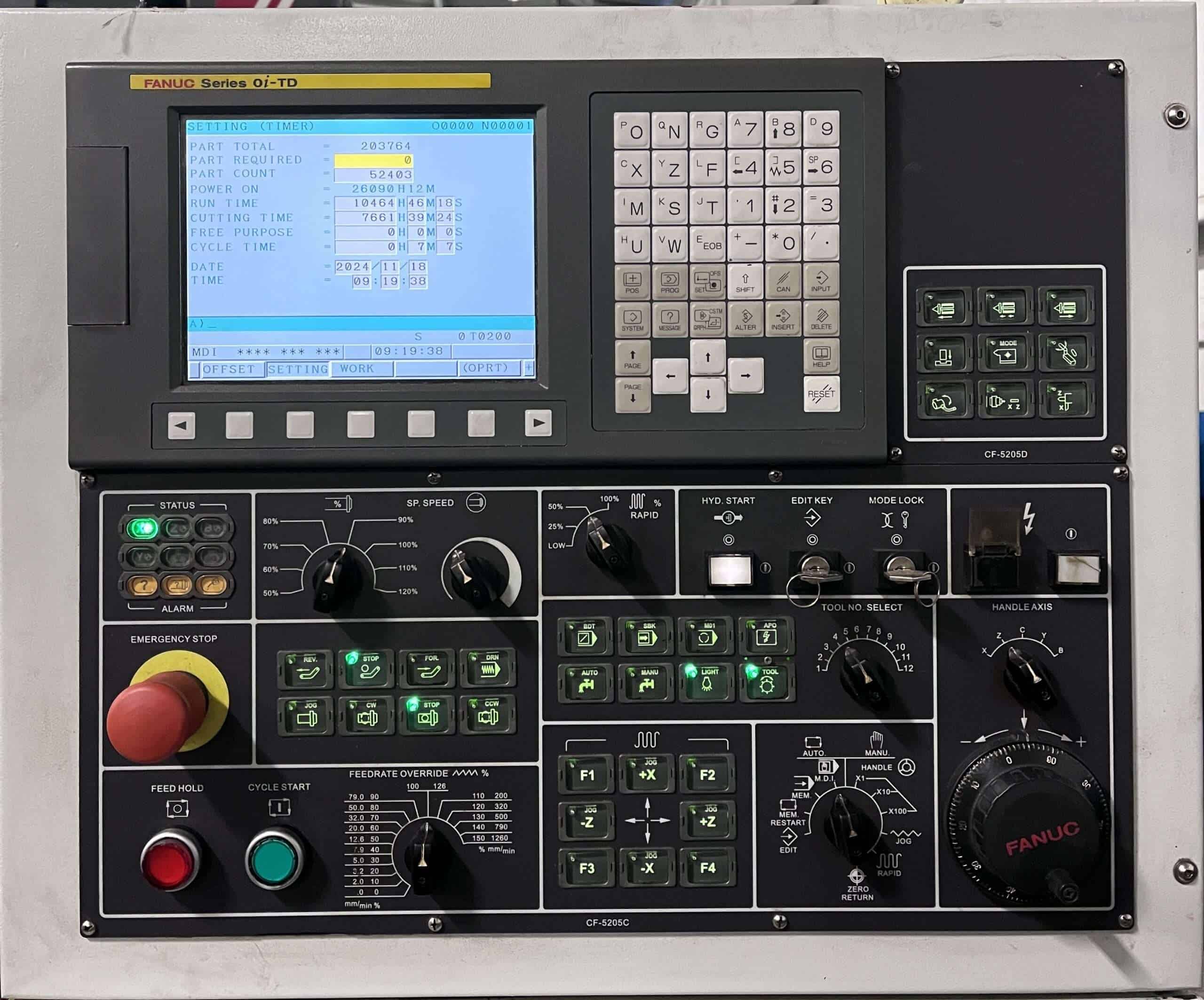

- Fanuc 0i-TD CNC Control

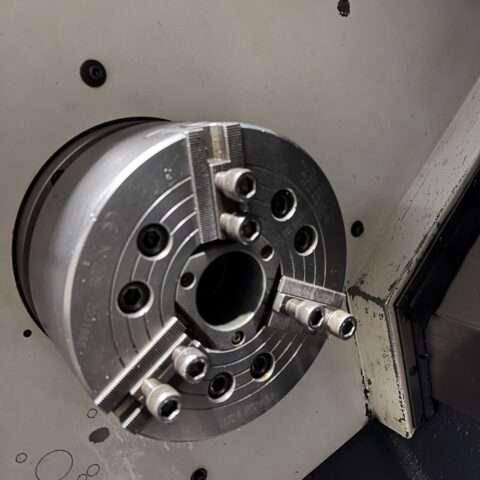

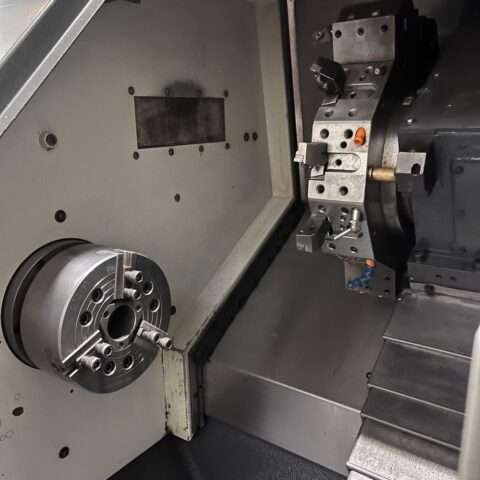

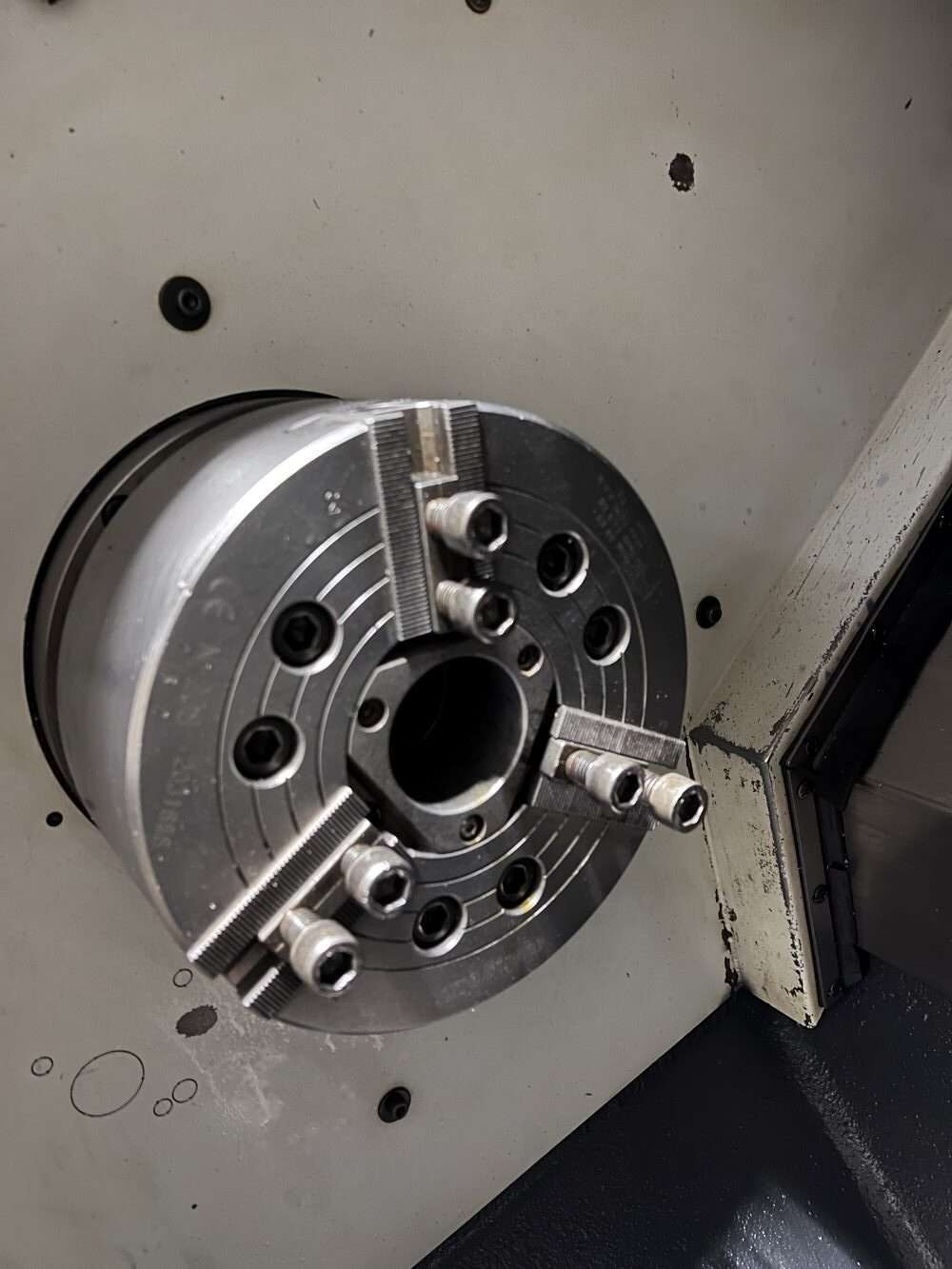

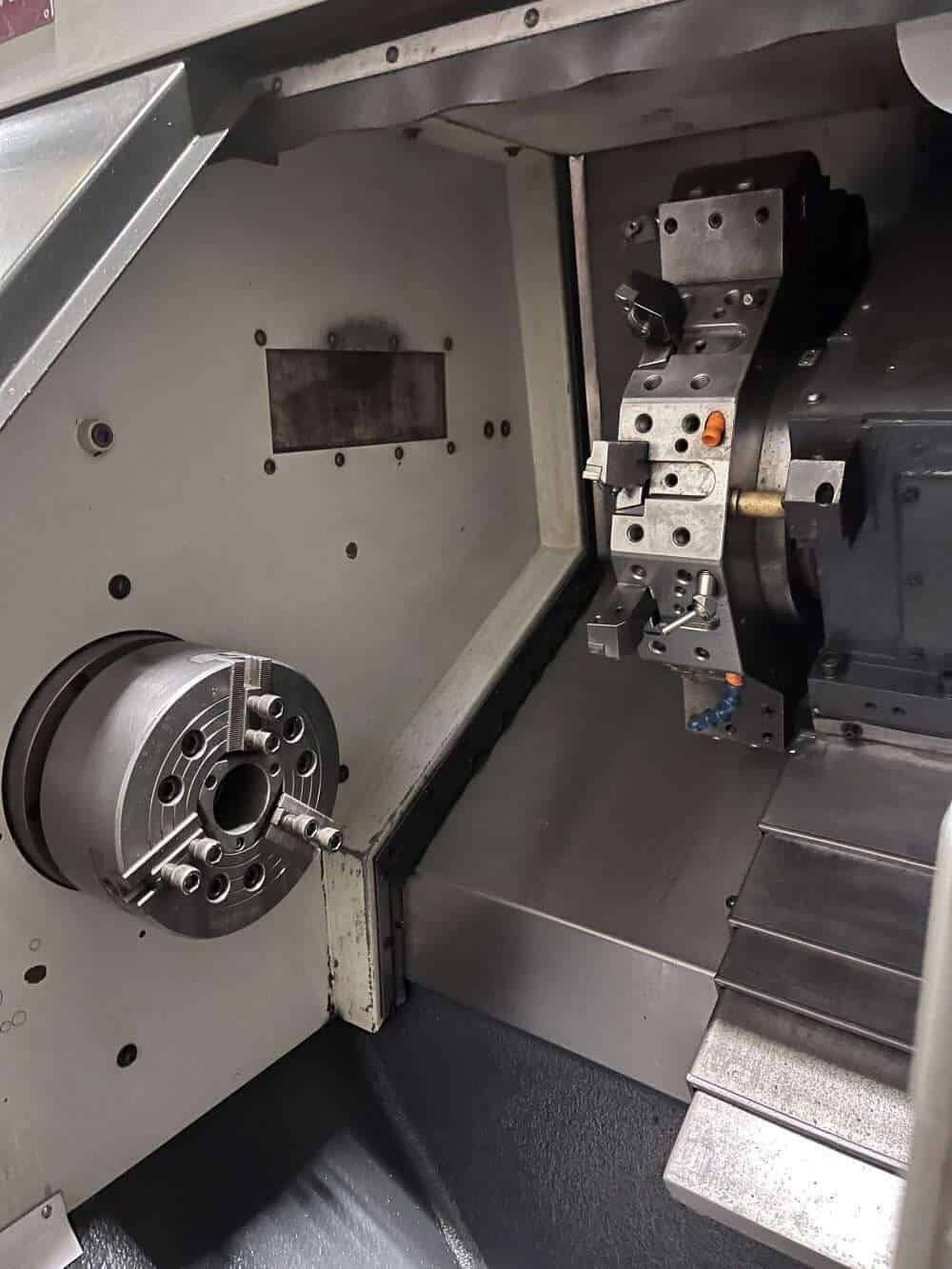

- 8″ 3-Jaw Chuck
- A2-6, 3500 RPM Spindle

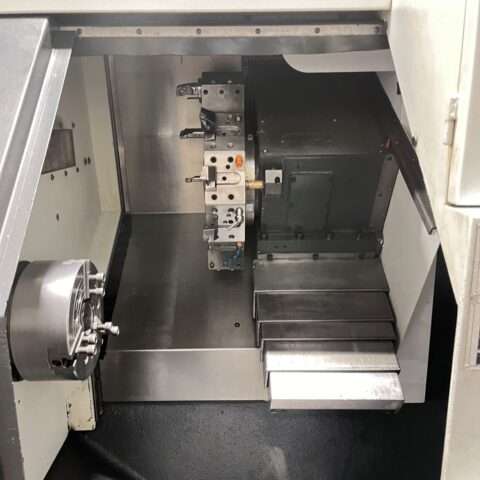

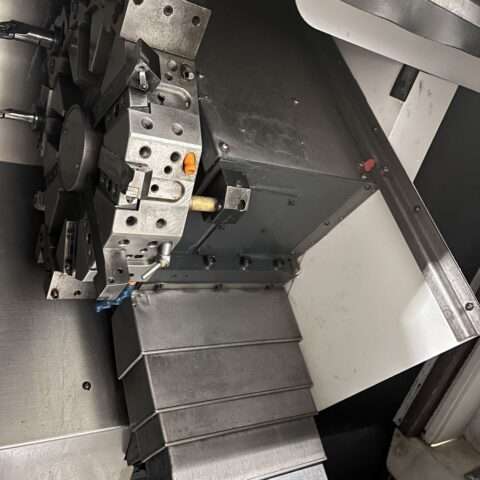

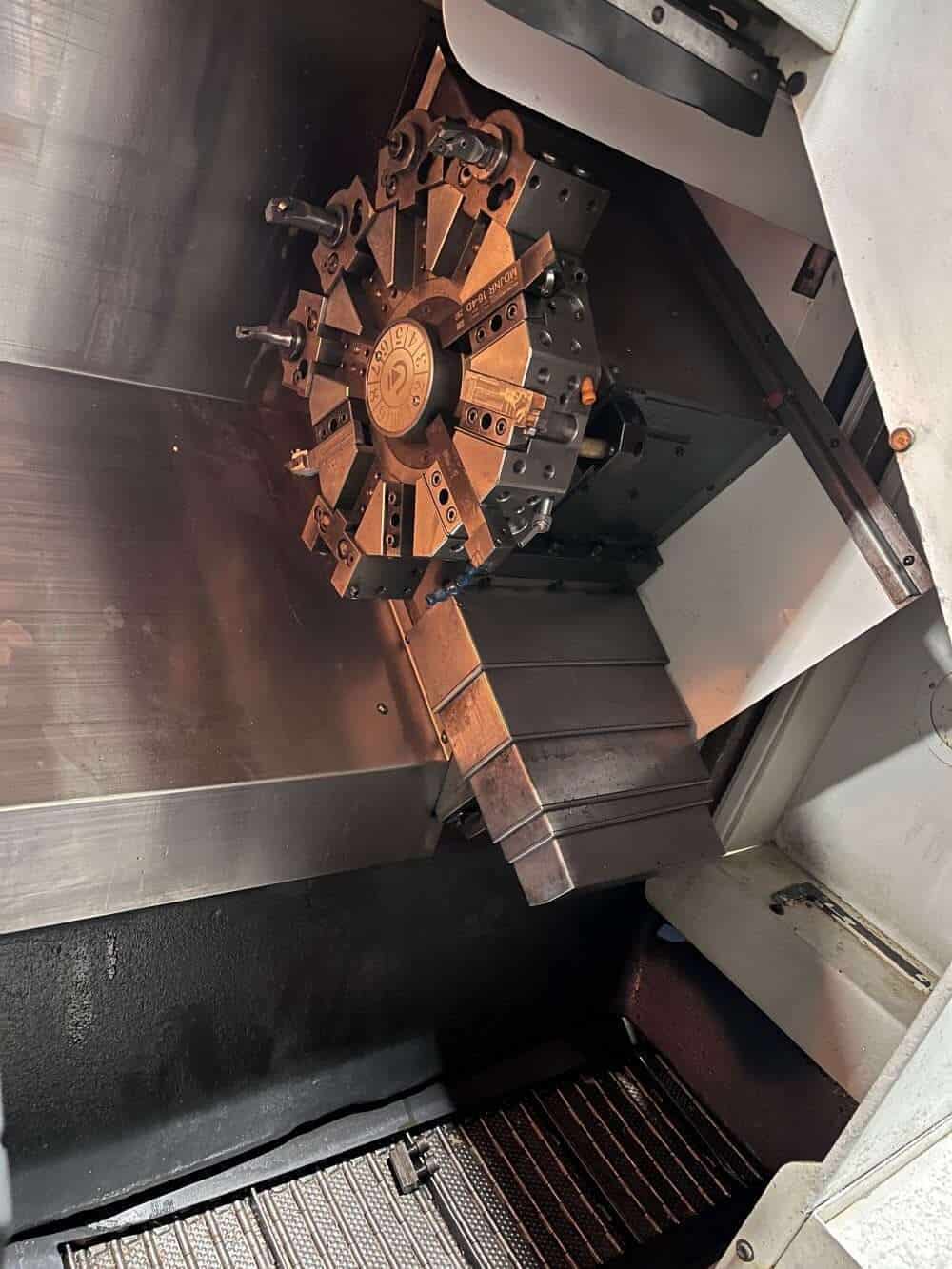

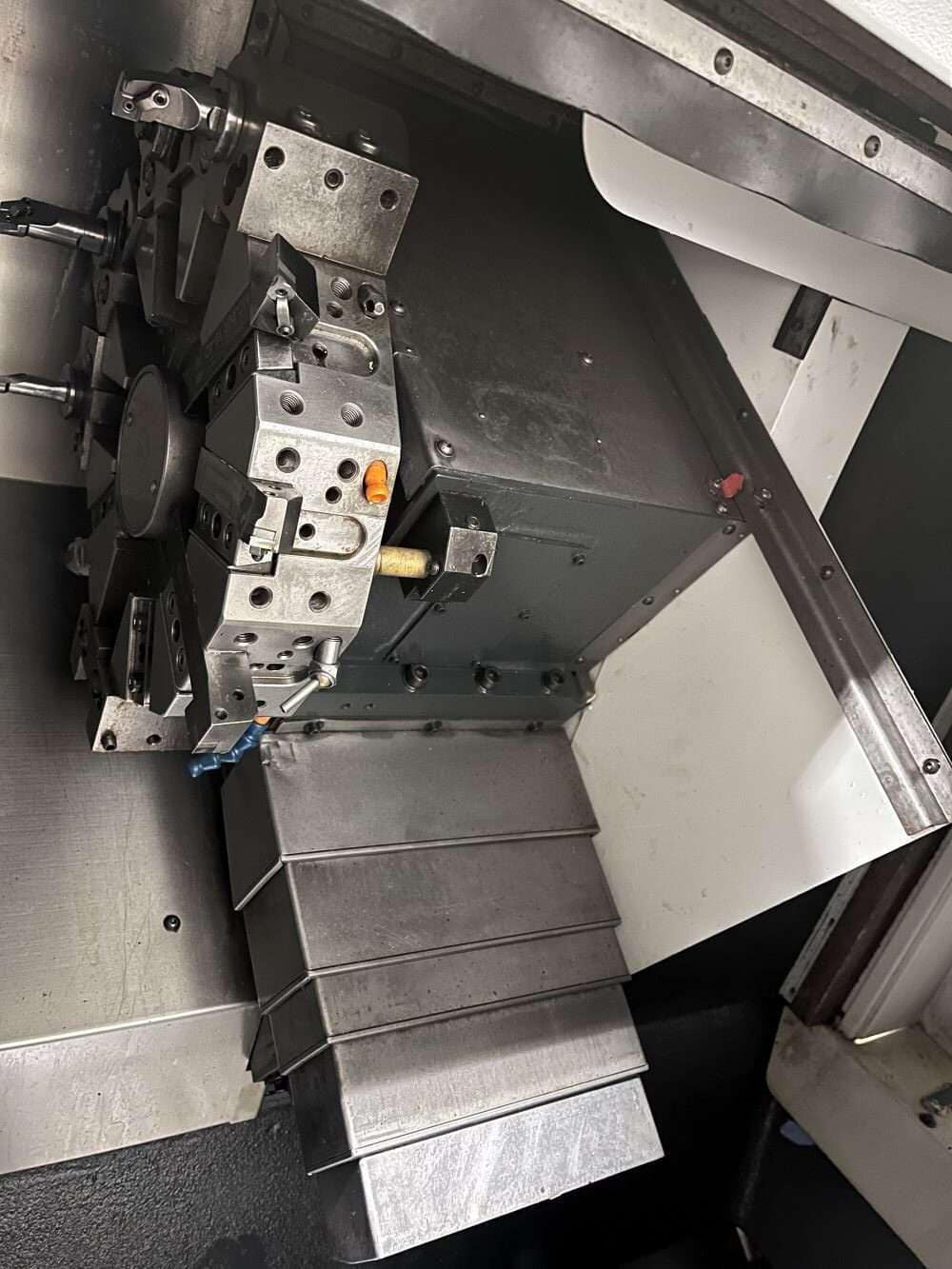

- 10 Station Automatic Turret
- Rigid Tapping
- PCMCIA Card Interface

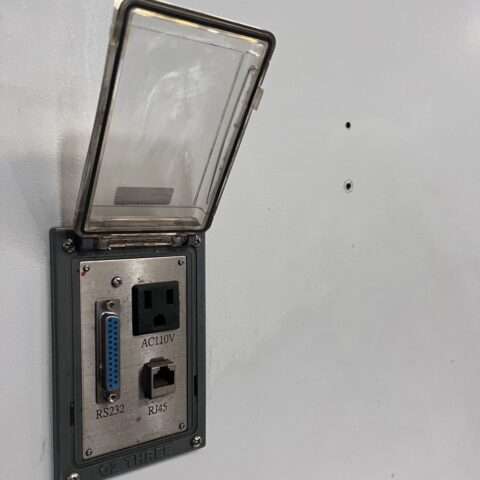

- USB Port
- Foot Switch
- Coolant System

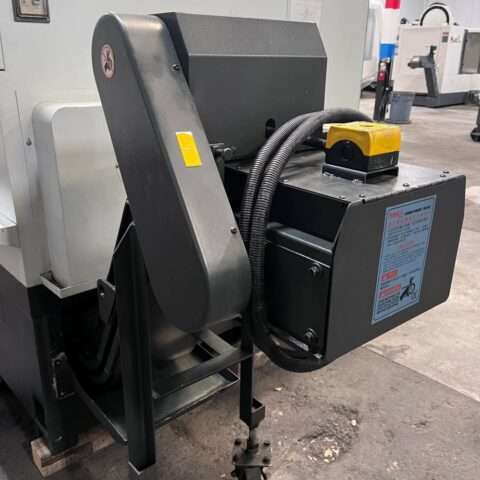

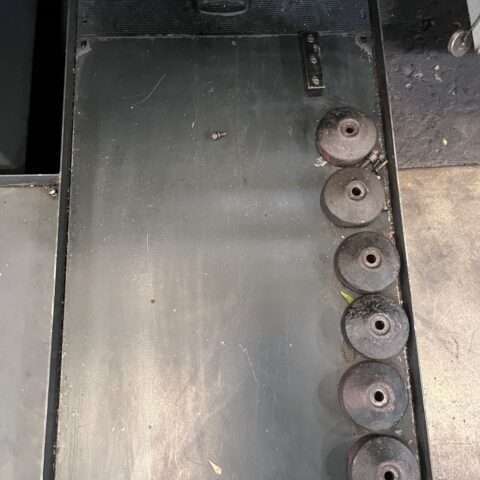

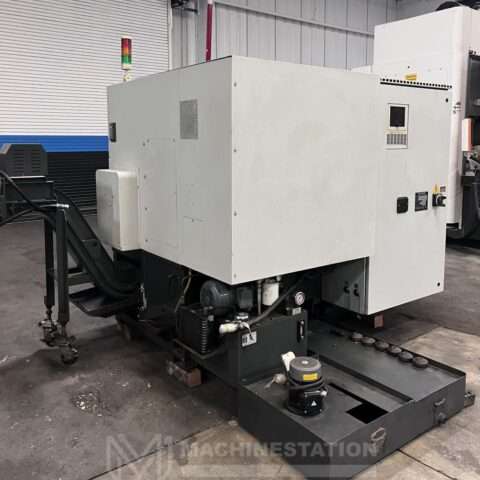

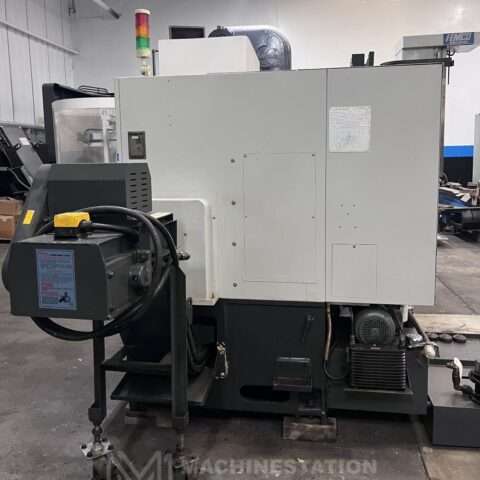

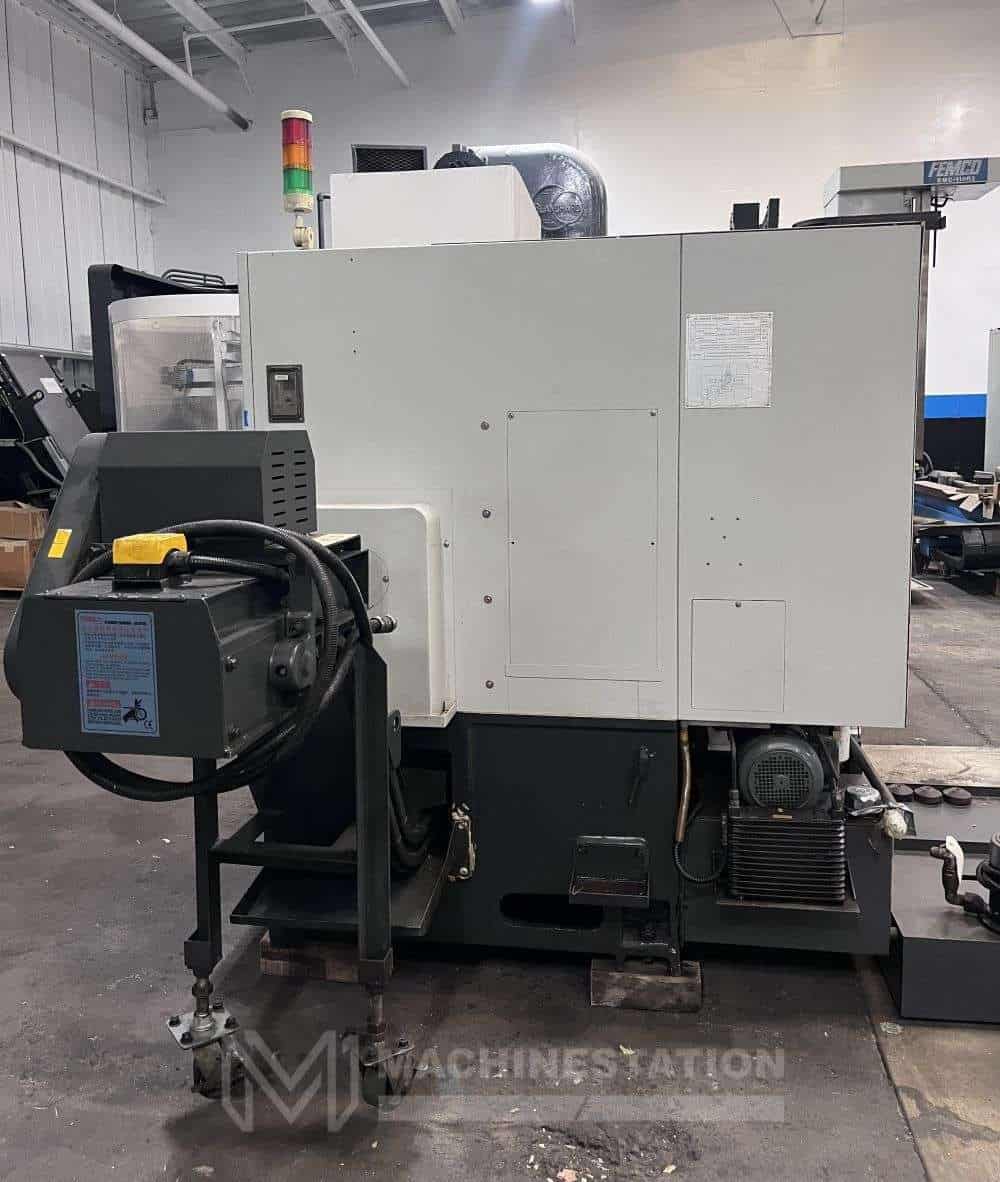

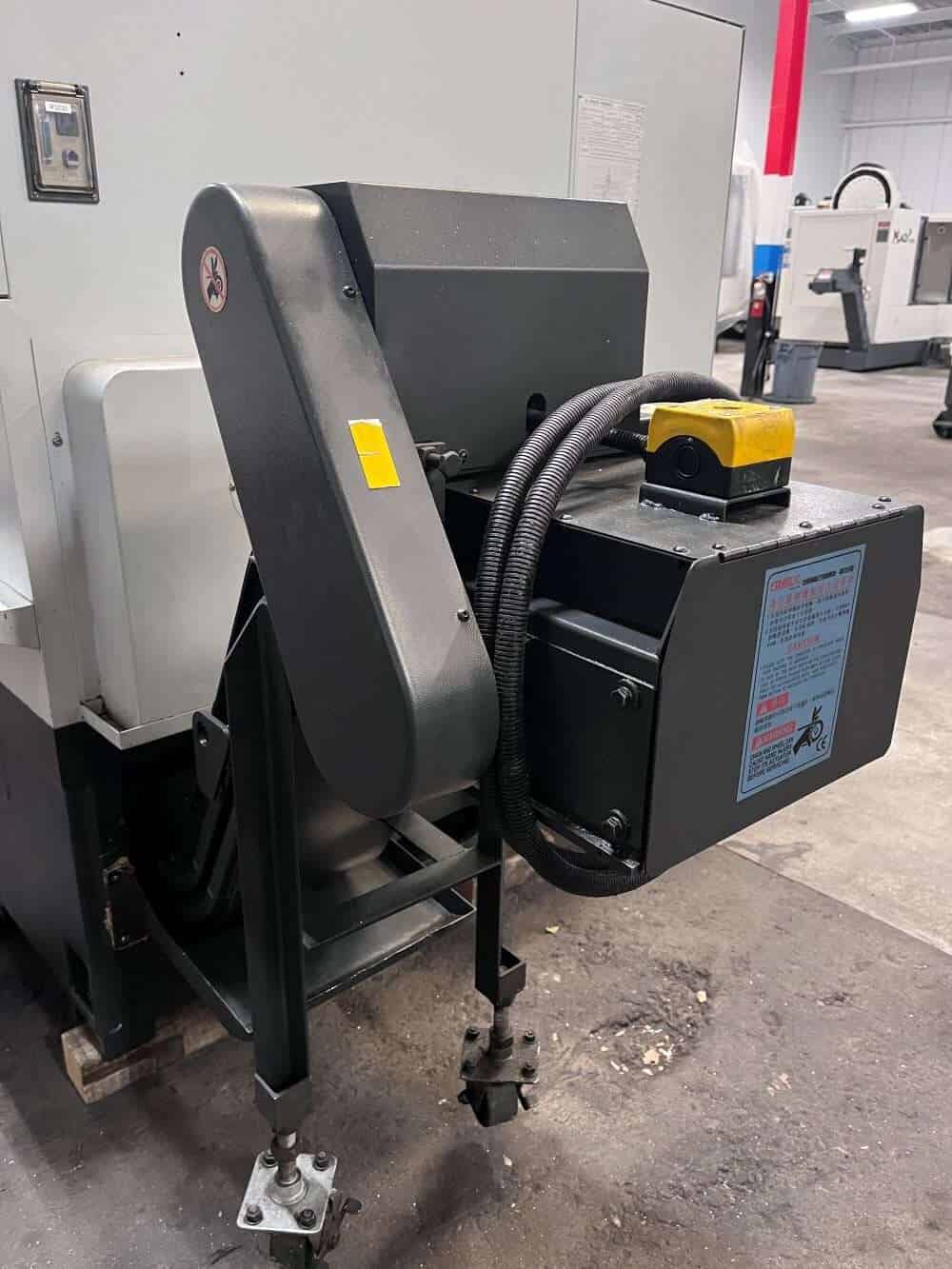

- Chip conveyor

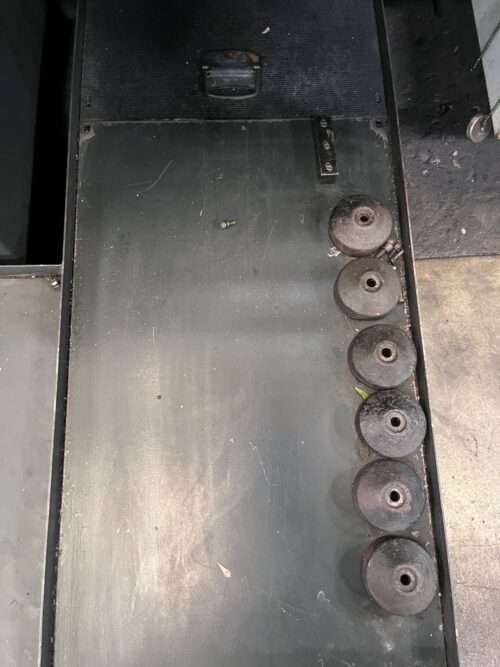

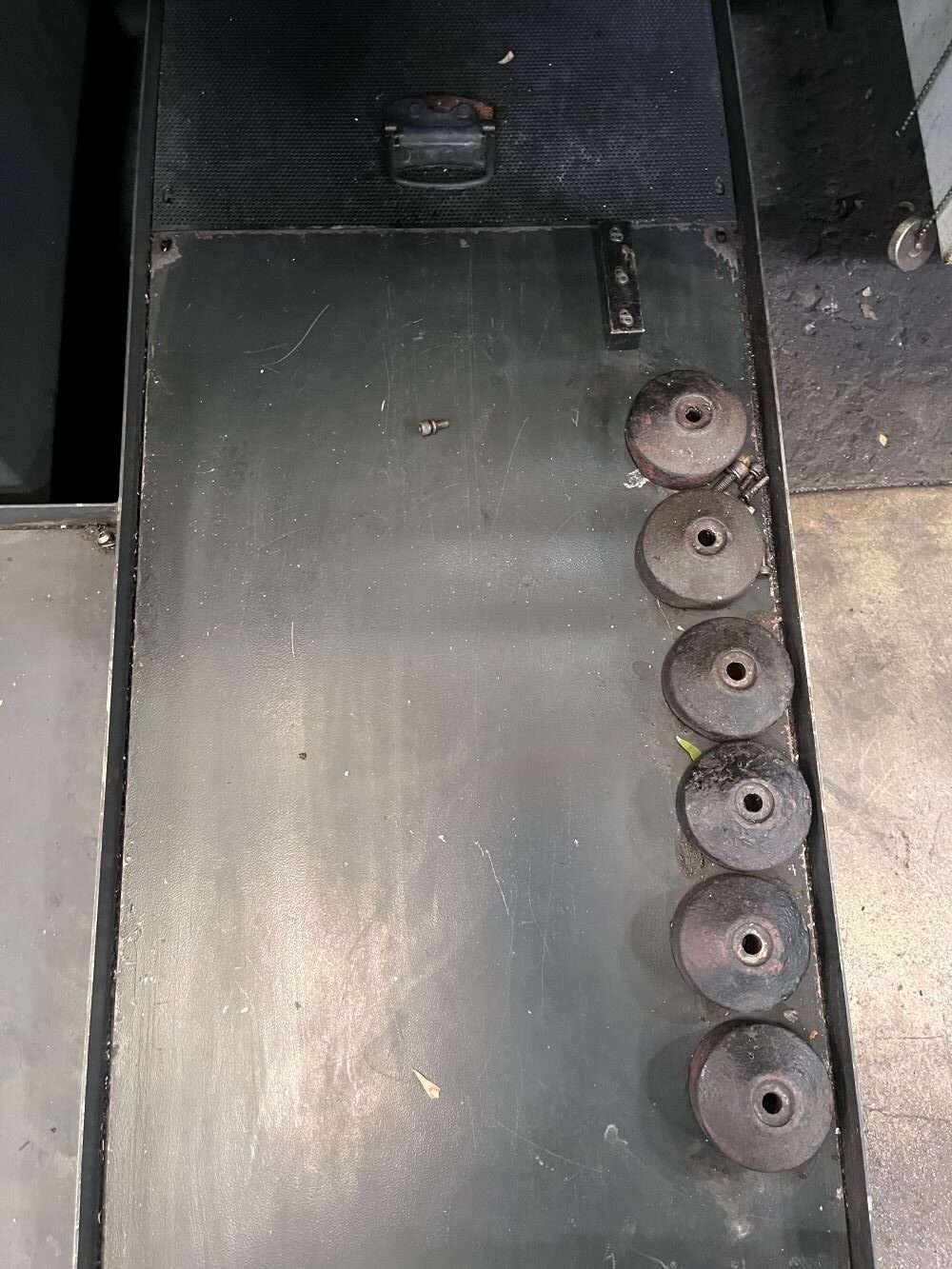

- Levelling Pads
|
| Capacity: |
|---|
- Max Turning Diameter: 15.74″
- Max Turning Length: 18.78″
- Max Bar Capacity: 2.0″
- Swing Over Bed: 19.68″
|
| Travels: |
|---|
- X Axis Travel: 9.1″
- Z Axis Travel: 18.78″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 945 IPM
|
| Spindle: |
|---|
- Spindle Nose: A2-6
- Spindle Bore: 2.4″
- Spindle Speed: 3500 RPM
- Spindle Motor: 15 HP
|

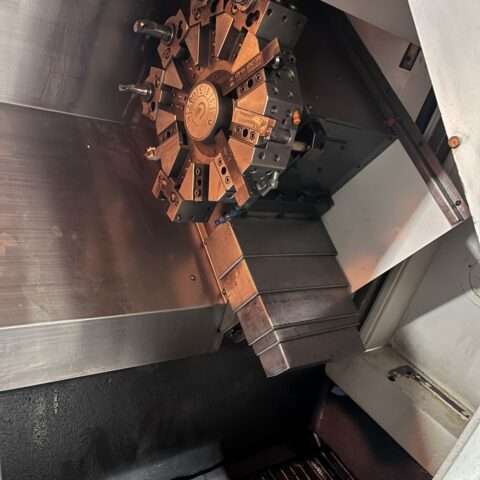

| Turret: |
|---|
- Turret Capacity: 10 Stations
- Turret Index Time: 0.5 Second
- Tool Size: 1″
|
| General: |
|---|
- Power: 50/60 HZ, 220v / 3-Phase
- Overall Dimensions: ″ x ″ x ″ High ?
- Weight: 7,055 lbs
|
