*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Citizen |
| Model: |
L32-1M8 |
| Year: |
2019 |
| Condition: |
Used – Excellent |
| Equipped With: |

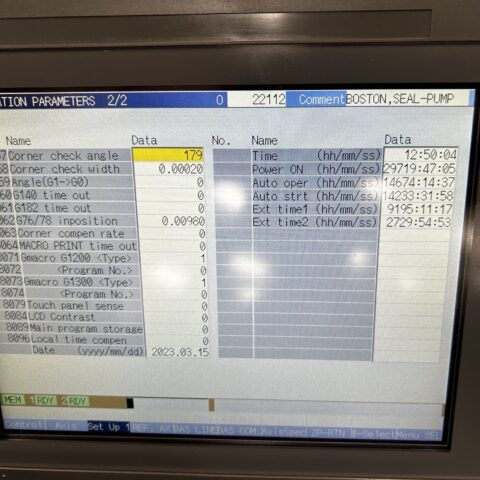

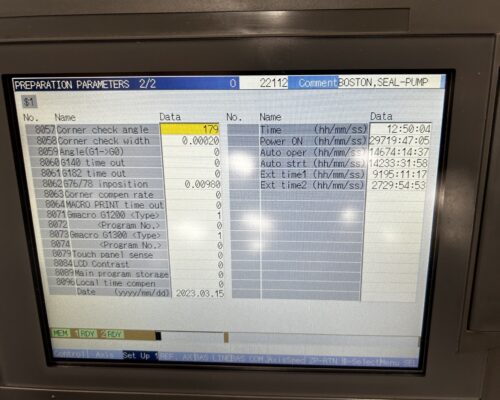

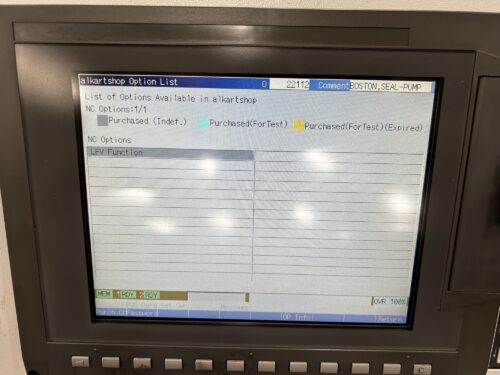

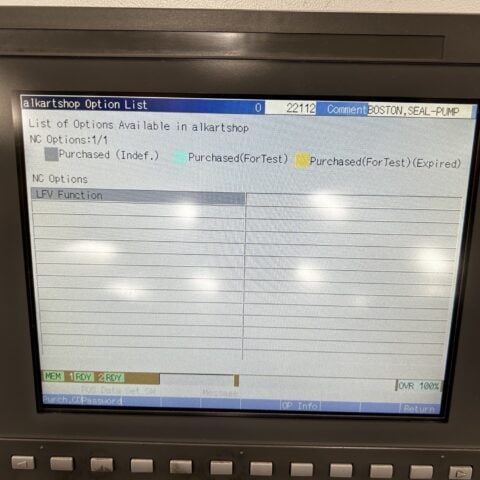

- Citizen CNC Control
- Number of Axis Z1, X1, Y1, Z2, X2, C1, C2

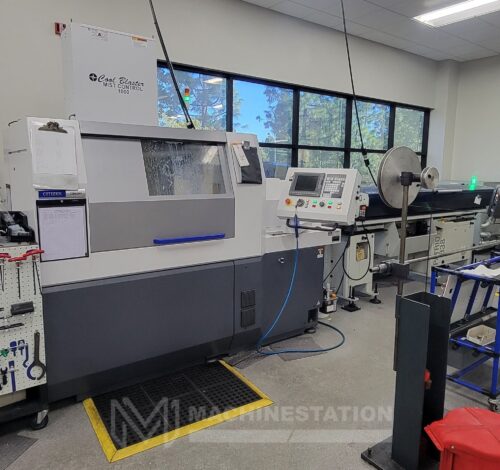

- Comes with Patriot 8-feet Bar Feeder

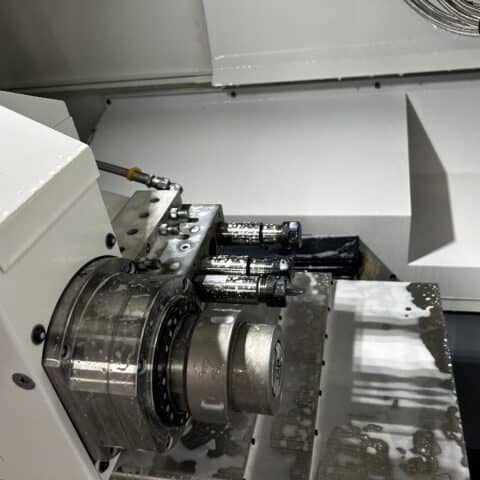

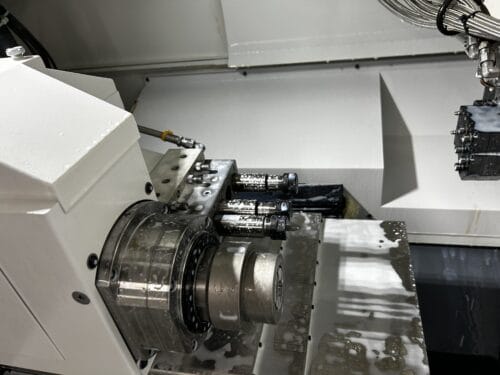

- Back Spindle
- Live Tools Capable
- Long Parts Capable
- C & Y Axis Capabilities
- Milling Interpolation
- MPG Control
- Main & Back Spindle Synchronization
- High Speed Rapid Travers: 1260 IPM
- High Speed Program Processing
- Absolute Position Detection
- Automatic Lubrication System
- Cool Blaster Mist Control 1000
- High Pressure Coolant System
|
| Capacity: |
- Max Machining Diameter: 1.26″ (32 mm)
- Max Machining Length with Guide Bushing: 12.6″ (320mm)
- Max Machining Length without Guide Bushing: 2.5″ (63.5 mm)
- Max Bar Capacity: 1.26″ (32 mm)
- Spindle Through Hole Diameter: 1.53″ (39 mm)
- Max Tool Positions: 19 – 30
- Max. Front Drilling Diameter: 0.472″ (12 mm)
- Max. Front Tapping Diameter: M12
- Max. Back Spindle Chucking Diameter: 1.26″ (32 mm)
- Max. Back Spindle Drilling Diameter: 0.472″ (10 mm)
- Max. Back Spindle Tapping Diameter: M10
- Max. Tool Spindle Drilling Diameter: 0.314 ( 8 mm)
- Max. Tool Spindle Tapping Diameter: M6
|
| Spindle: |
- Main Spindle Indexing: 360° (Full C-Axis)
- Main Spindle Speed: 8,000 RPM
- Main Spindle Motor: 7.5 kw
- Back Spindle Indexing: 360° (Full C-Axis)
- Back Spindle Speed: 8,000 RPM
- Back Spindle Motor: 3.7 kw
|
| Standard Tools: |

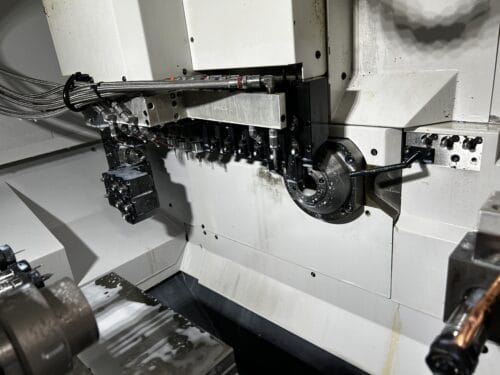

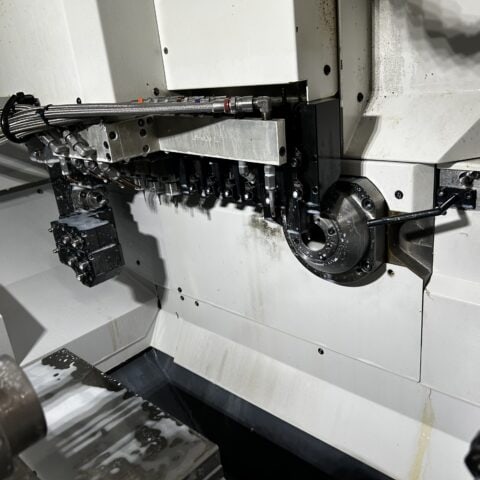

- Gang Turning Tool: 6
- Front Drilling tool : 4 – 9
- Back Drilling Tools: 5 – 11
|
| Power Driven Tools Attachment: |
- Gang rotary tool : 4 – 6
- Driven Tool Speed: 6,000 RPM
- Driven Tool Motor: 1.0 kw
|
| General: |

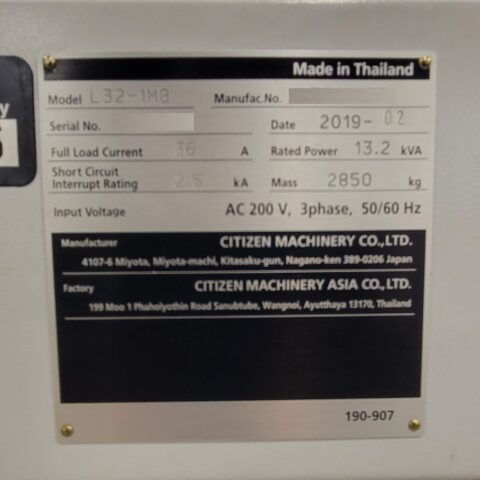

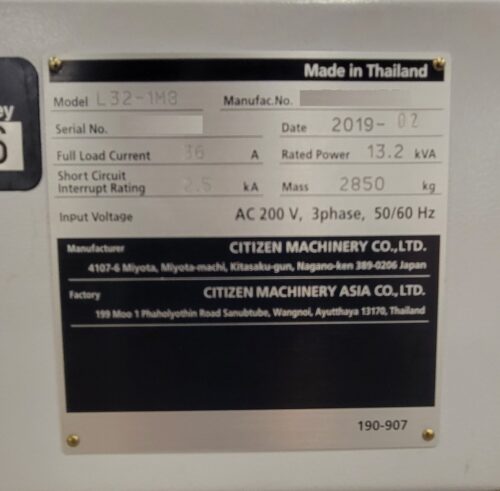

- Power Source: AC 220v / 3-Phase / 50/60 Hz
- Power Requirement: 13.2 kva
- Overall Dimensions: 97″ X 55″ X 69″ High without Bar Feeder
- Weight: 6,283 lbs. Approx.
|
