*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

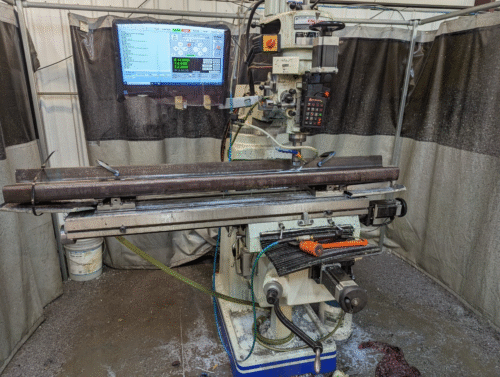

| SKU: | 112751 |
| Make: | Supra |
| Model No.: | 10″x54″ |
| Year of Manufacture: | 2022 |
| Condition | Used – Good |
| Equipped With: |
|---|
| 4th Axis |
| CNC Controller |
| UBS Port |
| Misc. Tool Holders |
| Tapping Capabilities |
| Table: |
|---|
| Table Size 10″ x 54″ |
| Table T-slot size : 5/8″ x 3″ |
| Longitudinal X Travel : 35.5″ |
| Forward/Back Cross Y Travel : 15.5″ |
| Quill Z Travel: 4.5″ |
| Vertical Mill Travel Knee Lift Up/Down : 18″ |
| Ram Travel : 18″ |
| Spindle Taper : R8 |
| Head Swivel RH/LH : 90°/90° |
| Head Tilting F/B : 45°/45° |
| Ram Turret Swivel : 360° |
| General: |
|---|
| Power: 220-240VAC 1Ø |
| Spindle Motor: 3 HP Variable Speed |
| Spindle Speeds Type : Step Pulley |
| Spindle Speeds (RPM): Up to 5600 |
| Max Rapid on X Y Z : 100 IPM (2540 mm/m) |
| X + Ram Max Travel Area : 104″ (2641.6mm) x83″(2108.6mm) |
