*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

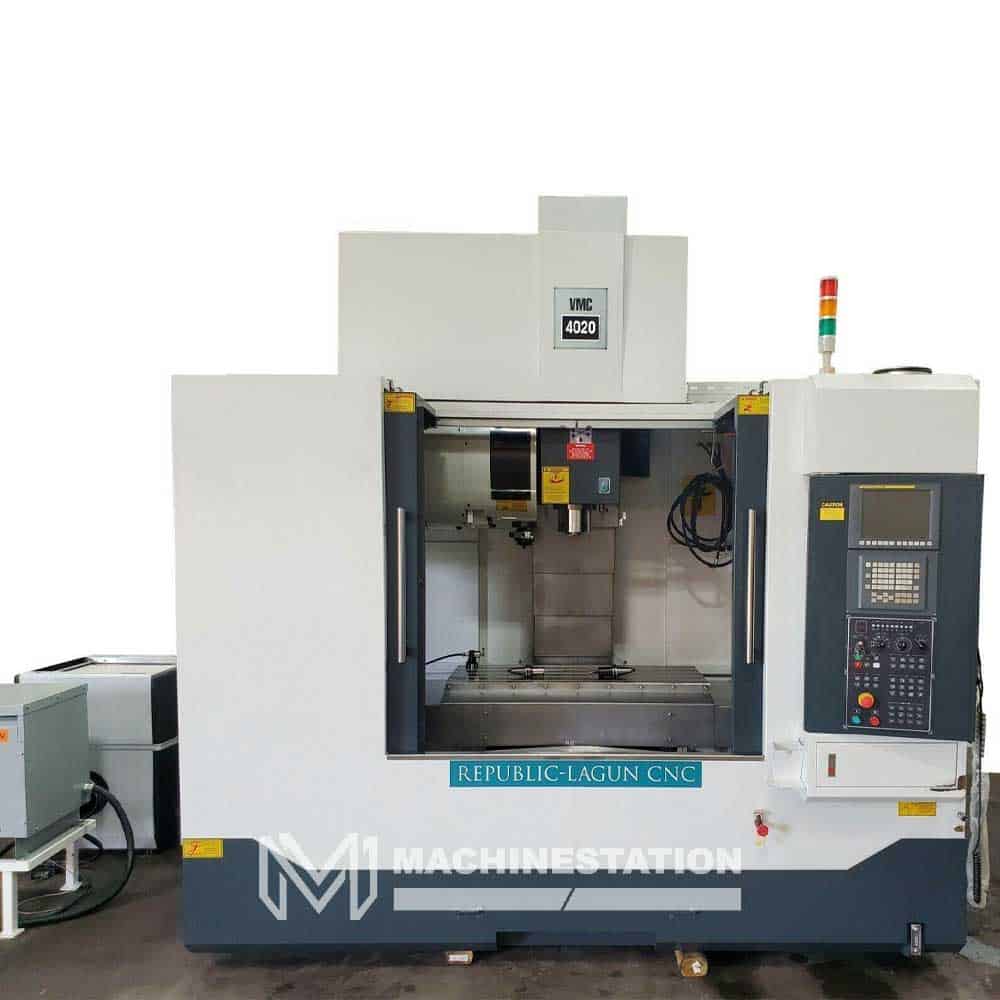

| Make: | LAGUN |
| Model: | VGC-4020 |
| Year: | 2014 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|
| Fanuc Oi-M CNC Control |
| 8,000 RPM Precision Spindle |
| Renishaw Probing system |
| 24 Automatic high speed tool changer |
| PCMCIA Card Slot |
| 40 Taper Spindle |
| MPG Control |
| Rigid Tapping |
| Spindle Chiller |
| Telescopic way covers |
| Oil Cooler |
| Coolant System |
| Travels: |
|---|
| X-Axis: 40″ |
| Y-Axis: 20″ |
| Z-Axis: 22″ |
| Rapid Traverse Rates X, Y & Z Axis: 1000 IPM |
| Cutting Feed Rates: 400 IPM |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 27.2″ |
| Table: |
|---|
| Length: 47.2″ |
| Width: 19.7″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 0.79″ |
| Max Weight on Table: 1100 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 8000 RPM |
| Spindle Power: 15 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Station Side Mounted |
| Max Tool Weight: 13.2 lbs |
| Max Tool Dia: 3.1″ -5.9″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time : 4.5 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 35 kva / 3-Phase |
| Overall Dimensions: 114″ x 87″ x 112″ High |
| Weight: 11,440 lbs |
