| Make: | FANUC |
| Model: | M-710iC/20L |
| Year: | 2012 |
| Equipped With: |
|---|

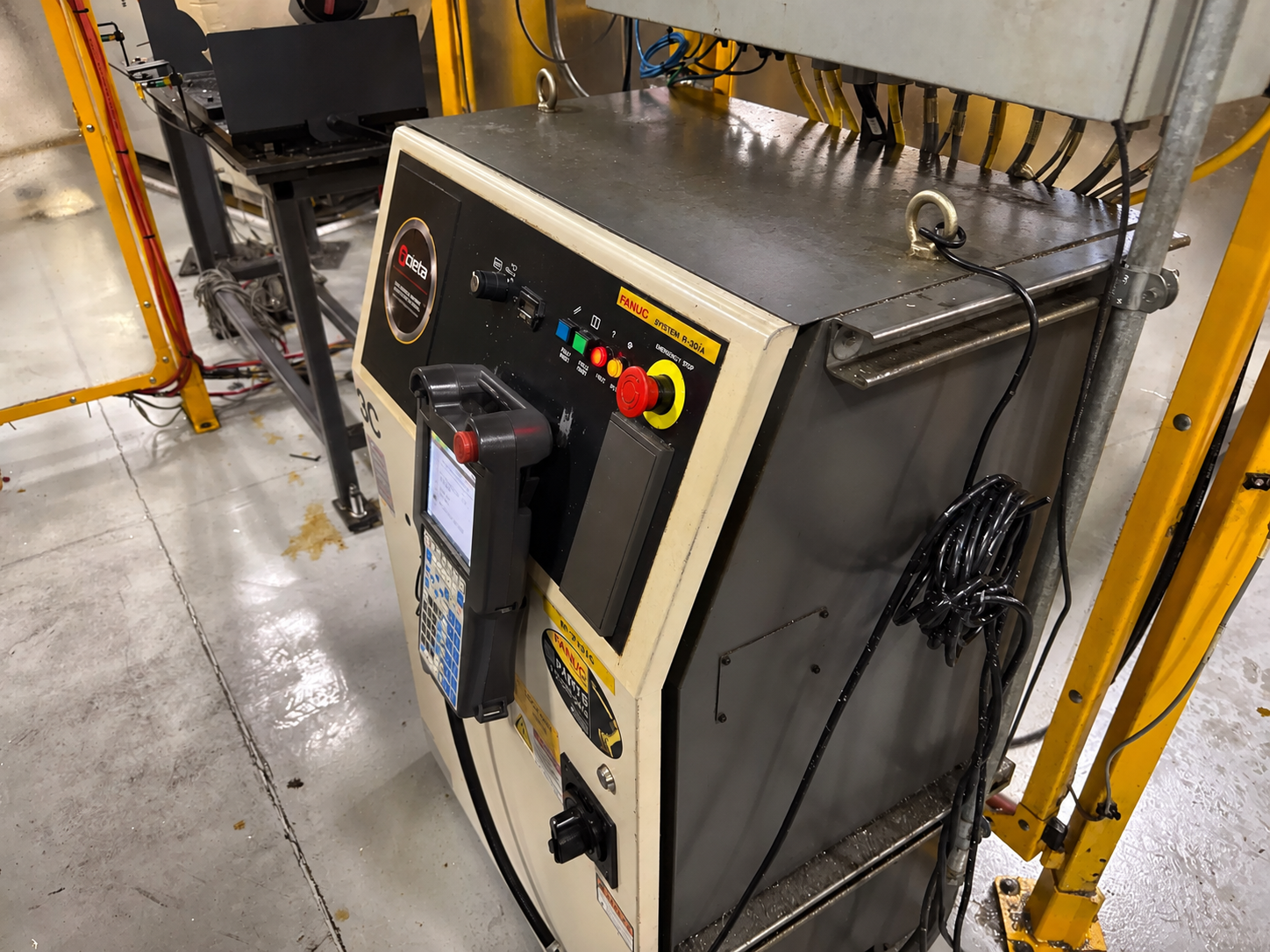

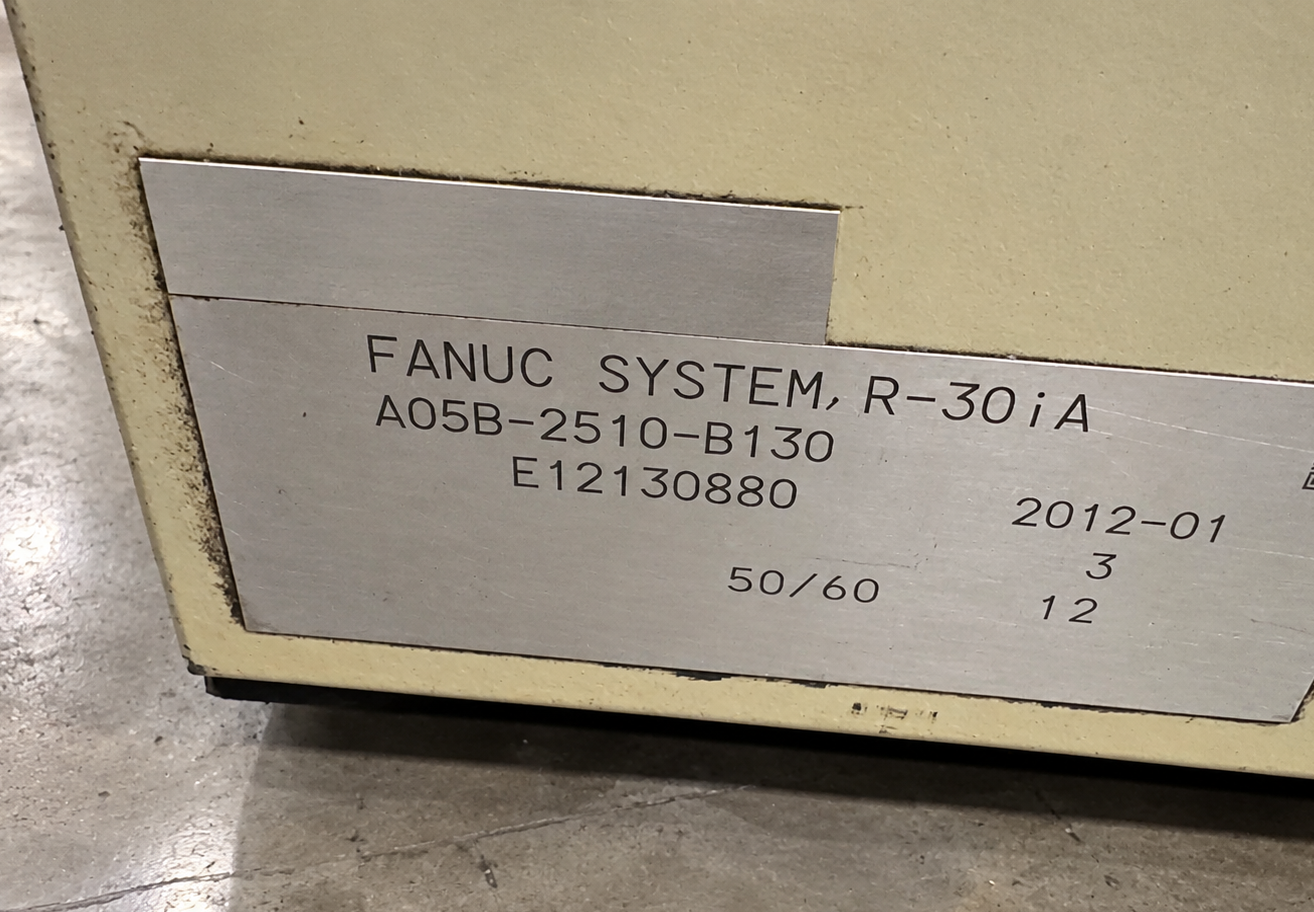

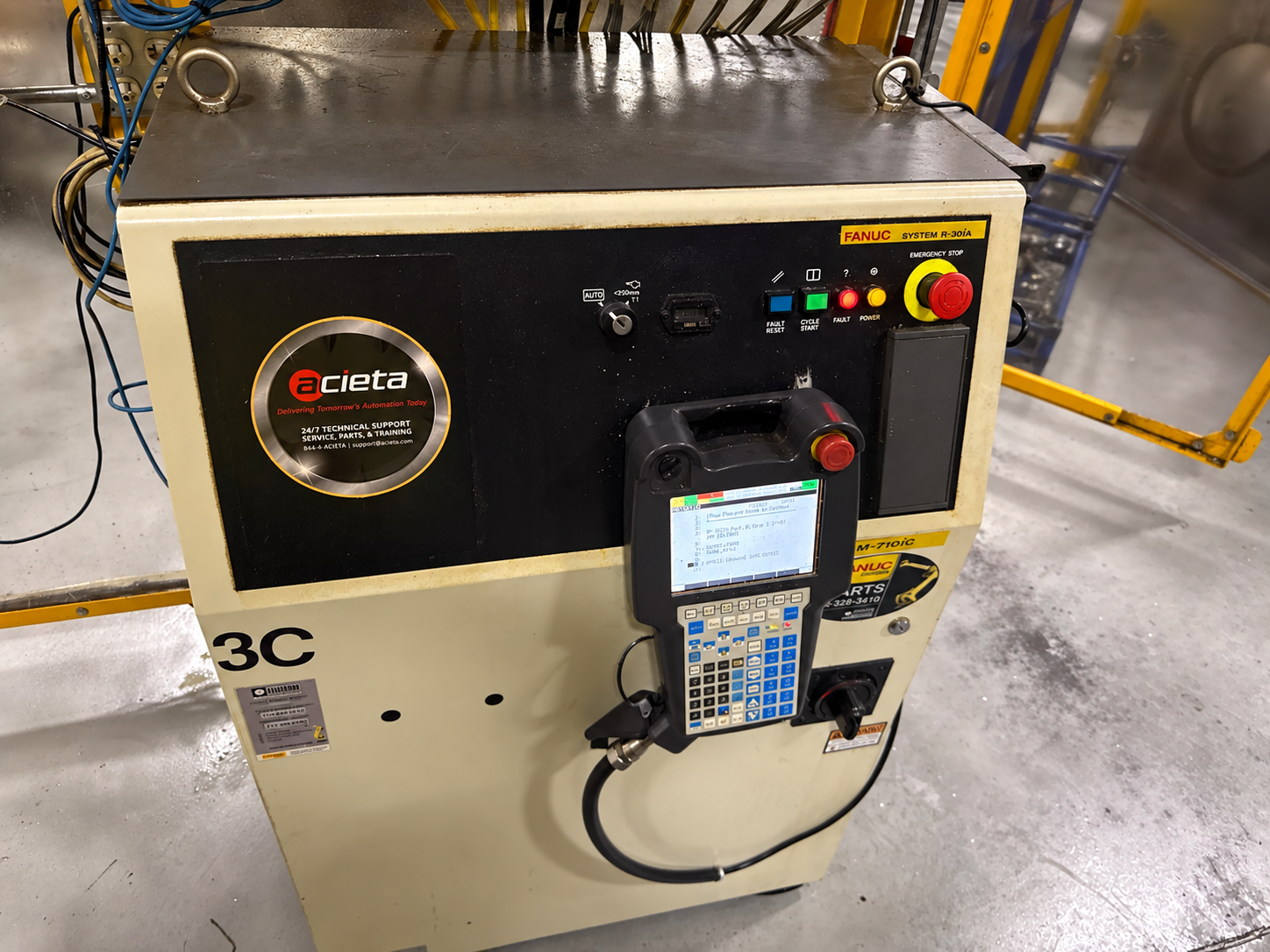

| FANUC System R-30iA Robot Controller |

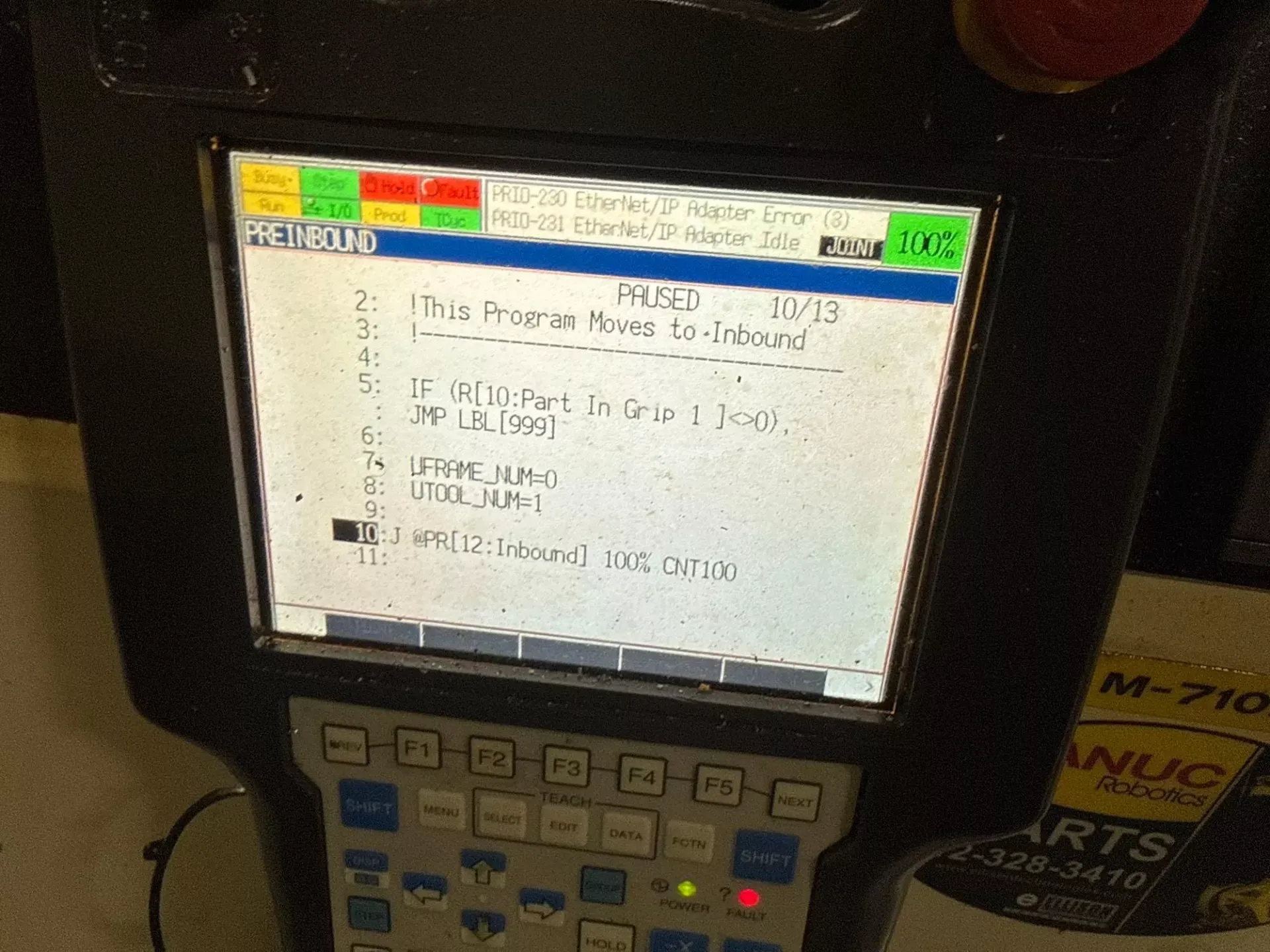

| FANUC Color Screen Teach Pendant |

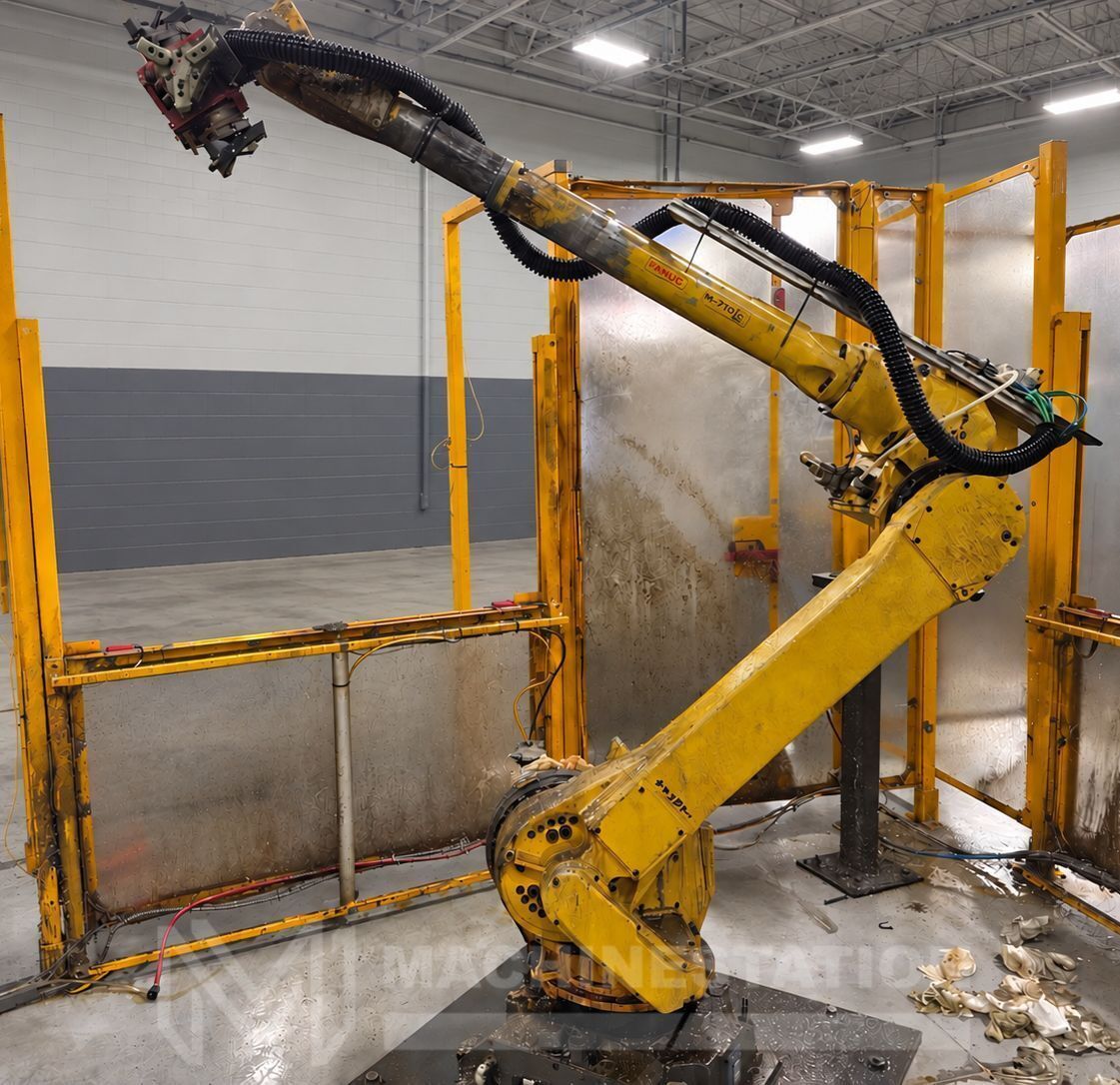

| 6-Axis Articulated Robot Arm |
| Long-Reach Arm Configuration |
| Wrist-Mounted Gripper Assembly |
| Arm-Mounted Pneumatic Valve Assembly and Tubing |
| Steel Base Mounting Plate |
| Capacity: |
|---|
| Maximum Wrist Payload: 44.1 lbs |
| Maximum Reach: 122.44 inch |
| Number of Controlled Axes: 6 |
| Axis Motion Range: |
|---|
| J1 Axis: 360° |
| J2 Axis: 225° |
| J3 Axis: 432° |
| J4 Axis: 400° |
| J5 Axis: 280° |
| J6 Axis: 900° |
| Maximum Axis Speeds: |
|---|
| J1 Axis: 175°/Second |
| J2 Axis: 175°/Second |
| J3 Axis: 180°/Second |
| J4 Axis: 350°/Second |
| J5 Axis: 360°/Second |
| J6 Axis: 600°/Second |
| General: |
|---|
| Power Requirement: 50/60 Hz / 3-Phase |
| Robot Mechanical Weight: 1,190 lbs Approx. |
