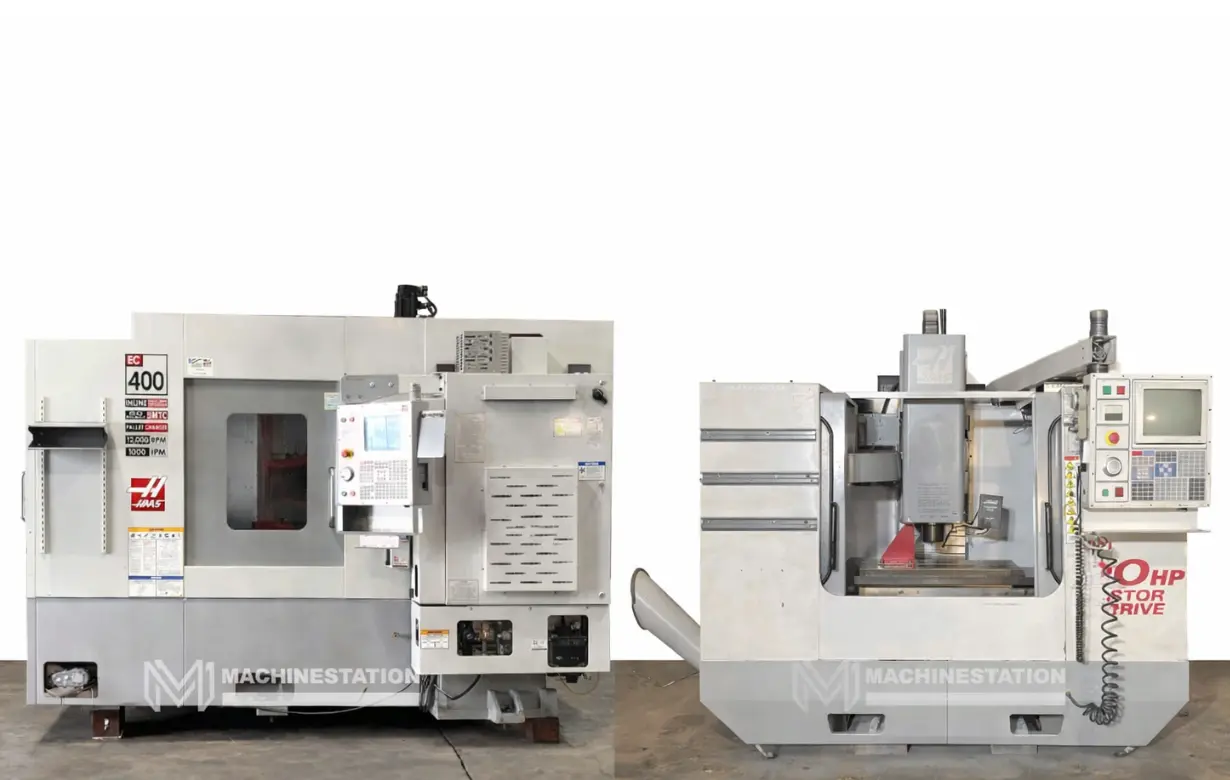

Haas EC Series vs Haas VF Series

Haas is a CNC machine brand that features several top notch CNC machine series that can do high quality machining works for your shop. Among the different milling machine series that this brand makes, the VF and EC series are widely popular and appreciated by different customers across the globe.

But when manufacturers who are not that experienced with Haas machines plan to buy one, they get confused about which one they should buy because both of them are good. So, in this blog, we will do a different Haas EC vs Haas VF comparison to help you understand which one will be good for you.

Major Differences between Haas EC Series vs Haas VF Series:

Here are some of the major differences between the CNC machines of the Haas EC series and Haas VF series that one needs to know:

1. Machine Orientation:

The first and major difference between the EC and VF series is the spindle orientation of the CNC machines. The Haas EC CNC machines have a horizontal orientation, where the tool approaches the workpiece from the side.

While the Haas VF series has vertical spindle orientation, where the tool approaches the machine from above, which is a more familiar setup for most CNC machine operators.

2. Spindle Speed:

The next factor that one needs to consider for Haas EC vs Haas VF performance comparison is the EC vs VF spindle spec and power of the machines. The Haas VF series CNC machines take the lead in this, as the machines are generally faster. The VF lineup CNCs have a spindle speed generally ranging from 8100 to 10000 RPM, producing more power too.

The EC series machines, on the other hand, are slower with spindle speeds ranging from 6000 to 7500 rpm, and produce less power. But that is not a problem if you don’t need high speed machining work.

3. Tool Capacities:

The next CNC features we need to discuss are the tool capacities of the two types of CNC machines. The Haas EC series takes the lead here, as most of its CNC machines feature more tool capacity, which helps in doing more kinds of machining operations.

The Haas VF series features lesser tool capacity, which can increase handling but is still acceptable for low volume machining works.

4. Chip Evacuation:

The next thing that we need to talk about for the Haas EC vs Haas VF comparison is which machines can provide you with better chip evacuation that will help you prevent recutting of chips and less wear and tear of the machine.

One of the main EC series horizontal machining advantages is its orientation that leads to better chip evacuation due to gravity, making it a better option compared to Haas VF machines.

5. Best Applications: Haas EC vs VF:

Now, last but not least, here are the major differences among the best applications between the machines of these two lineups.

Haas EC Series machines can be used for horizontal machining work with large parts and larger volume production needs.

Haas VF series machines can be used for flexible machining work, which is beneficial for prototyping work too.

Pros and Cons Breakdown:

Series	Pros	Cons
VF	Affordable, versatile, quick setup, user-friendly, wide range	Less efficient for high-volume, limited automation, single-table
EC	High-volume, dual-pallet, large parts, automation, lights-out	Higher cost, longer setup, more complex, needs more space

Also, if you want to buy used Haas EC series or Haas VF series CNC machines, then check our collection out.

Conclusion:

Haas EC CNC machines and VF CNC machines are both highly capable machines that can do high quality machining work. But they have very different specs, which are made to serve different customer bases, so find out which one suits your needs and go ahead to buy it.

FAQs:

1. Which series is more suitable for multi-sided machining?

The EC Series is commonly chosen for multi-sided machining because horizontal machines work well with tombstones and pallet systems, allowing multiple faces of a part to be machined in fewer setups.

2. Which series among the Haas VF and EC requires more floor space?

EC Series machines typically require more floor space due to their horizontal layout, pallet systems, and chip handling equipment. VF Series machines generally have a more compact footprint.

3. Are programming skills different between EC and VF machines?

Both series use Haas control systems, so the interface is similar. That said, EC Series machines often involve more complex fixture planning and work offset management compared to VF machines.
