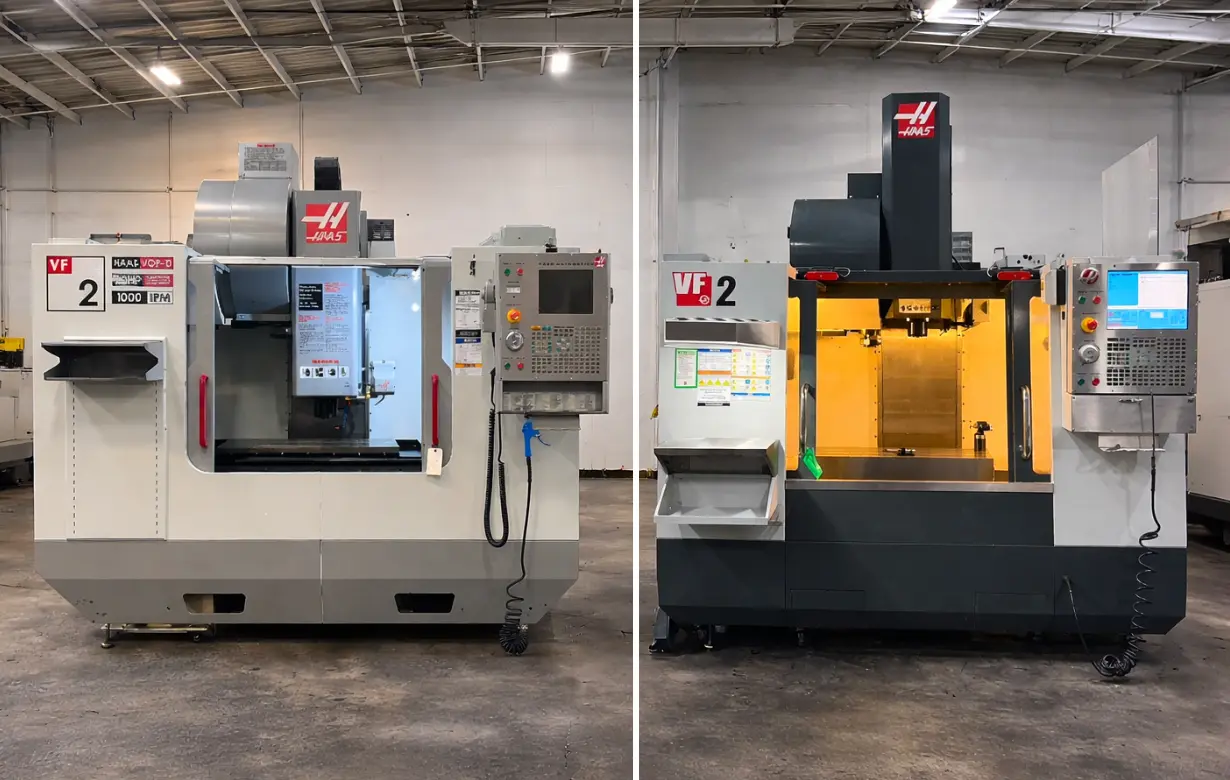

Haas VF-2D vs Haas VF-2

The Haas VF series is a well-known lineup of top-notch CNC machines used by manufacturers across various industries for a wide range of applications. Among the various machines in the VF lineup, the Haas VF2D and VF2 are two of the most popular names. But these two machines have different purposes of machining, and should be used by different manufacturers. So, which one is suitable for your manufacturing needs? To find that out, you should read this blog to the end and know which one among Haas VF 2D vs Haas VF2 is the right choice for you.

Major Differences Between Haas VF 2D vs Haas VF2:

Here are some of the major differences that you need to know when choosing between VF 2D and VF2 of Haas:

1. Spindle Drive Design:

One of the major differences between the two CNC machines is their spindle drive design. The “D” in the VF-2D models stands for the direct drive spindle configuration. While, on the other hand, in standard VF-2 models, you might find a belt drive or a geared head system. The geared heads use a transmission to multiply torque, while the direct drive systems couple the motor directly to the spindle shaft.

2. Surface Finish Excellence:

If your regular manufacturing work includes 3D surfacing and high end mold making, then the Haas VF2D is certainly your winner. In the absence of gears and belts between the motor and the tool, there is significantly less harmonic noise.

The direct drive system of the VF-2D model provides cleaner rotation, which helps in a superior surface finish that often needs less hand polishing or post processing, which further helps you in saving money and time in the finishing department.

3. The Work Envelope:

Both the CNC machines, Haas VF2 and VF2D, have a similar work envelope. So, no matter which model you buy, you are not going to have any issue with the workpiece machining capabilities.

The machines also have similar footprints, so both models are fit for use in small to mid sized manufacturing shops. So they will be able to handle workpieces of a similar size and fit into a similar space. So when choosing between VF2D and VF 2, the work envelope or footprint is not going to be your headache.

4. Material Compatibilities:

The next factor one needs to consider for Haas VF 2D vs VF2 specifications is the material compatibility of the CNC machines.

Choose the VF2 if you mainly do machining of stainless steel, heavy cast iron, or titanium. The lower end torque feature of the CNC machine is used when using large diameter drills and indexable cutters.
Choose the VF-2D if you mainly do cutting of aluminium, plastics, and composites. The higher RPMs help you to take advantage of high speed machining techniques, using small diameter end mills at blazing fast feed rates.

So, if you’re planning to go with the VF-2D machine after learning all the differences, then you must check the used Haas VF-2D VMC collection of MachineStation.

Conclusion:

The Haas VF2D and VF2 are two very capable CNC machines, with not much difference between them. But their specific differences can be an important factor for the manufacturers to do machining of several products of different materials.

FAQs:

1. Which model is more common in the used CNC machine market?

The Haas VF-2 is more commonly available in the used market, with a broader range of years and configurations compared to the VF-2D.

2. Are operators able to switch easily between VF-2 and VF-2D machines?

Yes. Operators familiar with Haas VF-series machines typically adapt quickly, as the control interface and operating logic are the same.

3. What does the "D" in VF-2D actually stand for?

The “D” stands for Direct Drive. This means the motor is coupled directly to the spindle, eliminating the need for belts or a gearbox.
