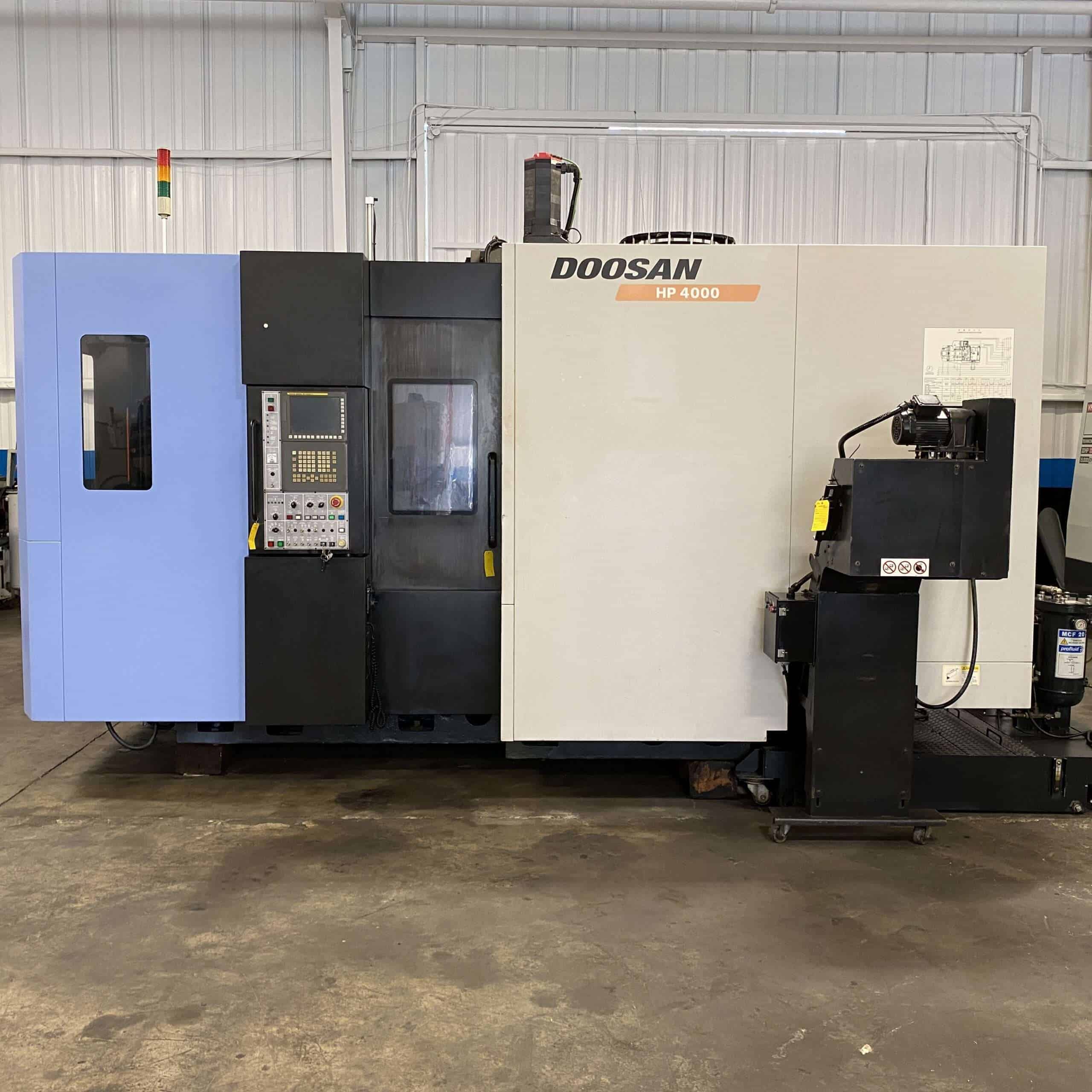

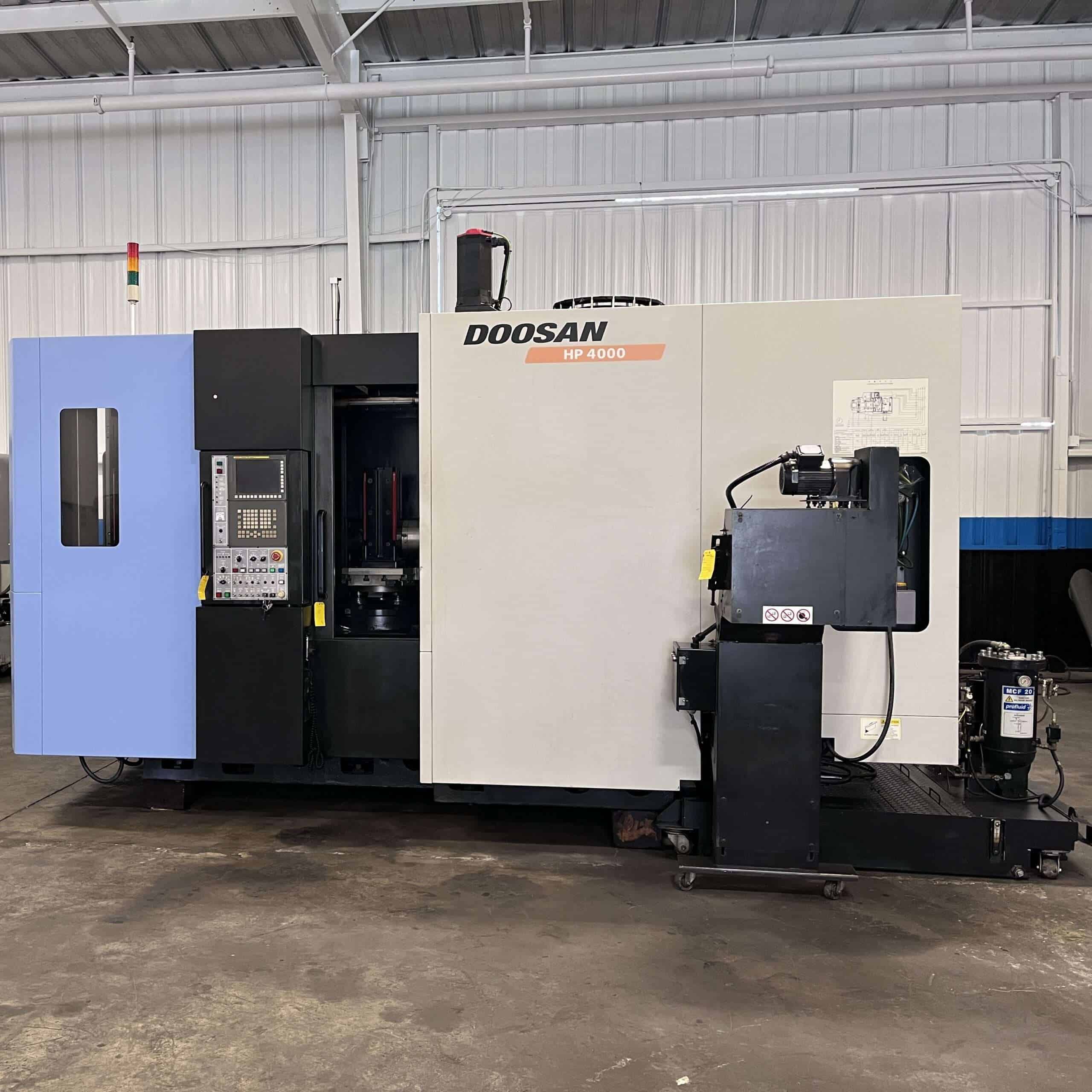

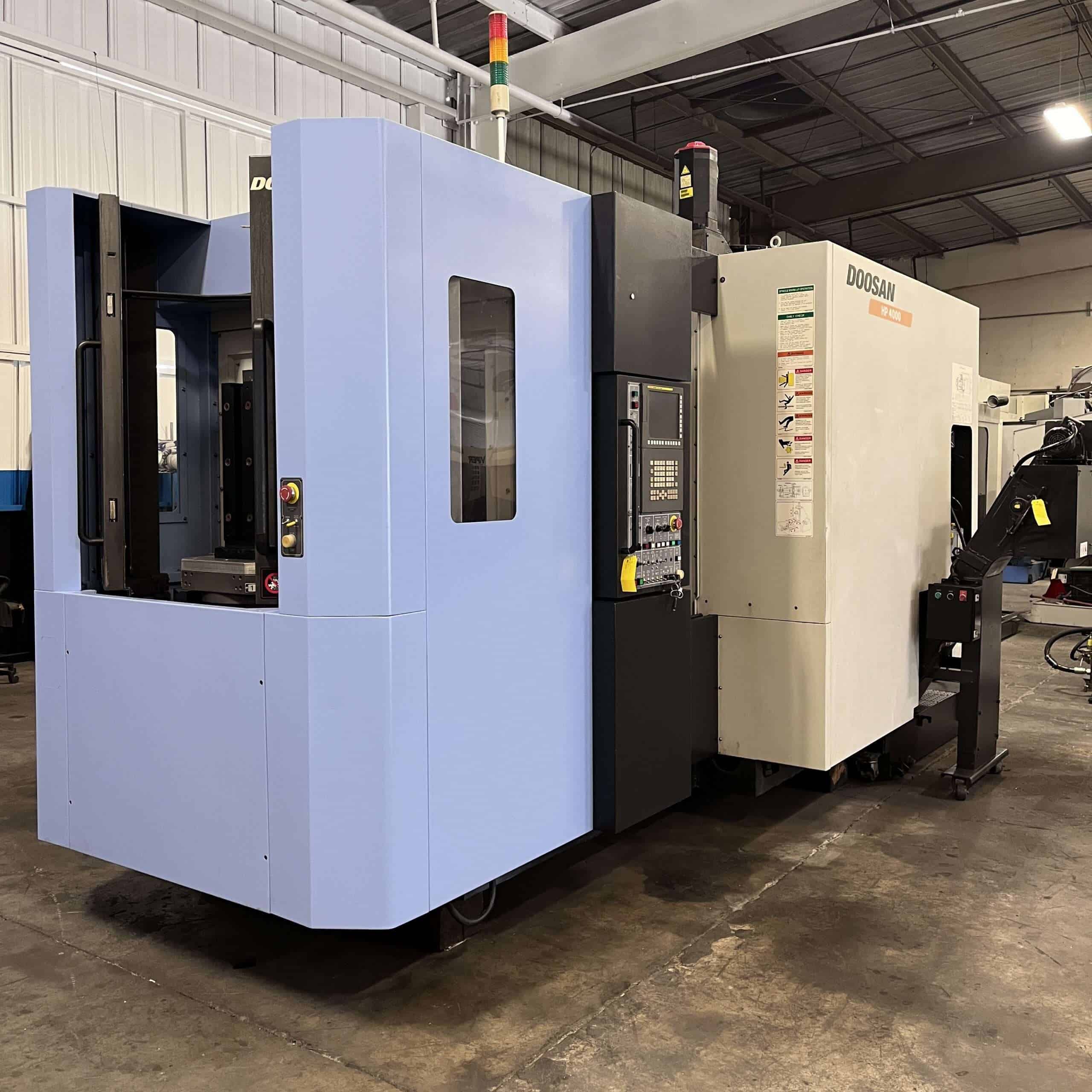

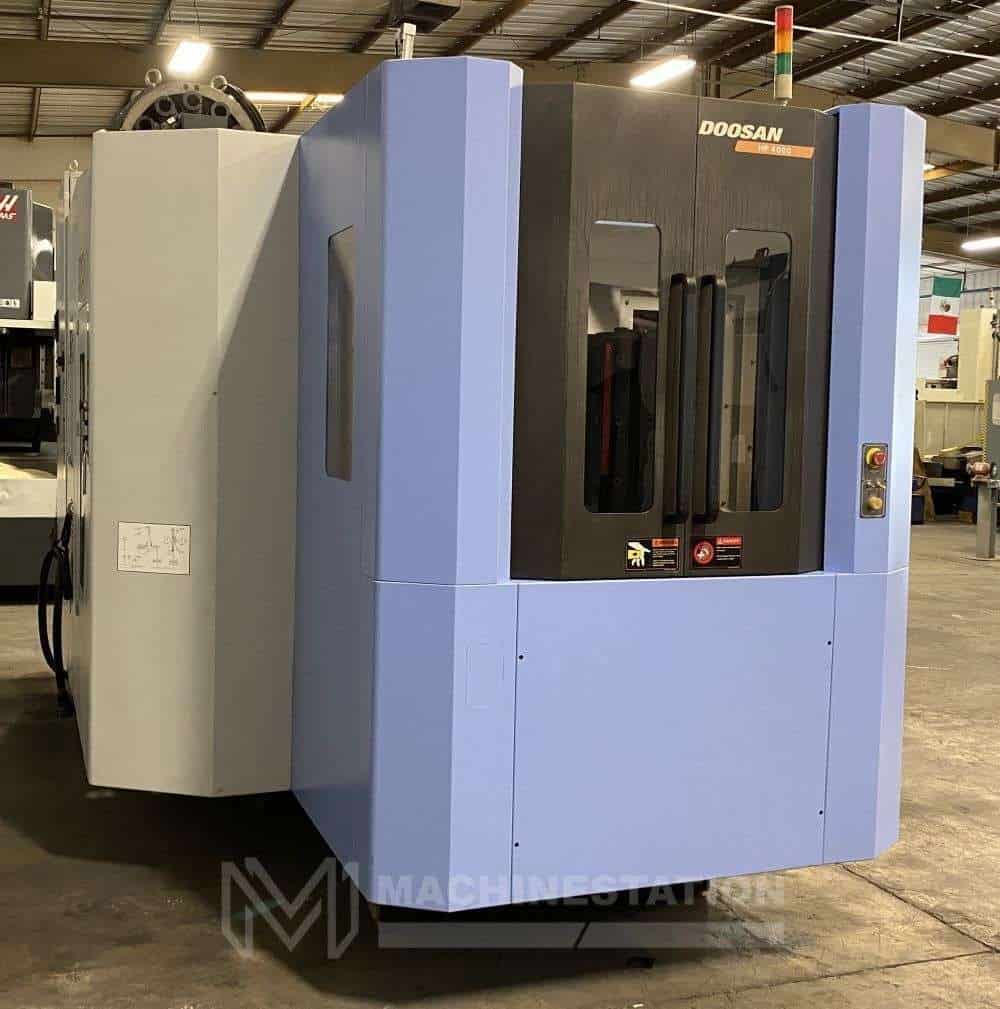

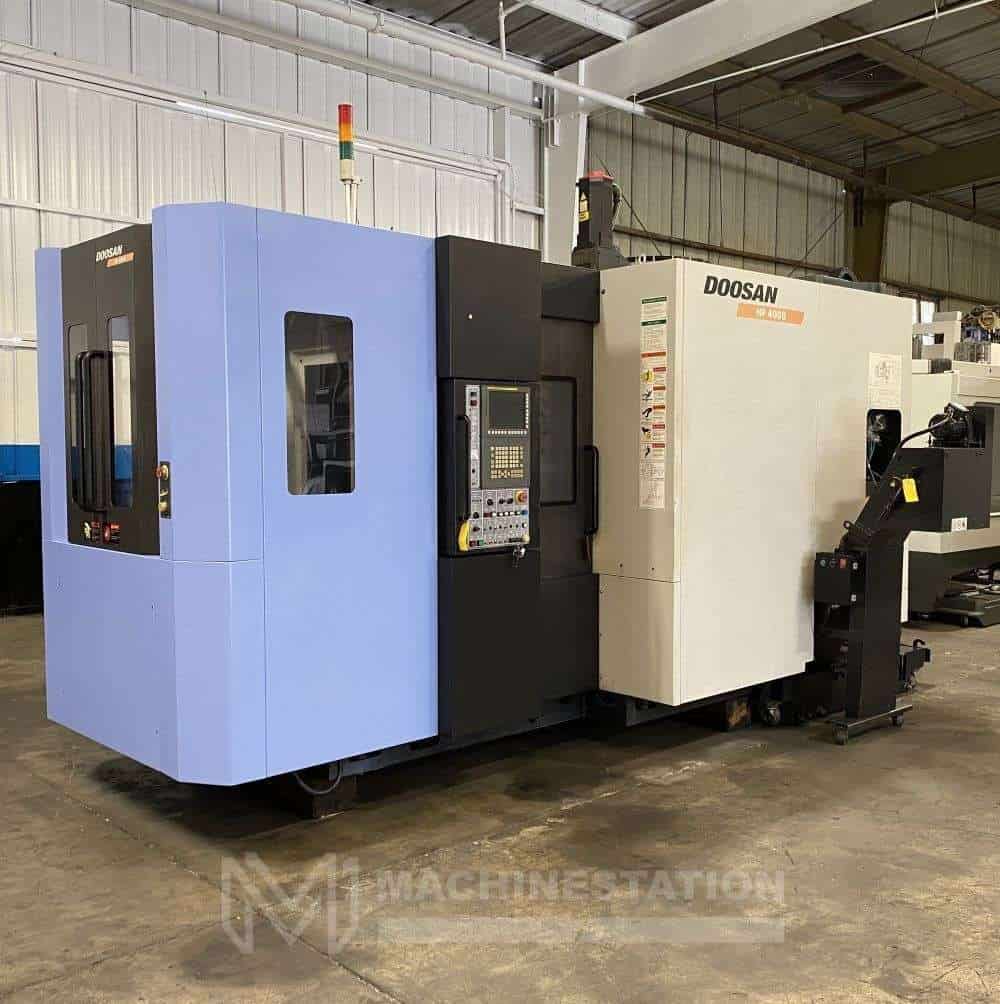

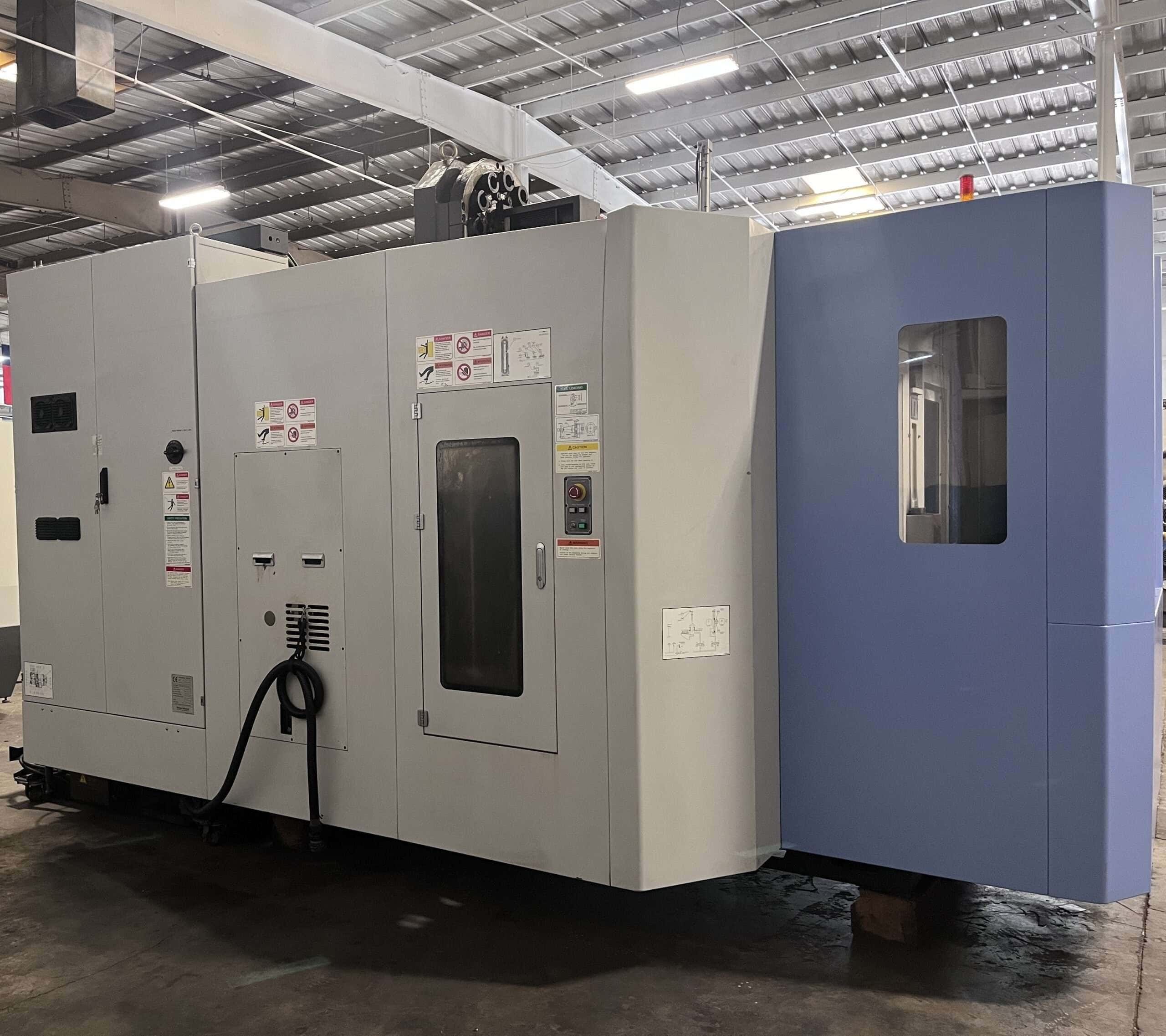

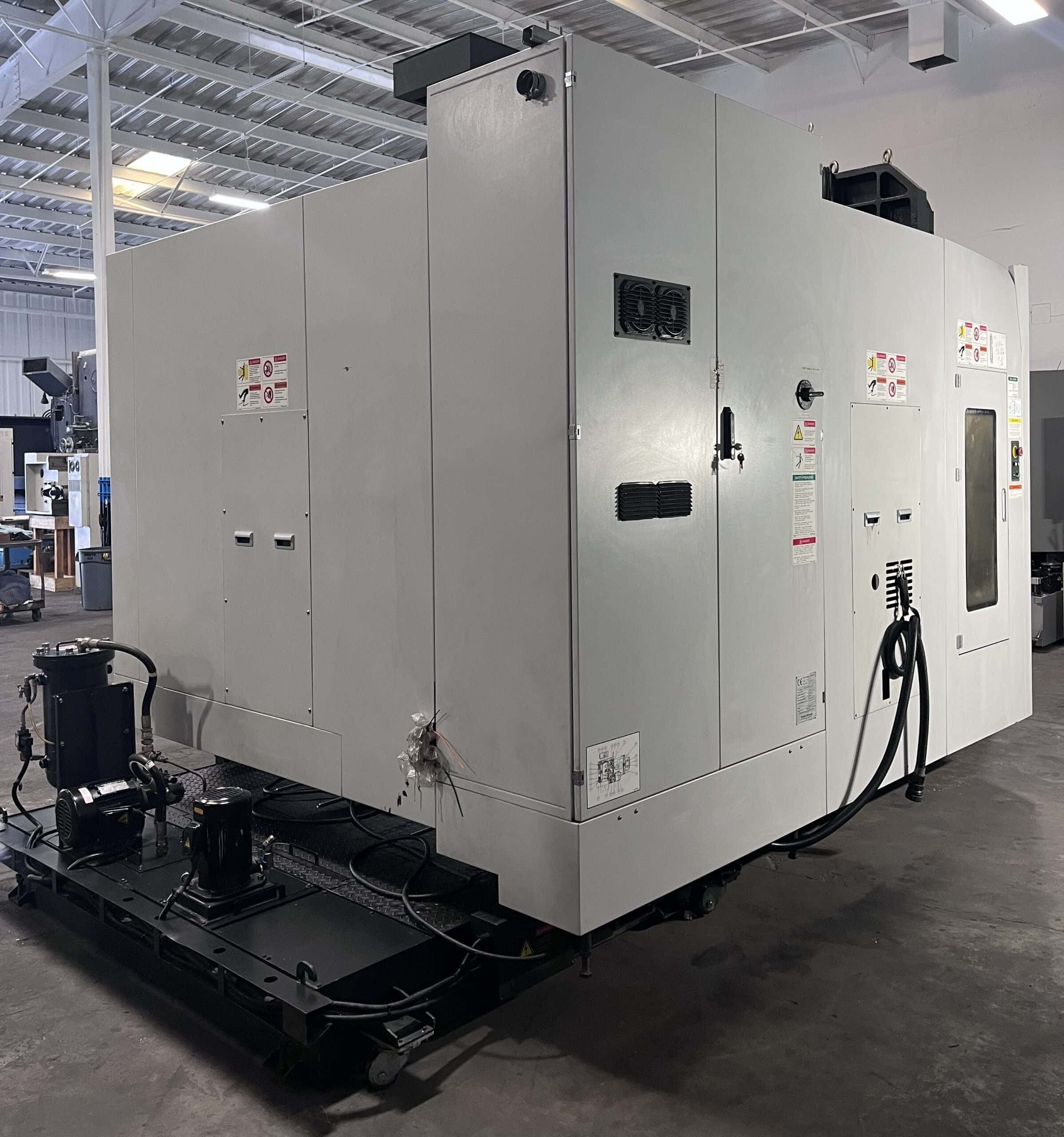

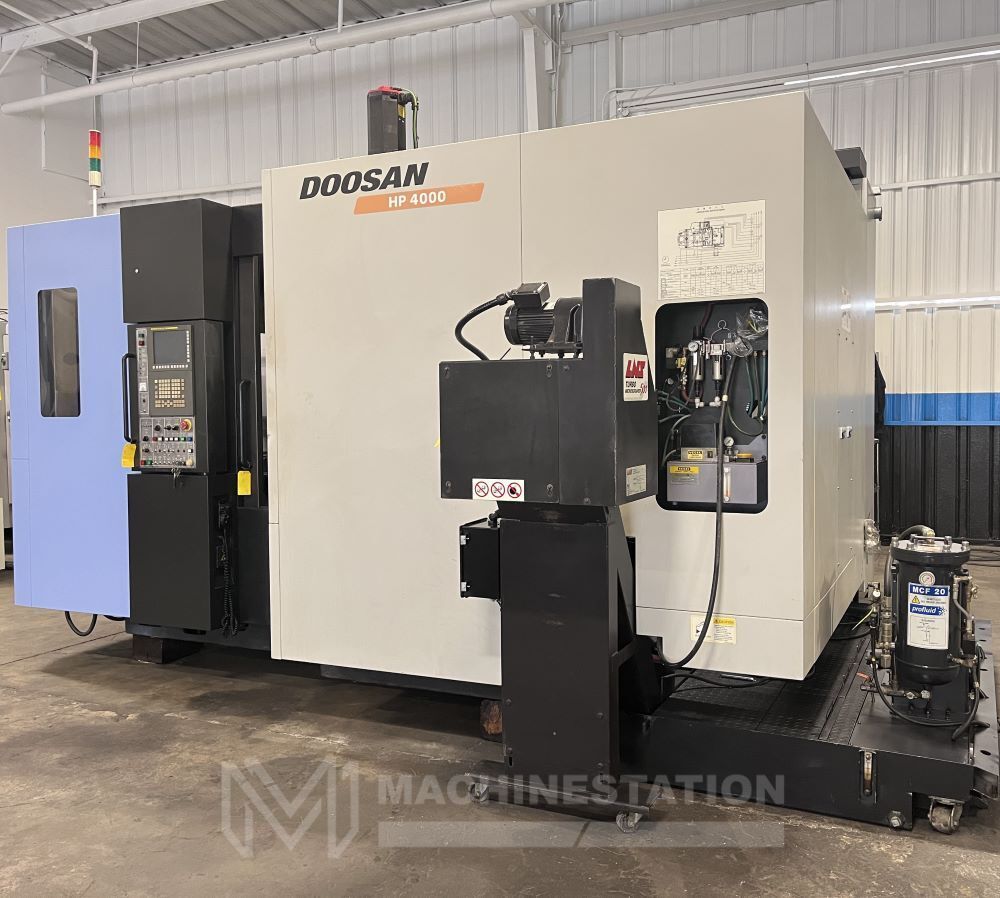

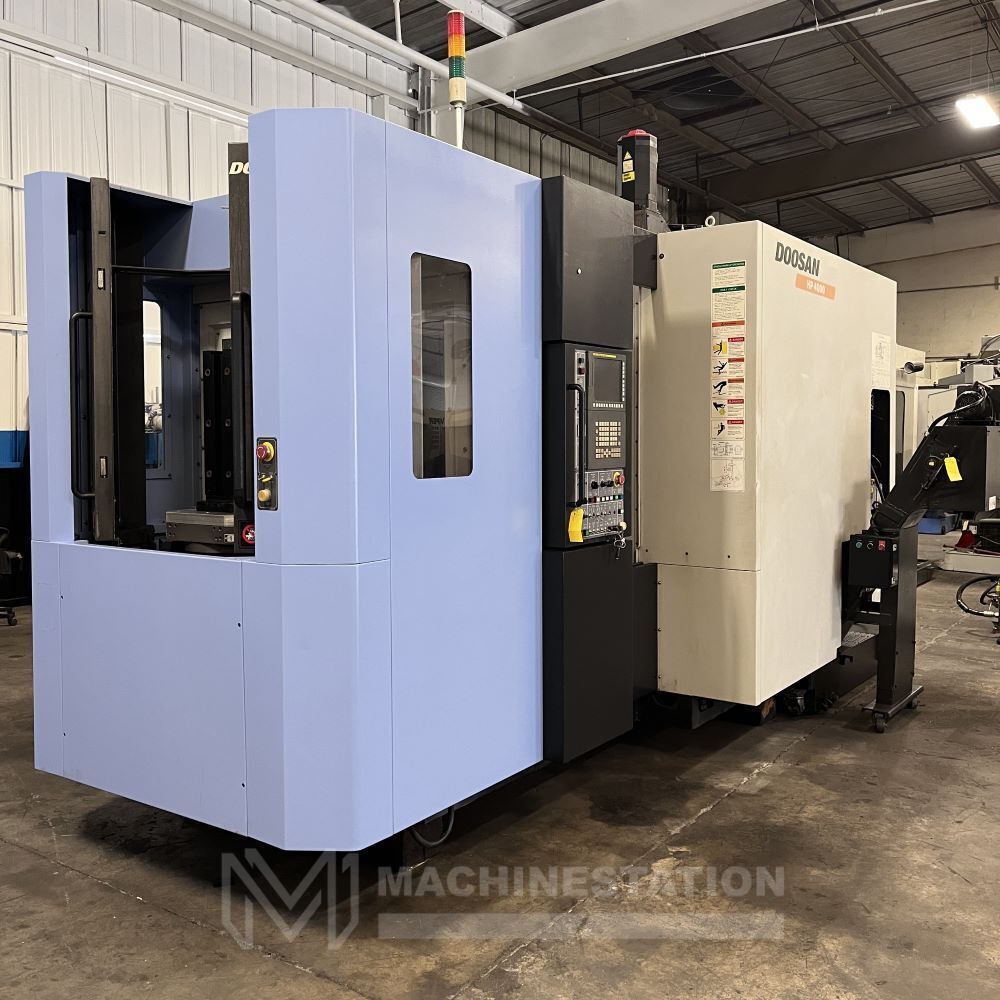

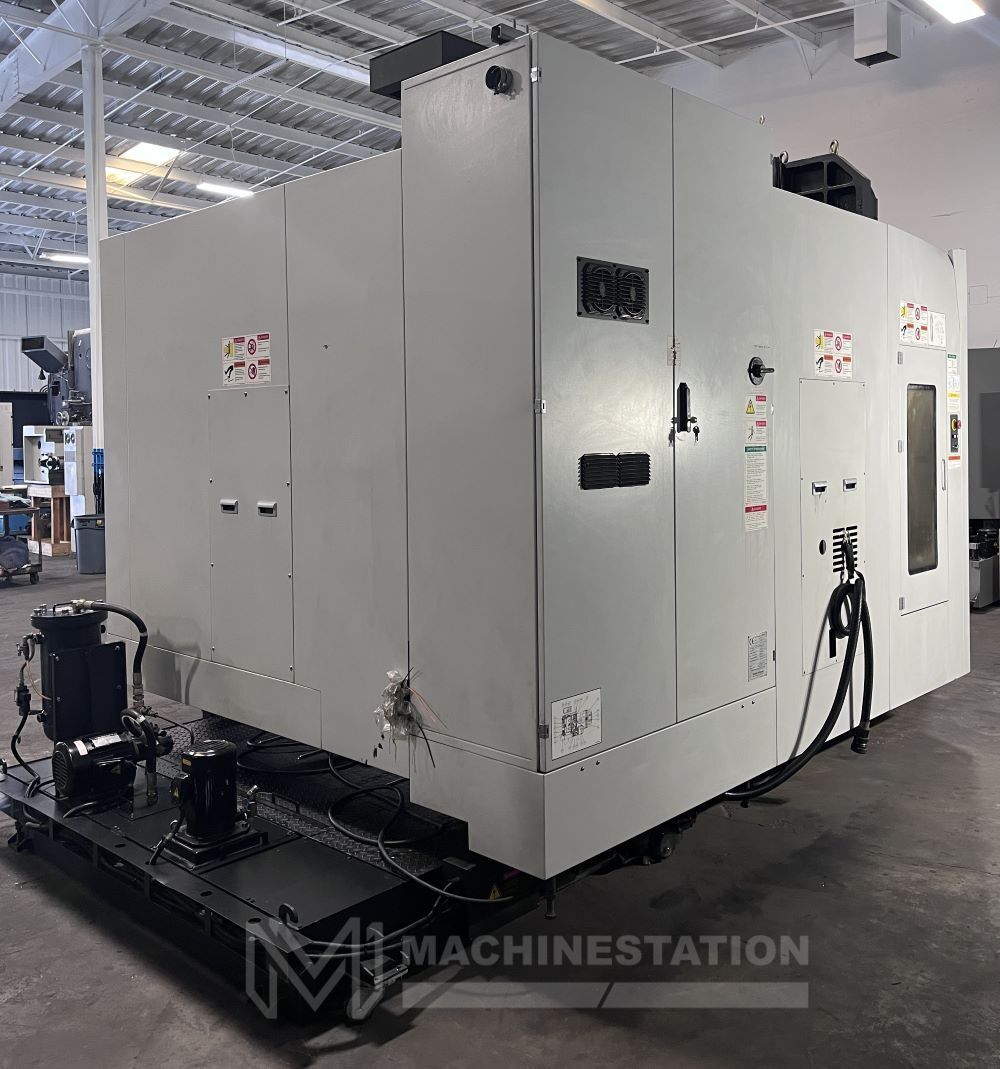

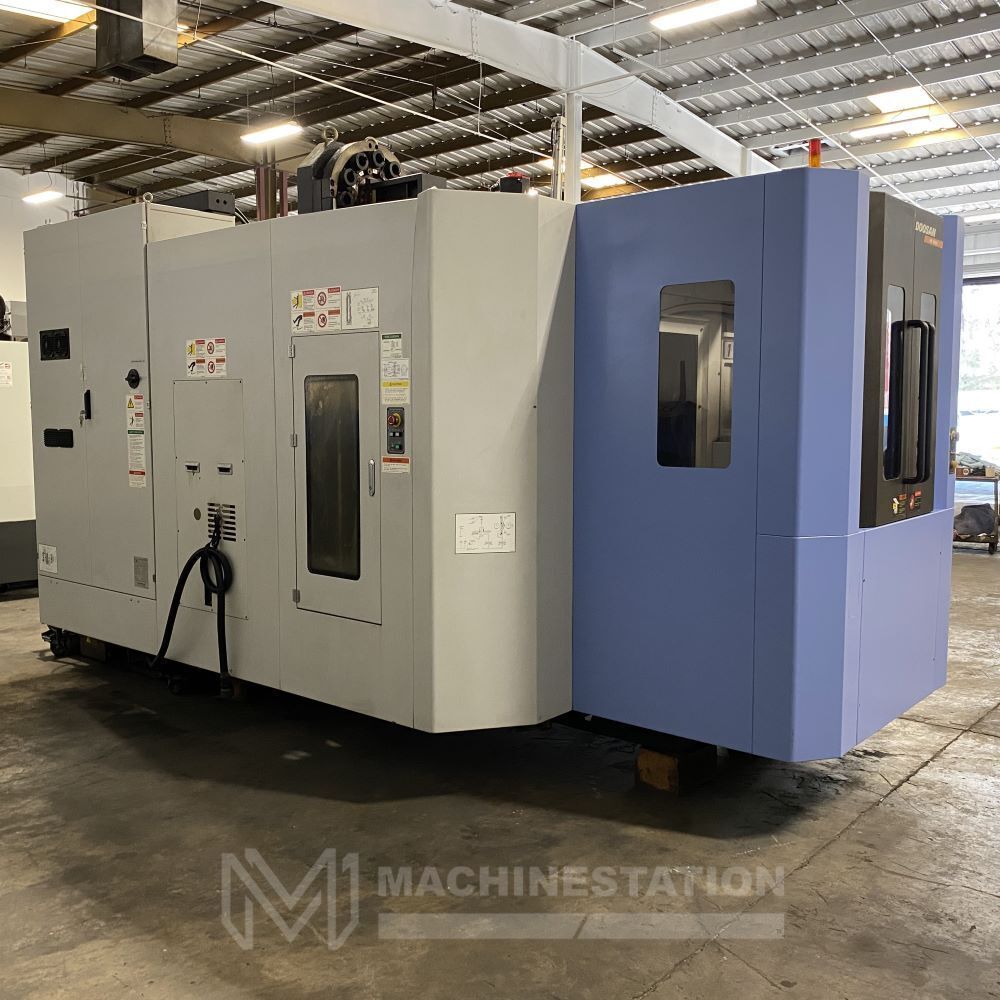

Used Doosan HP-4000 CNC Horizontal Machining Center For Sale
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | HP-4000 |
| Year: | 2008 |
| Cutting Hours: | Only |
| Features: |
|---|

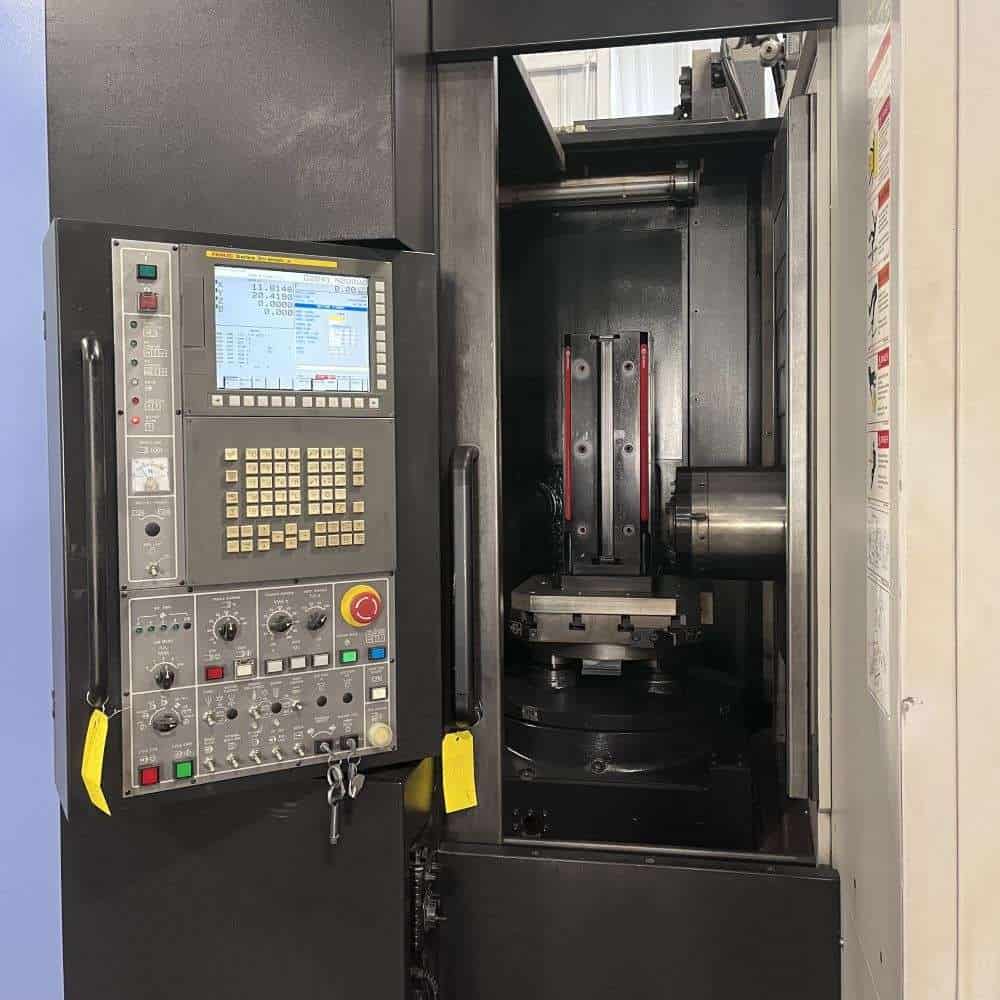

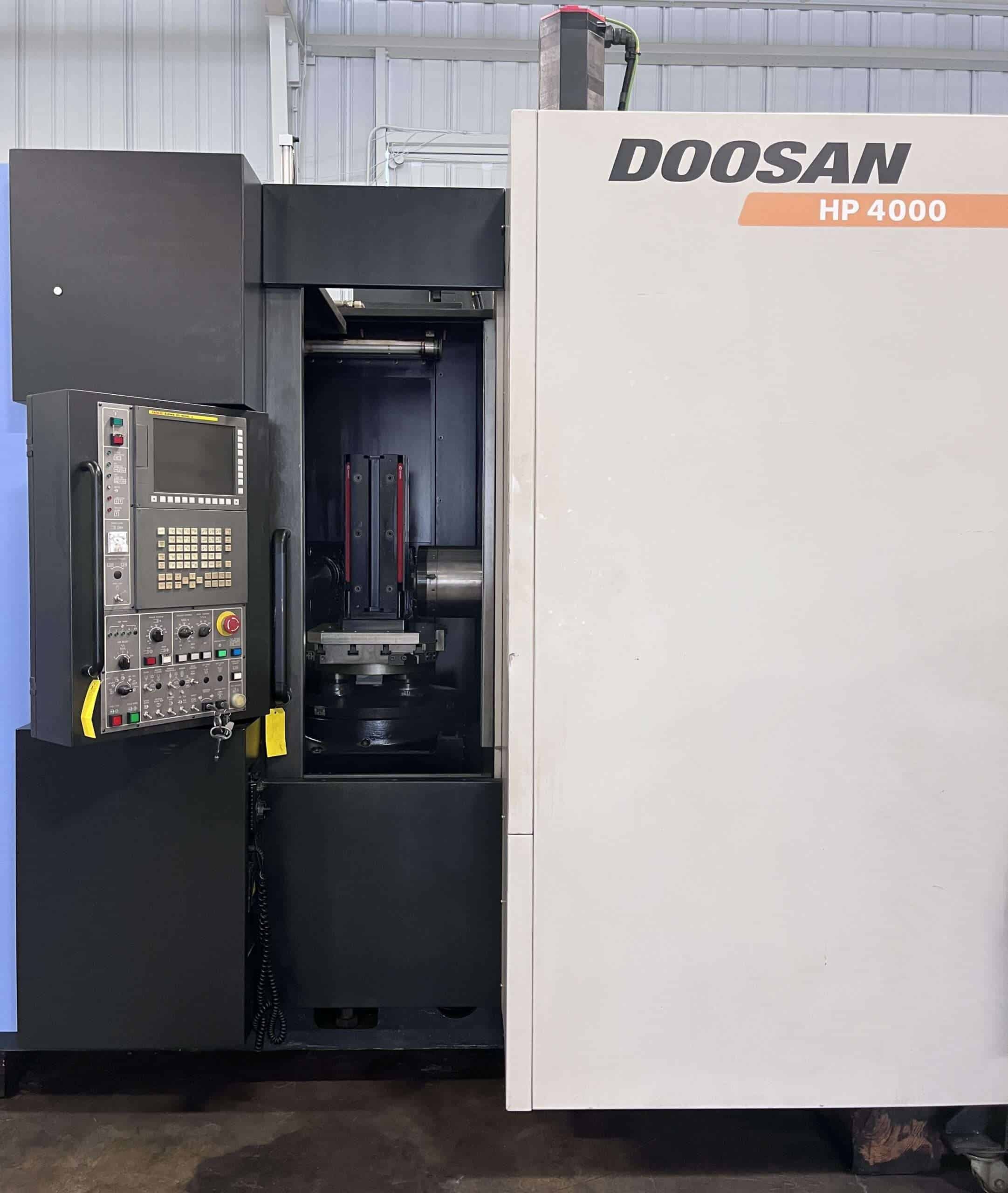

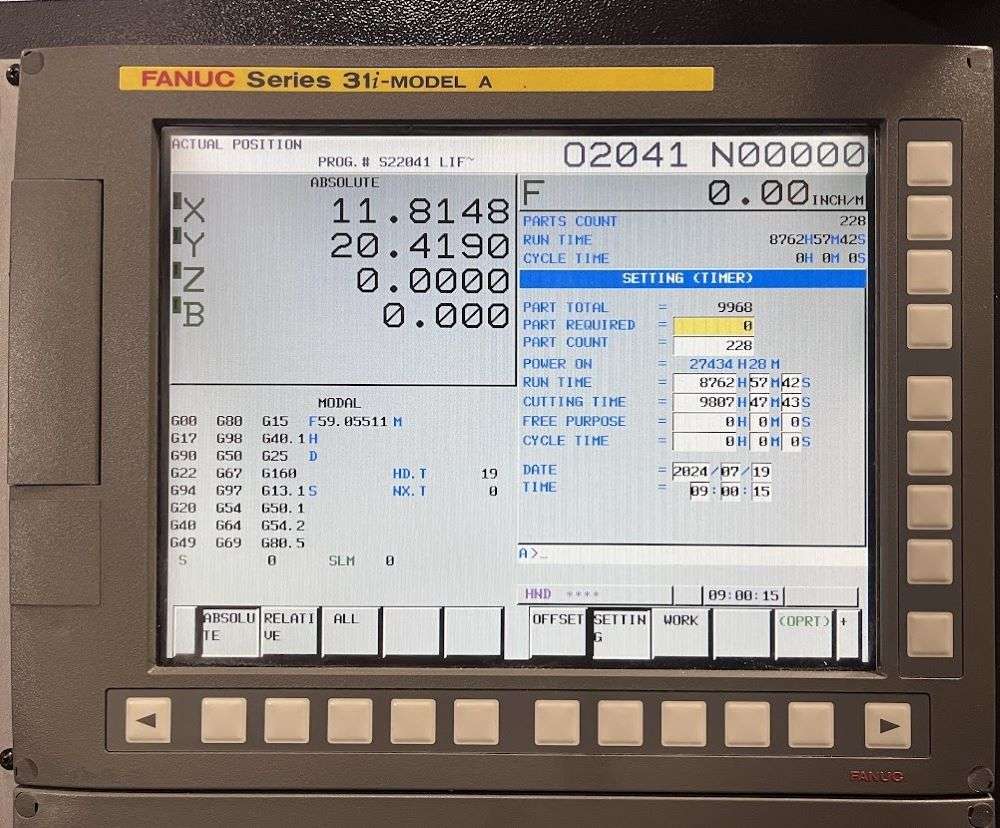

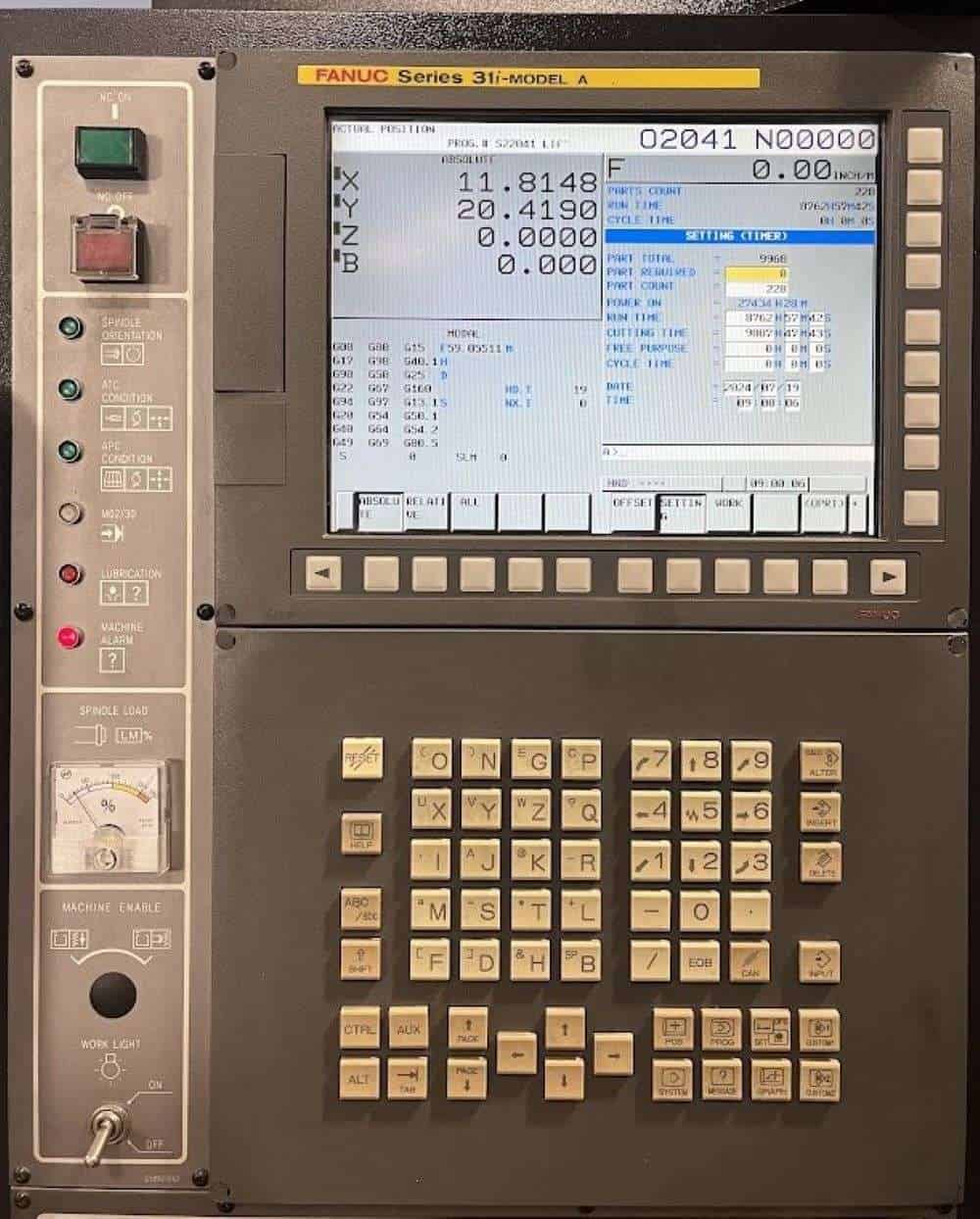

| Fanuc 31i-MA CNC Control |
| Full 4th Axis |
| 14,000 RPM High Precision Spindle |

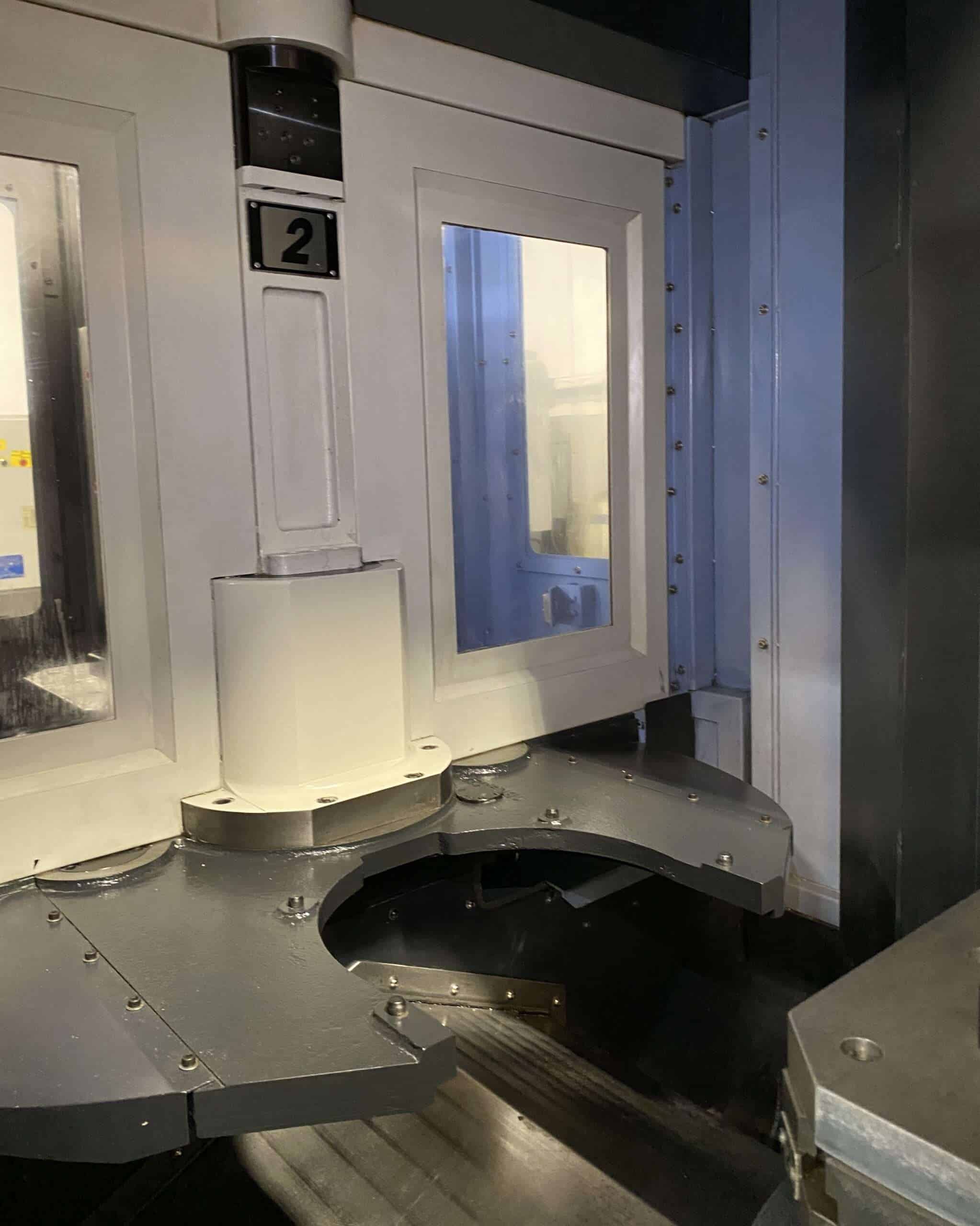

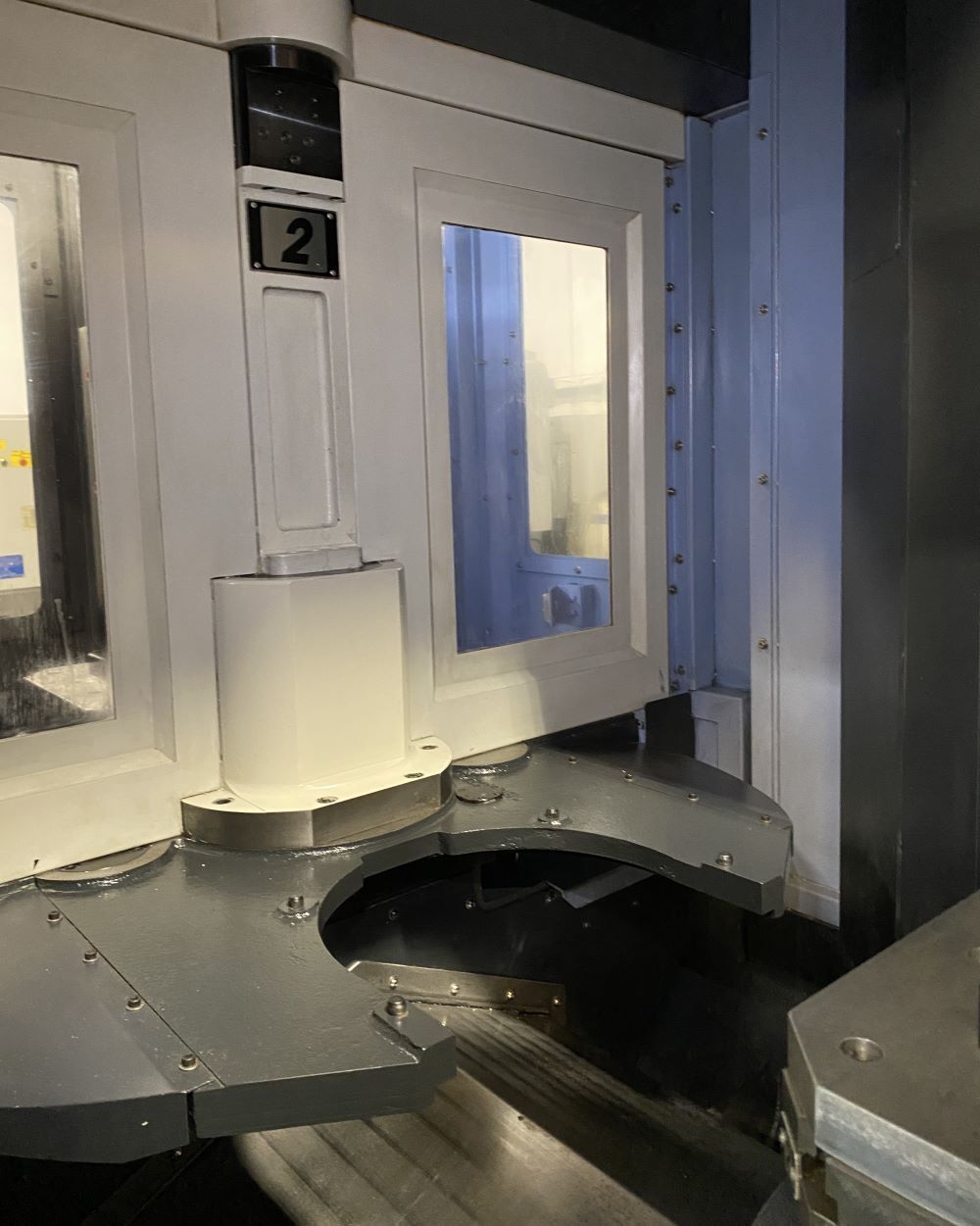

| Twin Pallet Changer |

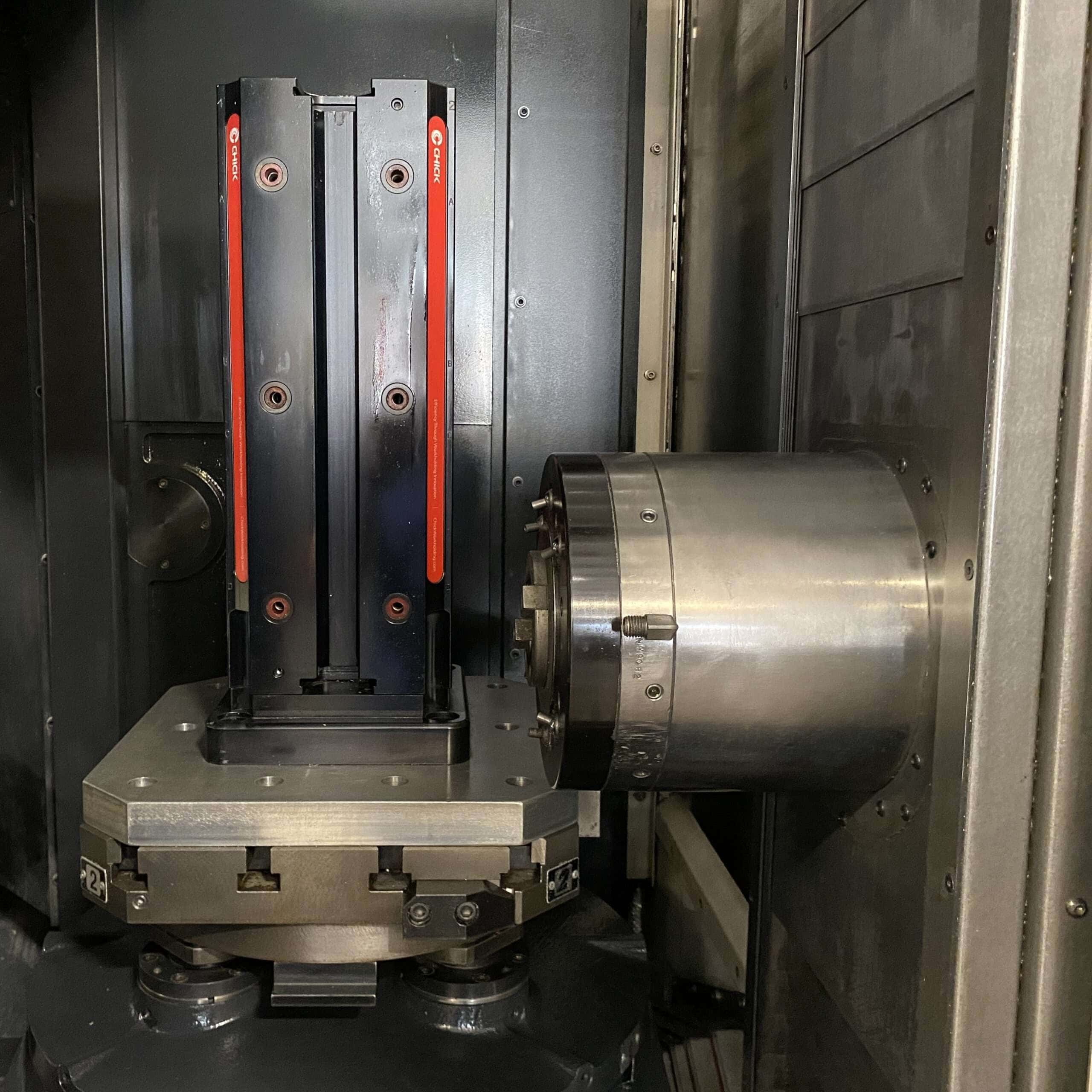

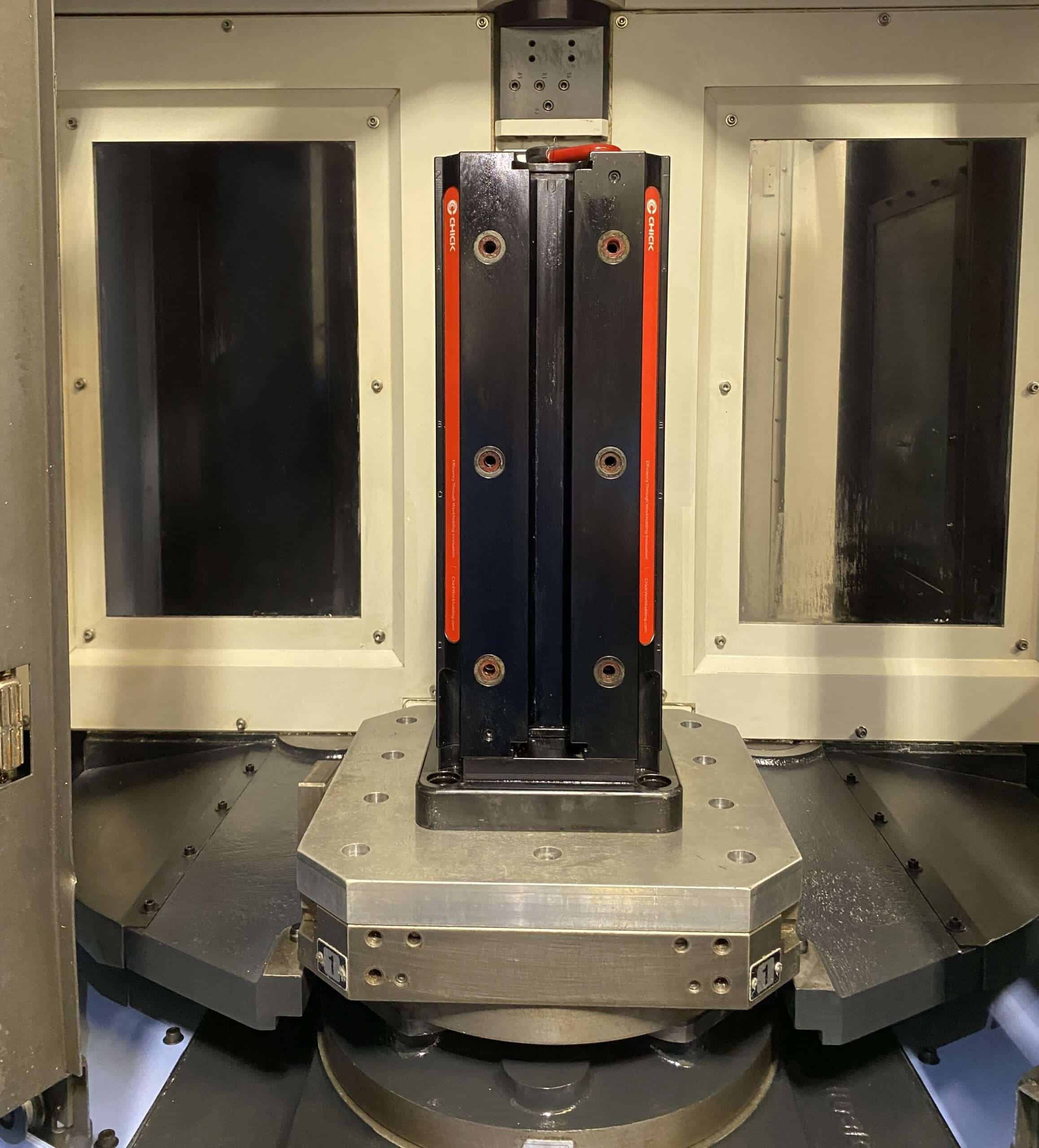

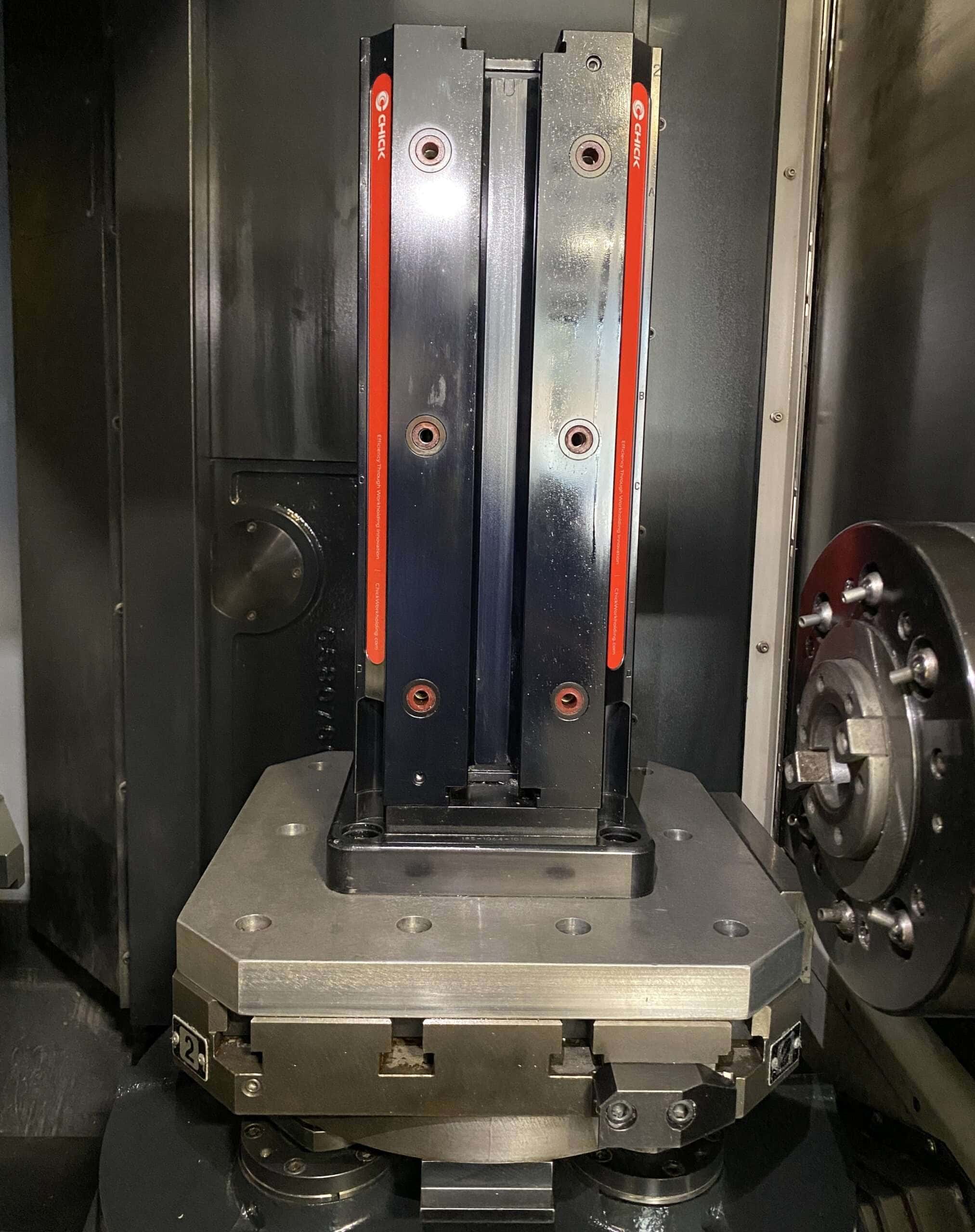

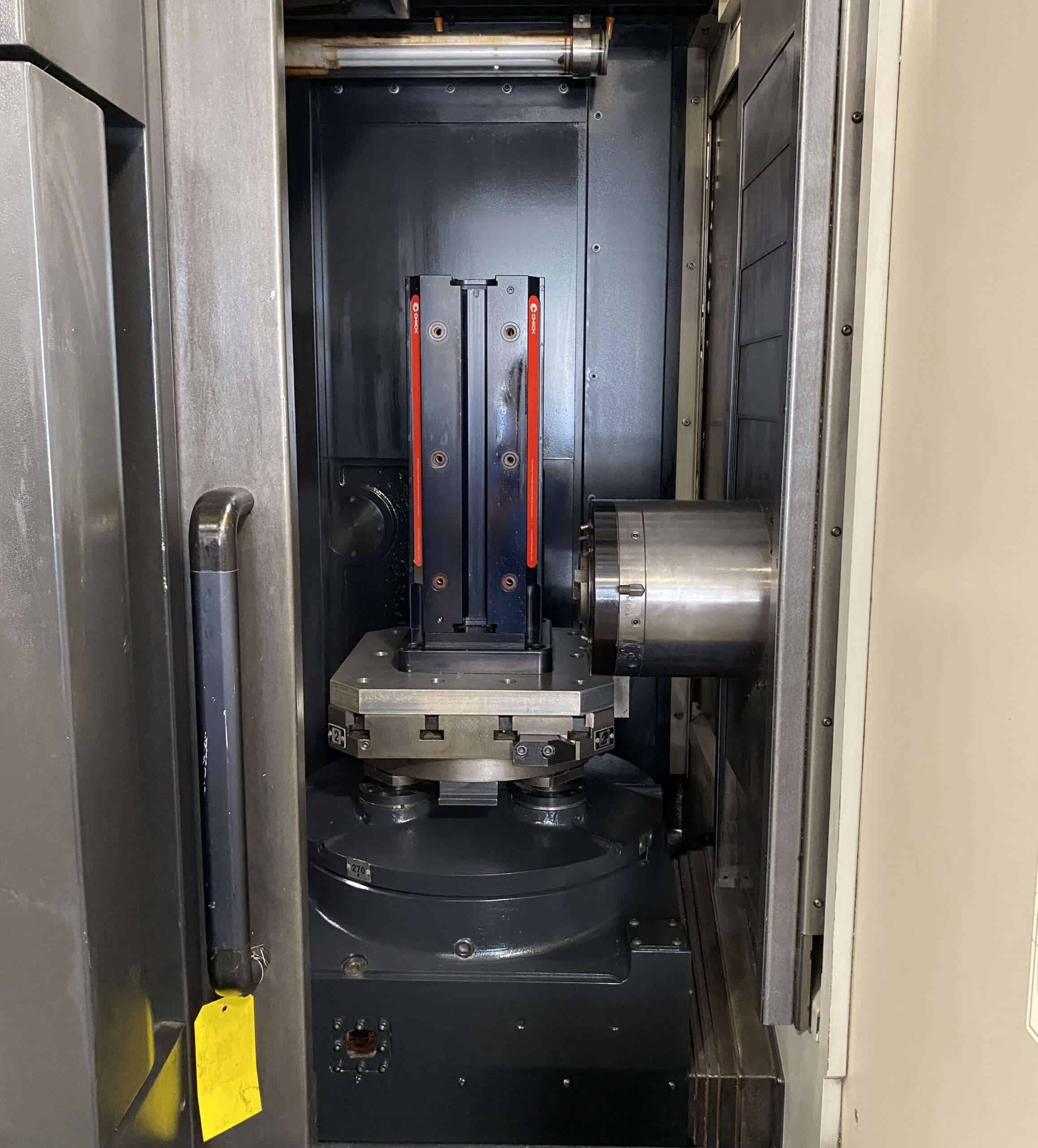

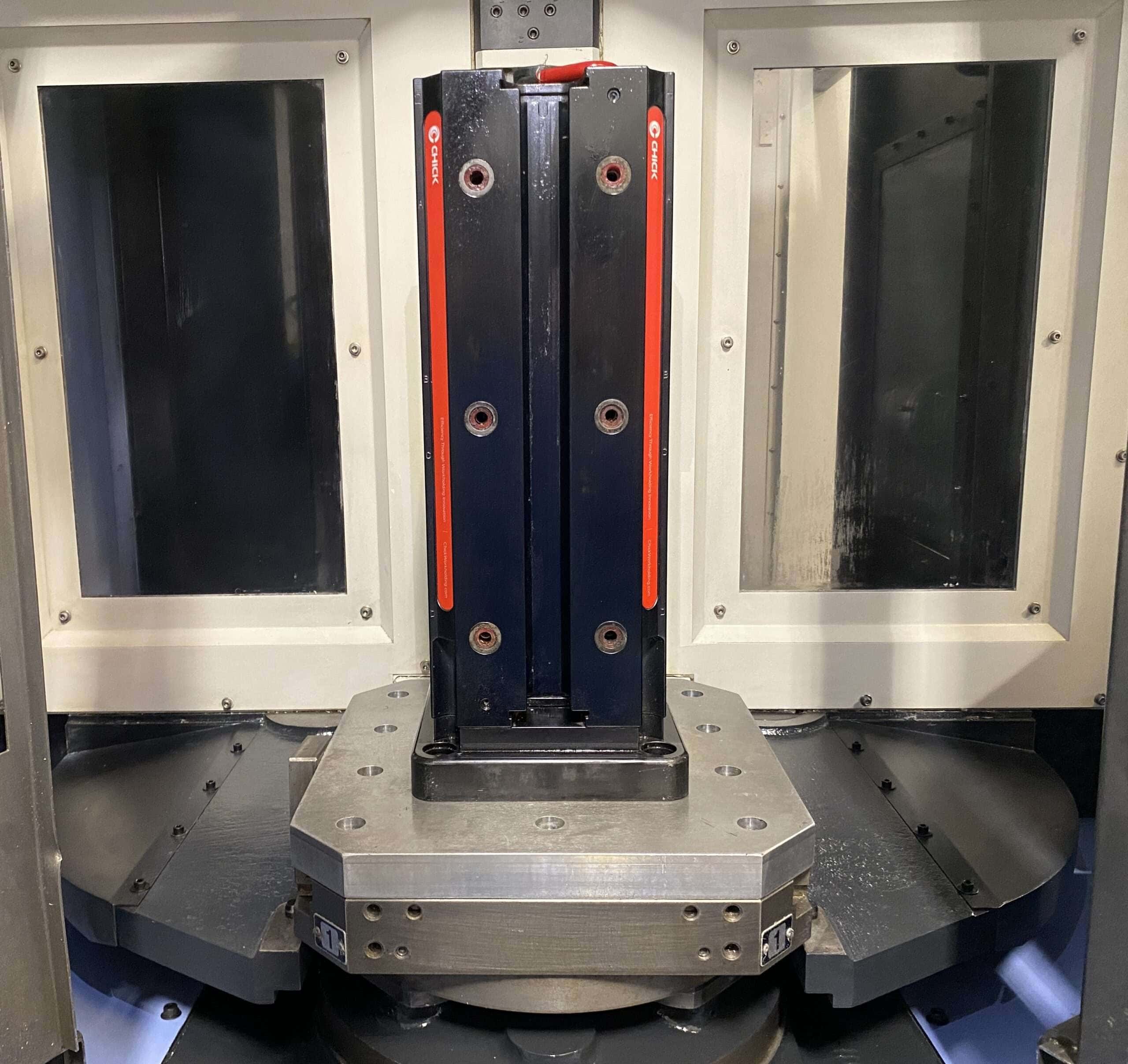

| Tombstones |
| 60 Station Automatic Tool Changer |
| High Speed Machining |
| Pallet Seat Detection |
| Spindle Orientation |
| Rigid Tapping |
| PCMCIA Card Slot |
| Fast Rapid Traverse Rate |

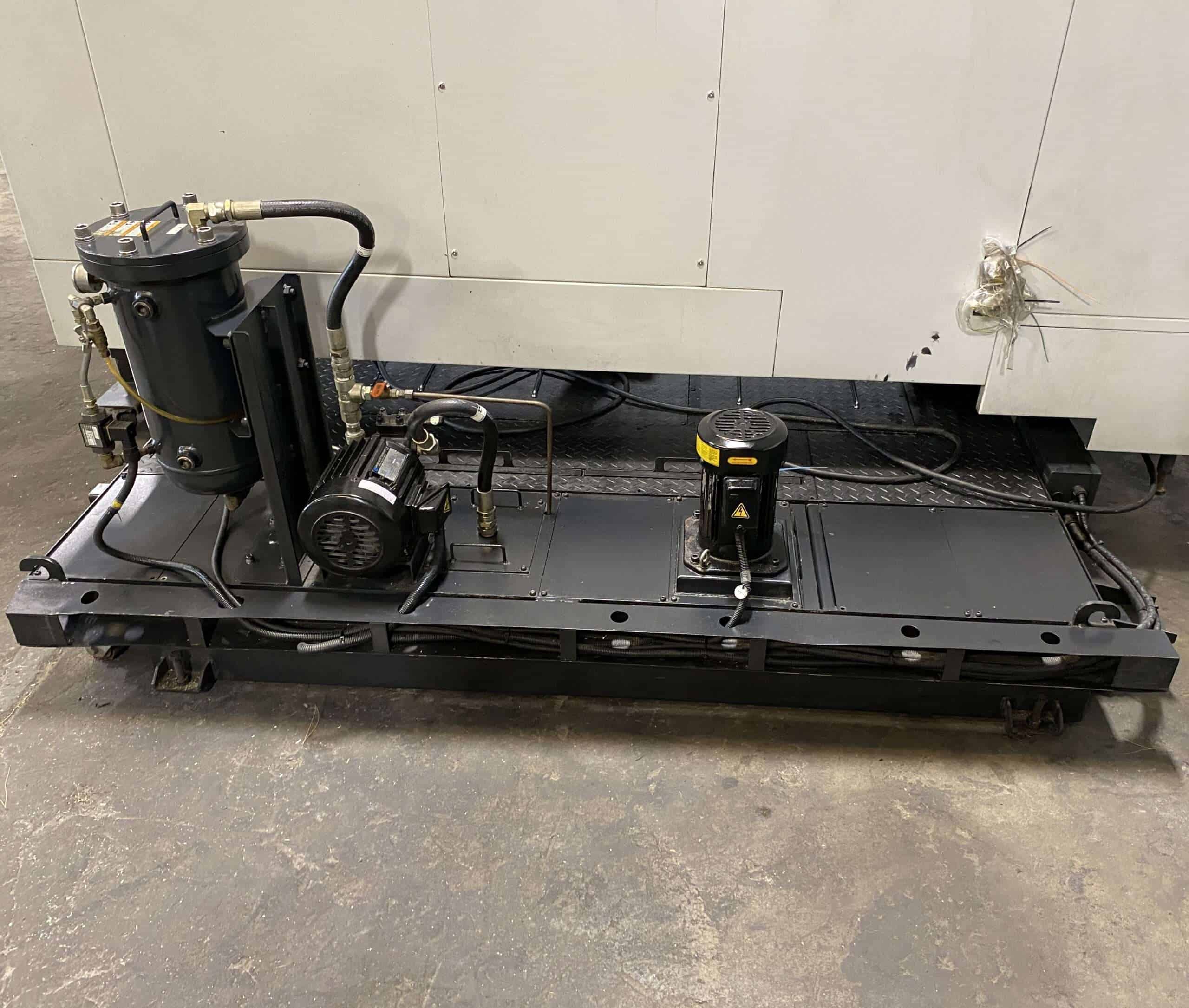

| Flood coolant with large separate coolant tank |

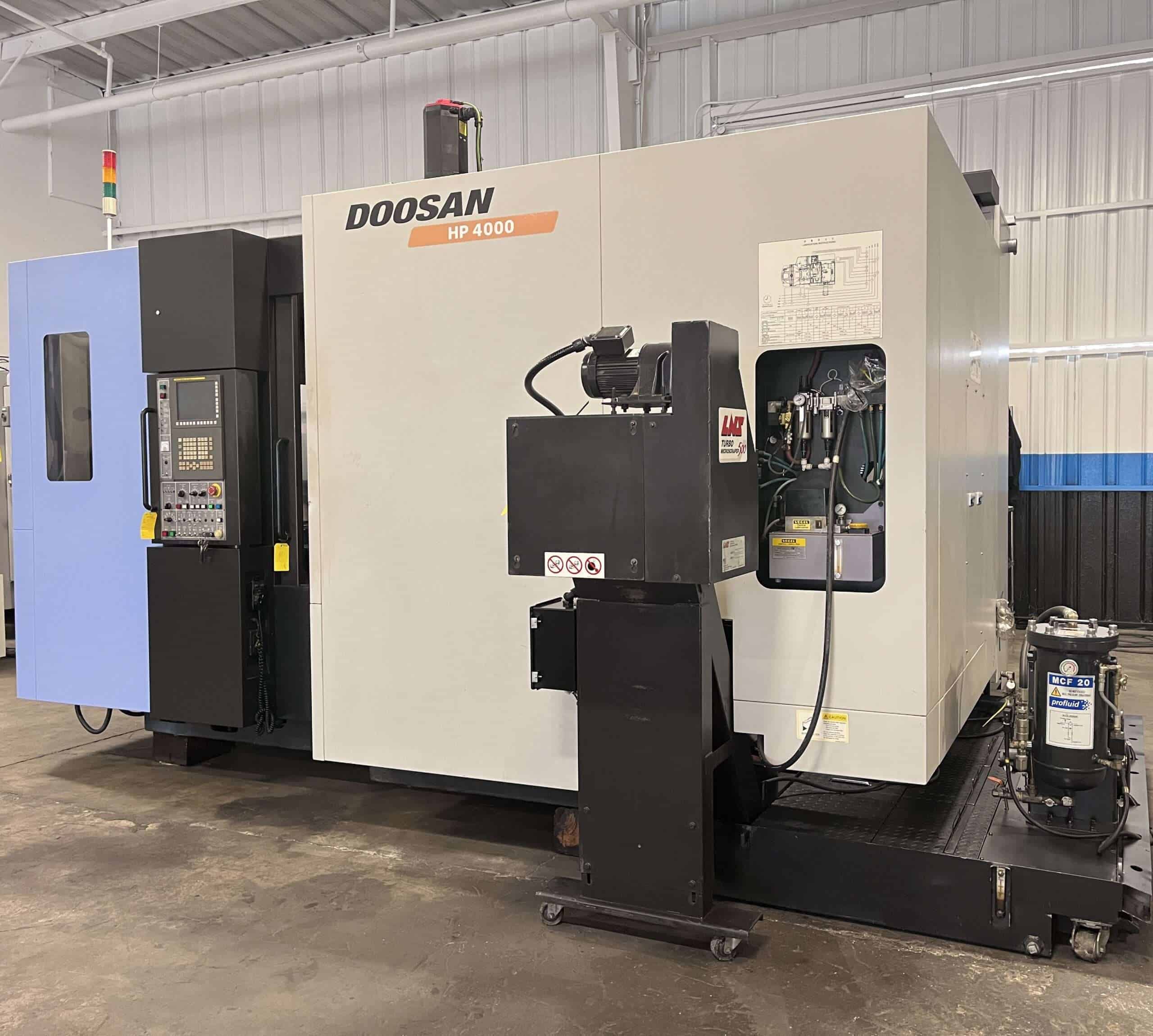

| Chip Conveyor |
| Work light |
| Travels: |
|---|
| X Axis: 23.6″ |
| Y Axis: 22.0″ |
| Z Axis: 23.6″ |
| B Axis: 0.001° ( Full 4th ) |
| Table: |
|---|
| Length: 15.75″ |
| Width: 15.75″ |
| Max Weight on Table: 882 lbs |
| Max Workpiece Height: 31.5″ |
| Max Workpiece Diameter: 23.6″ |
| Pallet Indexing Time: 1.2 Seconds (90°) |

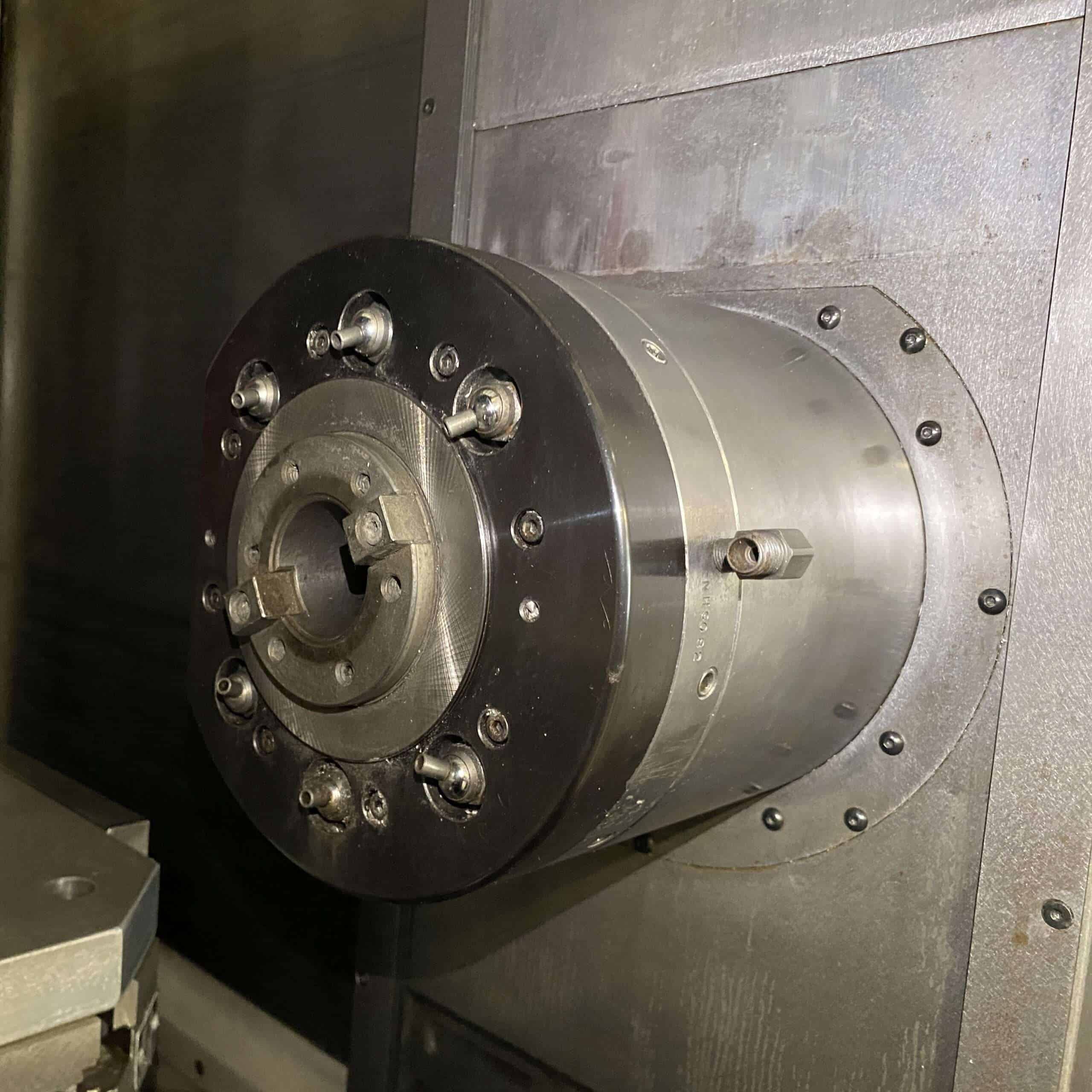

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Max. Speed: 14,000 RPM |
| Power: 25 HP |
| Feed rates: |
|---|
| Rapid Traverse Rate: 2362 Inch Per Minute |
| Cutting Feedrate : 1181 Inch Per Minute |

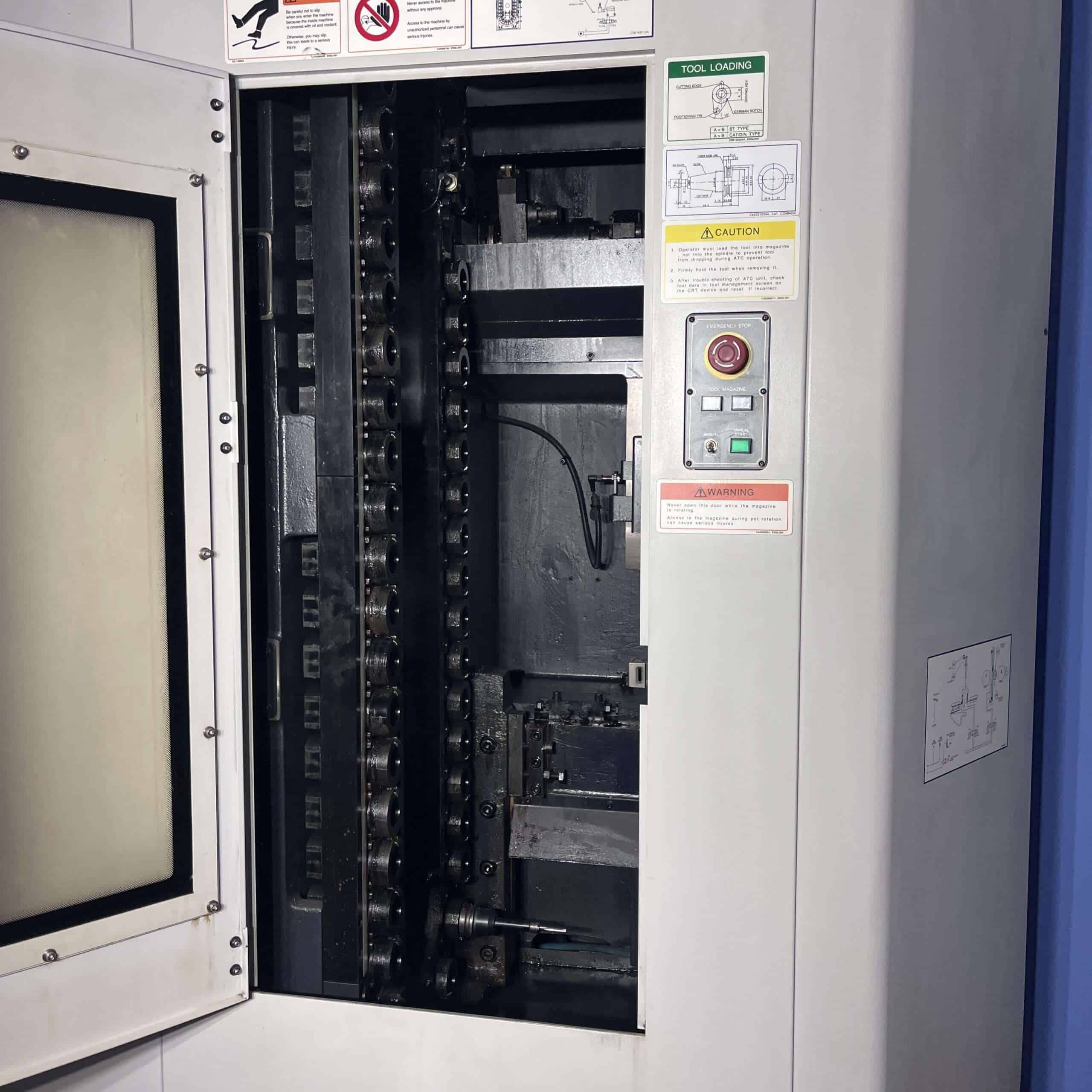

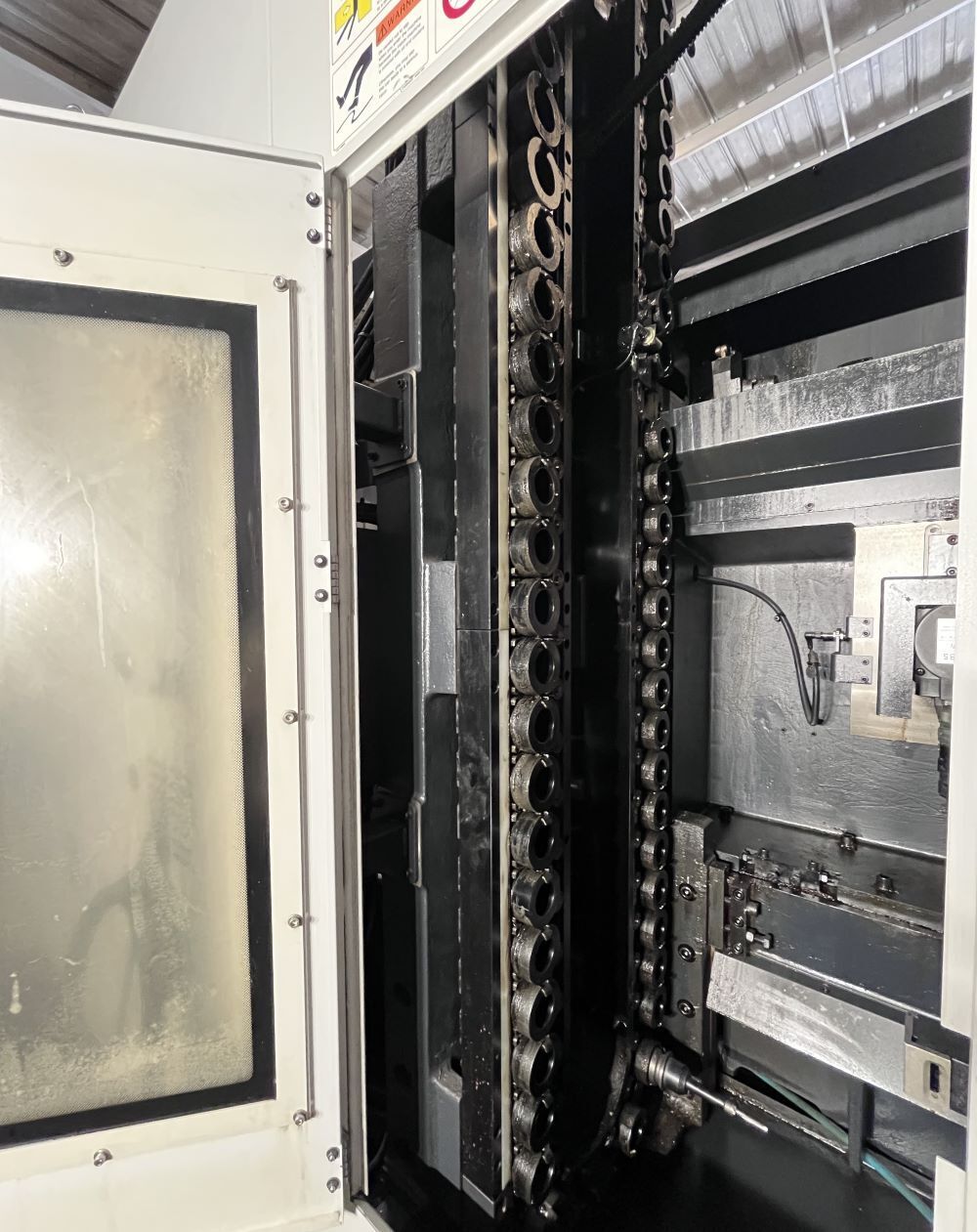

| Tool changer: |
|---|
| Capacity: 60 Tools |
| Taper: CAT-40 |
| Max Tool Size: 3.0″ – 5.5″ |
| Max Tool Length: 13.0″ |
| Max Tool Weight: 22 lbs. |
| Tool Change Time: 1 Second |

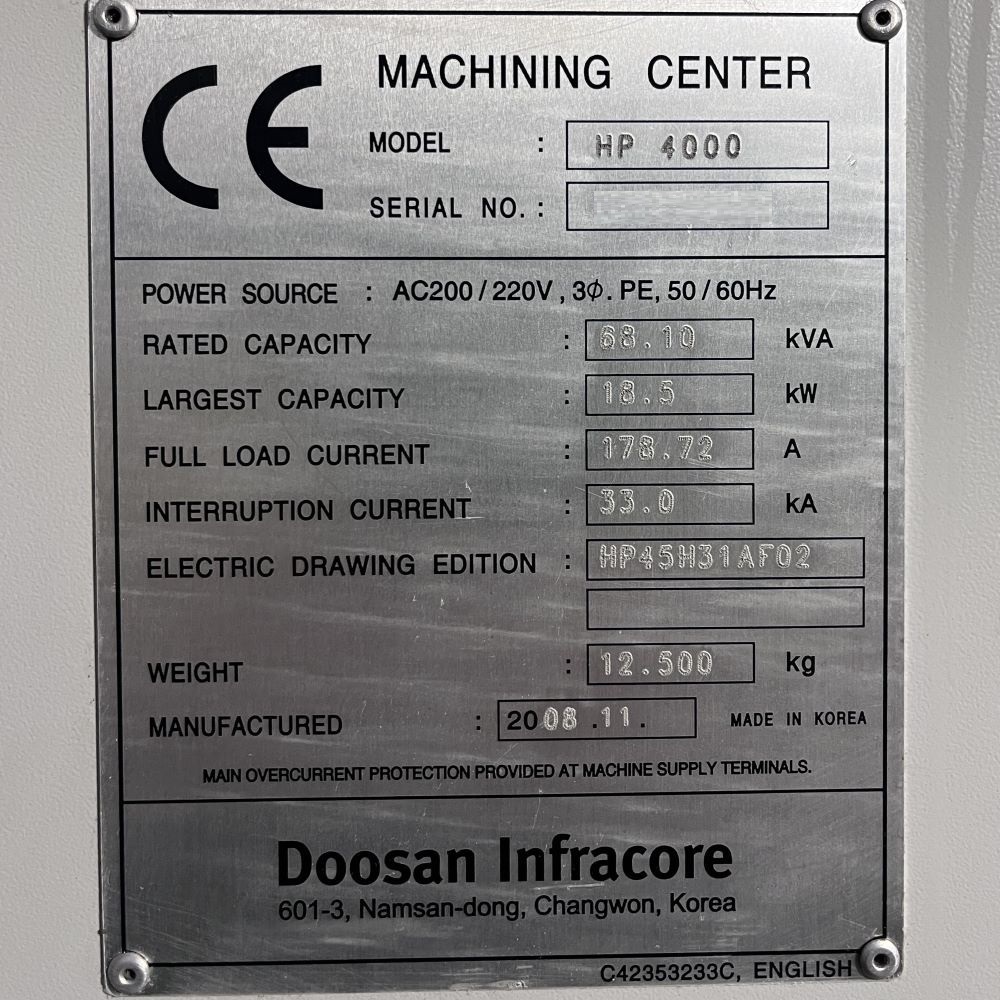

| General: |
|---|
| Air Required: 90 psi, 4 scfm |

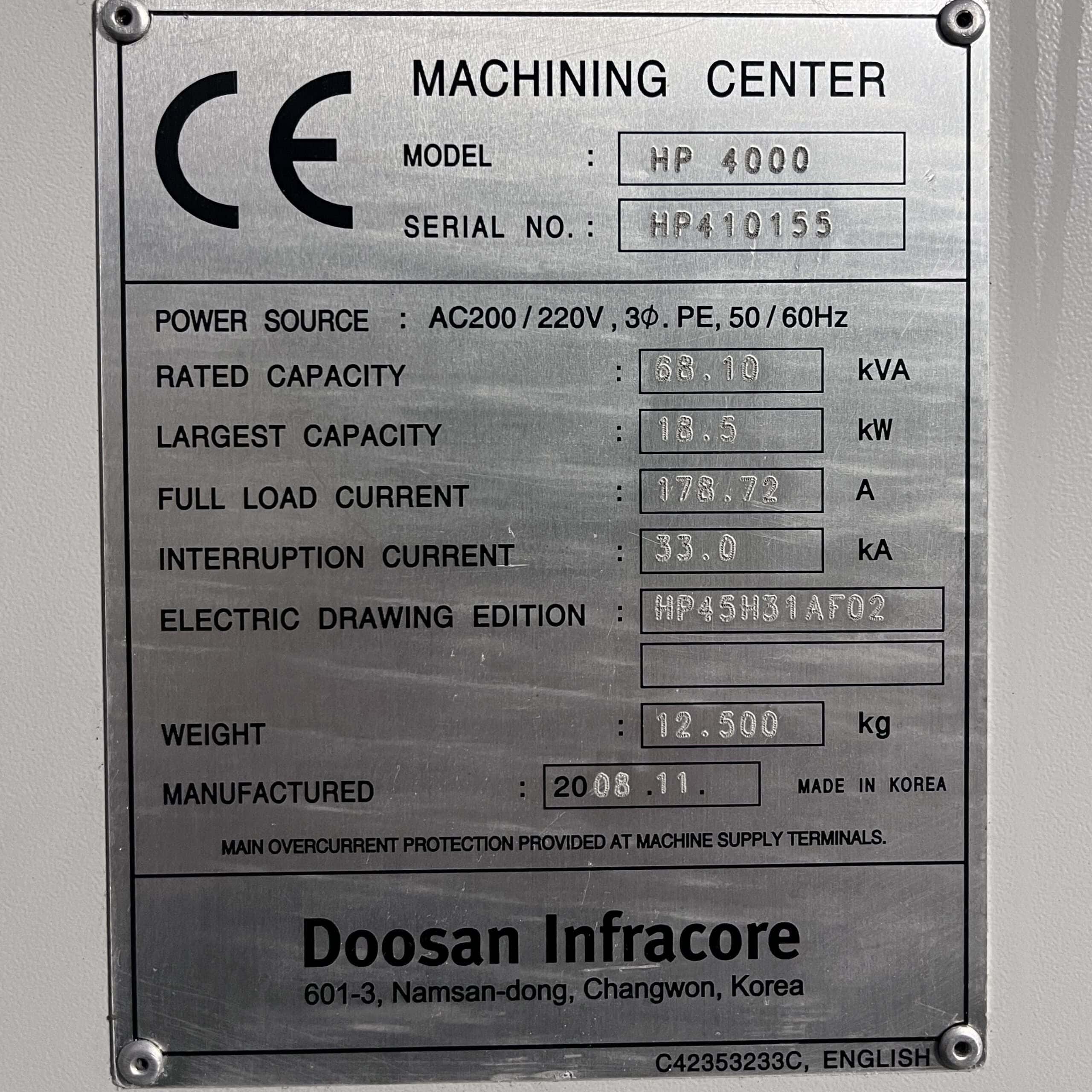

| Power: 68.1 kva / 205-220v / 3-Phase |
| Overall Dimensions: 200″ X 102″ x 113″ High |
| Weight: 28,557 lbs |
