Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.

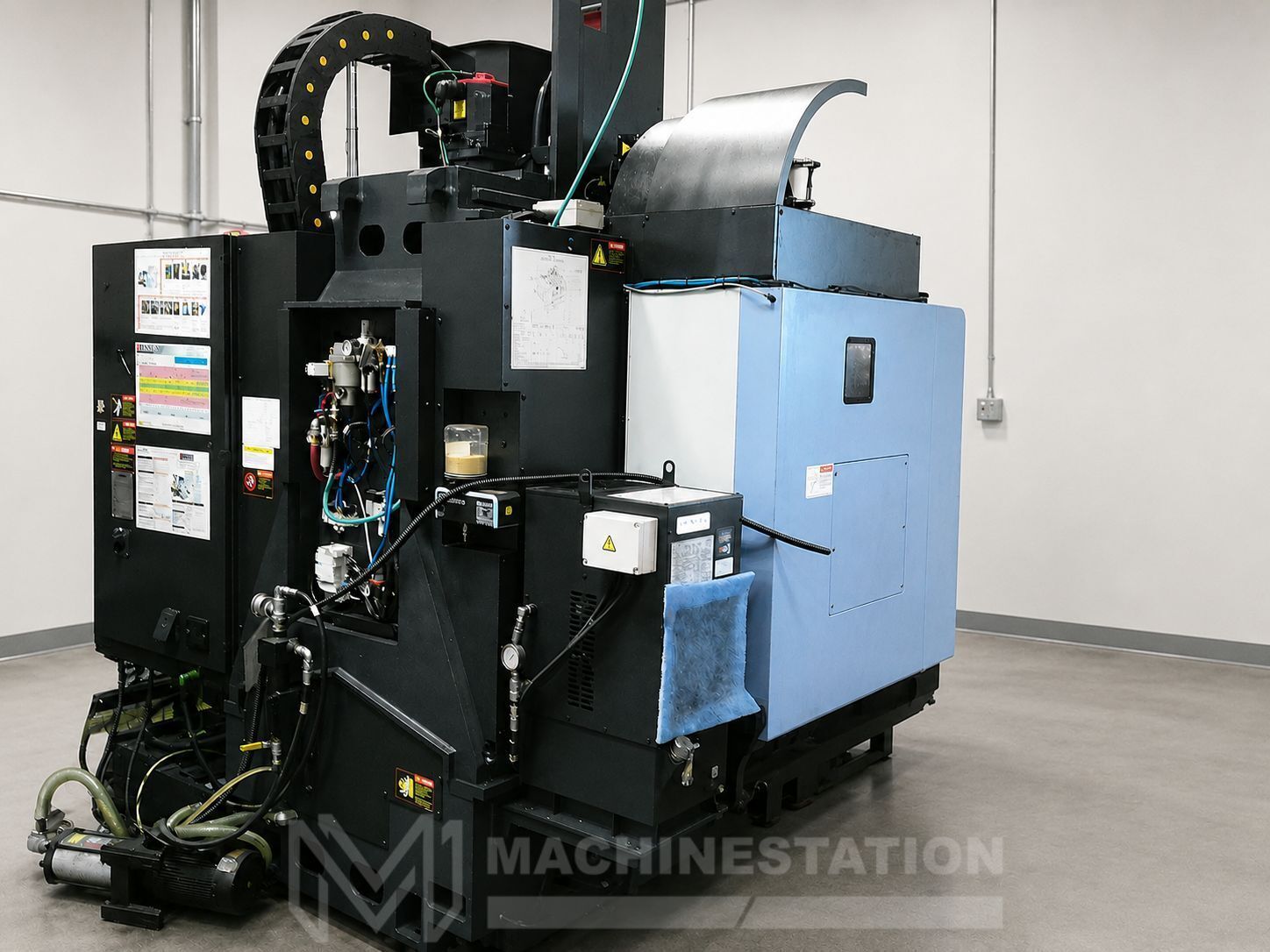

| Make: | Doosan |
| Model: | DNM-4500 |
| Year: | 2021 |
| Features: |
|---|
| Doosan-Fanuc CNC Control |

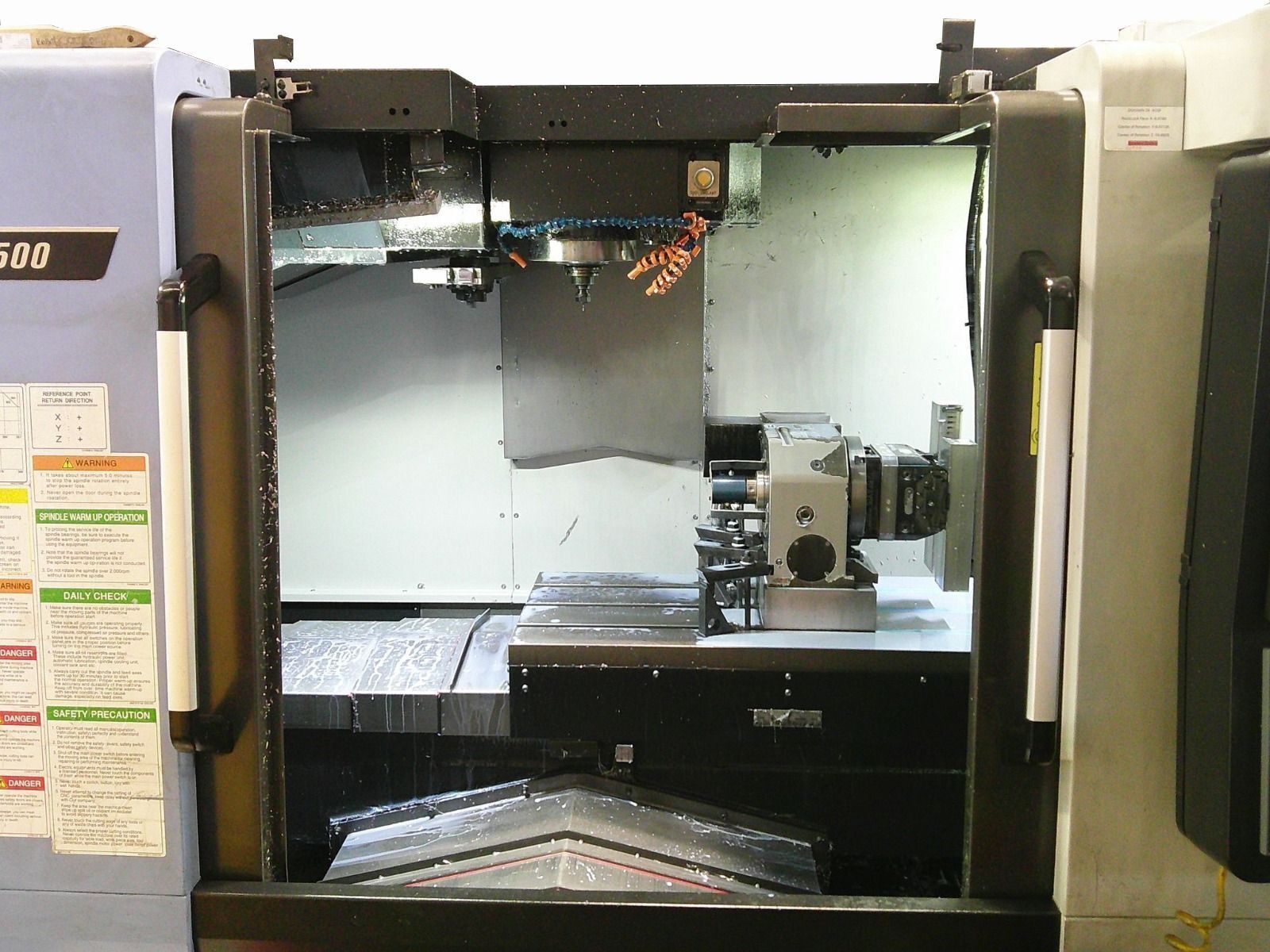

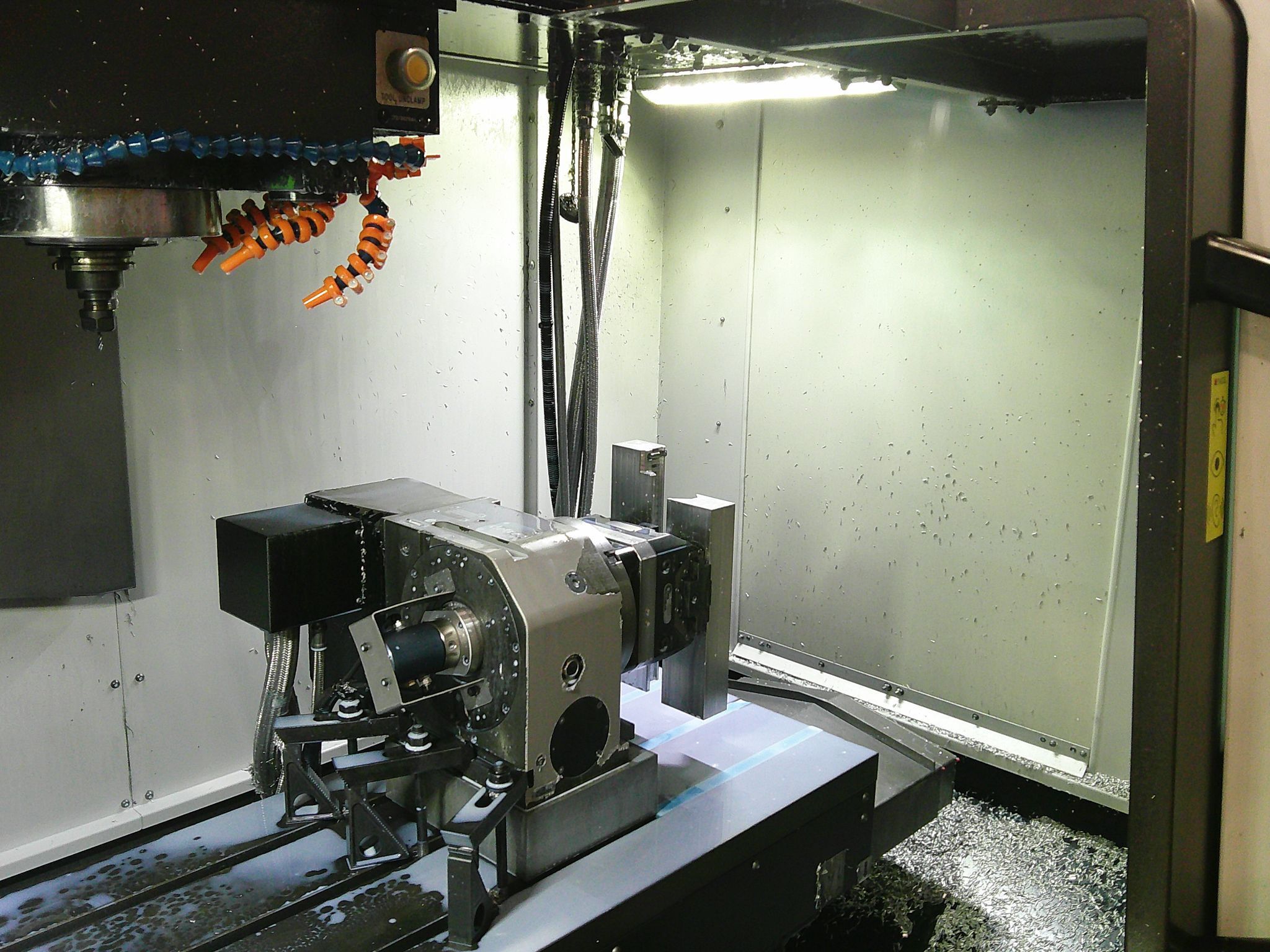

| 4th Axis Detron GXA-210S Rotary Table |
| 8,000 RPM Precision Spindle |
| 30 Station High Speed Automatic Tool Changer |
| Through Spindle Coolant |

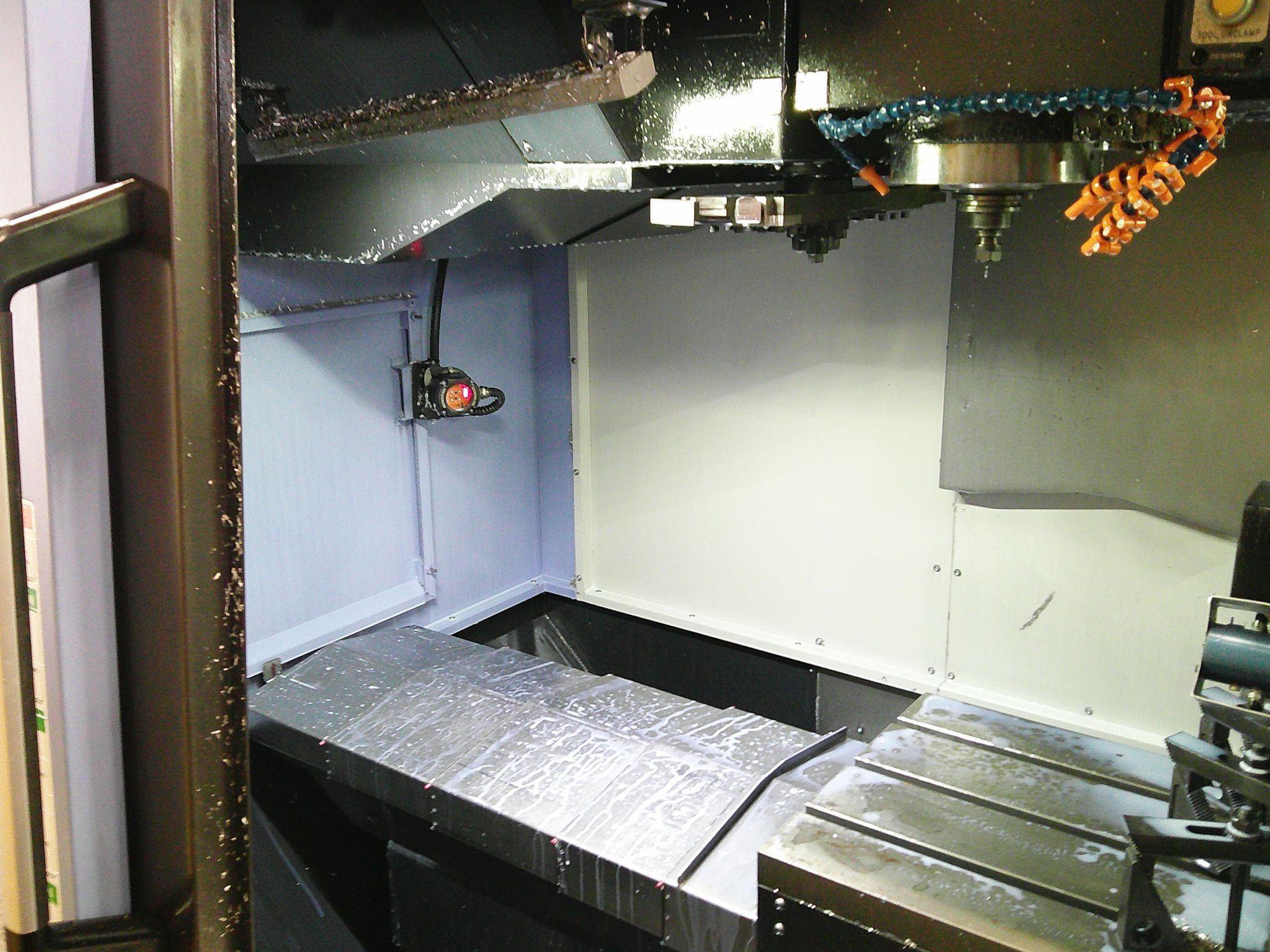

| Renishaw Receiver Installed |
| 1,417 IPM Fast Rapid Traverse Rate |
| Coolant Tank |

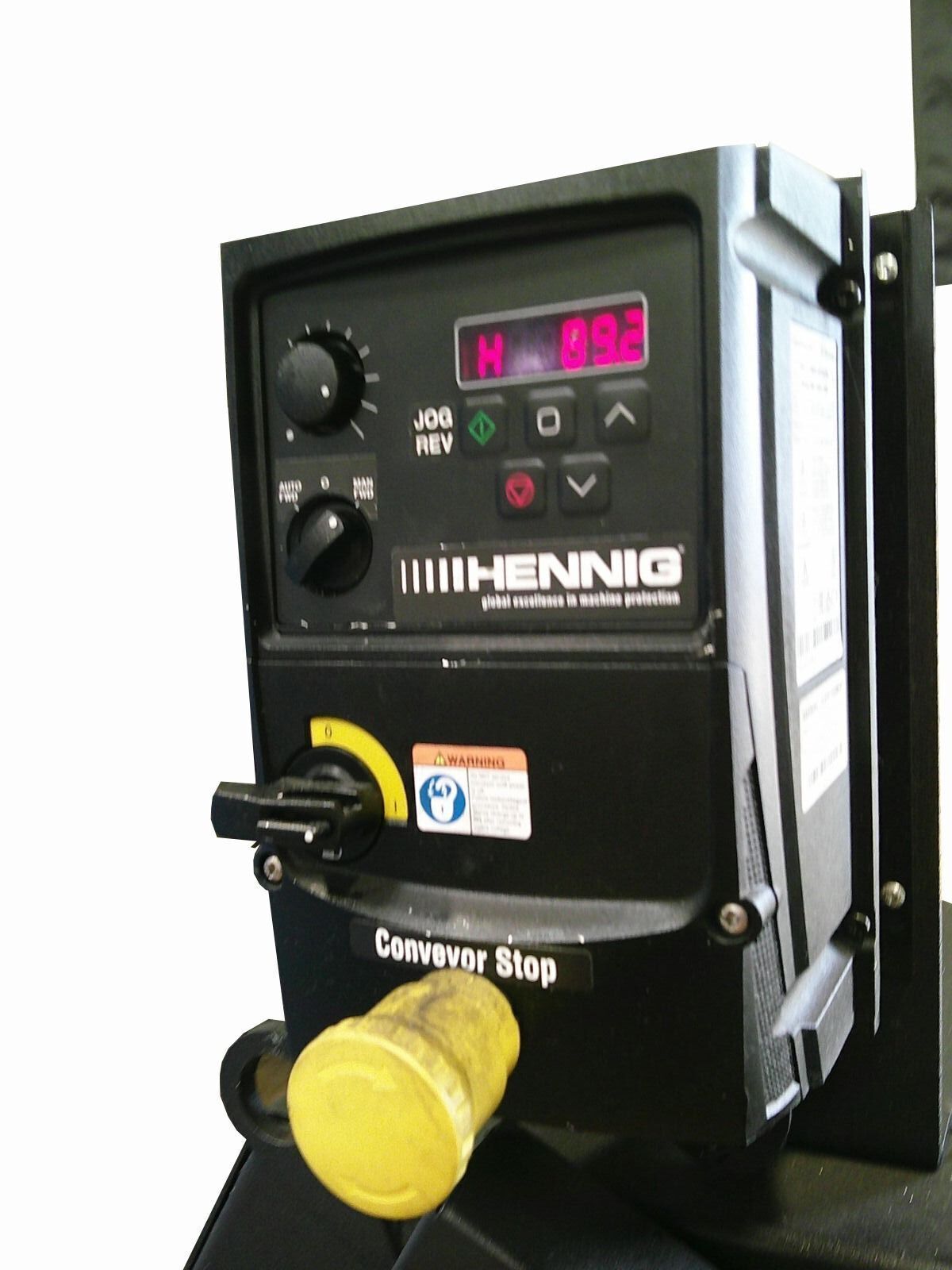

| Hennig Chip Conveyor |
| Travels: |
|---|
| X-Axis: 31.5 inch |
| Y-Axis: 17.7 inch |
| Z-Axis: 20.1 inch |
| Rapid Traverse Rates X & Y Axis: 1,417 IPM |
| Rapid Traverse Rates Z Axis: 1,181 IPM |
| Spindle Nose to Table (Min.-Max.): 5.9 inch – 26 inch |
| Table: |
|---|
| Length: 39.4 inch |
| Width: 17.7 inch |
| Number of Standard T-Slots: 3 |
| T-Slot Width: 4.9 inch x 0.7 inch |
| Max Weight on Table: 1,322 lbs |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 8,000 RPM |
| Spindle Power: 15 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 17.6 lbs |
| Max Tool Diameter: 3.1 inch – 4.9 inch |
| Max Tool Length: 11.81 inch |
| Tool Changing Time: 1.2 Seconds |
| General: |
|---|

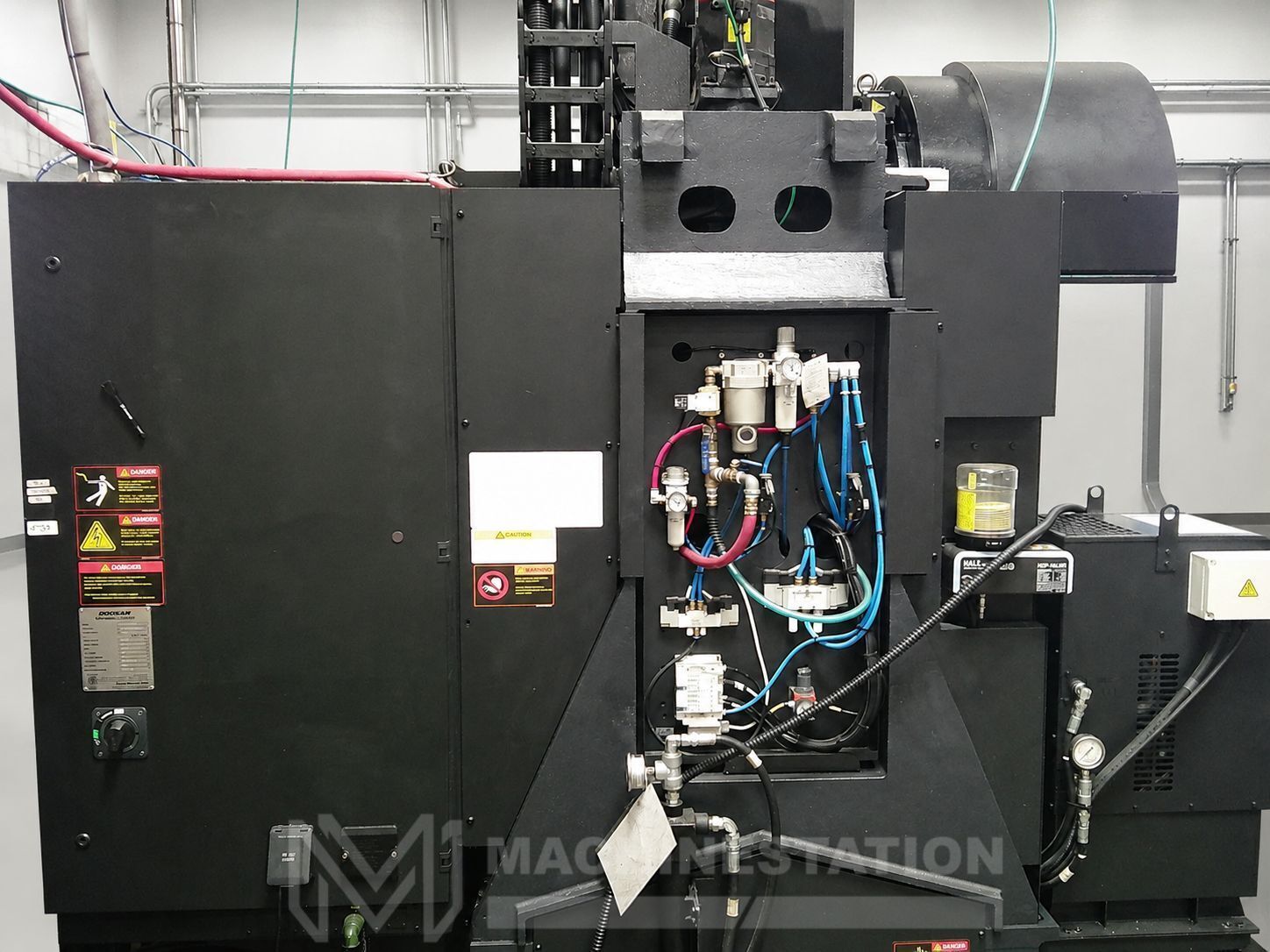

| Air Required: 80 PSI, 4 SCFM |
| Power: 220V / 29.5 kVA / 3-Phase |
| Overall Dimensions: 103 inch x 85 inch x 117.5 inch High |
| Weight: 11,023 lbs |
