*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | NHP 5000 |
| Year: | 2020 |
| Condition: | Used – Good |
| Machine Type: | CNC Horizontal Machining Center |
| Country of Origin: | Korea |
| Features: |
|---|
- Dual Pallet Automatic Pallet Changer (APC)
- B-Axis Rotary Table (1° Indexing)
- High-Speed Built-In Spindle
- Rigid Tapping
- Eco-Friendly Grease Lubrication on All Axes
- 3-Point Support Bed Structure (No Foundation Required)
- Thermal Compensation System
- Fully Enclosed Machining Area
|
| Travels & Axis Specifications: |
|---|
- X-Axis Travel: 28.7″
- Y-Axis Travel: 28.7″
- Z-Axis Travel: 34.6″
- Spindle Nose to Table: 3.1″ – 31.9″
- Spindle Nose to Table Center: 3.9″ – 38.6″
|
| Pallet / Table: |
|---|
- Pallet Size: 19.7″ × 19.7″
- Max Workpiece Size: Ø31.5″ × 39.4″
- Max Pallet Load: 1,102 lbs (Standard) / 1,543 lbs (Optional)
- B-Axis Indexing: 1°
- 90° Index Time: 1.4 sec
|
| Spindle: |
|---|
- Spindle Taper: BT40
- Max Spindle Speed: 15,000 RPM (20,000 RPM Optional)
- Spindle Motor: 49.6 HP (S3) / 29.5 HP (Continuous)
- Max Spindle Torque: 223.6 ft-lbs
- High-Speed Built-In Spindle
- Spindle, Ballscrew & Bearing Cooling
|
| Feedrates & Dynamics: |
|---|
- Rapid Traverse (X/Y/Z): 2,362 IPM
- Acceleration: X 0.9G / Y 0.8G / Z 0.8G
- Grease Lubrication on All Axes
|
| Automatic Tool Changer: |
|---|
- Tool Magazine: Disk / Chain / Matrix (Configurable)
- Tool Capacity: 40 Tools (Standard)
- Optional Capacities: 60 / 80 / 120 / 171 / 275 Tools
- Tool-to-Tool Time: 0.9 sec
- Chip-to-Chip Time: 2.3 sec
- Max Tool Diameter: 3.0″ (Adjacent) / 6.7″ (No Adjacent)
- Max Tool Length: 21.7″
- Max Tool Weight: 26.5 lbs
- Memory Random Tool Selection
|
| Coolant System: |
|---|
- Flood Coolant (0.7 MPa)
- Through-Spindle Coolant: 2 / 3 / 7 MPa (Optional)
- Coolant Tank Capacity: 150.6 Gallons
- Shower Coolant & Setup Shower (Optional)
- Coolant Gun & Air Gun
|

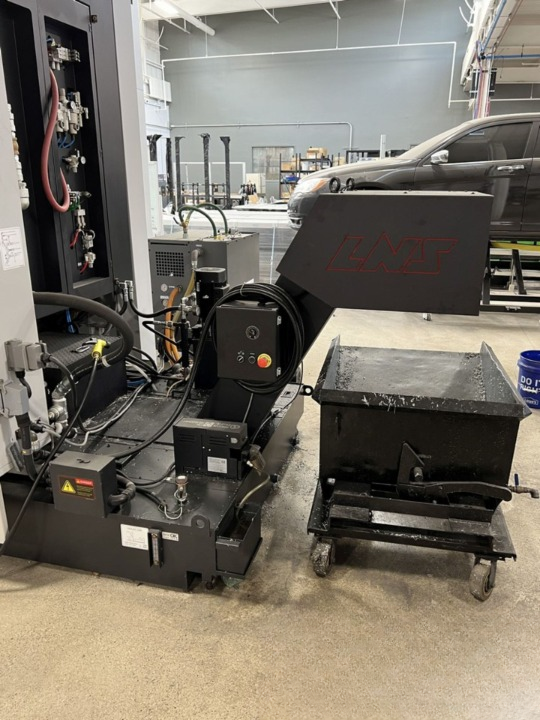

| Chip Management: |
|---|
- Drum-Type Hinged Belt Chip Conveyor
- Drum-Type Scraper Chip Conveyor
- Internal Chip Conveyor (Optional)
- Mist Collector & Oil Skimmer (Optional)
|

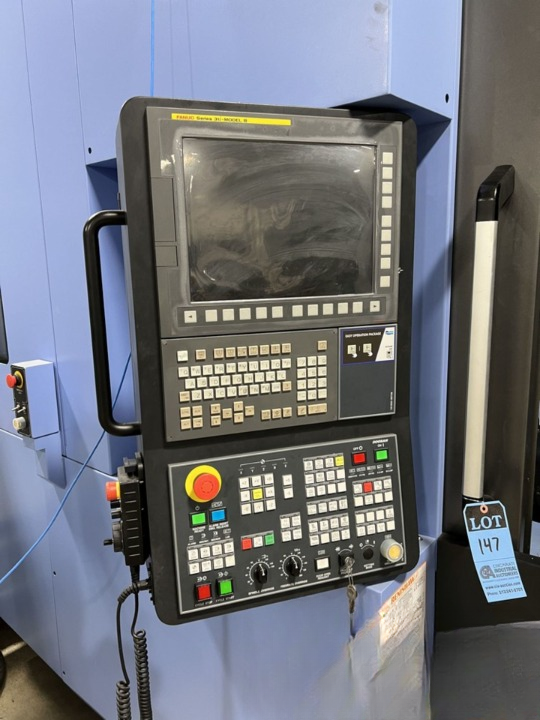

| CNC Control: |
|---|
- DOOSAN FANUC 31i-B CNC Control
- 15″ Color LCD Display
- Full QWERTY Keyboard
- Simultaneous 4-Axis Control (X, Y, Z, B)
- 5th Axis Ready (Optional)
- USB, PCMCIA, Ethernet, RS-232
- MTConnect & OPC-UA Ready
- Up to 20 GB Program Memory
|

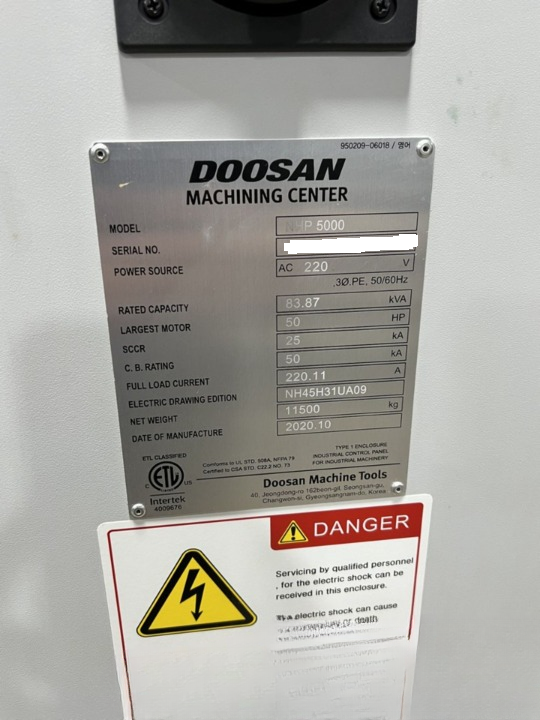

| Electrical & Utilities: |
|---|
- Power Supply: AC 220V / 3-Phase / 50–60 Hz
- Rated Capacity: 83.87 kVA
- Full Load Current: 220.11 Amps
- Largest Motor: 50 HP
- Circuit Breaker Rating: 50 kA
|
| Machine Dimensions & Weight: |
|---|
- Height: 113.4″
- Width: 105.5″
- Length (with Conveyor): 214.6″
- Machine Weight: 25,352 lbs
|
