*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

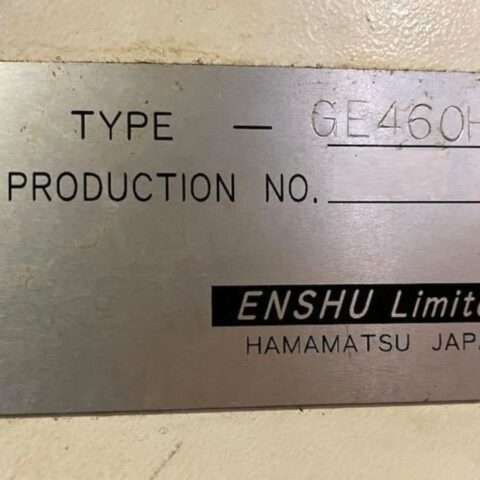

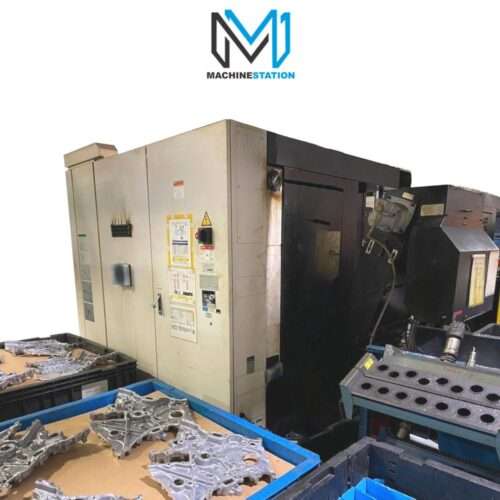

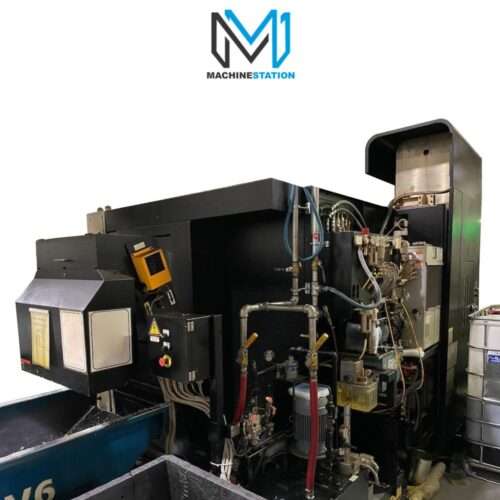

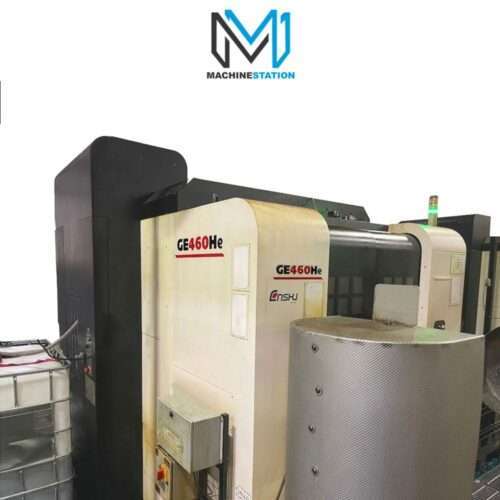

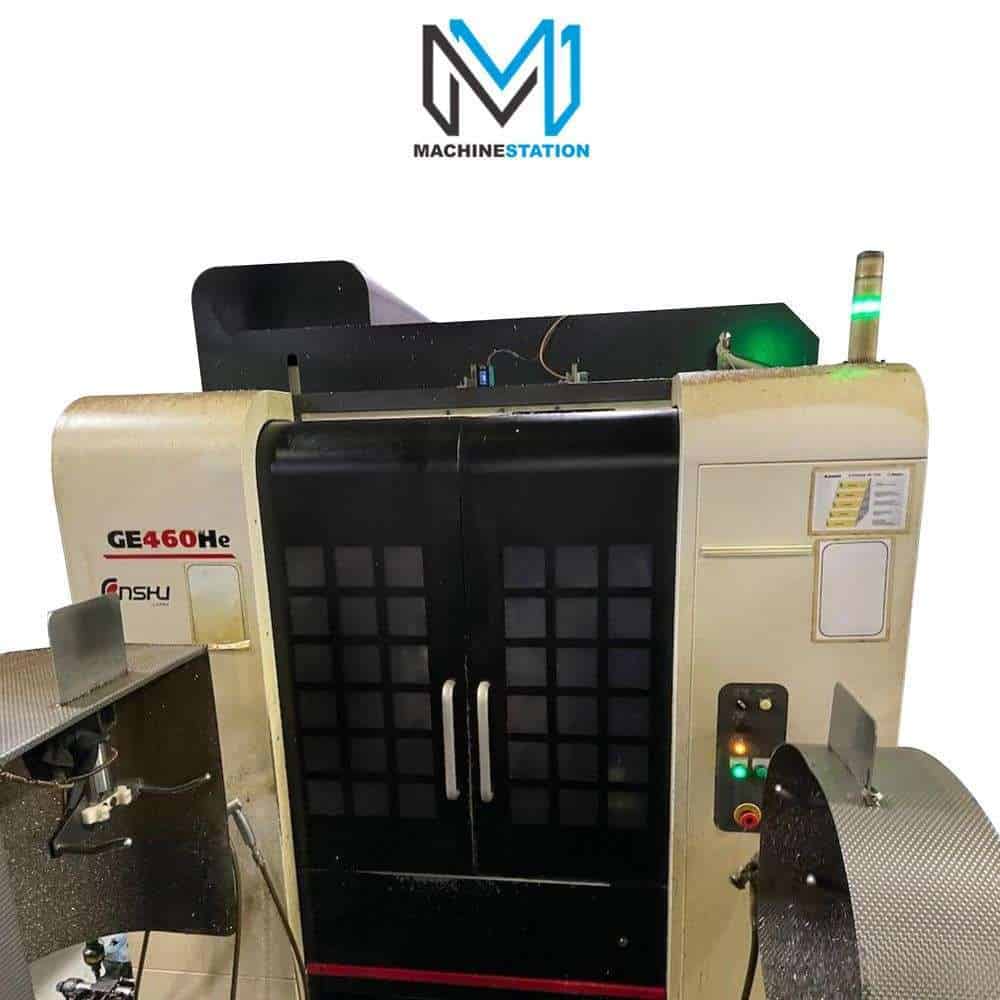

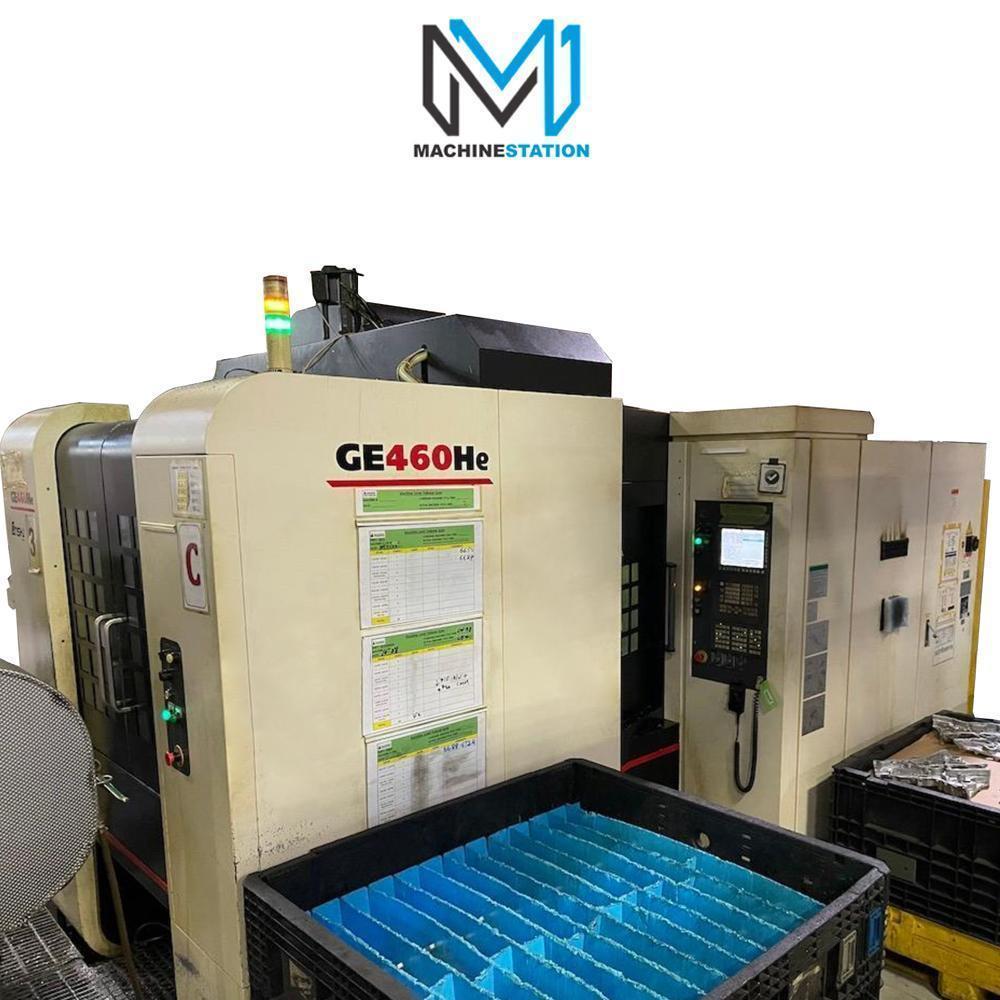

| Make: | Enshu |

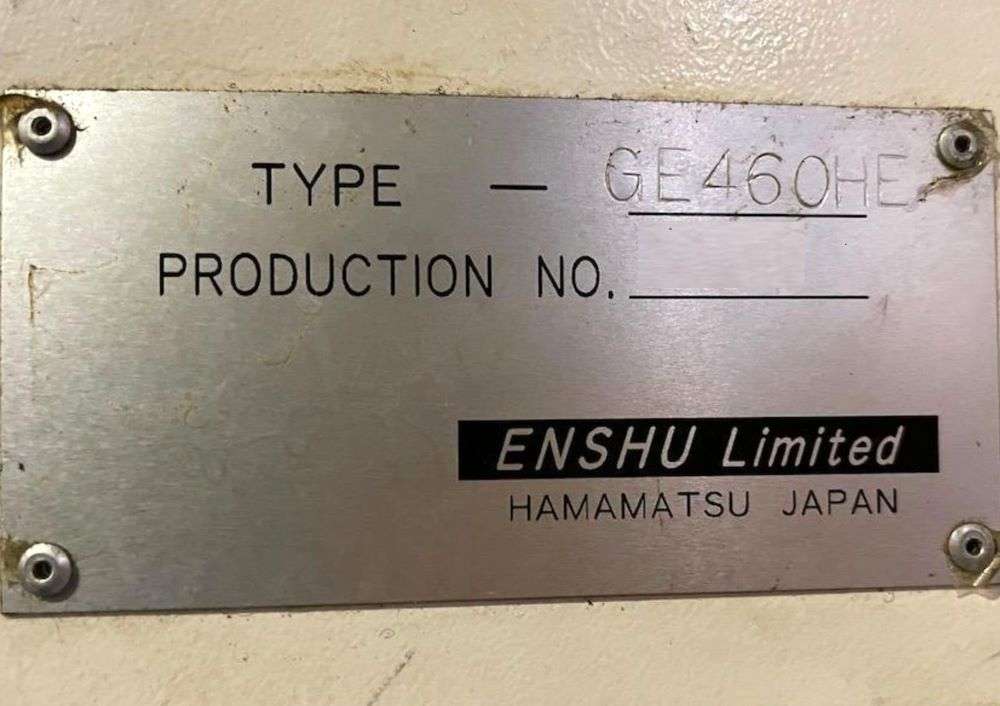

| Model: | GE460He |
| Year: | 2014 |
| Cutting Hours: | Only |
| Features: |
|---|

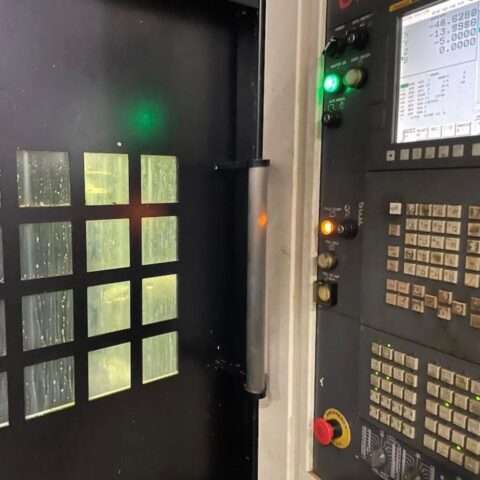

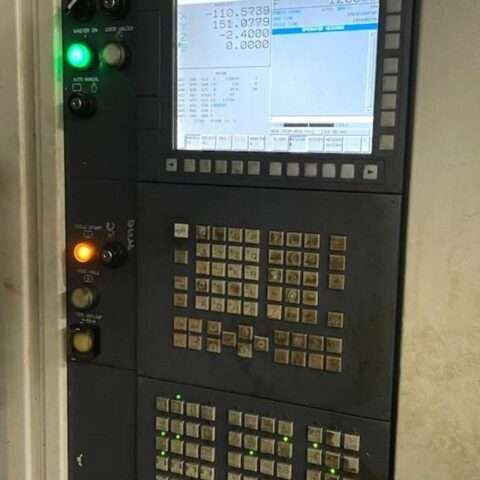

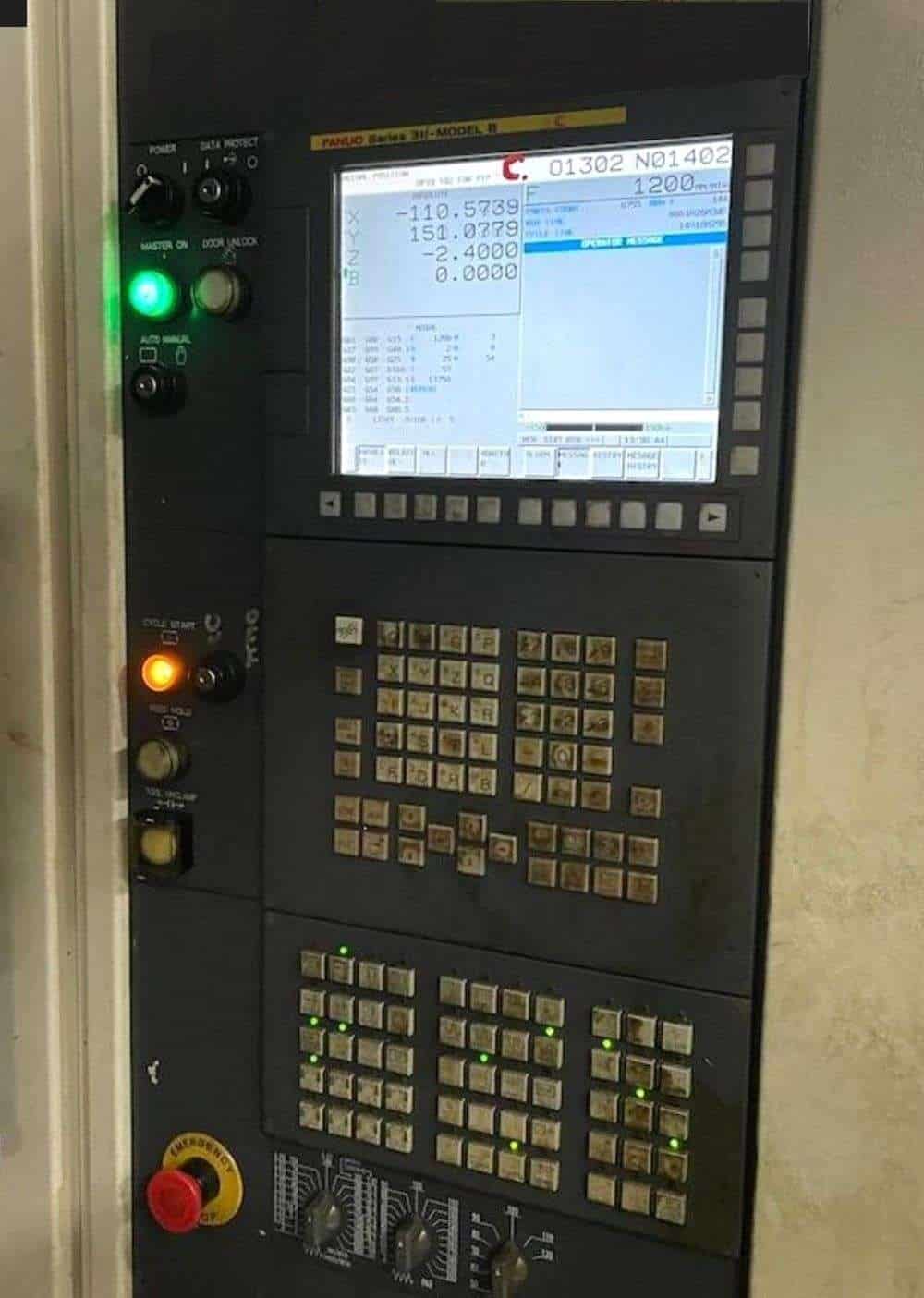

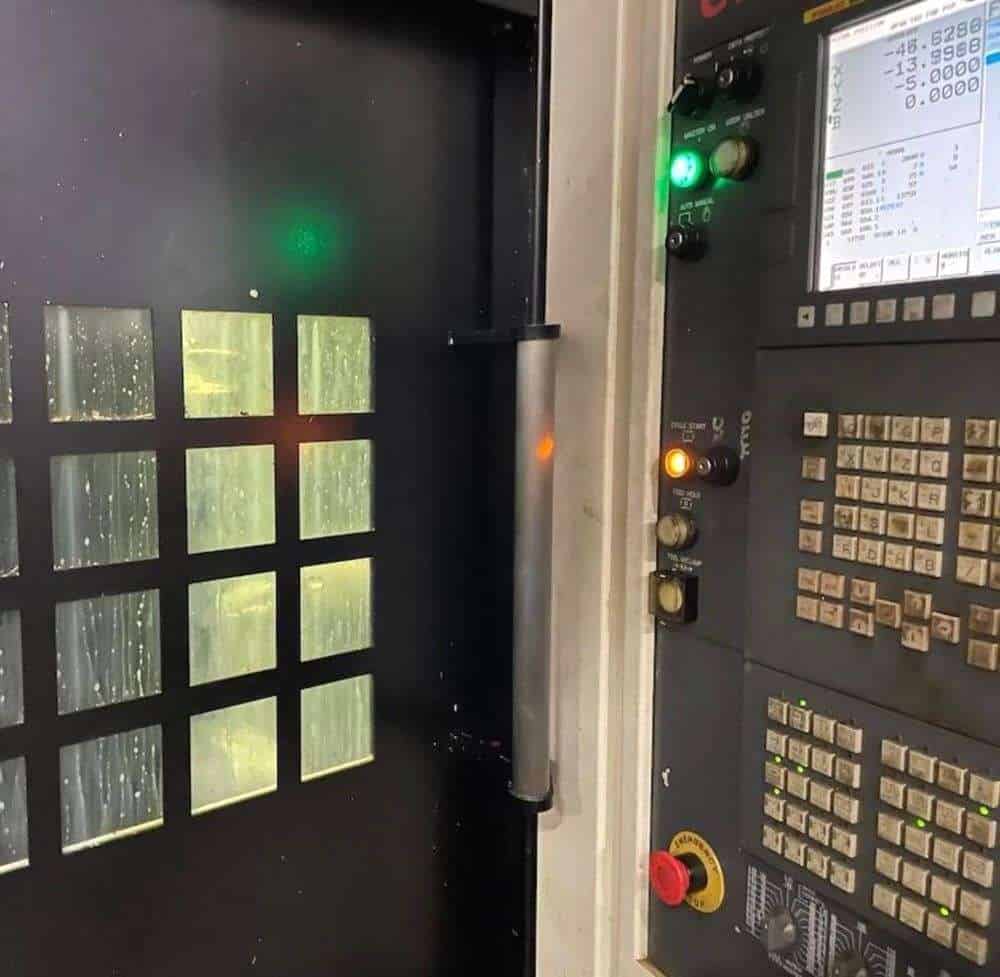

| Fanuc 31i-MB CNC Control |
| Full 4th Axis |
| 15,000 RPM High Precision Spindle |
| Coolant through Spindle |
| Twin Pallet Changer |
| 60 High Speed Tool Changer |
| Fast Rapid Traverse Rate |
| USB Ports |
| Pallet Seat Detection |
| Spindle Orientation |
| Rigid Tapping |
| Flood coolant with large separate coolant tank |
| Chip Conveyor |
| Work light |
| Travels: |
|---|
| X Axis: 23.6″ |
| Y Axis: 23.6″ |
| Z Axis: 23.6″ |
| B Axis: 0.001° ( Full 4th ) |
| Table: |
|---|
| Length: 19.68″ |
| Width: 19.68″ |
| Max Weight on Table: 1103 lbs |
| Max Workpiece Diameter: 26.37″ |
| Index Time: 7 seconds |
| Spindle: |
|---|
| Taper Size: 40 |
| Max. Speed: 15,000 RPM |
| Power: 25 HP |
| Feed rates: |
|---|
| Rapid X, Y & Y : 3543 Inch Per Minute |
| Cutting Feedrate : 1574 Inch Per Minute |
| Tool changer: |
|---|
| Capacity: 60 Tools |
| Taper: 40 |
| Max Tool Size: 6.3″ |
| Max Tool Length: 13.78″ |
| Max Tool Weight: 17.6 lbs. |
| Tool Change Time: 1.2 Second |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |

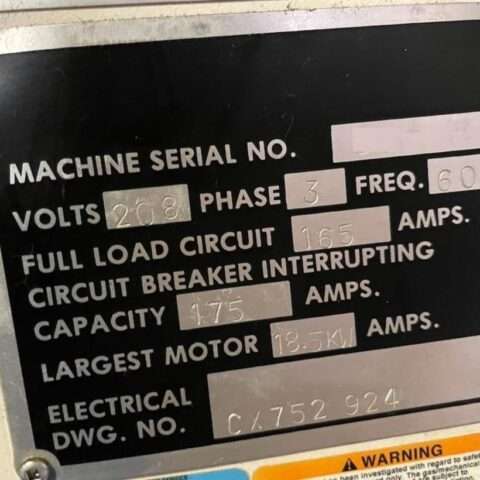

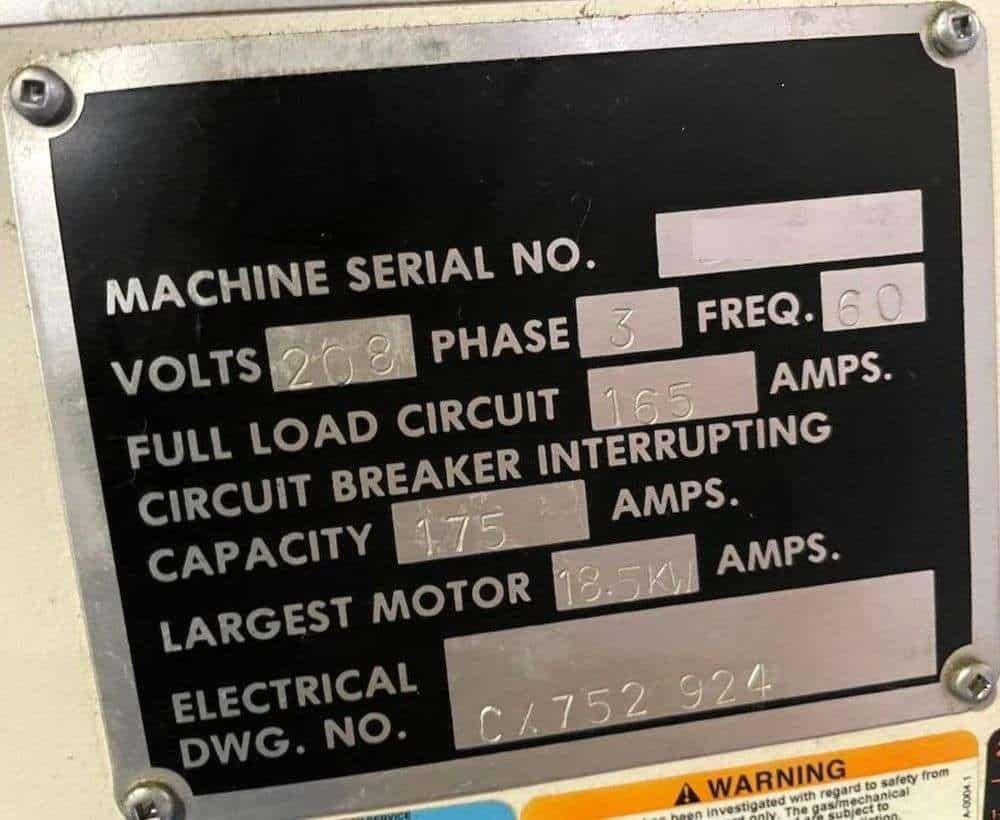

| Power: kva / 205-220v / 3-Phase |
| Overall Dimensions: 180″ X 91″ x 107″ High |
| Weight: 22,045 lbs |
