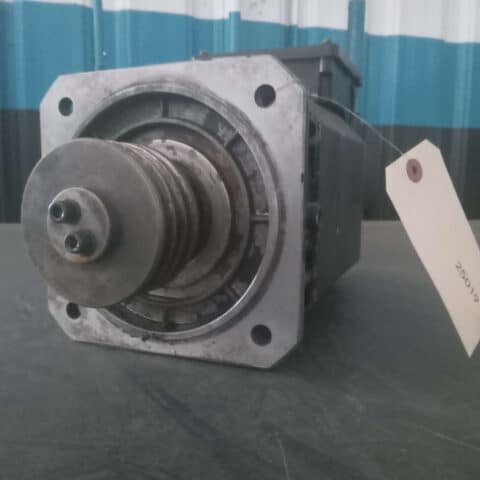

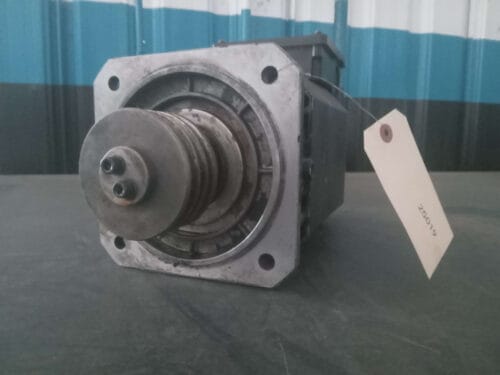

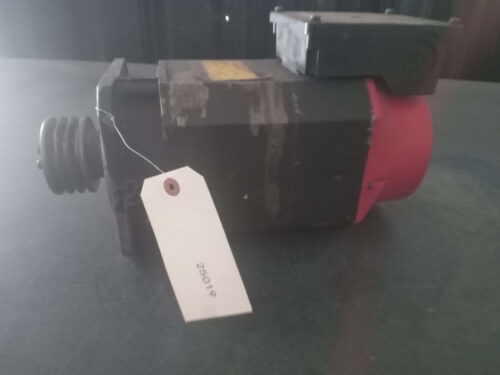

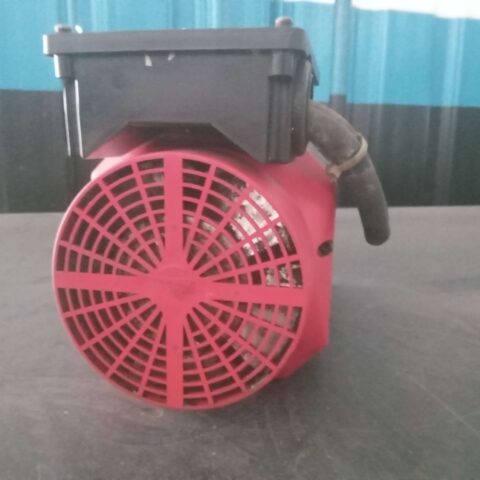

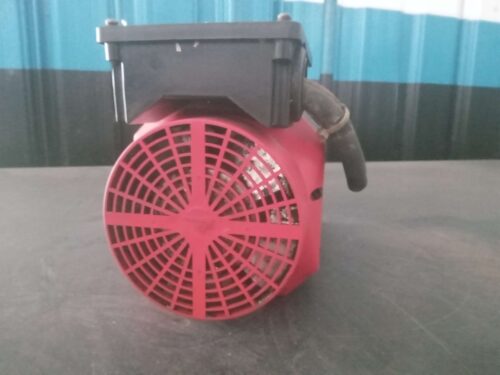

FANUC AC SPINDLE MOTOR αC2 A06B-0842-B100 B-65152E

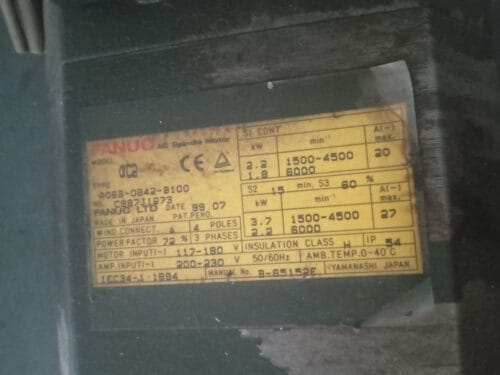

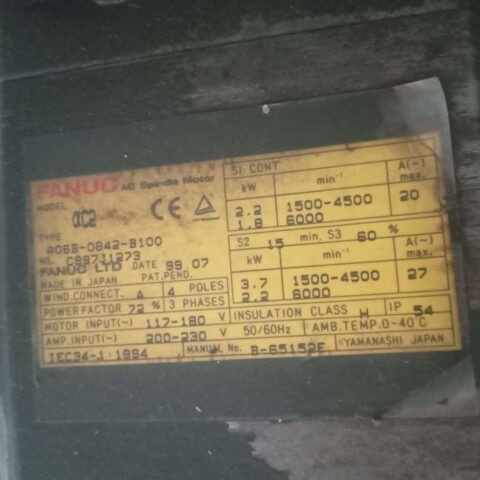

FANUC AC SPINDLE MOTOR
MODEL: αC2
TYPE: A06B-0842-B100
NO: C997J1273
DATE: 99.07
MADE IN JAPAN
WIND/ CONNECT: Y
4 POLES
POWER FACTOR 72%
3 PHASES
MOTOR INPUT (~) 117-180V
AMP INPUT (~) 200-230 V 50/60Hz
IEC34-1:1994
AMB TEMP 0-40C
SI CONT
kW 2.2 1.8
MIN-1 1500-4500 6000
A(~) MAX 20
S2 15 MIN S3 60%
kW 3.7 2.2
MIN-1: 1500-4500 6000
A(~) MAX. 27
INSULATION CLASS H
IP54
MANUAL NO B-65152E
