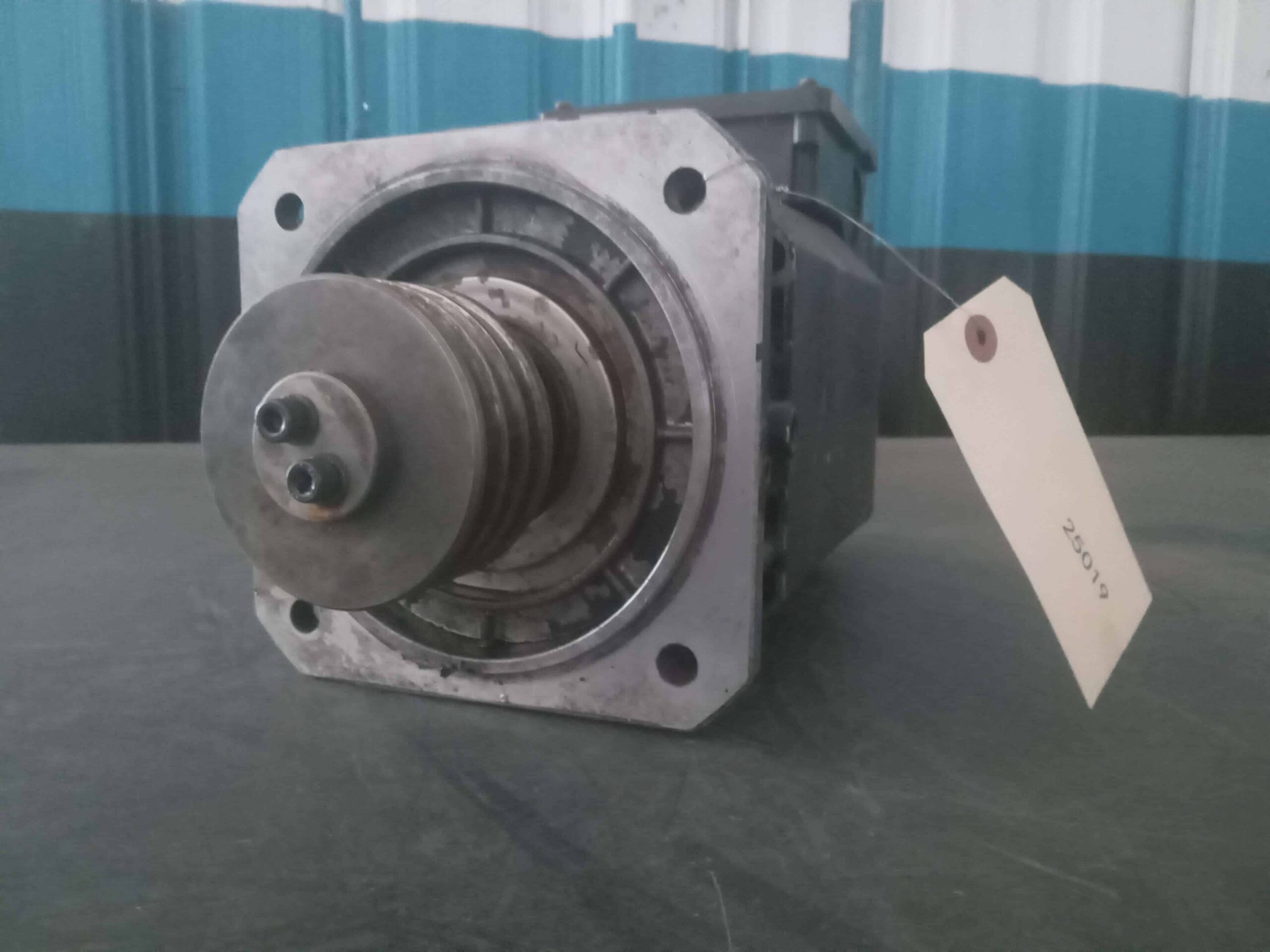

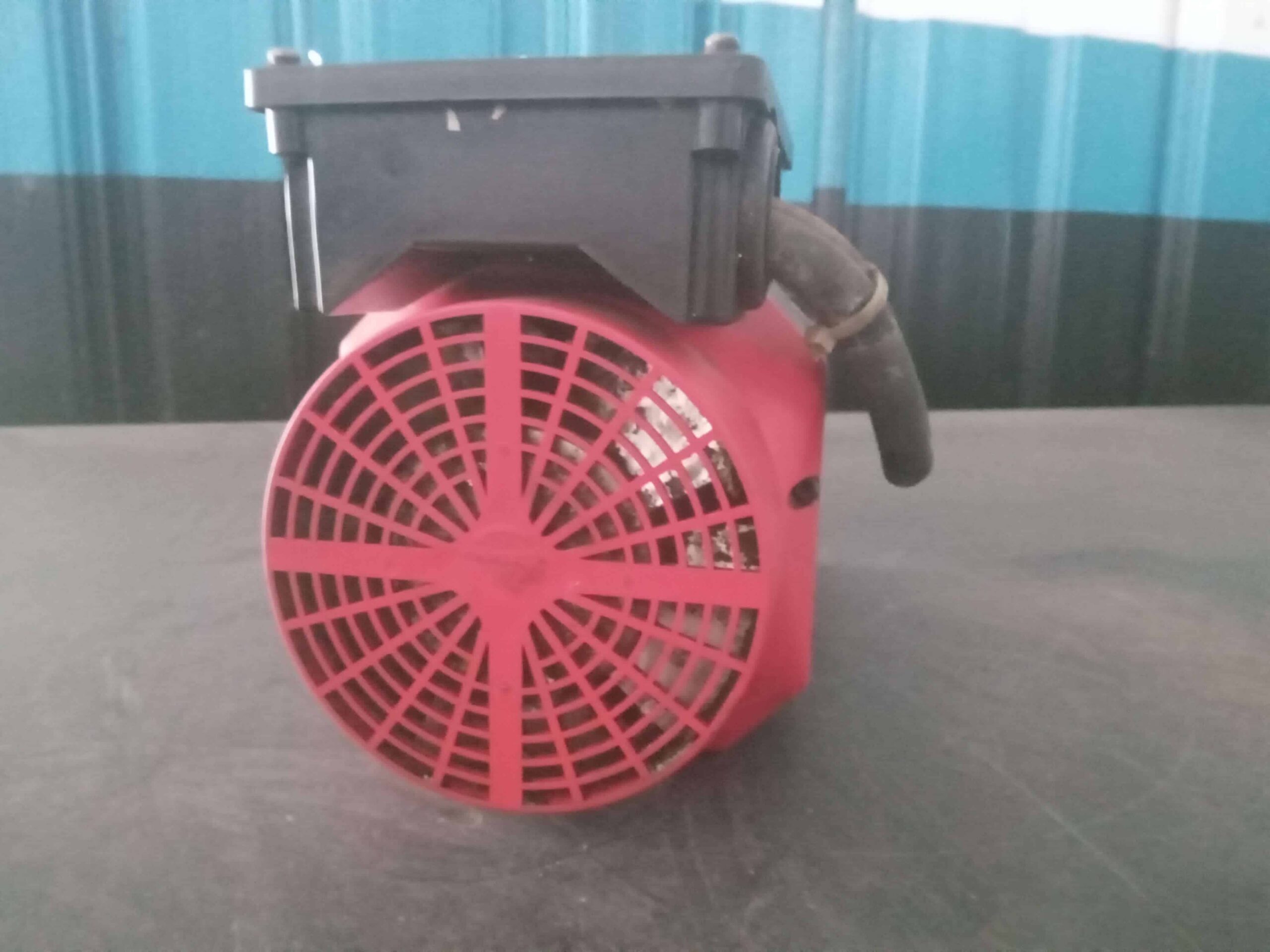

FANUC AC SPINDLE MOTOR αC2 A06B-0842-B100 B-65152E
$900
1 in stock
| Location: | Lake Elsinore, CA |
| SKU: | 25019 |
| Parts/Model: | A06B-0842-B100 |
| MODEL: | αC2 |
| TYPE: | A06B-0842-B100 |
| NO: | C997J1273 |
| DATE: | 99.07 |
| WIND/ CONNECT: | Y |

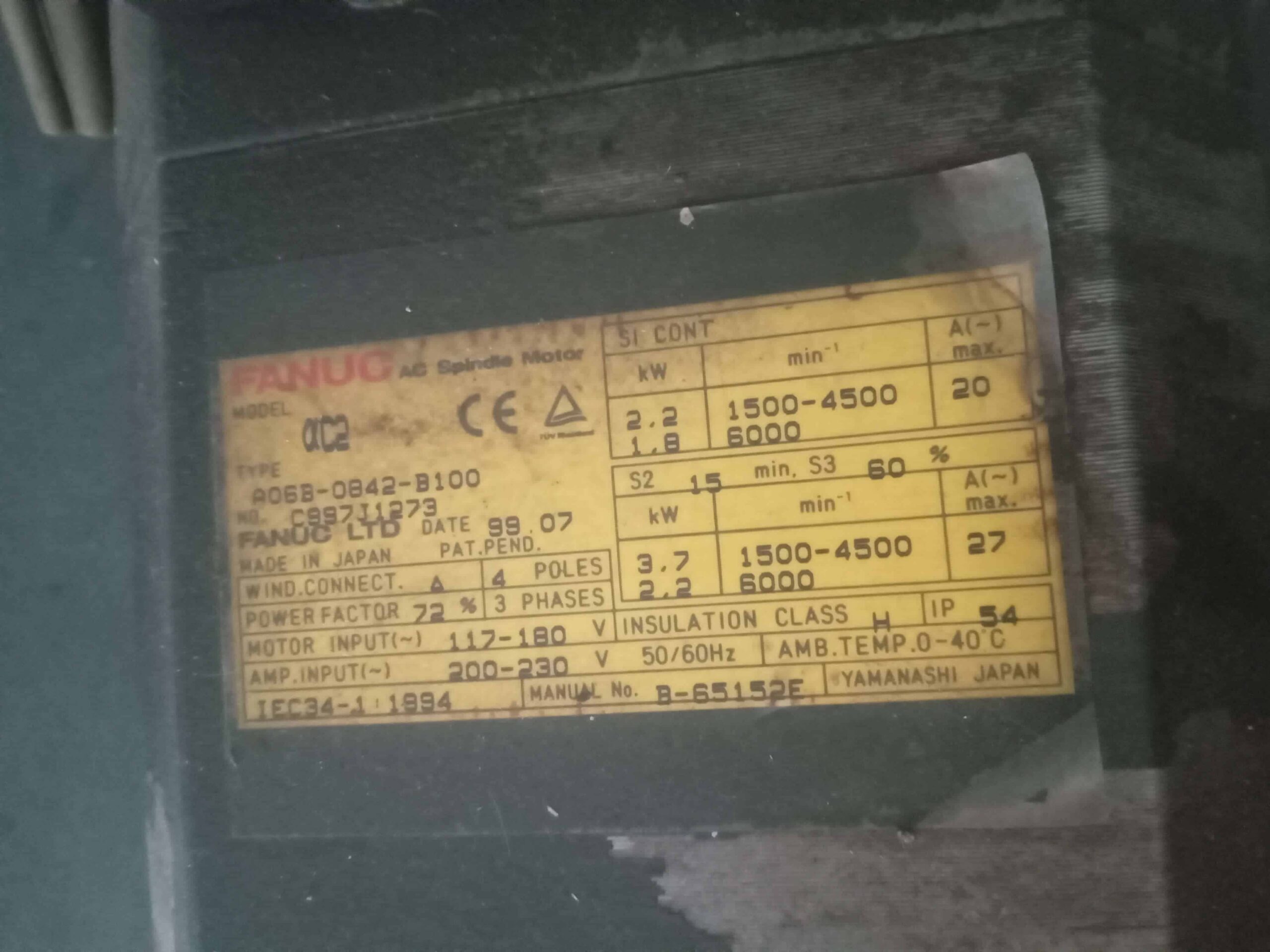

| FANUC AC SPINDLE MOTOR |
| MADE IN JAPAN |
| 4 POLES |
| POWER FACTOR 72% |
| 3 PHASES |
| MOTOR INPUT (~) 117-180V |
| AMP INPUT (~) 200-230 V 50/60Hz |
| IEC34-1:1994 |
| AMB TEMP 0-40C |
| SI CONT |
| kW 2.2 1.8 |
| MIN-1 1500-4500 6000 |
| A(~) MAX 20 |
| S2 15 MIN S3 60% |
| kW 3.7 2.2 |
| MIN-1: 1500-4500 6000 |
| A(~) MAX. 27 |
| INSULATION CLASS H |
| IP54 |
| MANUAL NO B-65152E |
| Model | A06B-0842-B100 |
|---|
