Name: FANUC AC SPINDLE MOTOR αC2 A06B-0842-B100 B-65152E
Brand: FANUC
SKU: 25019
Price: 900 USD
Availability: InStock

FANUC AC SPINDLE MOTOR αC2 A06B-0842-B100 B-65152E

$900

Location Lake Elsinore, CA

SKU 25019

Make FANUC

Model A06B-0842-B100

Condition Used

In stock

Location:	Lake Elsinore, CA
SKU:	25019
Make:	FANUC
Model:	A06B-0842-B100
Condition:	Used

SKU: 25019

Brand: FANUC

FANUC AC SPINDLE MOTOR
MODEL: αC2
TYPE: A06B-0842-B100
NO: C997J1273
DATE: 99.07
MADE IN JAPAN
WIND/ CONNECT: Y
4 POLES
POWER FACTOR 72%
3 PHASES
MOTOR INPUT (~) 117-180V
AMP INPUT (~) 200-230 V 50/60Hz
IEC34-1:1994
AMB TEMP 0-40C
SI CONT
kW 2.2 1.8
MIN-1 1500-4500 6000
A(~) MAX 20
S2 15 MIN S3 60%
kW 3.7 2.2
MIN-1: 1500-4500 6000
A(~) MAX. 27
INSULATION CLASS H
IP54
MANUAL NO B-65152E

MODEL:	αC2
TYPE:	A06B-0842-B100
NO:	C997J1273
DATE:	99.07
WIND/ CONNECT:	Y

FANUC AC SPINDLE MOTOR

MADE IN JAPAN

4 POLES

POWER FACTOR 72%

3 PHASES

MOTOR INPUT (~) 117-180V

AMP INPUT (~) 200-230 V 50/60Hz

IEC34-1:1994

AMB TEMP 0-40C

SI CONT

kW 2.2 1.8

MIN-1 1500-4500 6000

A(~) MAX 20

S2 15 MIN S3 60%

kW 3.7 2.2

MIN-1: 1500-4500 6000

A(~) MAX. 27

INSULATION CLASS H

IP54

MANUAL NO B-65152E

No detailed specifications listed for this machine yet — call us for full specs.

Make	Fanuc
Model	A06B-0842-B100

FANUC AC SPINDLE MOTOR αC2 A06B-0842-B100 B-65152E 1

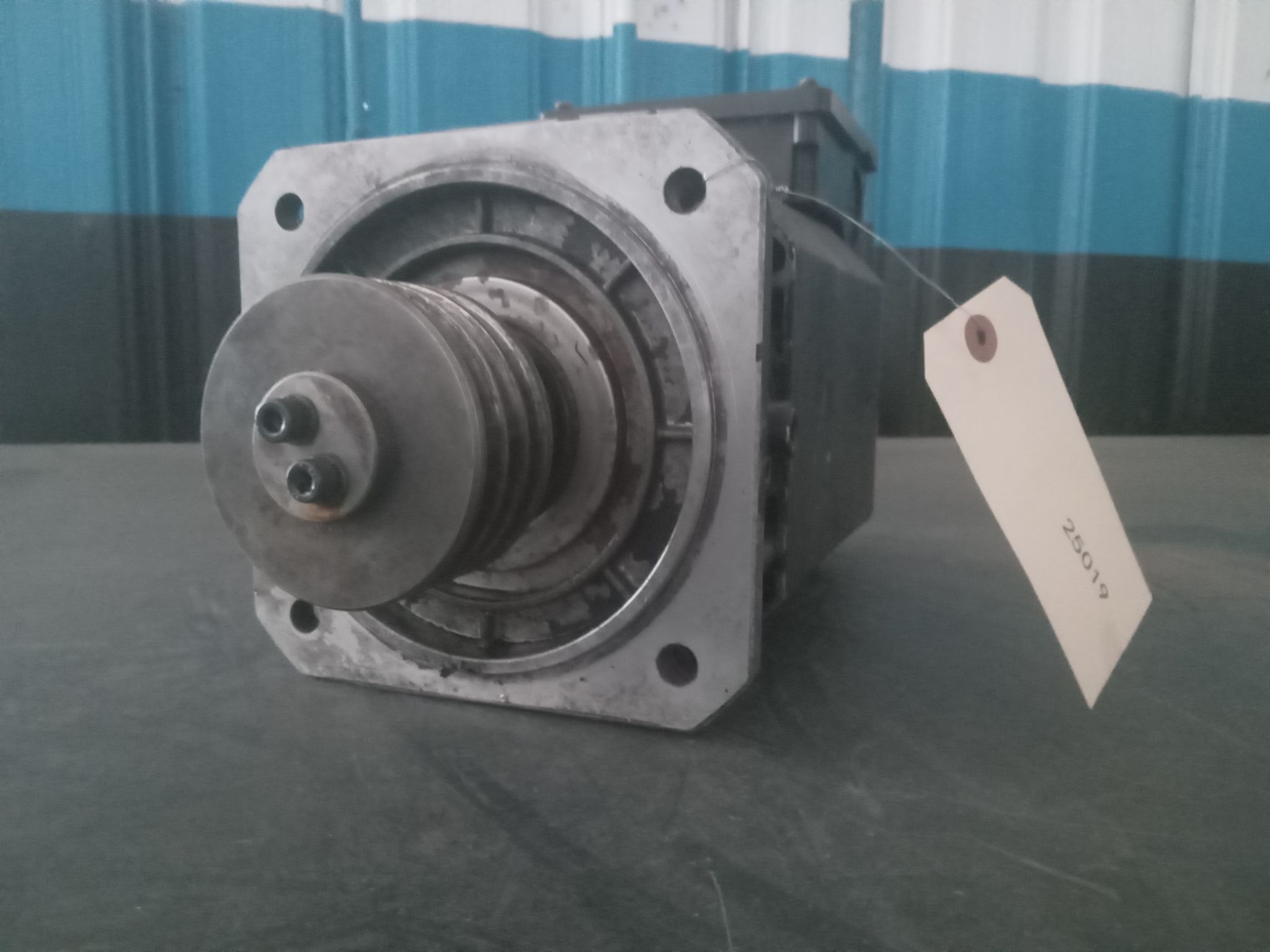

FANUC AC SPINDLE MOTOR αC2 A06B-0842-B100 B-65152E 2

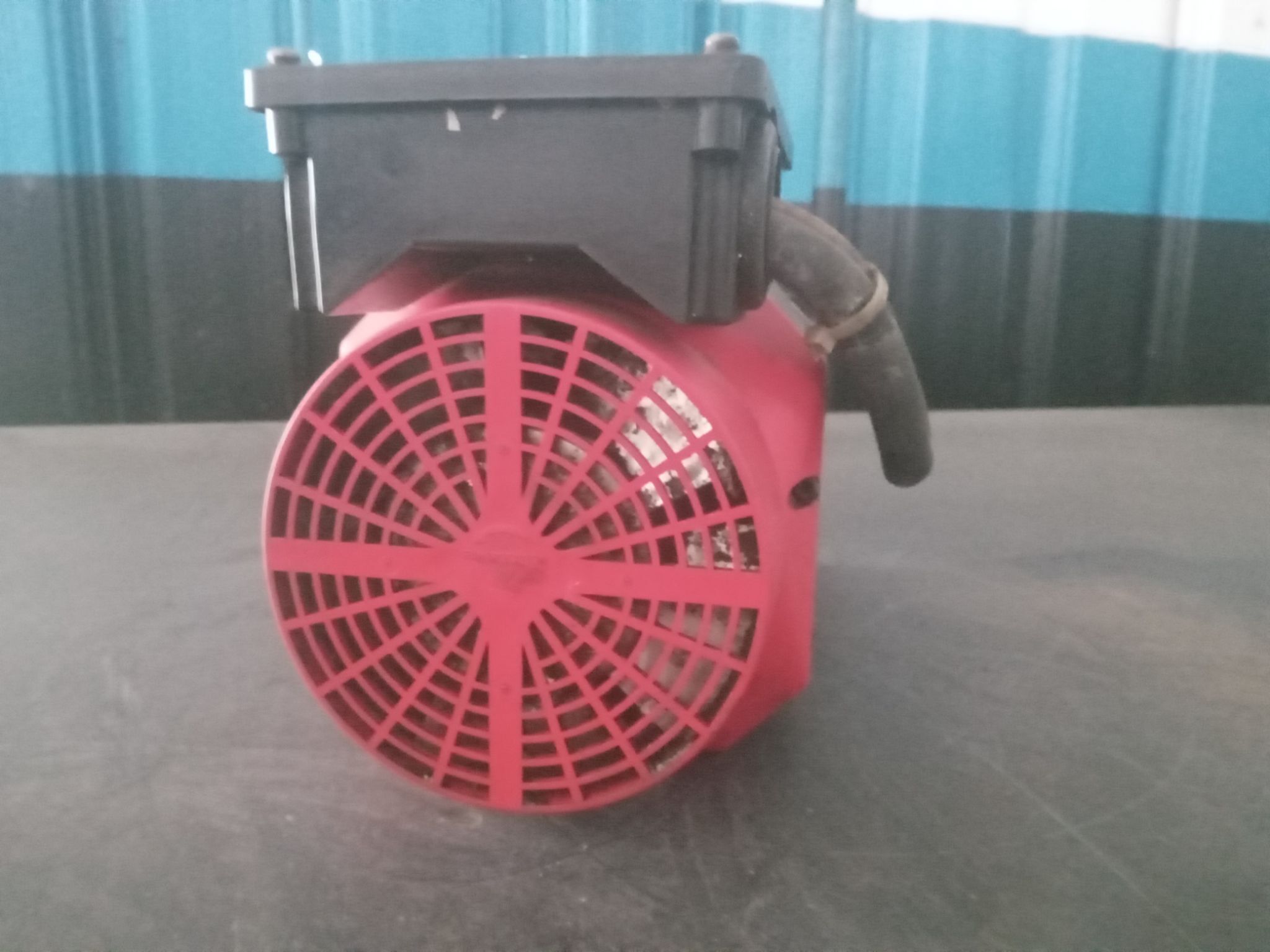

FANUC AC SPINDLE MOTOR αC2 A06B-0842-B100 B-65152E 3
