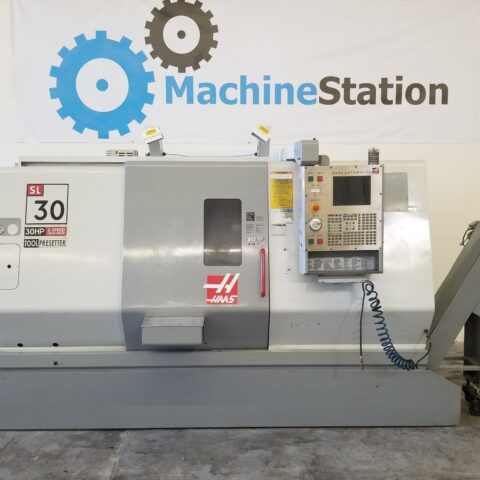

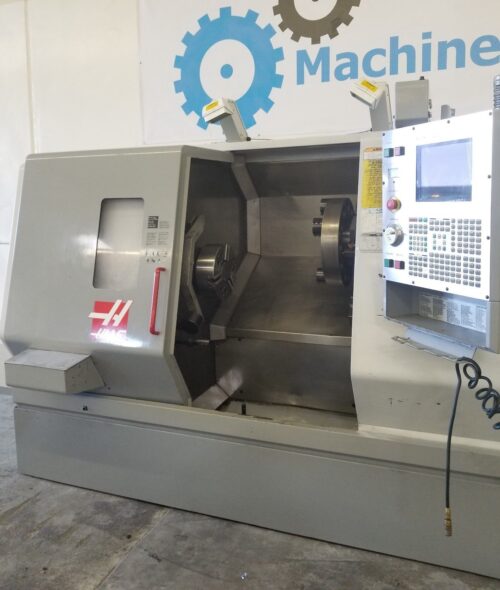

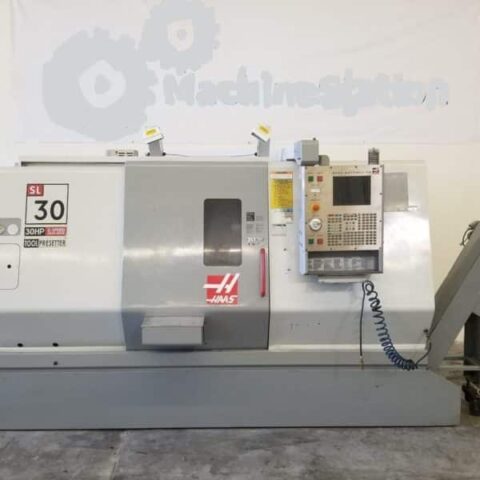

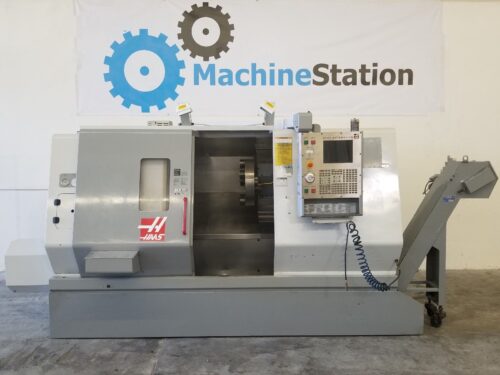

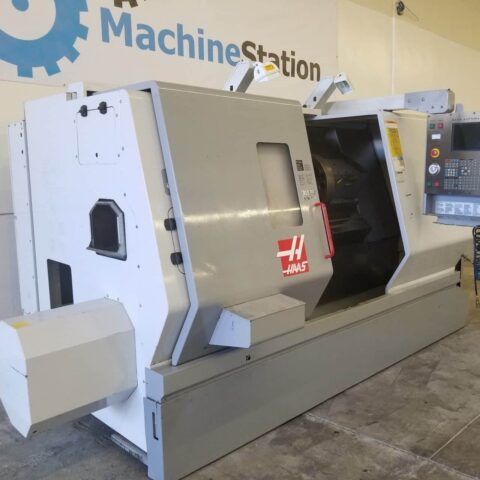

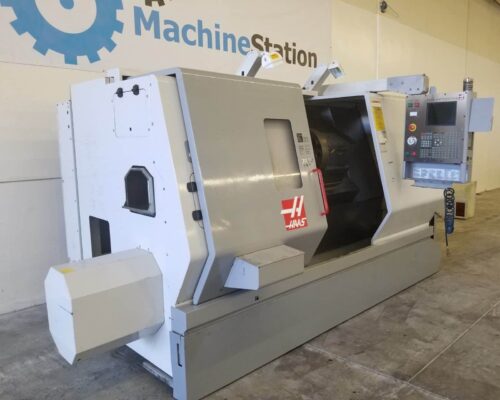

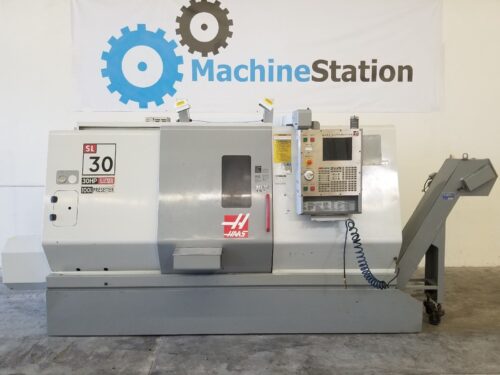

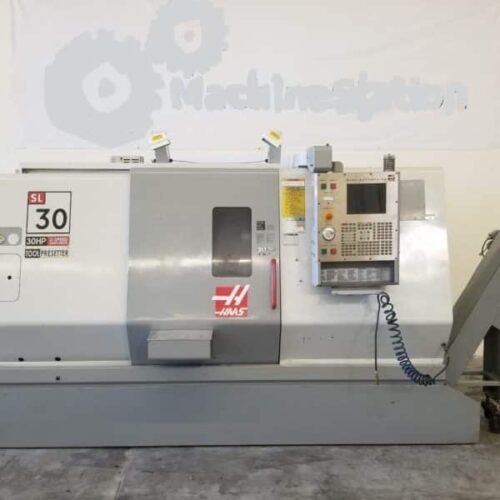

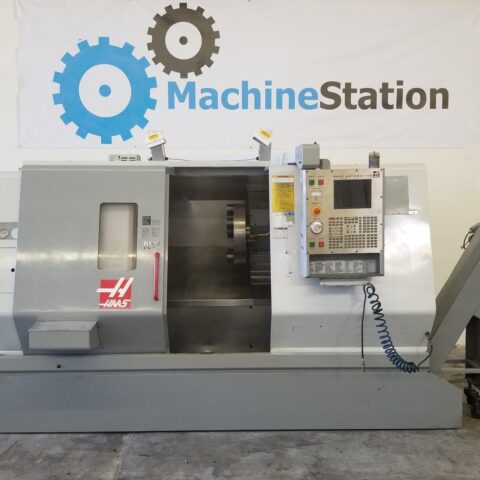

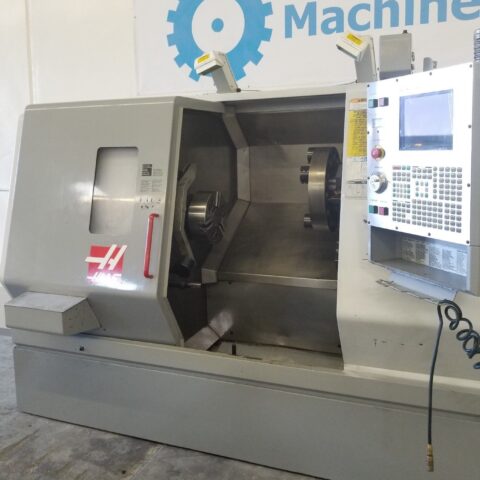

HAAS SL-30 CNC Turning Big Bore Lathe

All specifications are approximations and are subject to verification.

• HAAS SL-30 CNC Equipped With:

• 30 HP Gear Head Spindle
• 3.5″ Big Bore Spindle

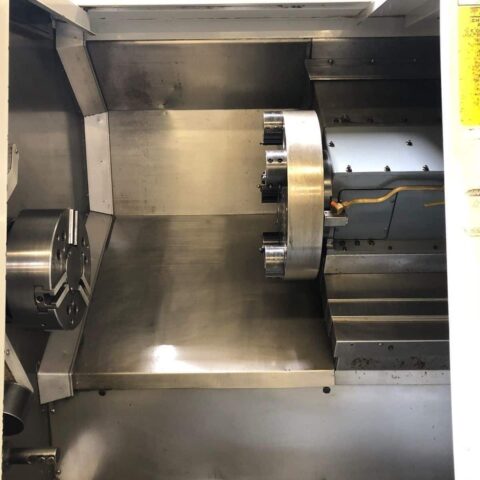

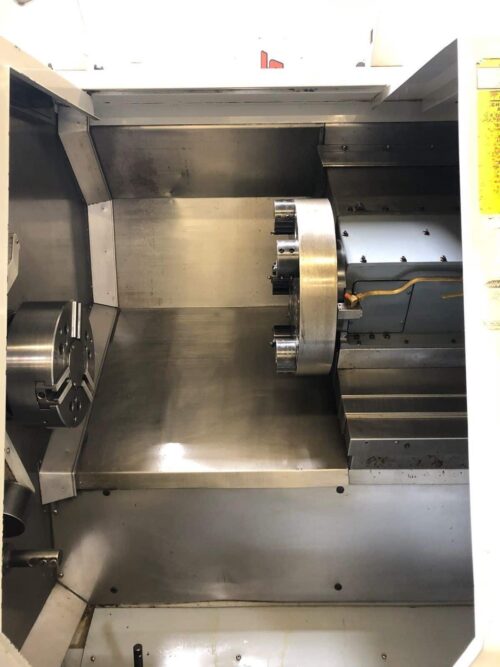

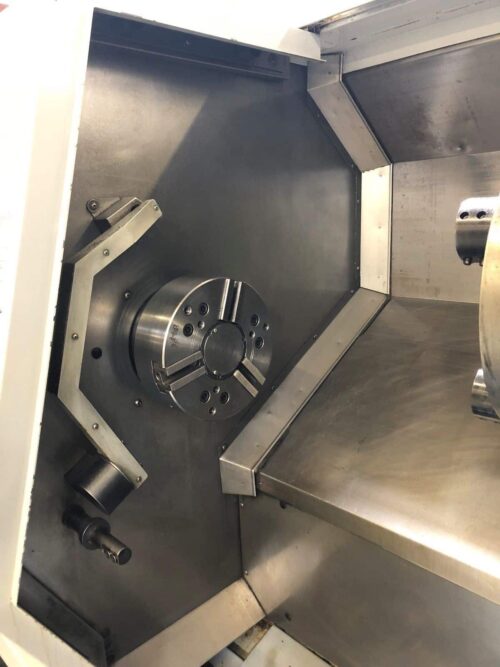

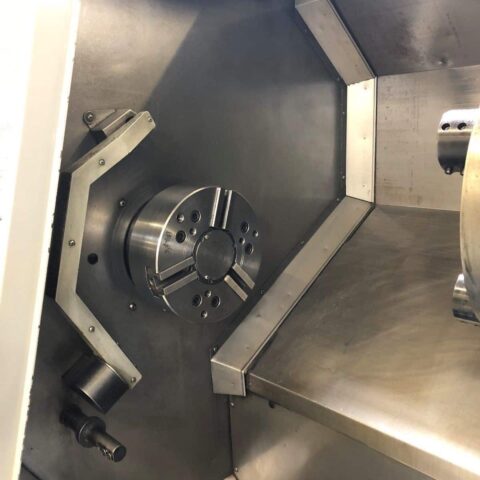

• 12″ 3 Jaw MMK Hydraulic Chuck
• A2-6 Gear Head Spindle
• Tool Presetter
• USB Drive

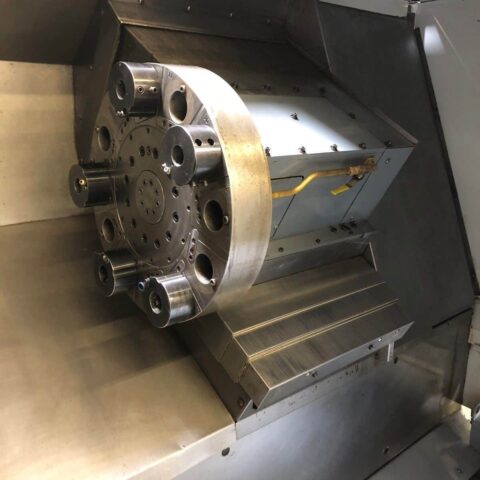

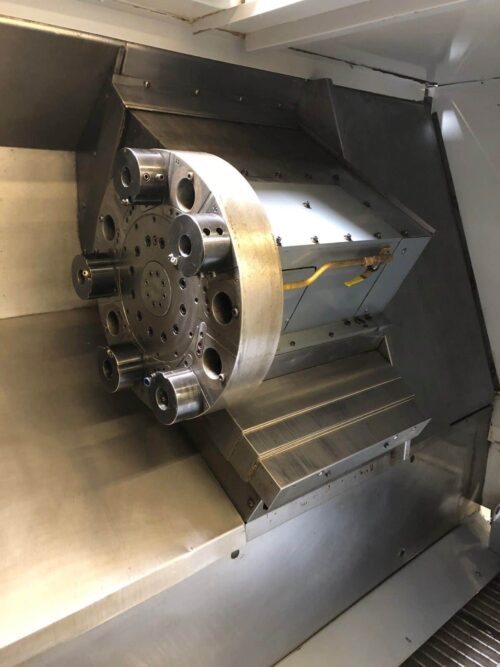

• 12 Station Automatic Turret
• Coolant Tank

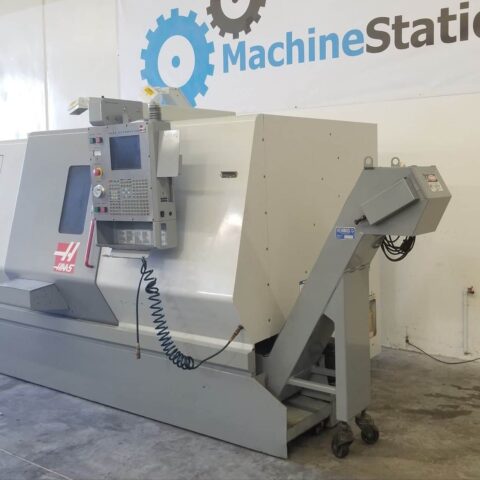

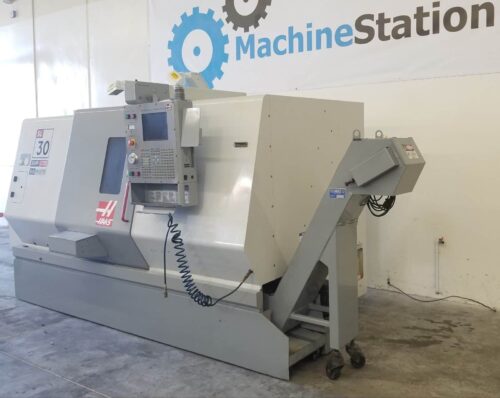

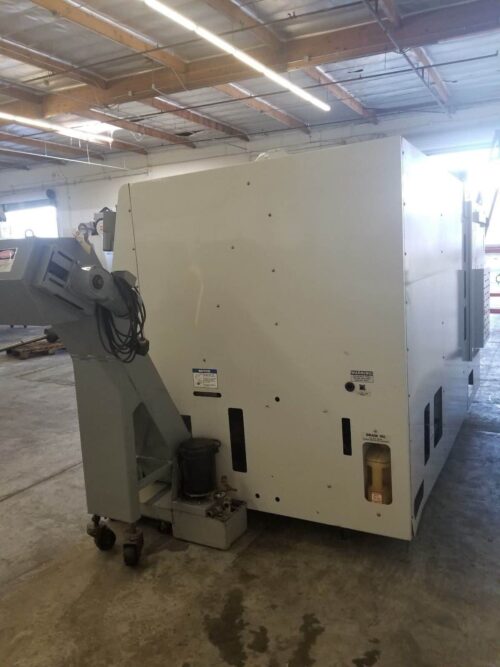

• Chip Conveyor
• Levelling Pads

• HAAS SL-30 CNC Specifications:

• Capacity:
• Max Turning Diameter: 17.0″
• Max Turning Length: 26.2″
• Max Bar Capacity: 3.0″
• Swing Over Bed: 30.0″
• X Axis Travel: 11.3″
• Z Axis Travel: 34.0″
• Rapid Traverse X Axis: 710 IPM
• Rapid Traverse Z Axis: 710 IPM
• Spindle Nose: A2-6
• Spindle Bore: 3.50″
• Spindle Speed: 0 – 3400 RPM
• Spindle Motor: 30 HP
• Turret Capacity: 12 Stations
• Turret Index Time: 1 Second

• General:

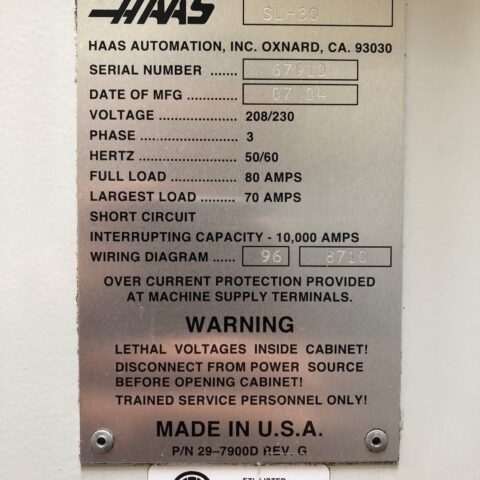

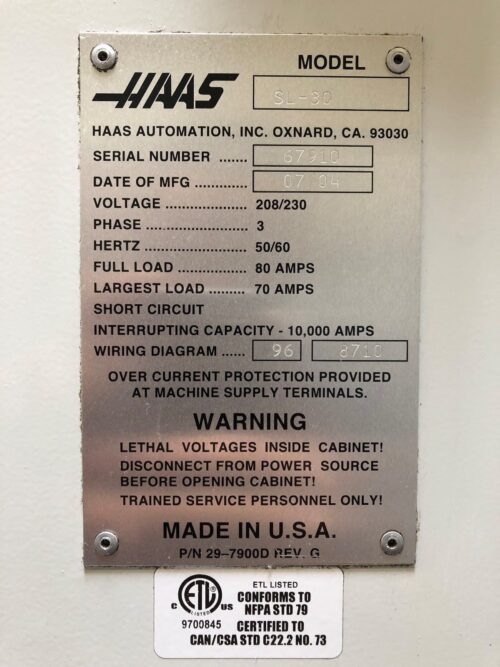

• Power: 75 Amps, 220v / 3-Phase
• Overall Dimensions: 137″ X 76″ X 79″ High
• Weight: 16000 lbs
