*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |

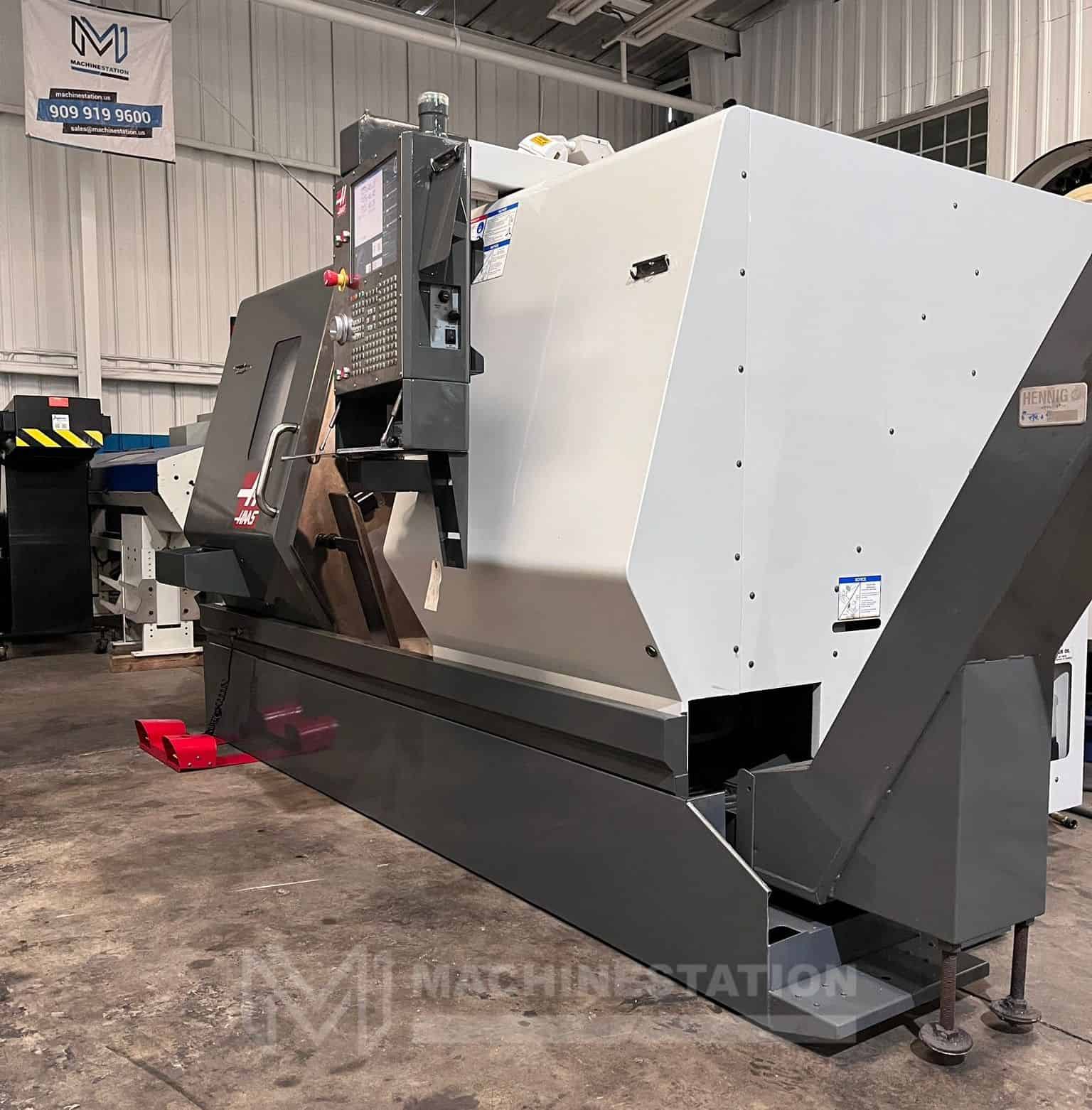

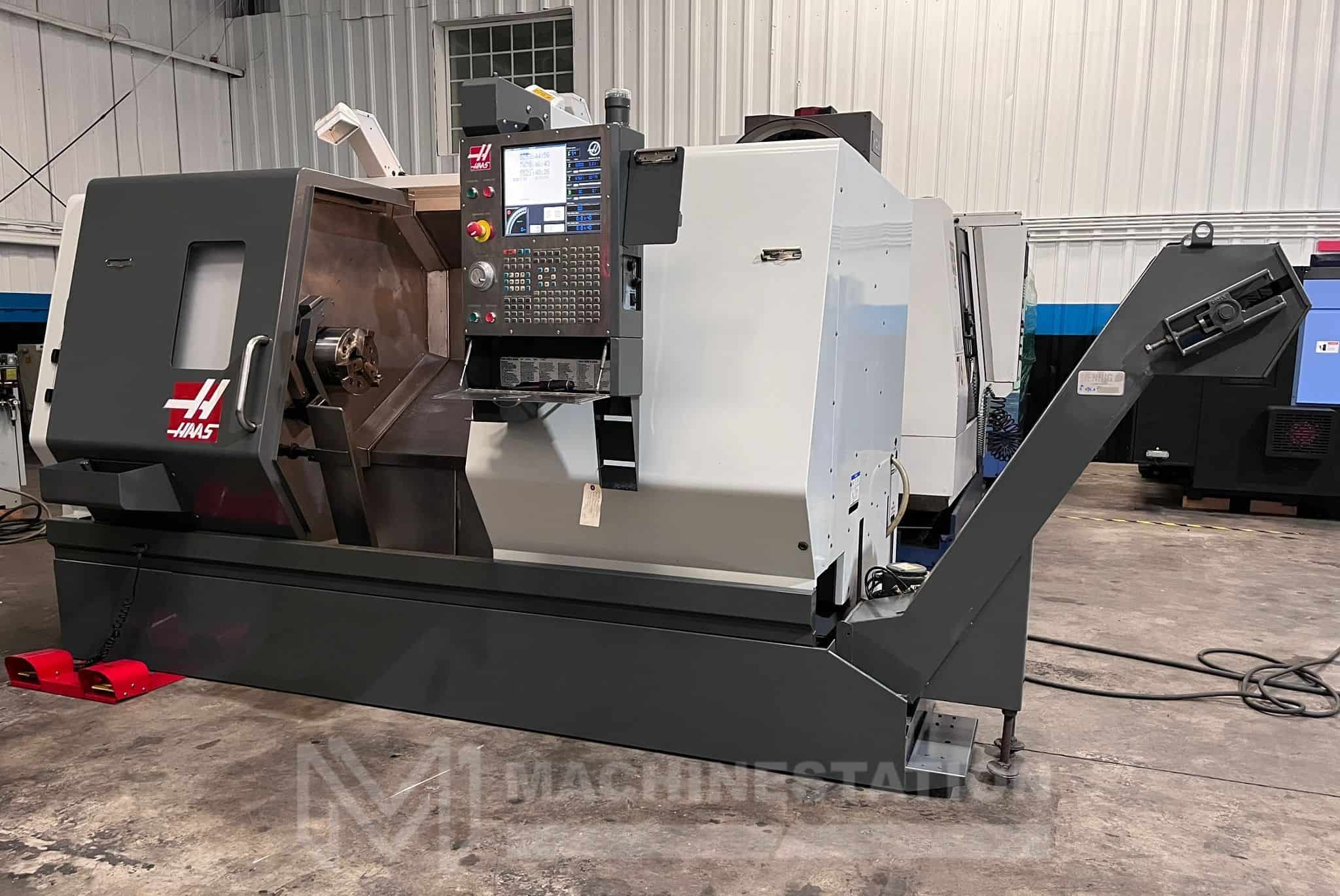

| Model: | SL-30T |
| Year: | 2007 |
| Condition: | Used – Good |
| Equipped With: |
|---|

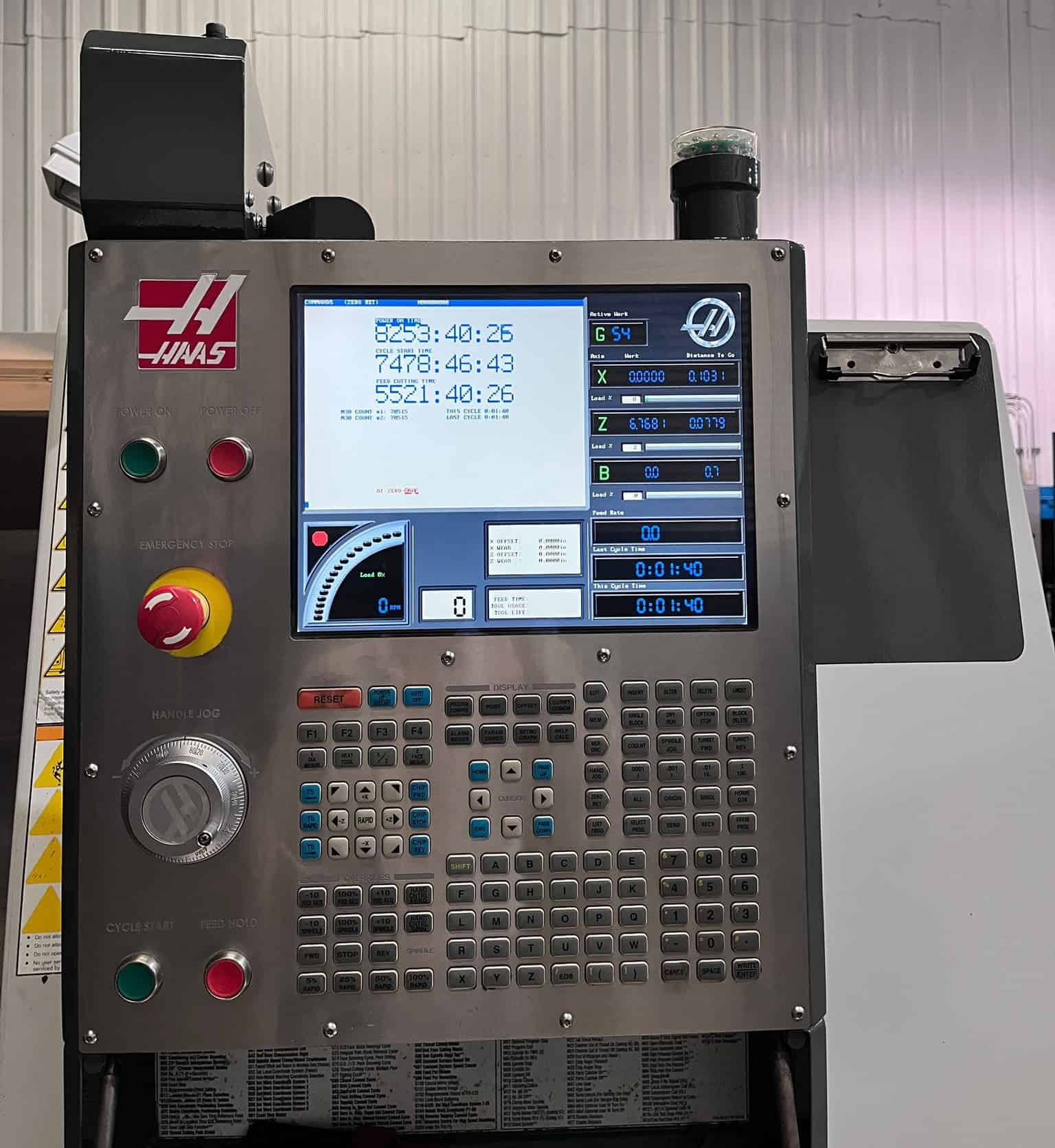

| Haas CNC Control |
| Haas VOP Package |

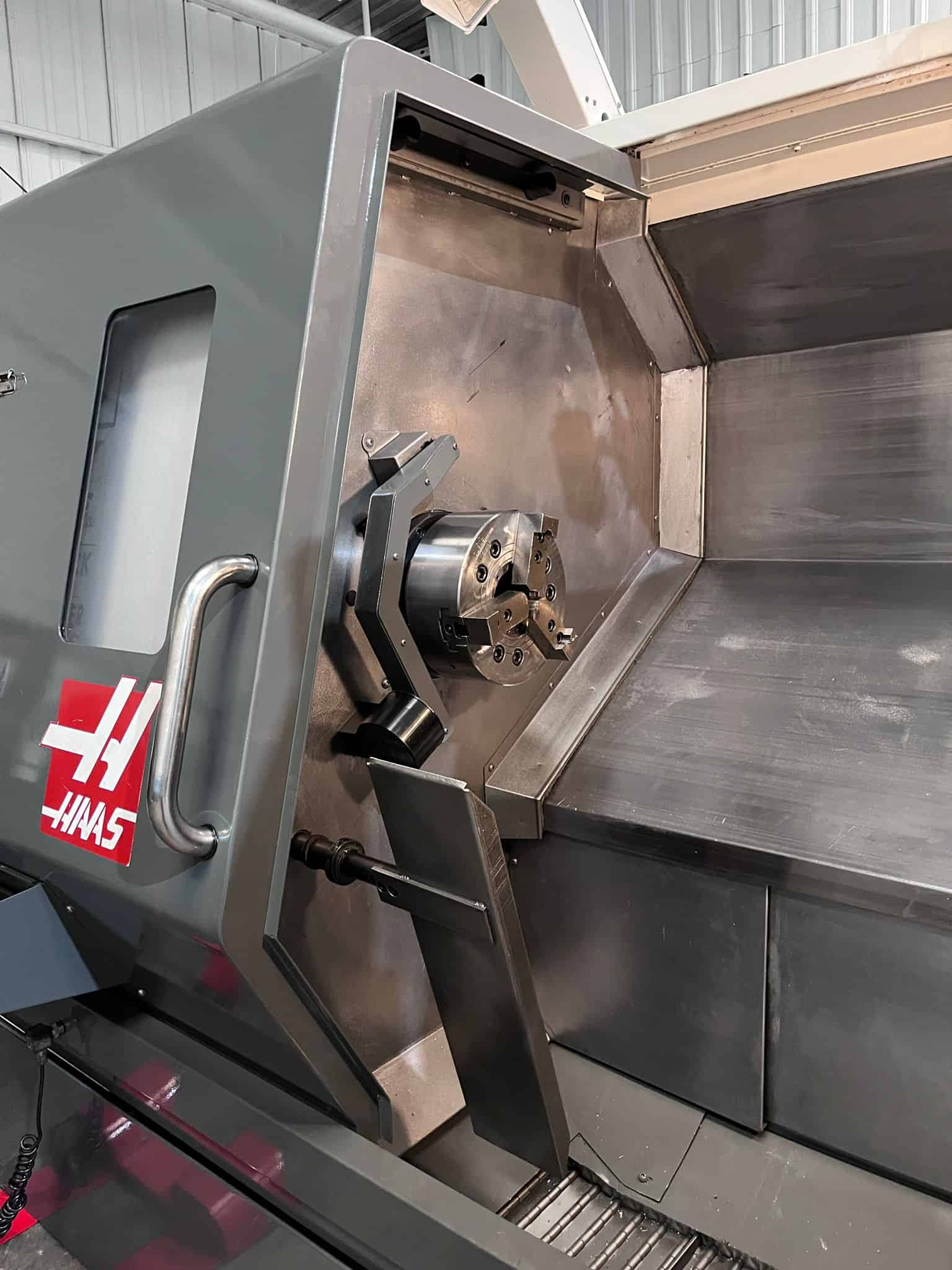

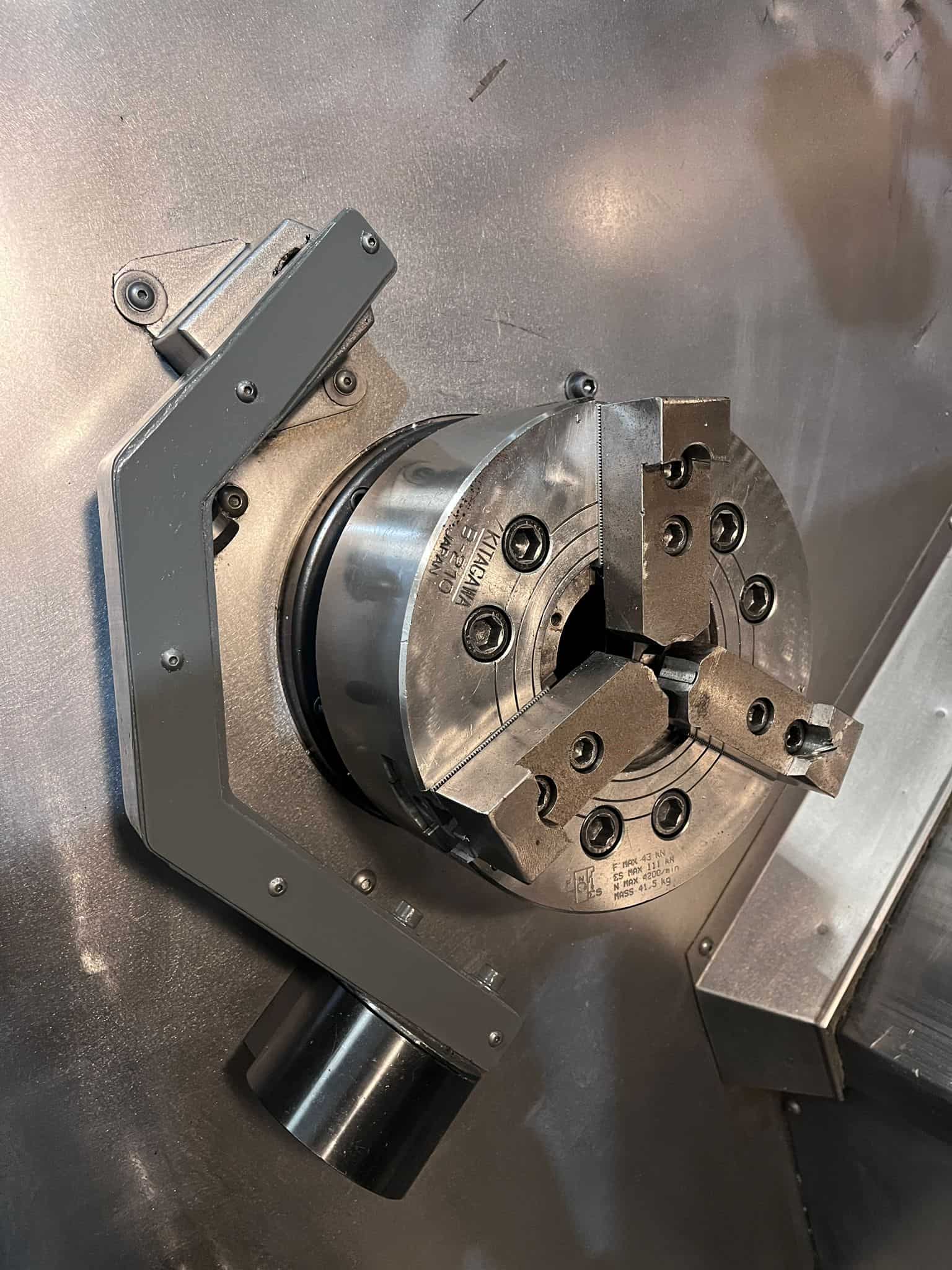

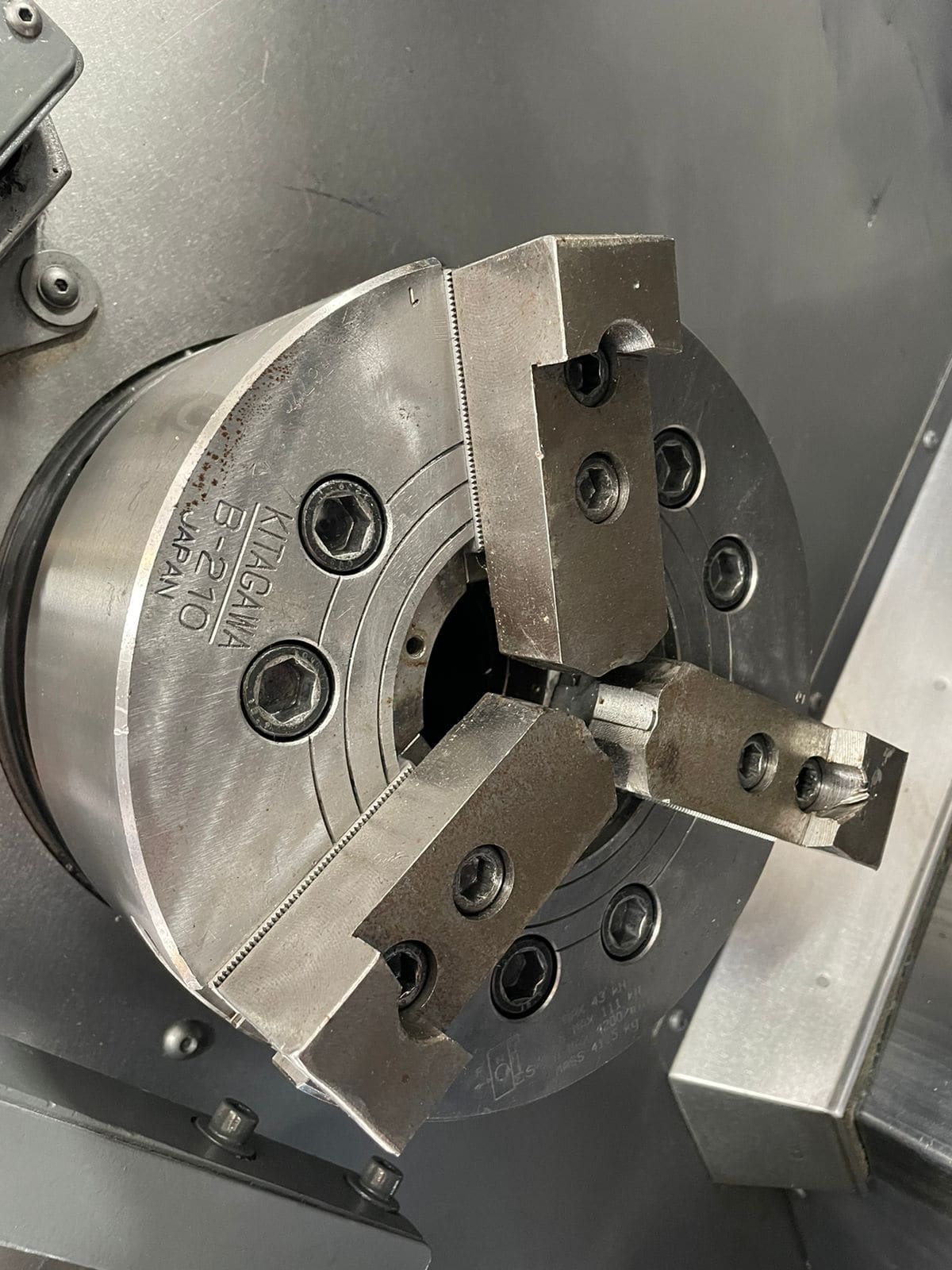

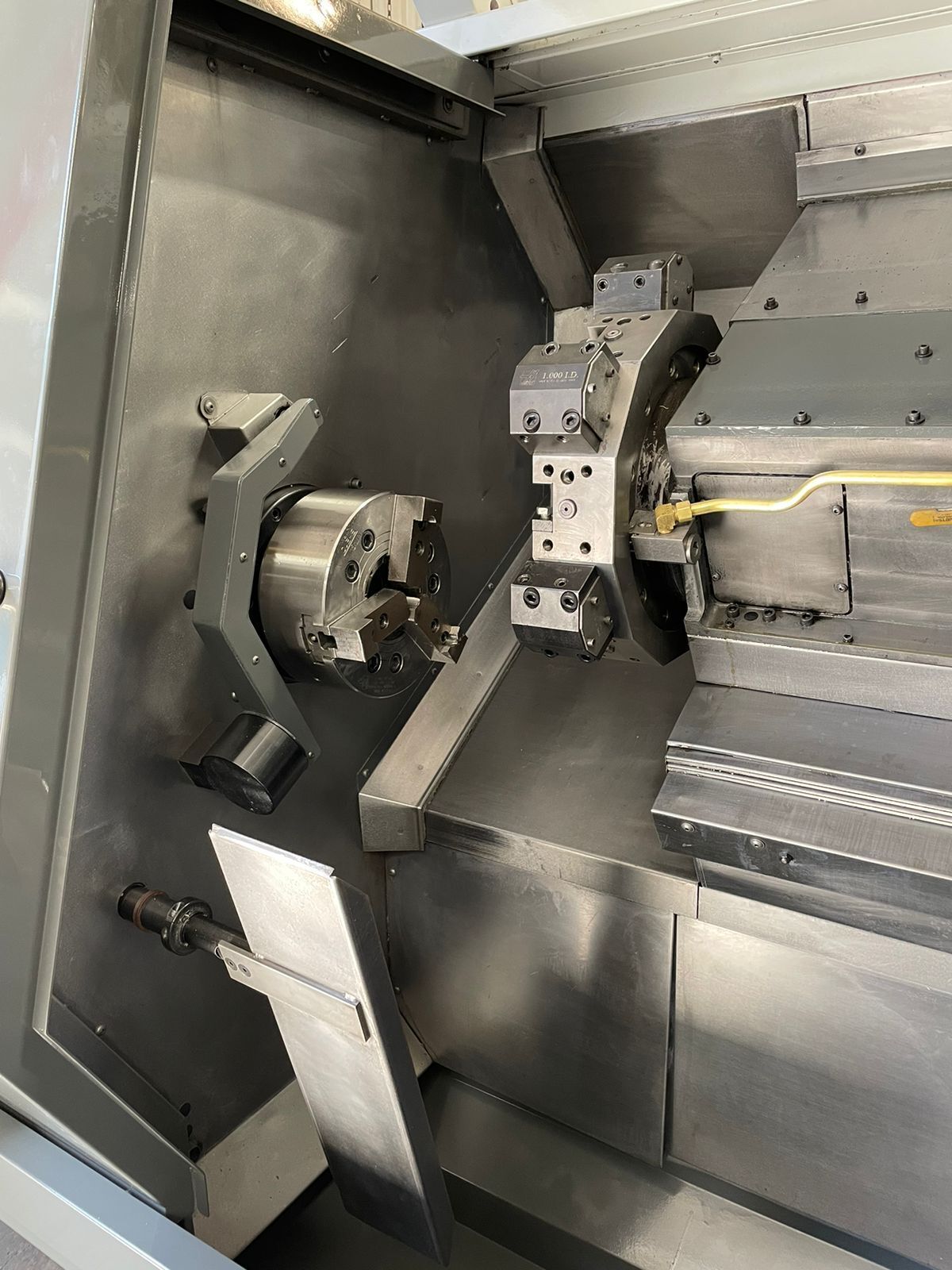

| 10″ 3-Jaw Kitagawa B-210 Chuck |

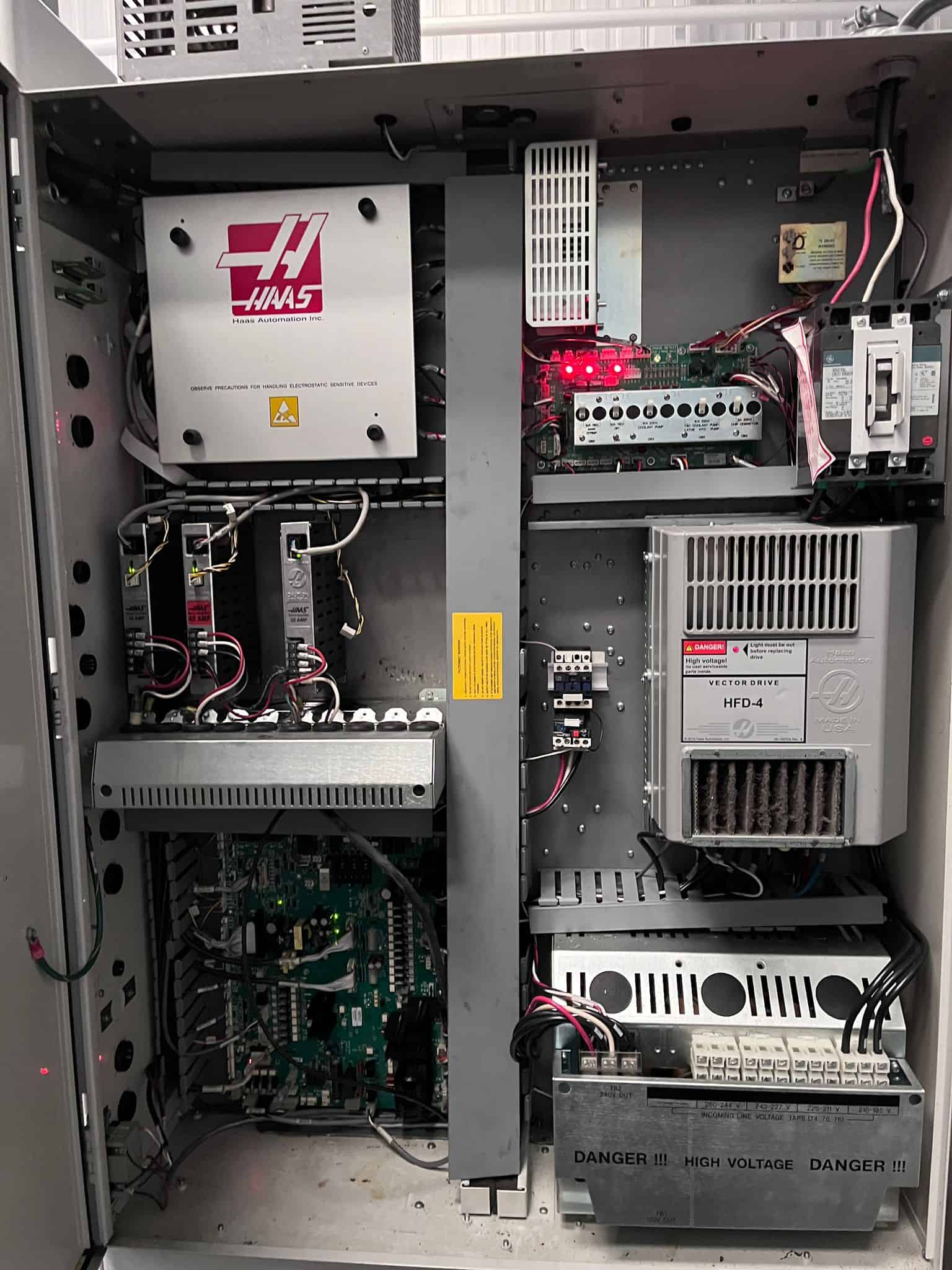

| 30 HP Vector Dual Drive |

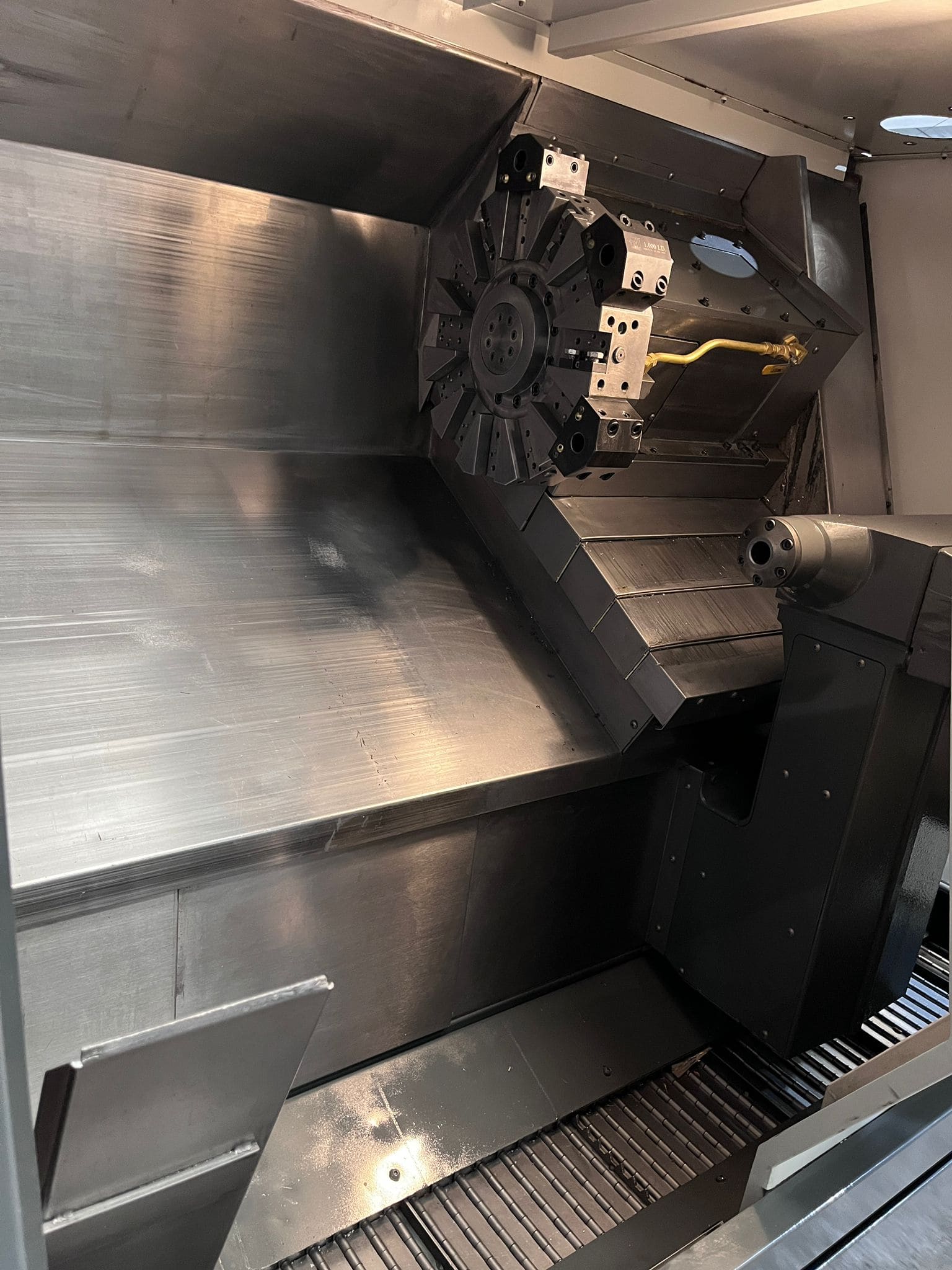

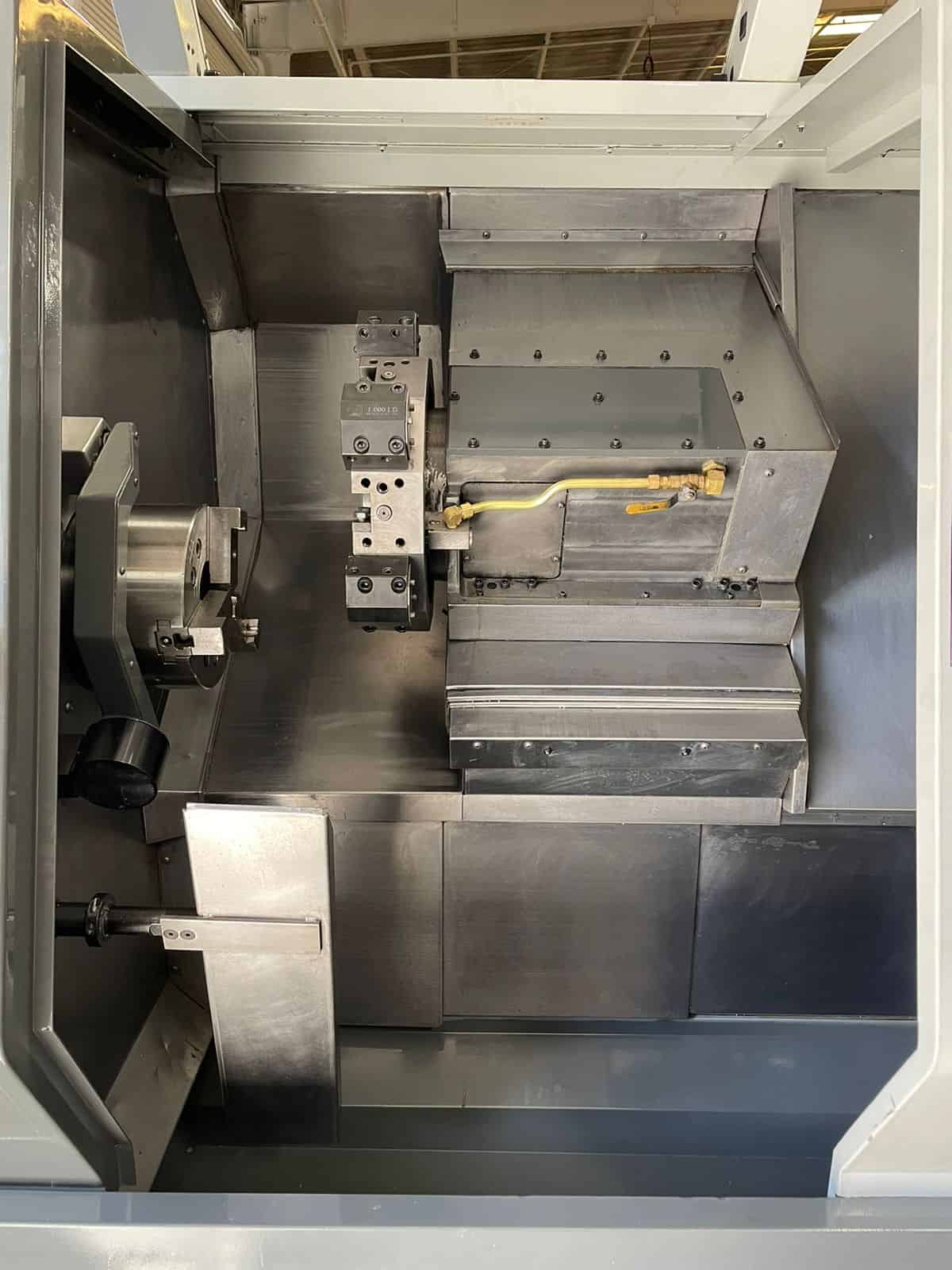

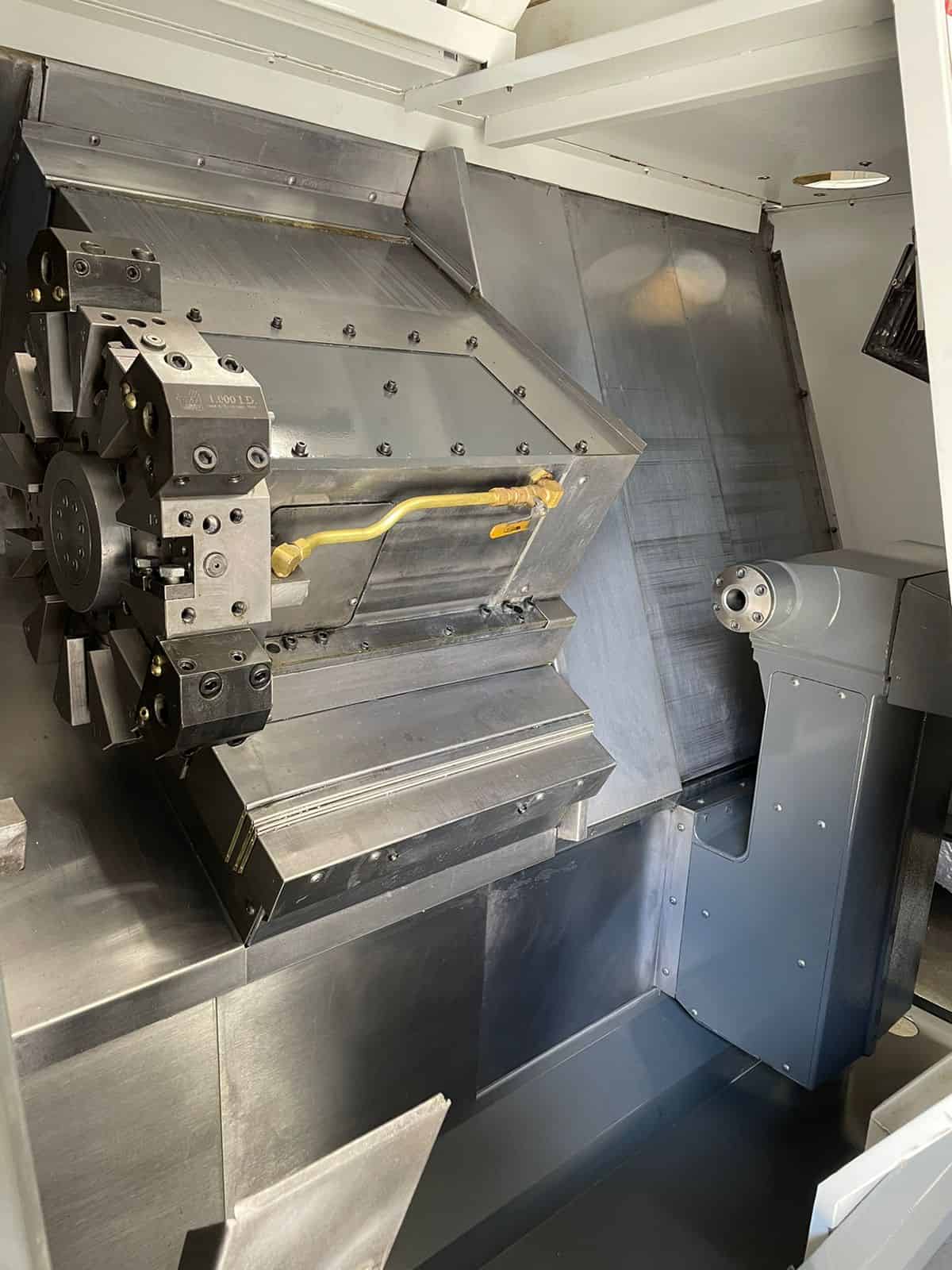

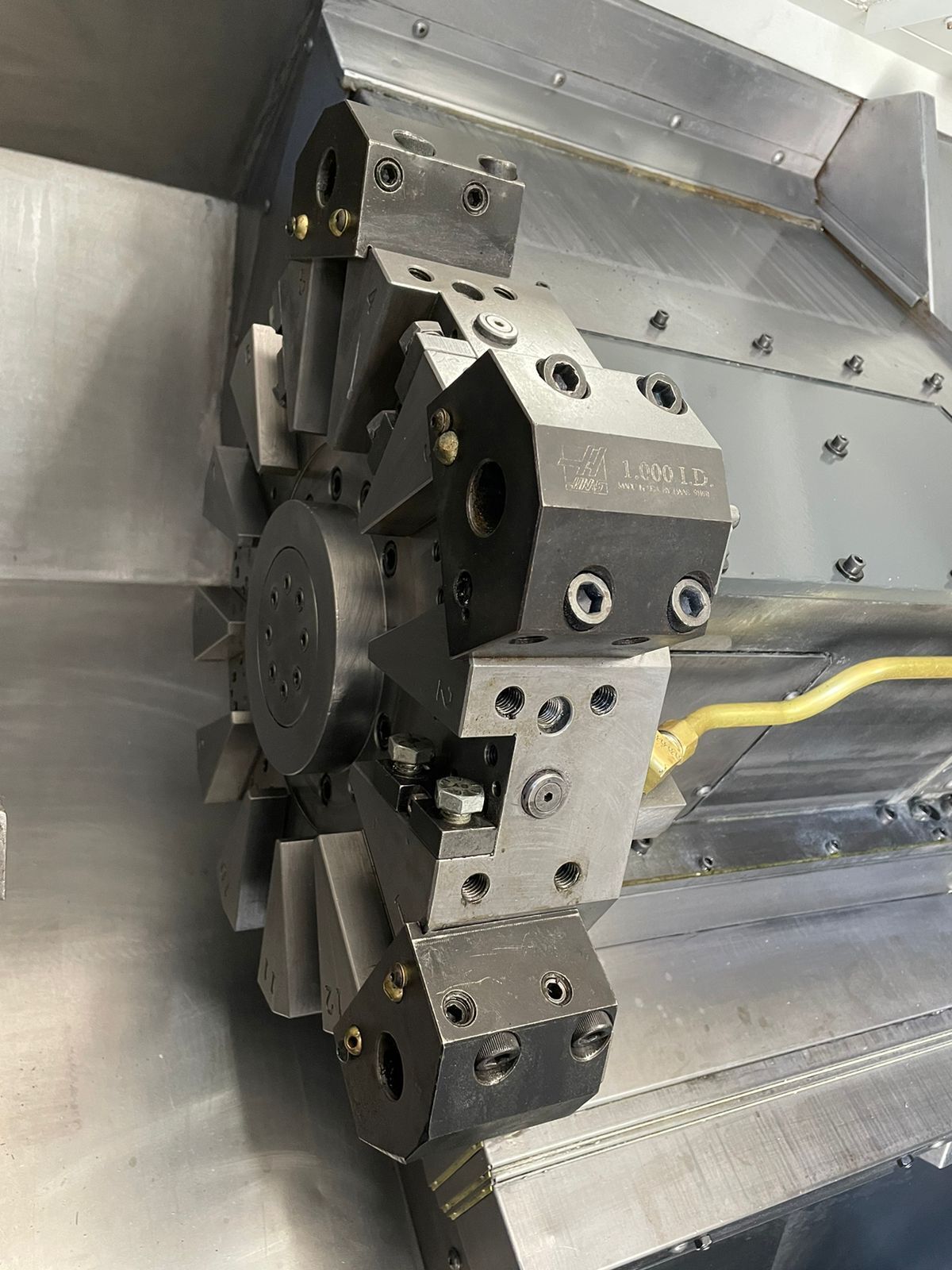

| 12 Station Bolt-on-Turret |
| Tool Presetter |
| Part Catcher |
| A2-6 Spindle |
| 3.5″ Big Bore Spindle |
| USB Port |

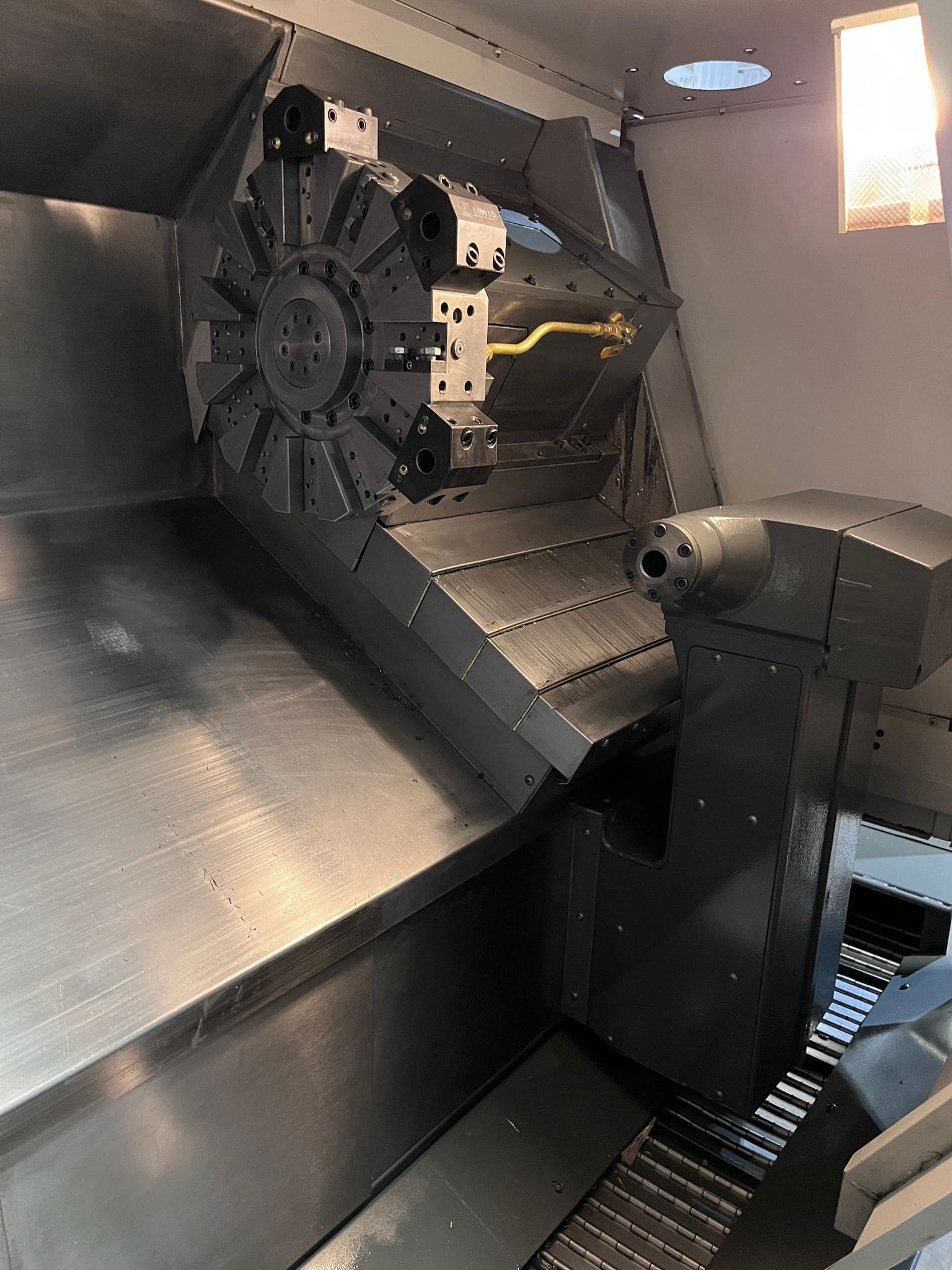

| Tailstock |

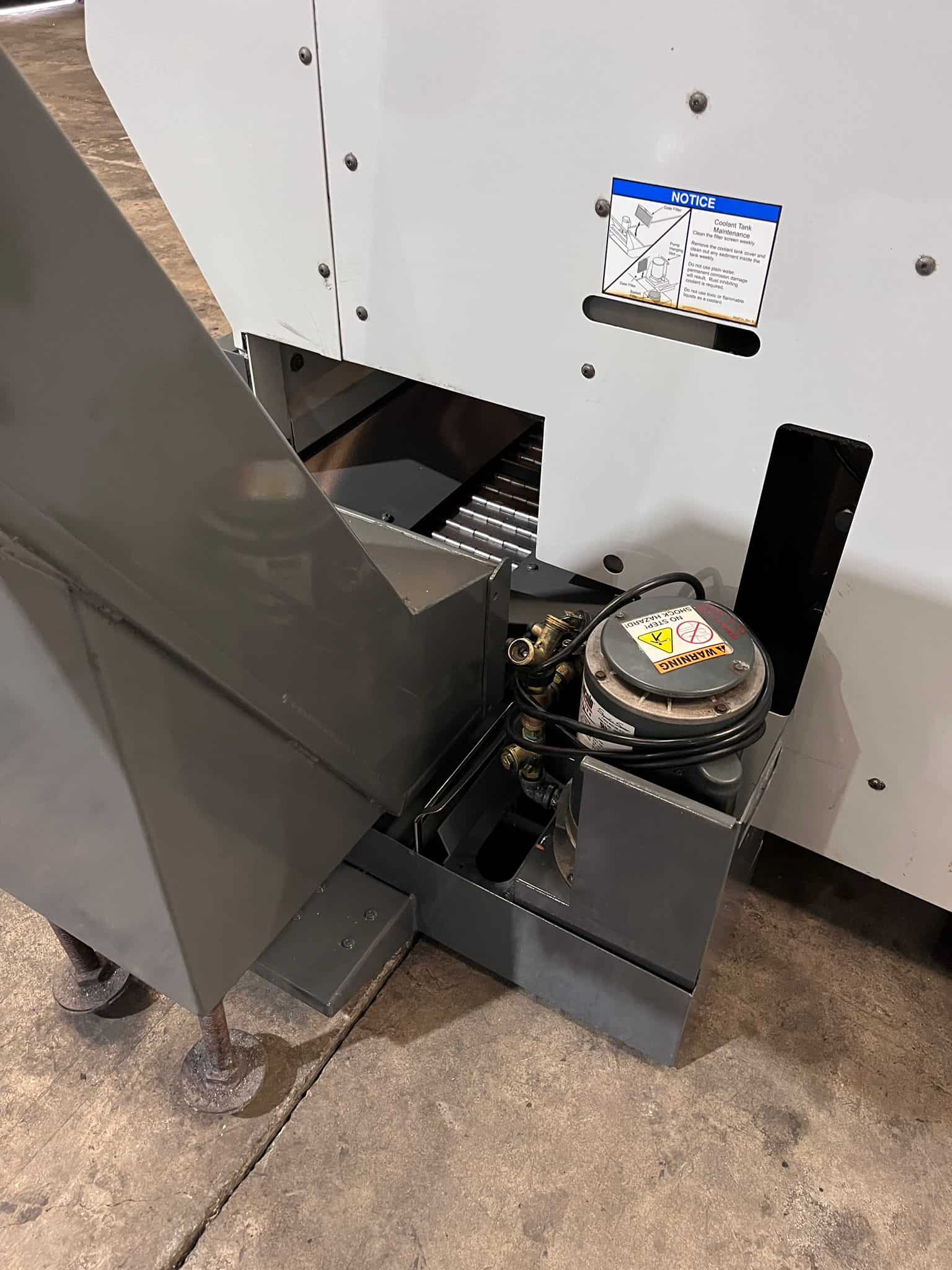

| Coolant System |

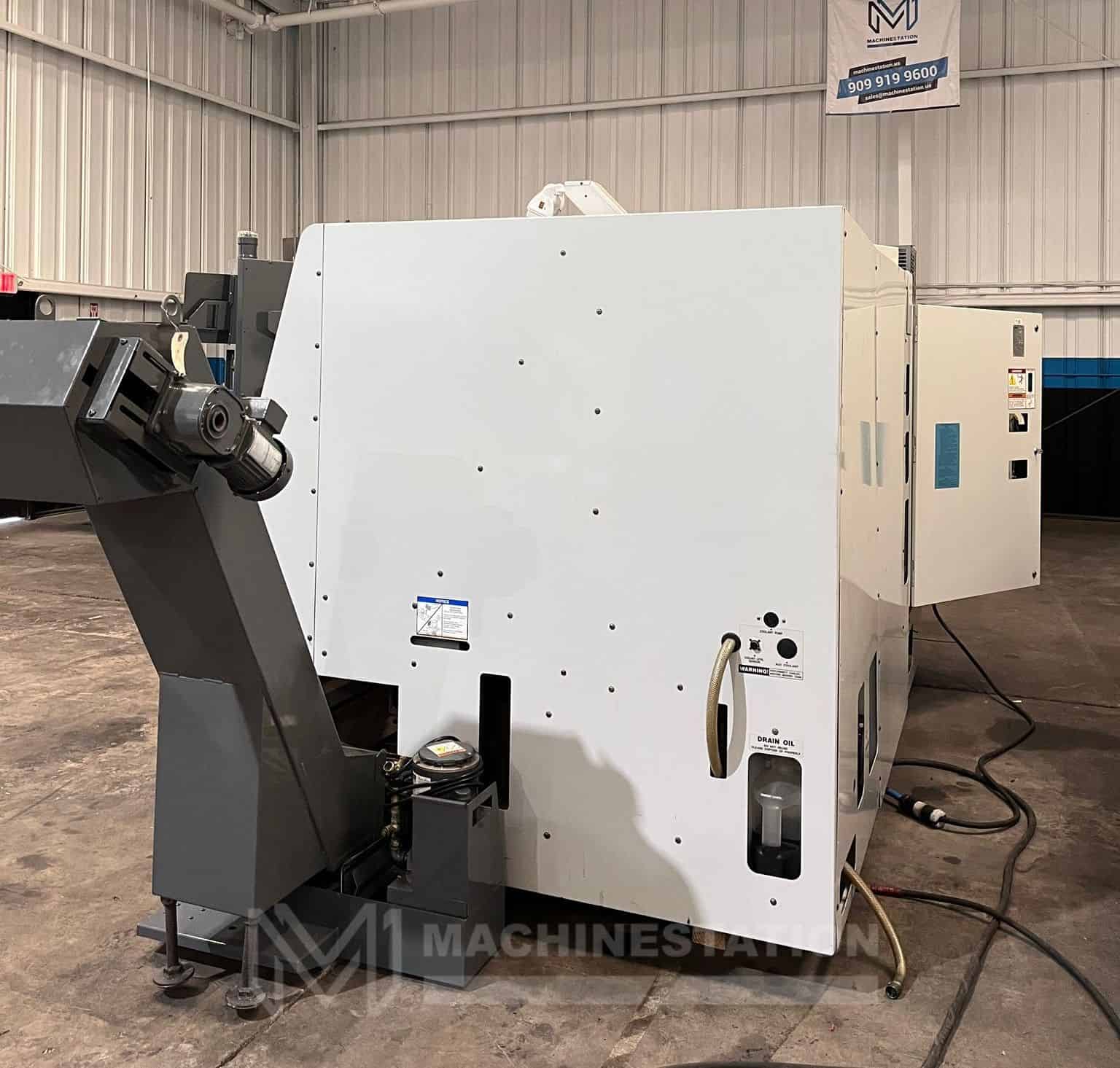

| Chip Conveyor |
| Automatic Lubrication system |

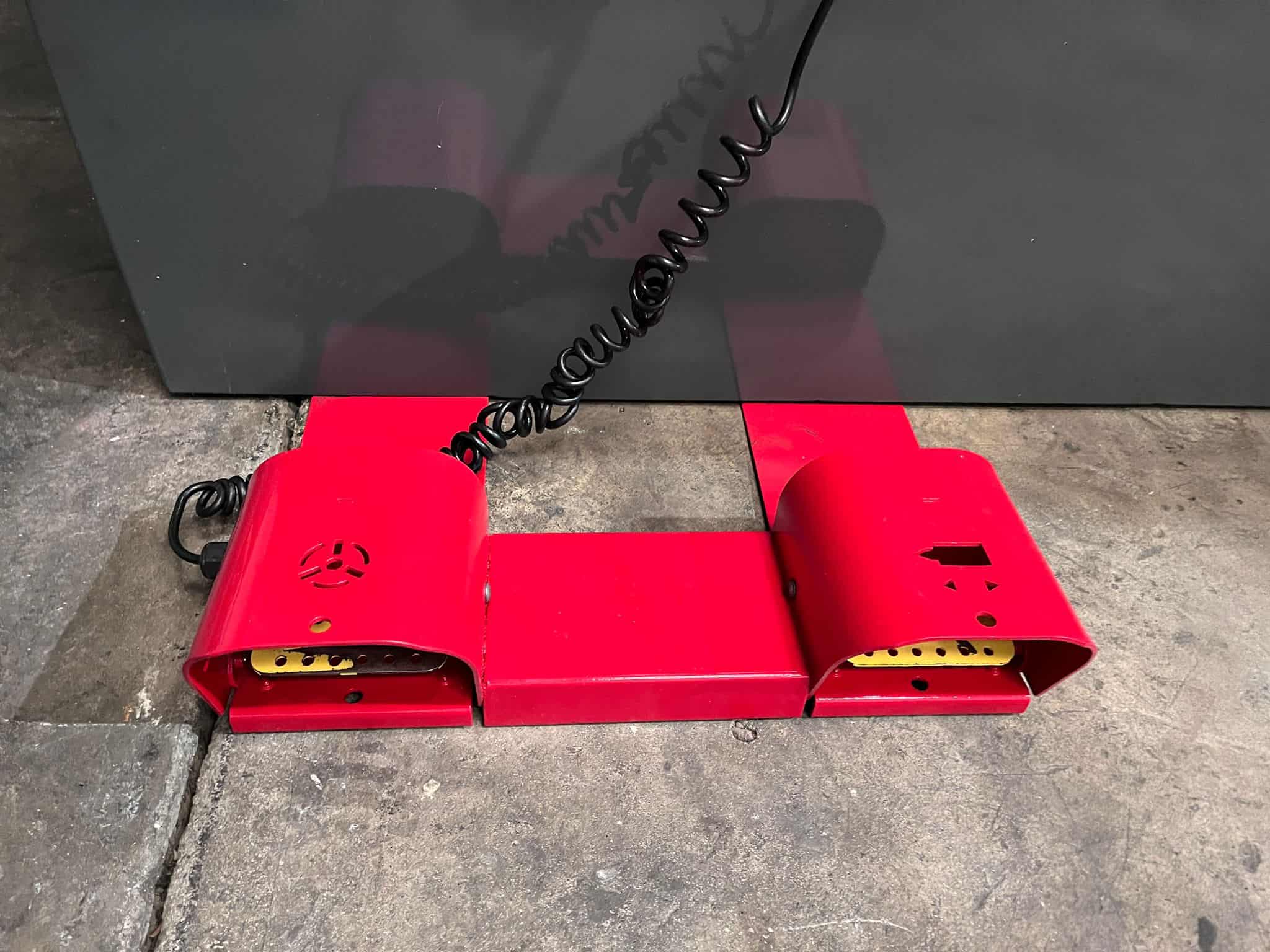

| Foot Switches |
| Work Lights |

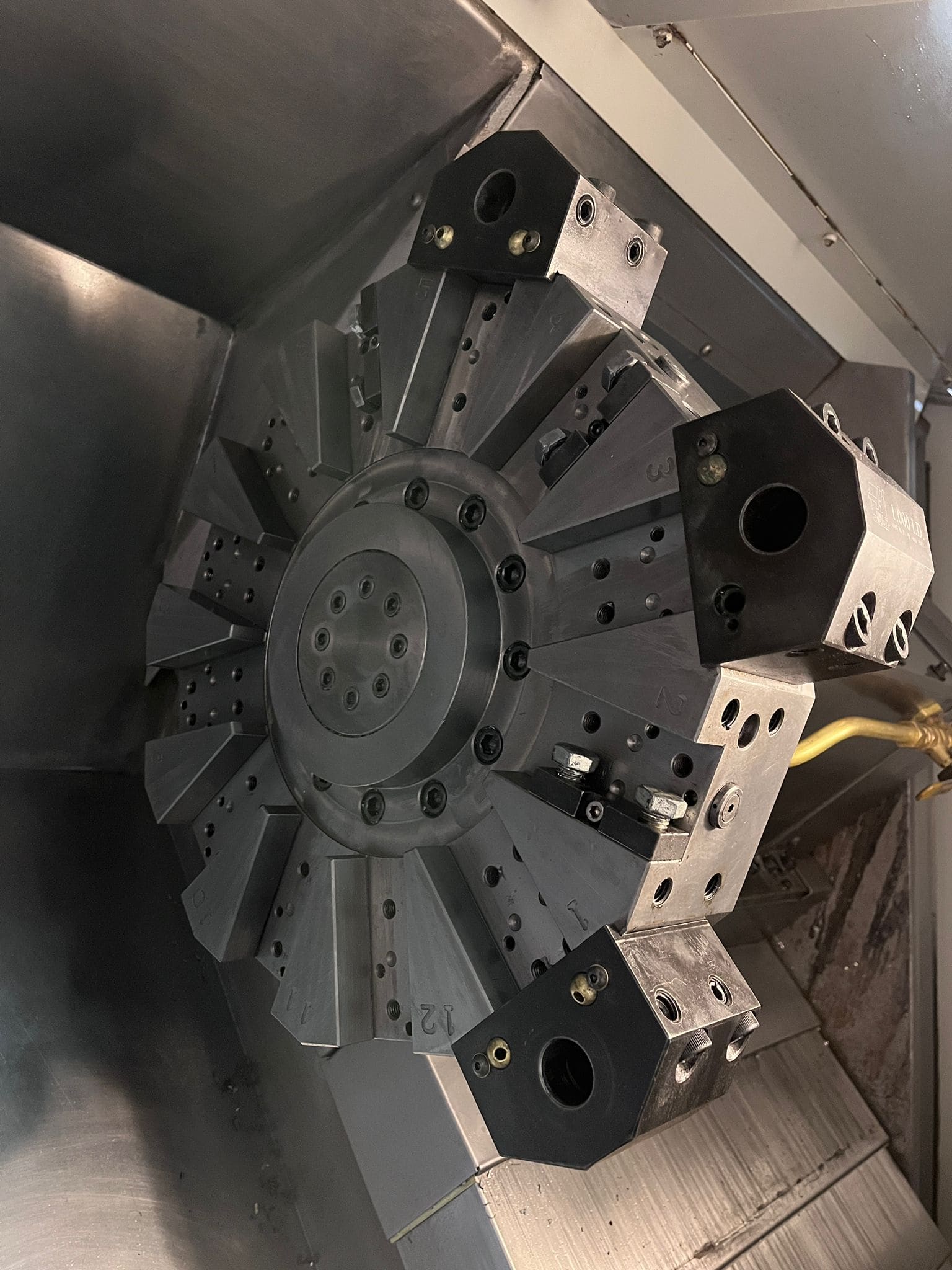

| (3) Boring Tool Holder Mounted on Turret (As shown in the Images) |
| Capacity: |
|---|
| Max Turning Diameter : 15.0″ |
| Max Swing Over Bed : 21.0″ |
| Max Turning Length: 34.0″ |
| Max Bar Capacity : 3.0″ |
| Distance Between Centers : 32.5″ |
| Travels: |
|---|
| X Axis Travel : 9.4″ |
| Z Axis Travel : 32.5″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 710 IPM |
| Rapid Traverse Z Axis: 710 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.5″ |
| Spindle Speed: 3400 RPM |
| Spindle Motor: 30 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Turret Type: Bolt-on-Turret |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 2.6″ |
| Tailstock Quill Travel: 3.1″ |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

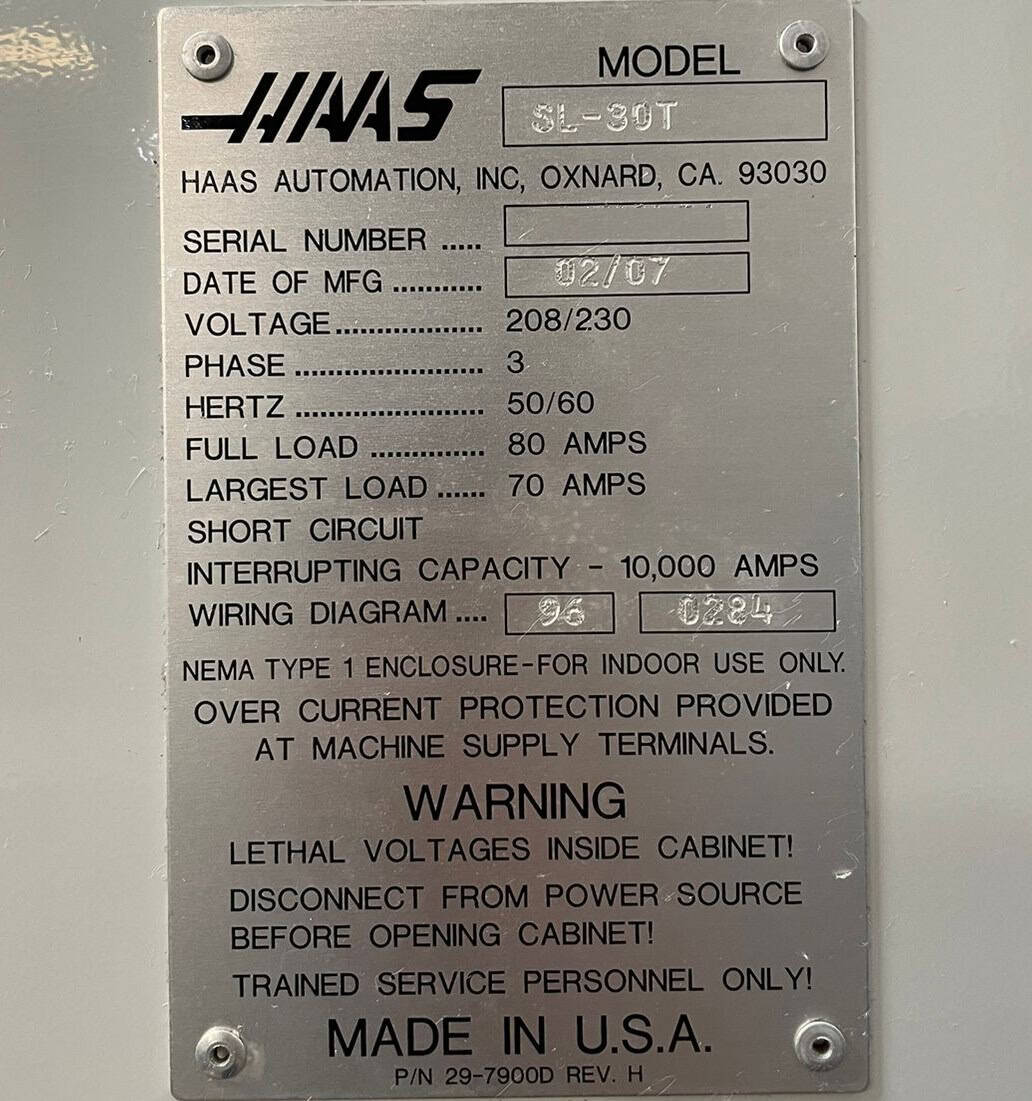

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 170″ x 90″ x 98″ High Approx. |
| Machine Weight: 11,000 lbs Approx. |
