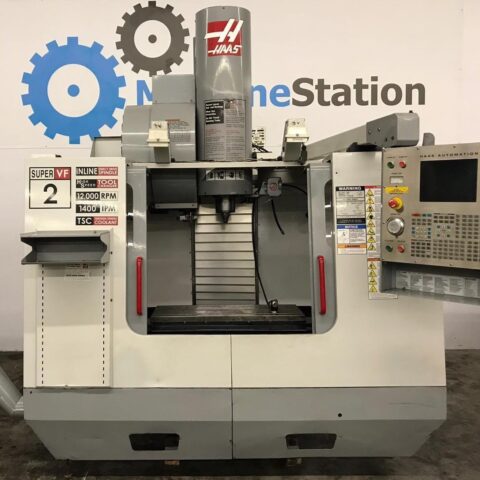

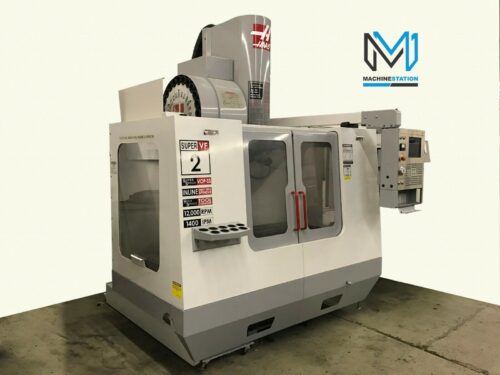

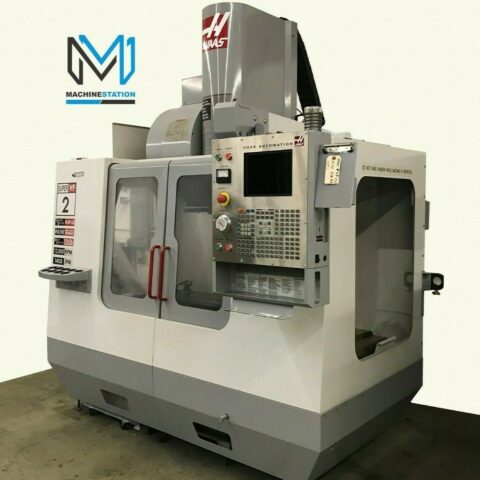

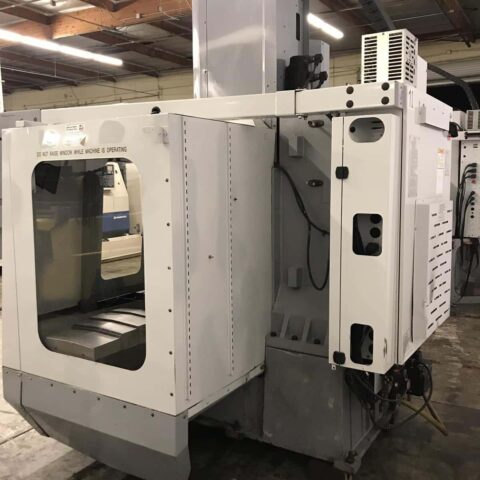

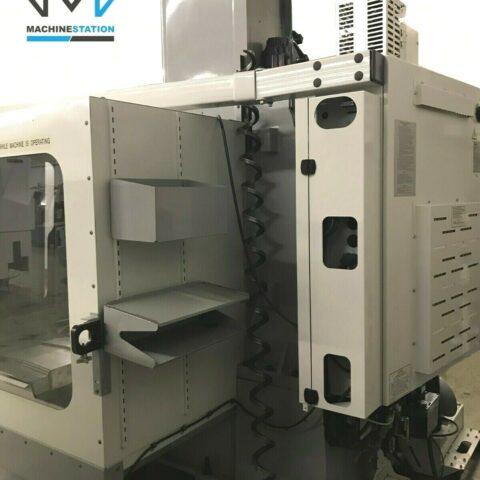

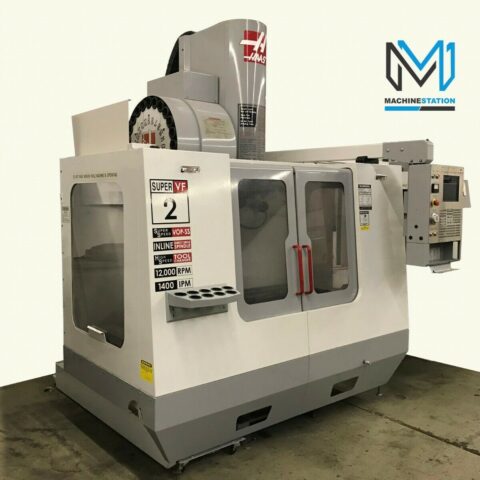

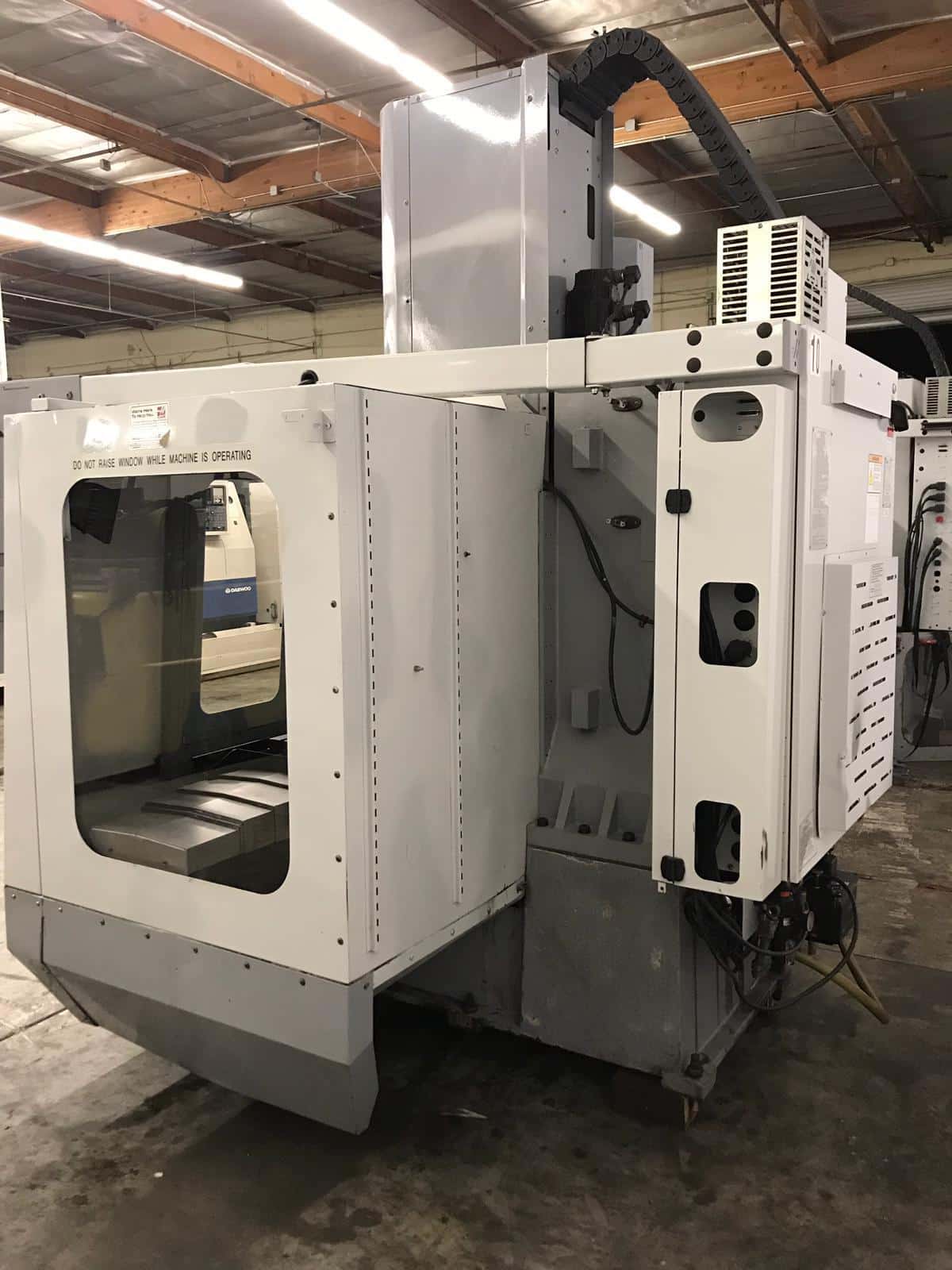

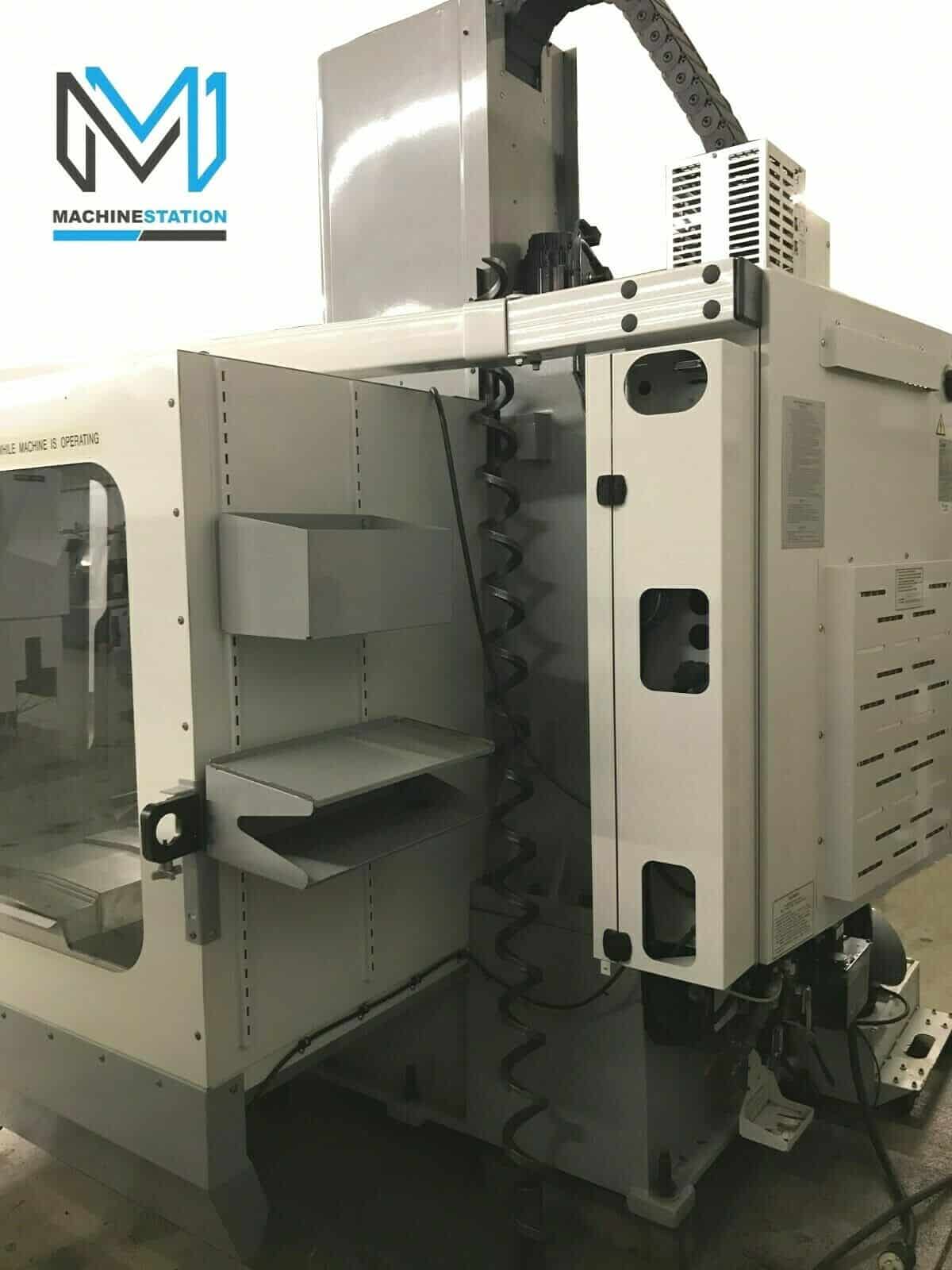

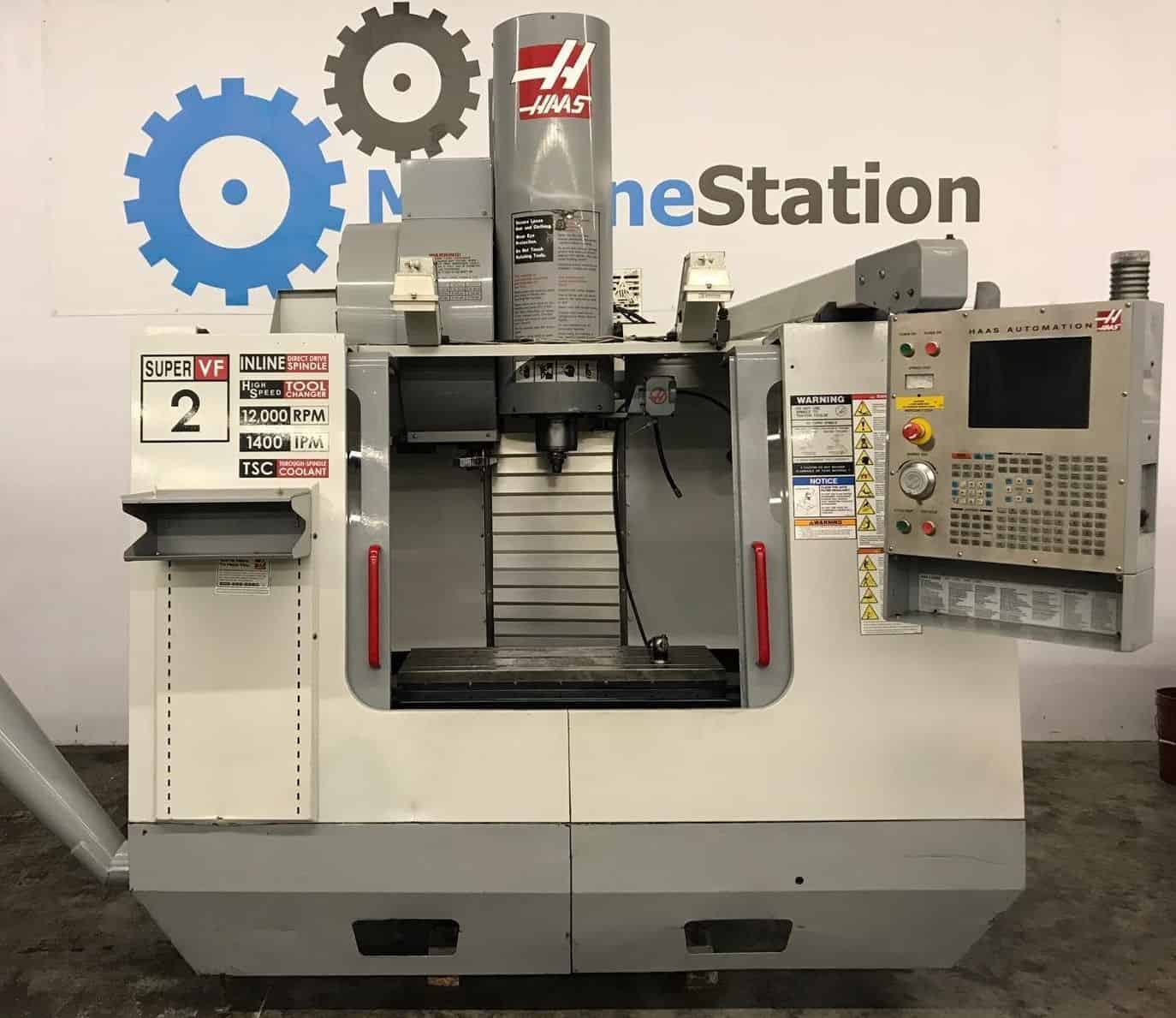

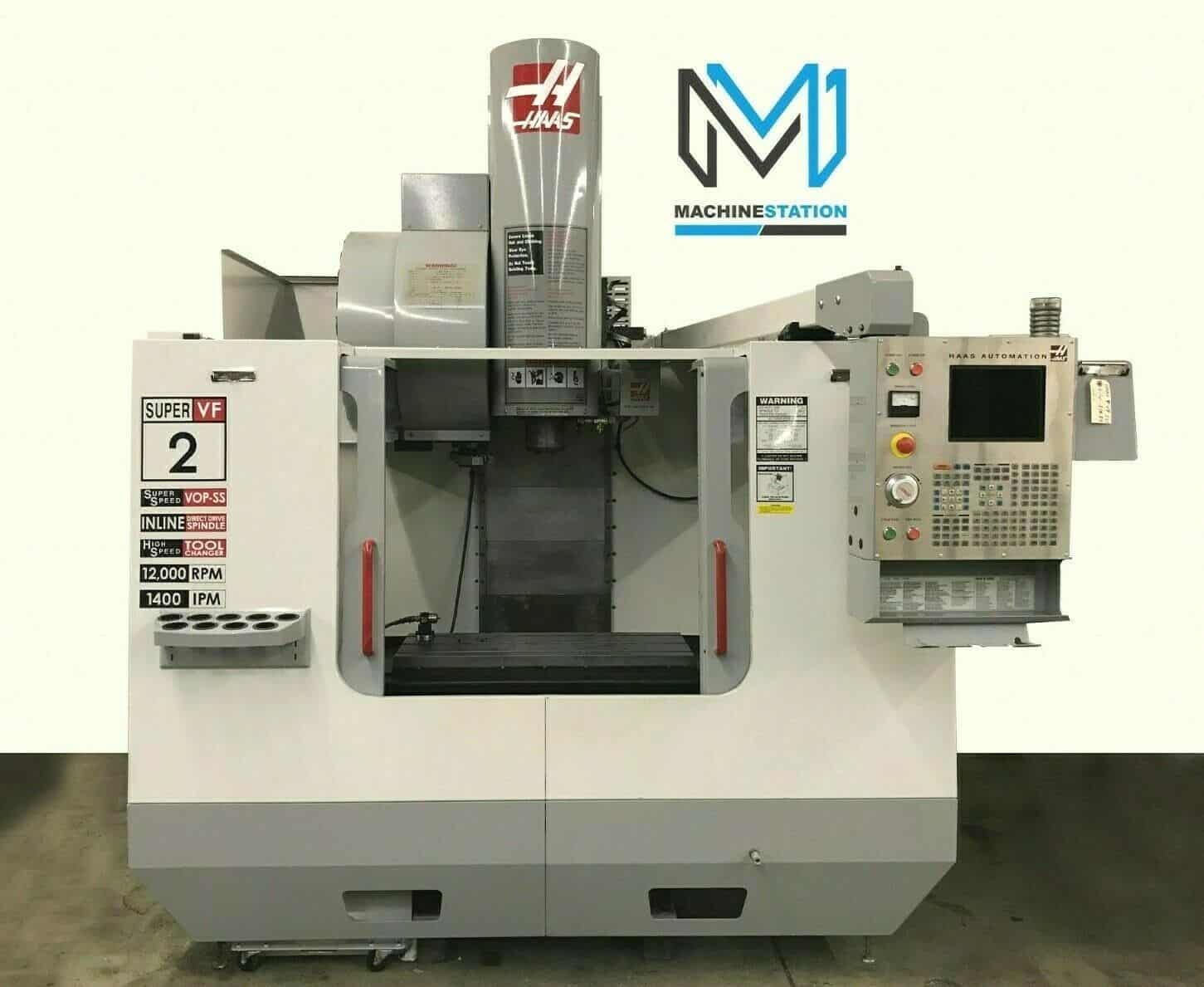

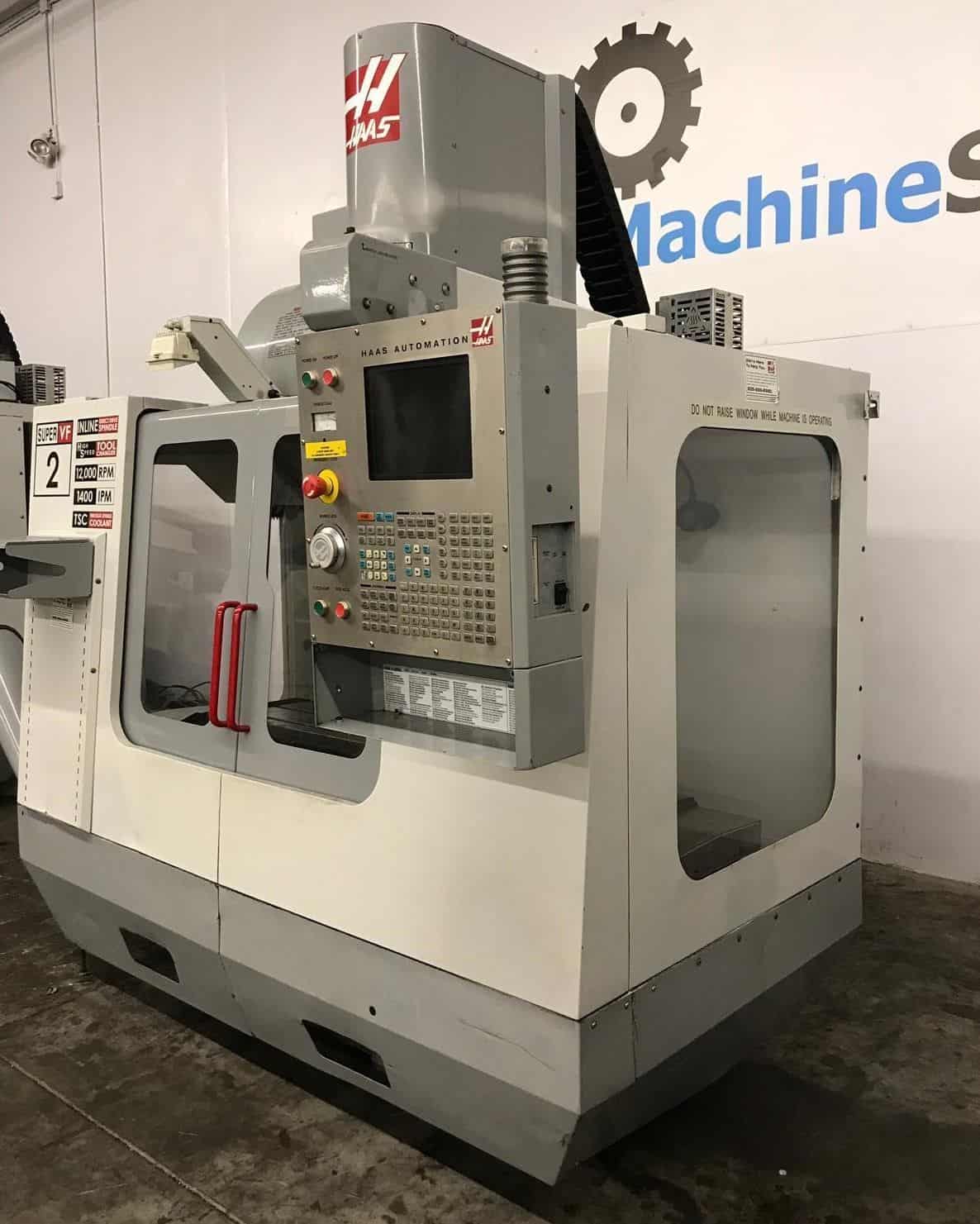

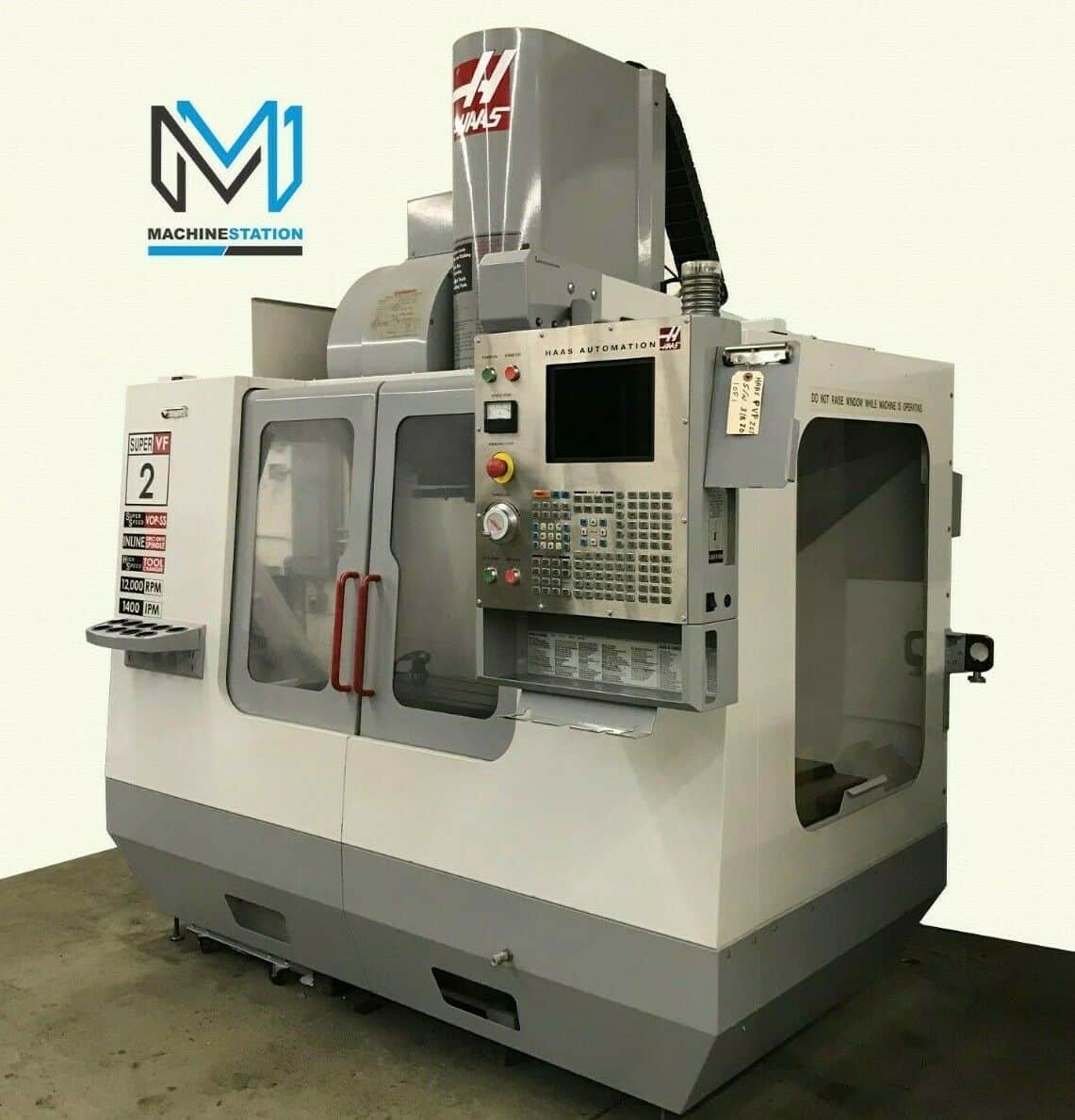

Haas VF-2SS CNC Vertical Machining Center
Out of stock
| SKU | 2084 |
| Make | Haas |
| Model No. | VF-2SS |
| Year | 06/03 |
| Serial # | 31830 |
| Condition | Very Good |
| Cutting Hours: | 7144 |
Add to WishlistRemove from Wishlist
Add to Wishlist
| Haas VF-2SS CNC Vertical Machining Center Features: |
|---|

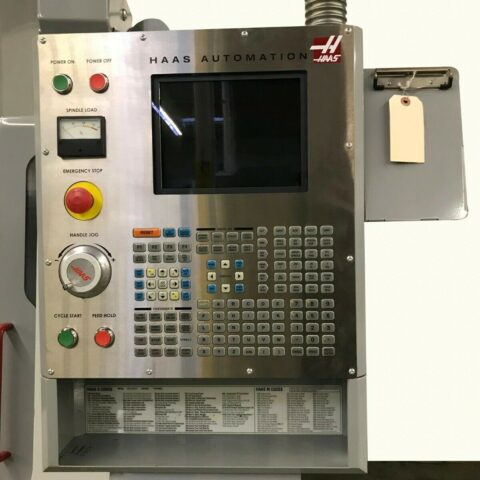

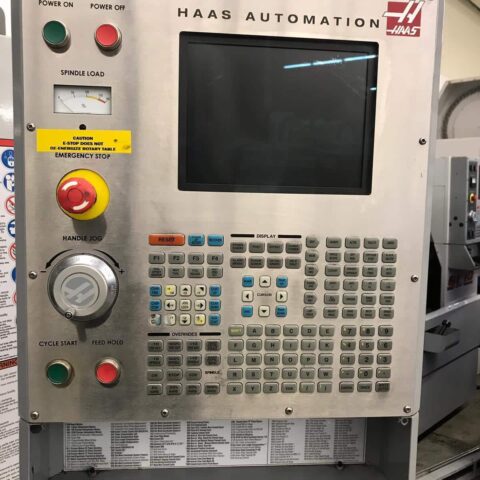

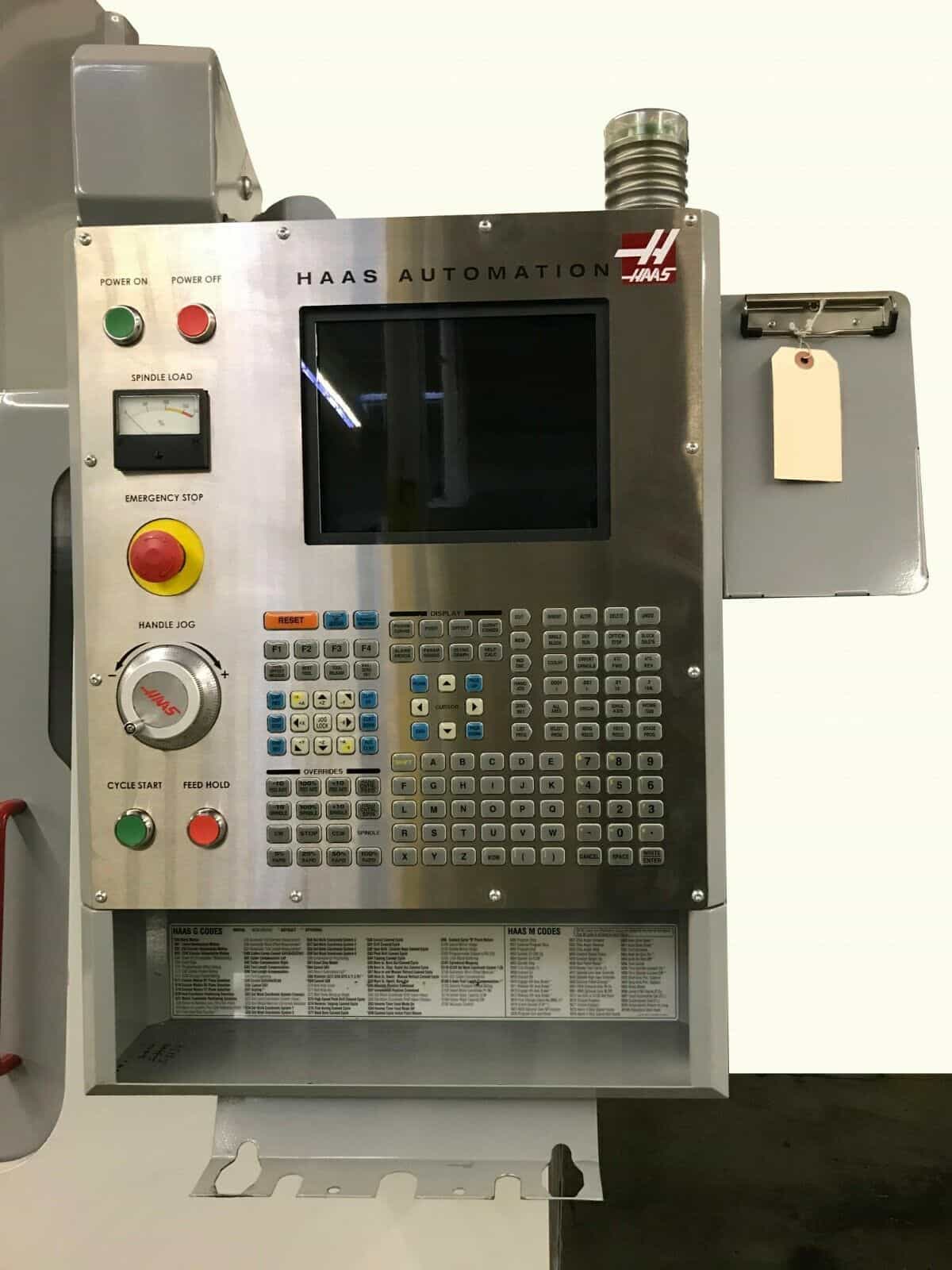

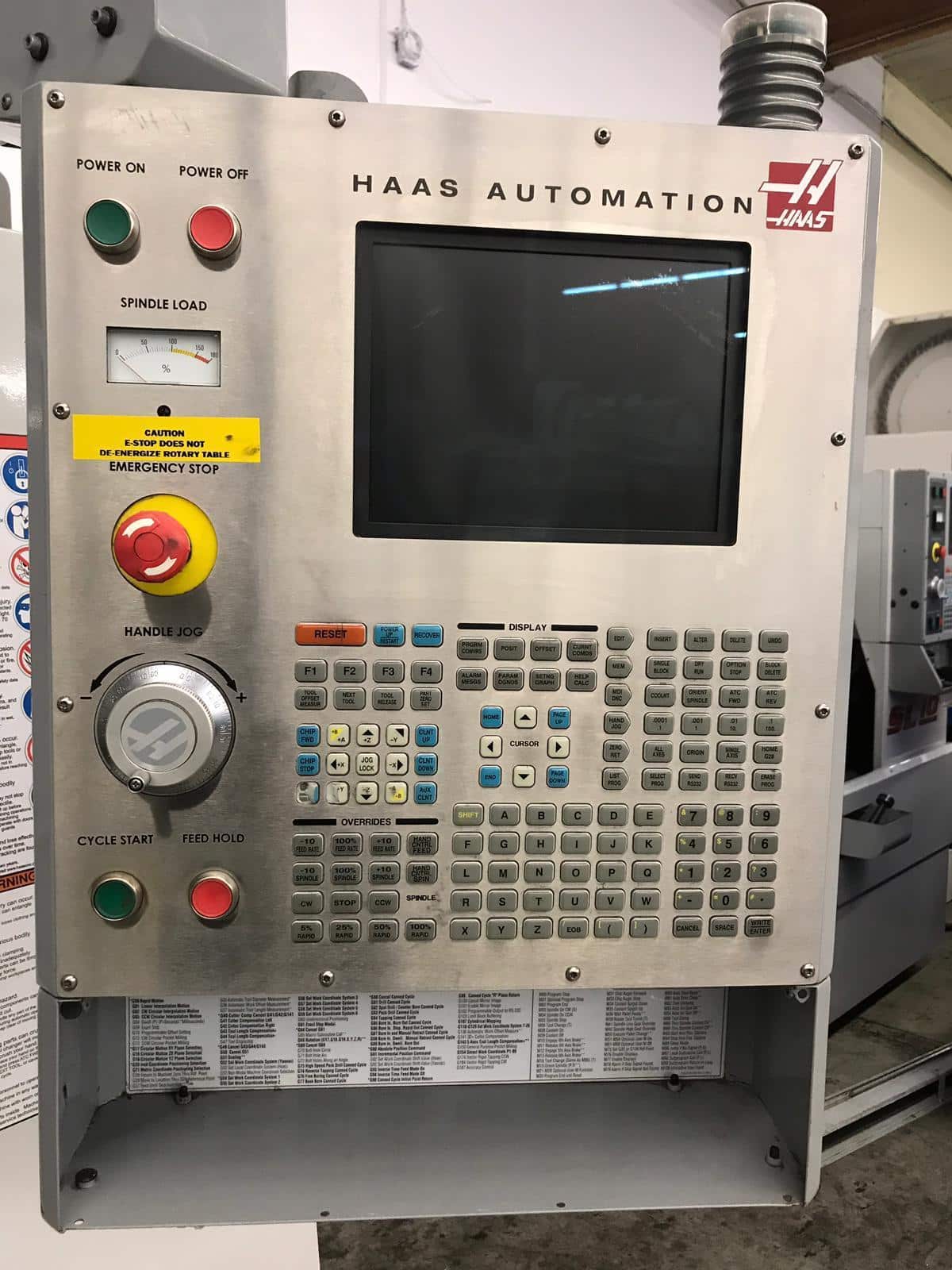

| Haas CNC Control |
| 20 HP High Torque Spindle Motor |
| 12,000 RPM Inline Direct Spindle |

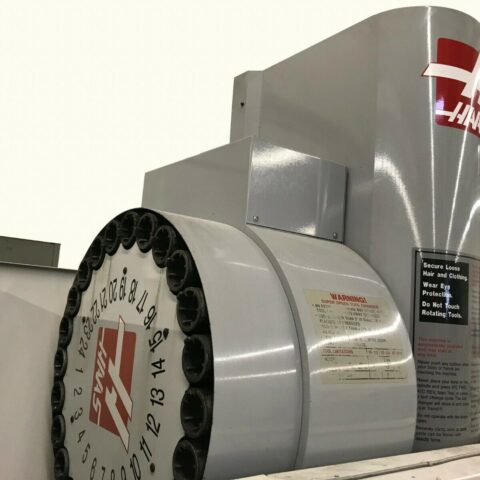

| 24 Side Mount Automatic tool changer |
| 1400 inch per minute rapids |

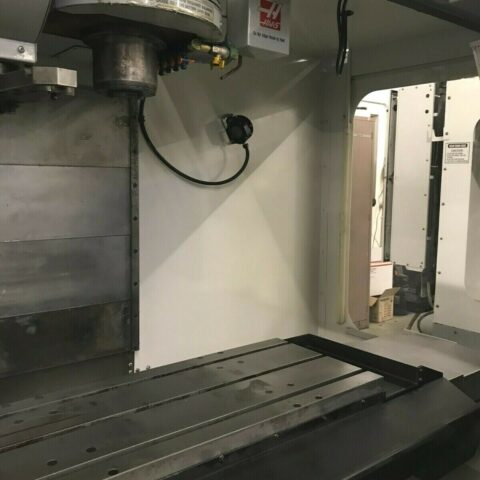

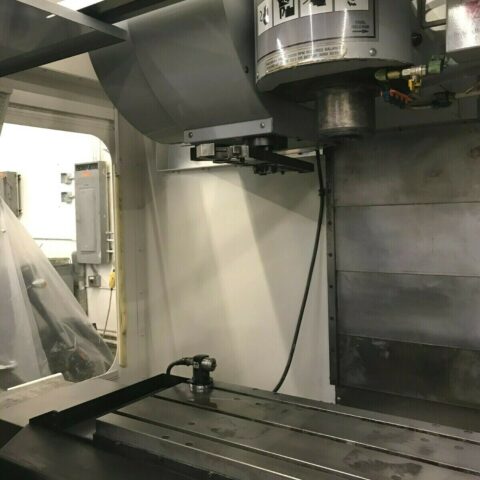

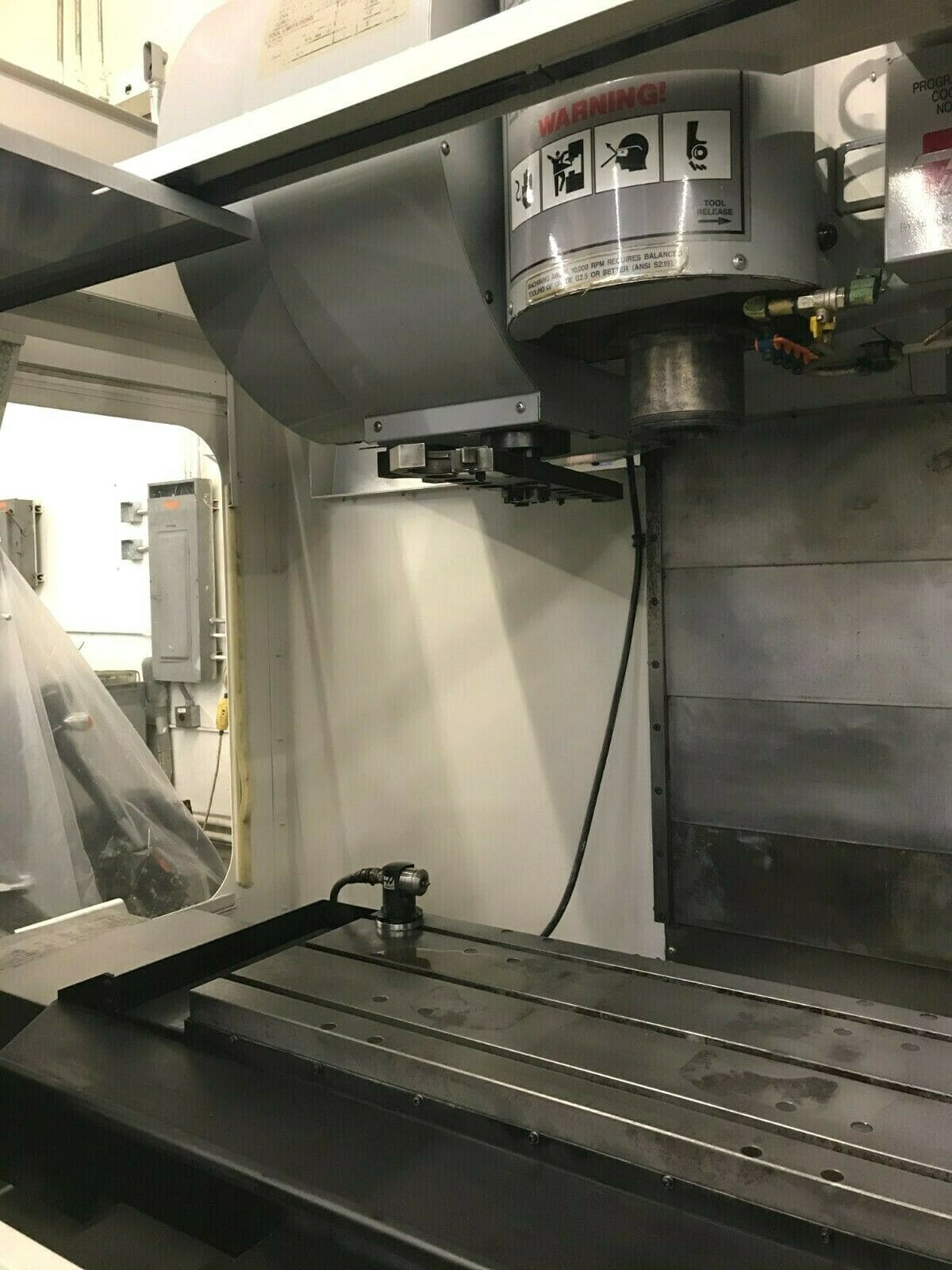

| Wireless Probing (WIPS) |
| Rigid Tapping |
| Spindle Orientation |
| Programmable Coolant |
| Brushless-type servo drive motors on all axis |

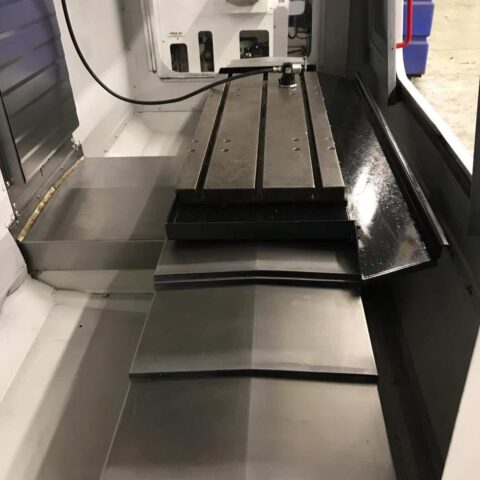

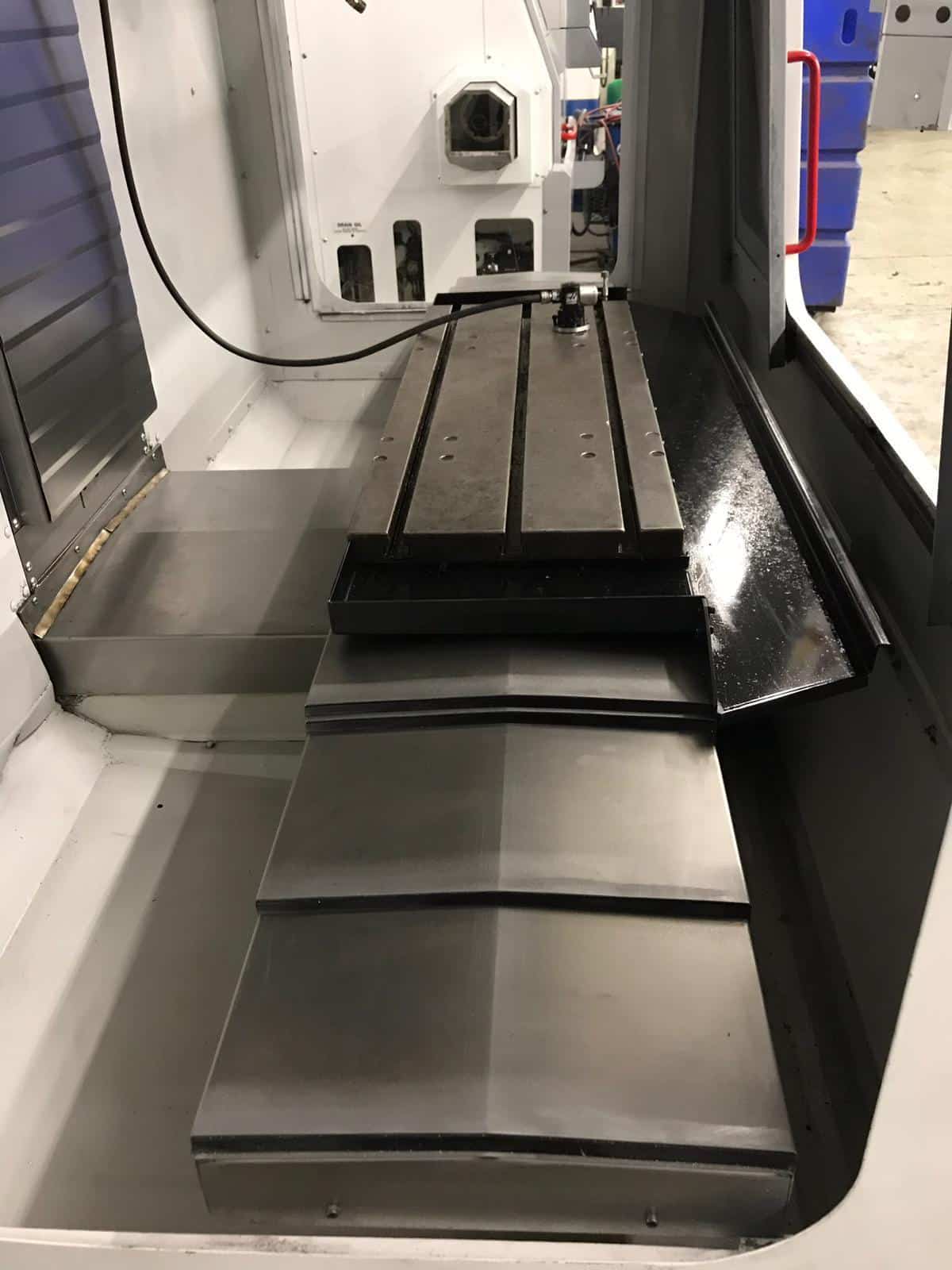

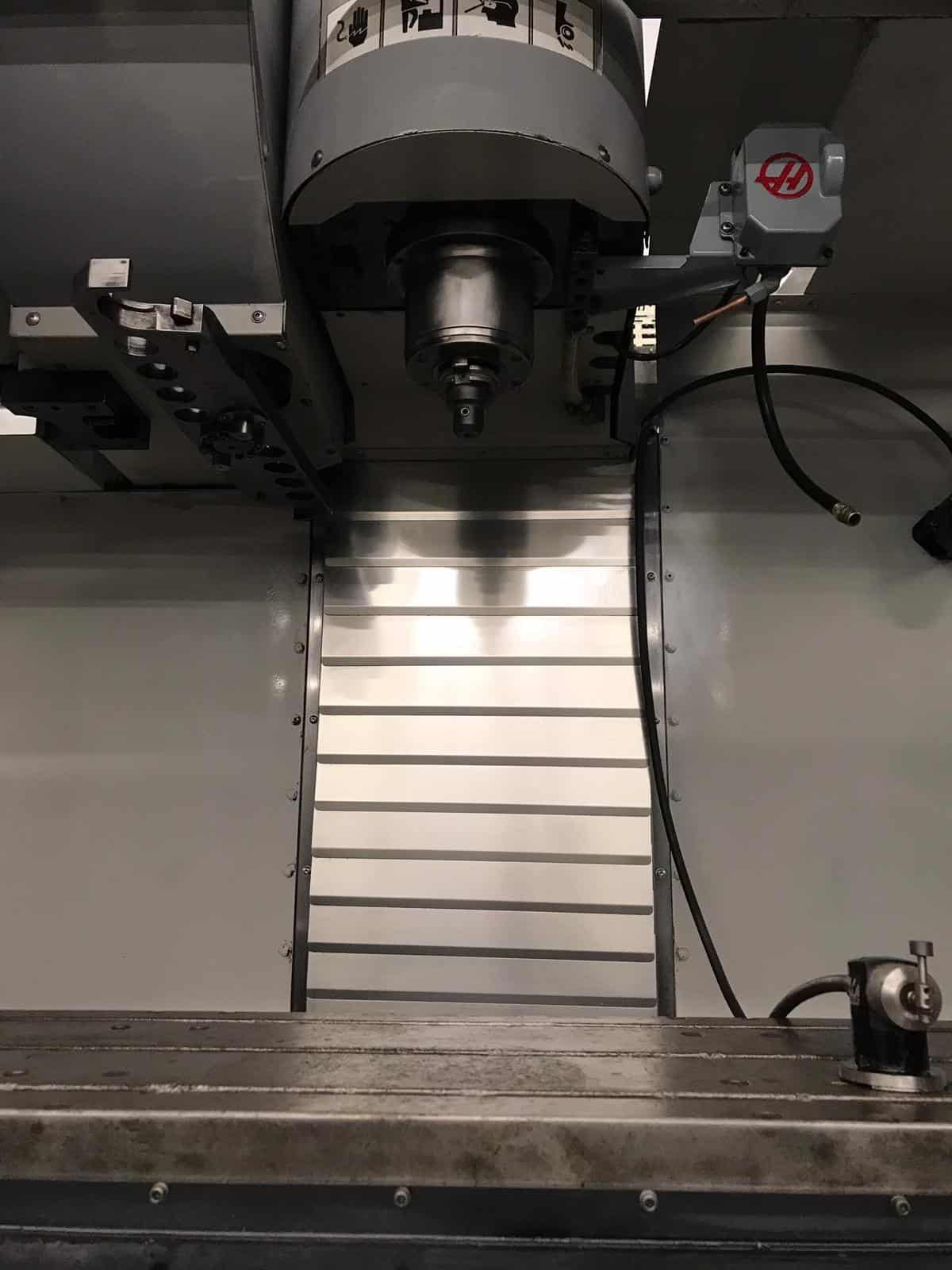

| Telescopic way covers |
| Chip auger |
| Work Lights |
| Haas VF-2SS CNC Vertical Machining Center Specifications: |
|---|
| Travels: |
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 1400 Inch Per Minute |
| Cutting Feed Rates: 630 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |

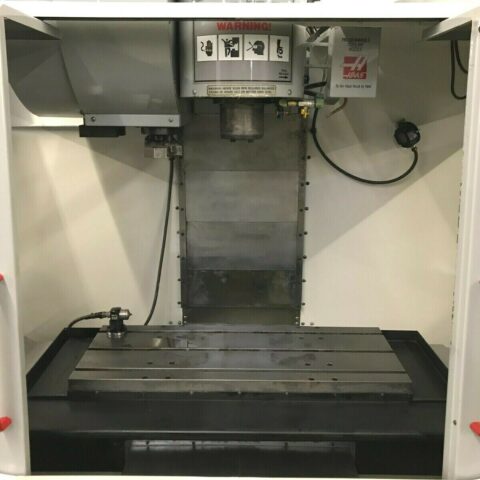

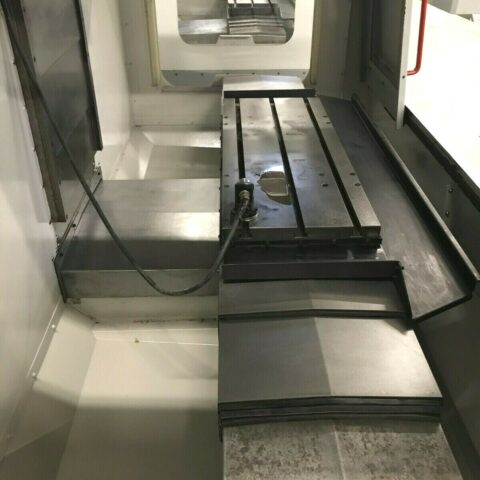

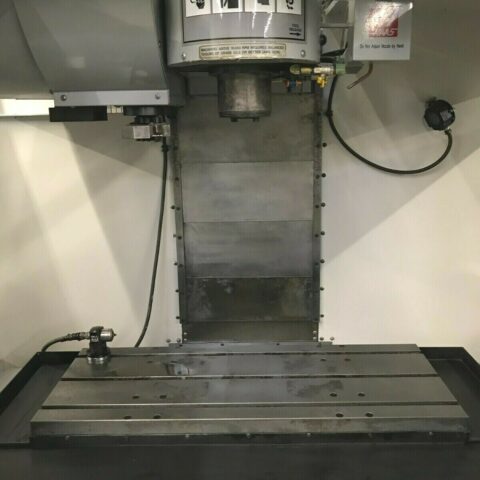

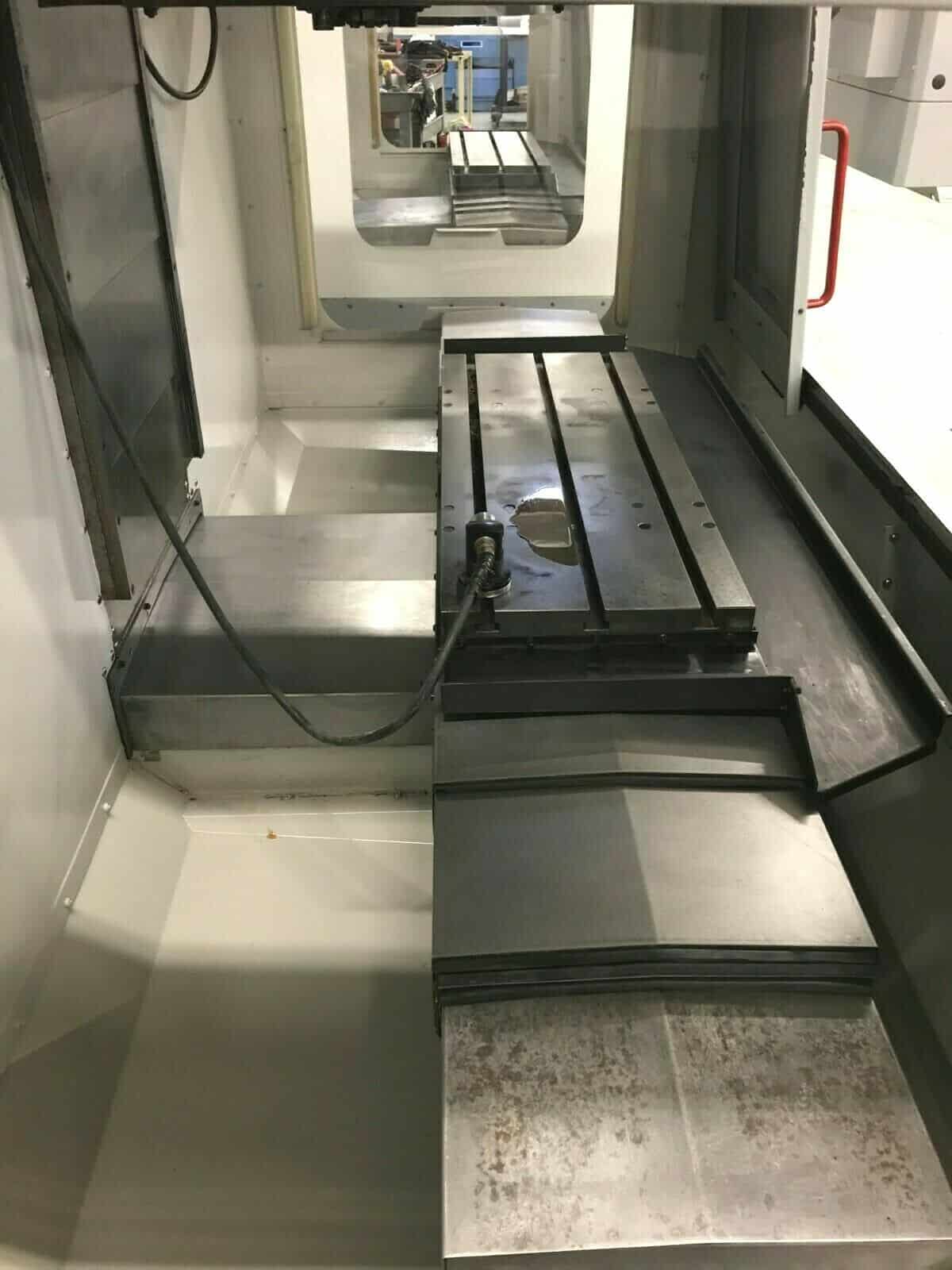

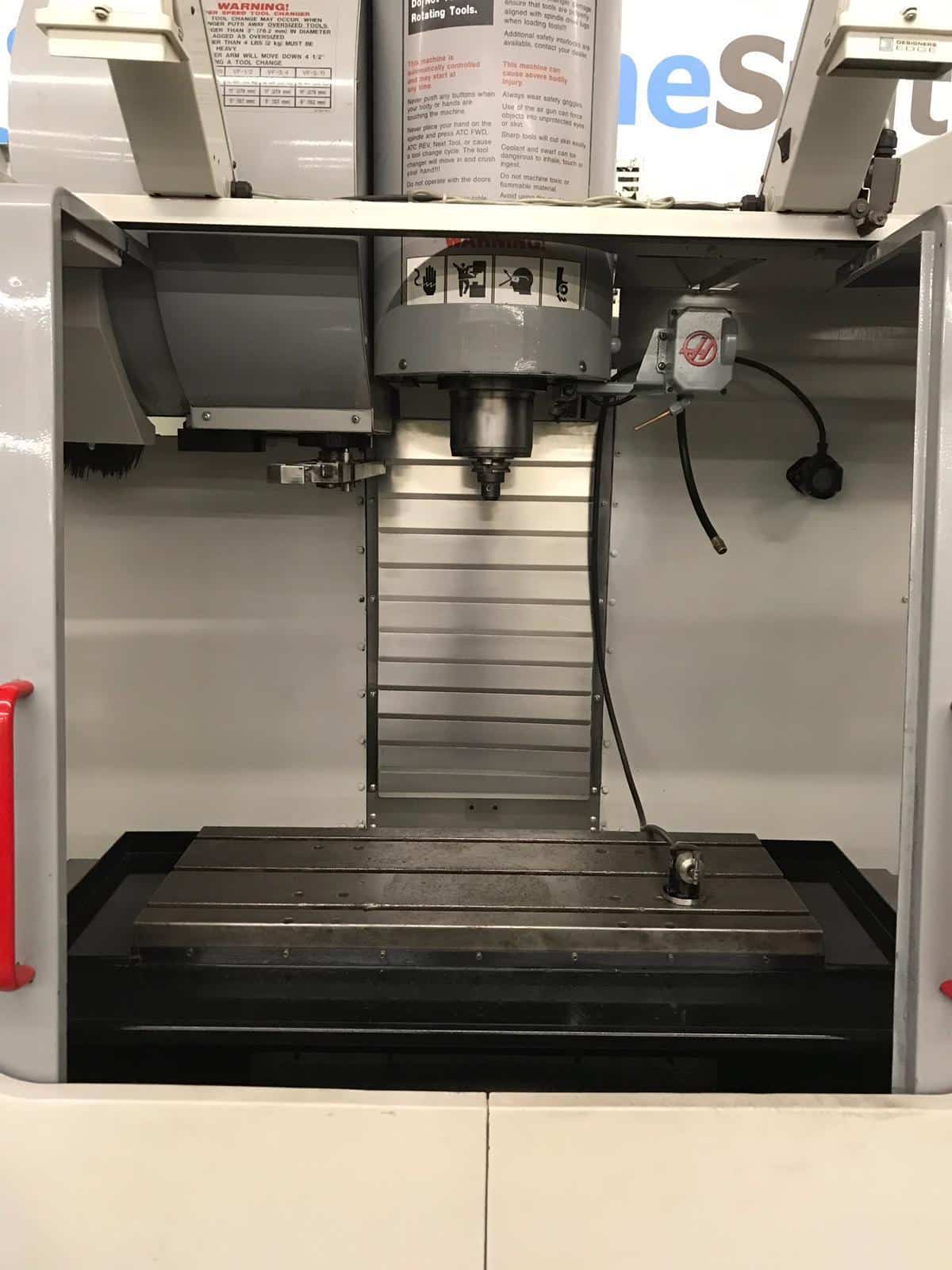

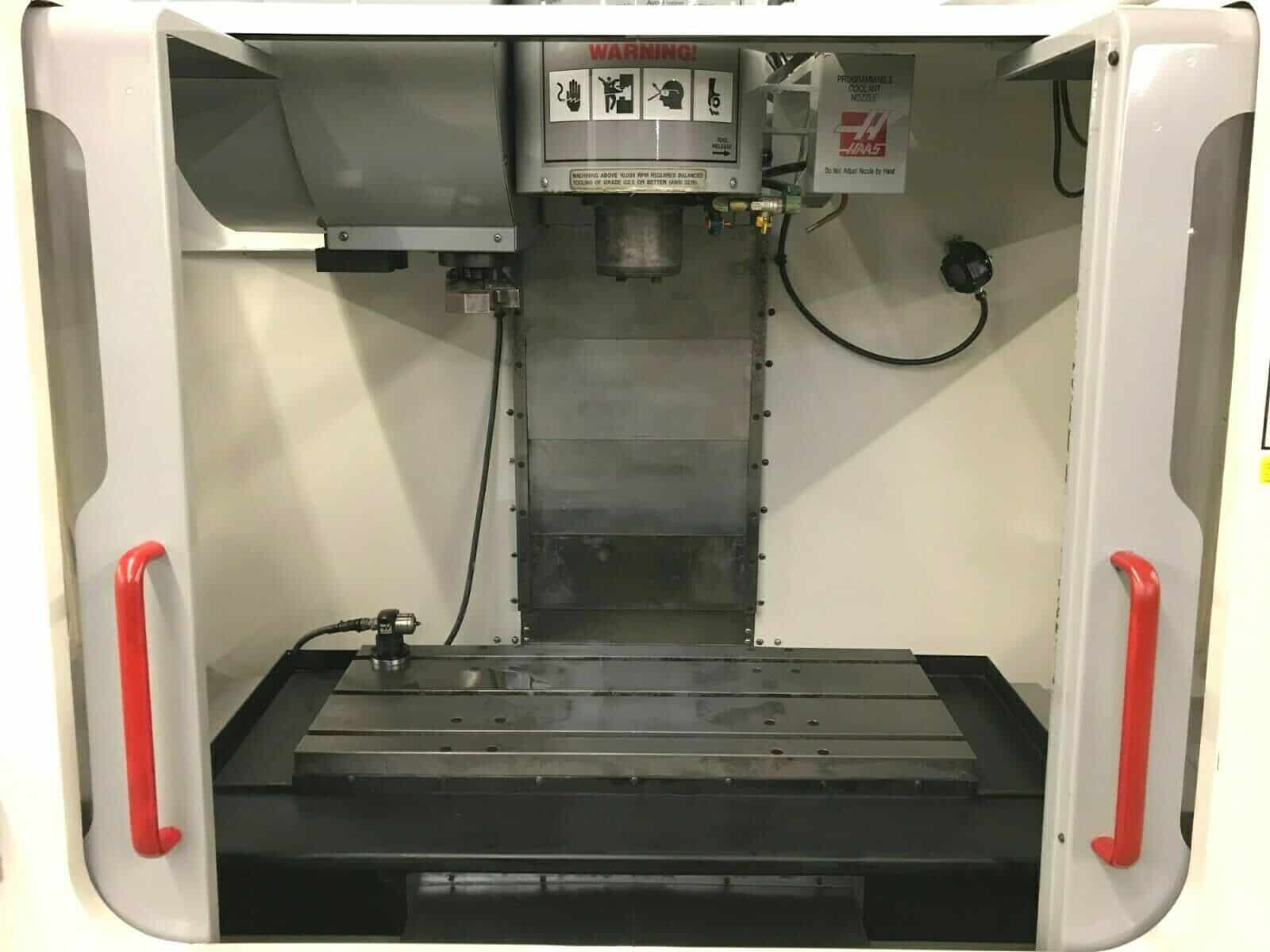

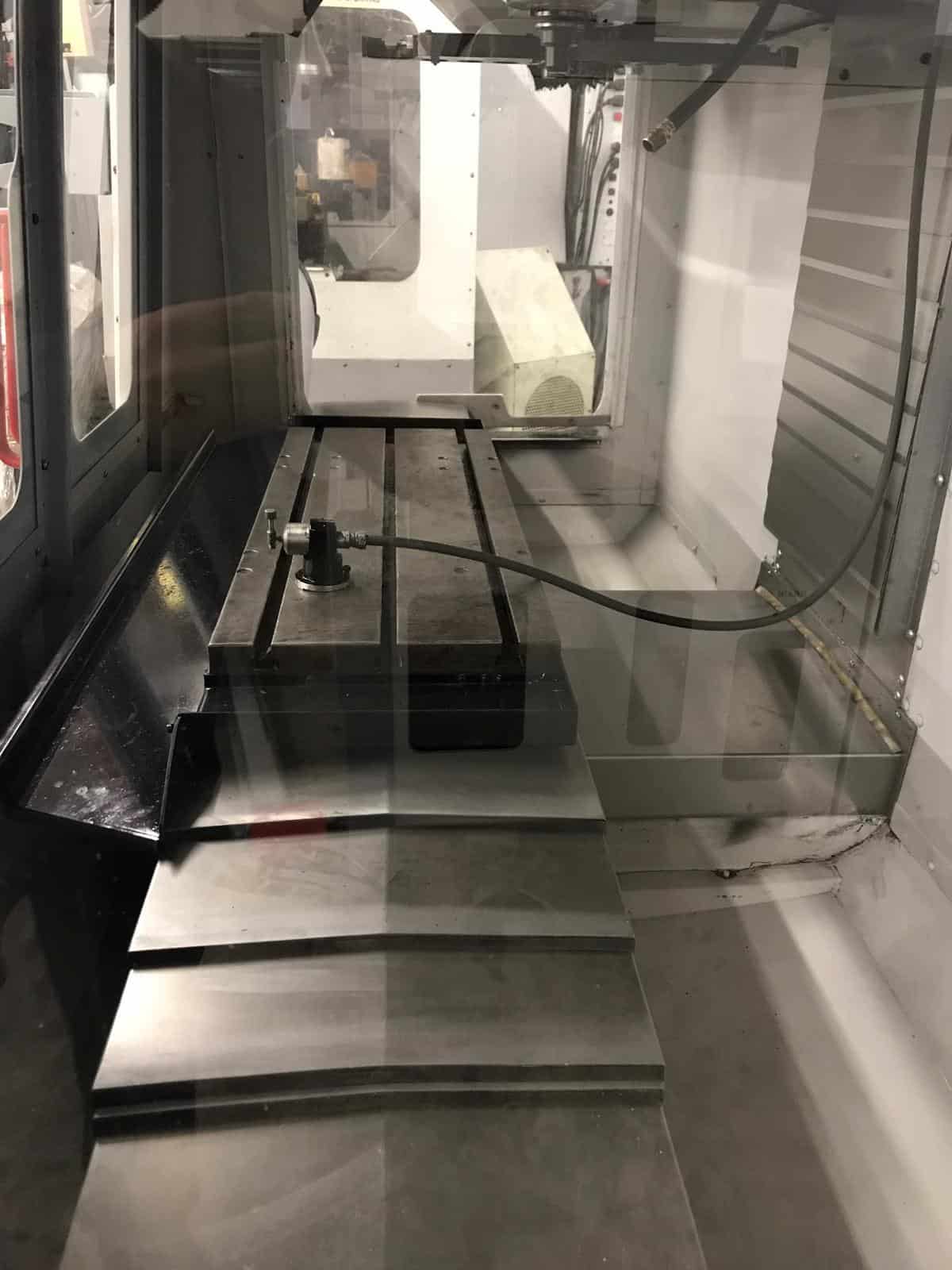

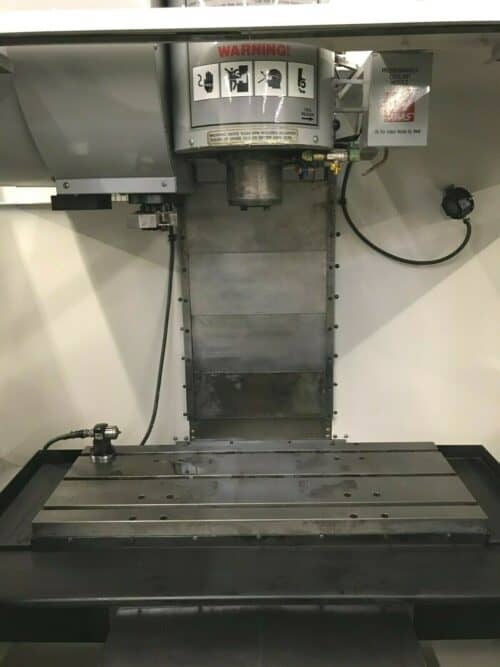

| Table: |
|---|
| Length: 36″ |
| Width: 14″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1800 lbs |

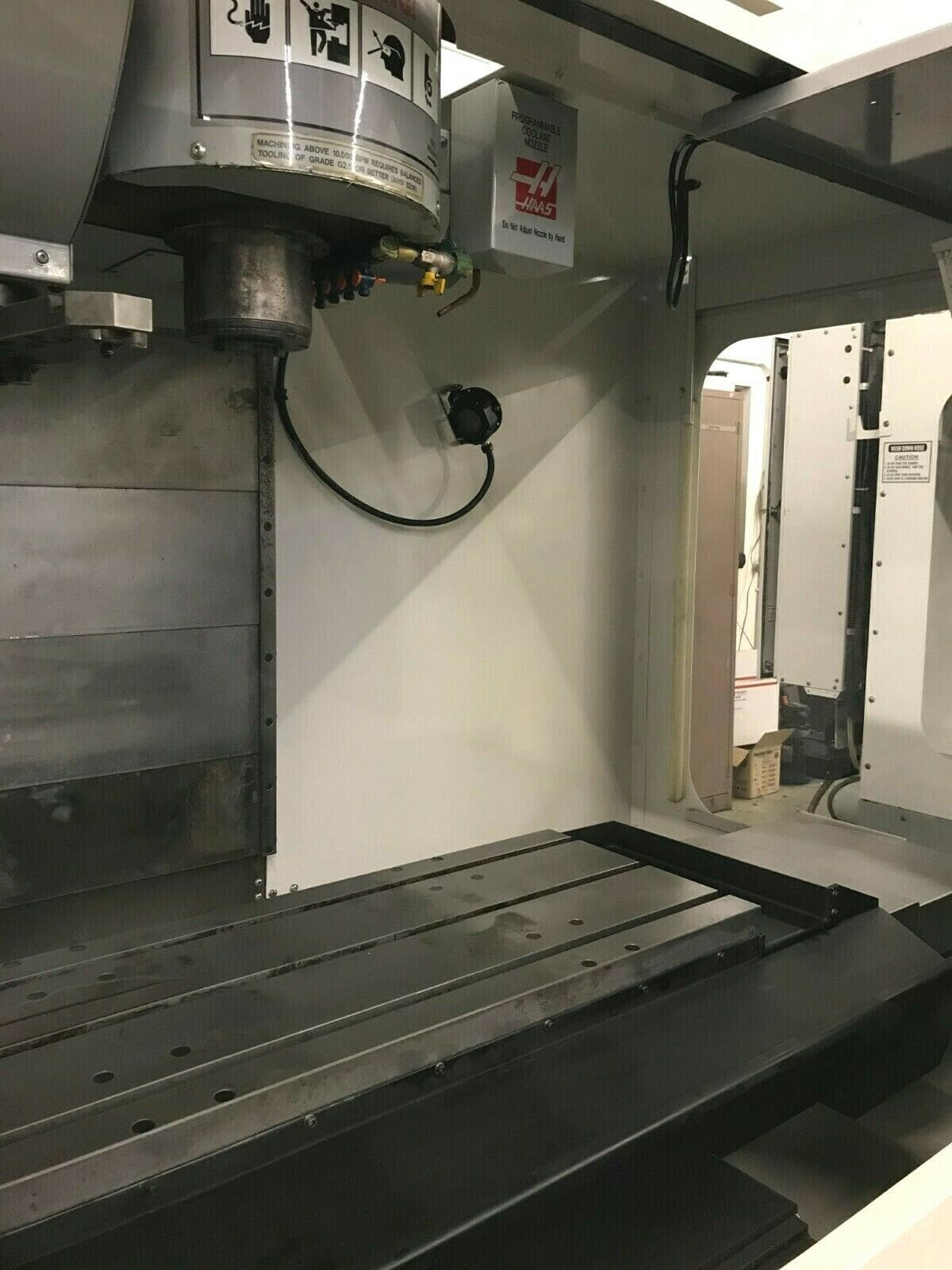

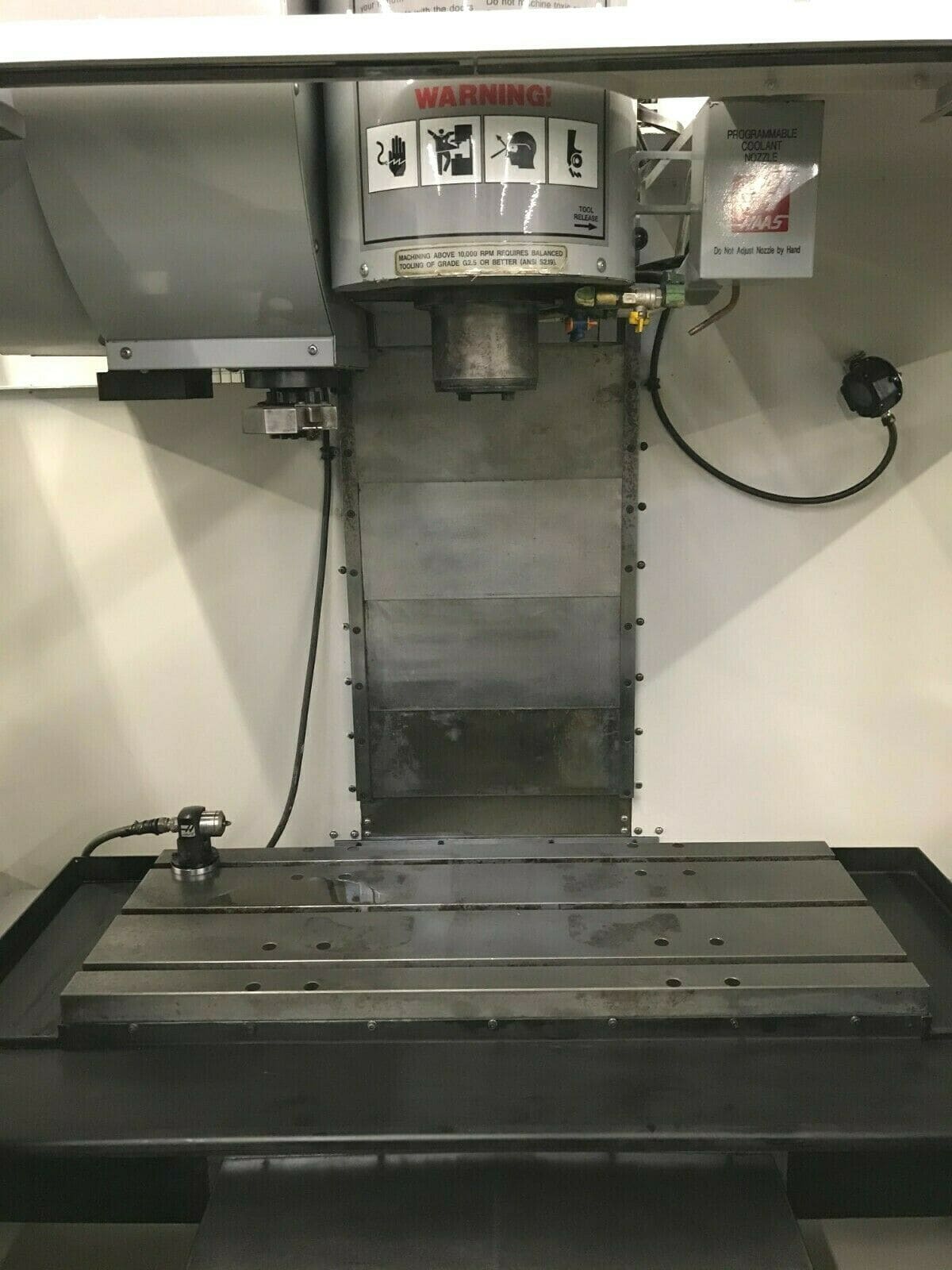

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 20 HP |

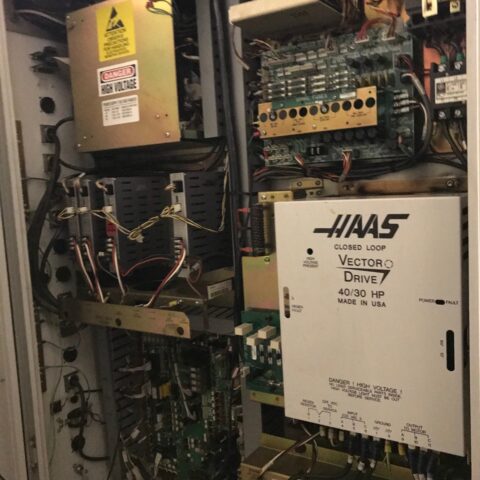

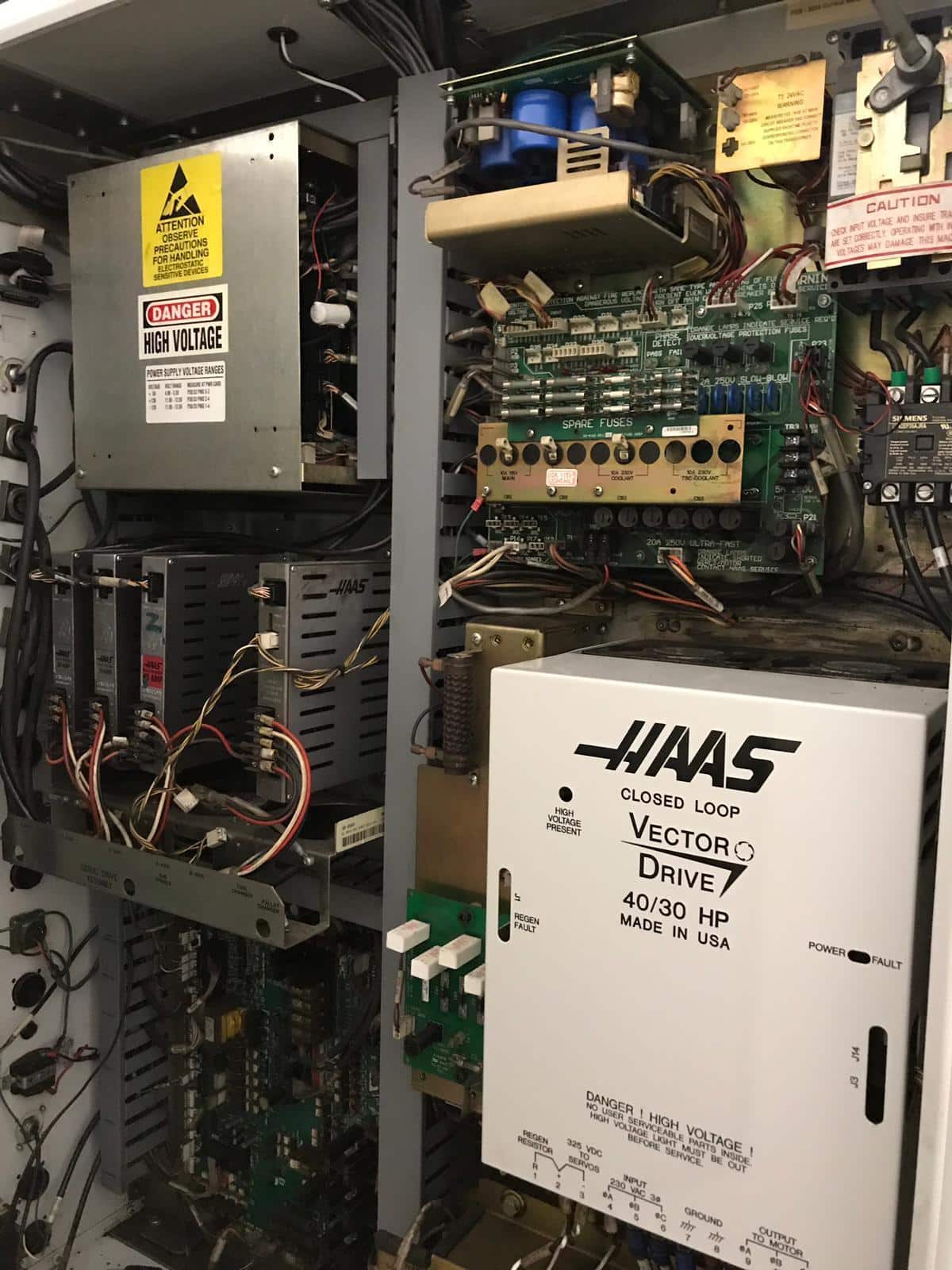

| Vector Dual Drive Max Torque: 90ft-lb @ 2000RPM |

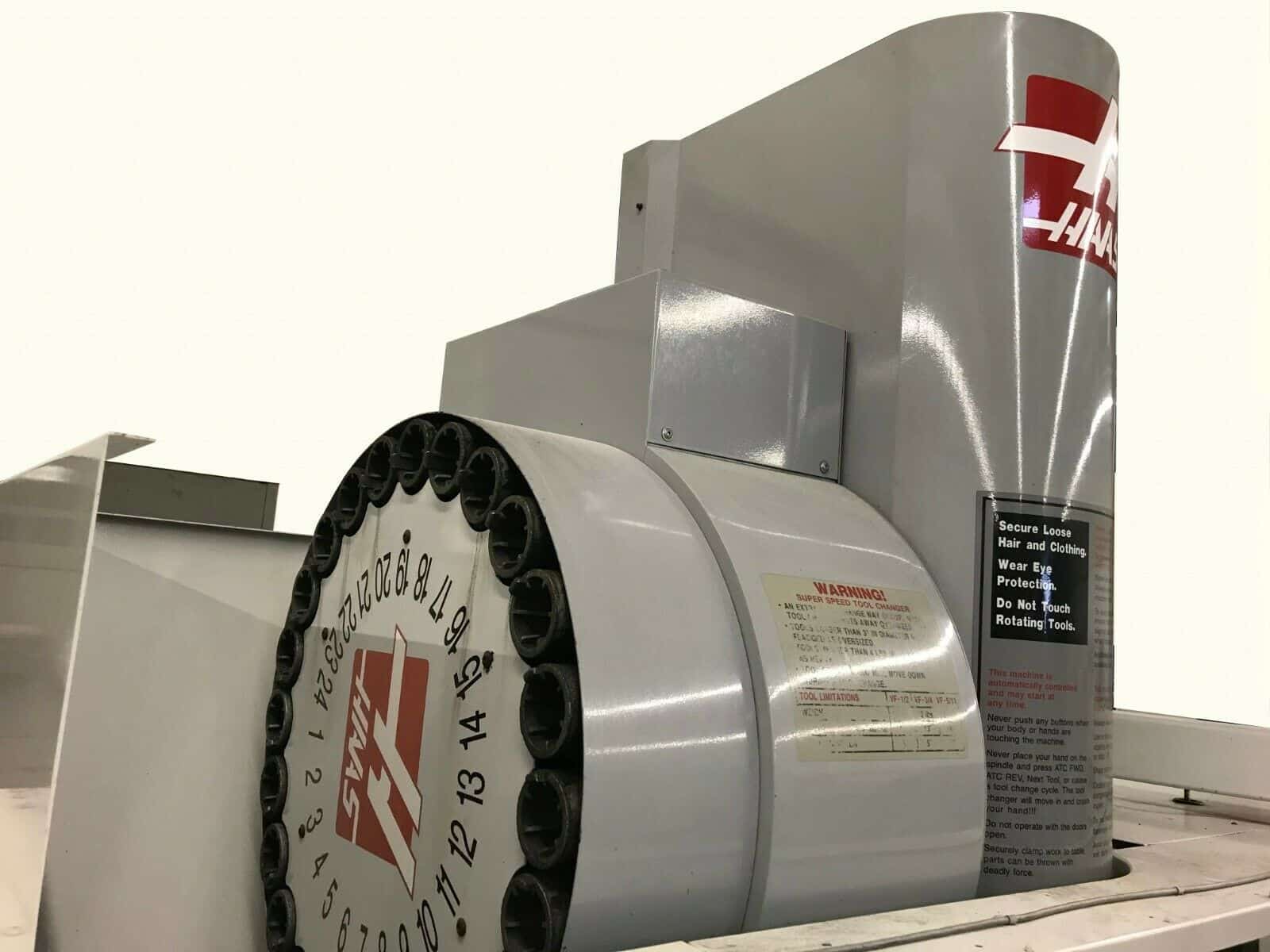

| Automatic Tool Changer: |
|---|
| Capacity: 24 |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.6″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 2.2 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

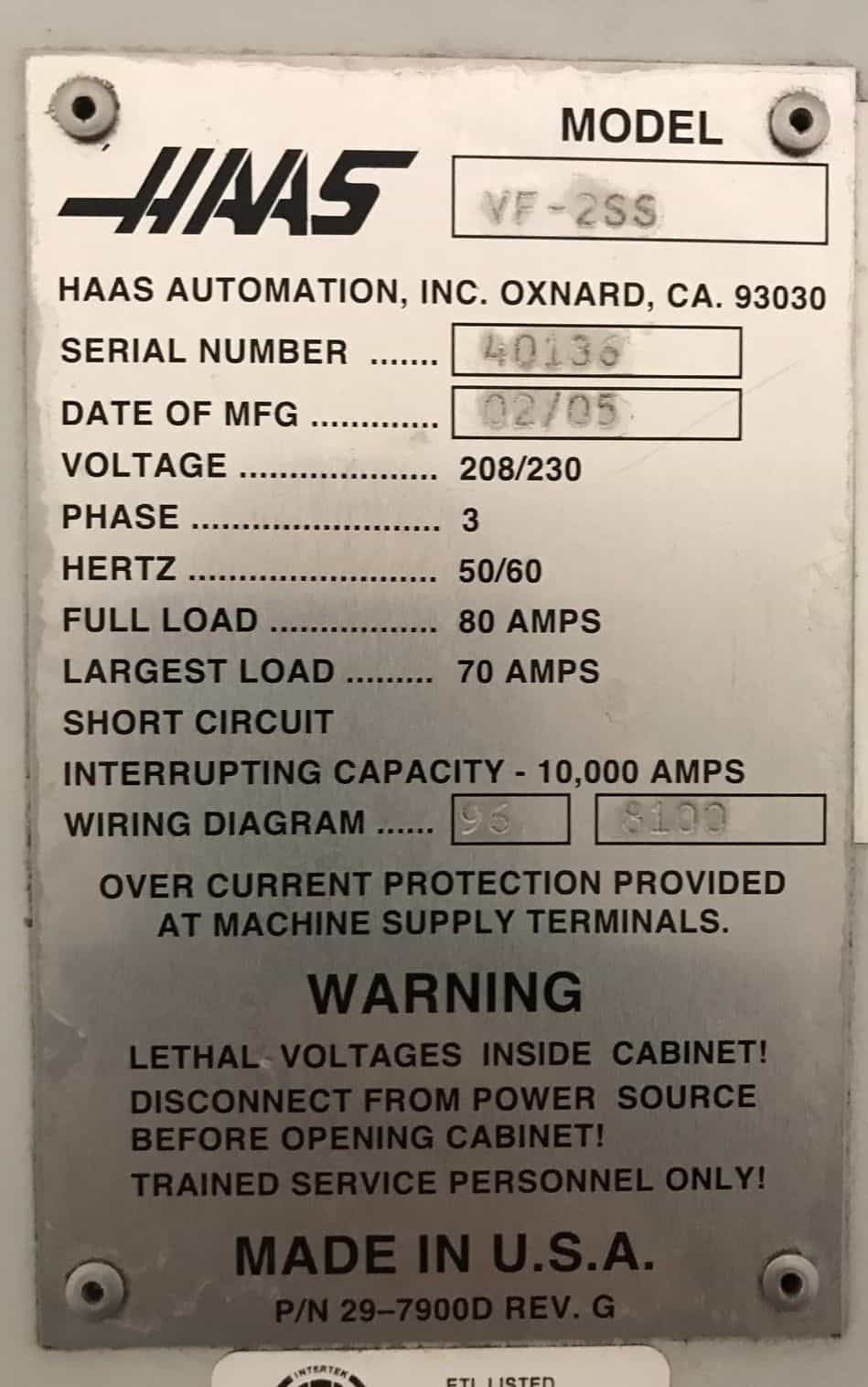

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 90″ x 80″ x 100″ High |
| Weight: 9200 lbs |
