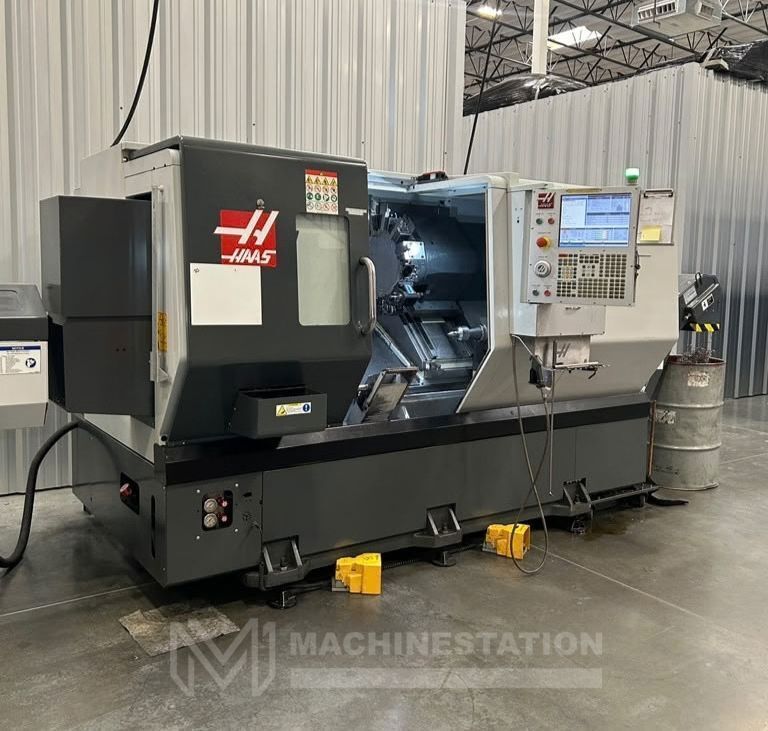

2019 Haas ST-30Y is fully equipped with 10″ Chuck, C & Y Axis, Tool Presetter, Part Catcher, Programmable Tailstock and Chip Conveyor.
“Replacement Cost Over $200,000 with Similar Options”
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
| Make: | Haas |
| Model: | ST-30Y |
| Year: | 2019 |
| Equipped With: |
|---|

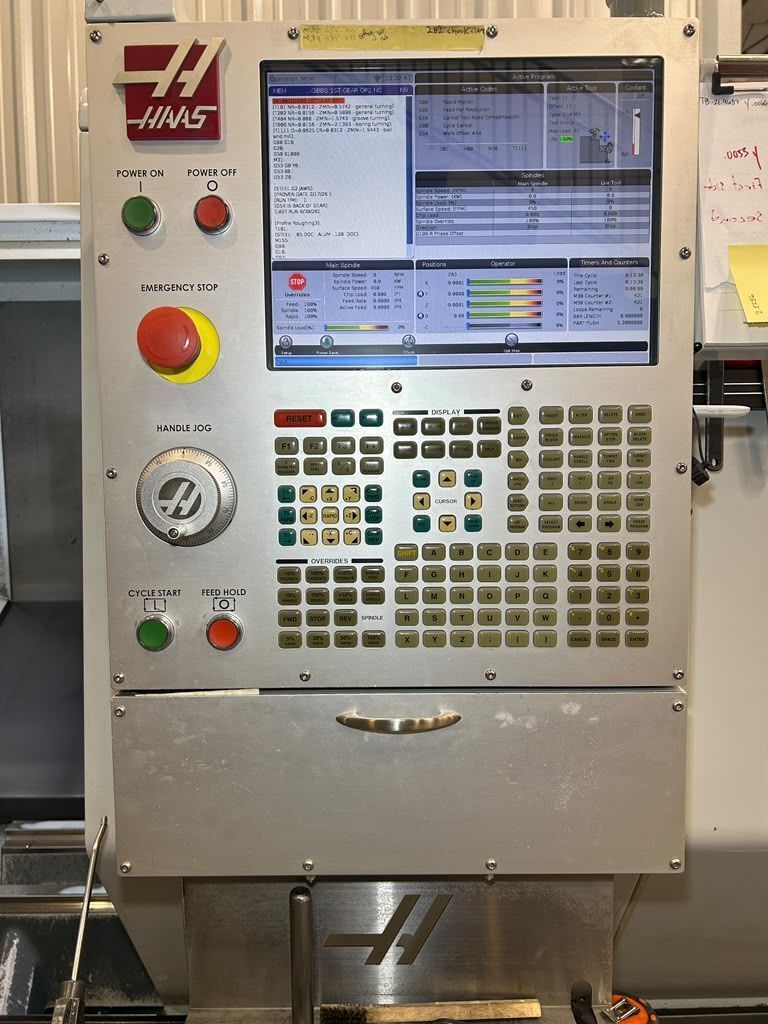

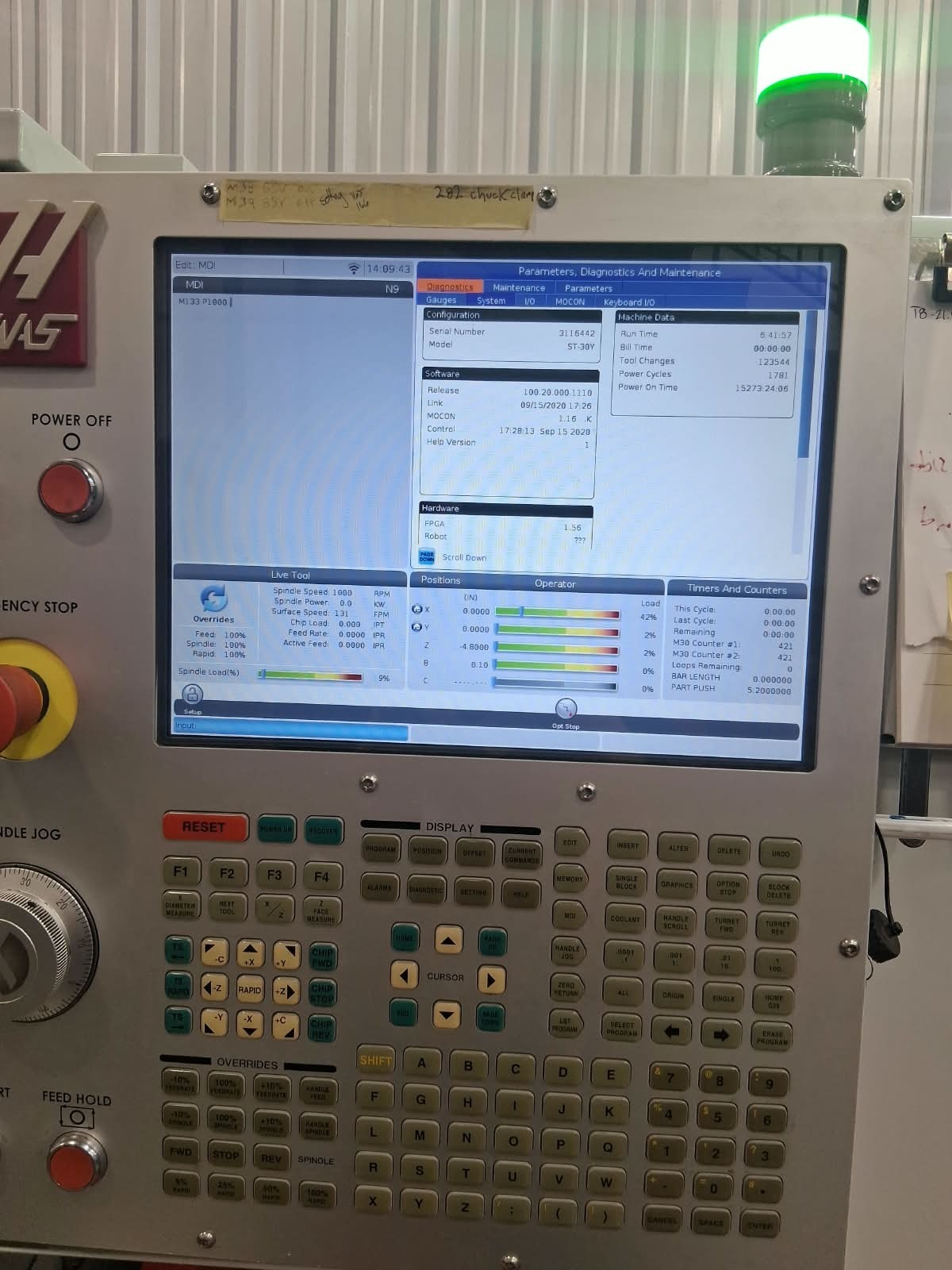

| Haas CNC Control |

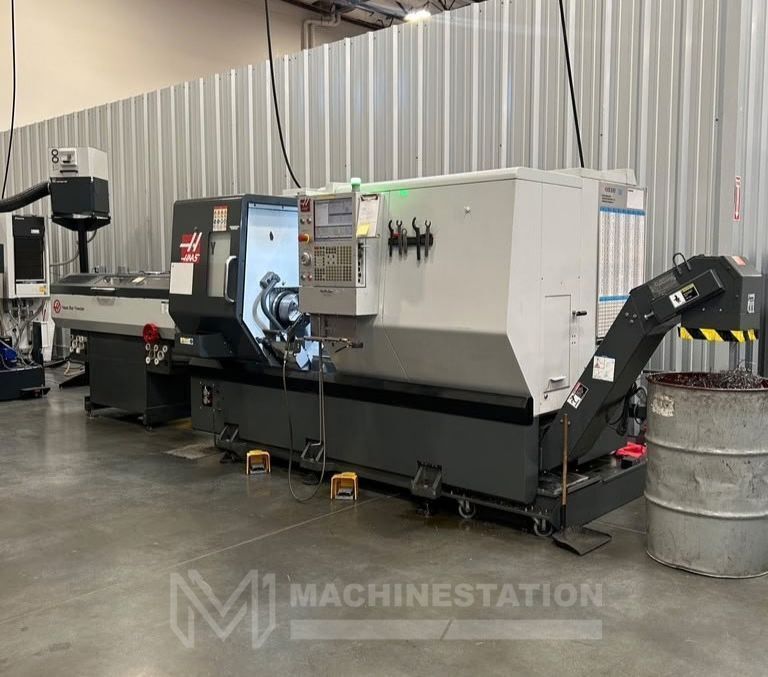

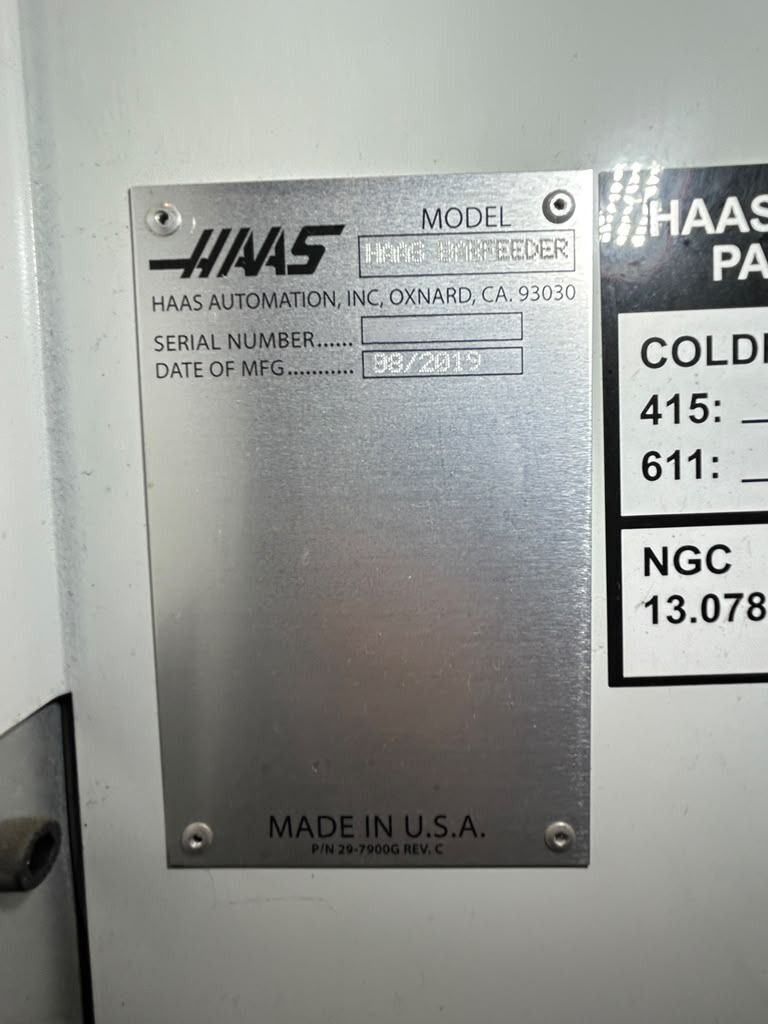

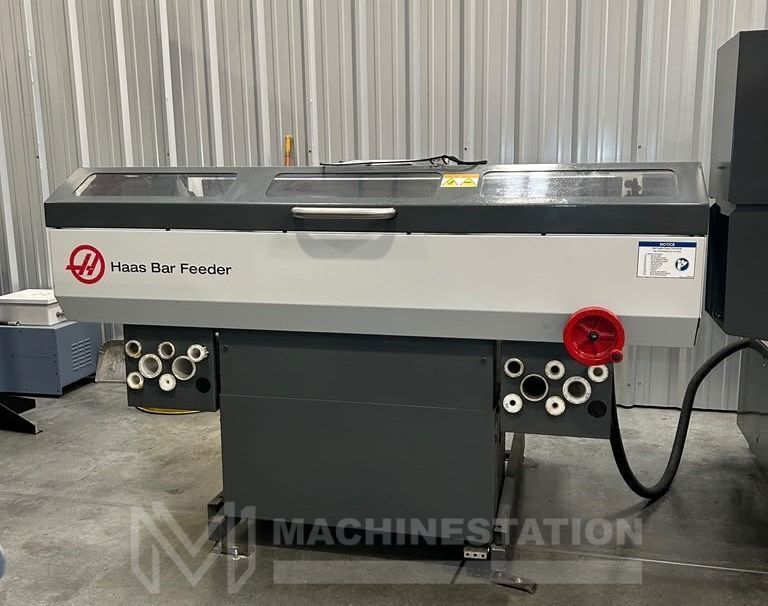

| Haas Bar Feeder (Upgraded $22,095 Value Included) |

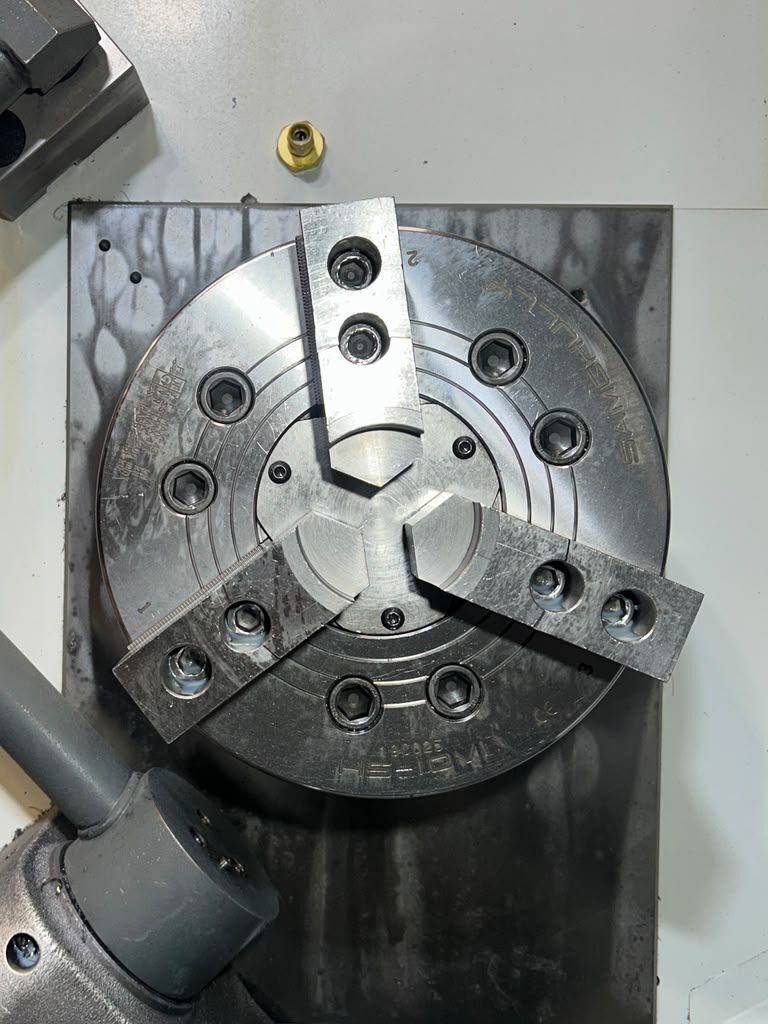

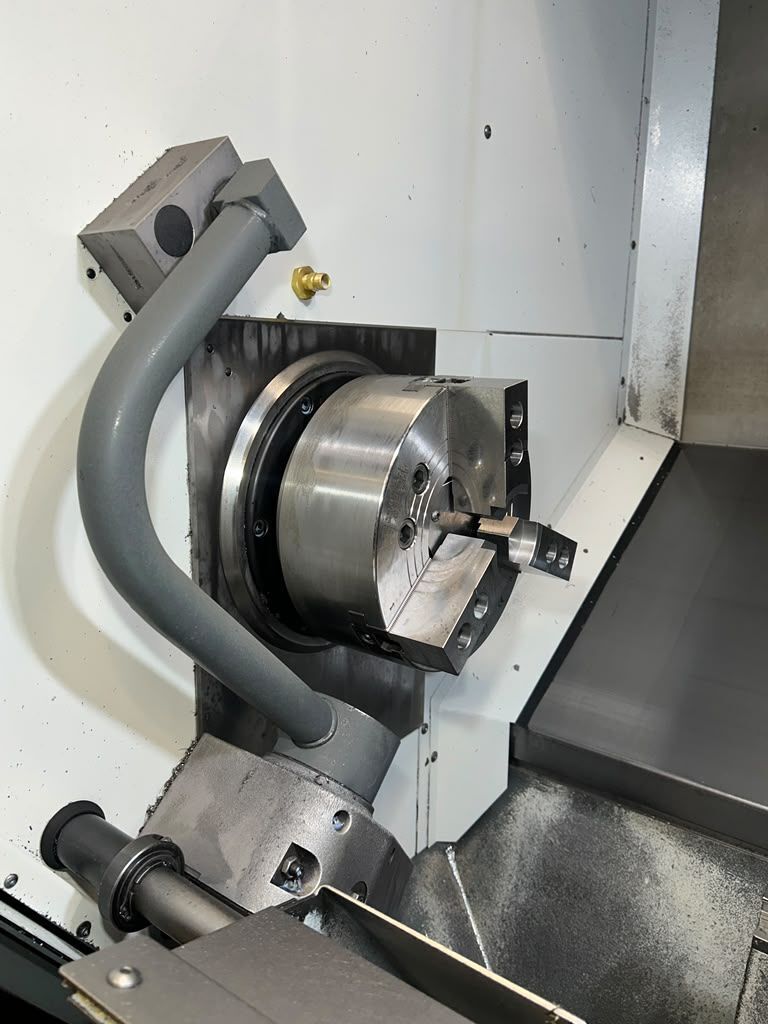

| 10 inch 3-Jaw Hydraulic Chuck |
| 12 Station Live Tool Turret – 24 Positions (Upgraded $6,195 Value Included) |
| C & Y Axis Capability |
| 6,000 RPM Live Tool Spindle Speed (Upgraded $3,195 Value Included) |
| 30 HP Vector Dual Drive |
| Tool Presetter (Upgraded $6,195 Value Included) – Speeds up Changeovers and Setup |
| Part Catcher (Upgraded $3,795 Value Included) – Catch a Finished Part as it is Cut Off |
| A2-6 Spindle |
| 3.5 inch Big Bore Spindle |
| Rigid Tapping |
| Spindle Orientation |

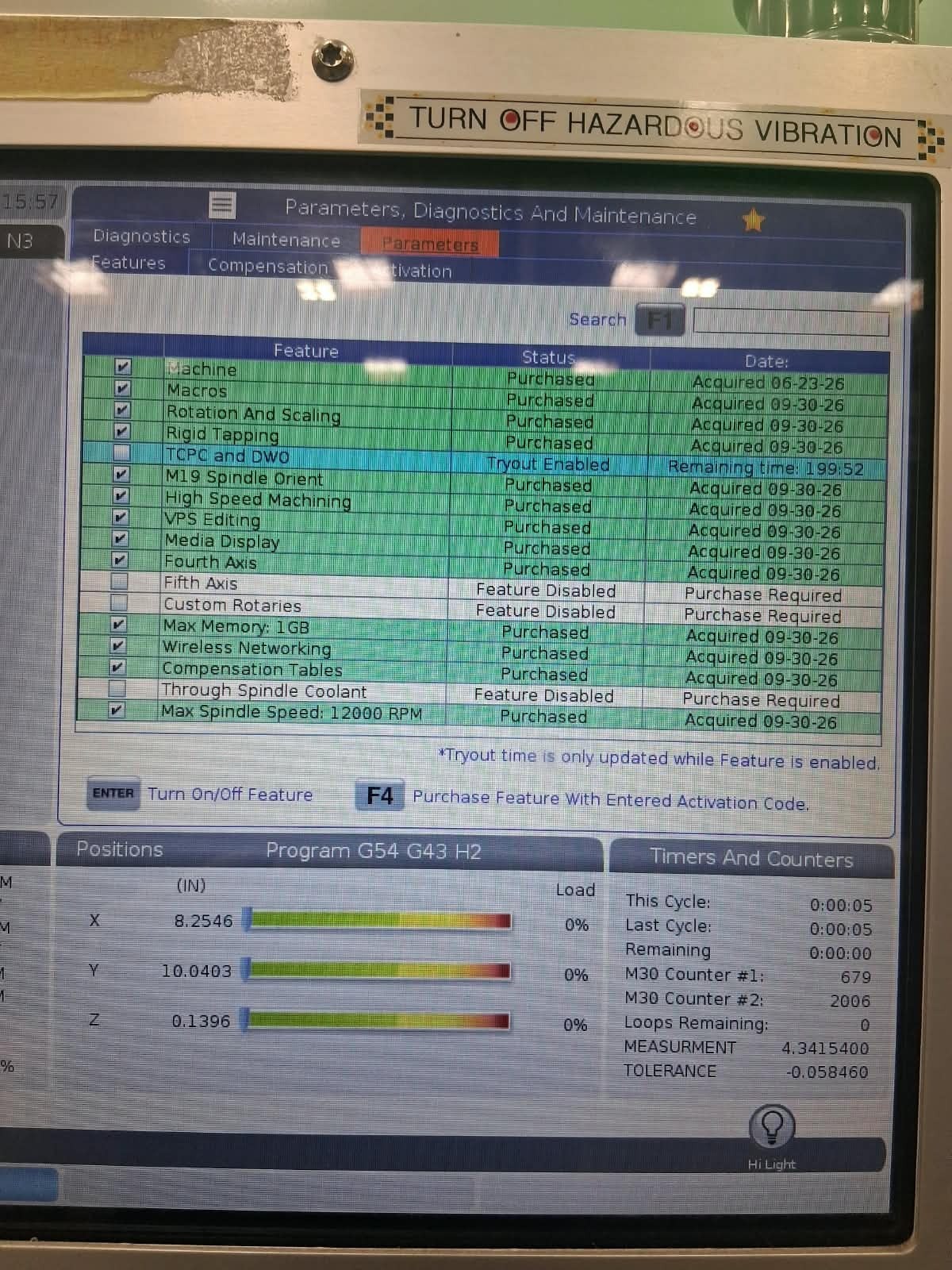

| Visual Part Programming System & User-Definable Macro |
| Media Display |
| 1 GB Max Memory |
| Compensation Tables |
| Wireless Networking |
| USB Port |
| Programmable Hydraulic Tailstock (Upgraded $11,095 Value Included) – Provides Additional Support for Long Workpieces |

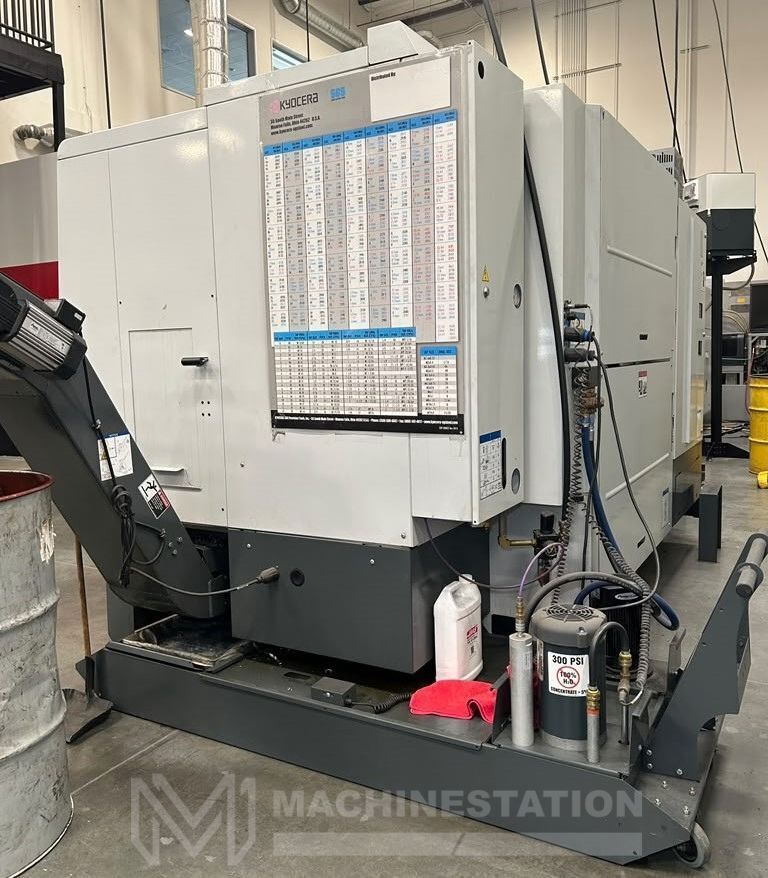

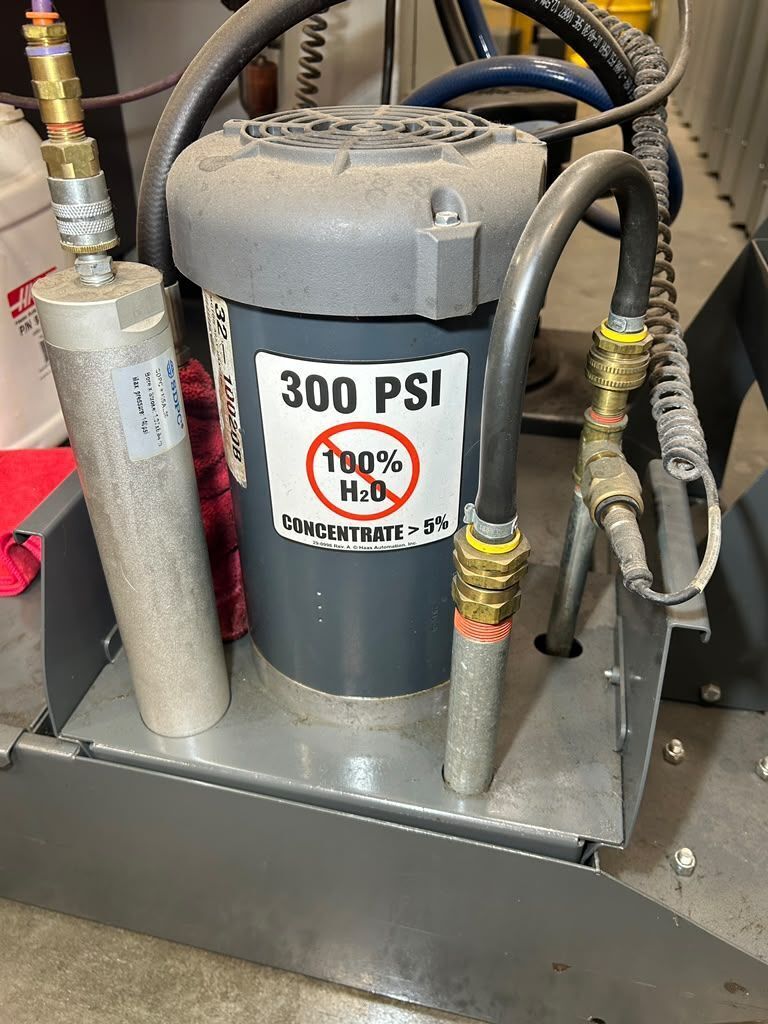

| High Pressure Coolant – 300 PSI (Upgraded $9,195 Value Included) |
| Coolant Tank |

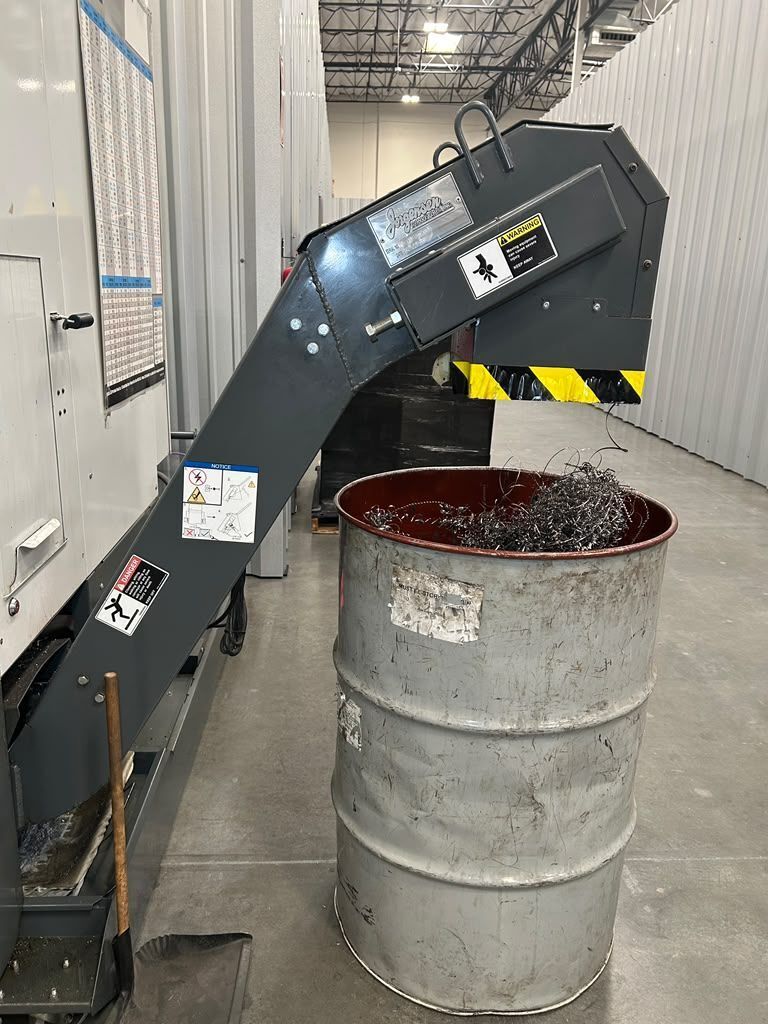

| Belt Type Chip Conveyor (Upgraded $6,195 Value Included) – For Efficient Chip Removal |
| Foot Switches |
| Note: Tool Holders Are Not Included with the Machine |
| Capacity: |
|---|
| Max Turning Diameter: 13.75 inch |
| Max Swing Over Bed: 21.0 inch |
| Max Turning Length: 32.5 inch |
| Max Bar Capacity: 3.0 inch |
| Distance Between Centers: 32.5 inch |
| Travels: |
|---|
| X Axis Travel: 9.4 inch |
| Y Axis Travel: ± 2.0 inch |
| Z Axis Travel: 32.5 inch |
| C Axis: 0.01° |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 472 IPM |
| Rapid Traverse Y Axis: 472 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.5 inch |
| Spindle Speed: 3,400 RPM |
| Spindle Motor: 30 HP |

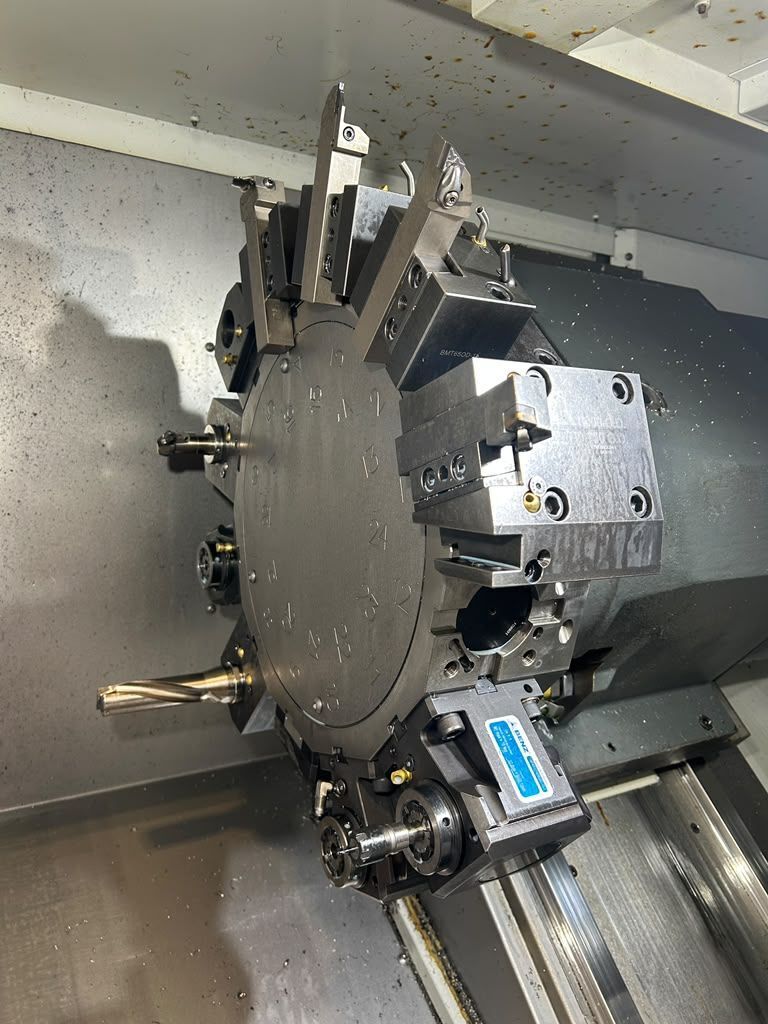

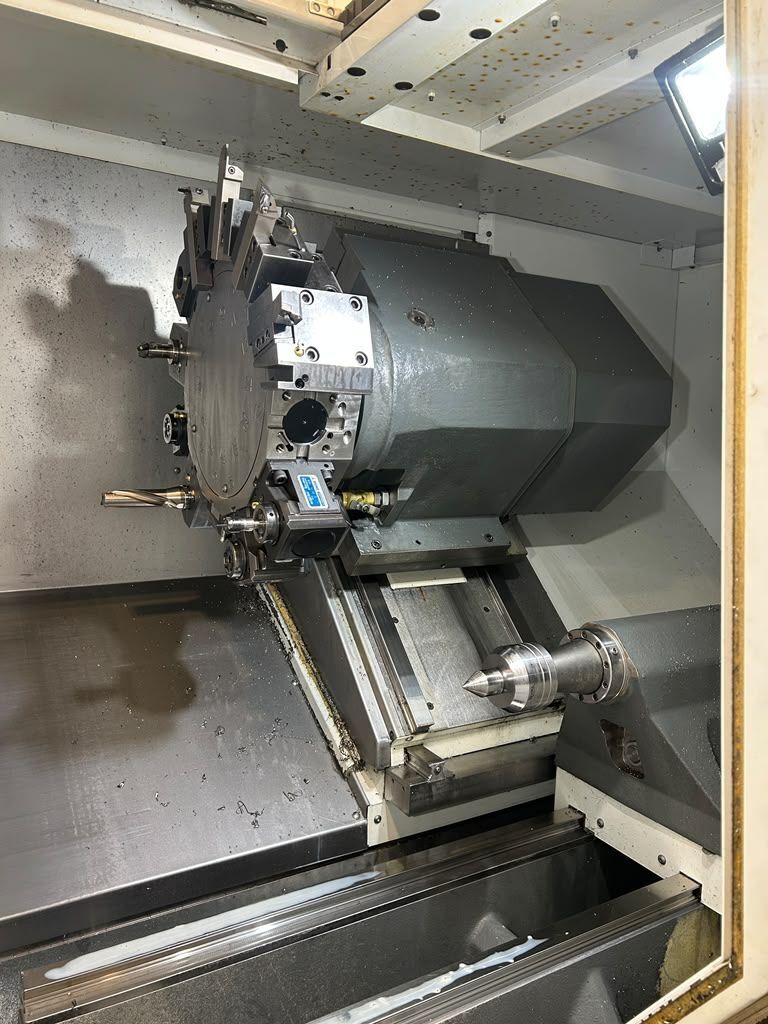

| Turret: |
|---|
| Turret Capacity: 12 Stations – 24 Positions |
| Live Tool Speed: 6,000 RPM |
| Turret Type: BMT-65 |

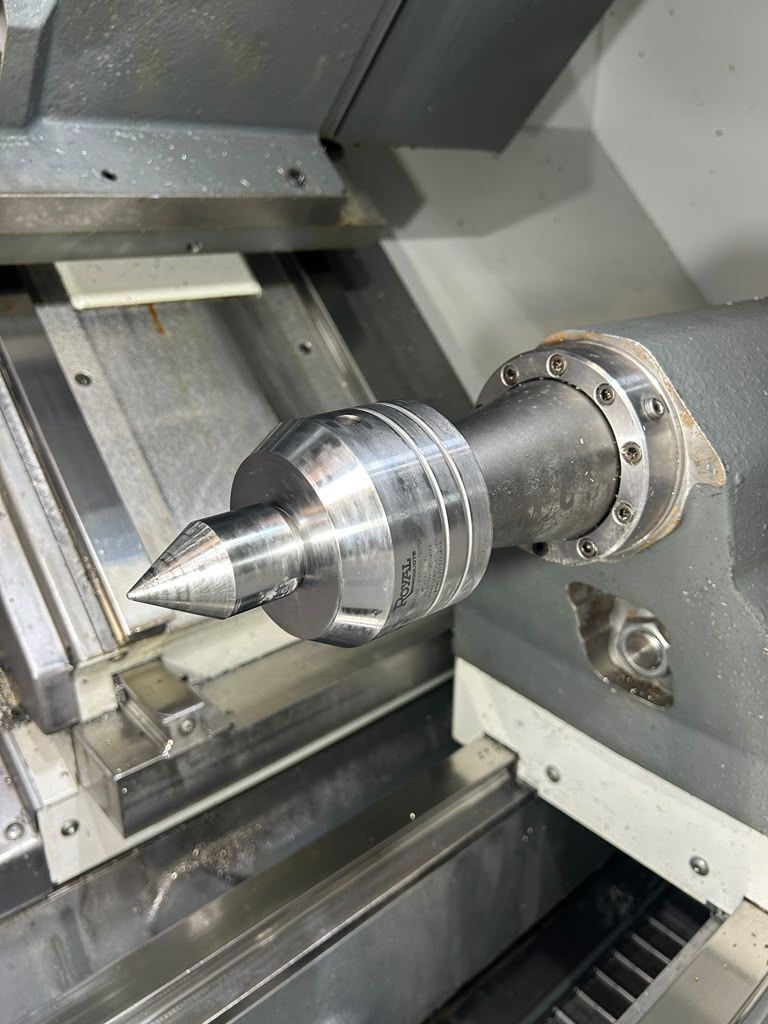

| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Type: Programmable |
| General: |
|---|
| Air Required: 100 PSI, 4 SCFM |

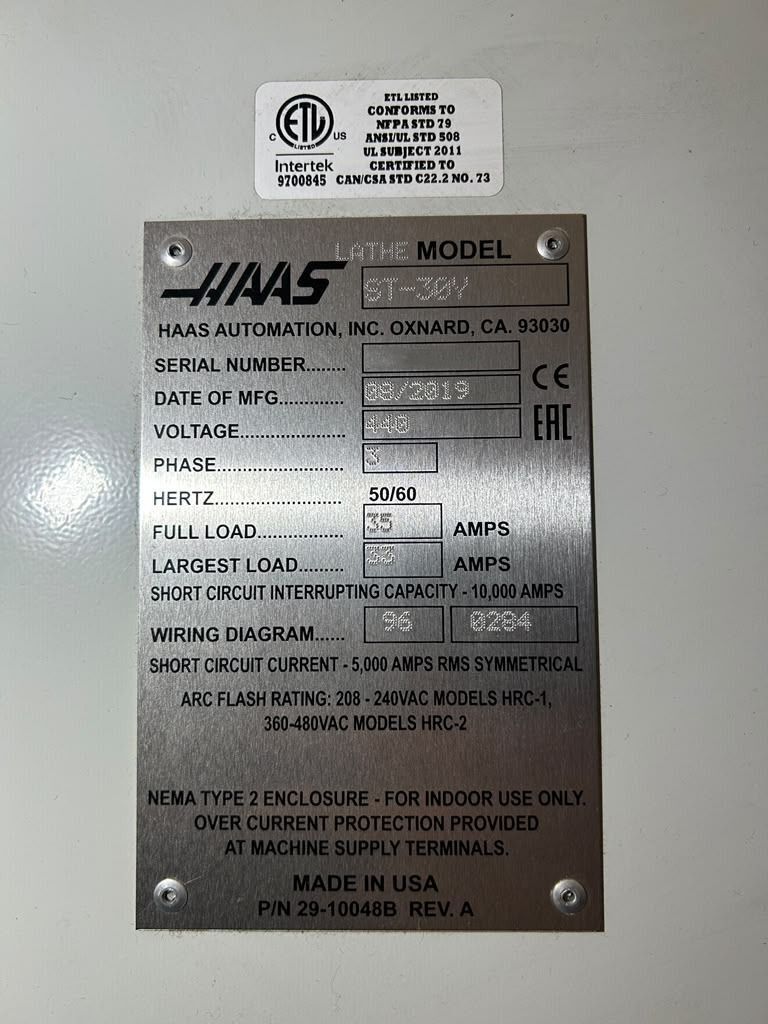

| Power Source: 440V / 3-Phase / 50/60 Hz |
| Machine Dimensions: 170 inch x 90 inch x 98 inch High Approx. |
| Machine Weight: 11,340 lbs Approx. |
