*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

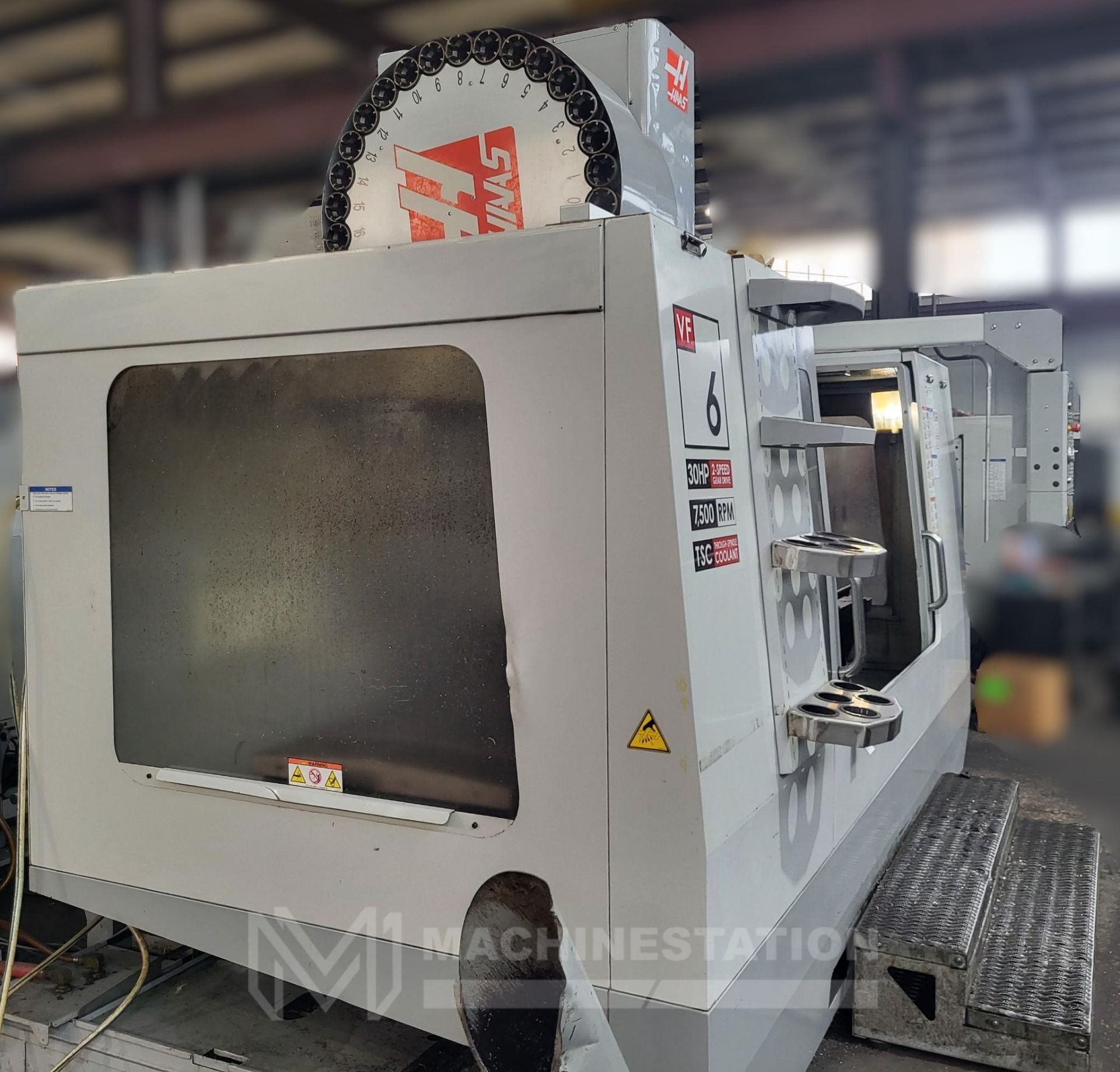

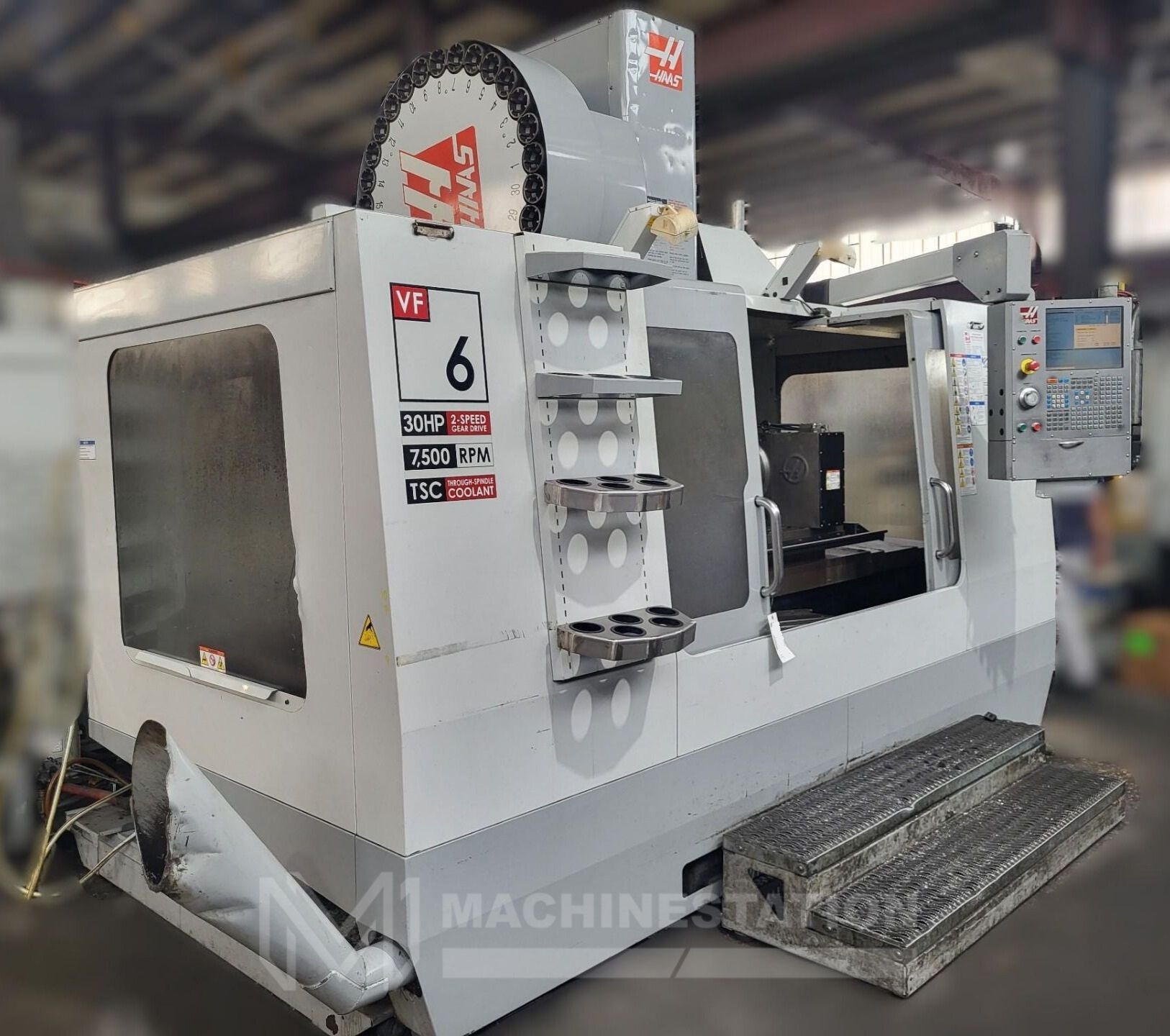

| Make: | HAAS |
| Model: | VF-6/50 |
| Year: | 2008 |
| Condition: | Used – Good |
| Features: |
|---|

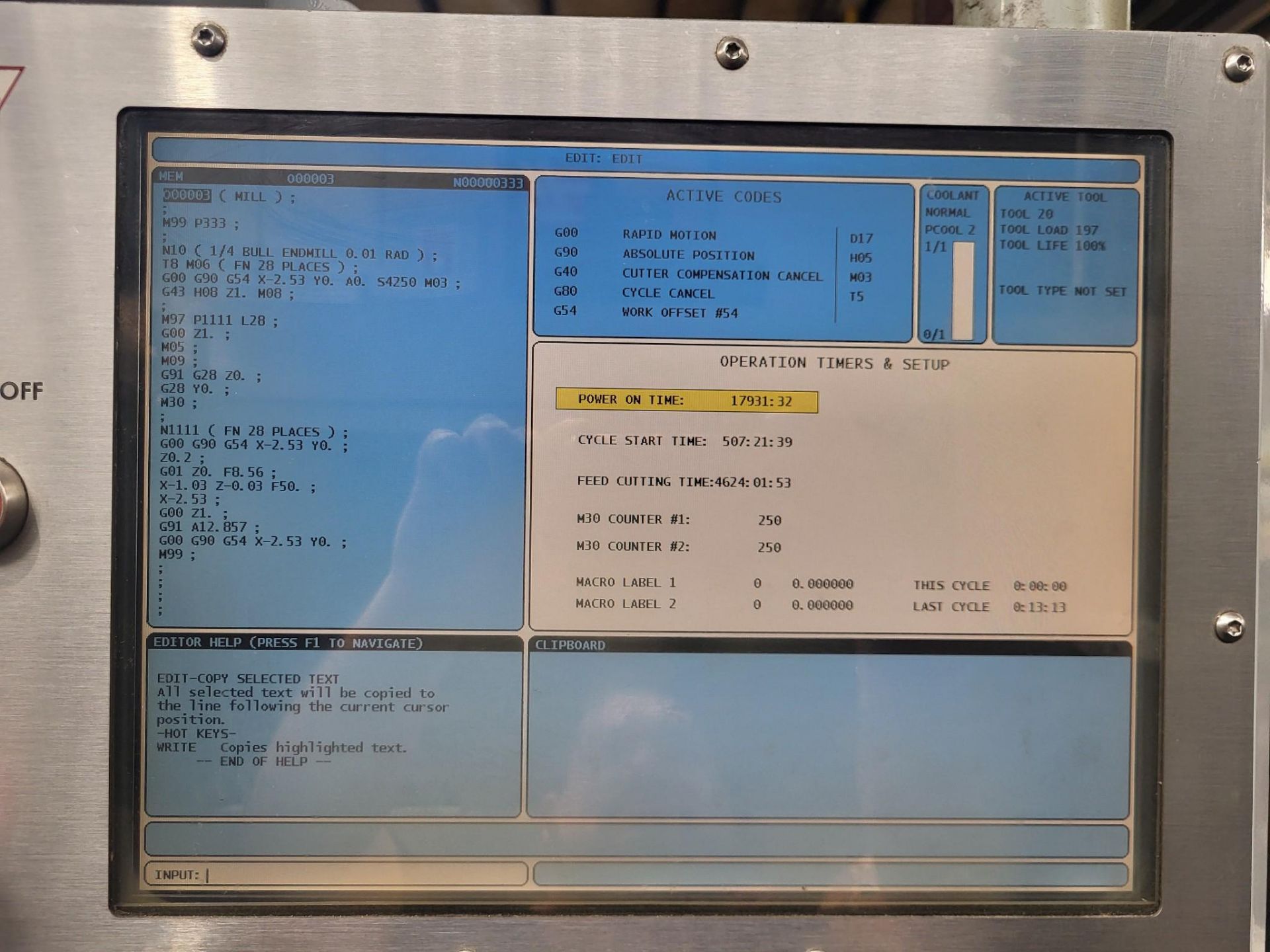

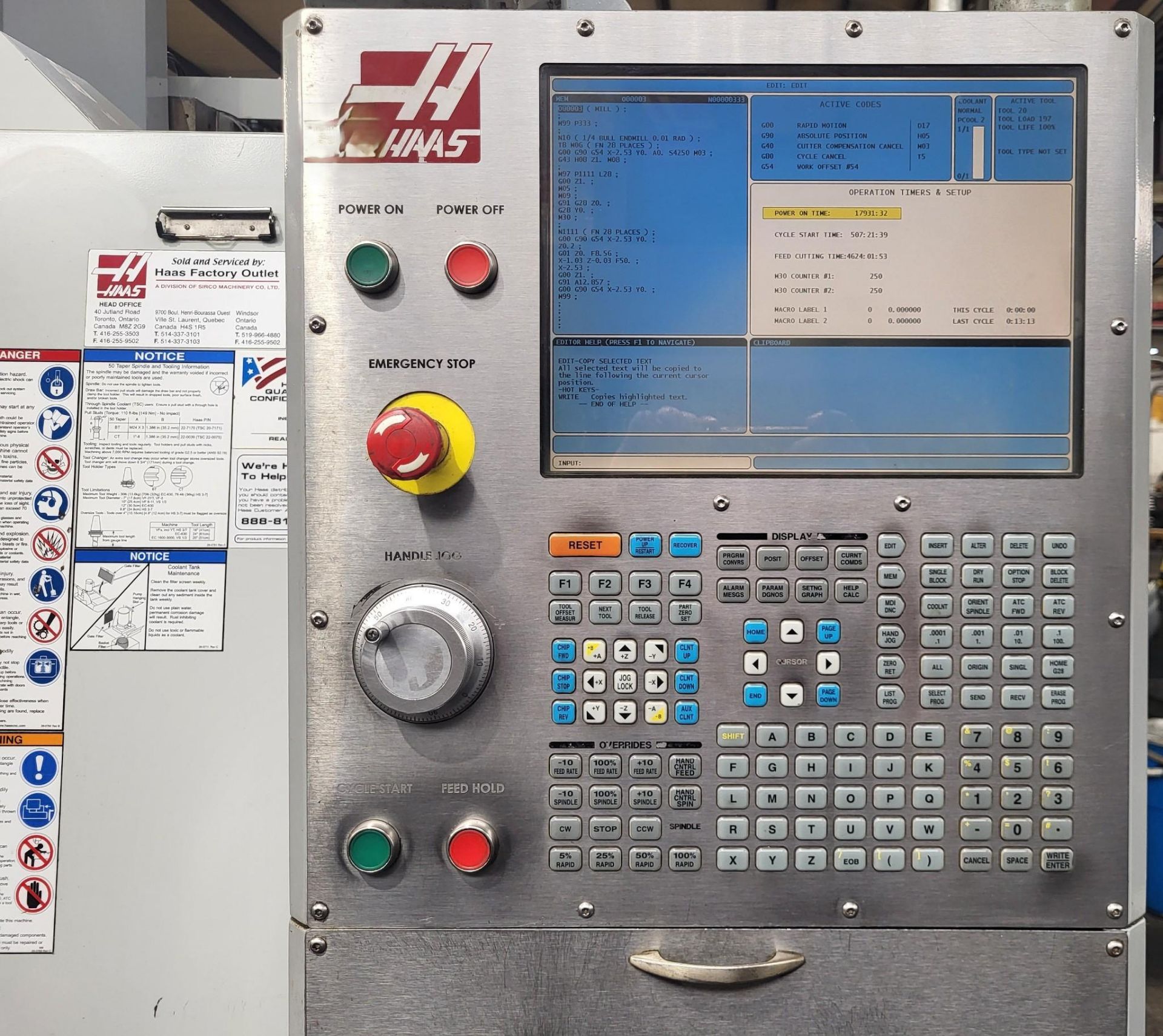

| Haas CNC Control |
| 4th Axis Ready |

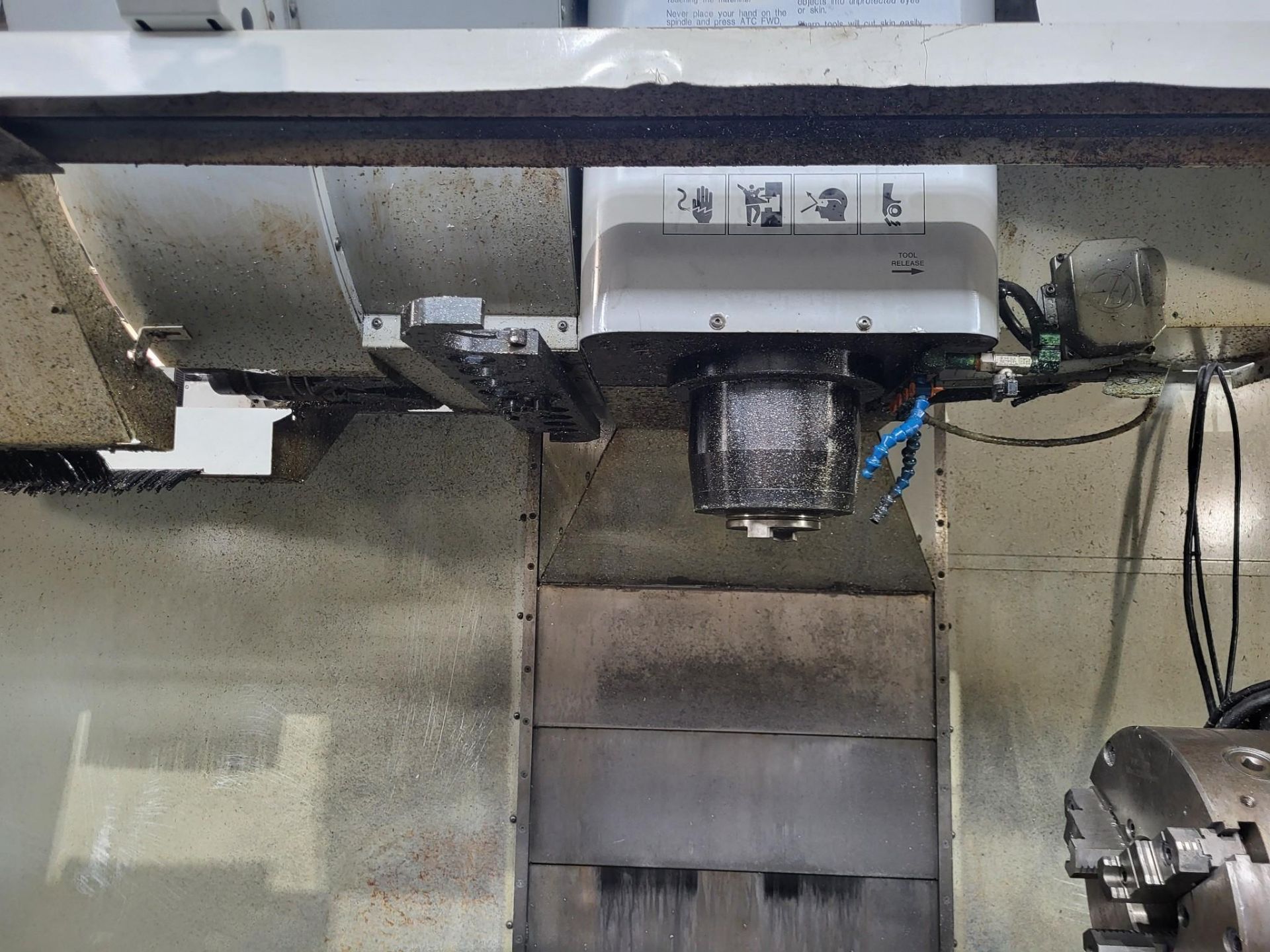

| 7500 RPM High Torque Spindle |

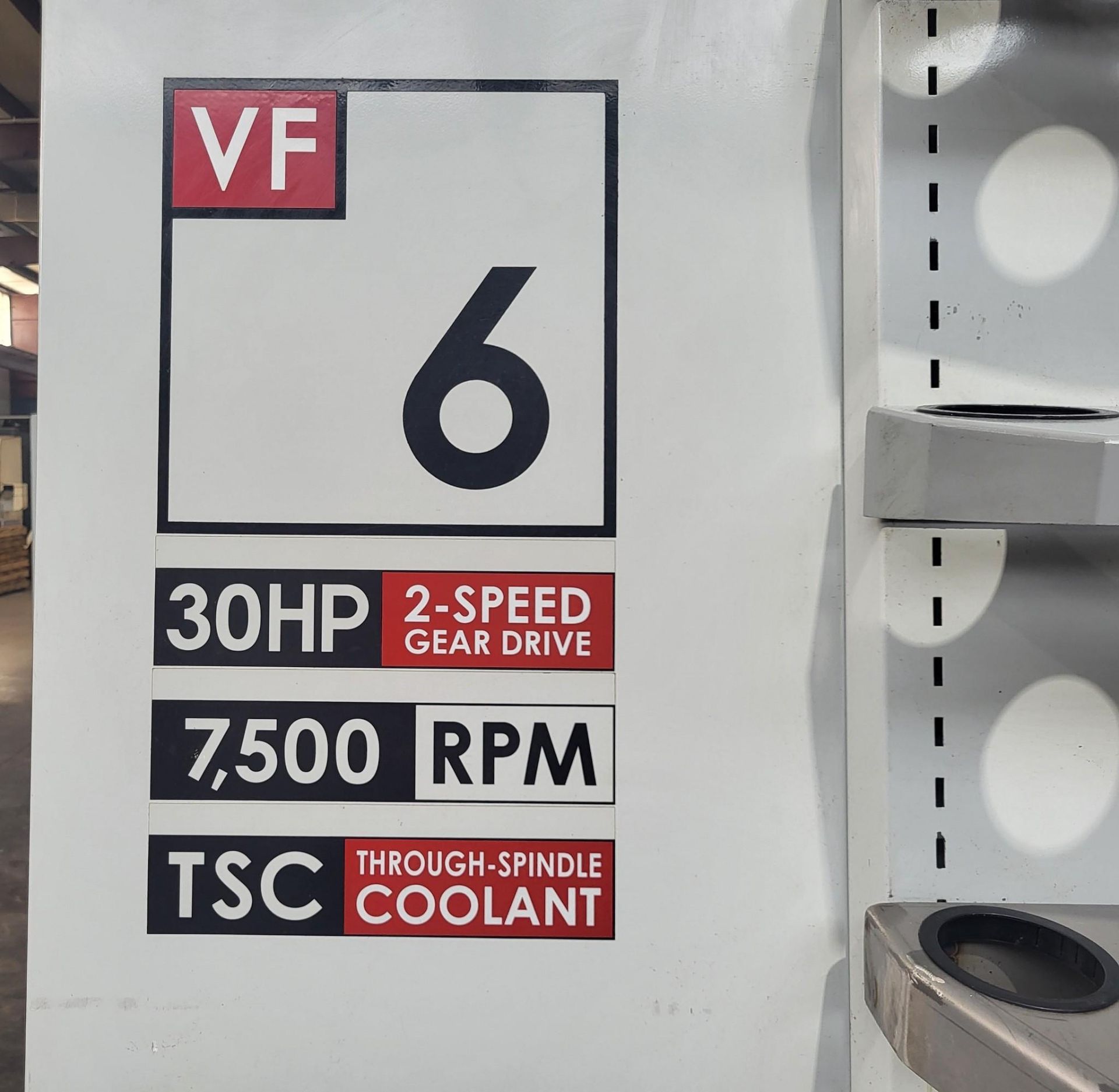

| 30 HP 2 Speed Gear Drive |
| Through Spindle Coolant |

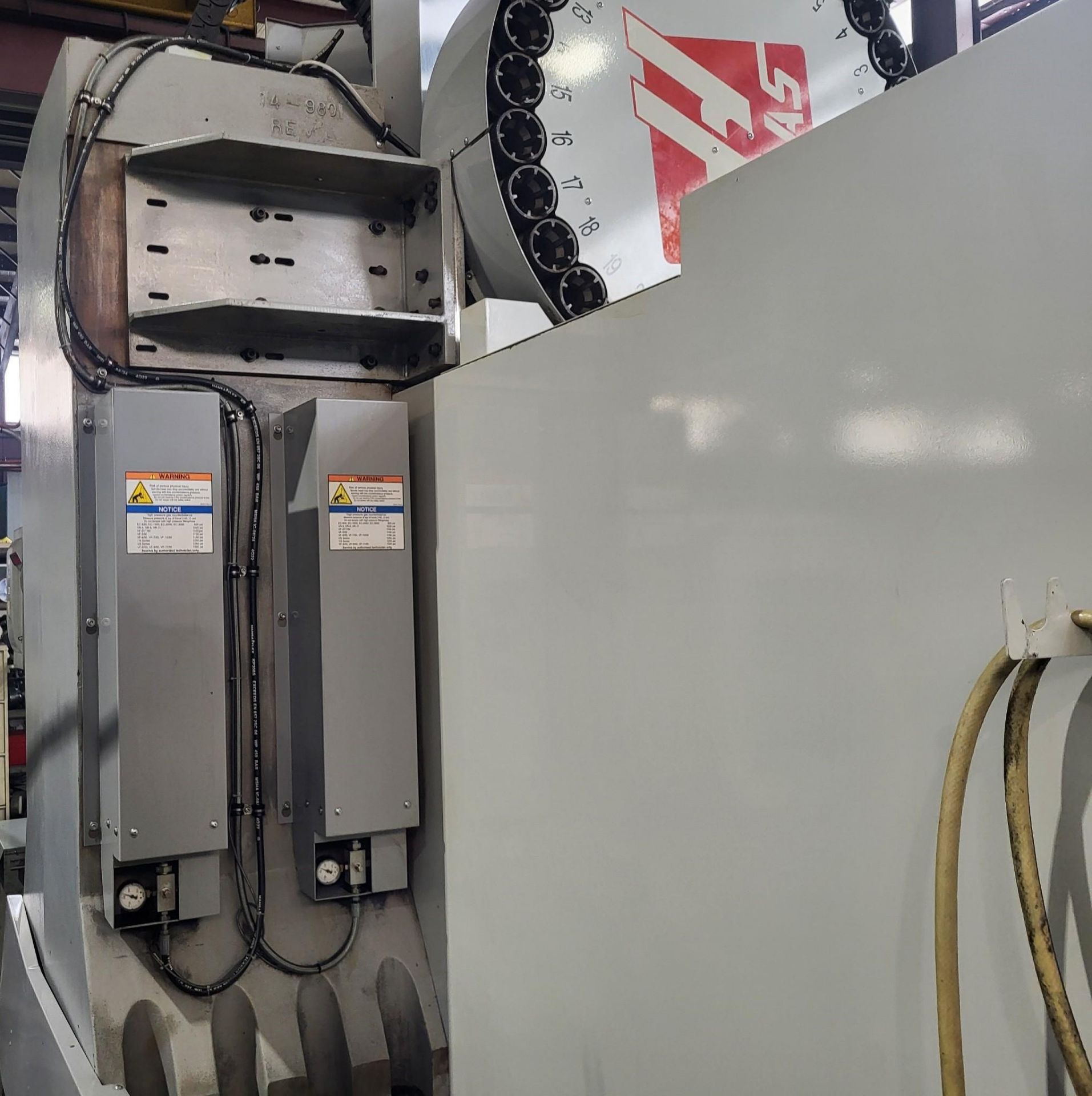

| 30 Station Automatic Tool Changer |
| MPG Control |
| Rigid Tapping |
| Programmable Coolant |

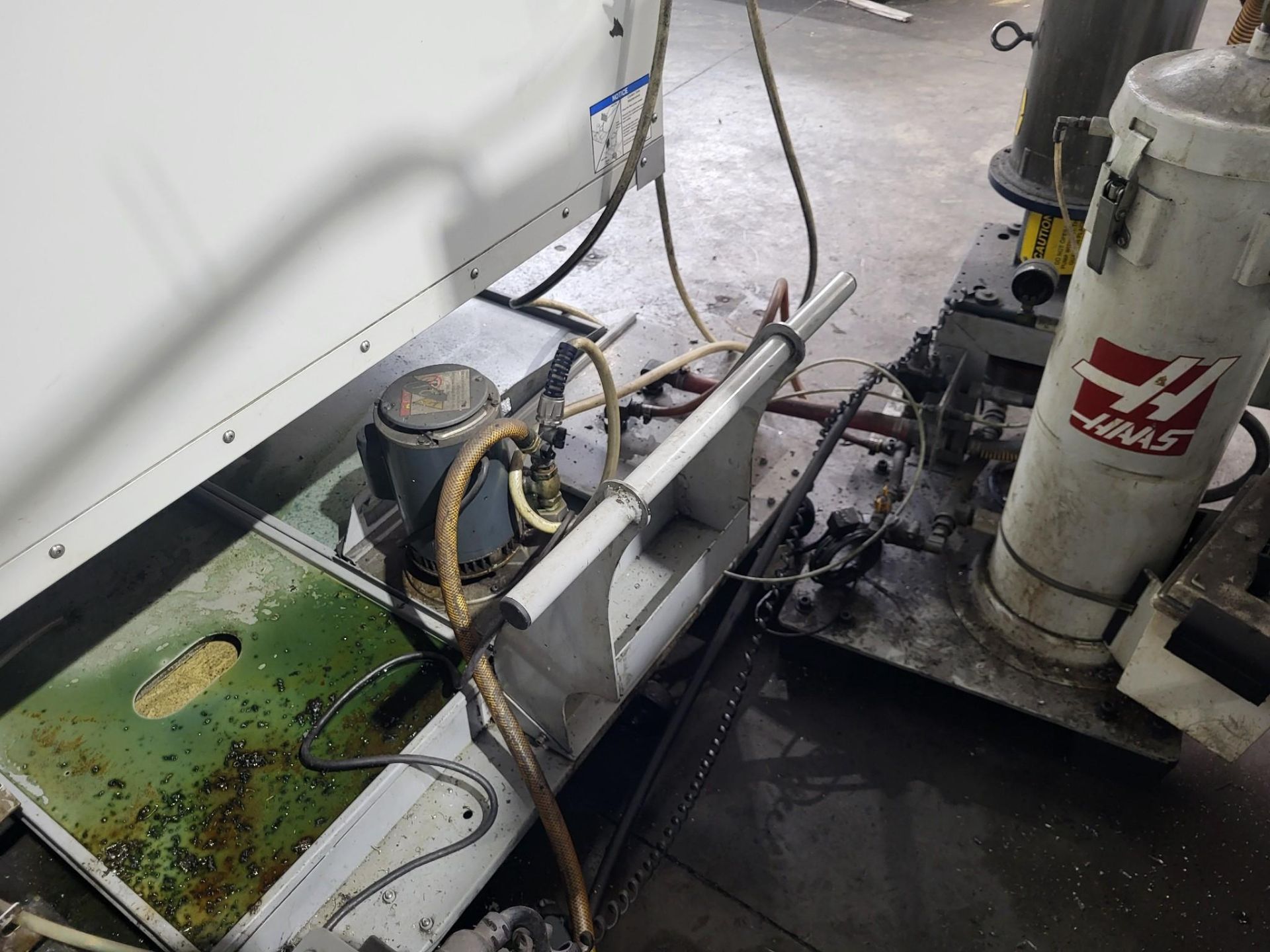

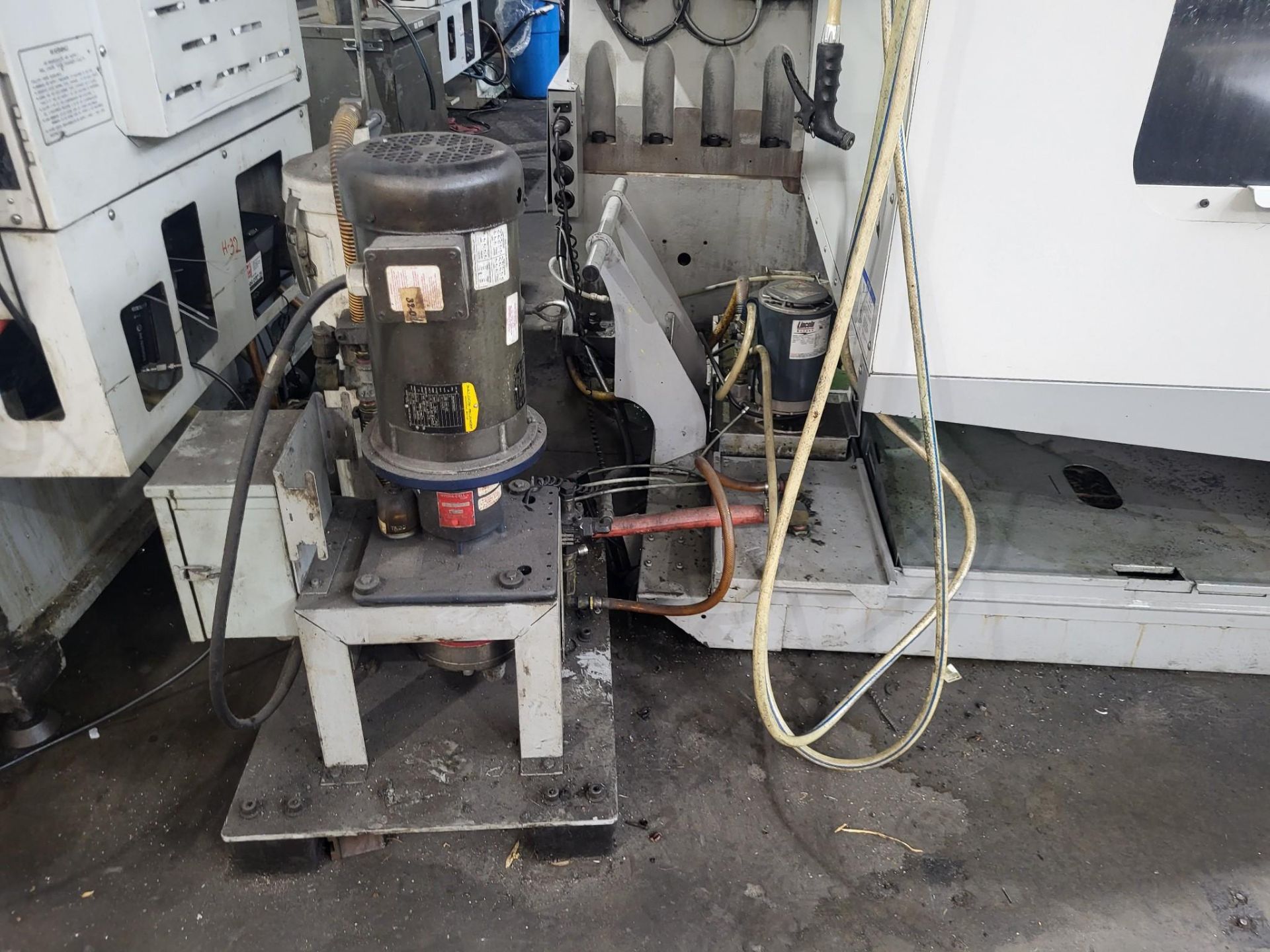

| Auxiliary Coolant Filter System |

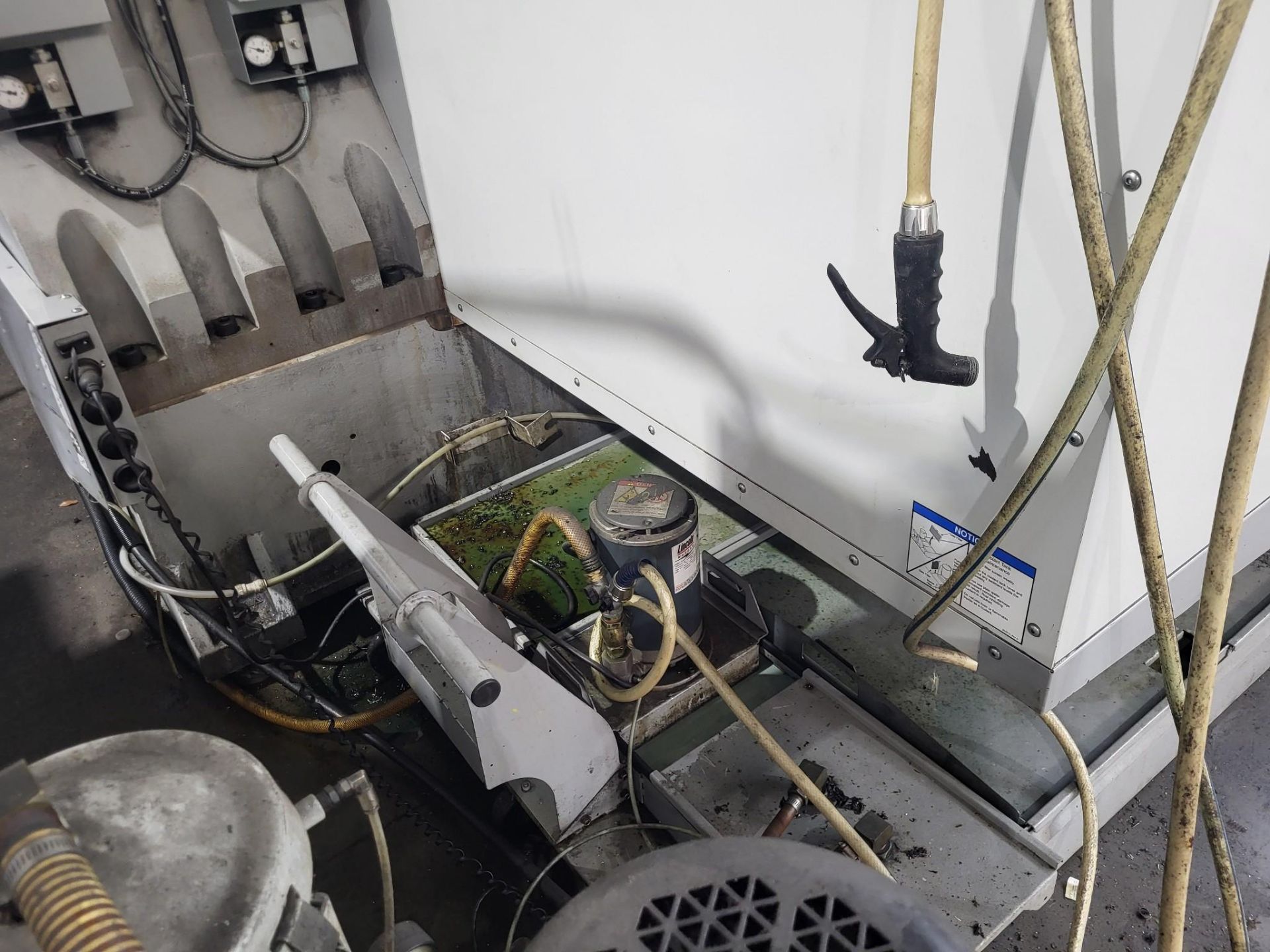

| Coolant System |
| Chip Auger |

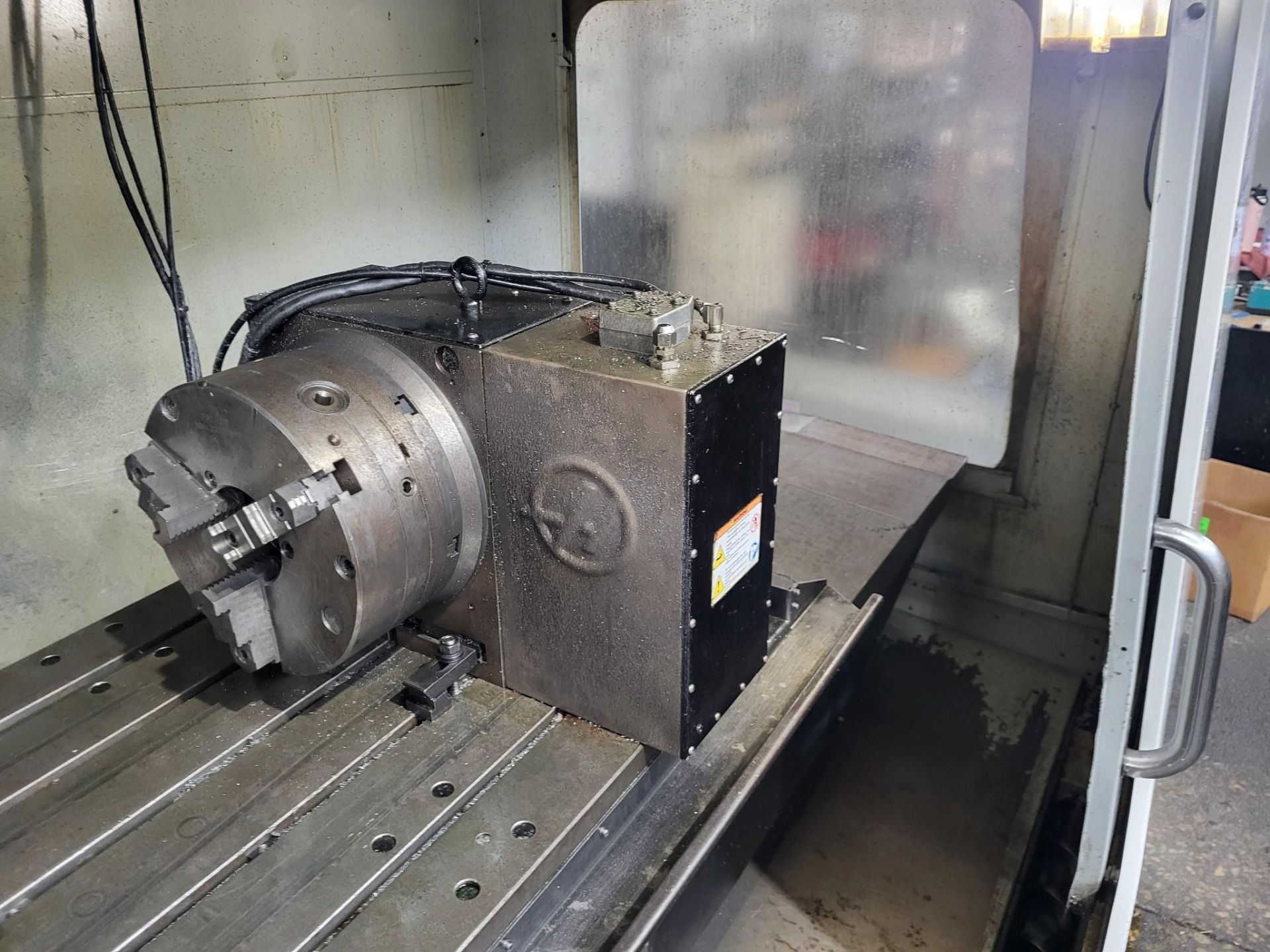

| Note: 4th Axis Rotary Table Not Included with the Machine |
| Travels: |
|---|
| X-Axis: 64″ |
| Y-Axis: 32″ |
| Z-Axis: 30″ |
| Rapid Traverse Rates: 600 Inch Per Minute |
| Cutting Feed Rates: 500 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 5″ – 35″ |

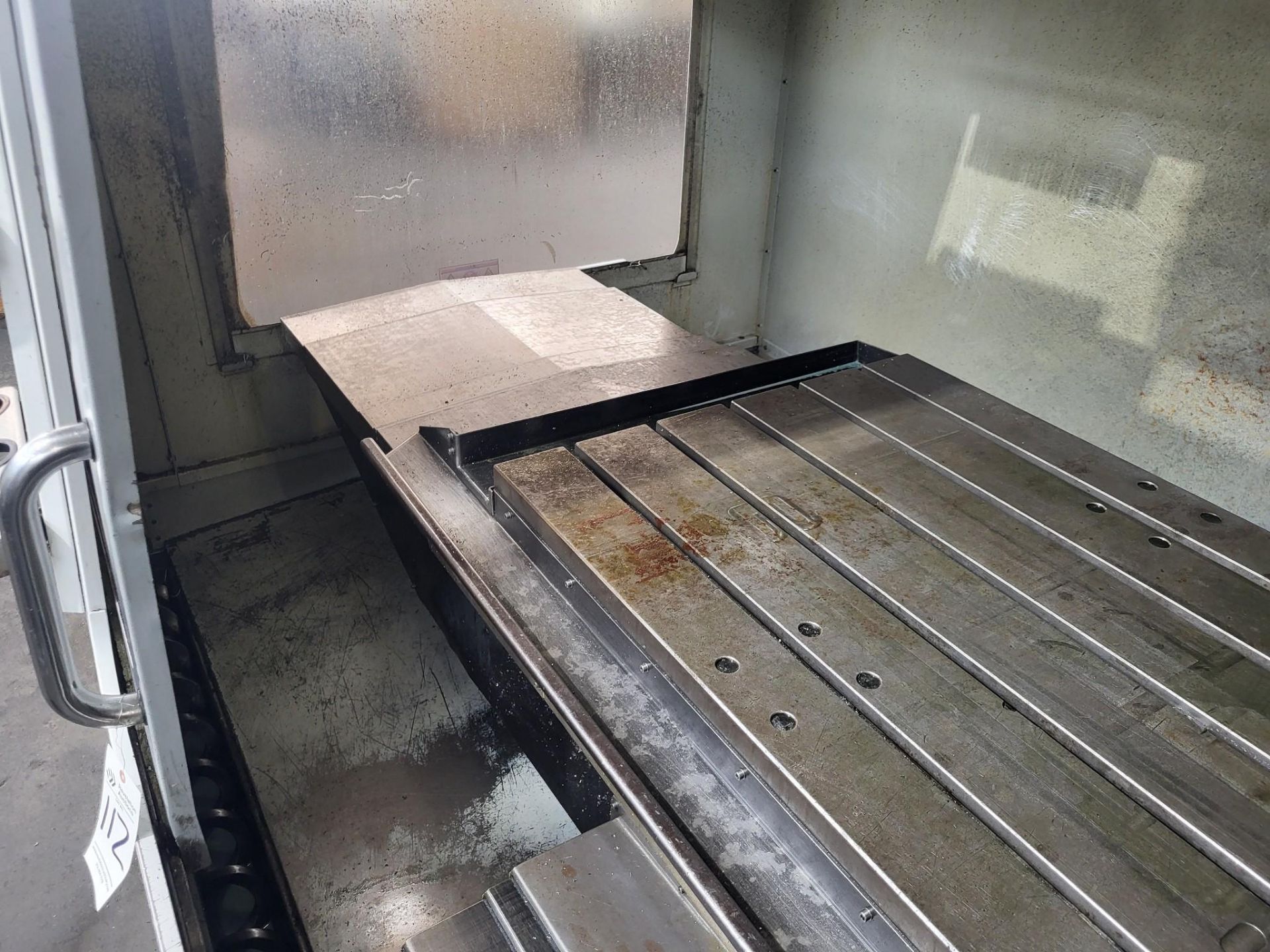

| Table: |
|---|
| Length: 64″ |
| Width: 28″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4000 lbs |
| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 7500 RPM |
| Spindle Power: 30 HP |
| Vector Drive Max Torque: 340 ft-lb @ 700 RPM |

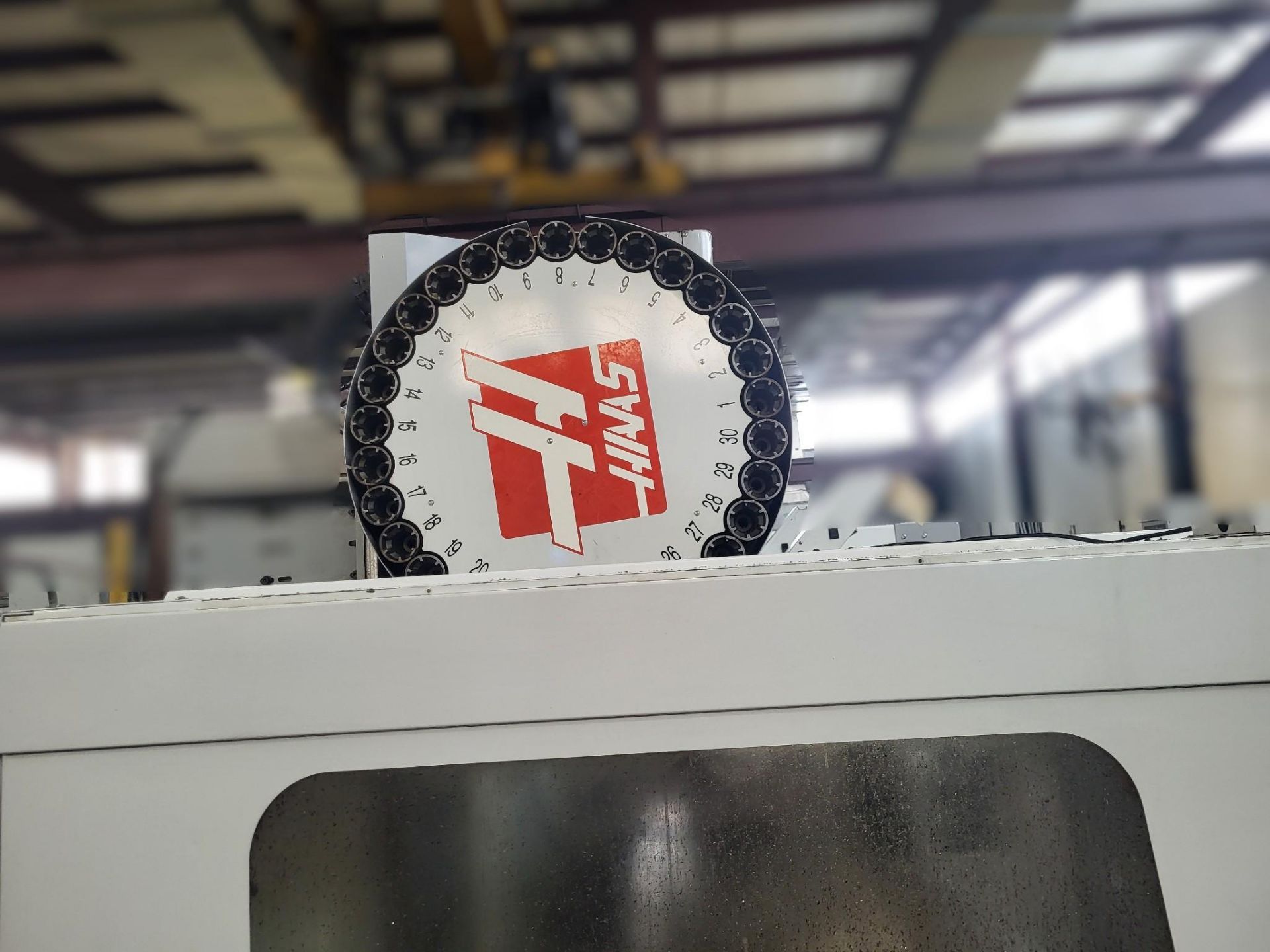

| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 30 lbs |
| Max Tool Diameter (Full): 4″ |
| Max Tool Diameter (adjacent empty): 10″ |
| Max Tool Length: 16″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

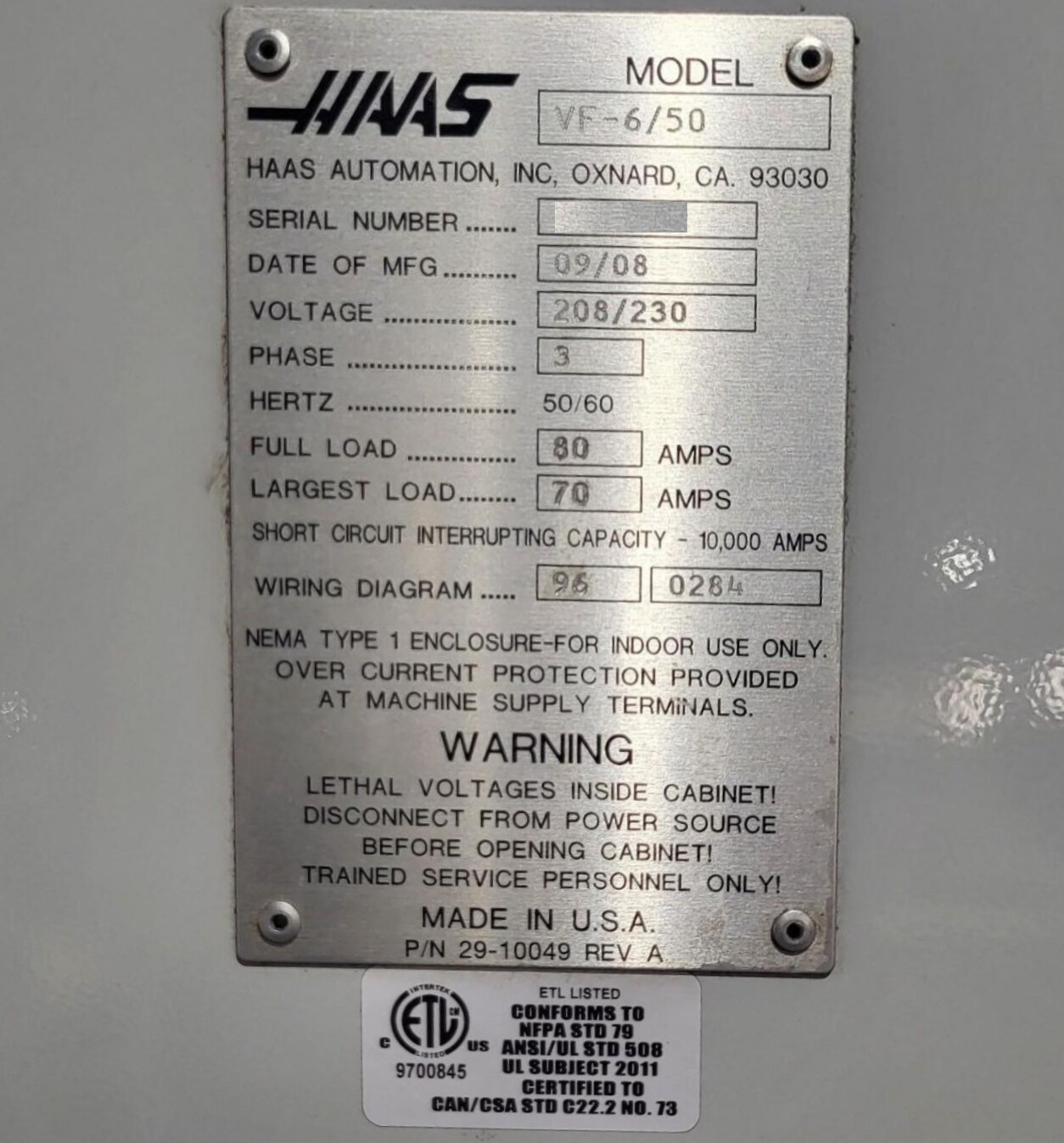

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 195″ x 102″ x 132″ High Approx. |
| Weight: 25,500 lbs Approx. |
