*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

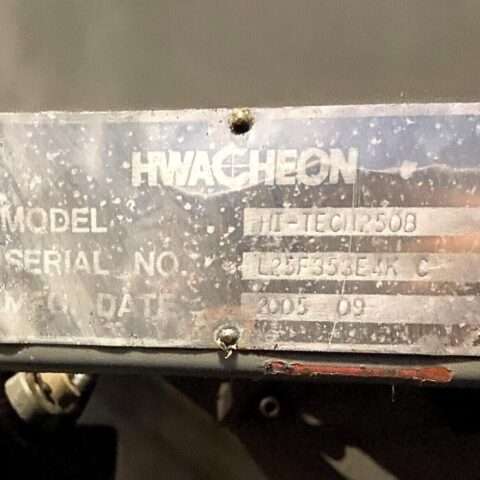

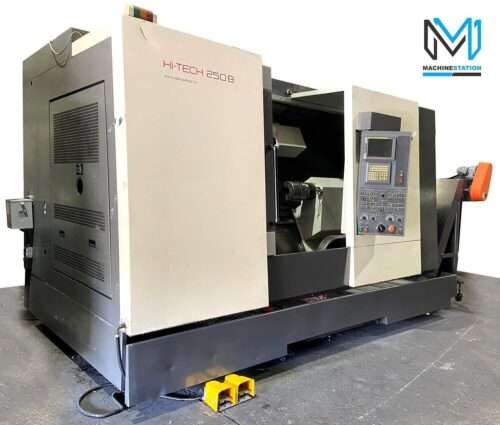

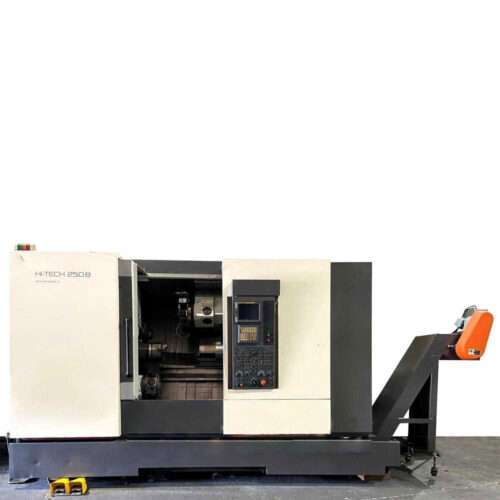

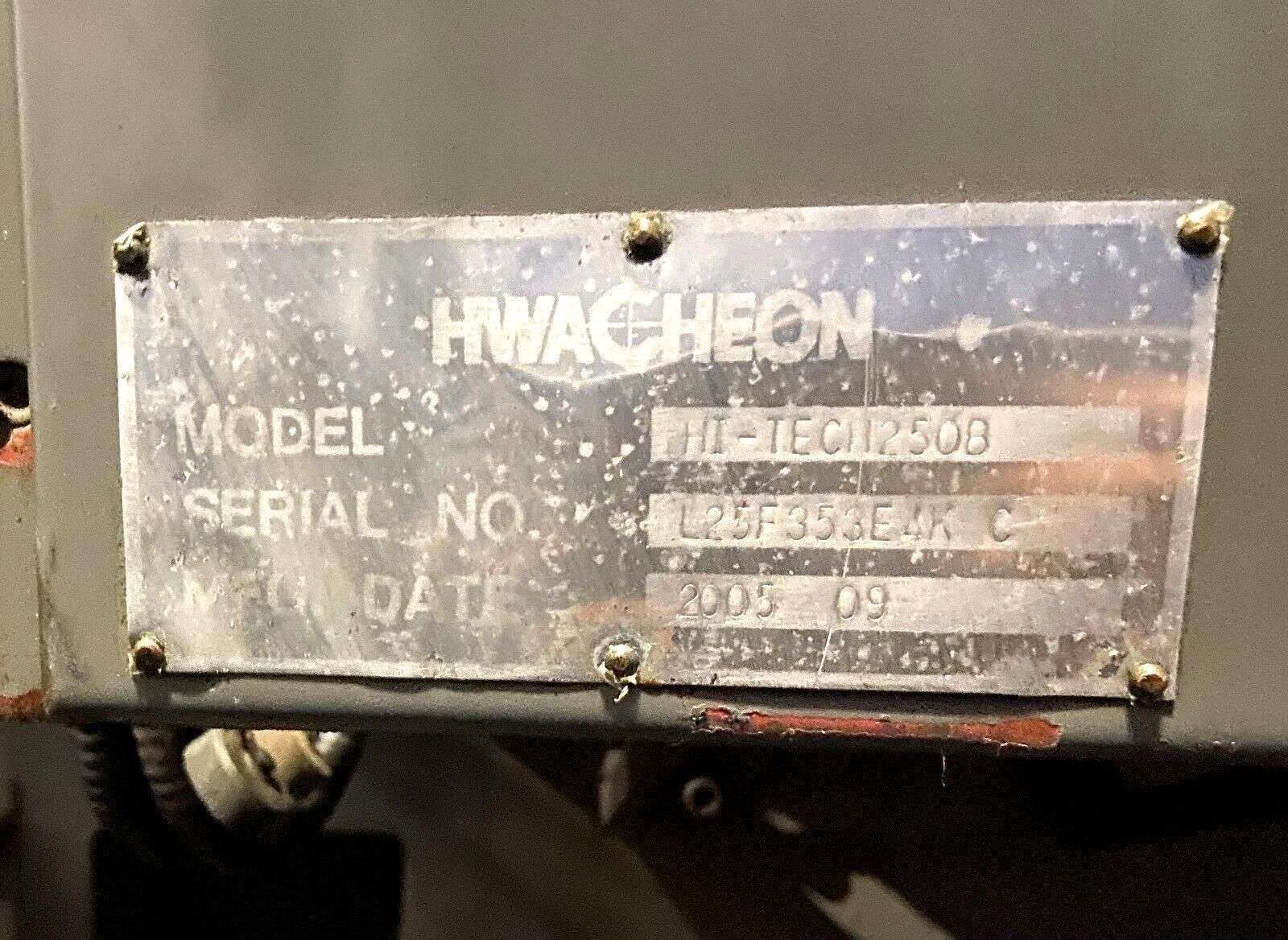

| Make: | HWACHEON |

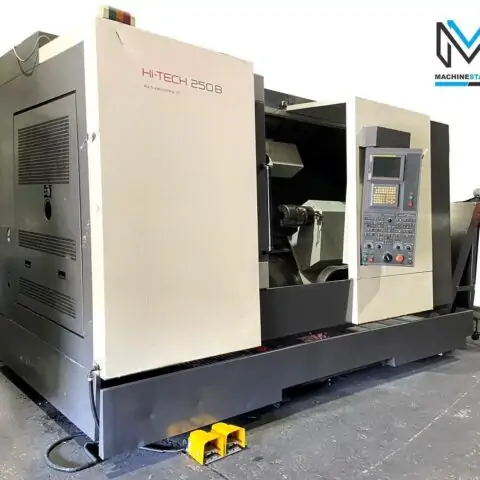

| Model: | HI-TECH 250B |
| Year: | 2006 |
| Condition: | Used – Good |
| Equipped With: |
|---|

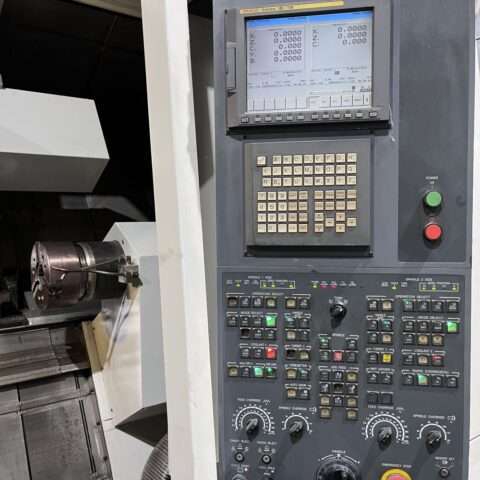

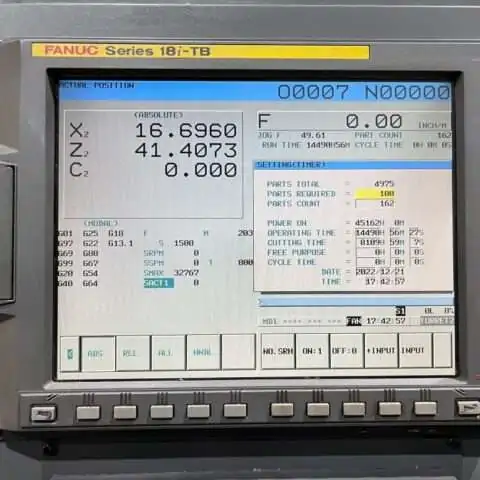

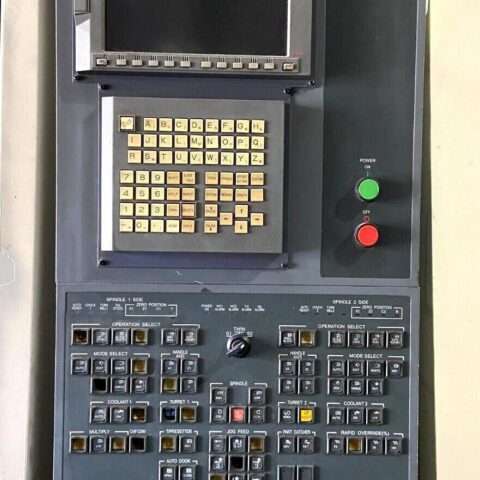

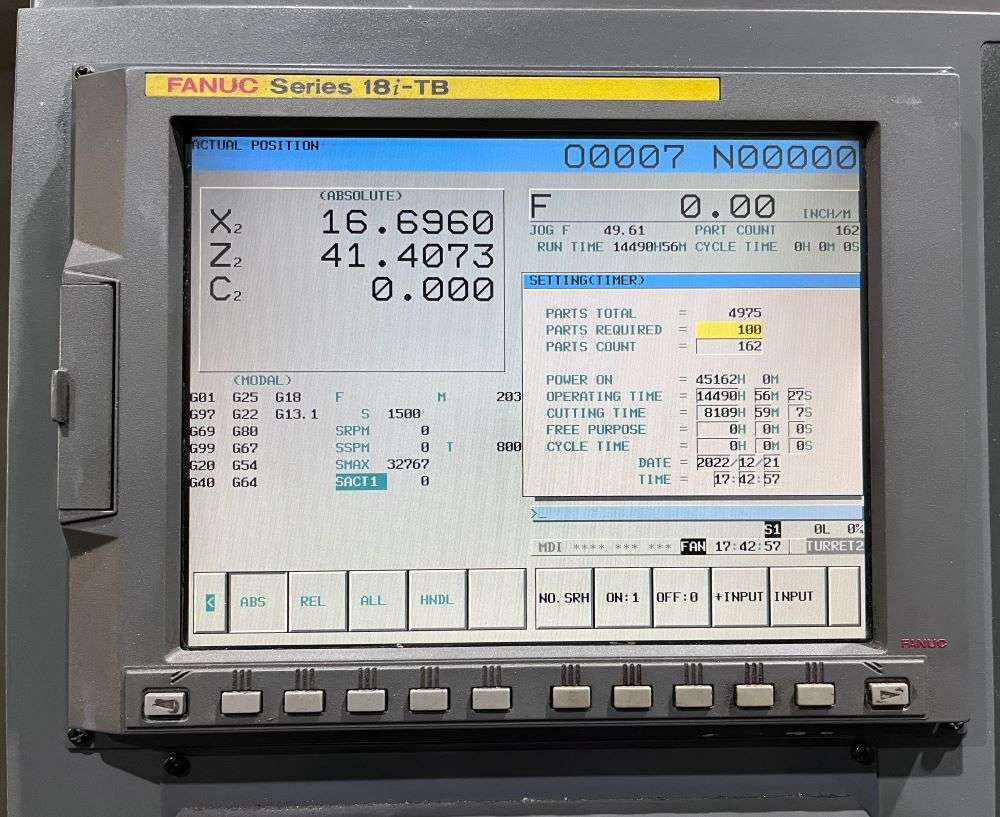

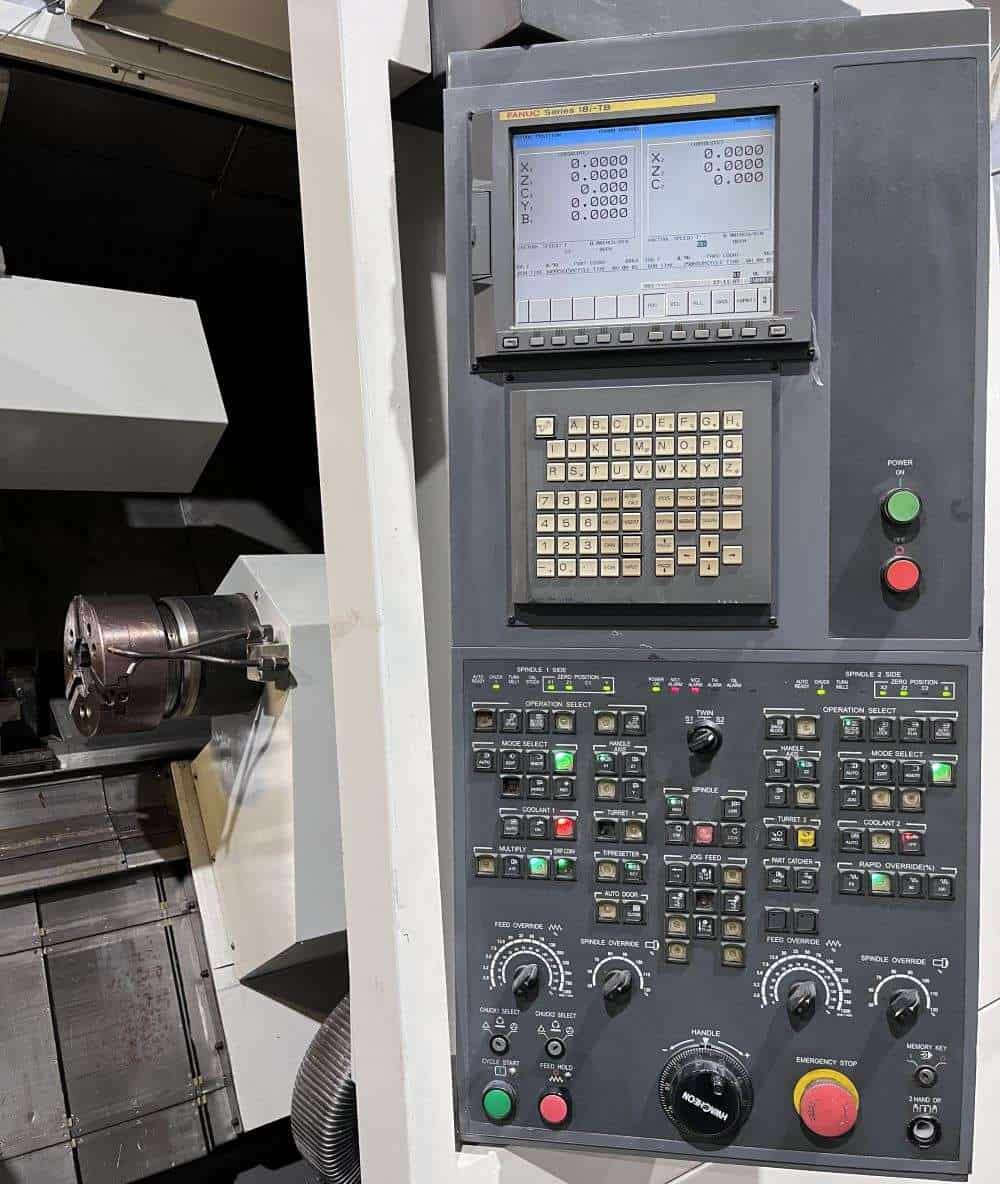

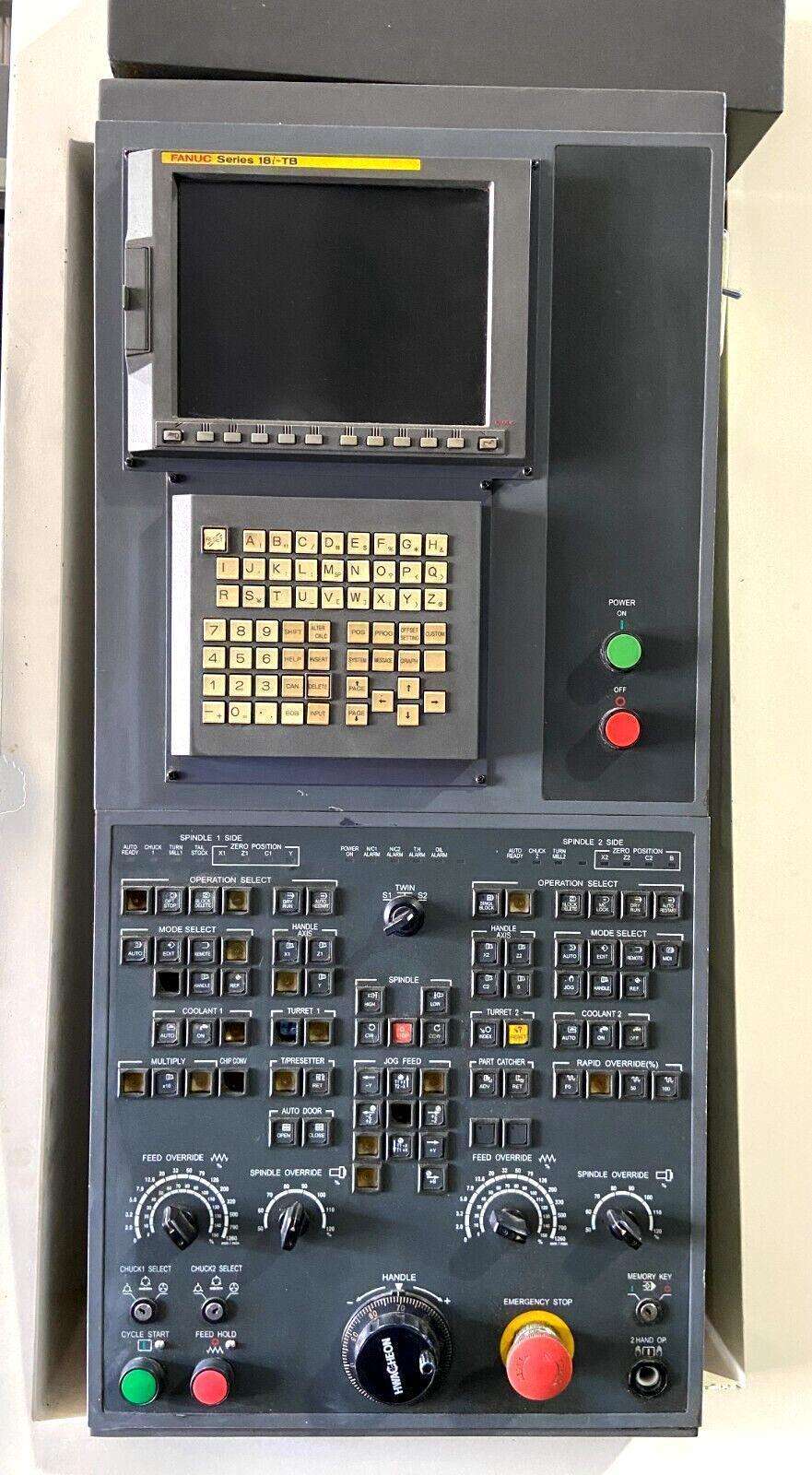

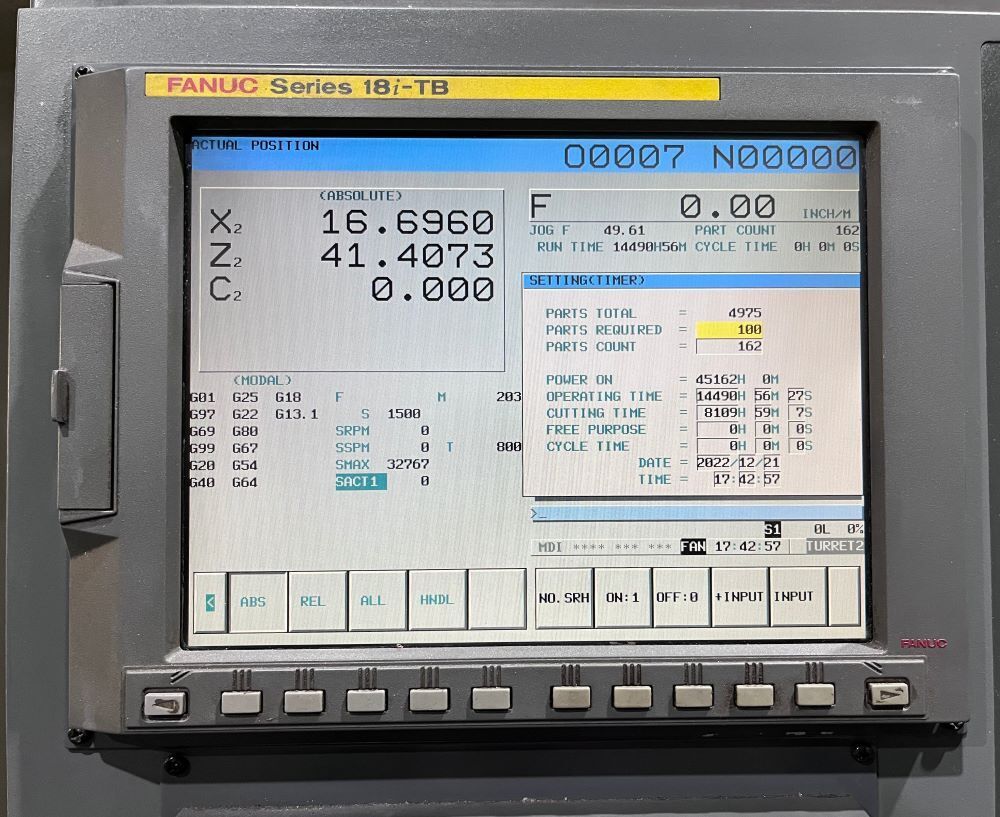

| Fanuc 18i-TB CNC Control |

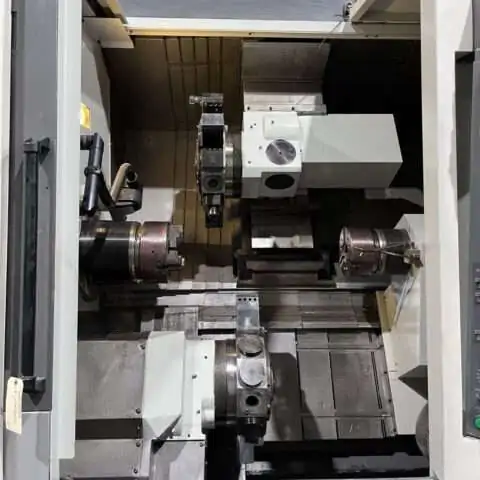

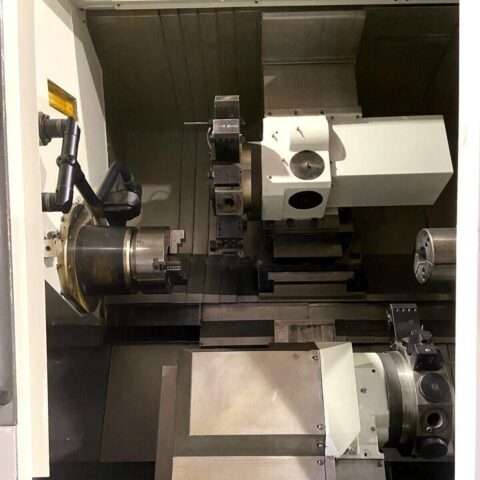

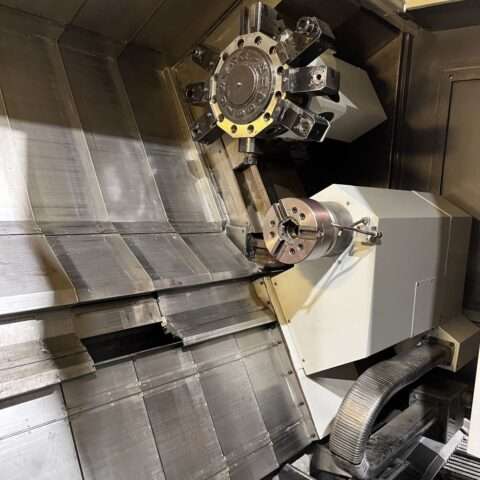

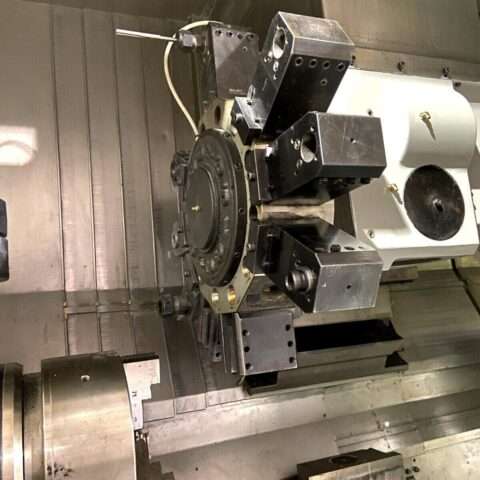

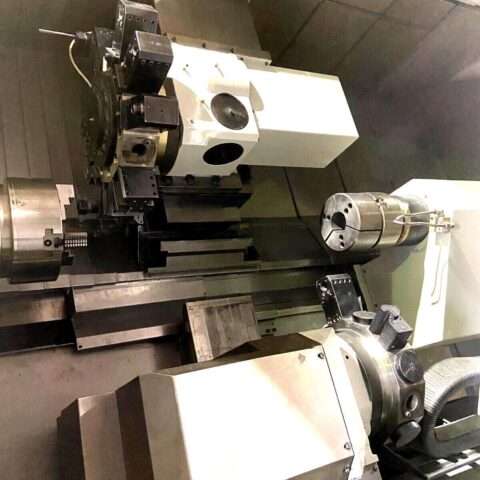

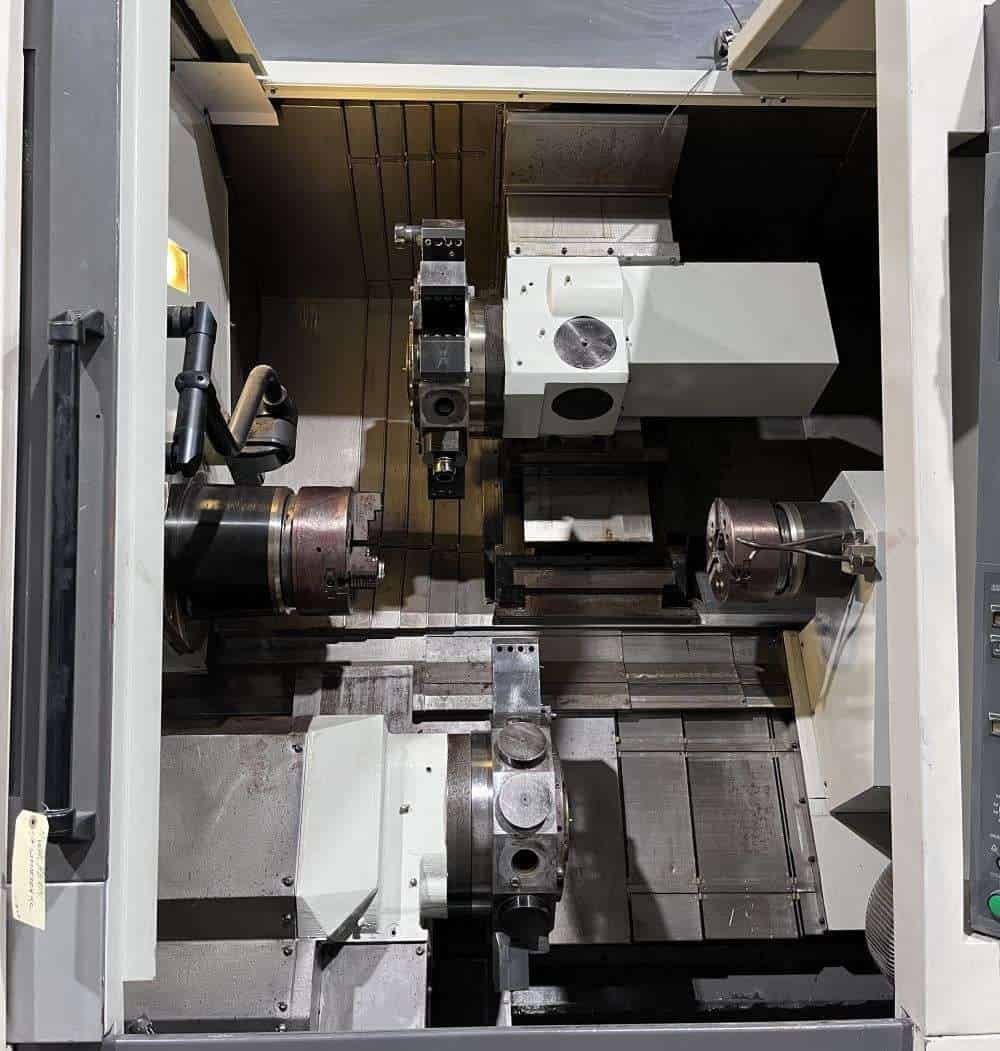

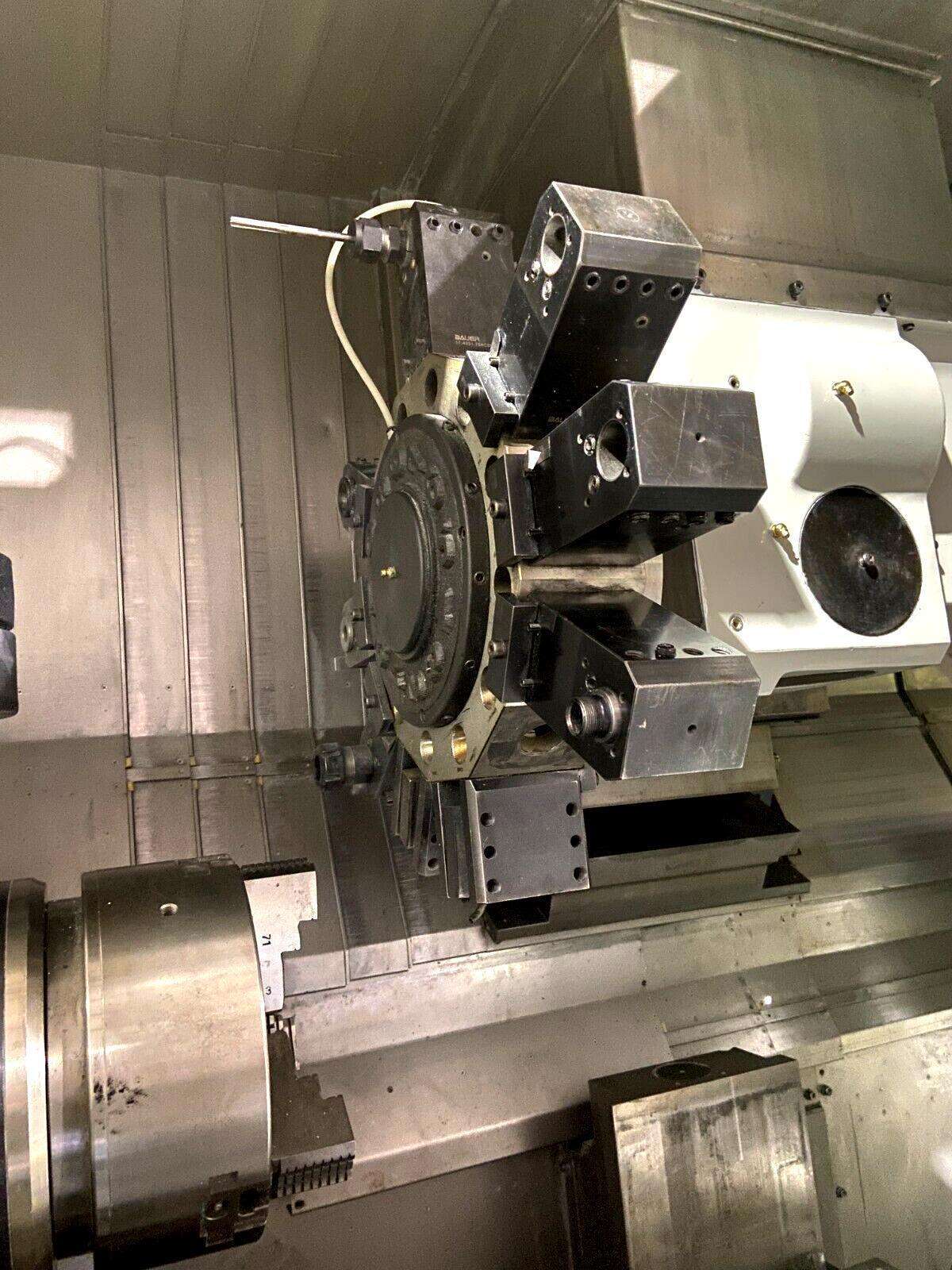

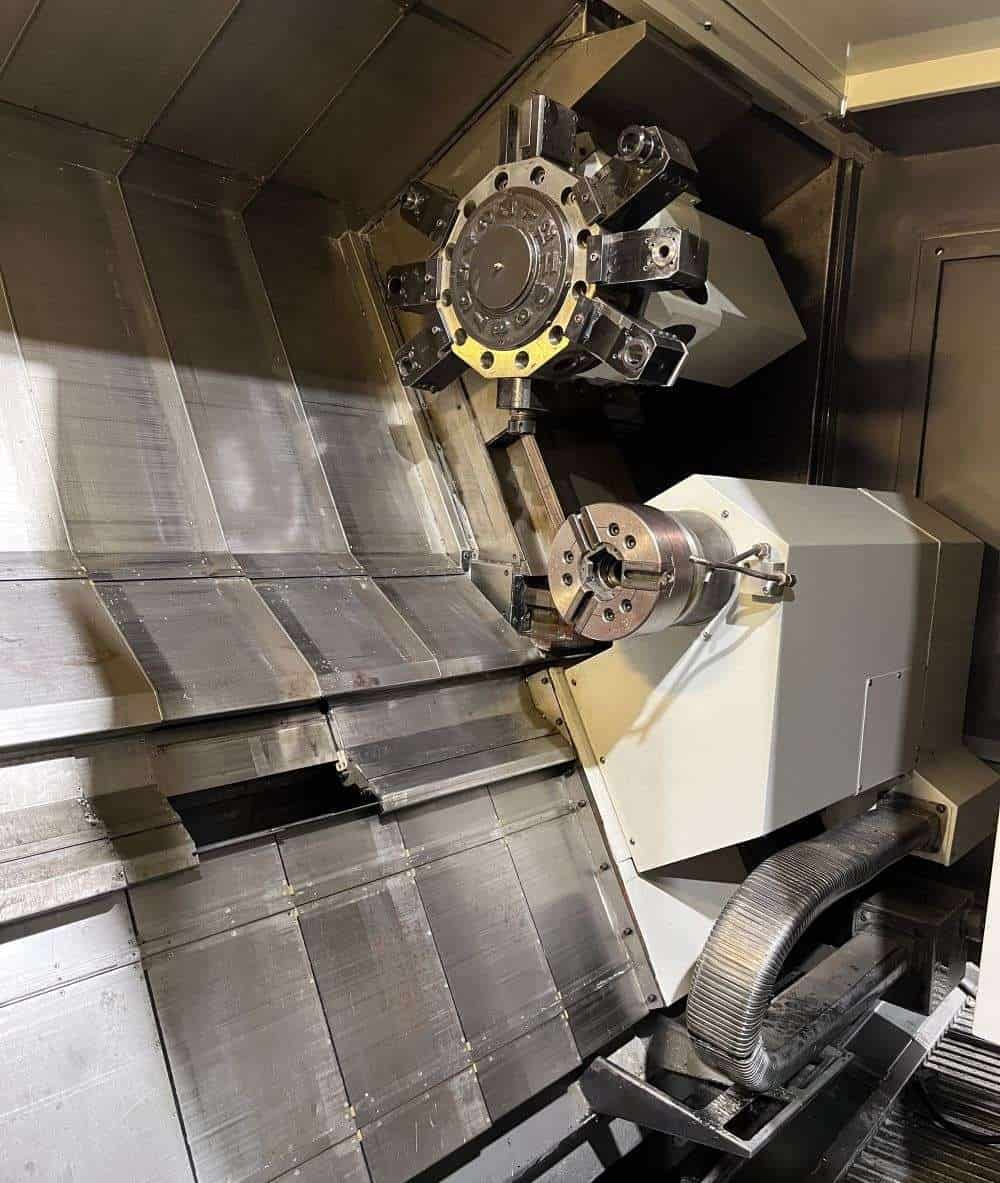

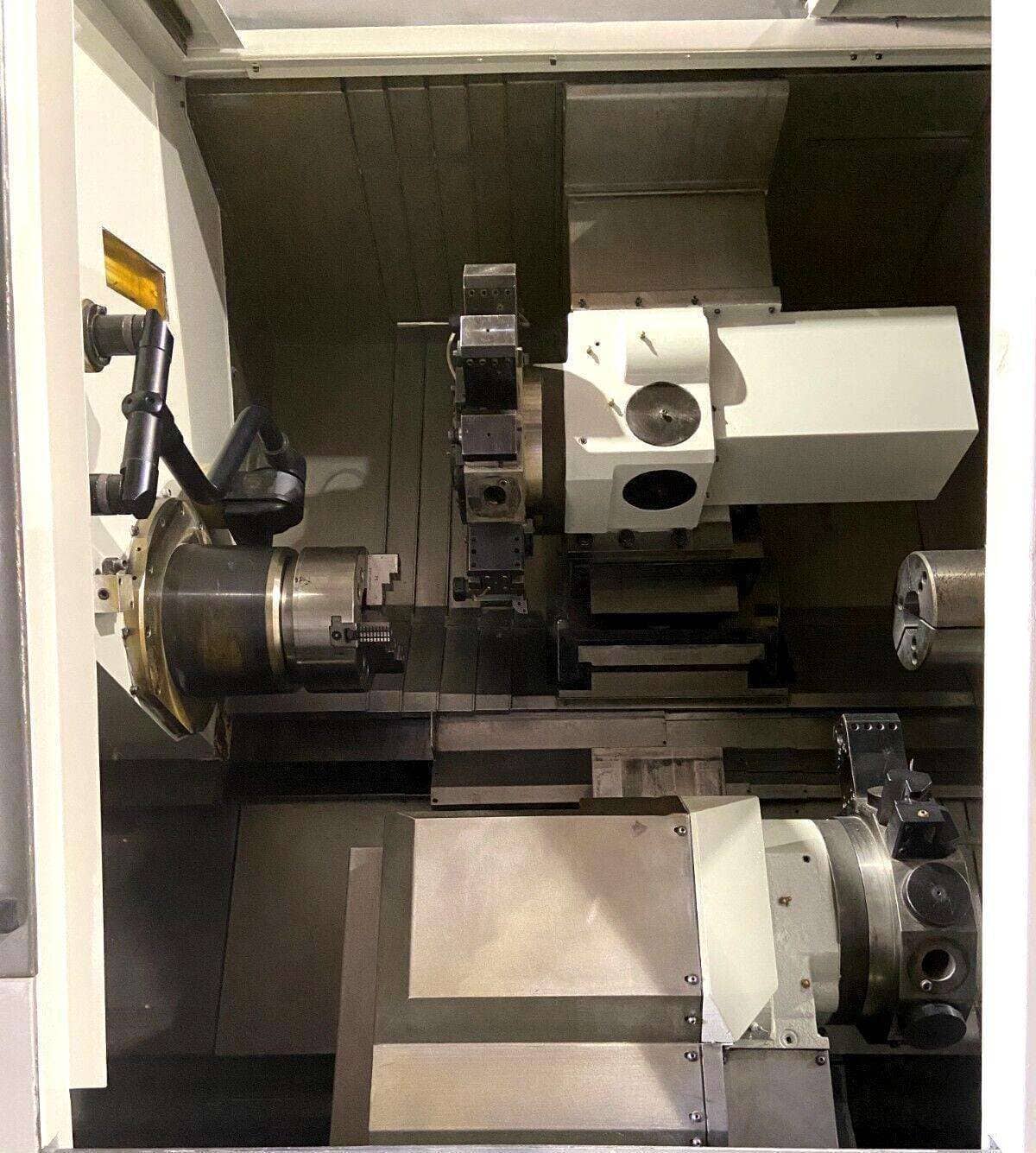

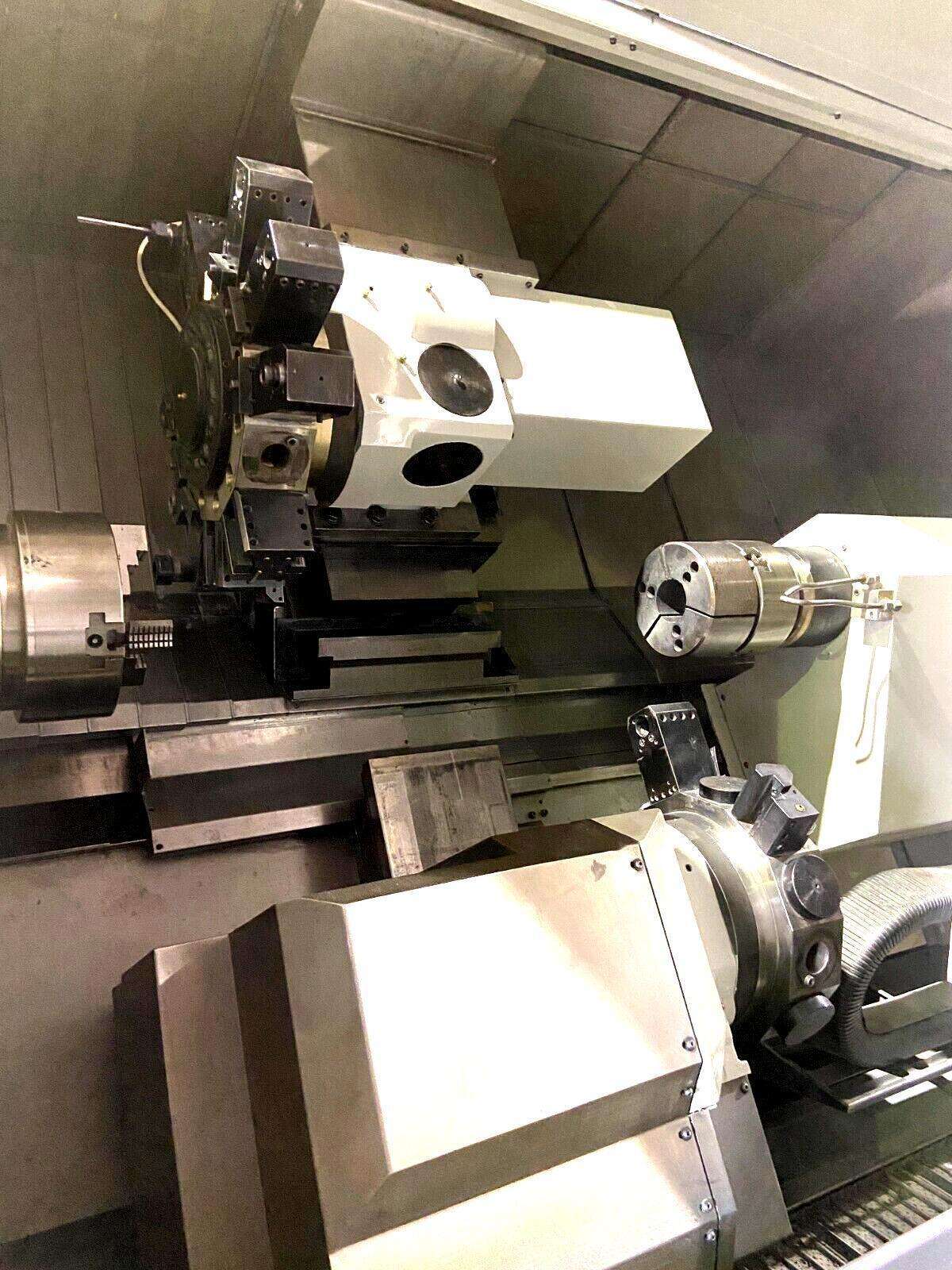

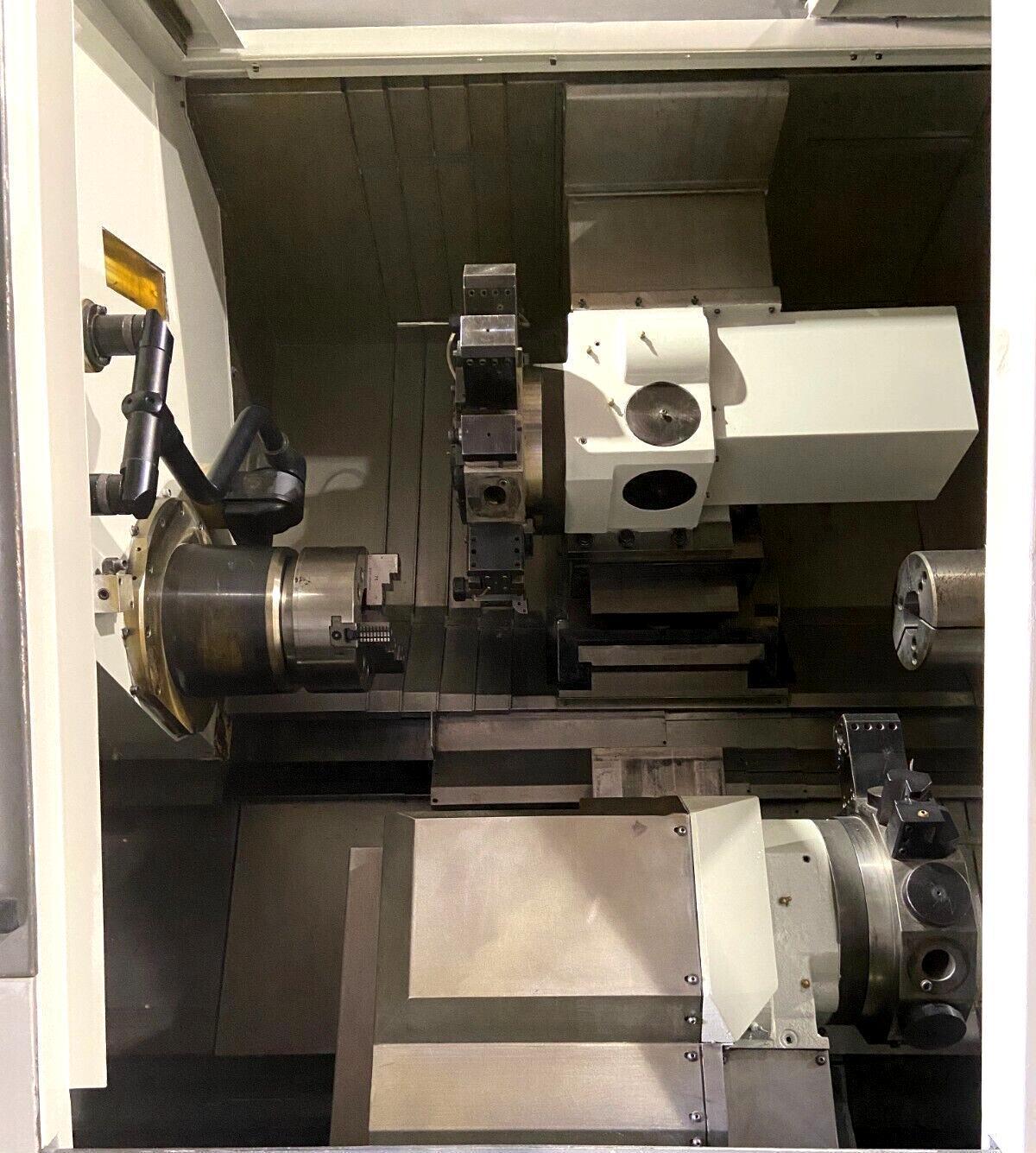

| 12 Station Upper Turret with Live Tool |
| 12 Station Lower Turret |
| Y Axis Capability on Upper Turret |
| Servo Controlled Full C-Axis on Both Spindles |

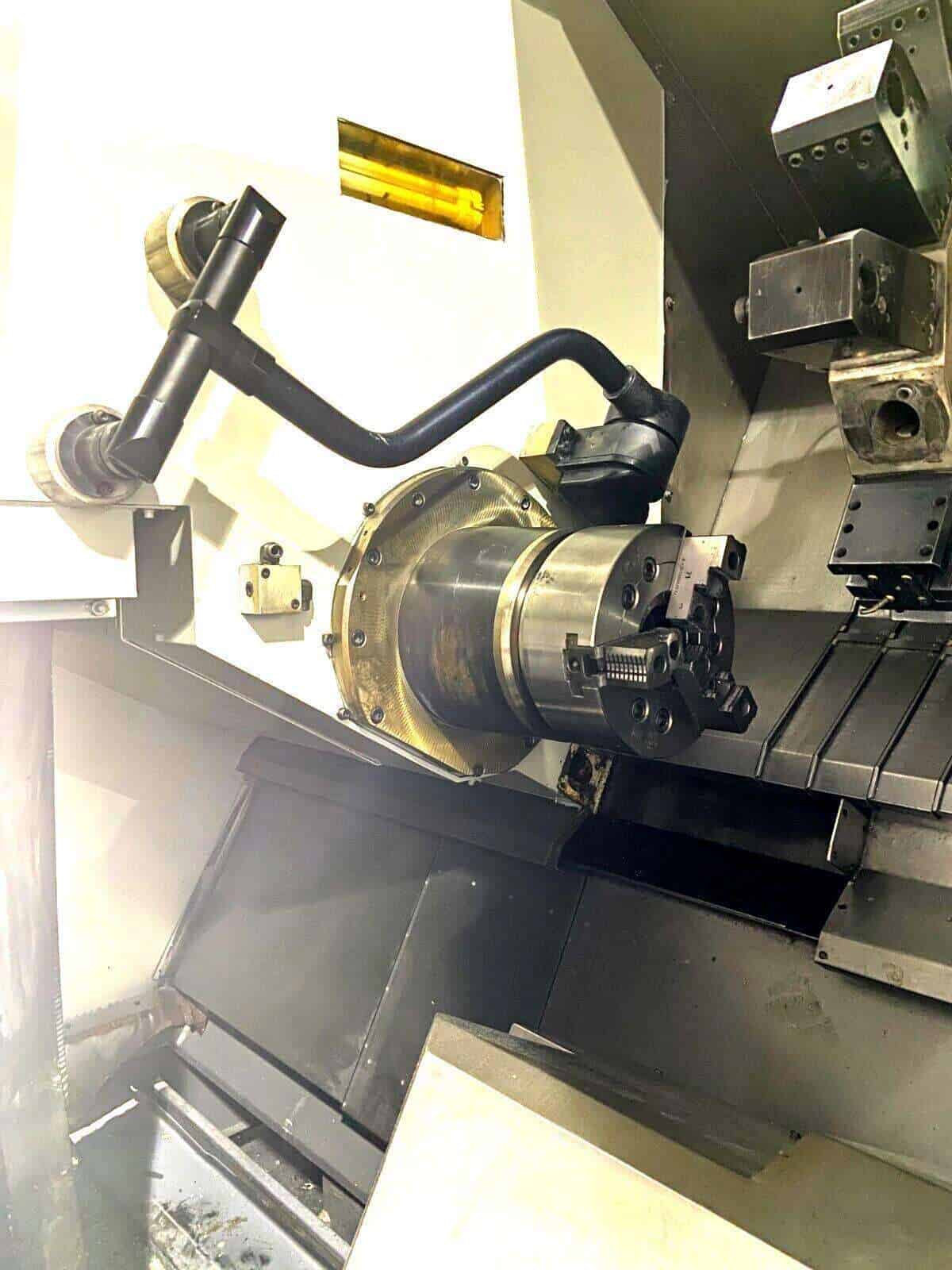

| 10″ 3-Jaw Chuck on Main Spindle |

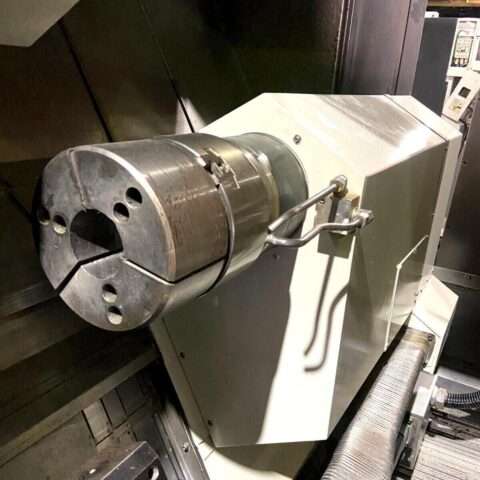

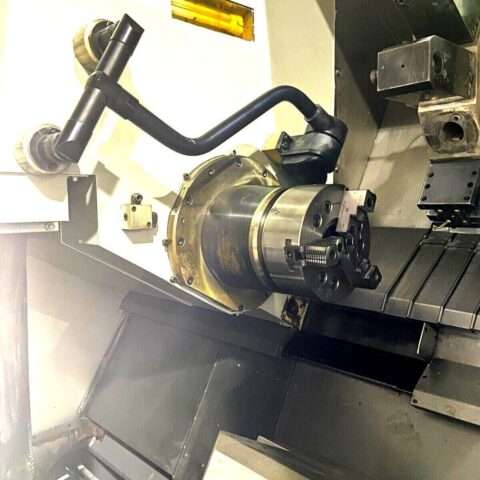

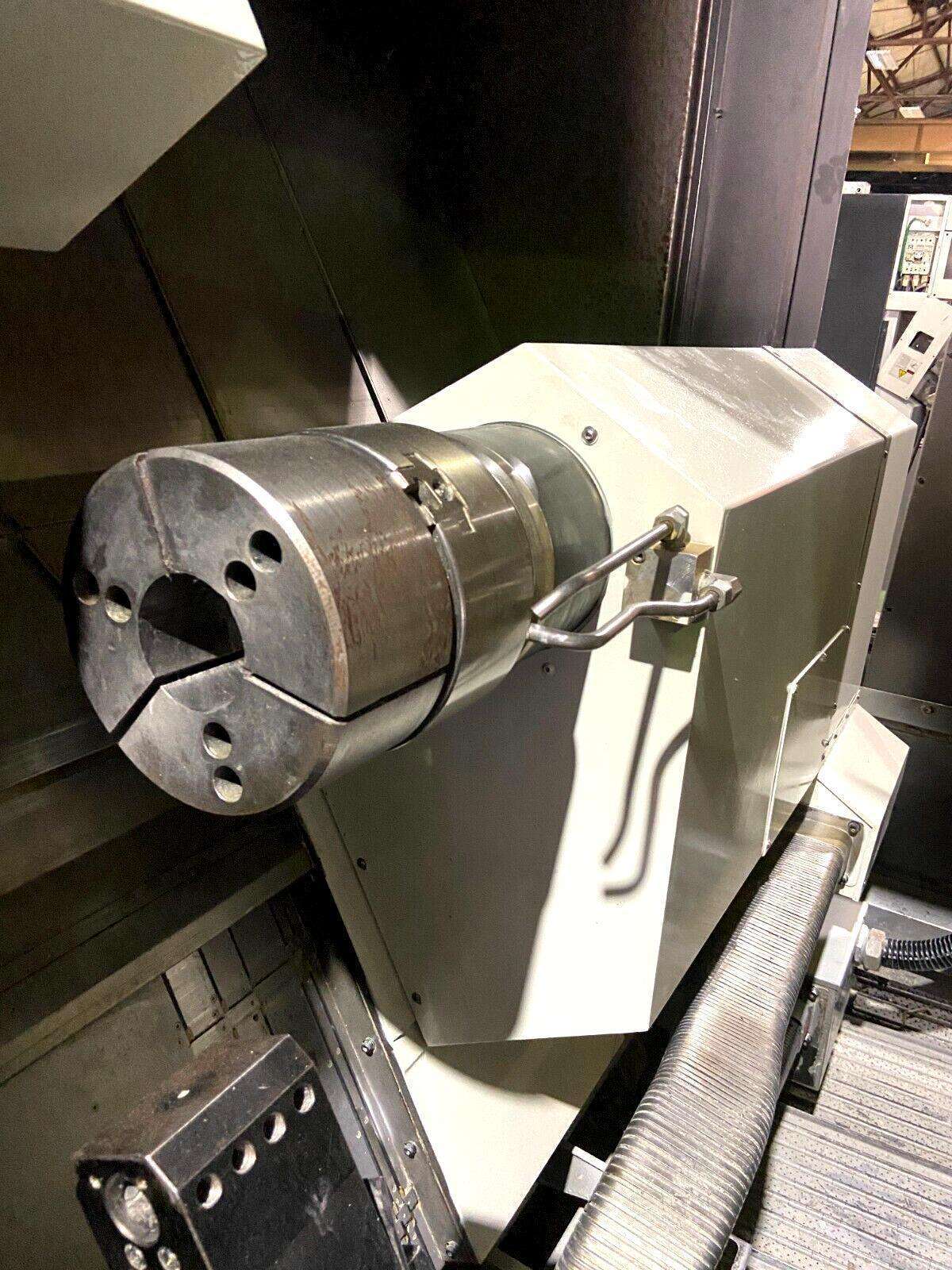

| 8″ 3-Jaw Chuck on Sub Spindle |
| Rigid Tapping on Both Spindles |
| Foot Operated Control for Chuck |
| High Pressure Coolant System |
| Tool Pre-setter |
| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter Upper Turret: 16.73″ |
| Max Turning Diameter Lower Turret: 15.4″ |
| Standard Turning Diameter: 11.8″ |
| Max Swing : 27.1″ |
| Max Turning Length: 20.1″ |
| Max Bar Capacity Main Spindle : 3.0″ |
| Max Bar Capacity Sub Spindle : 2.56″ |
| Travels: |
|---|
| X1 Axis Travel Upper : 9.65″ |
| X2 Axis Travel Lower : 8.27″ |
| Y Axis Travel: ? |
| Z1 Axis Travel Upper : 20.47″ |
| Z2 Axis Travel Lower : 20.47″ |
| B Axis Travel: 21.62″ ( Sub Spindle ) |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
|---|
| X Axis: 1181 IPM Rapid Traverse |
| Z Axis: 1181 IPM Rapid Traverse |
| B Axis: 1181 IPM Rapid Traverse |
| Spindle: |
|---|
| Main Spindle Bore: 3.58″ |
| Sub Spindle Bore: 3.18″ |
| Main Spindle Nose: A2-8 |
| Sub Spindle Nose: A2-6 |
| Main Spindle Speed: 50-5000 RPM |
| Sub Spindle Speed: 50-5000 RPM |
| Main Spindle Power: 20 HP |
| Sub Spindle Power: 15 HP |
| Turret: |
|---|
| Upper Turret Capacity: 12 Stations |
| Lower Turret Capacity: 12 Stations |
| Live Tool Speed: 6000 RPM |
| Live Tool Power: 7.5 HP |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: 65 kva |
| Overall Dimensions: 122″ x 86″ x 83″ High |
| Weight: 21000 lbs Approx. |
