*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112776 |

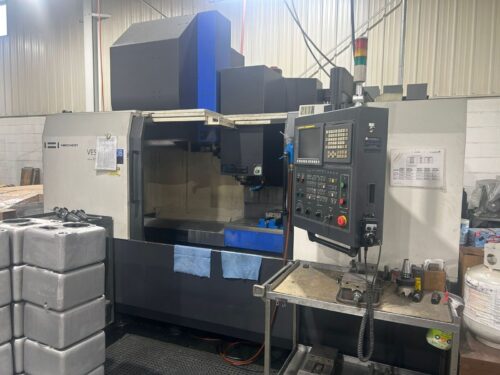

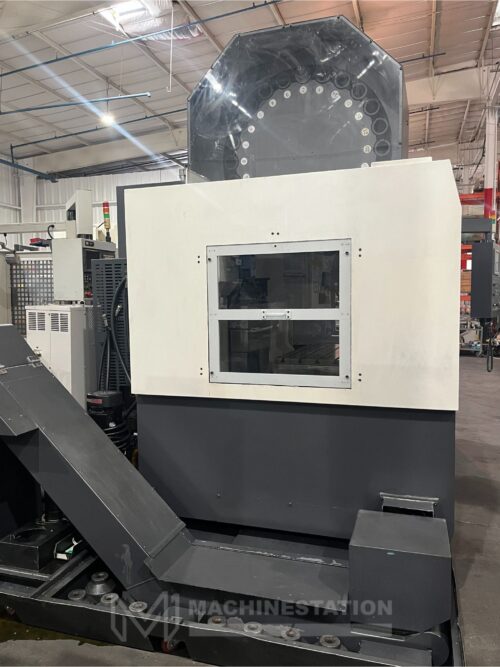

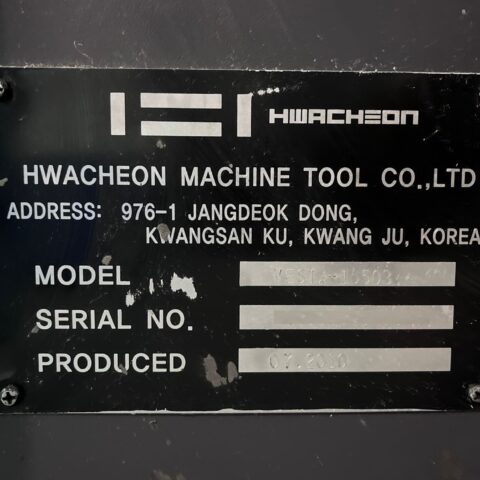

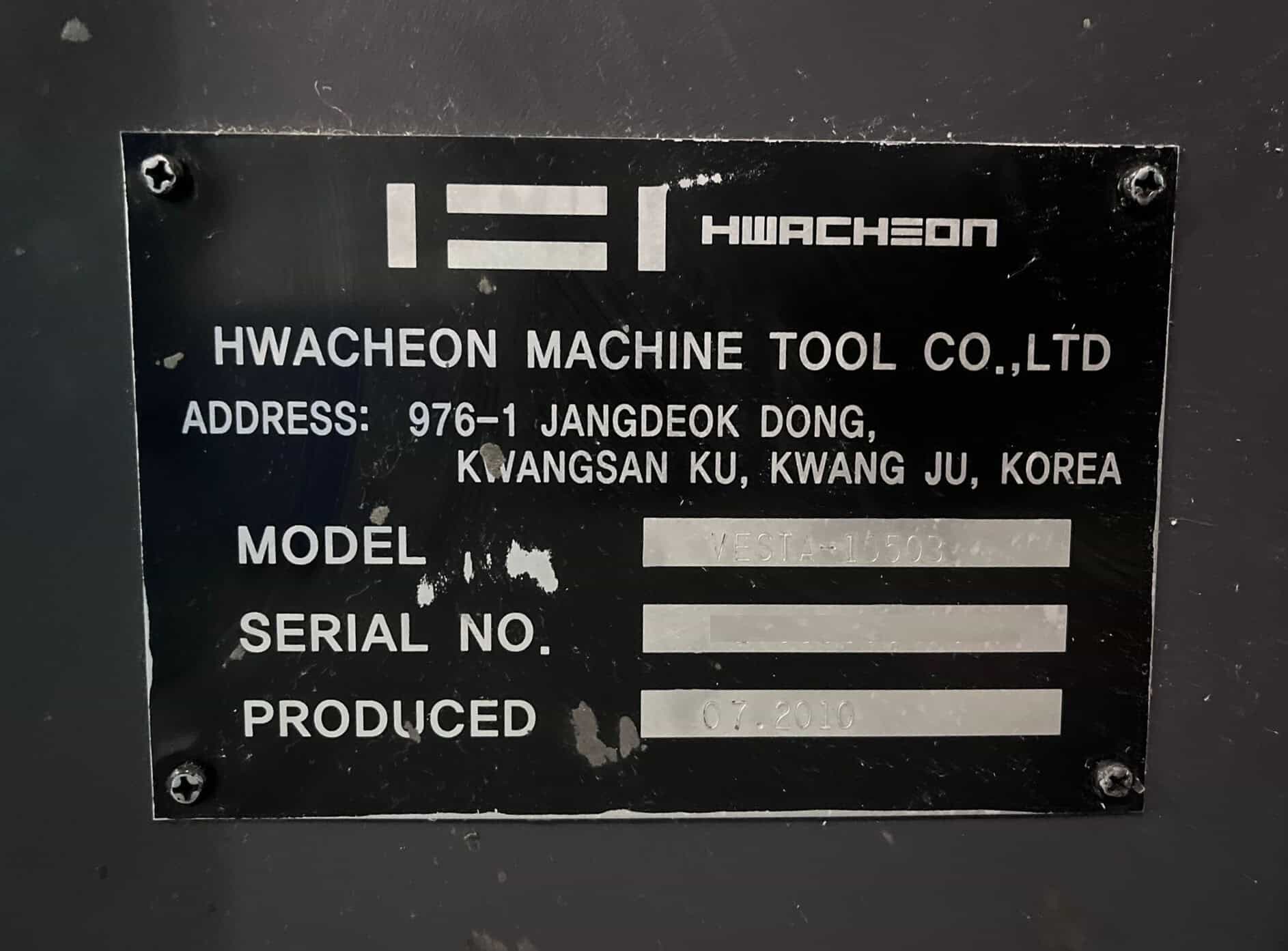

| Make: | Hwacheon |

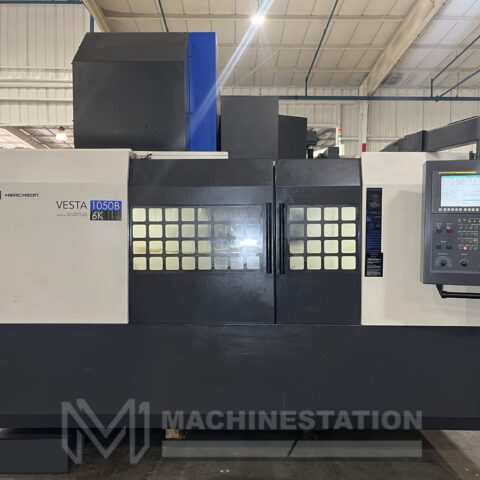

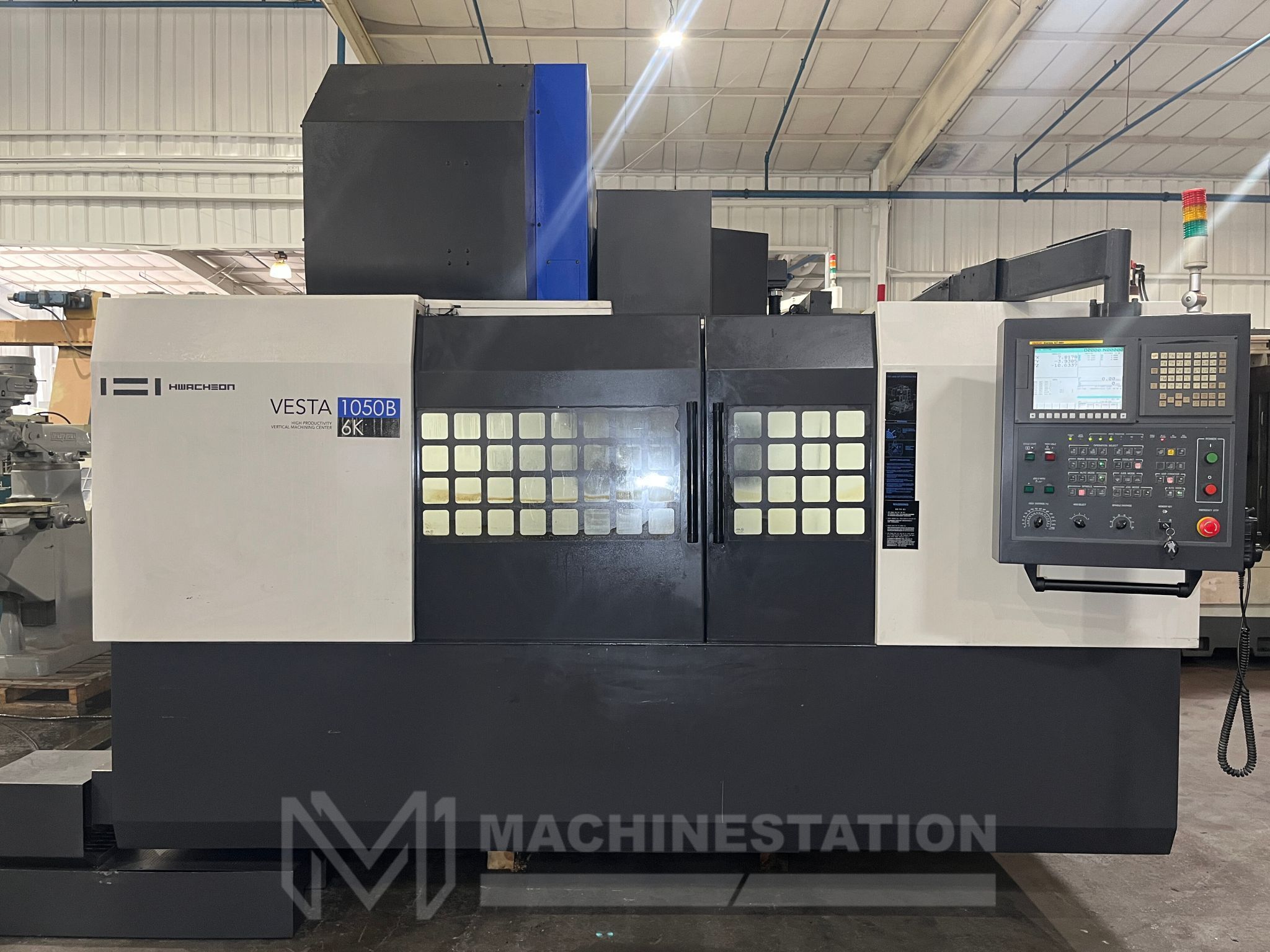

| Model No.: | Vesta 1050B |
| Year of Manufacture: | 2010 |
| Condition | Used – Good |
| Equipped With: |
|---|

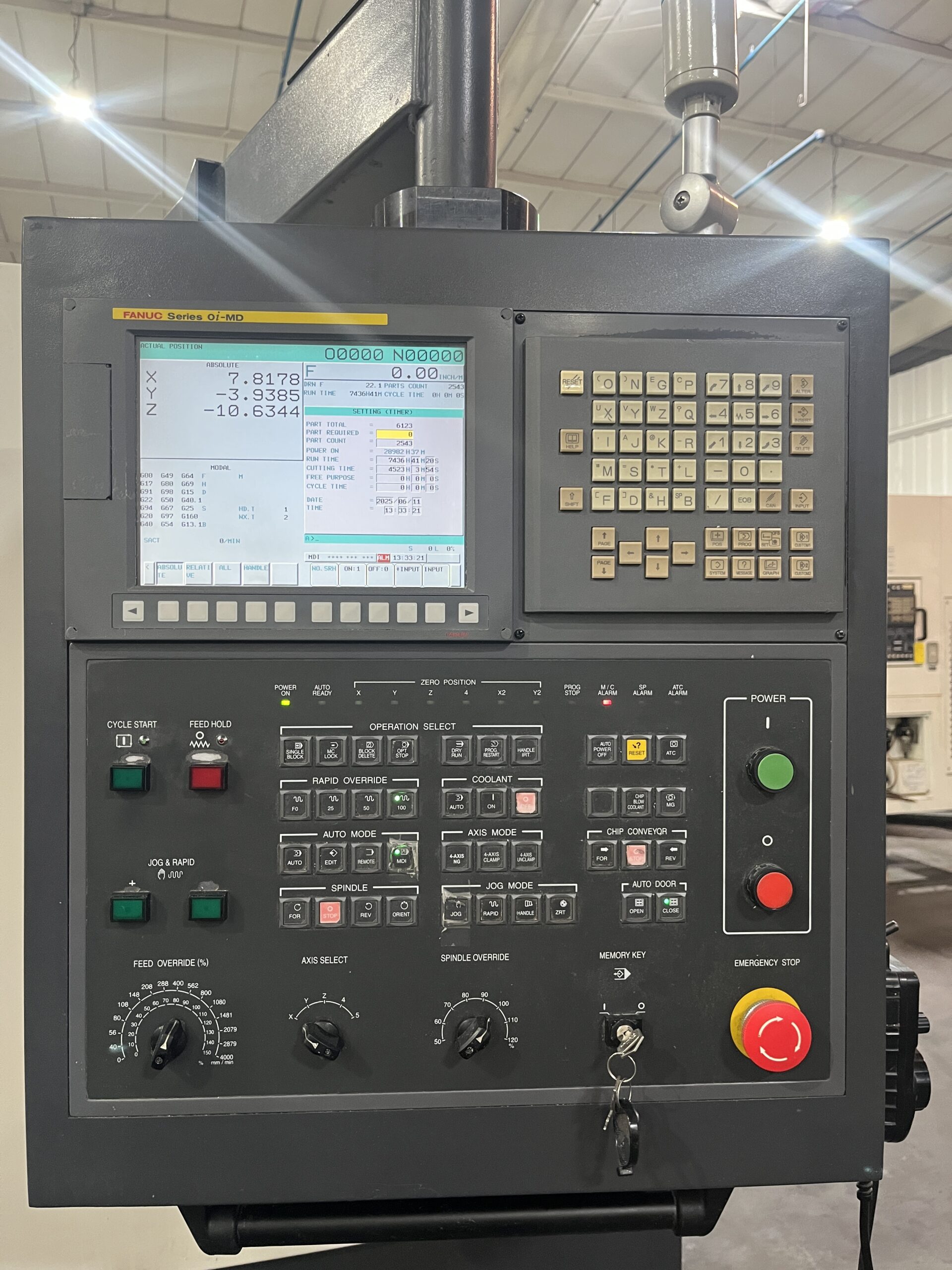

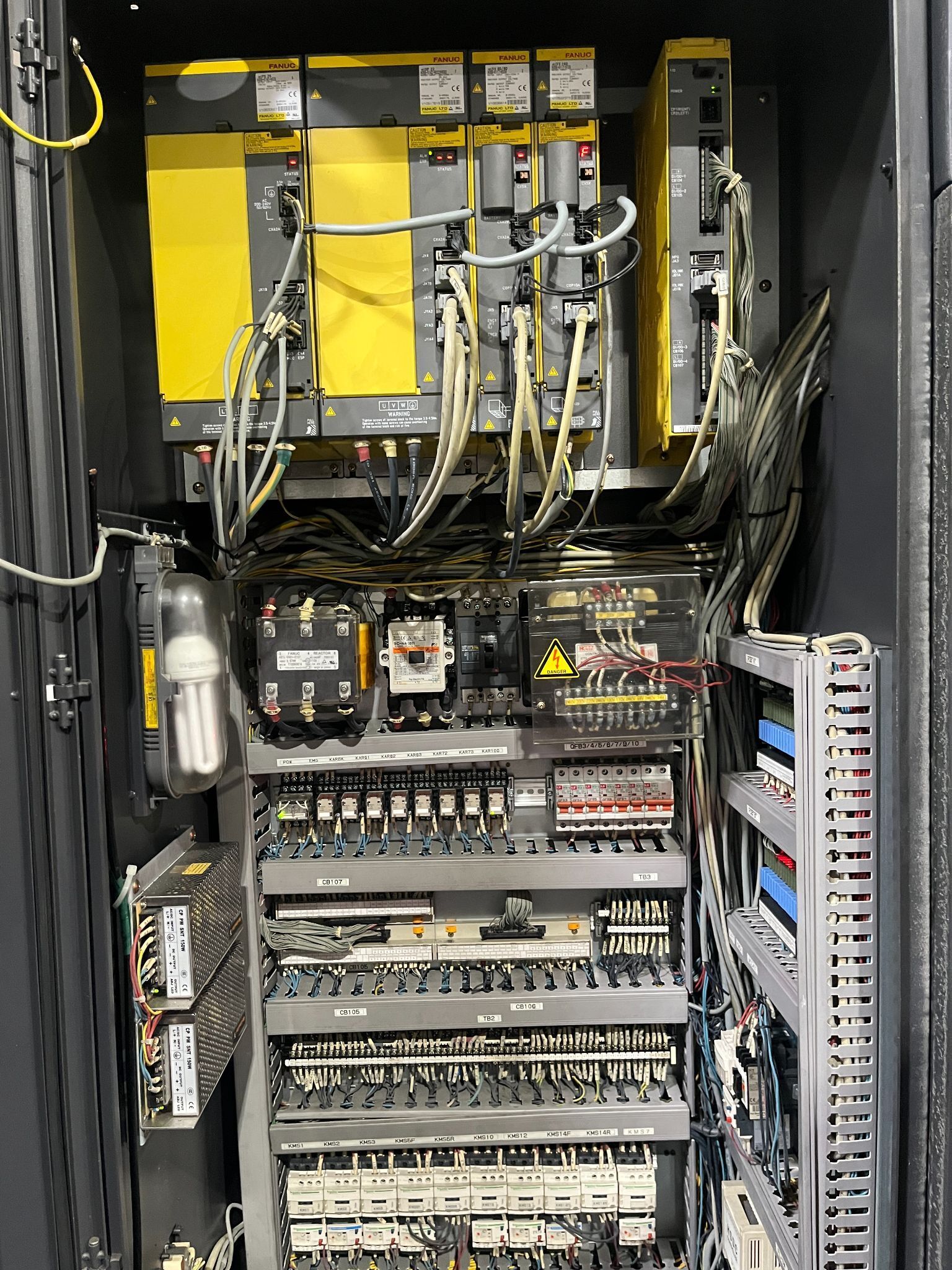

| Fanuc Oi-MD Series CNC Control |
| Heavy Duty Box Way Construction |
| Through Spindle Coolant |

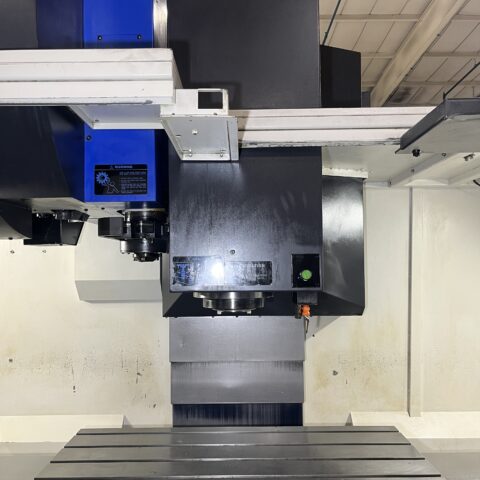

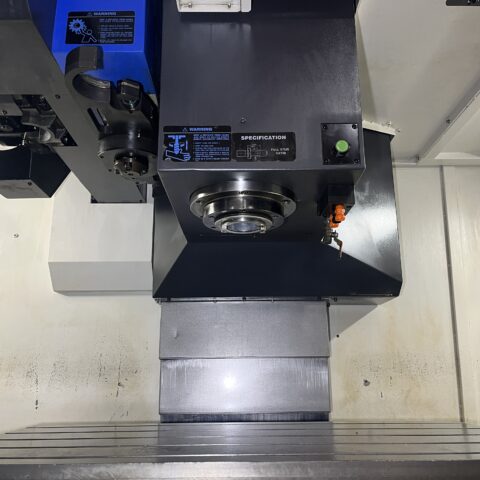

| 6,000 RPM Gear Head Spindle |
| CAT-50 Taper Spindle |

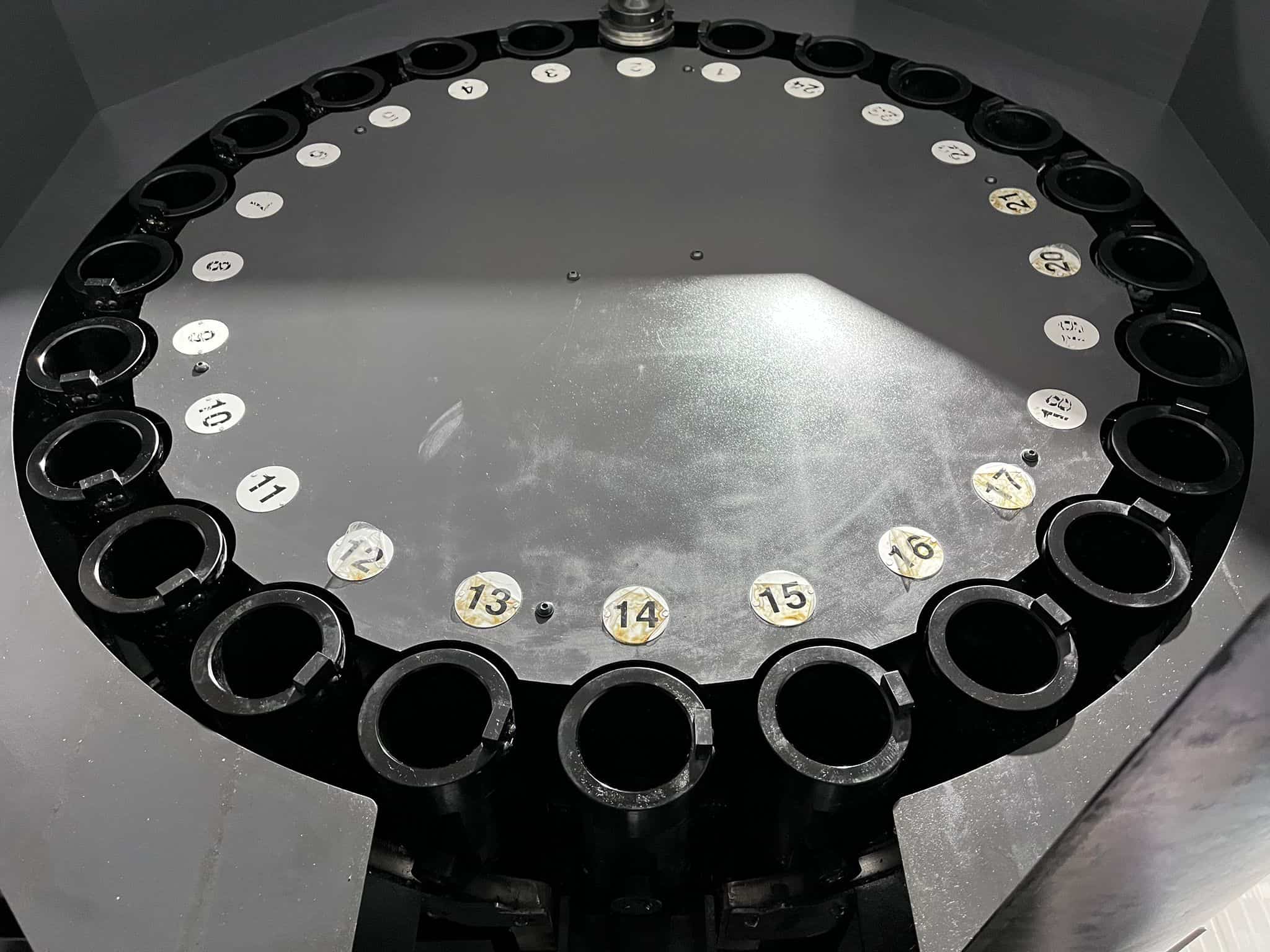

| 24 Station Automatic Tool Changer |
| PCMCIA Card Slot |
| MPG Control |
| Rigid Tapping |

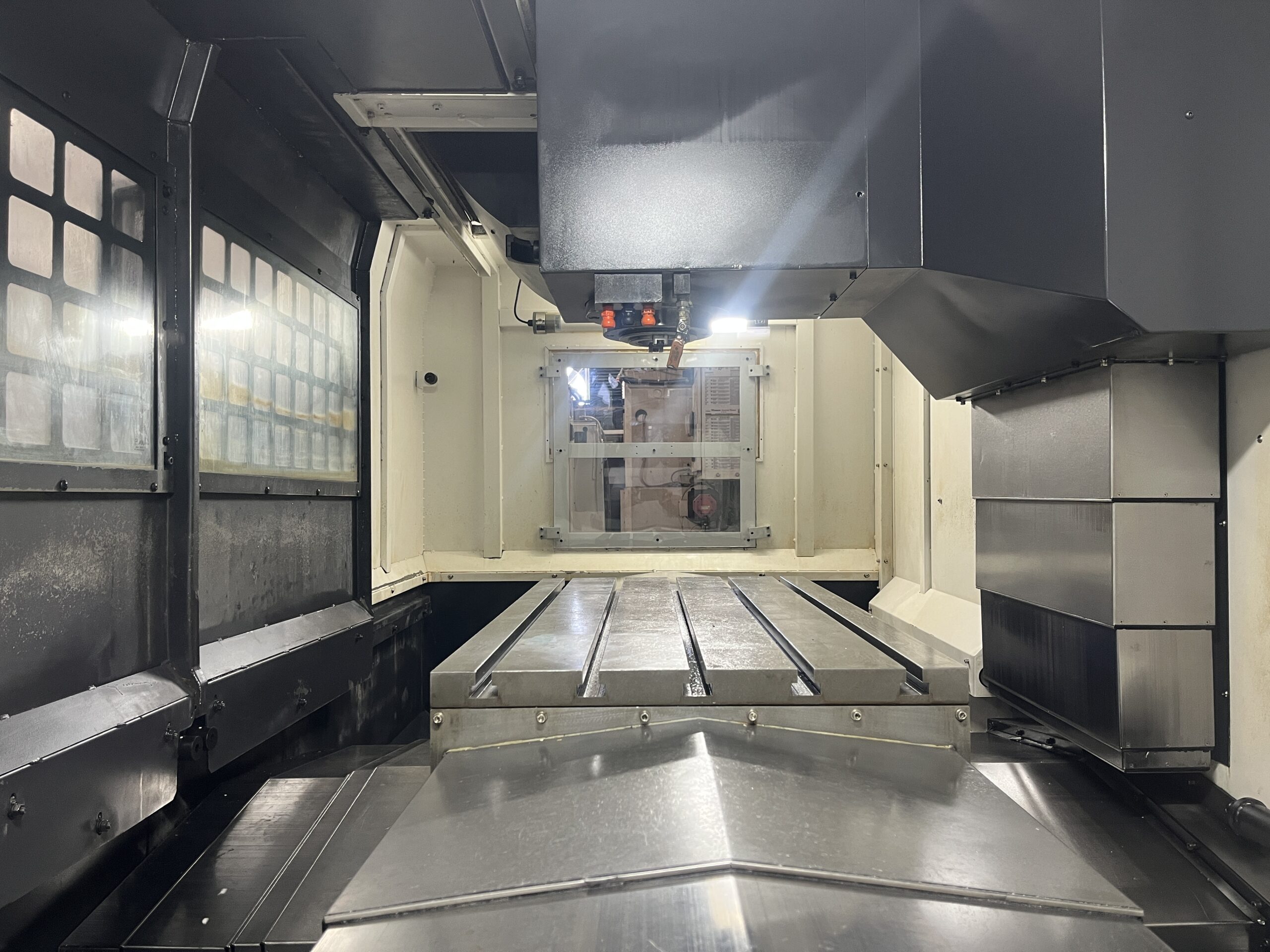

| Telescopic Way Covers |

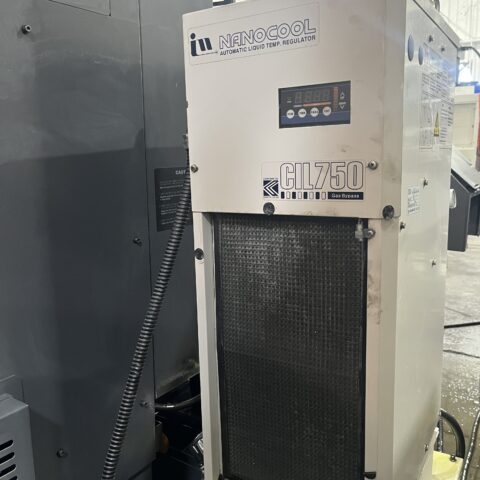

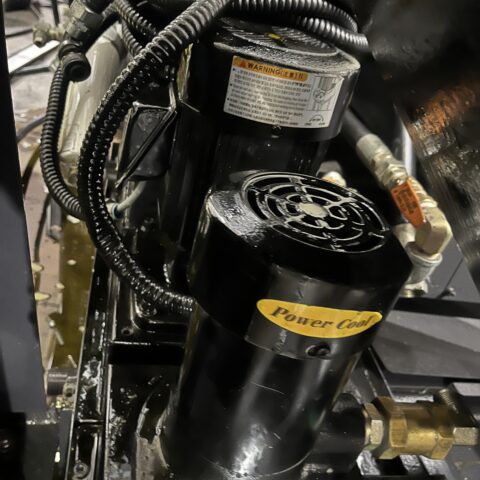

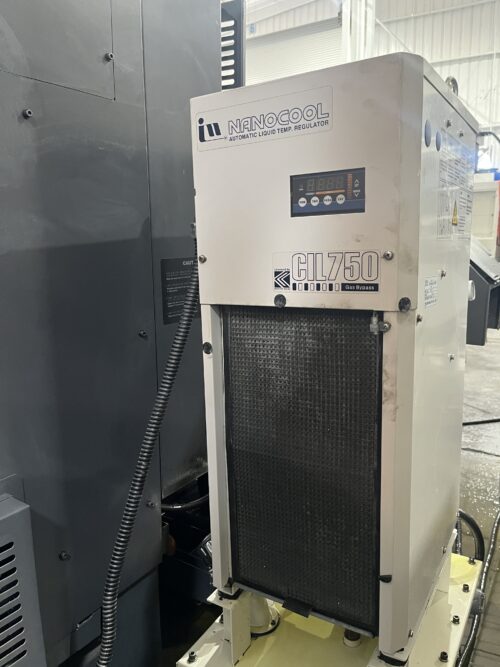

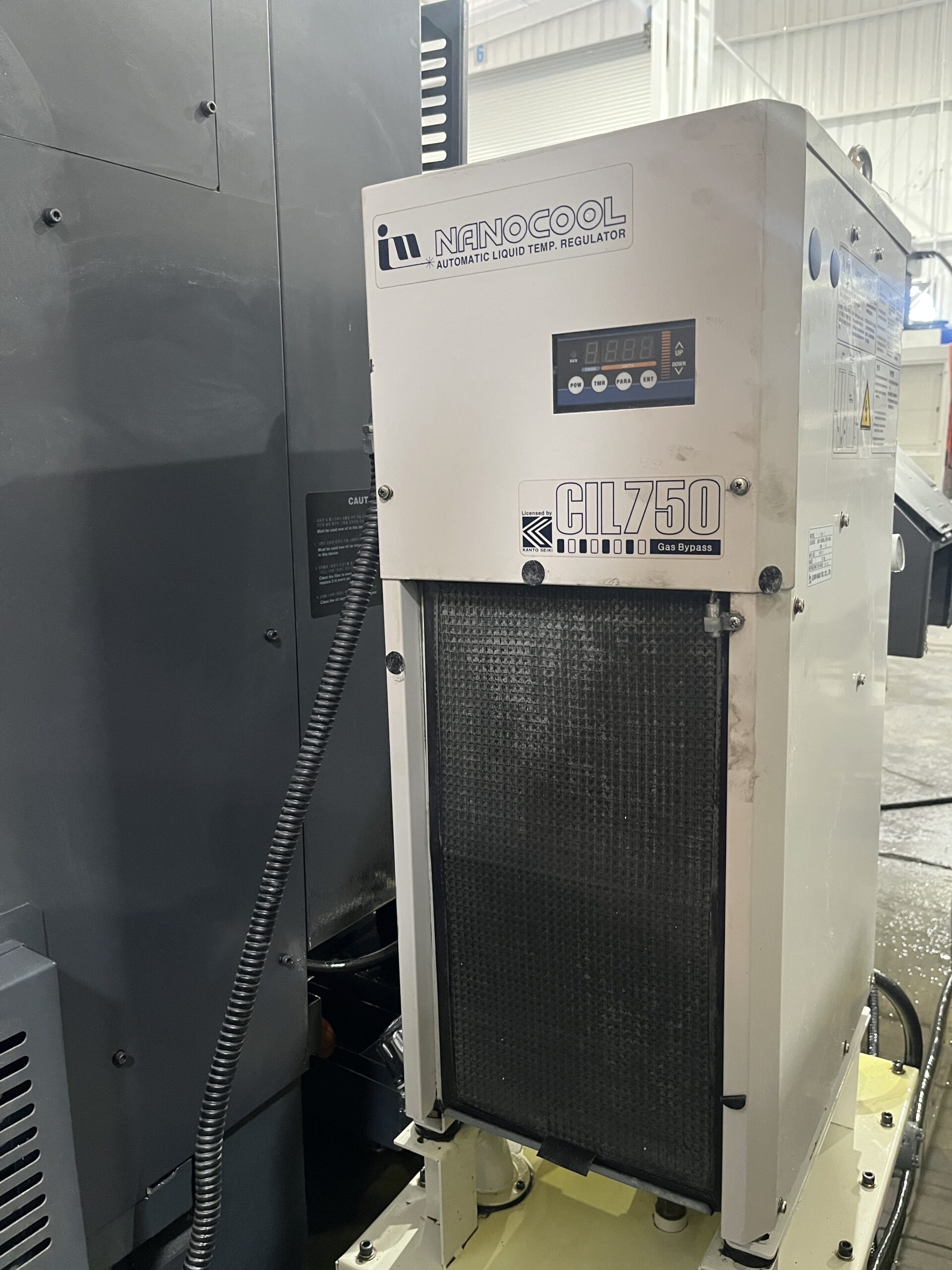

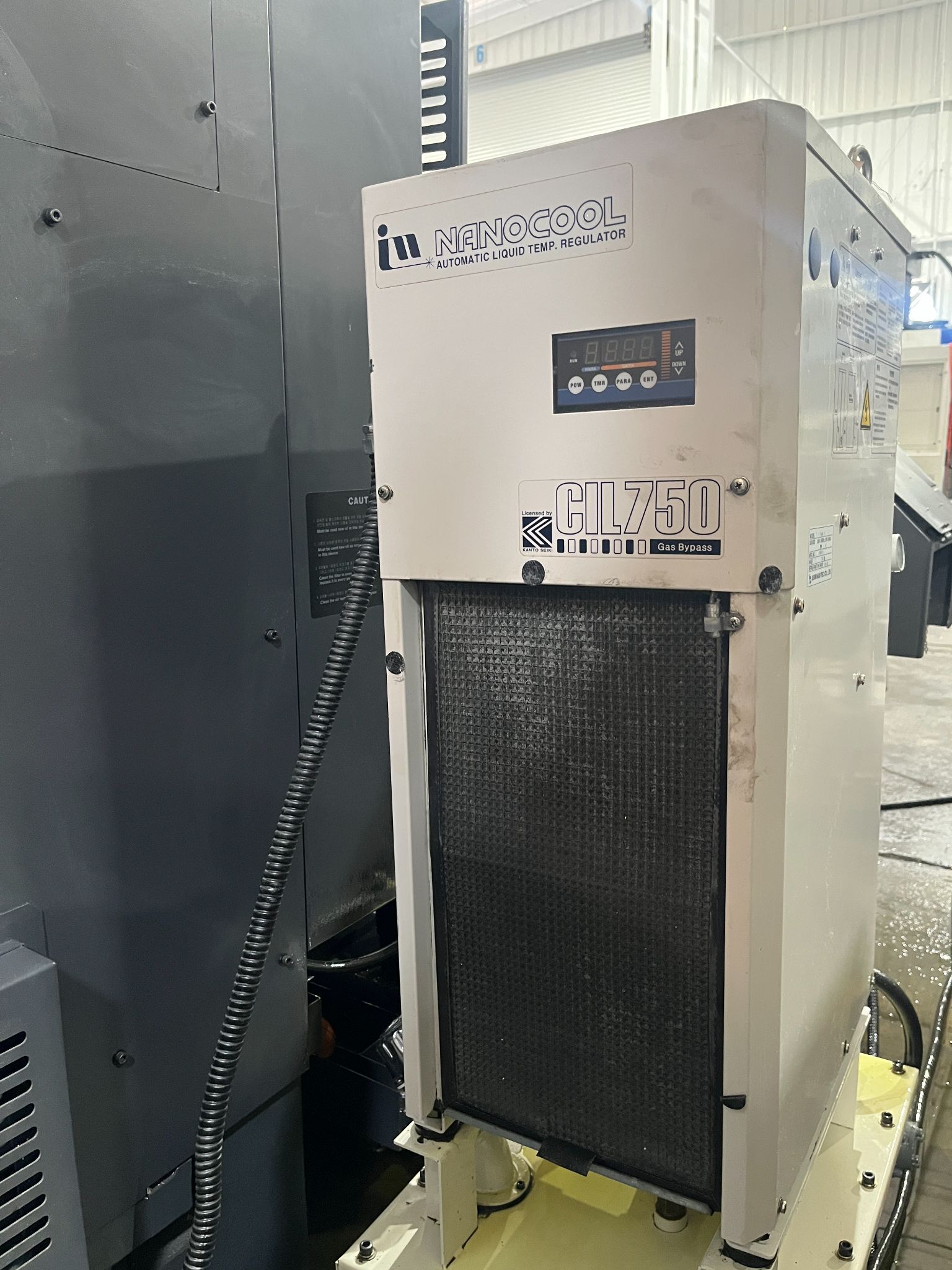

| Oil Chiller |

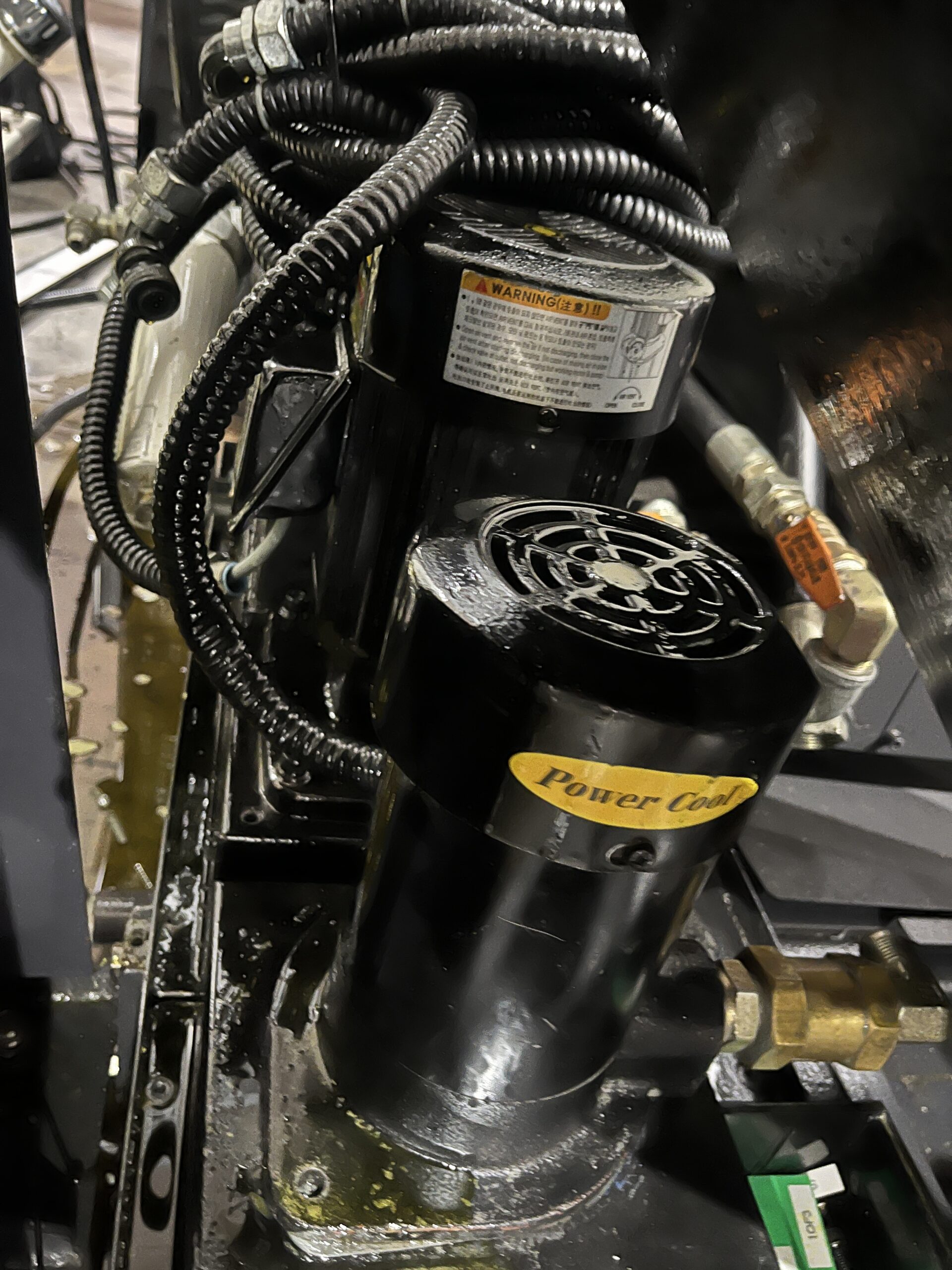

| Coolant system |

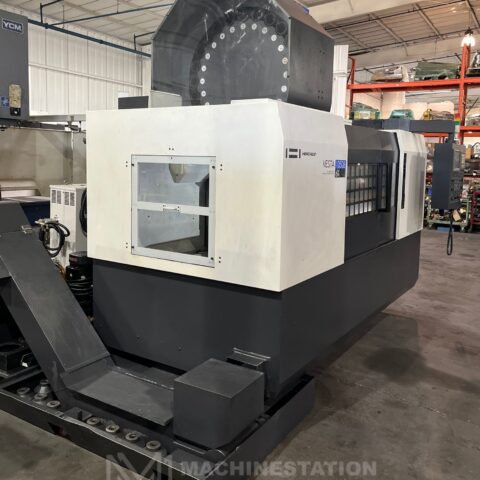

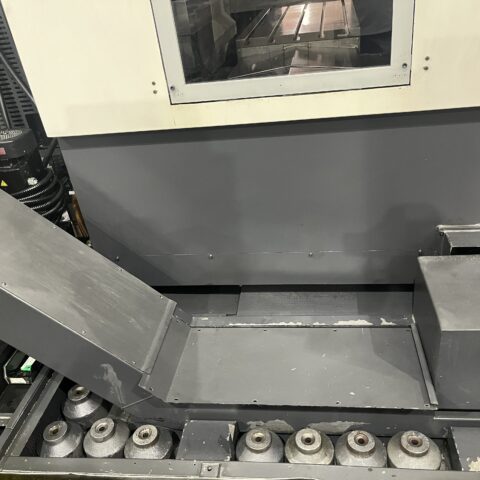

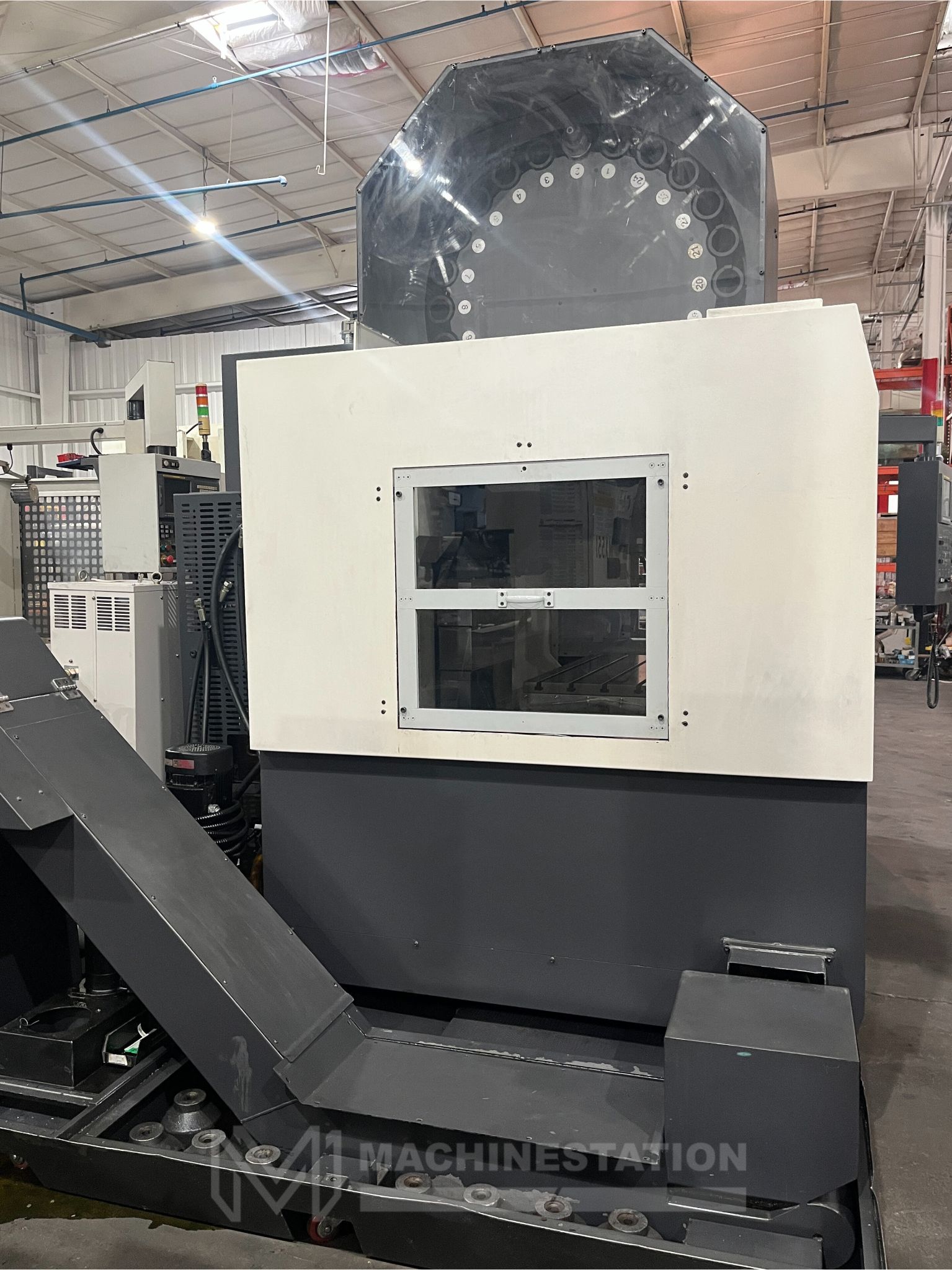

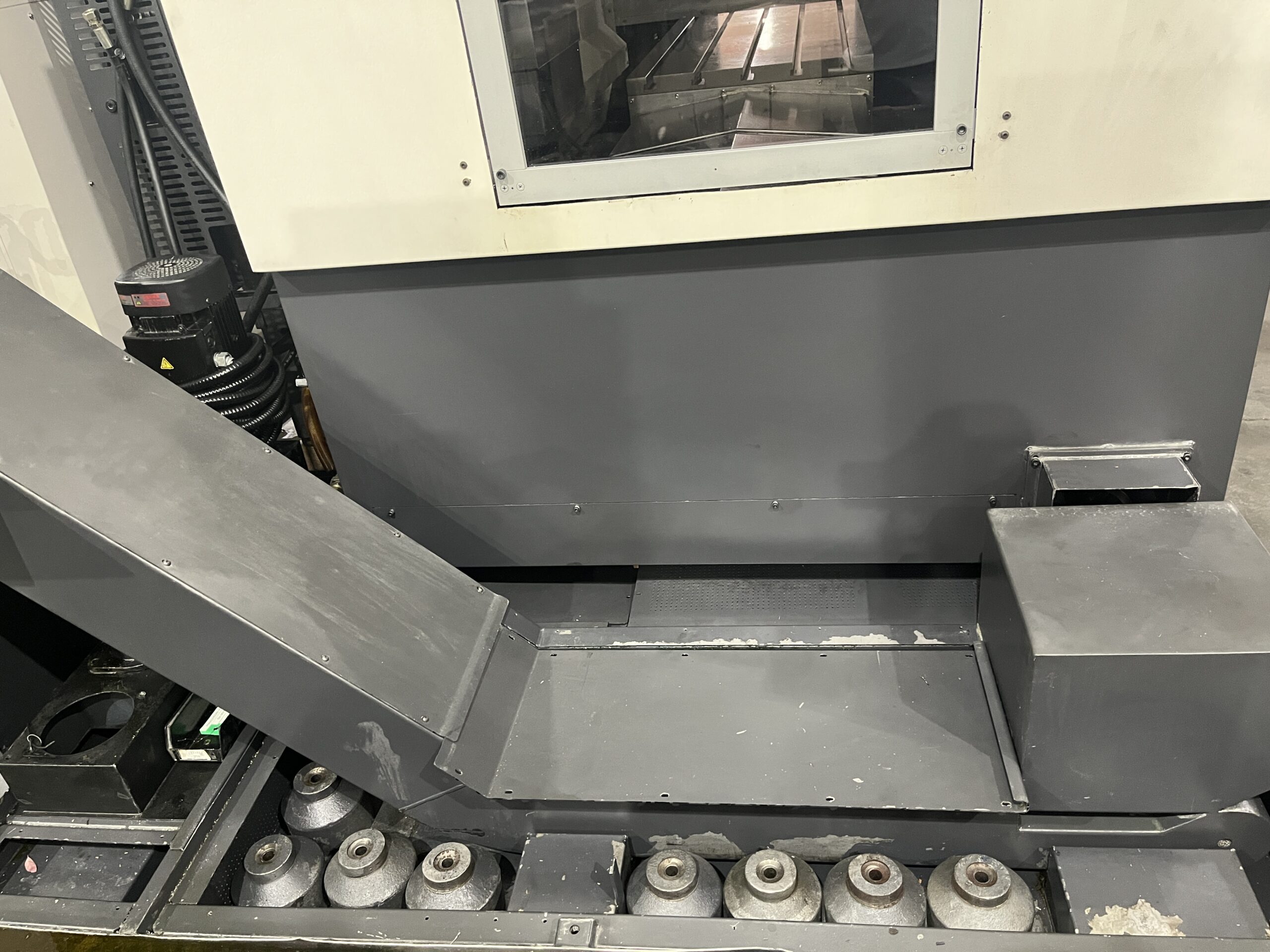

| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 41.34″ |
| Y-Axis: 23.62″ |
| Z-Axis: 23.62″ |
| Rapid Traverse Rates X & Y Axis: 945 Inch Per Minute |
| Rapid Traverse Rates Z Axis: 709 Inch Per Minute |
| Cutting Feed Rates: 394 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4.92″ – 28.54″ |

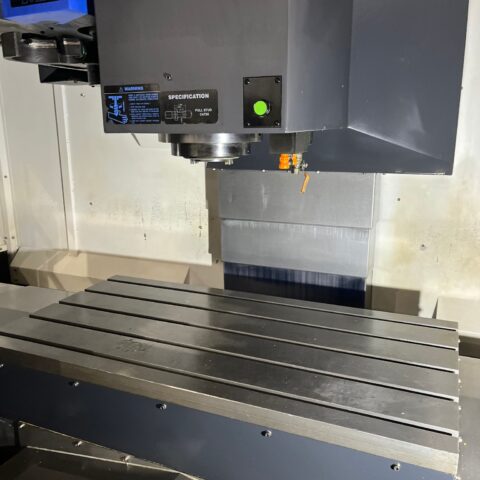

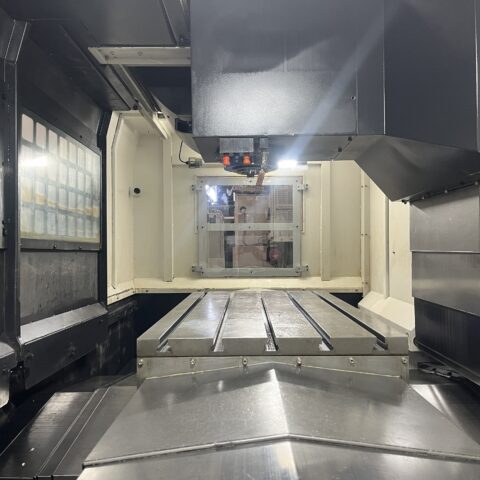

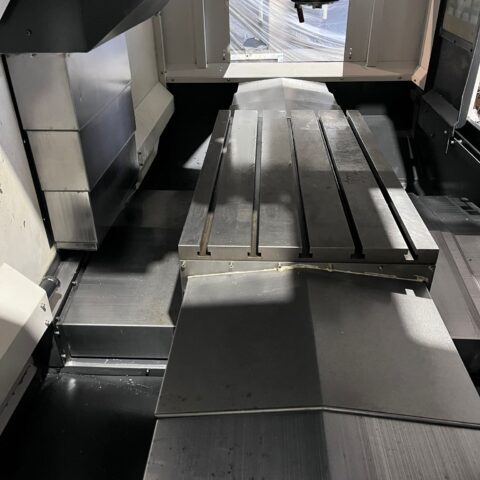

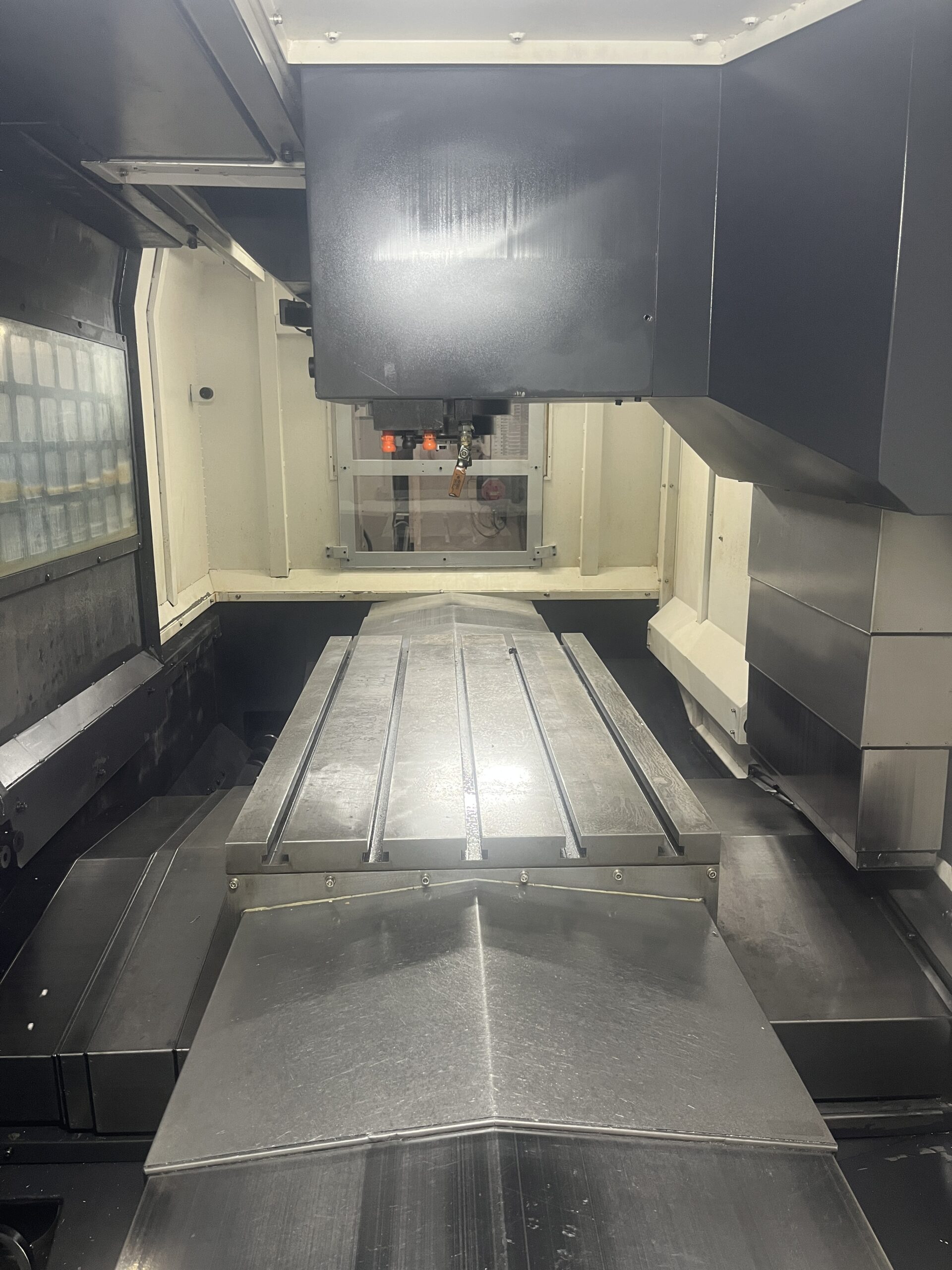

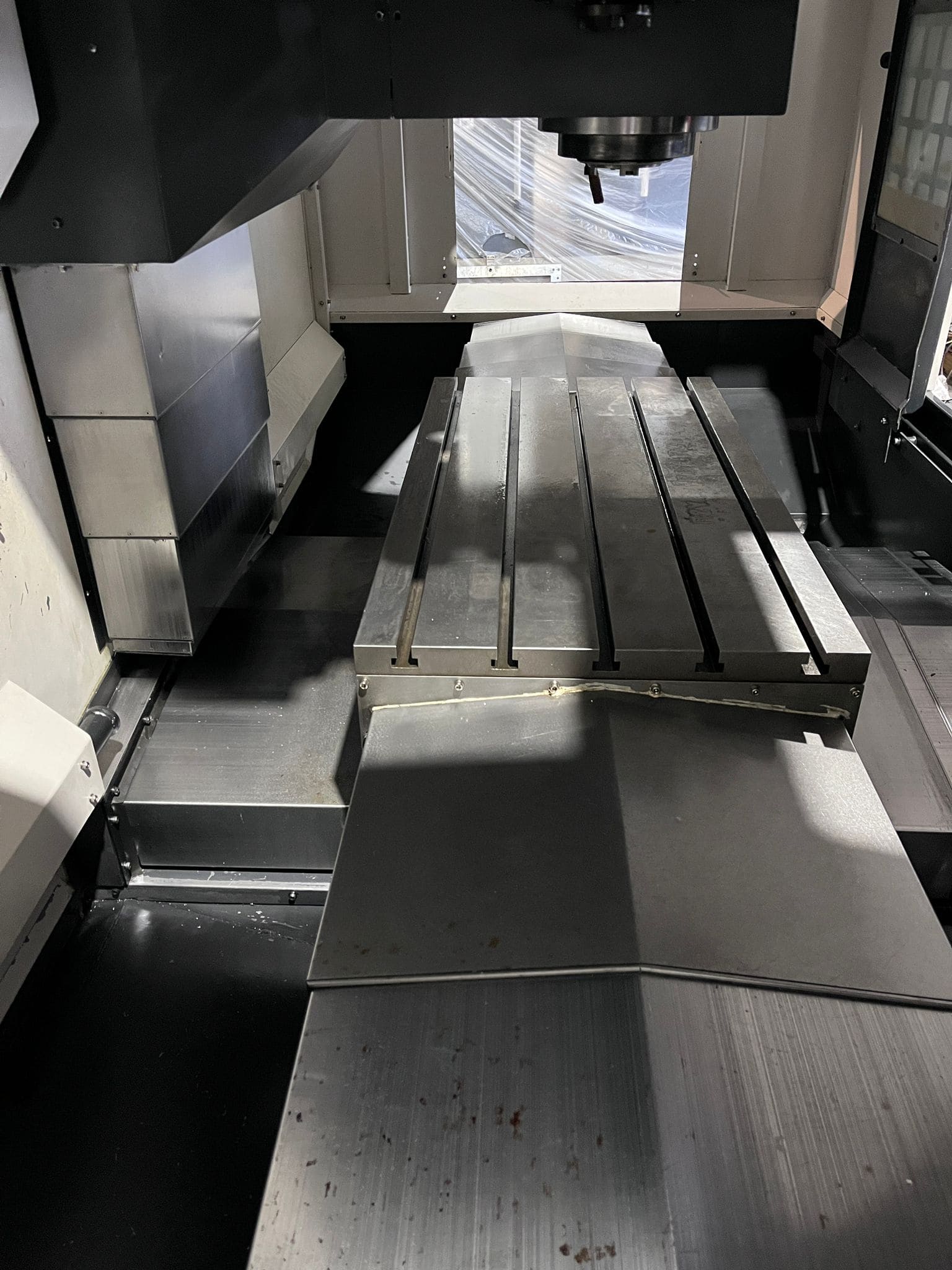

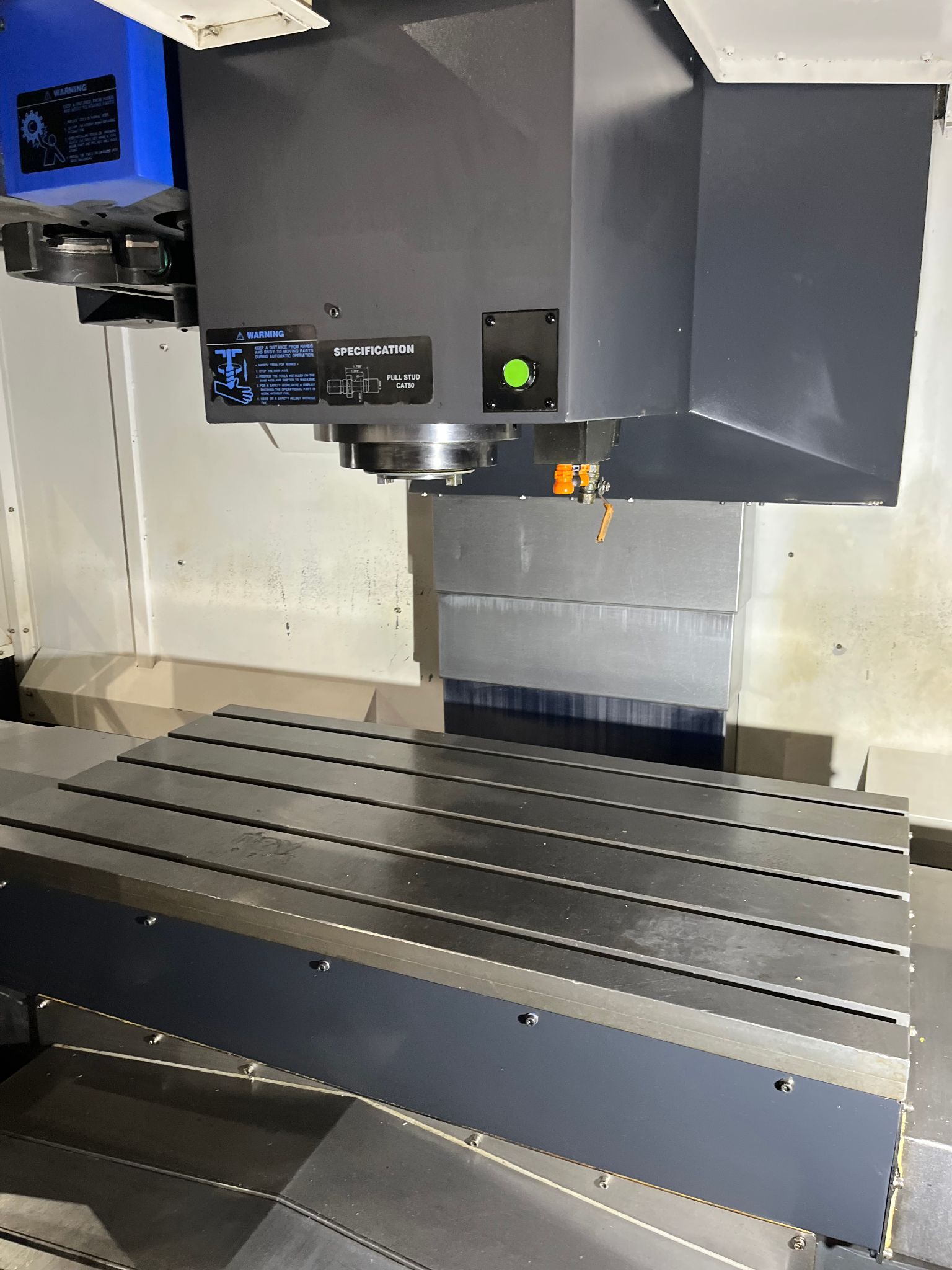

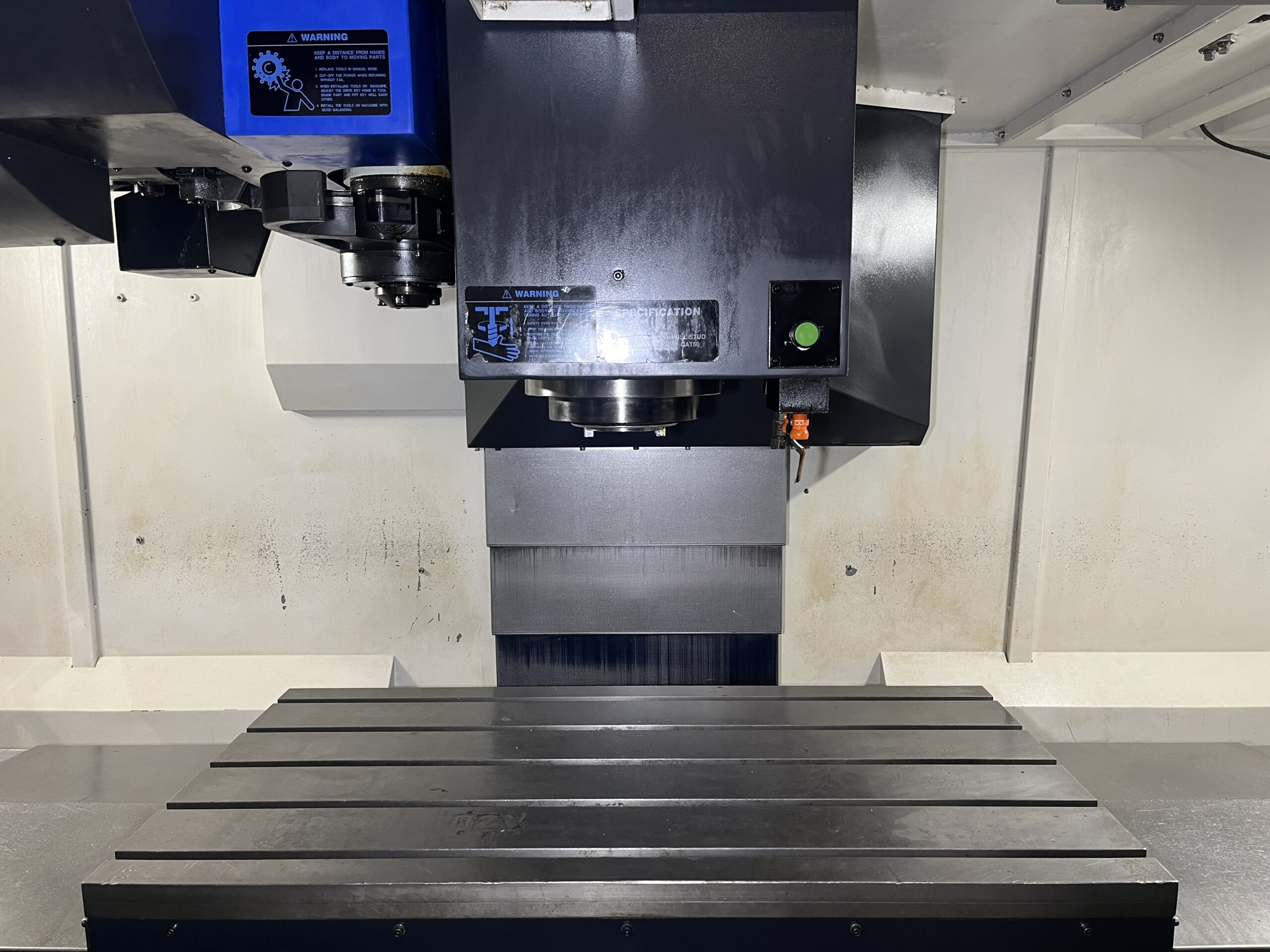

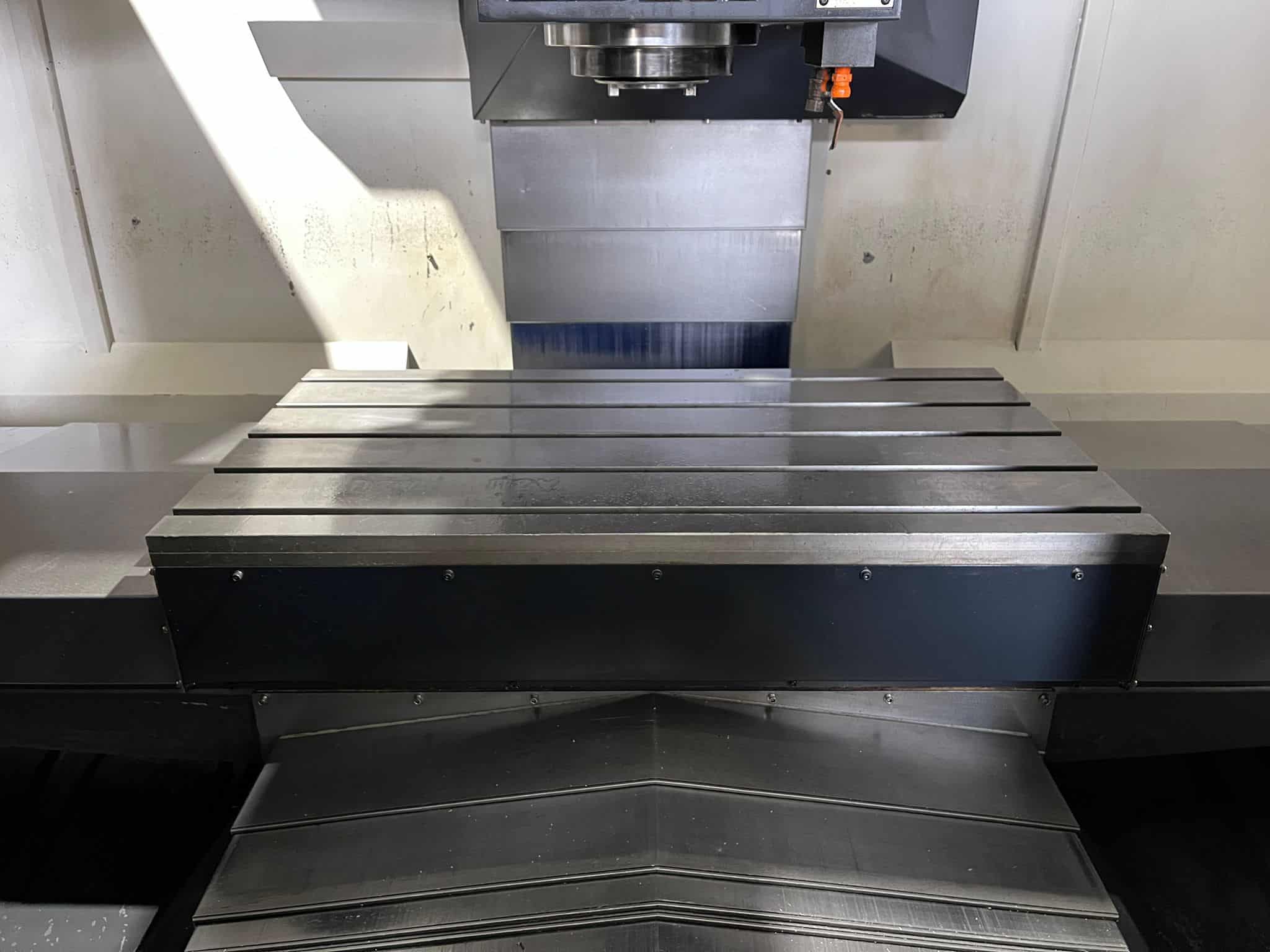

| Table: |
|---|
| Length: 45.28″ |
| Width: 23.62″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 0.71″ x 4.72″ |
| Max Weight on Table: 2205 lbs |

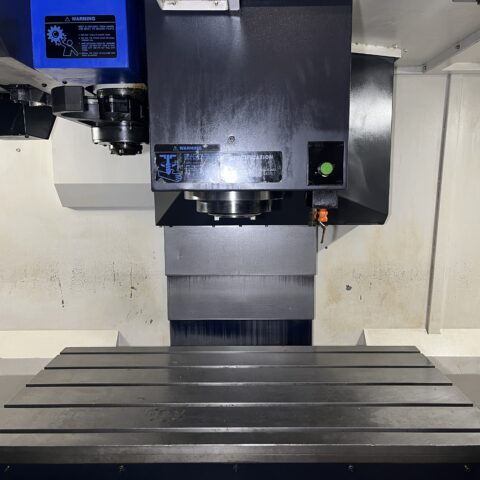

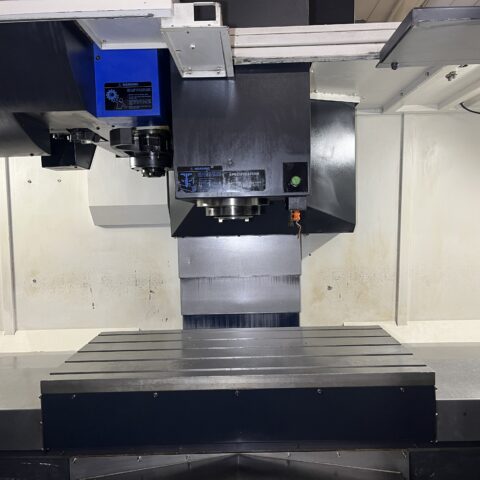

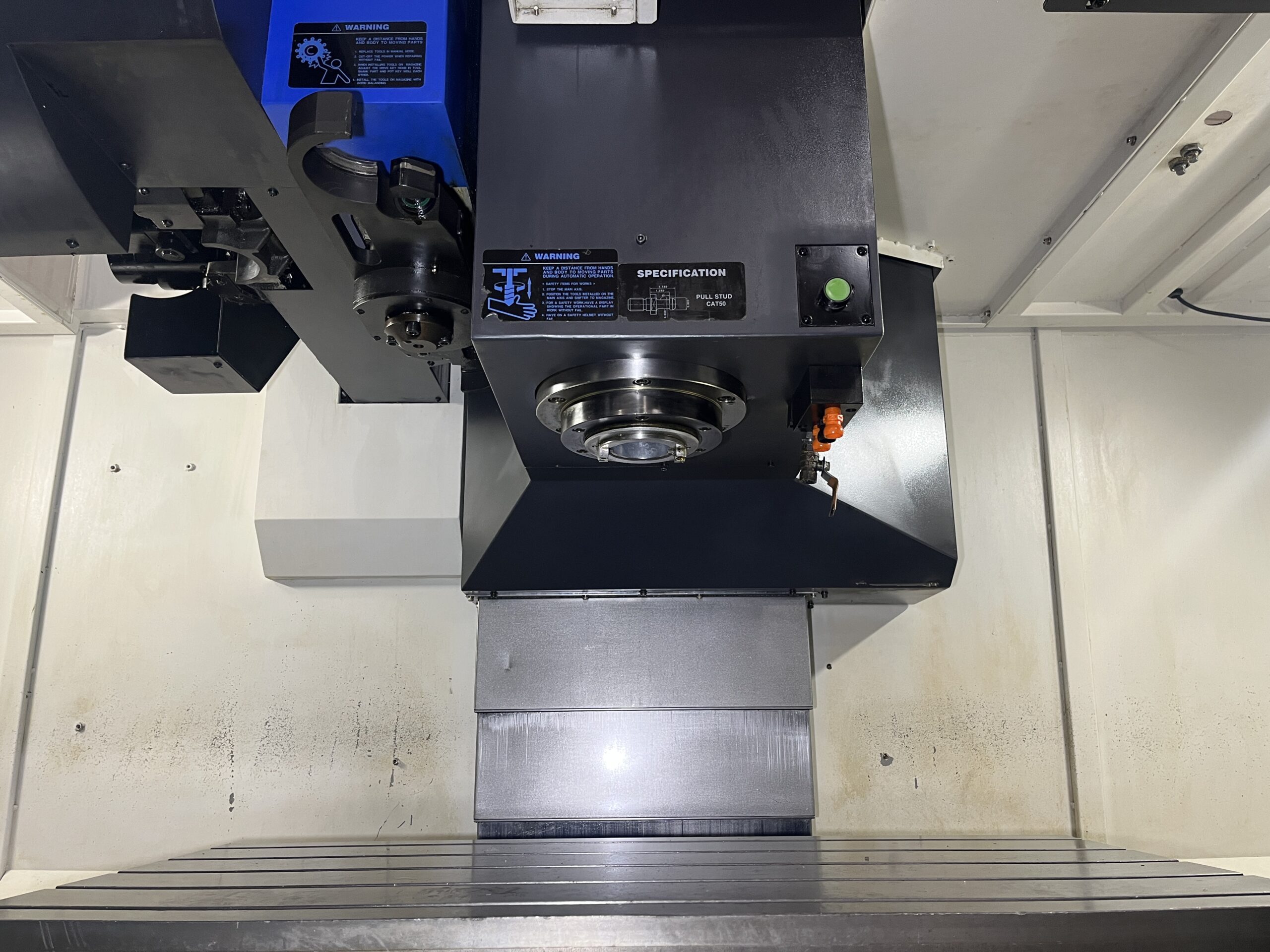

| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 6,000 RPM |
| Spindle Power: 25 HP |

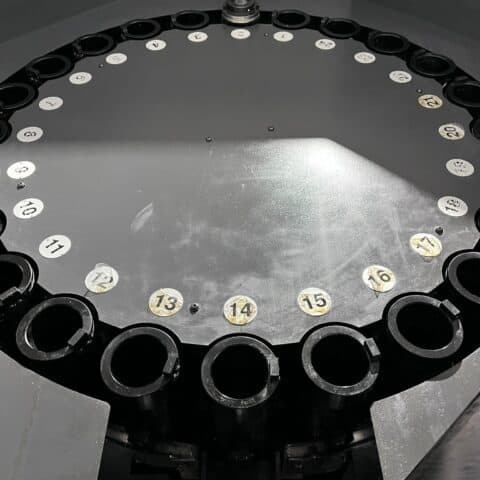

| Automatic Tool Changer: |
|---|
| Capacity: 24 Station Side Mounted |
| Tool Weight: 44.09 lbs |
| Max Tool Dia: 4.92″ – 9.65″ |
| Max Tool Length: 13.78″ |
| Tool Changing Time: 2.5 Seconds |
| General: |
|---|
| Air Required: 80 psi 4 scfm |
| Power: 220v / 40 kva / 3-Phase |
| Overall Dimensions: 166″ x 85″ x 114″ High Approx. |
| Weight: 16,535 lbs Approx. |
