*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*

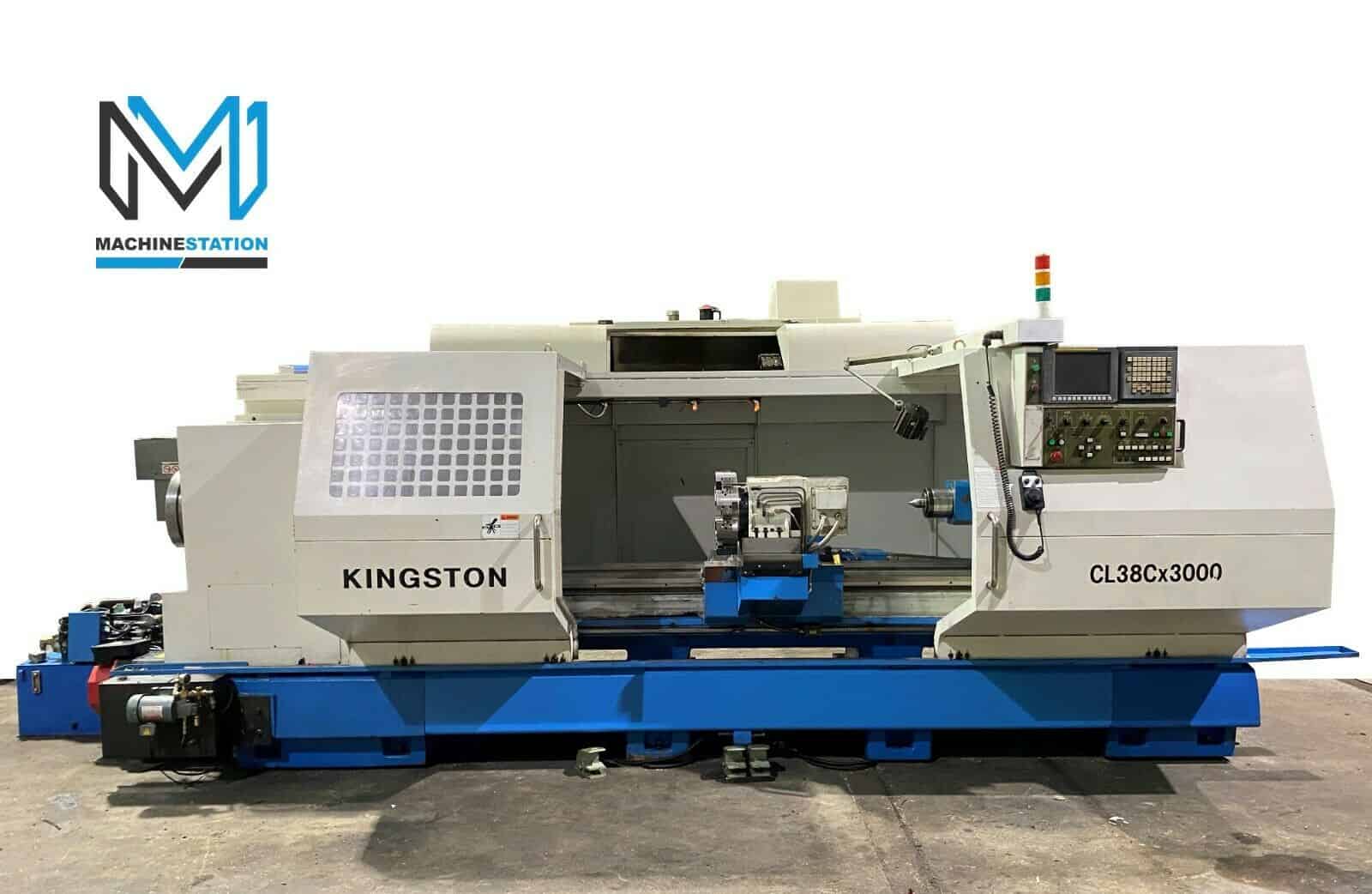

| Equipped With: |
|---|
| Fanuc Oi T CNC Control |
| Dual Station Turret |
| One Touch IGF Programming |
| Floppy Drive |
| 20″ 3 Jaw Manual Chuck |
| Hydraulic Tailstock with Power Quill |
| Chip Pan and Chip Conveyor |
| Coolant System |
| Automatic Lubrication system |
| Foot Operated Control for Chuck and Tailstock |
| Books and Manuals |
| 3 X Boring bar holders |
| Levelling pads |
| Specifications: |
|---|
| Max Turning Diameter: 14.17″ |
| Max Turning Length: 49.21″ |
| Max Bar Capacity: 7.2″ |
| Swing Over Slide: 15.78″ |
| Swing Over Bed: 24.41″ |
| Distance Between Centers: 120″″ |
| Travel: |
|---|
| X Axis Travel: 9.1″ |
| Z Axis Travel: 126.8″ |
| Rapid Traverse X Axis: 591 IPM |
| Rapid Traverse Z Axis: 787 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 7.5 |
| Spindle Speed: 3500 RPM |
| Spindle Motor: 30 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Tailstock: |
|---|
| Tailstock Body Travel: 34.3″ |
| Tailstock Quill Dia.: 3.94″ |
| Tailstock Quill Stroke: 4.72″ |
| Tailstock Taper: MT-5 |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 42 kva |
| Overall Dimensions: 140″ x 76″ x 80″ High |
| Overall Dimensions: 160″ x 76″ x 80″ High with Chip Conveyor |
| Weight : 13,500 lbs Approx. |
