*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

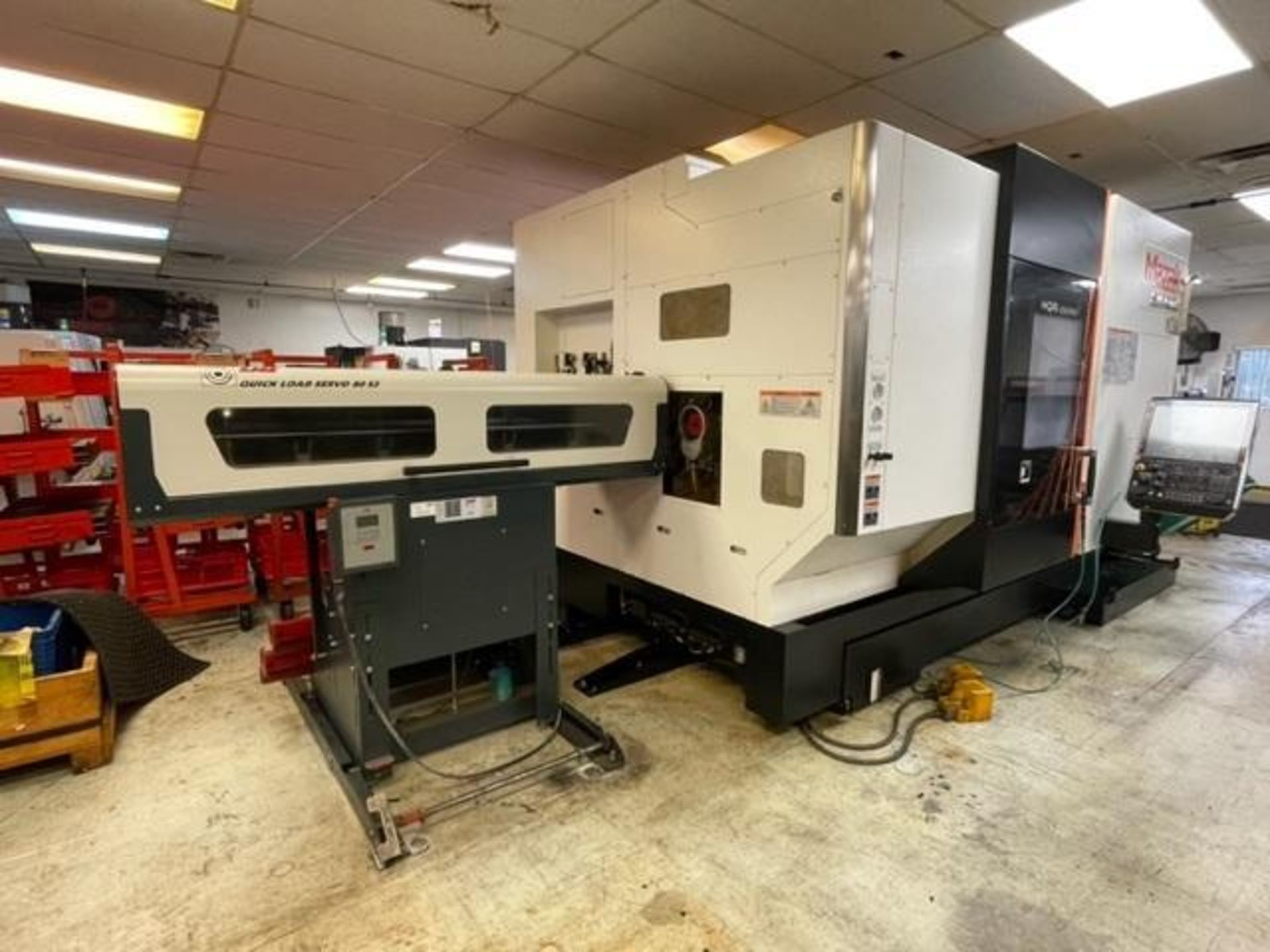

| Make: | Mazak |
| Model: | HQR-250MSY |
| Machine Type: | CNC Turning Center |
| Configuration: | 2-Spindle / 2-Turret / Y-Axis |
| Year: | 2019 |
| Features: |
|---|
- Dual Spindle Configuration (Main & Sub-Spindle)
- Upper & Lower Turrets with Live Tooling
- Y-Axis on Both Turrets
- Integral Beltless Spindle Motors
- Simultaneous Machining Capability
- Balanced Cutting Technology
- Full Enclosure with Safety Interlocks
|
| Capacity: |
|---|
- Max Swing (Upper / Lower Turret): 14.6″ / 12.6″
- Max Machining Diameter: 13.5″ / 8.3″
- Bar Capacity (Main / Sub): 3.15″ / 2.56″
- Distance Between Chuck Faces: 33.9″ (850U) / 52.2″ (1300U)
|
| Travels: |
|---|
- X-Axis Travel (Upper / Lower): 8.15″ / 5.55″
- Y-Axis Travel (Upper / Lower): ±1.97″
- Z-Axis Travel: 29.9″ / 32.1″ (850U) — 48.2″ / 50.4″ (1300U)
- W-Axis (Sub-Spindle Stroke): 34.1″ (850U) / 52.4″ (1300U)
|
| Main Spindle: |
|---|
- Spindle Speed: 4,000 RPM
- Spindle Nose: A2-8
- Spindle Bore: 3.58″
- Spindle Motor: 35 HP (30 min) / 30 HP (Continuous)
- C-Axis Indexing: 0.0001°
- Rapid C-Axis Speed: 555 RPM
|
| Sub-Spindle: |
|---|
- Spindle Speed: 5,000 RPM
- Spindle Nose: A2-6
- Spindle Bore: 2.99″
- Spindle Motor: 30 HP (30 min) / 20 HP (Continuous)
- C-Axis Indexing: 0.0001°
- Rapid C-Axis Speed: 555 RPM
|
| Turrets & Tooling: |
|---|
- Upper & Lower 12-Station Drum Turrets
- Optional 16-Station Turret
- Turret Index Time: 0.2 Sec / Station
- Turning Tool Shank Size: 1.0″ × 1.0″
- Boring Bar Capacity: 1.57″
|
| Live Tooling: |
|---|
- Live Tool Speed: 6,000 RPM
- Live Tool Motor: 7.5 HP
- Drilling Capacity: Ø0.79″
- End Milling Capacity: Ø0.79″
- Tapping Capacity: M20 × 2.5
|
| Feedrates: |
|---|
- Rapid Traverse X-Axis: 1,181 / 945 IPM
- Rapid Traverse Y-Axis: 1,024 / 787 IPM
- Rapid Traverse Z-Axis: 1,417 IPM
|
| Control: |
|---|
- MAZATROL SmoothG CNC Control
- 19″ Full-Color Touchscreen
- Conversational & EIA Programming
- Simultaneous Dual-Turret Control
- 3D Assist & CAD Model Import
- Ethernet, USB & SD Card Interfaces
|
| Utilities & General: |
|---|
- Required Power: 68.5 kVA (850U) / 48.6 kVA (1300U)
- Air Supply: 72 PSI @ 500 L/min
- Coolant Tank Capacity: 82 / 106 Gallons
- Machine Height: 98.3″
- Machine Weight: 28,770 lbs (850U) / 33,910 lbs (1300U)
- Noise Level: < 80 dB(A)
|
