*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

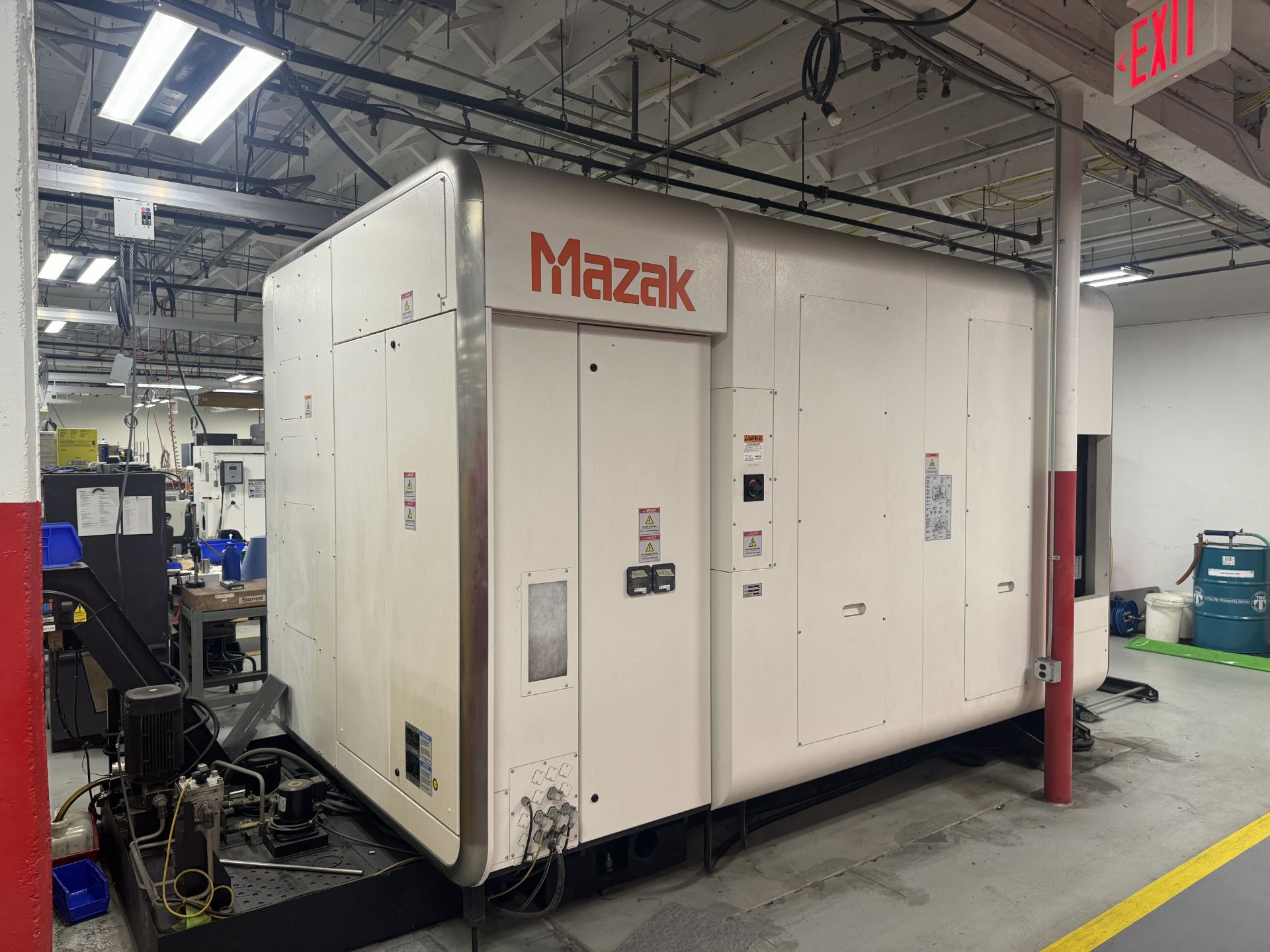

| Make: | Mazak |
| Model: | Integrex i-200S |
| Year: | 2015 |
| Condition: | Used – Good |
| Equipped With: |
|---|
- Mazatrol CNC Control
- Main Spindle + Sub-Spindle
- B-Axis Milling Spindle
- Simultaneous 5-Axis Machining Capability
- Automatic Tool Changer
- Through-Spindle Coolant
- Coolant System

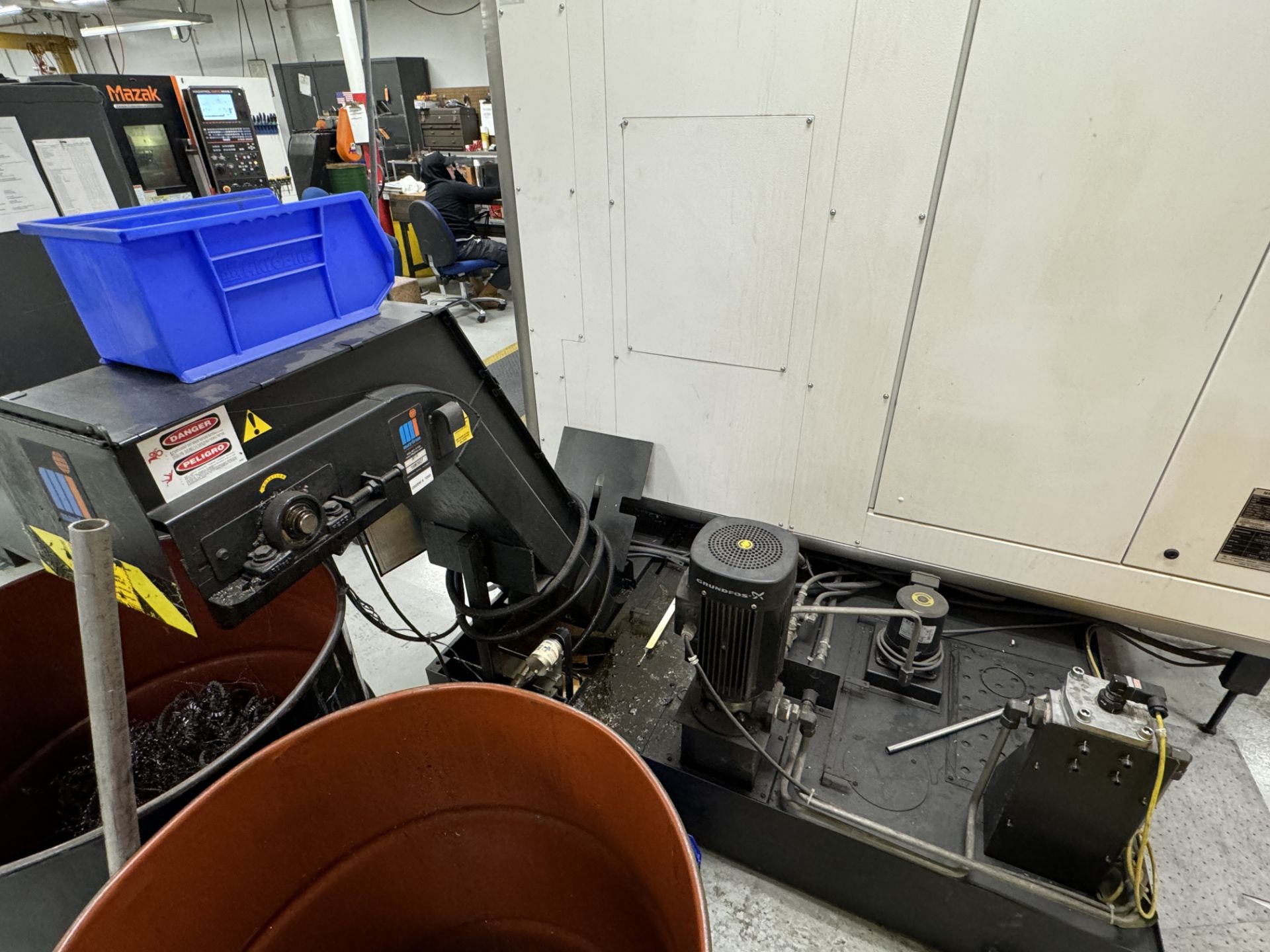

- Chip Conveyor
- Workpiece Support Tailstock/Sub-Spindle
- High Accuracy Thermal Shield Design
- Tool Eye Tool Measurement
|
| Capacity: |
|---|
- Maximum Swing: 25.9″
- Maximum Machining Diameter: 25.9″
- Maximum Machining Length: 39.8″
- Bar Capacity (Main Spindle): 2.56″
- Chuck Size (Main/Sub): 8″
|
| Travels: |
|---|
- X-Axis Travel: 24.21″
- Y-Axis Travel: 10.24″
- Z-Axis Travel: 42.40″
- B-Axis Rotation: -30° to +210°
- C-Axis (Main) Full Contouring
- C-Axis (Sub) Full Contouring
|
| Spindles: |
|---|
- Main Spindle Speed: 5,000 RPM
- Main Spindle Power: 30 HP
- Sub-Spindle Speed: 5,000 RPM
- Sub-Spindle Power: 25 HP
- Milling Spindle Speed: 12,000 RPM
- Milling Spindle Power: 30 HP
- Milling Spindle Taper: Capto C6
|
| Feedrates: |
|---|
- Rapid Traverse X-Axis: 1,969 IPM
- Rapid Traverse Y-Axis: 1,575 IPM
- Rapid Traverse Z-Axis: 1,969 IPM
- B/C-Axis Indexing Resolution: 0.0001°
|
| Tool Changer: |
|---|
- Tool Capacity: 36 Tools (Standard)
- Tool Holder Type: Capto C6
- Maximum Tool Length: 15.7″
- Maximum Tool Weight: 15 lbs
|
| General: |
|---|

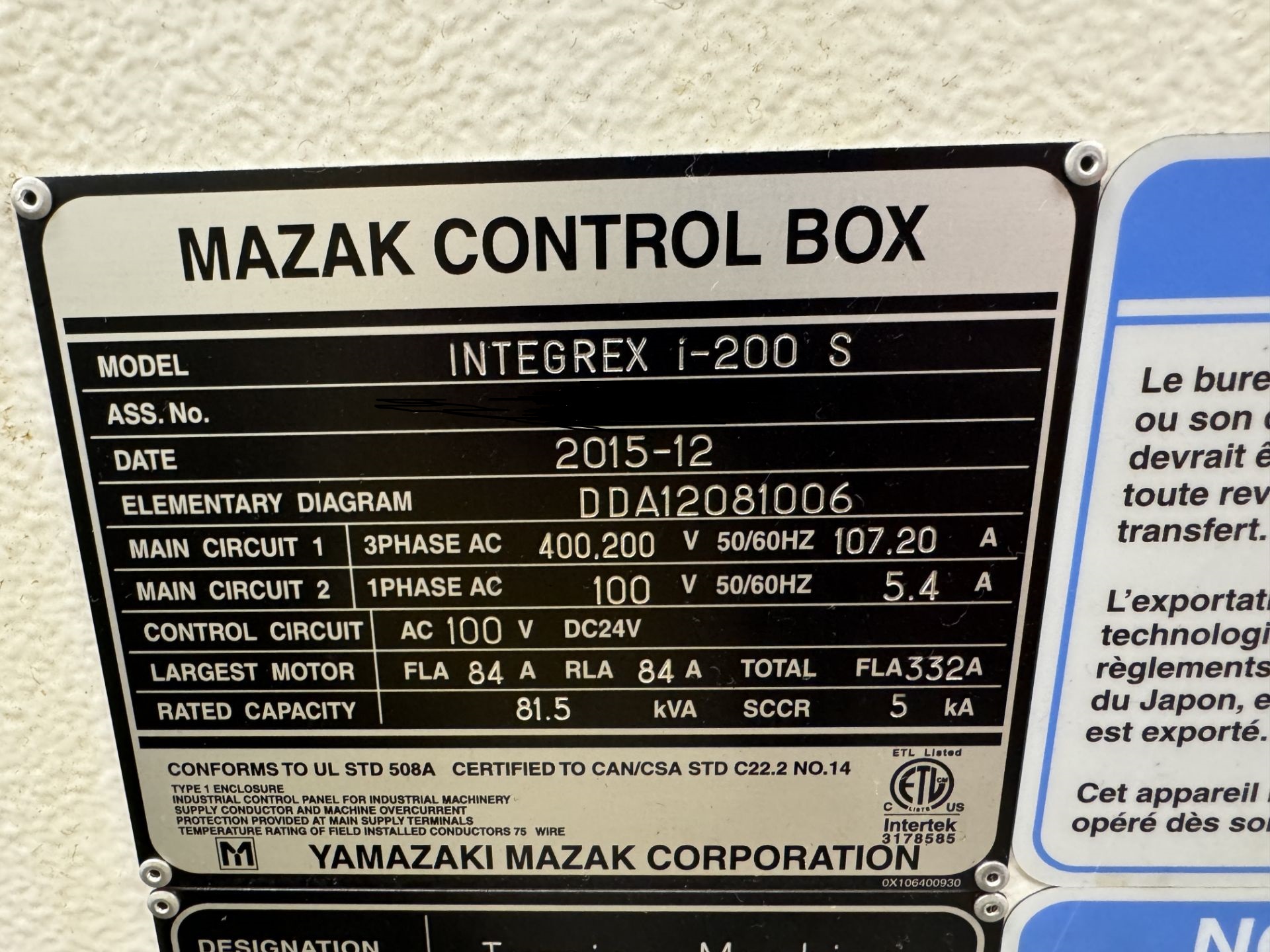

- Power Requirement: 220V / 3-Phase
- Machine Weight: 20,000 – 22,000 lbs (Typical)
- Floor Space Requirement: Approx. 158″ × 111″
- Cooling & Lubrication Systems Included
|
