*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Mori Seiki |
| Model: | MT-2000SZ |
| Machine Type: | Multitasking CNC Turning & Milling Center |

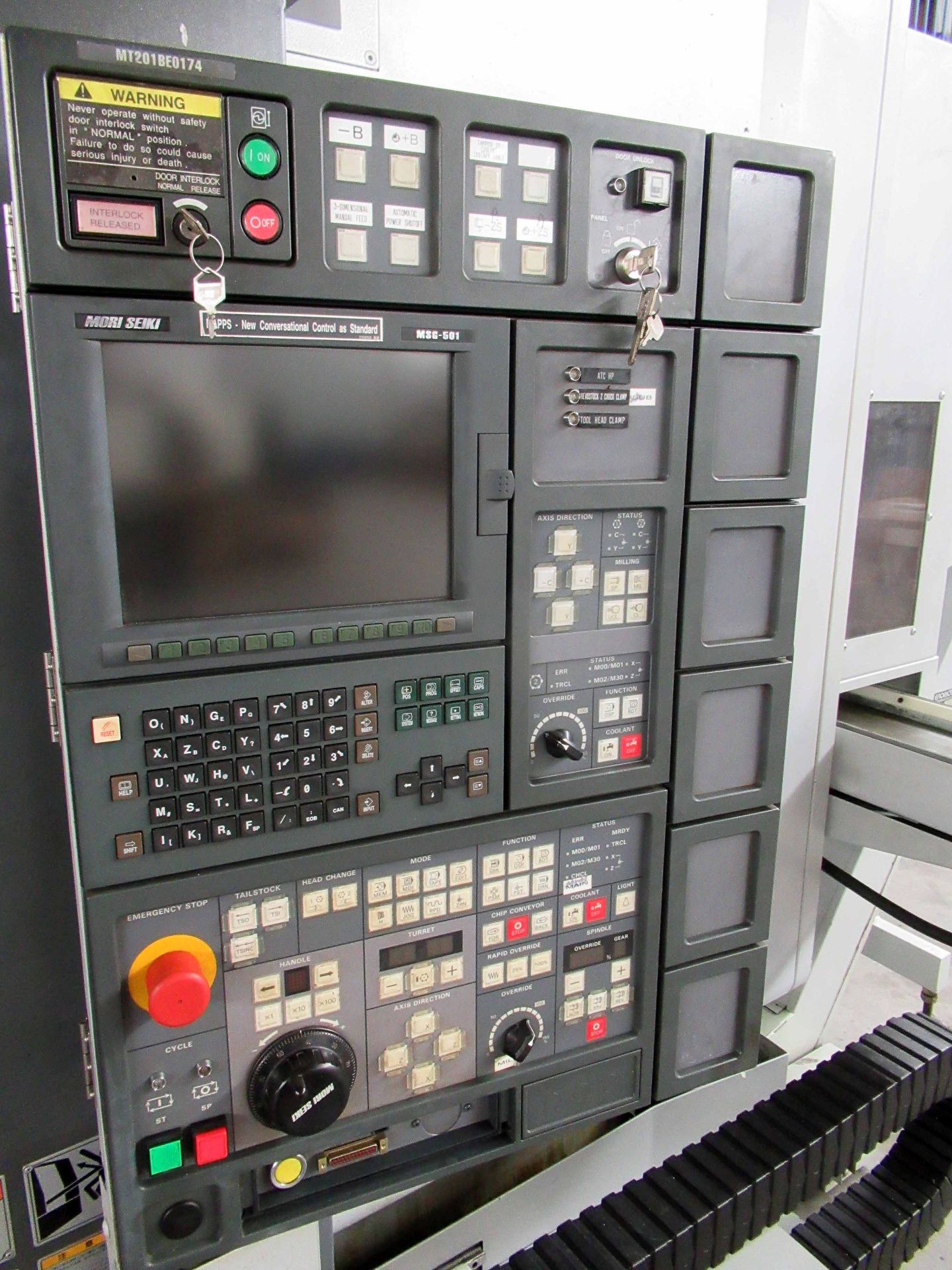

| Control: | Mori Seiki MSG-501 CNC Control |
| Year: | 2002 |
| Condition: | Used |
| Equipped With: |
|---|
- Upper & Lower Turrets
- Y-Axis Machining Capability
- Sub-Spindle (Counter Spindle)
- C-Axis on Main & Sub Spindles
- Automatic Tool Magazine
- High-Pressure Coolant System
- Chip Conveyor
- Parts Catcher
- Bar Feeder Interface
- Oil Skimmer
- Paper Band Coolant Filter
- Signal Tower Light
- Full Enclosure
|
| Capacity: |
|---|
- X-Axis Travel: 22.25″
- Y-Axis Travel: ±3.15″
- Z-Axis Travel: 42.40″
- Turning Length: 40.16″
- Max Turning Diameter: 21.65″
- Swing Over Cross Slide: 23.60″
|
| Main Spindle: |
|---|
- Spindle Speed: 4,500 RPM
- Spindle Motor: 29.5 / 20 HP
- Spindle Bore: 2.87″
- Spindle Nose: JIS A2-6
- Chuck: 8″ Hollow Chuck (Kitagawa)
|
| Sub-Spindle: |
|---|
- Spindle Speed: 6,000 RPM
- Spindle Motor: 20 / 15 HP
- Spindle Bore: 2.20″
- Spindle Nose: JIS A2-5
- Chuck: 6″ Hollow Chuck (Kitagawa)
|

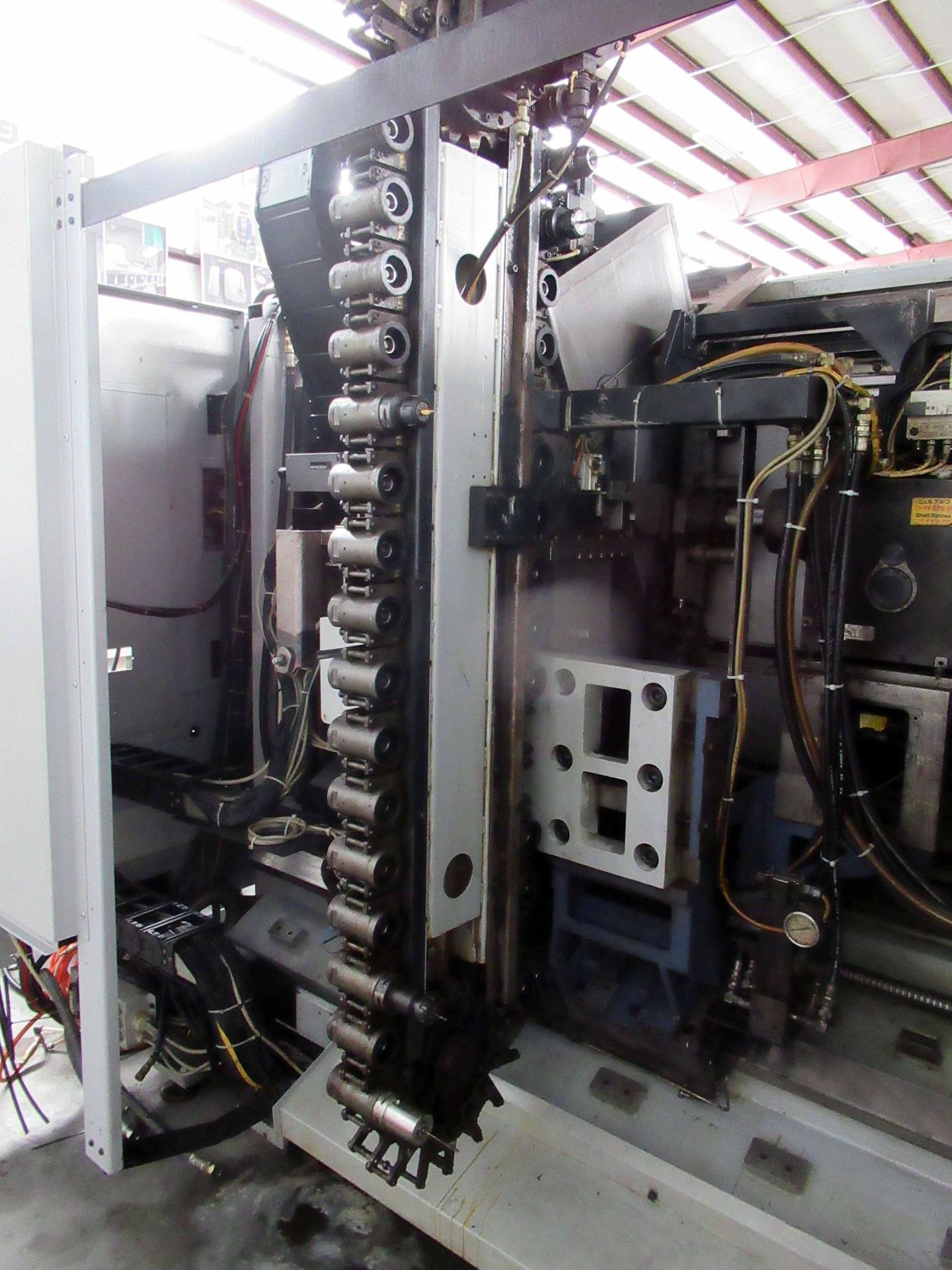

| Tool Magazine: |
|---|
- Tool Capacity: 120 Tools
- Max Tool Length: 11.0″
- Max Tool Diameter: 3.54″ – 4.72″
- Max Tool Weight: 15.4 lbs
|
| Upper Turret: |
|---|
- Tool Stations: 1
- Driven Tool Speed: 8,000 RPM
|
| Lower Turret: |
|---|
- Tool Stations: 12
- Driven Tool Speed: 4,000 RPM
- Index Time: 0.26 sec
|
| Coolant System: |
|---|
- Coolant Tank Capacity: 87.2 gal
- High Pressure Coolant: 435 PSI
|
| Electrical: |
|---|
- Power Supply: 220V / 3-Phase / 60 Hz
- Rated Power: 114.6 HP (85.5 kVA)
|
| General: |
|---|
- Machine Length: 150.8″
- Machine Width: 113.4″
- Machine Height: 104.3″
- Machine Weight: 26,455 lbs
|
