All specifications are approximations and are subject to verification.
“This One Owner machine is In Good Running Condition. On our Floor now, fully powered / tested & is in Great working condition.”
| Make | Mori Seiki |
| Model No. | MV-Junior |
| Year | 1993 |

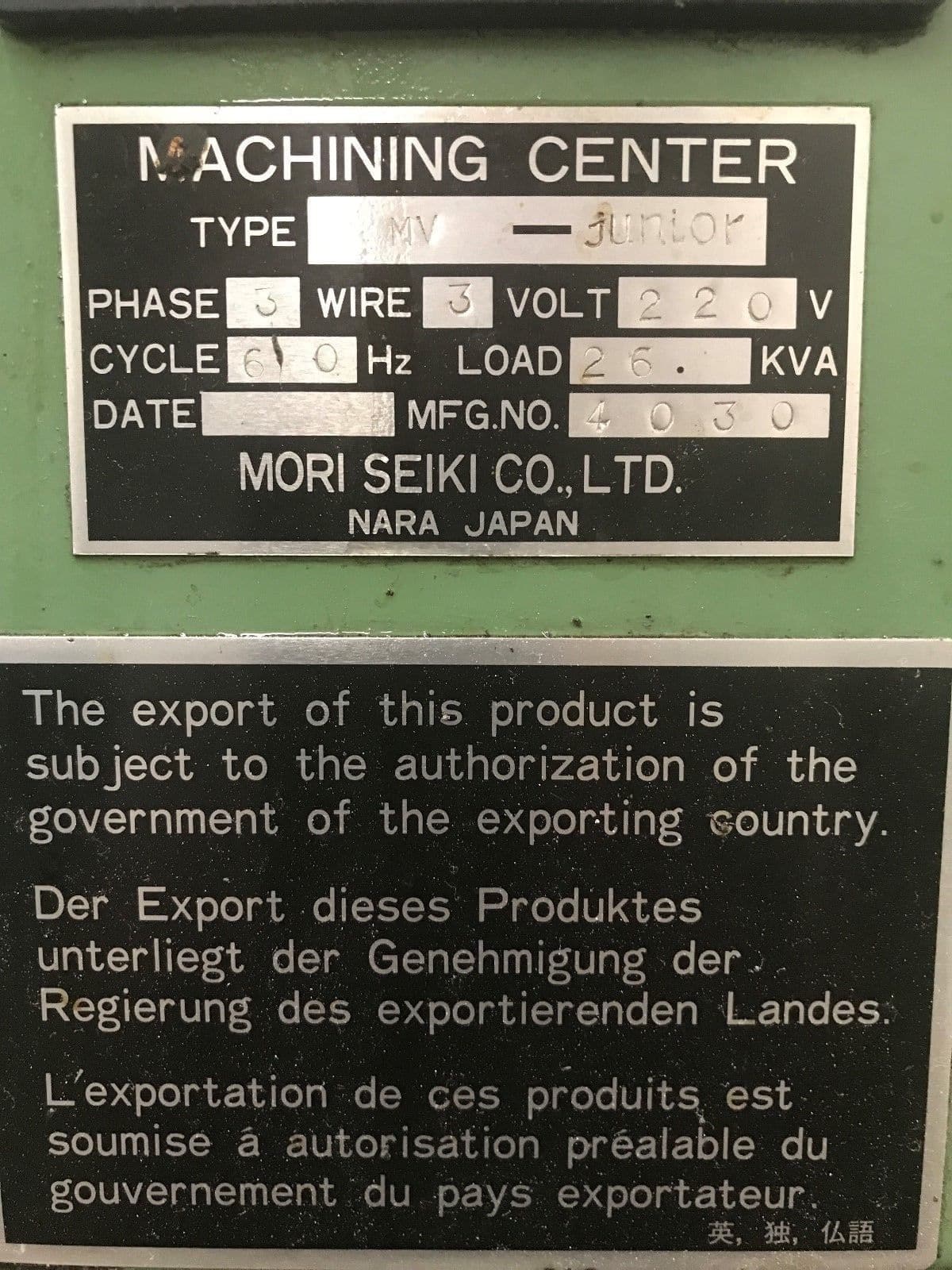

| Serial # | 4030 |
| Condition | Very Good |
-

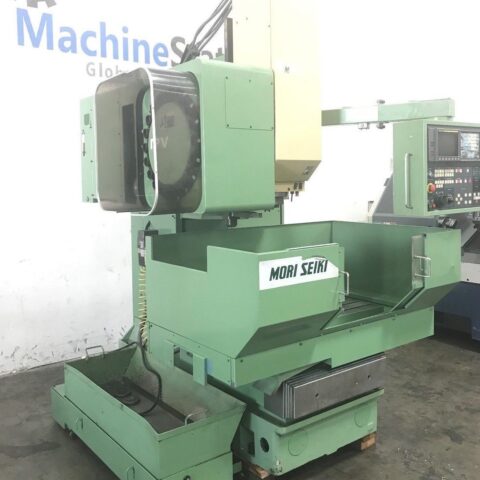

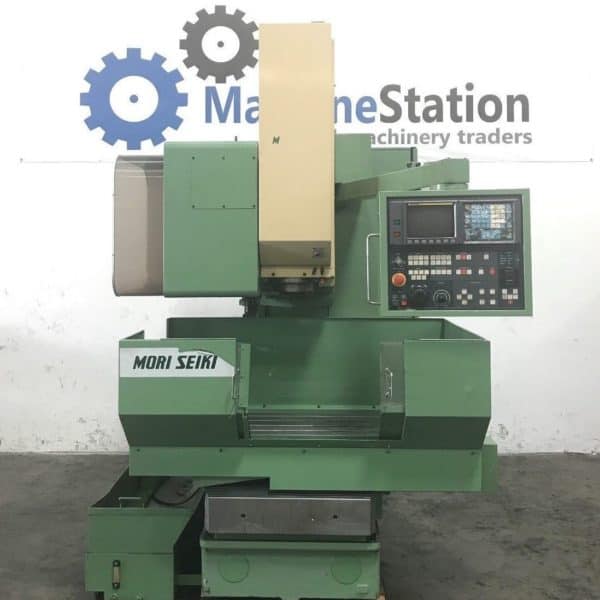

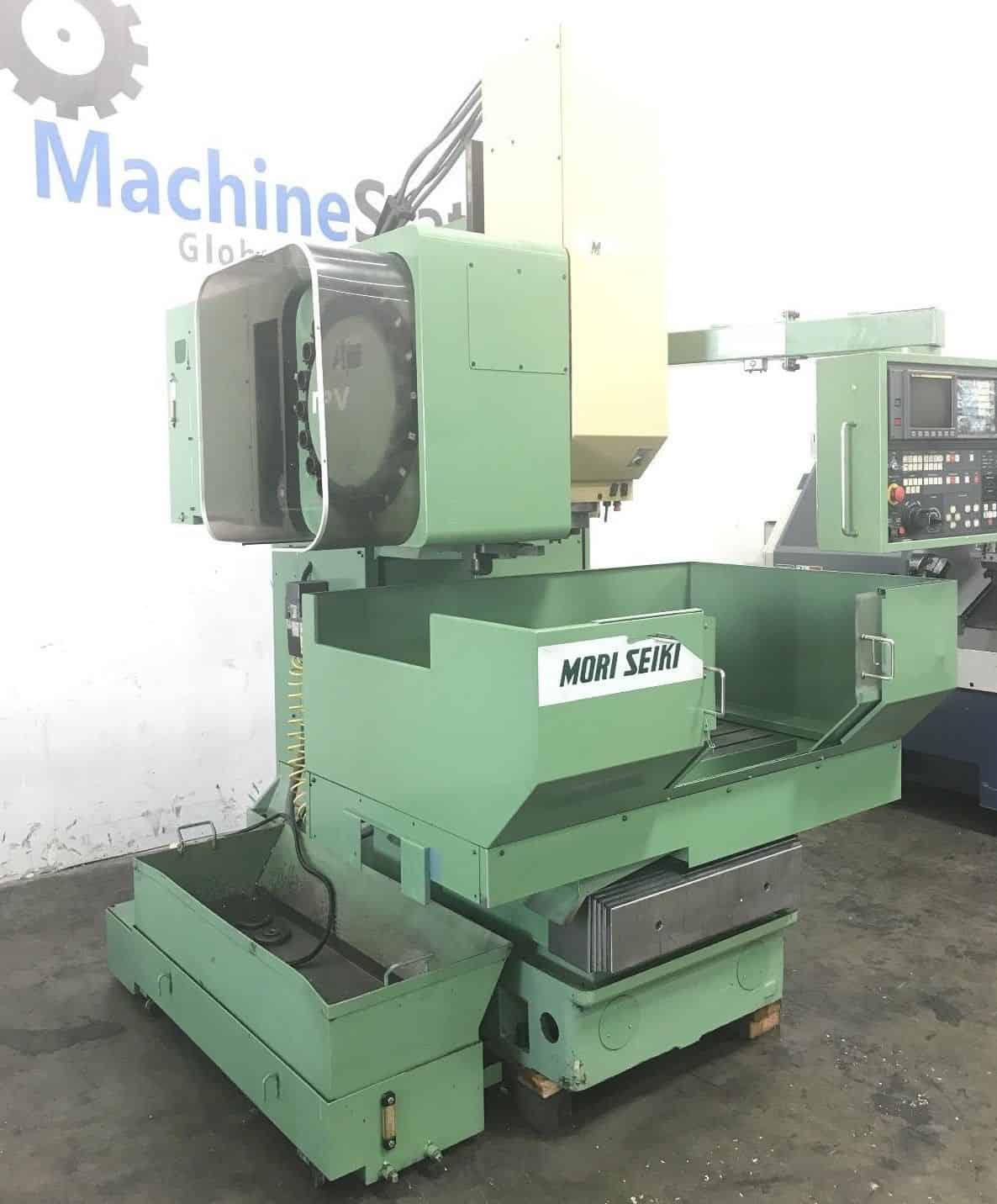

MORI SEIKI MV-JUNIOR CNC VMC Equipped With:

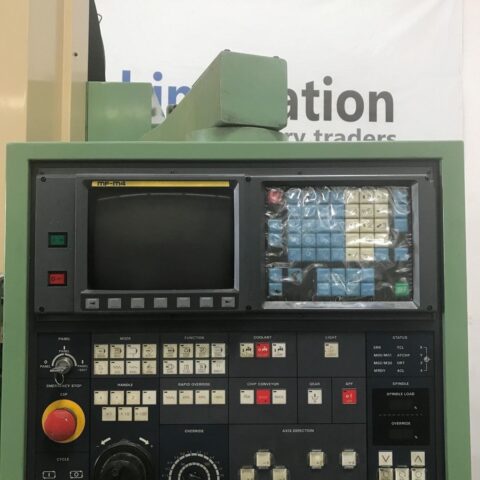

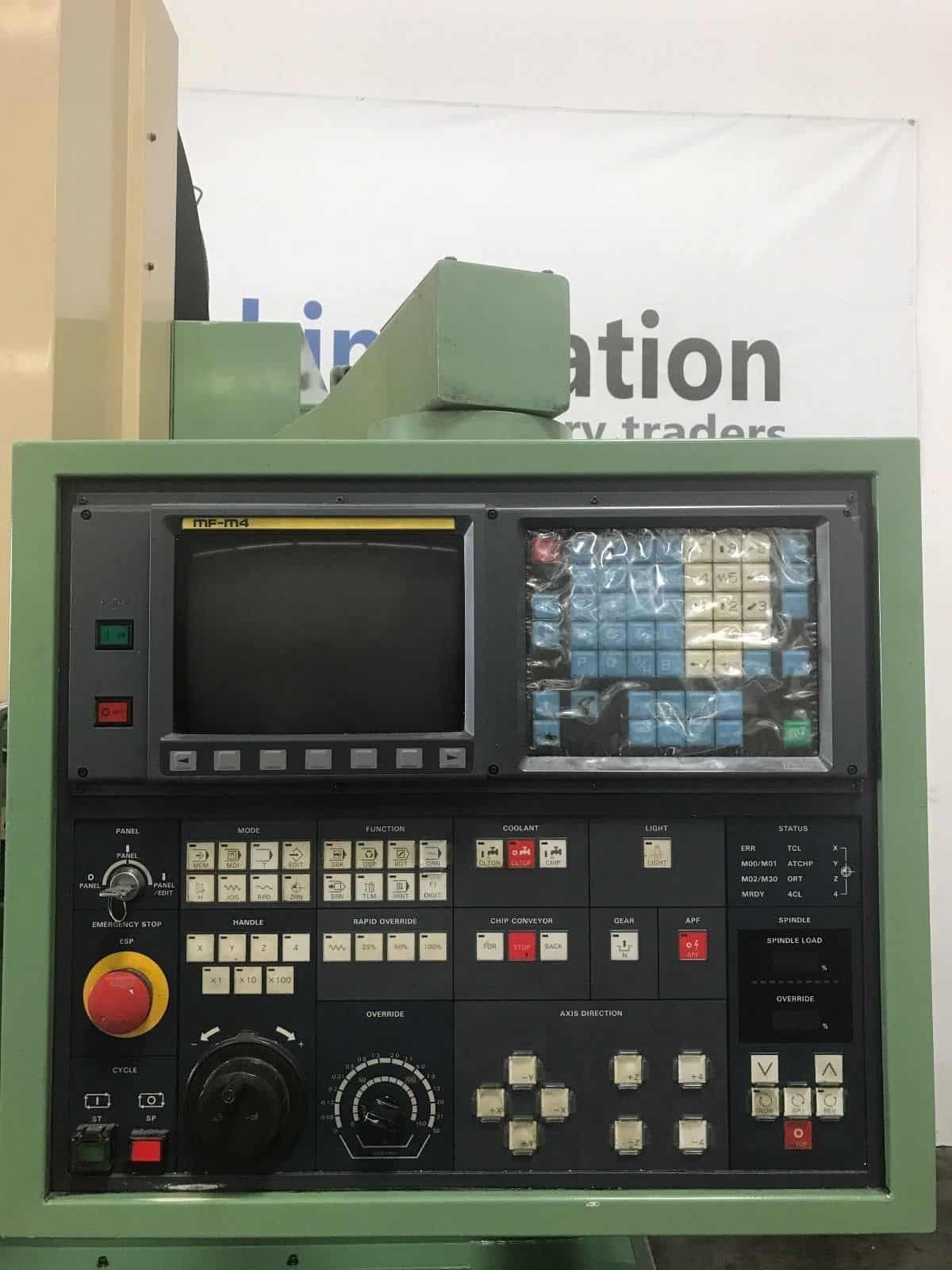

- MF-M4- Fanuc OM-C CNC Control

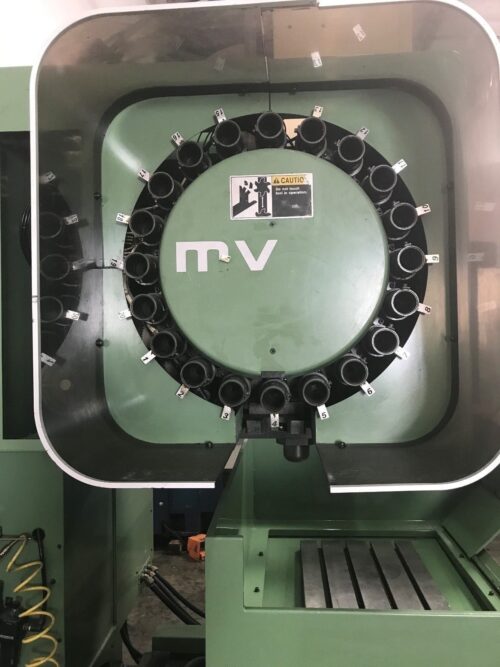

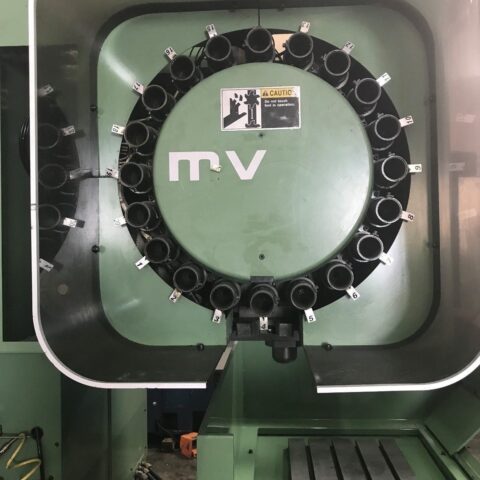

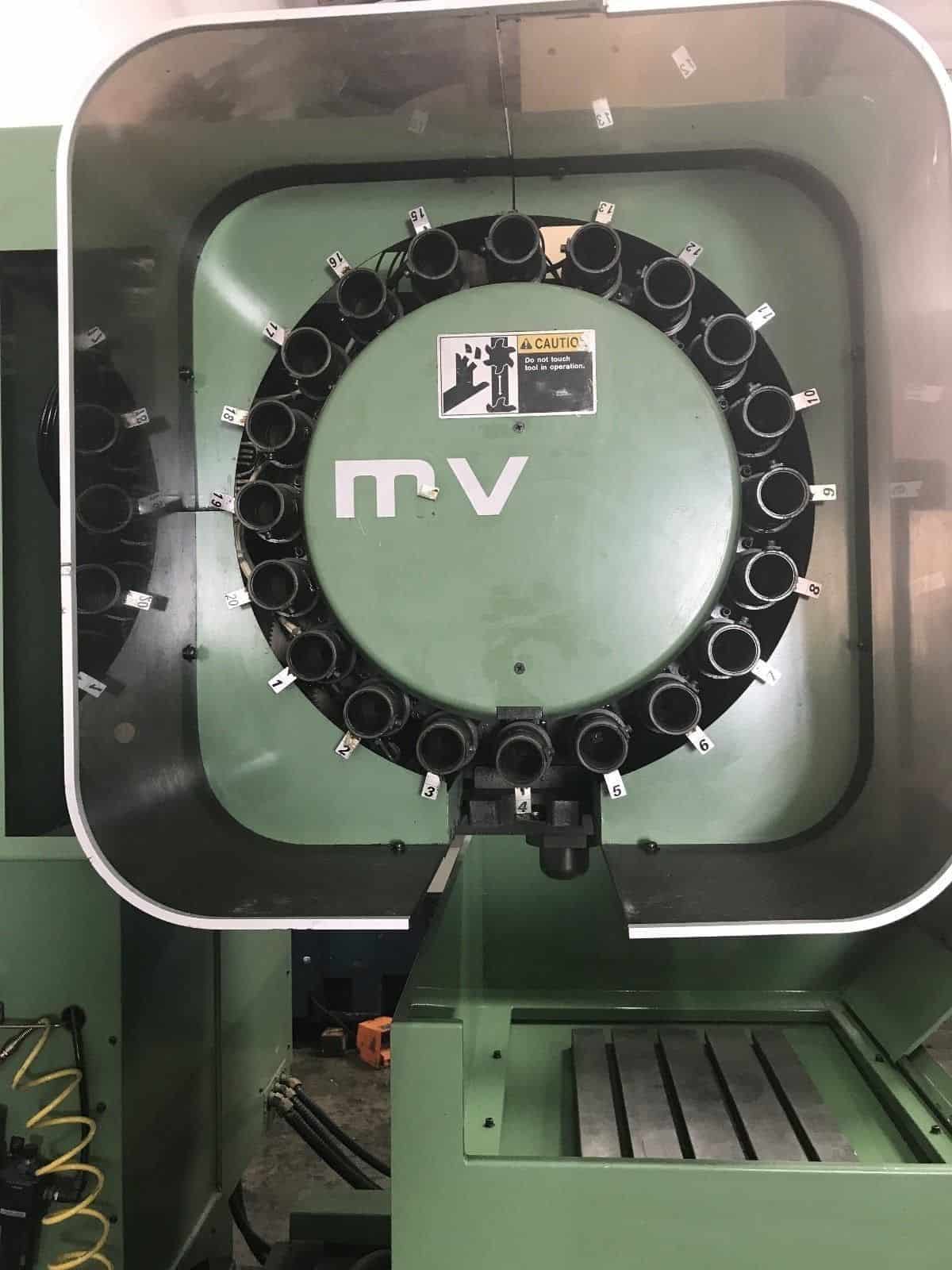

- 20Stations Side Mount Tool Changer
- Box Way Design
- AC Servo Motors on All Axis
- Rigid Tapping

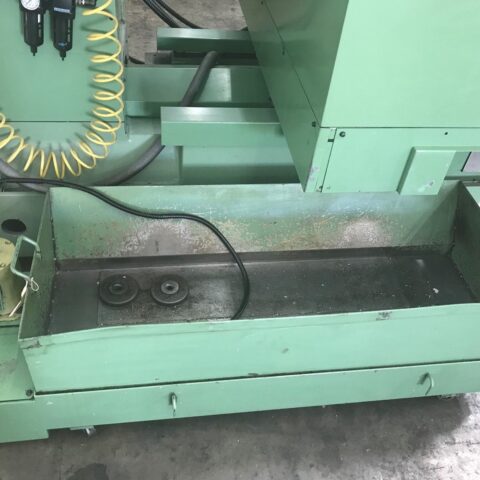

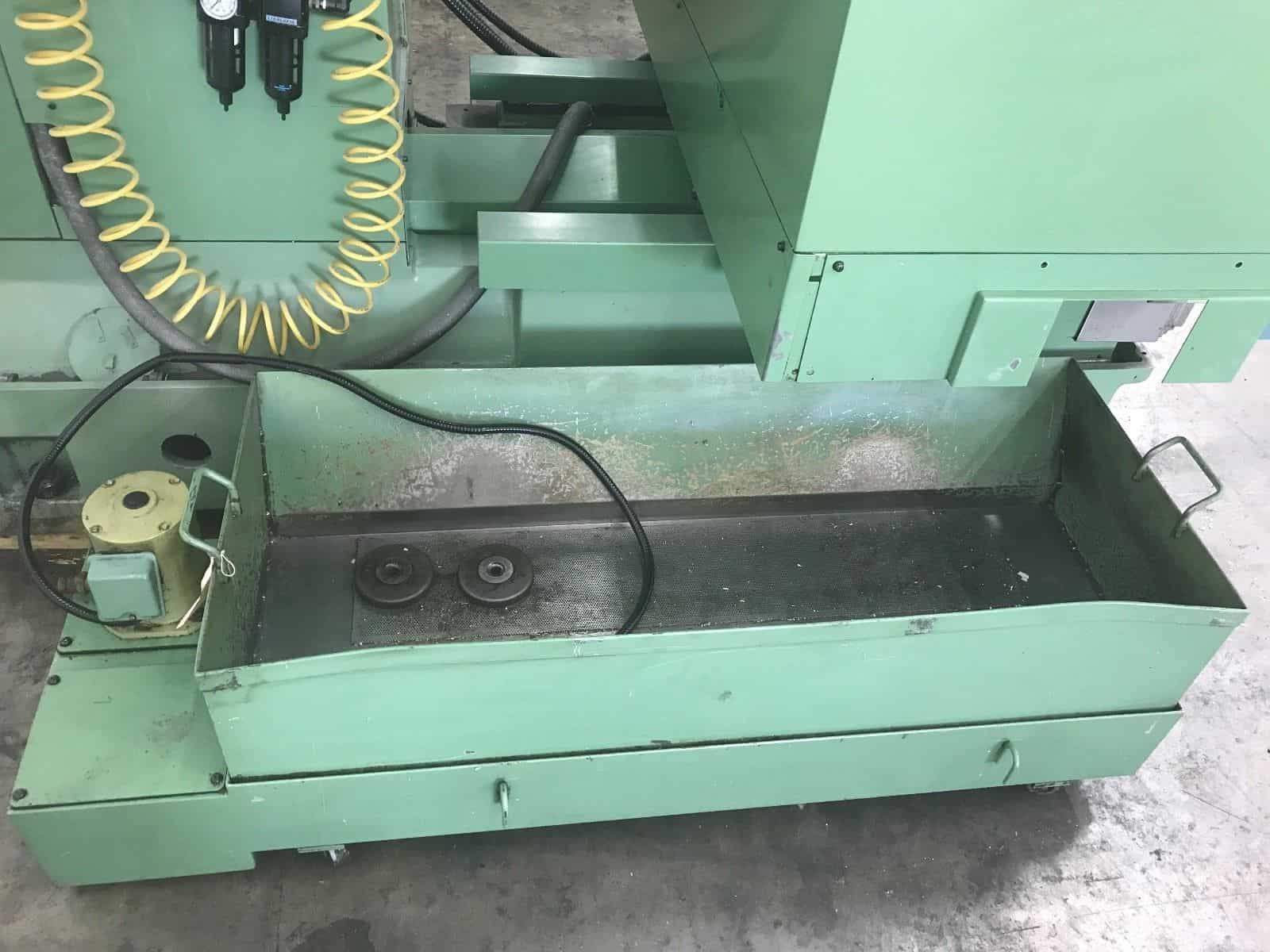

- Coolant System with Dual Tanks
- Working Light, Levelling Pads
- All Books, manuals and Documents.
-
MORI SEIKI MV-JUNIOR CNC VMC Specifications:
- Travels:
- X-Axis: 22″
- Y-Axis: 16.1″
- Z-Axis: 18.1″
- Spindle Nose to Table (Min.- Max.): 5.9″ – 24″
-

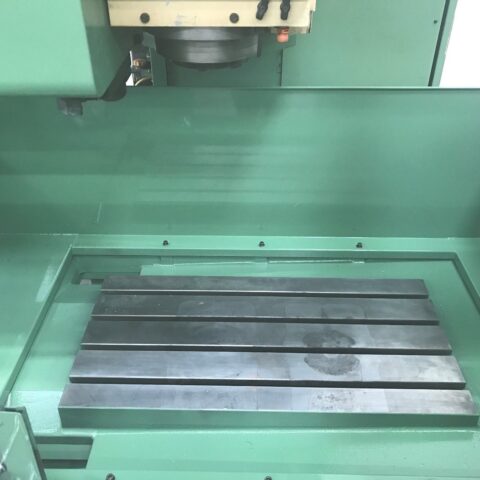

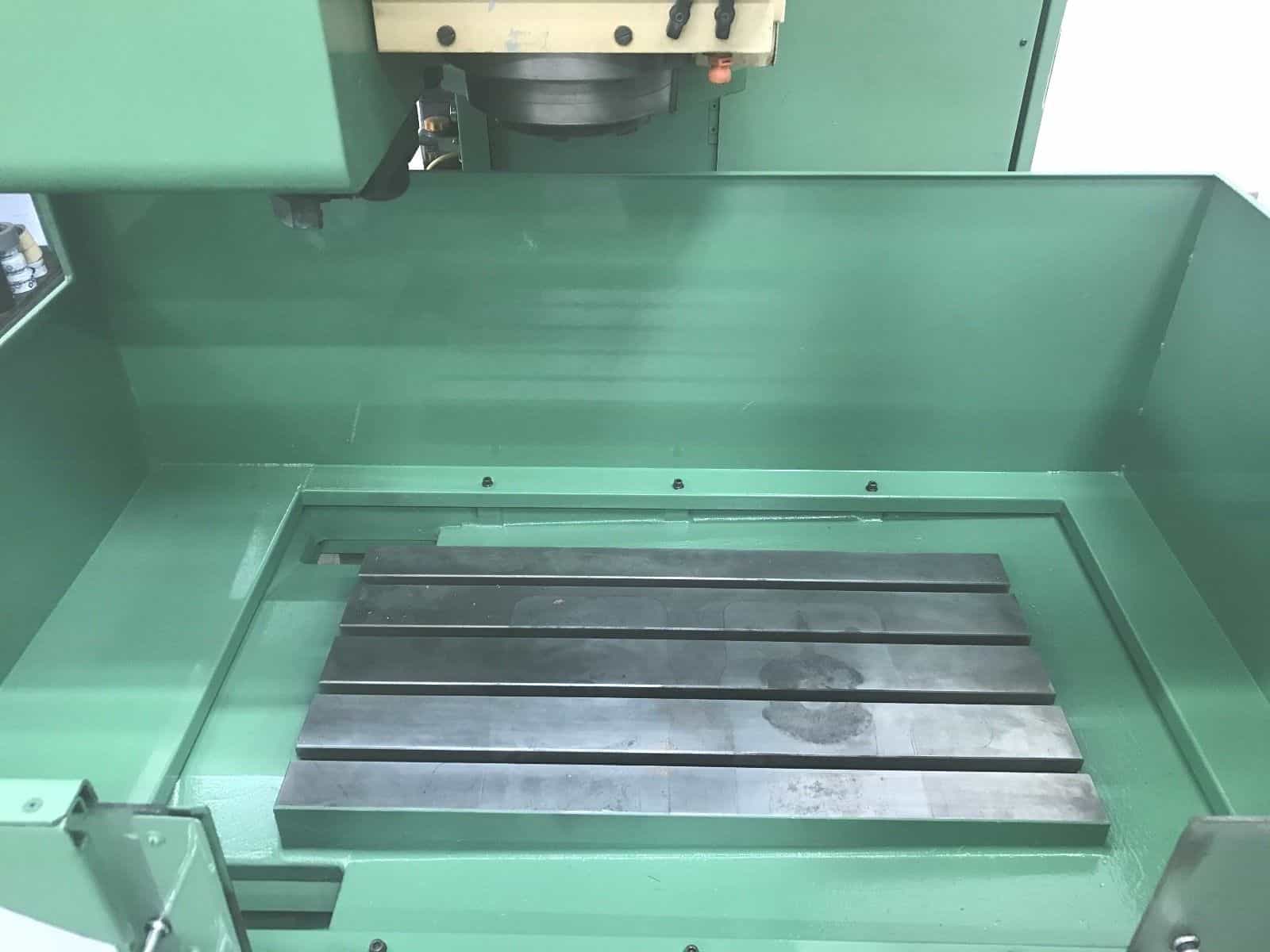

Table:
- Length: 35.4″
- Width: 16″
- Max Weight on Table: 800 lbs
-
Spindle:
- Taper Size: 40
- Speed Range: 60 – 8000 RPM
- Spindle Power: 10 HP
-
Feed rates:
- Rapid X & Y: 787 inch/P.M
- Rapid Z: 472 inch/P.M
- Cutting Feedrate: .0001″ – 197″ inch/ P.M
-
Automatic Tool Changer:
- 40 Taper
- Capacity: 20
- Max Tool Length: 10″
- Max Tool Dia.: 5.4″
- Tool Change Time: 3 seconds
-
General:
- Air Required: 70 psi, 5 scfm

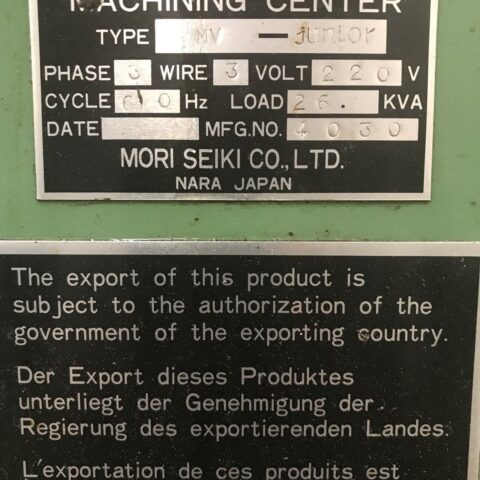

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 82″ x 65″ x 100″ High
- Weight: 9500 lbs
