*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 115111 |
| Make: | Takang |
| Model: | LB40X1200 |
| Year: | 2013 |
| Equipped With: |
|---|

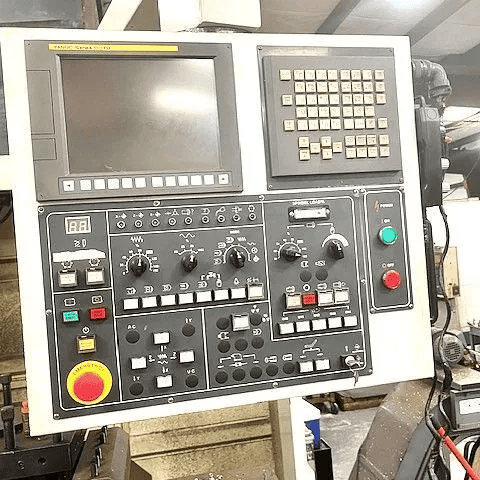

| Fanuc Oi-TD CNC Control |

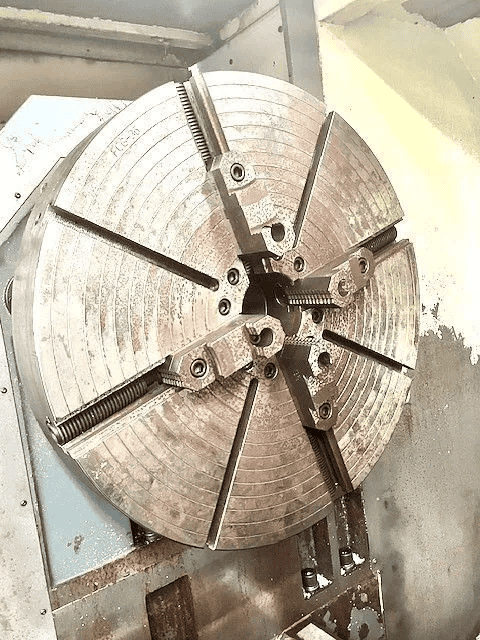

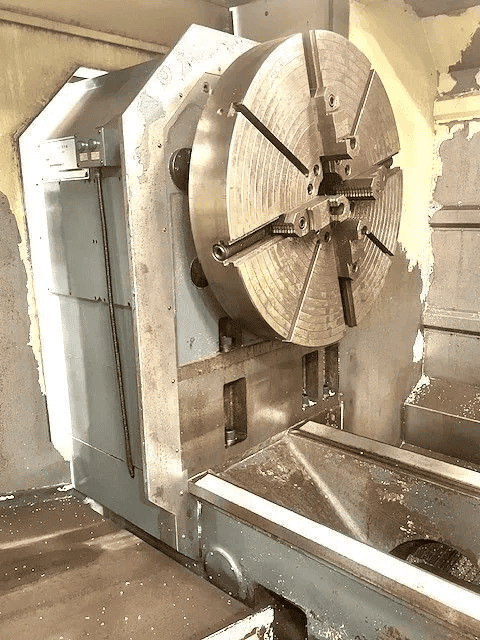

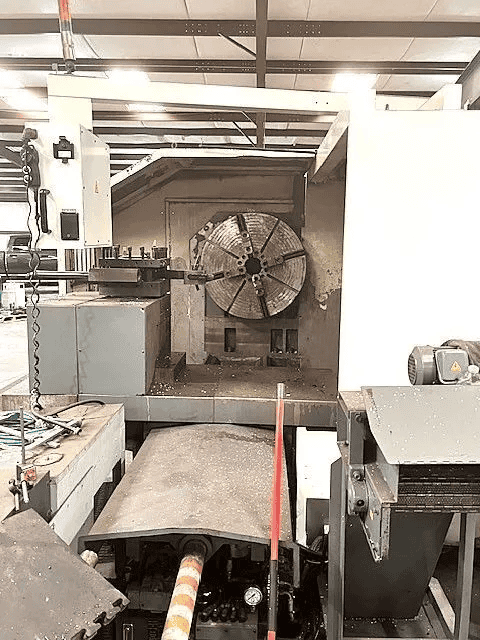

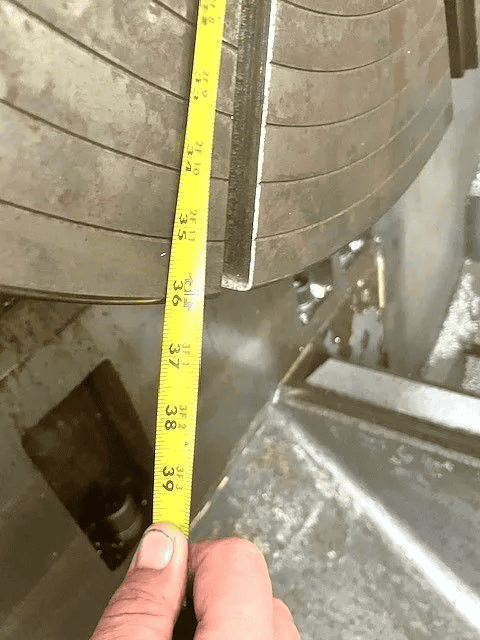

| 36″ 4 Jaw Manual Chuck |
| 6.0″ Bore A2-11 Spindle |

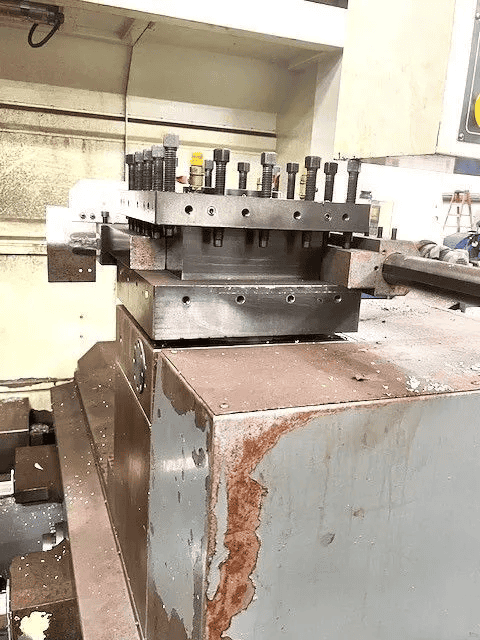

| H4 Turret – 4 Stations |
| MPG Handwheel Control |
| Coolant System |

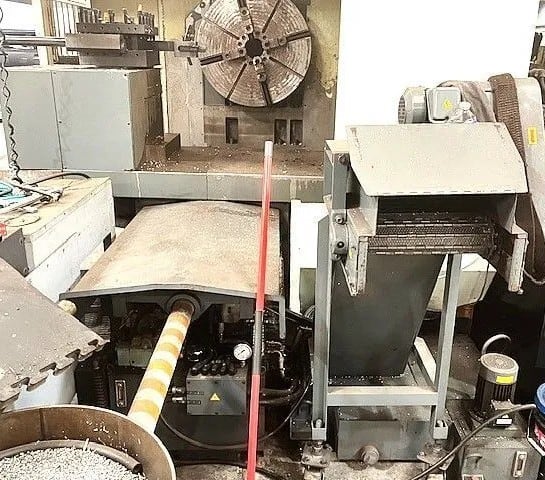

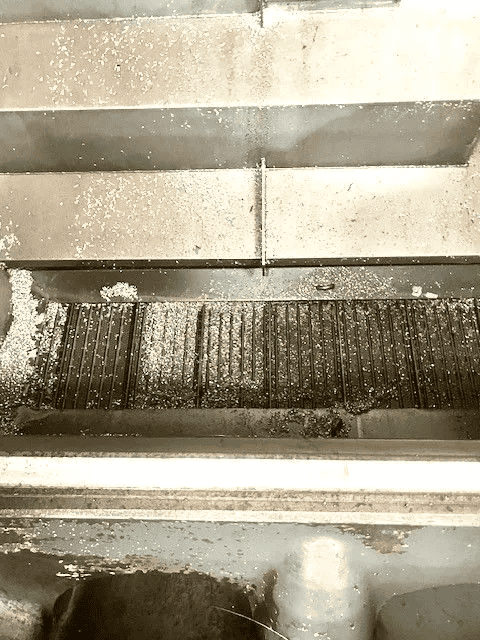

| Chip Conveyor |

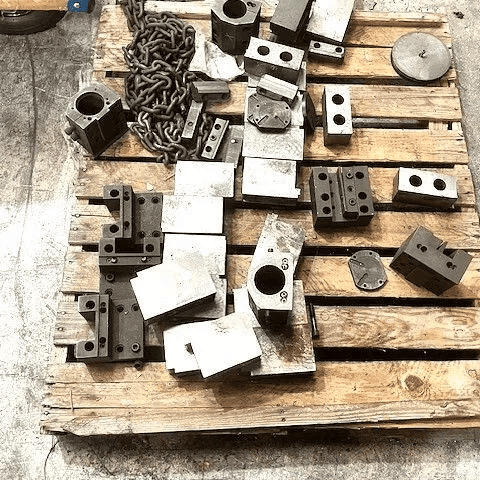

| Optional Face Plate Fixture and Tooling available |
| Capacity: |
|---|
| Swing Over Bed: 39.3″ |
| Swing Gap: 60″ |
| Center Height: 20.4″ |
| Width of Bed: 23.6″ |
| Width of Cross Slide: 20.7″ |
| Width of Carriage: 34.8″ |
| Max Turning Length: 47.24″ |
| Travels: |
|---|
| X-Axis: 25.0″ |
| Z-Axis: 53.5″ |
| Rapid Traverse X Axis: 236 IPM |
| Rapid Traverse Z Axis: 236 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 6.0″ |
| Spindle Speed: 11 – 600 RPM |
| Spindle Motor: 60 HP |
| Turret: |
|---|
| Turret Type: H4-350 Hydraulic |
| Tool Size: 1.25″ x 1.25″ |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Overall Dimensions: 226″ x 96″ x 116″ High Approx. |
| Weight : 25,500 lbs Approx. |
