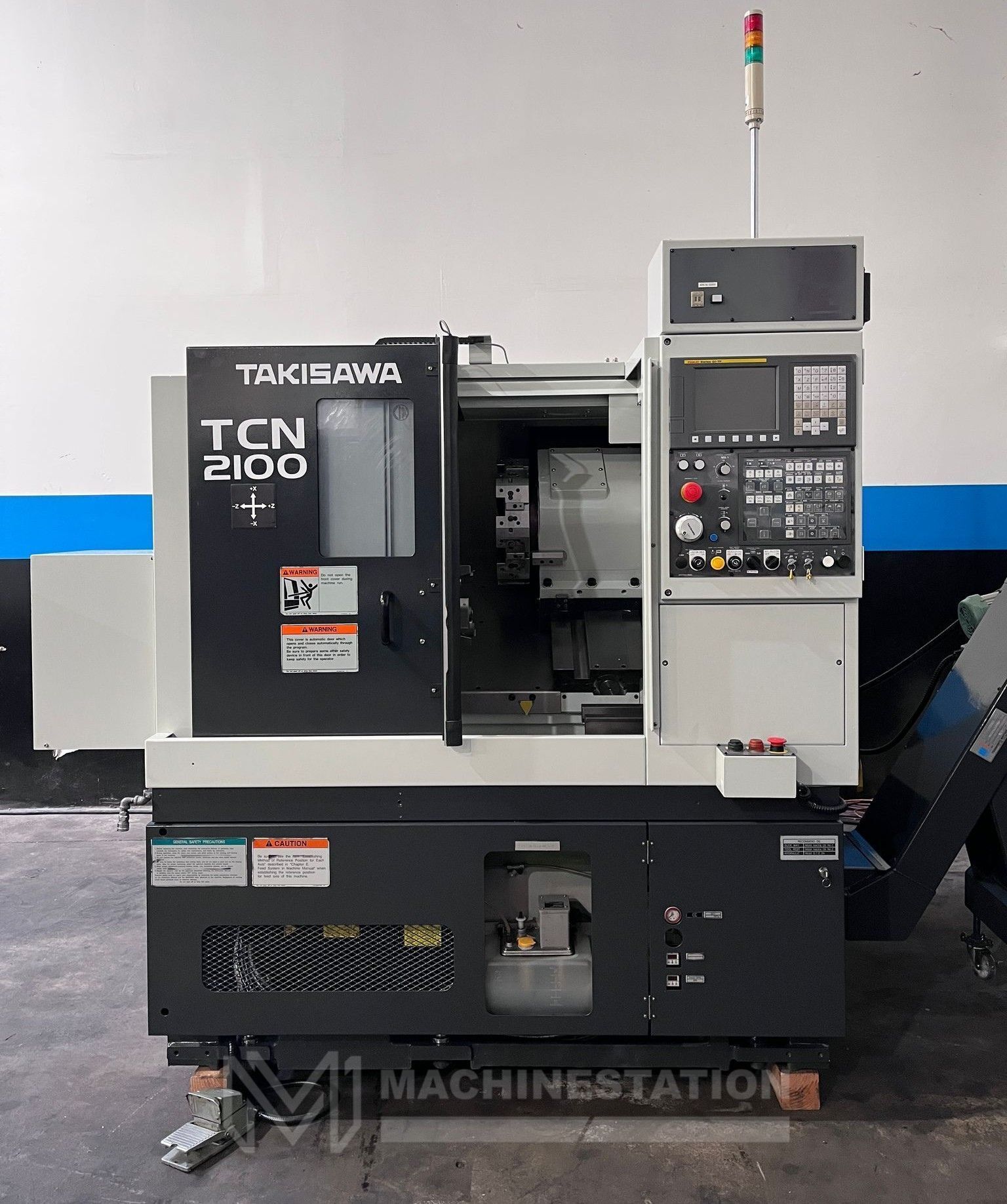

Takisawa TCN-2100 L3 CNC Turning Center- Lathe

Reserve your machine at: $999

$999

In stock
SKU:112870
Make/Model:Takisawa TCN-2100 L3
Year:2016
Condition:Used – Good
SKU: 112870

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Takisawa
Model:TCN-2100 L3
Year:2016
Condition:Used – Good



Features:
  • Fanuc Oi-TF CNC Control
  • 2,610 Hours Cutting Time
  • 8-Station Automatic Turret
  • PCMCIA Card & USB Drive Interface
  • Rigid Tapping
  • Coolant System
  • Automatic Lubrication System
  • Made in Japan
  • 8” 3-Jaw Kitagawa PU-208 Pull Lock Power Chuck
  • Foot Switch
  • Chip Conveyor



Capacity:
  • Max Turning Diameter: 15.75″
  • Max Turning Length: 11.81″
  • Swing Over Bed: 15.75″
  • Max Bar Capacity: 2.00″



Travels:
  • X Axis Travel: 9.05″
  • Z Axis Travel: 13.5″
  • Rapid Traverse X Axis: 945 IPM
  • Rapid Traverse Z Axis: 1181 IPM



Spindle:
  • Spindle Nose: A2-6
  • Spindle Bore: 2.5″
  • Spindle Speed: 3200 RPM
  • Spindle Motor: 15 HP



Turret:
  • Turret Capacity: 8 Stations
  • Turning Tool Shank: 1″
  • Boring Bar Shank Diameter: 1.5″
  • Tool Holders Type: BMT



General:
  • Power Source: AC 208 V, Three Phase, 50/60 Hz
  • Power Requirement: 15 kva
  • Overall Dimensions: 69″ x 60″ x 67″ High Approx.
  • Weight: 5,952 lbs Approx.
  • Finance Application
