*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

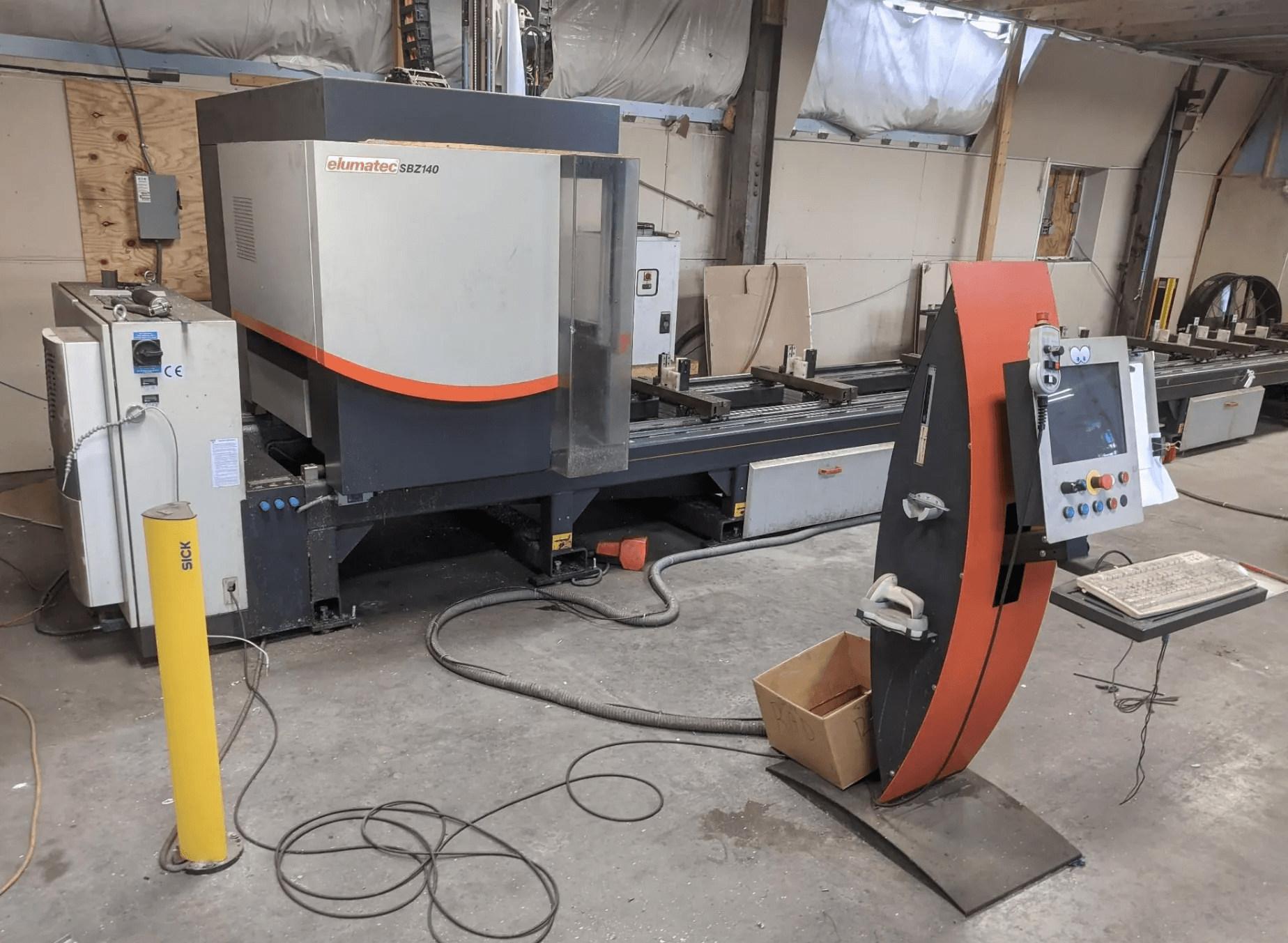

| Make: | Elumatec |
| Model No.: | SBZ 140 |
| Year: | 2008 |
| Condition: | Used – Good |
| Machine Type: | 4-Axis CNC Machining Center |
| Control: | Elumatec CNC Control |
| Country of Origin: | Germany |
| Features: |
|---|
| 4-Axis CNC Machining Capability |
| Automatic Length Measuring System |
| Rotary Angle Head 4×90 122/30 |
| Turning Device |
| Seat for Angle Head |
| Barcode Scanner |
| Quick Action Chuck |
| Collet Holder 077 |
| Collet Holder ER32 |
| Assorted Collets 077 |
| Assorted Collets ER16 |
| Automatic Lubrication System |
| Safety Light Curtains |
| Full Enclosure |
| Travels: |
|---|
| X-Axis Travel: 31.82′ |
| Y-Axis Travel: 4.59′ |
| Z-Axis Travel: 2.62′ |
| C-Axis Rotation: ±180° |

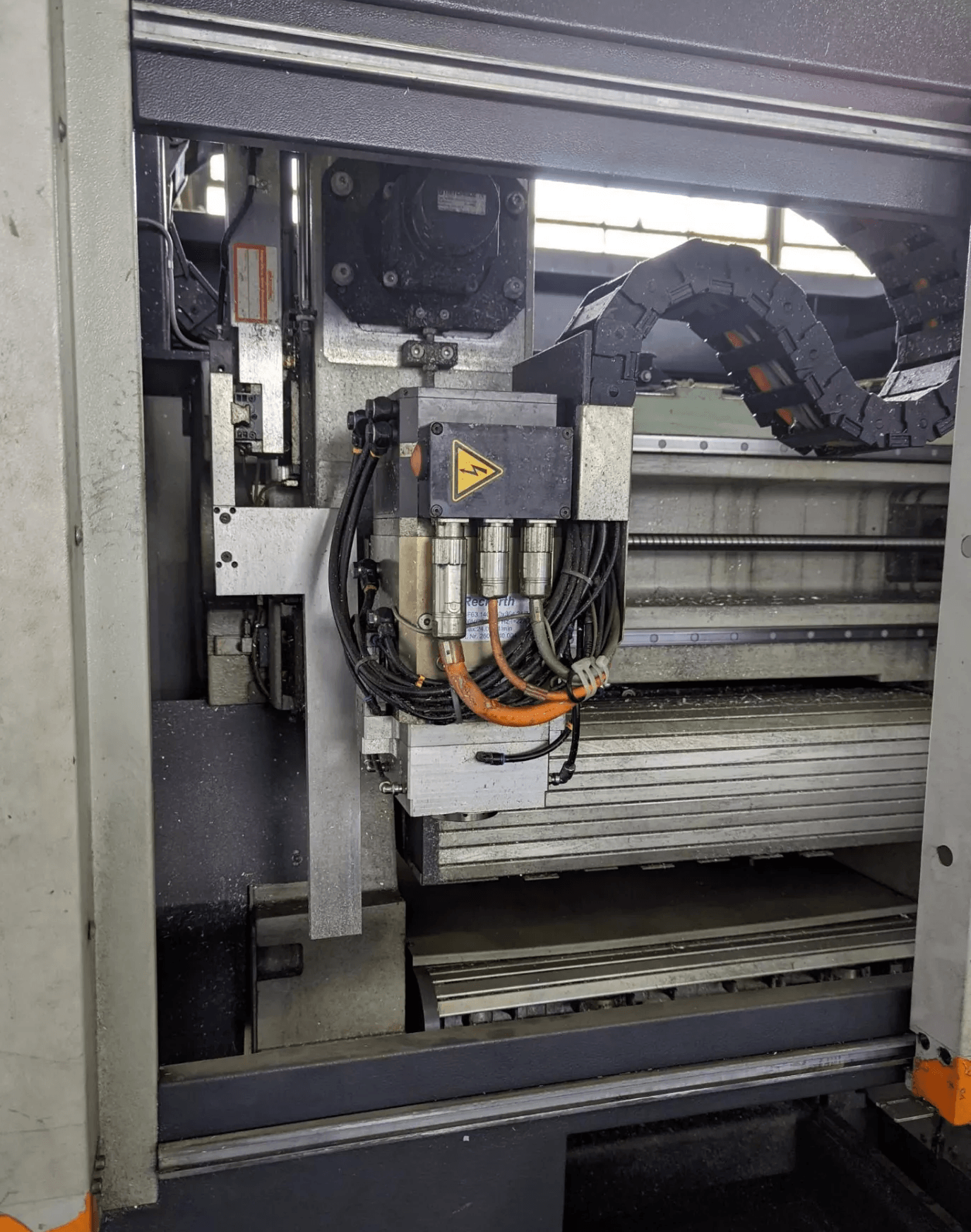

| Spindle: |
|---|
| Spindle Speed: 24,000 RPM |
| Spindle Motor: 10.04 HP |
| High-Speed Spindle |
| Capacity: |
|---|
| Maximum Profile Length (With Profile Gripper): 30.18′ |
| Maximum Profile Cross Section: 9.45″ x 9.45″ |
| Maximum Machining Length in Single Positioning: 11.98′ |
| Minimum Profile Length: 7.87″ |
| Maximum Profile Weight: 220 lbs |
| Feed Rates: |
|---|
| Feed Rate: 0 – 196.85 FPM |
| Tool Changer: |
|---|
| Tool Capacity: 8 Tools |
| Maximum Tool Diameter: 7.87″ |
| Maximum Tool Length: 9.84″ |
| Maximum Tool Weight: 6.6 lbs |
| Tool Change Time: 8 Seconds |
| General: |
|---|
| Electrical: 400V / 50Hz / 3 Phase |
| Air Pressure Required: 102 PSI |
| Dust Extraction Port Diameter: 6″ |
| Maximum Power Consumption: 21 kW |
| Overall Dimensions: 45.6′ L x 9.2′ W x 9.2′ H |
| Machine Weight: 14,330 lbs |
